Page 1009 of 2189

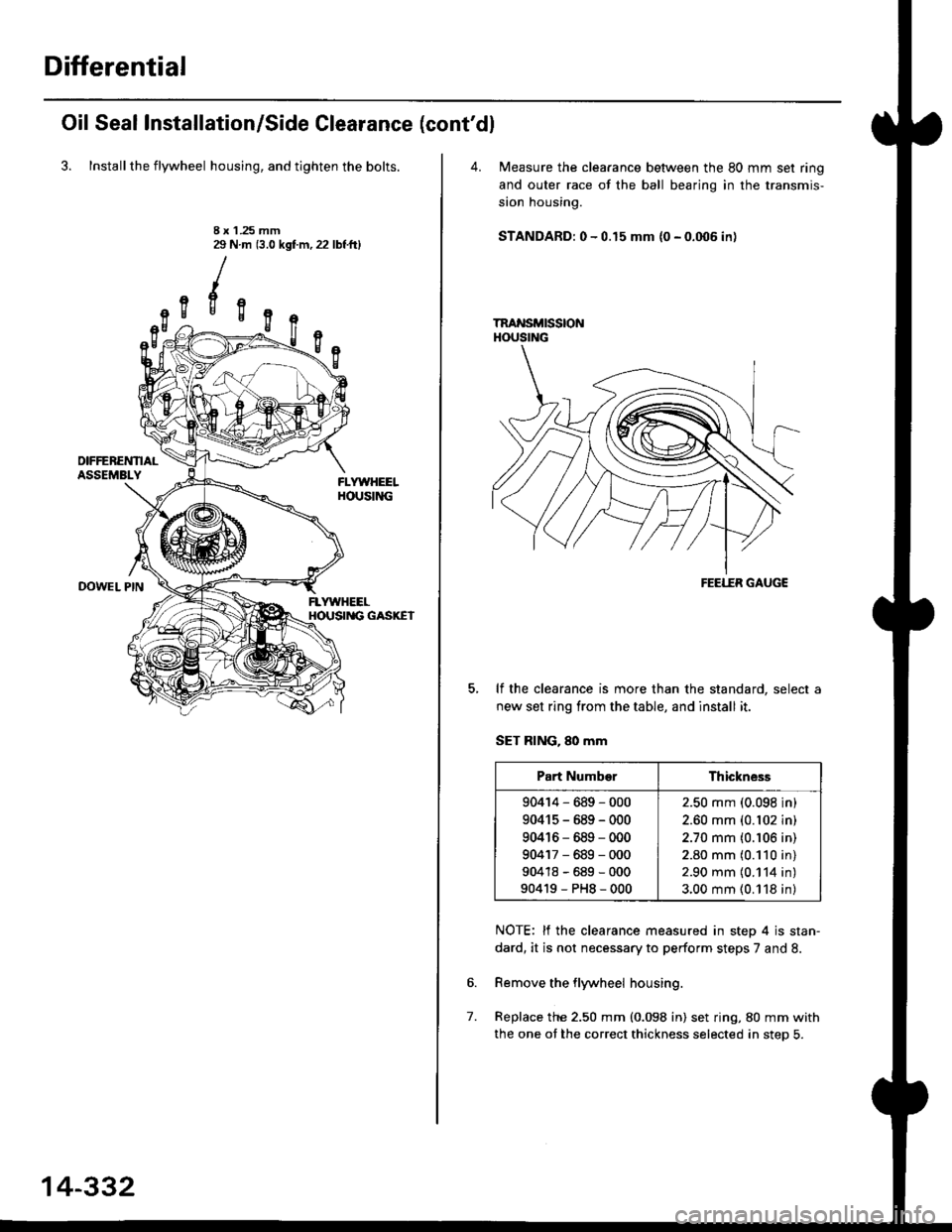

HONDA CIVIC 1997 6.G Workshop Manual Differential
Oil Seal Installation/Side Clearance (contdl
3. Installthe flywheel housing, and tighten the bolts.
DOWEL PIN
1 .25 mmN m (3.0 kgt m,22 lbf.ttl8x29
uigE
14-332
4. Measure the clea.ance b

Page 1010 of 2189

HONDA CIVIC 1997 6.G Workshop Manual Flywheel Housing
Input Shaft Oil Seal
l.
8. Install the oil seal in the transmission housing using
the sDecial tools as shown.
DRIVER07749 - 0010d)0
9.Install the oil seal in the flywheel housing usin

Page 1011 of 2189

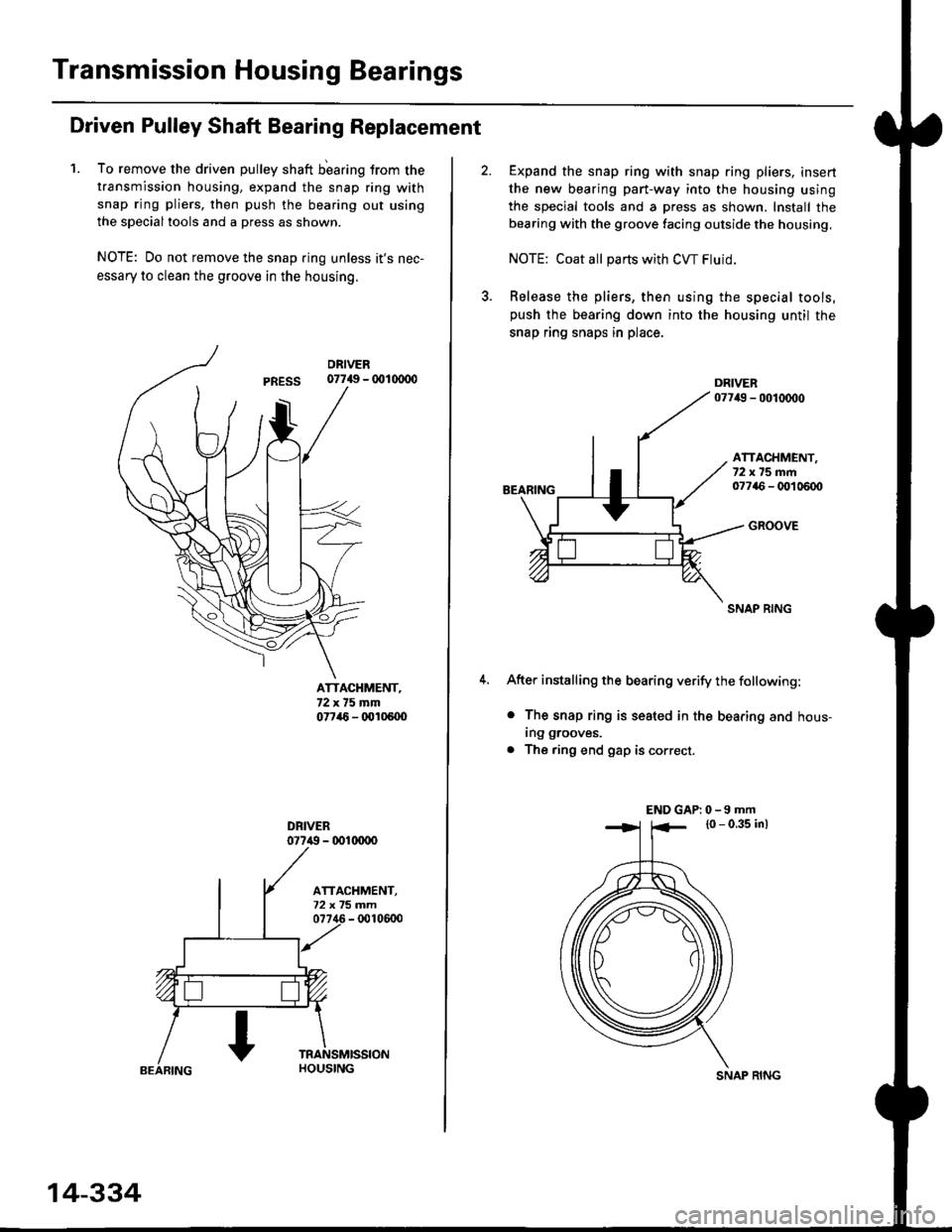

HONDA CIVIC 1997 6.G Workshop Manual Transmission Housing Bearings
Driven Pulley Shaft Bearing Replacement
1. To remove the driven pulley shaft bearing trom the
transmission housing, expand the snap ring with
snap ring pliers, then push

Page 1012 of 2189

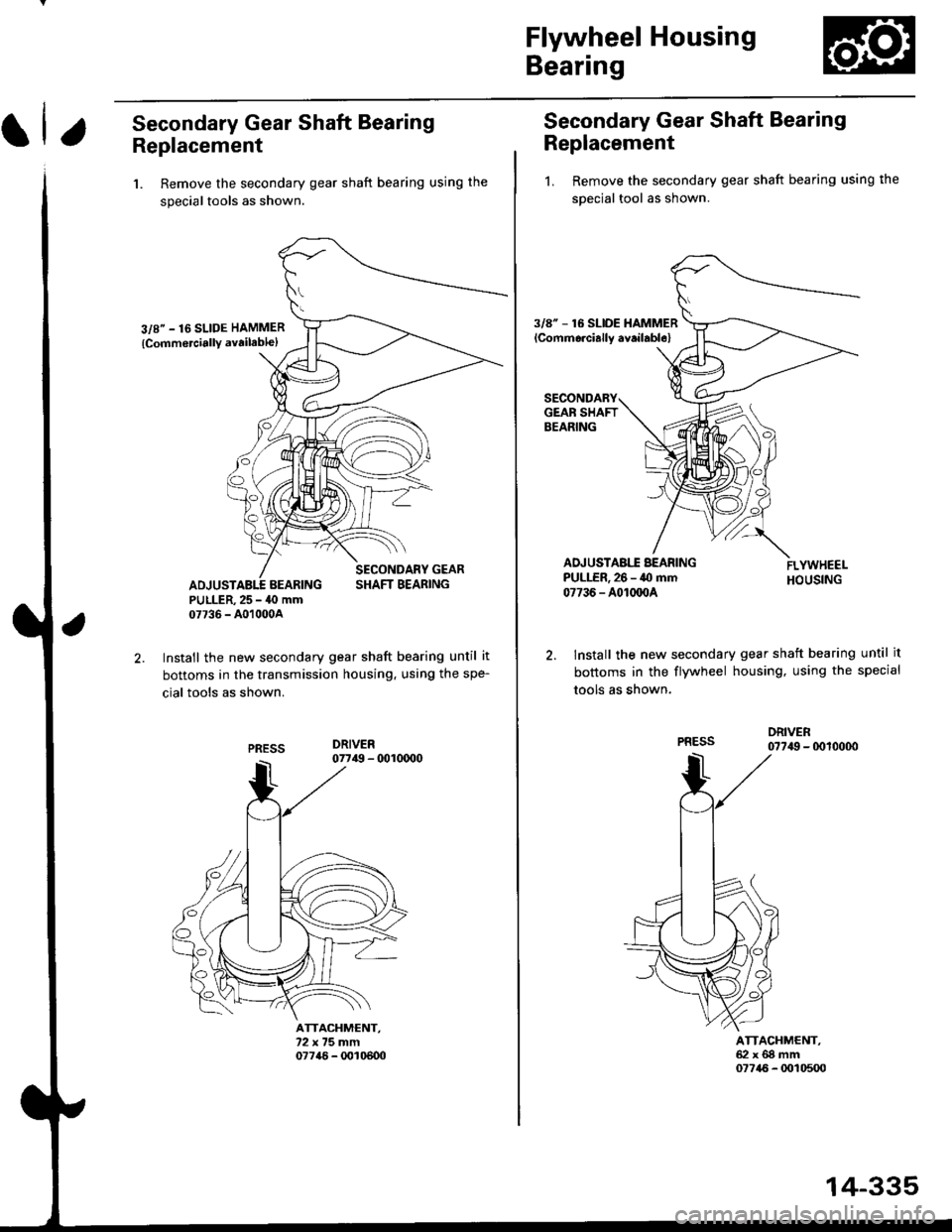

HONDA CIVIC 1997 6.G Workshop Manual Flywheel Housing
Bearing
Secondary Gear Shaft Bearing
Replacement
1. Remove the secondary gear shaft bearing using the
special tools as shown.
3/8" - 16 SLIDE HAMMER
{Comm6rciallY availablel
SECONDARY

Page 1013 of 2189

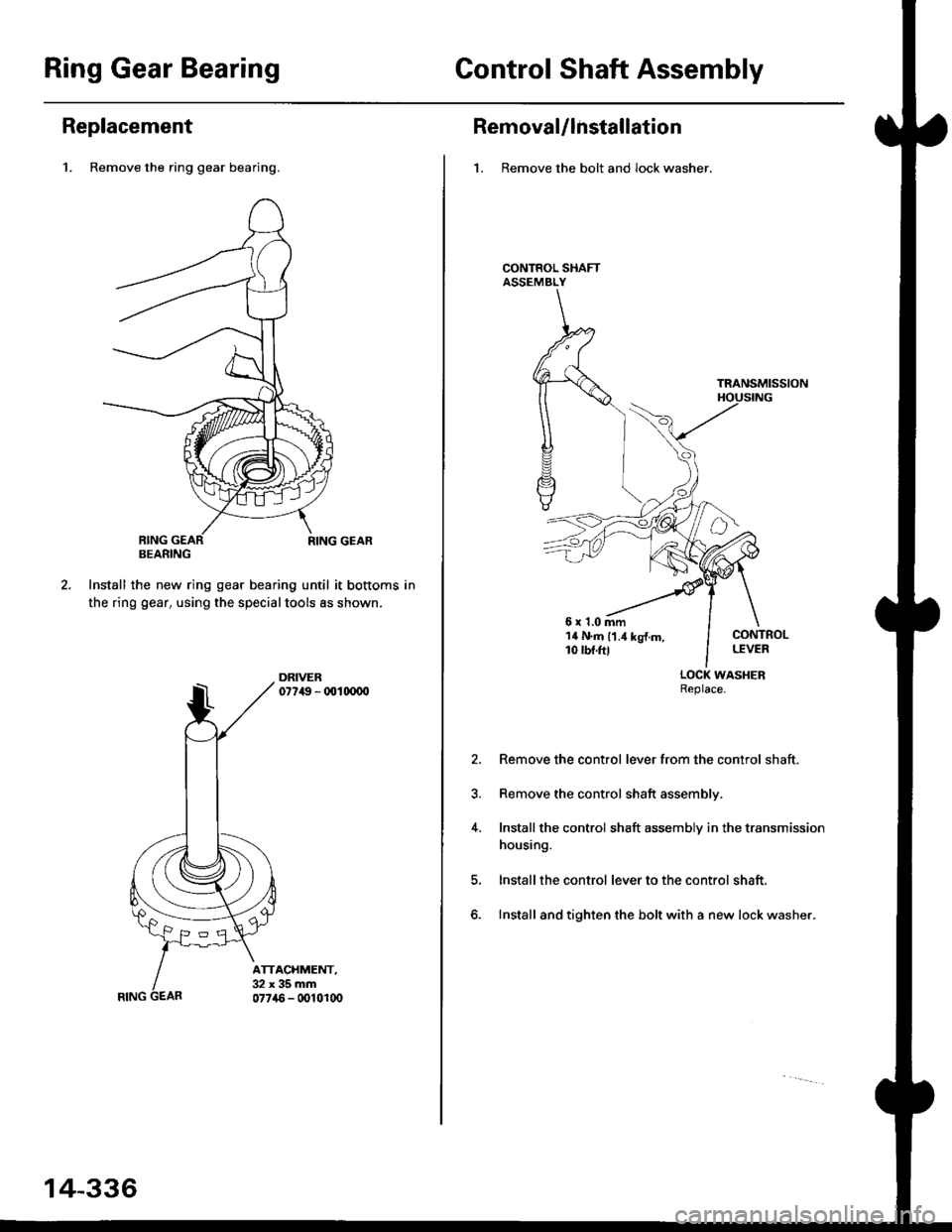

HONDA CIVIC 1997 6.G Workshop Manual Ring Gear BearingControl Shaft Assembly
Replacement
1. Remove the ring gear bearing.
RING GEAR
Install the new ring gear bearing until it bottoms in
the ring gear. using the specialtools as shown,
DRI

Page 1014 of 2189

HONDA CIVIC 1997 6.G Workshop Manual Transmission
Reassembly
CAUTION: While reassembling. be sure not to sllow dust and othor foreign particles to enter into the transmission.
NOTE:
. Coat all parts with CVT Fluid.
. Replace the followin

Page 1015 of 2189

HONDA CIVIC 1997 6.G Workshop Manual 1.
7.
lnstall the ATF feed pipe in the transmission hous-
ing, and install the three ATF feed pipes with new
O-rings in the transmission housing,
Install the two dowel pins and new transmission hous-

1.
7.
lnstall the ATF feed pipe in the transmission hous-
ing, and install the three ATF feed pipes with new
O-rings in the transmission housing,
Install the two dowel pins and new transmission hous-
ing gasket on the transmission housing.
Push the control shaft assembly toward the outside
of the transmission housing, then install the inter-
mediate housing assembly (four bolts).
lnstall the manual valve body separator plate and
the two dowel pins on the intermediate housing,
then install the rnanual valve body with the detent
spring (five bolts).
Put the control shaft assembly back, then install the
roller in the intermediate housing.
lnstall the reverse brake piston in the intermediate
housing.
Install the spring retainer/return spring assembly on
the reverse brake Piston.
NOTE: Installthe return springs on the spring guides
of the reverse brake piston securely
tnstall the special tool to compress the return spring
as shown.
REVERSE BRAKESPRING COMPRESSOR07TAE - P4V0110
6.
L
1
CAUTION: lf the spring retainer tab is on the reverse
brakc piston, the spring rstainer may be damaged'
Be sure the spring retainer tab is not on the piston'
rp
SPECIALTOOL REVERSEBRAKE
-^
14-339
10.
9.
14.
Compress the return springs, then install the snap
ring in the intermediate housing above the spring
retainer.
Verify that the snap ring end gap is correct'
Mini
/,,- '-t,,,,.
// \i/ ',r
'1 ,
.r' //'/. .-J?RINGSNAP
mum 15 mm 10.59 in)
Soak the reverse brake discs thoroughly in CVT
Fluid for minimum 30 minutes.
Installthe disc spring on the reverse brake piston'
Starting with a reverse brake plate, alternately
install the reverse brake plates and discs lnstall the
reverse brake end plate, and the snap ring'
Measure the clearance between the reverse brake
end plate and the top disc with a dial indicator' Zero
the dial indicator with a reverse brake end plate
lowered, and lift it up to the snap ring The distance
that the reverse brake and plate moves is the clear-
ance between the reverse end plate, and the top
disc.
NOTE: Take measurements in at least three places'
and use the average as the actual clearance'
STANDARD: 0.45 - 0.75 mm (0.018 - 0'030 in)
{cont'd)
11.
12.
13.

Page 1016 of 2189

HONDA CIVIC 1997 6.G Workshop Manual Transmission
16.
Reassembly (contdl
21.
17.
lf the clearance is not within the standard, remove thereverse brake end plate and measure its thickness.Select and install a new reverse brake end Dlate.t
