1997 FORD WINDSTAR Owners Manual

Maintenance and Care
329
%*
[MC38700(ALL)04/96]
Cleaning Your Vehicle
%*
[MC38800(ALL)01/96
]
Washing and Polishing Your Vehicle
*
[MC38900(ALL)01/96]
Wash the outside of your vehicle, including the underside, with
a mild detergent.
*
[MC39000(ALL)01/96]
DO NOT:
*
[MC39100(ALL)01/96]
n
Wash your vehicle with hot water
*
[MC39200(ALL)01/96]
n
Wash your vehicle while it sits in direct sunlight
*
[MC39300(ALL)01/96]
n
Wash your vehicle while the body is hot
*
[MC39400(ALL)01/96]
Pollen, bird droppings and tree sap can damage the paint,
especially in hot weather. Wash your vehicle as often as
necessary to keep it clean.
*
[MC39500(ALL)01/96]
Take similar precautions if your vehicle is exposed to chemical
industrial fallout.
*
[MC39600(ALL)01/96]
Paint damage resulting from fallout is not related to a defect in
paint materials or workmanship and therefore is not covered by
warranty. Ford, however, believes that continual improvement
in customer satisfaction is a high priority. For this reason, Ford
has authorized its dealers to repair, at no charge to the owner,
the surfaces of new vehicles damaged by environmental fallout
within 12 months or 12,000 miles (20,000 km) of purchase,
whichever comes first. Customers may be required to bring their
vehicle in for inspection by a Ford representative.
*
[MC39700(ALL)01/96]
Polish your vehicle to remove harmful deposits and protect the
finish.
File:11wnmcs.ex
Update:Mon Jul 8 14:29:32 1996

330
%*
[MC39800(ALL)01/96
]
Cleaning Chrome and Aluminum Parts
*
[MC39900(ALL)12/95]
Wash chrome and aluminum parts with a mild detergent. Do
not use steel wool, abrasive cleaners, fuel, or strong detergents.
%*
[MC40000(ALL)01/96
]
Cleaning Plastic Parts
*
[MC40100(ALL)01/96]
Some of your vehicle's exterior trim parts are plastic. Clean with
a tar and road oil remover if necessary. Use a vinyl cleaner for
routine cleaning.
*
[MC40200(ALL)01/96]
Do not clean plastic parts with thinners, solvents or
petroleum-based cleaners.
%*
[MC40300(ALL)01/96
]
If you have your vehicle rustproofed, remove oversprayed
rustproofing with a tar and road oil remover. If rustproofing is
not removed from plastic and rubber parts, it can cause
deterioration.
%*
[MC40400(ALL)02/96
]
Cleaning the Safety Belts
*
[MC40500(ALL)02/96]
Clean the safety belts with any mild soap solution that is
recommended for cleaning upholstery or carpets. Do not bleach
or dye the belt webbing because this may weaken it.
*
[MC40600(ALL)01/96]
Your Built-In Child Seat may be cleaned with mild soap and
water. Do not use household cleaners as they may weaken the
webbing or damage the plastic parts. For your convenience, the
liner can be removed, machine-washed, and air-dried.
File:11wnmcs.ex
Update:Mon Jul 8 14:29:32 1996

Maintenance and Care
331
*
[MC40700(ALL)05/96]
Cleaning the Instrument Panel Lens
*
[MC40800(ALL)01/96]
Clean the instrument panel lens with a soft cloth and a glass
cleaner, such as Ford Ultra-Clear Spray Glass Cleaner, or
equivalent. Do not use paper towel or any abrasive cleaner to
clean the lens as these may cause scratches.
%*
[MC40900(ALL)01/96
]
Cleaning the Exterior Lamps
*
[MC41000(ALL)01/96]
Do not use dry paper towel, chemical solvents or abrasive
cleaners to clean the lamps, as these may cause scratches or
crack the lamps.
%*
[MC41100(ALL)02/96
]
Cleaning the Interior Lamps
*
[MC41200(ALL)02/96]
Your interior dome lamps and map lamps are plastic and
should be cleaned with a mild detergent diluted in water. Rinse
them with clear water.
File:11wnmcs.ex
Update:Mon Jul 8 14:29:32 1996

332
%*
[MC41300(ALL)03/96
]
Cleaning the Seats
*
[MC41400(ALL)01/96]
Leather and vinyl
[MC41500(ALL)01/96]
For routine cleaning, wipe the surface with a soft, damp cloth.
For more thorough cleaning, wipe the surface with a leather
cleaner of a mild soap.
%*
[MC41600(ALL)05/96
]
Fabric
*
[MC41700(ALL)05/96]
Remove dust and loose dirt with a whisk broom or a vacuum
cleaner. Remove fresh spots immediately. Follow the directions
that come with the cleaner.
*
[MC41800(ALL)05/96]
NOTE: Before using any cleaner, test it on a small, hidden
area of fabric. If the fabric's color or texture is
adversely affected by a particular cleaner, do not use
it.
%*
[MC41900(ALL)03/96
]
Cleaning the Wheels
*
[MC42000(ALL)03/96]
Wash the wheels with the same detergent you use to wash your
vehicle's body. Do not use acid-based wheel cleaners, steel wool,
abrasives, fuel, or strong detergents. These substances will
damage protective coatings. Use tar and road oil remover to
remove grease and tar.
File:11wnmcs.ex
Update:Mon Jul 8 14:29:32 1996

333
Capacities and Specifications
%*
[CS00200(ALL)01/96]

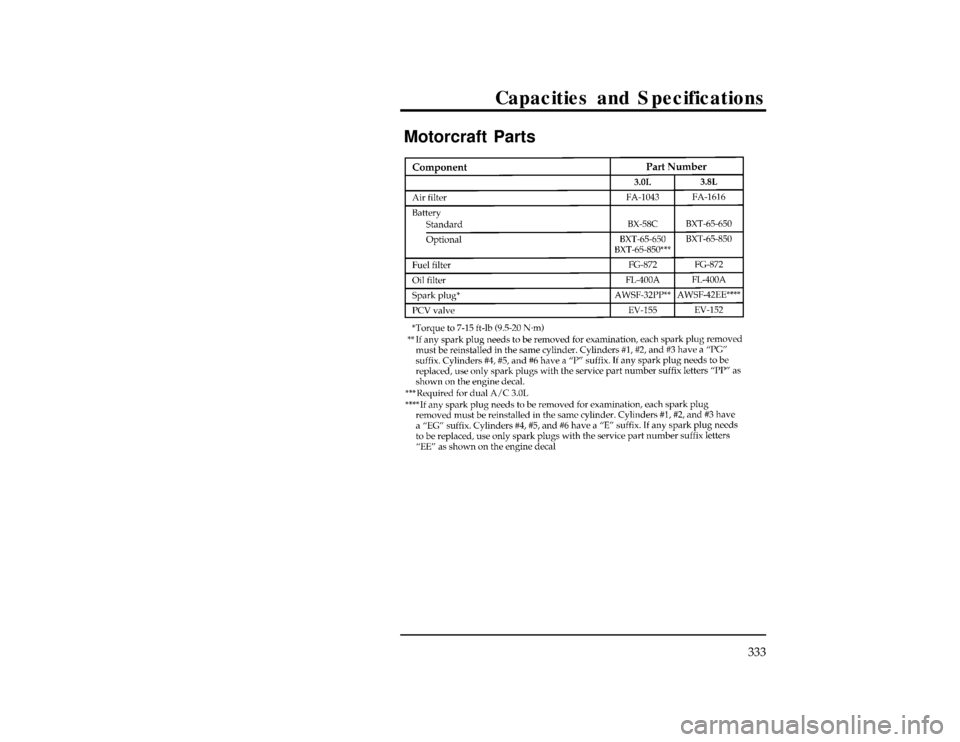

Motorcraft Parts
% [CS00300(ALL)01/96]
twenty pica
chart:0050067-HFile:12wncss.ex
Update:Thu Jul 18 11:01:58 1996

334
% [CS00400(ALL)07/96]

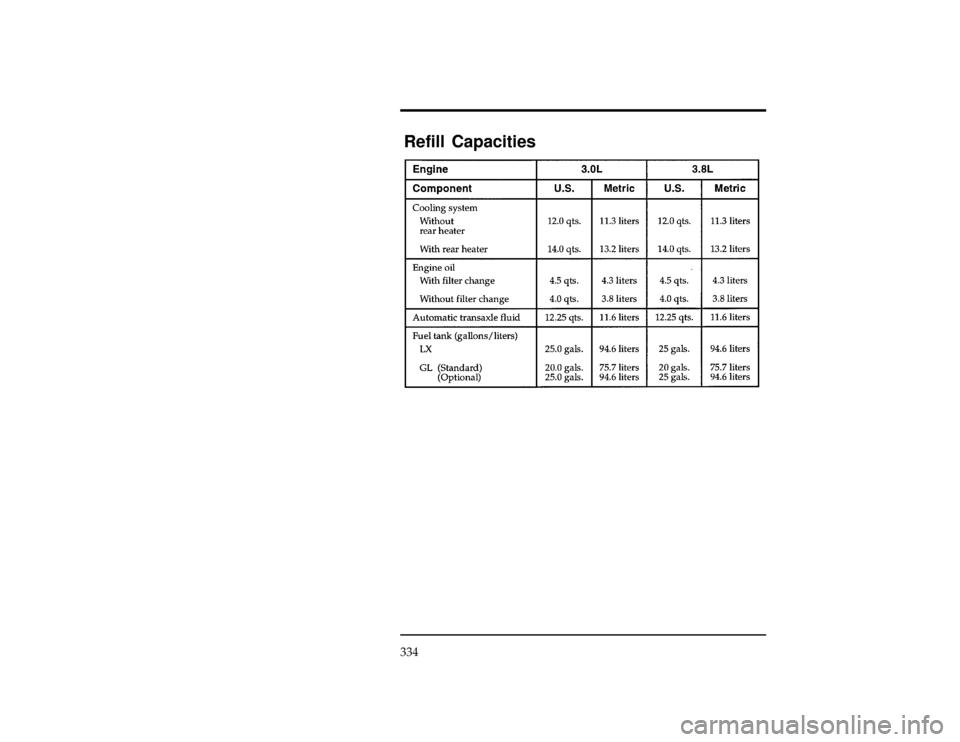

Refill Capacities
[CS00500(ALL)01/96]
eighteen pica
chart:0050068-EFile:12wncss.ex
Update:Thu Jul 18 11:01:58 1996

Capacities and Specifications
335
%*
[CS00600(ALL)01/96]

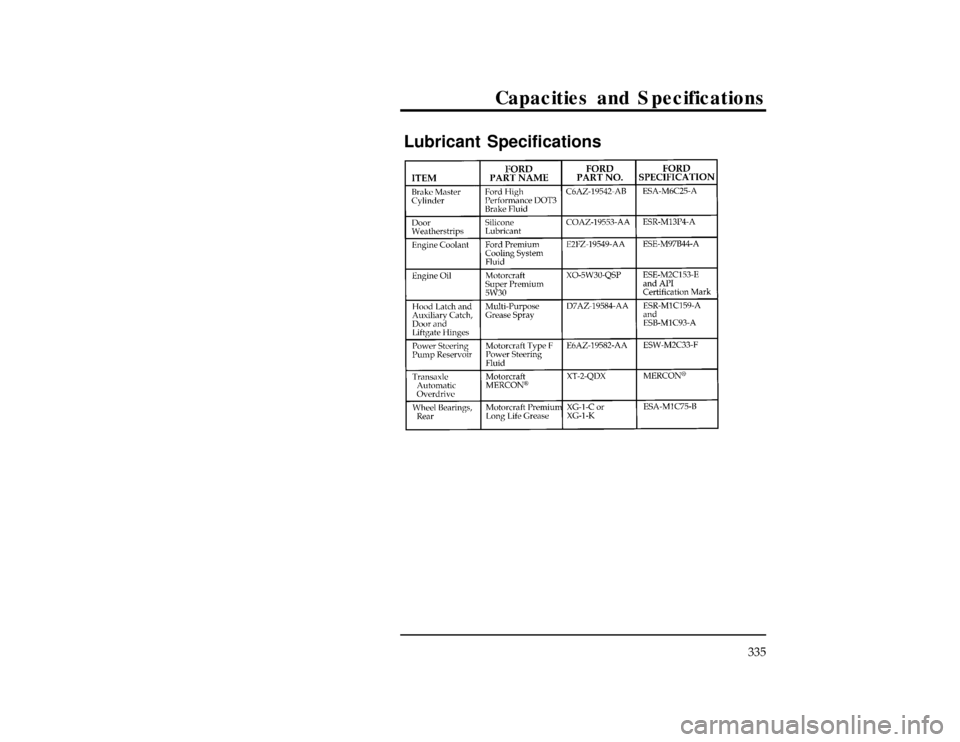

Lubricant Specifications
% [CS00700(ALL)07/96]
twenty-two pica
chart:0050066-FFile:12wncss.ex
Update:Thu Jul 18 11:01:58 1996

336
%*
[CS00800(ALL)01/96]
Vehicle Storage
*
[CS00900(ALL)01/96]
Maintenance Tips
*
[CS01000(ALL)01/96]
If you plan on storing your vehicle for an extended period of
time (60 days or more), refer to the following maintenance
recommendations to keep your vehicle in good operating
condition.
*
[CS01100(ALL)01/96]
General
*
[CS01200(ALL)01/96]
n
Store your vehicle in a dry, ventilated place.
*
[CS01300(ALL)01/96]
n
Protect from sunlight, if possible.
*
[CS01400(ALL)01/96]
n
When your vehicle is stored outside, it will require regular
maintenance to protect against rust and damage.
*
[CS01500(ALL)01/96]
Body
*
[CS01600(ALL)01/96]
n
Wash your vehicle thoroughly to remove dirt, grease, oil, tar
or mud from exterior surfaces, rear wheel housings and
underside of front fenders.
*
[CS01700(ALL)01/96]
n
Touch-up raw or primed metal to prevent rust.
*
[CS01800(ALL)01/96]
n
Cover chrome and stainless steel parts with a thick coat of
auto wax to prevent discoloration. Re-wax as necessary when
your vehicle is washed.
[CS01900(ALL)01/96]
n
Lubricate all hood, door and liftgate hinges and latches with
a light grade oil.
*
[CS02000(ALL)01/96]
n
Cover interior soft trim to prevent fading.
*
[CS02100(ALL)01/96]
n
Keep all rubber parts free from oil and solvents.
File:12wncss.ex
Update:Thu Jul 18 11:01:58 1996
