1997 FORD WINDSTAR Owners Manual

RoadsideEmergencies
273
WARNING
To protec tyoursel fwhe nchargin gabattery ,always
WARNING
Applyin gtoo muc hpressur eon theend swhe nliftin ga
WARNING
Batterie scontai nsulfuri caci dwhic hburn sskin ,eyes,

274
WARNING
Do no tconnec tth een dof th esecon dcabl eto the

Roadside Emergencies
275
[ER14300(ALL)01/96]
24 pica art:0050022-B

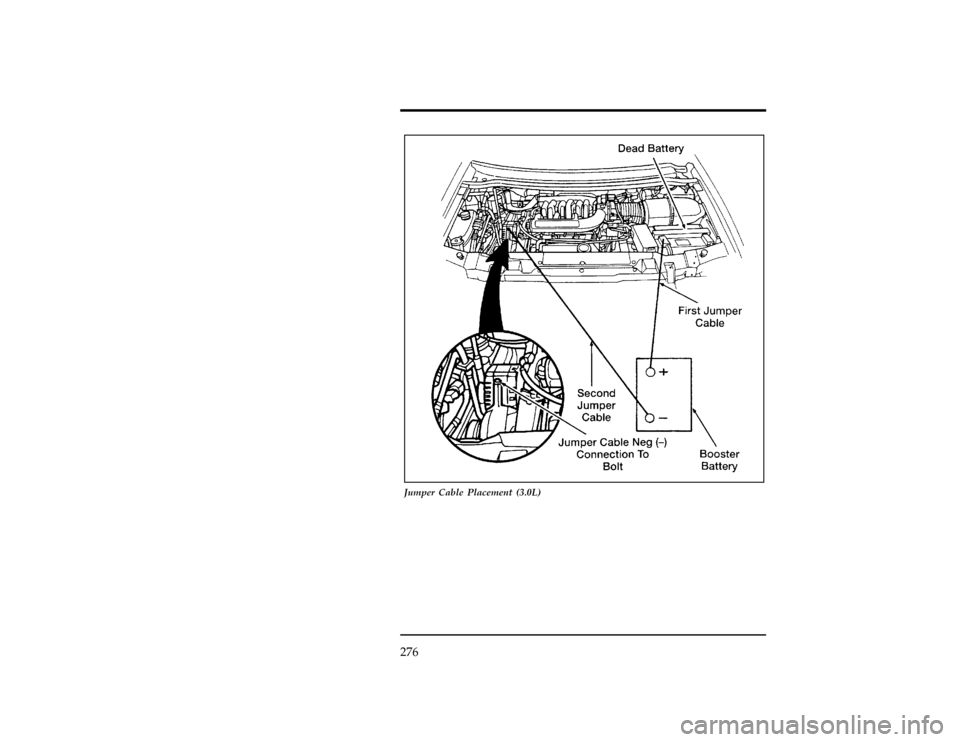

Jumper Cable Placement (3.8L)
File:10wners.ex
Update:Tue Jul 9 12:14:55 1996

276
[ER14400(ALL)01/96]
24 pica art:0050259-B

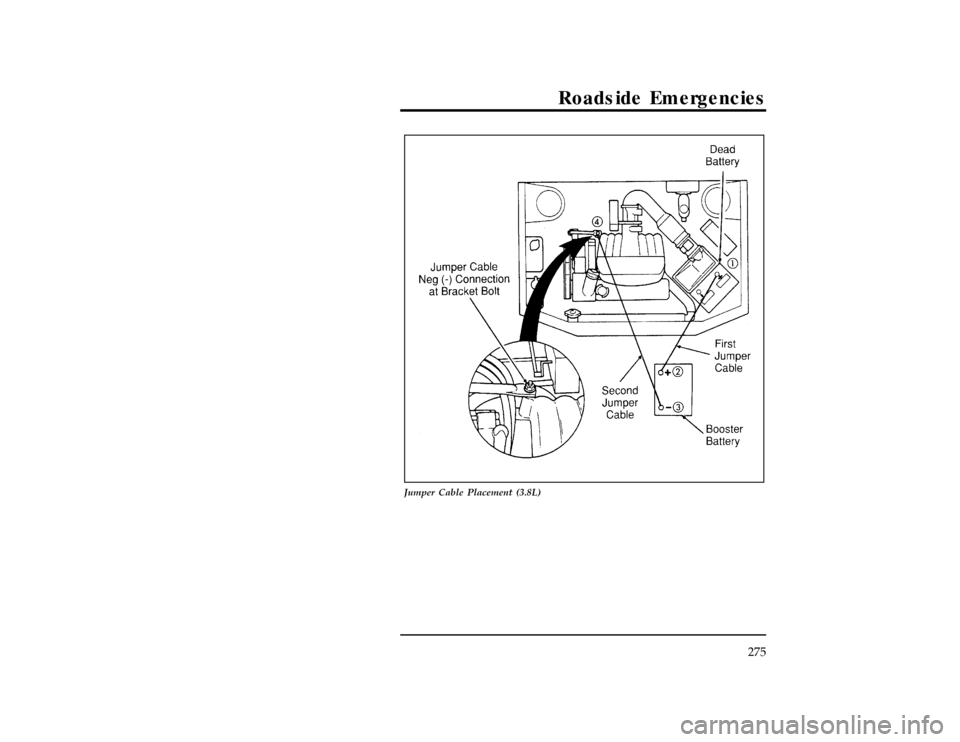

Jumper Cable Placement (3.0L)
File:10wners.ex
Update:Tue Jul 9 12:14:55 1996

Roadside Emergencies
277
[ER14500(ALL)01/96]
After you connect the jumper cables to the batteries:
[ER14600(ALL)04/96]1.
Make sure that the jumper cables are not in the way of
moving engine parts, then start the vehicle that has the
booster battery. Run the engine at a moderate speed.
[ER14700(ALL)01/96]2.
Let the dead battery charge for a few minutes and then start
the vehicle that has the dead battery. If the starter does not
crank, check for good, solid jumper cable clamp attachments.
It may take a couple of tries before your vehicle starts. If
your vehicle does not start after several attempts, you may
have a different mechanical problem.
[ER14800(ALL)04/96]3.
When both vehicles are running, let them idle for a few
minutes to charge the dead battery.
% [ER14900(ALL)01/96]
Take the jumper cables off in the following order:
[ER15000(ALL)01/96]1.
Remove the negative (s) end of the jumper cable from the
metallic surface in the engine compartment of the vehicle
that needed a jump-start.
[ER15100(ALL)04/96]2.
Remove the other end of the negative (s) cable from the
booster battery.
*
[ER15200(ALL)02/96]3.
Remove the positive (+) cable from the booster battery.
[ER15300(ALL)04/96]4.
Remove the other end of the positive (+) cable from the
vehicle that needed a jump-start.
% [ER15400(ALL)01/96]
After your vehicle is started, let it idle for a while to let the
engine ªrelearnº its idle conditions and drive it around for a
little while with all electrical accessories turned off, to let the
battery recharge.You may need to use a battery charger to
fully recharge the battery.
File:10wners.ex
Update:Tue Jul 9 12:14:55 1996

278
%*
[ER15500(ALL)04/96]
Towing Your Vehicle
*
[ER15600(ALL)01/96]
If you need to have your vehicle towed, contact a professional
towing service or, if you are a member, your roadside assistance
center.
*
[ER15700(ALL)01/96]
When calling for a tow truck, tell the operator what kind of
vehicle you have. A towing manual is available from Ford
Motor Company for all authorized tow truck operators. Have
your tow truck driver refer to this manual for the proper
hook-up and towing procedures for your vehicle.
File:10wners.ex
Update:Tue Jul 9 12:14:55 1996

279
Maintenance and Care
*
[MC00200(ALL)01/96]
How Ford Makes Servicing Your Vehicle
Easy
*
[MC00300(ALL)01/96]
Ford has two goals for servicing your vehicle.
*
[MC00400(ALL)01/96]1.
When we can, we design parts that do not need to be
serviced.
*
[MC00500(ALL)01/96]2.
We want to make servicing your vehicle as easy as possible.
To help you:
*
[MC00600(ALL)01/96]
n
We highlight do-it-yourself items in yellow in your engine
compartment so that you can find them easily.
*
[MC00700(ALL)03/96]
n
When possible, we design parts that can be replaced without
tools.
[MC00800(ALL)07/96]
n
We give you aMaintenance Schedulebooklet that makes
tracking routine service for your vehicle easy.
*
[MC00900(ALL)01/96]
This chapter tells you about the basic parts that you need to
check and service regularly.
[MC01000(ALL)01/96]
If you need professional servicing, see the chapter onCustomer
Assistancein this Owner Guide.
[MC01100(ALL)01/96]
Check yourWarranty InformationBooklet to find out which parts
are covered.
%*
[MC01200(ALL)01/96]
Precautions When Servicing Your Vehicle
*
[MC01300(ALL)01/96]
Be especially careful when inspecting or servicing your vehicle.
Here are some general precautions for your safety:
[MC01400(ALL)04/96]
n
If you must work with the engine running, avoid wearing
loose clothing or jewelry that could get caught in moving
parts.
*
[MC01500(ALL)01/96]
n
Do not work on a vehicle in an enclosed space with the
engine running, unless you are sure you have enough
ventilation.
File:11wnmcs.ex
Update:Mon Jul 8 14:29:32 1996

280
WARNING
Alwaysse tth eparkin gbrak efull yan dmak esur ethe
WARNING
Alway sremov eth eke yfro mtheignitio nafte ryo uturn
WARNING
Alway sse tth eparkin gbrak efull yan dmak esur ethe
WARNING
Do no twea rloos eclothin gor jewelr ytha tca n ge tcaught
