1997 FORD WINDSTAR instrument panel

7
Instrumentation
%*
[IS00200(ALL)01/96]
The instrument panel (dashboard) on your vehicle is divided
into several different sections. The illustrations on the following
pages show the major parts of the instrument panel that are
described in this chapter. Some items shown may not be on all
vehicles.
*
[IS00300(ALL)05/96]
Your vehicle has one of the following clusters:
[IS00400(ALL)12/95]
n
Mechanical Cluster
[IS00500(ALL)12/95]
n
Mechanical Cluster with a tachometer
[IS00600(ALL)12/95]
n
Electronic Cluster
*
[IS00700(ALL)01/96]
If you are not sure which cluster your vehicle has, check the
diagrams on the following pages.
File:03wniss.ex
Update:Thu Jul 18 10:55:19 1996

8
[IS00800(ALL)01/96]
33-1/2 pica art:0050063-E
The instrument panel
File:03wniss.ex
Update:Thu Jul 18 10:55:19 1996

81
Controls and Features
*
[CF00200(ALL)01/96]
The instrument panel (dashboard) on your vehicle is divided
into several different sections. Illustrations are provided for the
major parts of the instrument panel that are explained in this
chapter. Some items shown may not be on all vehicles.
[CF00300(ALL)01/96]

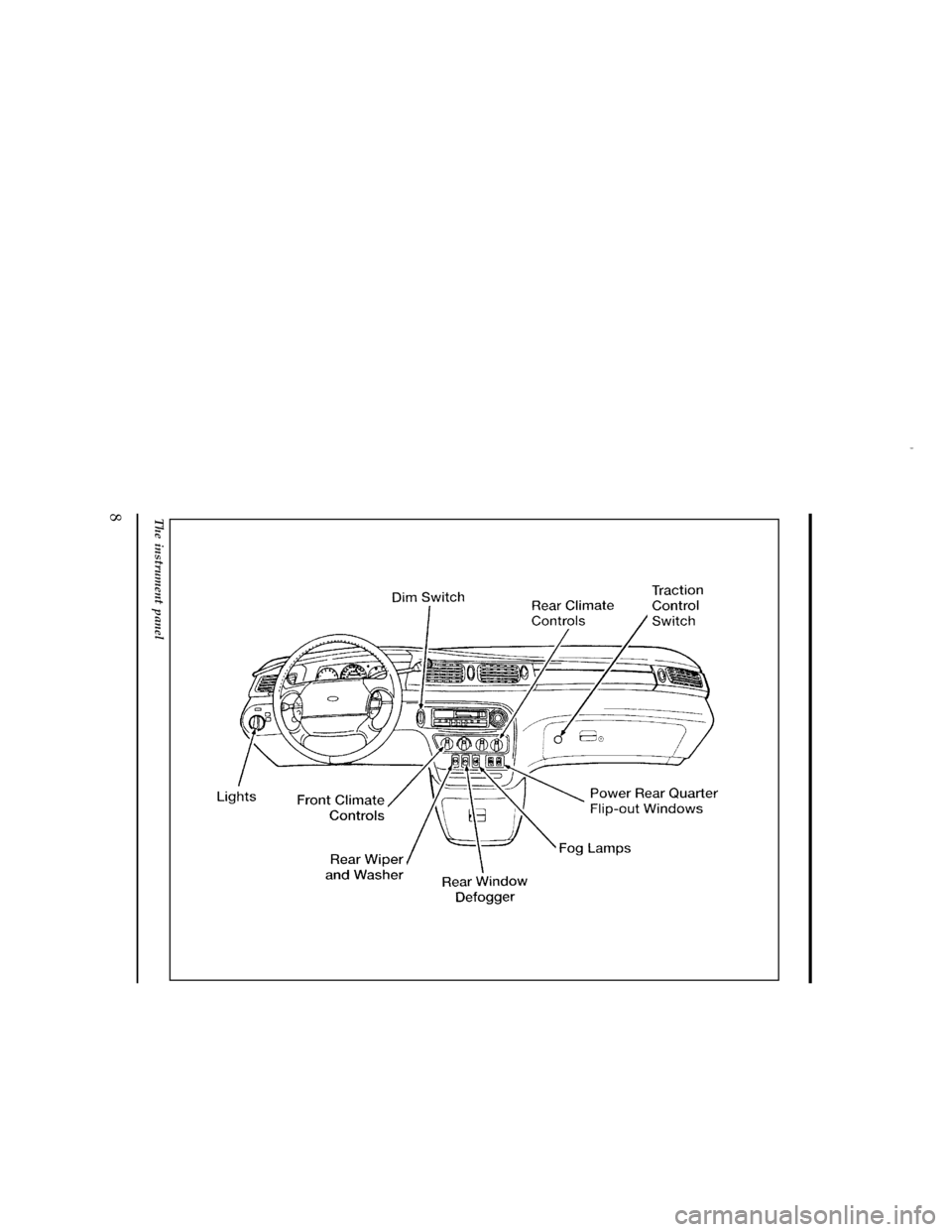

The controls for the climate control systems, headlamps, dim
switch, rear window defogger, fog lamps, power rear quarter
windows, Traction Control, clock/radio and the rear window
washer and wiper are all on the instrument panel.
[CF00310(ALL)04/96]
Your vehicle is designed with innovative and state-of-the-art
features. Understanding how these features work can make
driving your vehicle more comfortable.
% [CF00400(ALL)01/96]
NOTE: Any cleaner or polish that increases the gloss (shine)
of the upper part of te instrument panel should be
avoided. The dull finish in this area us to help protect
the driver from undesirable windshield reflection.
%*
[CF00500(ALL)01/96]
Climate Control Systems
[CF00600(ALL)01/96]
Your vehicle is equipped with a control assembly designed to
handle either a combination A/C-Heater System or a
Heater-Only System. Main Heater-Only Systems are standard
equipment. Main and Rear Heater-Only Systems, Main
A/C-Heater Systems, and Main and Rear A/C-Heater Systems
are optional.
[CF00700(ALL)01/96]
If your vehicle has a rear system, the front control will be
equipped with a rear fan control knob plus another fan speed
control knob which is installed in the rear.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

82
%*
[CF00800(ALL)03/96]
Instrument Panel Registers
[CF00900(ALL)01/96]
There are four registers in the instrument panel. Each of these
registers contain a louver assembly which can be manually
adjusted to direct airflow UP, DOWN, LEFT and RIGHT. Each
register in the instrument panel also has a thumbwheel that
allows you to open or close each register. The defroster outlets
are located on the top of the instrument panel while the floor
outlet is located at the bottom of the center console. An
illustration of the register, defroster, and floor outlet locations
follows.
[CF01000(ALL)01/96]
17-1/2 pica
art:0050129-B
The climate control air outlet locations
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

84
[CF01800(ALL)01/96]
The air conditioning settings include MAX A/C, A/C andS
(Panel/Floor). However, heating capabilities are also provided in
these modes. Adjust the Temperature Control Knob as necessary
to receive cool (air-conditioned) or warm (heated) air when in
these modes.
[CF01900(ALL)01/96]
NOTE: The A/C compressor will only operate when outside
air temperatures are above approximately45ÊF (7ÊC).
[CF02000(ALL)01/96]
The climate control system provides fresh outside air in all
function control settings except for MAX A/C andm(OFF).
Only recirculated interior air is available in MAX A/C.
[CF02100(ALL)01/96]
InMAX A/C, air from inside the passenger compartment is
recirculated continuously and the A/C compressor is engaged.
In this position, the system provides maximum cooling,
maximum dehumidifying, and greater fuel efficiency. It also has
a greater noise level because the sound of the air from the
blower motor is not muffled by a closed damper door as it
would be in all other functional settings.
[CF02200(ALL)01/96]
InA/C, outside air is drawn into the system and the A/C
compressor is engaged. The cooling process and the distribution
of cooled air is the same as that provided with MAX A/C.
Because outside air is drawn into the system, it will not have
the advantage of cooling already cooled air. It will have a lower
noise level because a closed damper door muffles the sound of
the air from the blower motor.
[CF02300(ALL)01/96]
InQ(PANEL), air is drawn from the outside and directed into
the passenger compartment through the instrument panel
registers. The temperature of the air can be varied by adjusting
the Temperature Control Knob. This mode is normally used as a
vent setting. The A/C compressor does not operate in this
mode, only heating capabilities are provided.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
85
[CF02400(ALL)01/96]
Inm(OFF), air supply is shut off from all outlets and all
blower motor operation is stopped. Use this setting when
driving through an area where outside air is unpleasant or
dusty.
[CF02500(ALL)01/96]
RWARNING
Operating with the Function Selector Control in off or in
Max A/C for extended periods of time in cold weather
can result in fog buildup on interior glass surfaces.
[CF02600(ALL)01/96]
This fogging can make it difficult to see the road for safe
driving. Operating in the A/C,Q(PANEL),S
(PANEL/FLOOR),R(FLOOR),P(DEFROST/FLOOR) and
V(DEFROST) positions will help prevent fogging. Adjust the
temperature as necessary for comfort.
[CF02700(ALL)01/96]
InS(PANEL/FLOOR), approximately equal amounts of
airflow are directed to the instrument panel registers and the
floor outlets. This setting will engage the A/C compressor, thus
providing you with an additional A/C mode.
[CF02800(ALL)01/96]
InR(FLOOR), most of the system's air supply is directed to
the floor outlets with a small amount going to the windshield
and side window demisters.
[CF02900(ALL)01/96]
InP(DEFROST/FLOOR), approximately equal amounts of air
are directed to the windshield and floor outlets with a small
amount to the side windows.
[CF03000(ALL)01/96]
NOTE: If outside air temperatures are above approximately
45ÊF (7ÊC), theP(DEFROST/FLOOR) andV
(DEFROST) positions will also automatically engage
the air-conditioning compressor in order to reduce the
humidity in the air and aid in clearing the inside
glass. Adjust the Temperature Control Knob as
necessary for comfort.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
87
[CF03900(ALL)01/96]2.
Turn the Temperature Control Knob toward the WARM
(red) area.
[CF04000(ALL)01/96]3.
Turn the Fan Speed Knob to the speed of your choice. When
your vehicle warms up, you may want to set the Fan Speed
Knob to a lower speed, or adjust the Temperature Control
Knob to a lower setting to maintain a comfortable
temperature.
*
[CF04100(ALL)01/96]
To defrost the windshield and side windows:
[CF04200(ALL)01/96]
n
Turn the Function Selector Knob toV(DEFROST), turn the
Temperature Control Knob to the WARM (red) area and turn
the Fan Speed Knob to the position of your choice.
*
[CF04300(ALL)01/96]
To heat and defrost at the same time:
[CF04400(ALL)01/96]
n
Turn the Function Selector Knob toP
(DEFROST/FLOOR),turn the Temperature Control Knob and
the Fan Speed Knob to provide the temperature and fan
speed you prefer.
[CF04500(ALL)01/96]
Do not place objects under the front seats unless your vehicle is
equipped with an under seat storage tray. Improperly stored
objects will interfere with the flow of air to the back seats.
[CF04600(ALL)01/96]
Remove any snow, ice, or leaves from the area below the
windshield on the outside of your vehicle. They could block the
air intake.
*
[CF04700(ALL)01/96]
Heating and Air Conditioning System
*
[CF04800(ALL)04/96]
Turning On the Heat
[CF04900(ALL)01/96]
You can heat the inside of your vehicle and defrost the
windshield using the Function Selector Knob located in the
control assembly in the instrument panel.
[CF05000(ALL)07/96]
The seven function selector modes are: MAX A/C, AC,Q
(PANEL),S(PANEL/FLOOR),R(FLOOR),P
(DEFROST/FLOOR), andV(DEFROST). If your vehicle is
equipped with a rear seat climate control system, the instrument
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
89
[CF05150(ALL)07/96]
The auxiliary system is controlled exclusively by the 9-position
switch. If the control is turned to the left, cool air will be
delivered at the beltline and overhead. If the control is turned
to the right, warm air will be delivered to the floor area. The
further left or right from the OFF position the control is turned,
the higher the fan speed.
[CF05200(ALL)01/96]
The standard heating system and the heating portion of the
heating and air conditioning system are essentially identical.
There is one exception, however; the air conditioning
compressor will automatically engage when theP
(DEFROST/FLOOR) orV(DEFROST) position is selected to
aid in defogging and defrosting the inside glass when the
outside temperature is above approximately45ÊF (7ÊC).Refer to
the heating system operating instructions covered previously for
a more detailed explanation of heating system operation.
[CF05300(ALL)01/96]
Turning on the Air Conditioner
*
[CF05400(ALL)01/96]
To cool your vehicle quickly in warm weather:
[CF05500(ALL)01/96]1.
Turn the Function Selector Knob to MAX A/C.
[CF05600(ALL)01/96]2.
Turn the Temperature Control Knob to COOL.
[CF05700(ALL)01/96]3.
Turn the Fan Speed Knob to the position of your choice.
[CF05800(ALL)07/96]4.
If your vehicle is equipped with the rear passenger
compartment air conditioning unit, it will be on when the
front system is on MAX A/C, A/C or PANEL/FLOOR and
the rear climate control knob is set to REAR CTRL, and any
fan speed. Refer to the previous section for an explanation of
the heating system.
[CF05900(ALL)01/96]5.
Adjust your instrument panel registers.
[CF06000(ALL)01/96]6.
If the inside of your vehicle is very warm, you may want to
drive for a few minutes with the windows down and the air
conditioner on. This forces most of the hot, stale air out of
the vehicle and allows the air conditioner to cool the interior
more quickly.
