1997 FORD WINDSTAR rear view mirror

94
[CF09600(ALL)01/96]
NOTE: Operating the rear defogger will also turn on the
heated side view mirrors (if equipped).
*
[CF09700(ALL)01/96]
Never use sharp instruments or abrasive window cleaners to
clean the inside of your rear window. If you do, you may
damage the wires that are bonded to the inside of the rear
window, and cause damage to the rear window defogger.
% [CF09800(ALL)01/96]
Rear Wiper and Washer (If equipped)
[CF09900(ALL)01/96]
The controls for the rear wiper and washer can be found on the
instrument panel to the right of the instrument cluster below the
climate control system. The rear wiper and washer controls
operate with the ignition in the ACC or ON positions.
[CF10000(ALL)01/96]
10-1/2 pica
art:0050037-A

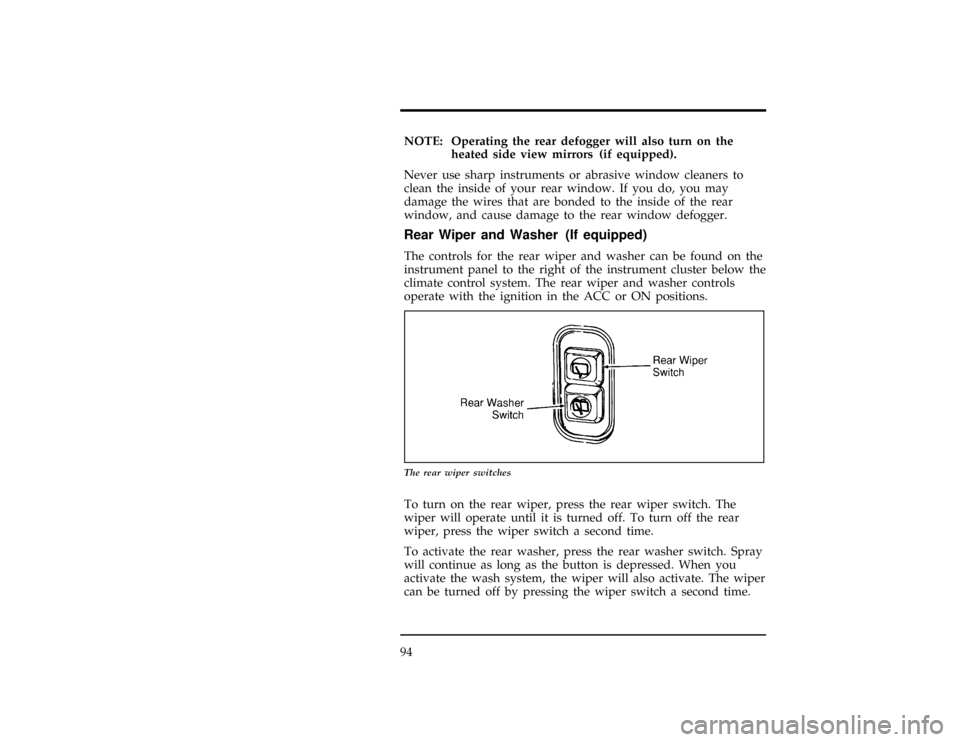

The rear wiper switches
[CF10100(ALL)01/96]
To turn on the rear wiper, press the rear wiper switch. The
wiper will operate until it is turned off. To turn off the rear
wiper, press the wiper switch a second time.
[CF10200(ALL)01/96]
To activate the rear washer, press the rear washer switch. Spray
will continue as long as the button is depressed. When you
activate the wash system, the wiper will also activate. The wiper
can be turned off by pressing the wiper switch a second time.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

118
[CF30300(ALL)01/96]
Second Row Reading Lamp
[CF30400(ALL)01/96]
The second row reading lamp may be turned on by using the
rocker switch located on the lamp assembly or by using the
instrument panel dimmer switch.
[CF30500(ALL)01/96]
10-1/2 pica
art:0050233-A

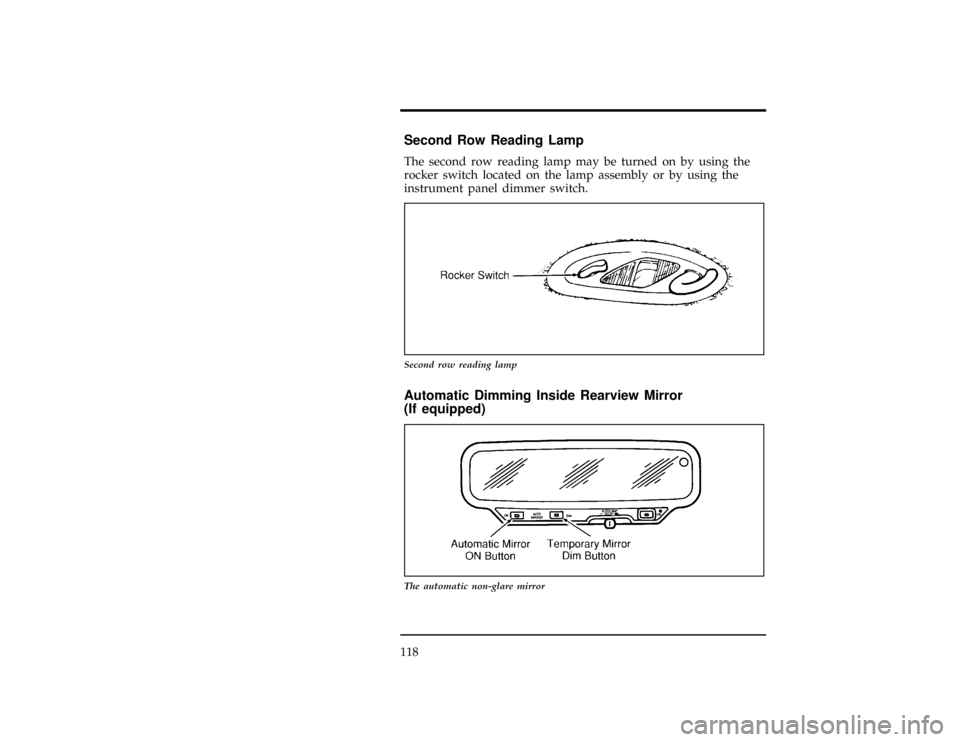

Second row reading lamp
%*
[CF30600(ALL)06/96]
Automatic Dimming Inside Rearview Mirror
(If equipped)
[CF30700(ALL)12/95]
10-1/2 pica
art:0050191-A
The automatic non-glare mirror
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
119
*
[CF30800(ALL)05/96]
The electronic day/night mirror will change from the normal
state to the non-glare state when bright lights (glare) reach the
mirror. This mirror functions at night, and has a limited
function at dusk or dawn. From the non-glare state, the mirror
will return to the normal state after a short delay. The delay
starts when the glare goes away. The delay prevents excessive
changing of the mirror as traffic moves behind and around the
vehicle, or on rolling hills and curves.
*
[CF30900(ALL)05/96]
The electronic mirror measures the brightness of the light
coming in from the rear of the vehicle. It automatically makes a
correction in the glare state. The mirror may be turned off in
either the normal or non-glare position.
*
[CF31000(ALL)01/96]
There are two light sensors (photocells) in this mirror. The
sensor that detects rear glare is located inside a window in the
upper RH corner of the mirror. The second light sensor which
determines outside light level is located on the backside of the
mirror case.
*
[CF31100(ALL)05/96]
One important safety feature is that the mirror automatically
returns to the normal position whenever the vehicle is placed in
R (Reverse) (when the mirror is in the ON position). This
feature ensures a bright clear view in the mirror when backing
up.
[CF31200(ALL)04/96]
To turn on the automatic mirror, have the key in the ON
position and push the ON button once. The light in the center
of the button will light indicating the mirror is on. To turn the
mirror off push the ON button again.
[CF31300(ALL)04/96]
The mirror can be temporarily darkened, if wanted, by pushing
the Dim button. After releasing the button, the mirror will
return to the previous operation mode after a short delay.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
129
[CF37000(ALL)01/96]
10-1/2 pica
art:0050034-A

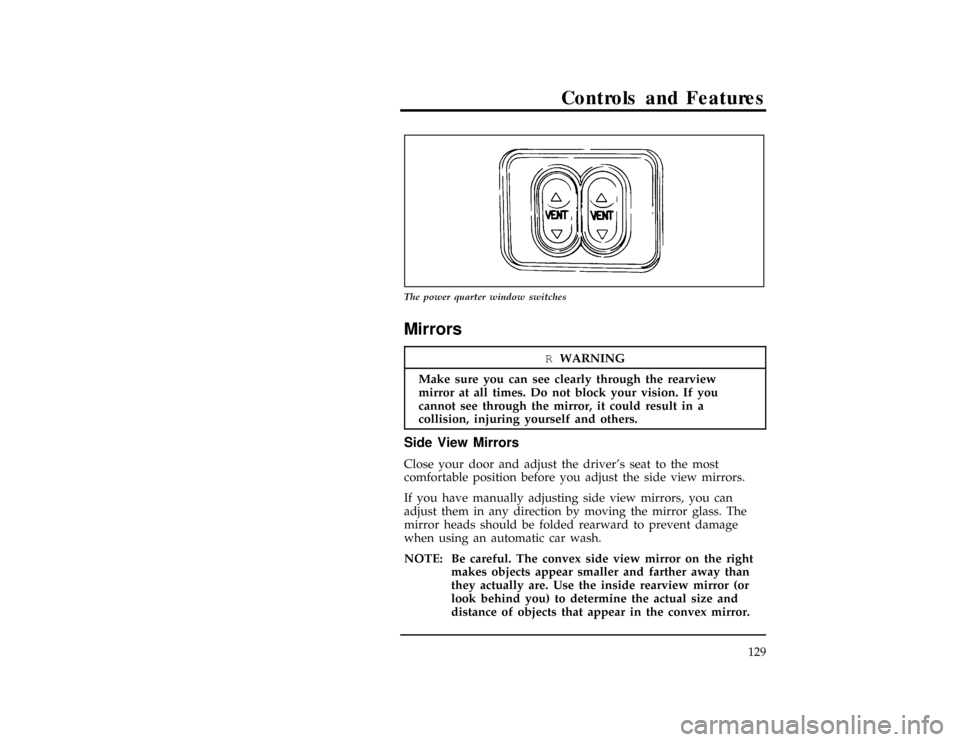

The power quarter window switches
%*
[CF37100(ALL)03/96]
Mirrors
*
[CF37200(ALL)01/96]
RWARNING
Make sure you can see clearly through the rearview
mirror at all times. Do not block your vision. If you
cannot see through the mirror, it could result in a
collision, injuring yourself and others.
%*
[CF37300(ALL)01/96]
Side View Mirrors
*
[CF37400(ALL)01/96]
Close your door and adjust the driver's seat to the most
comfortable position before you adjust the side view mirrors.
[CF37500(ALL)12/95]
If you have manually adjusting side view mirrors, you can
adjust them in any direction by moving the mirror glass. The
mirror heads should be folded rearward to prevent damage
when using an automatic car wash.
*
[CF37600(ALL)01/96]
NOTE: Be careful. The convex side view mirror on the right
makes objects appear smaller and farther away than
they actually are. Use the inside rearview mirror (or
look behind you) to determine the actual size and
distance of objects that appear in the convex mirror.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
131
% [CF38500(ALL)12/95]
Heated Side View Mirrors (If equipped)
[CF38600(ALL)12/95]
The heated side view mirrors are automatically activated
whenever you activate the rear defogger. The defogger in your
vehicle automatically shuts off after 10 minutes. If additional
defogging is necessary, reactivate the rear defogger.
[CF38700(ALL)01/96]
Compact Disc and Cassette Storage Console
(If equipped)
[CF38800(ALL)01/96]
A storage compartment is included below the radio for storage
of your discs or cassettes. There is also a compact disc and
cassette storage insert in the storage compartment located under
the front passenger seat (if equipped).
[CF38900(ALL)01/96]
13-1/2 pica
art:0050014-A

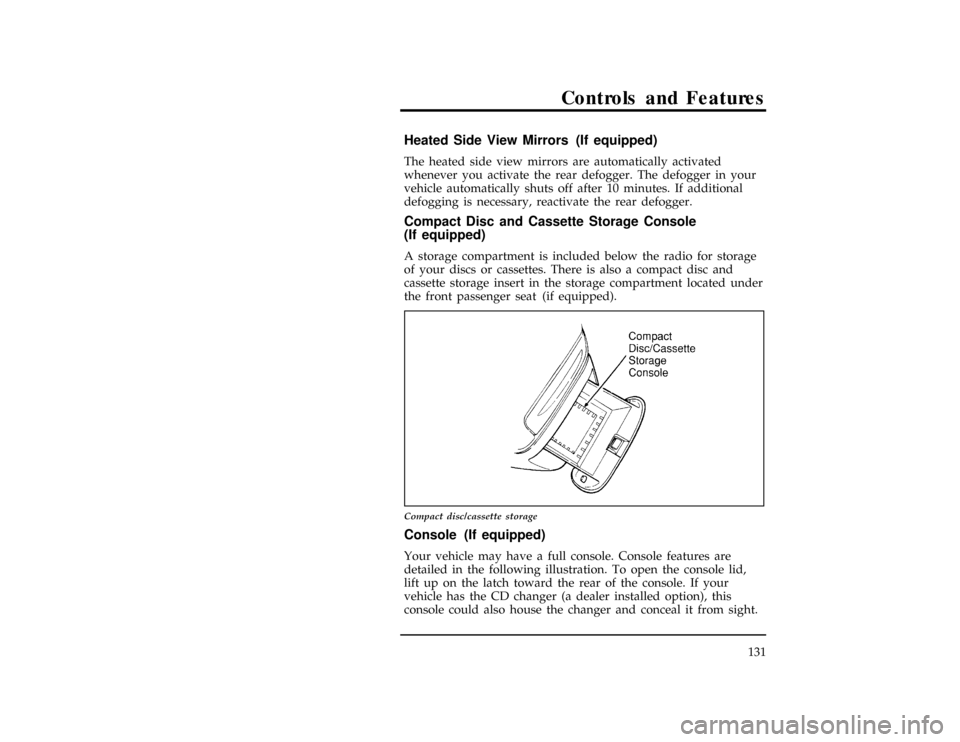

Compact disc/cassette storage
% [CF39000(ALL)01/96]
Console (If equipped)
[CF39100(ALL)01/96]
Your vehicle may have a full console. Console features are
detailed in the following illustration. To open the console lid,
lift up on the latch toward the rear of the console. If your
vehicle has the CD changer (a dealer installed option), this
console could also house the changer and conceal it from sight.
