1997 FORD WINDSTAR climate settings

Controls and Features
83
% [CF01100(ALL)01/96]
Air Conditioning (A/C) Controls Ð Main (Front) System
Only (Manual Air Conditioning)
[CF01200(ALL)01/96]
10-1/2 pica
art:0050130-C

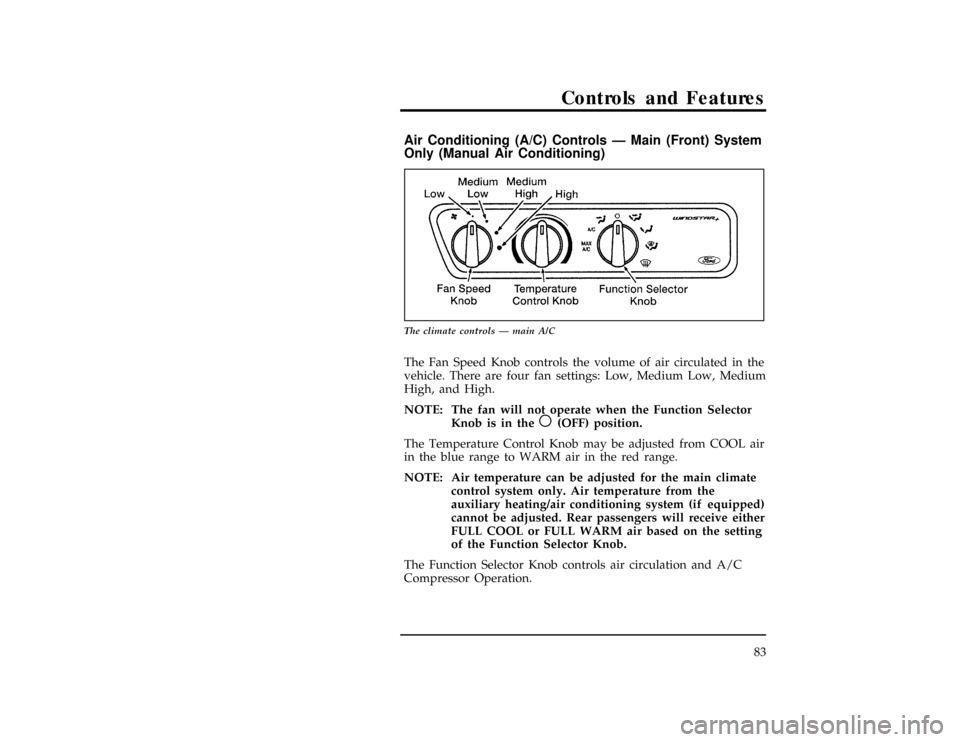

The climate controls Ð main A/C
[CF01300(ALL)01/96]
The Fan Speed Knob controls the volume of air circulated in the
vehicle. There are four fan settings: Low, Medium Low, Medium
High, and High.
[CF01400(ALL)01/96]
NOTE: The fan will not operate when the Function Selector
Knob is in them(OFF) position.
[CF01500(ALL)01/96]
The Temperature Control Knob may be adjusted from COOL air
in the blue range to WARM air in the red range.
[CF01600(ALL)01/96]
NOTE: Air temperature can be adjusted for the main climate
control system only. Air temperature from the
auxiliary heating/air conditioning system (if equipped)
cannot be adjusted. Rear passengers will receive either
FULL COOL or FULL WARM air based on the setting
of the Function Selector Knob.
[CF01700(ALL)01/96]
The Function Selector Knob controls air circulation and A/C
Compressor Operation.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

84
[CF01800(ALL)01/96]
The air conditioning settings include MAX A/C, A/C andS
(Panel/Floor). However, heating capabilities are also provided in
these modes. Adjust the Temperature Control Knob as necessary
to receive cool (air-conditioned) or warm (heated) air when in
these modes.
[CF01900(ALL)01/96]
NOTE: The A/C compressor will only operate when outside
air temperatures are above approximately45ÊF (7ÊC).
[CF02000(ALL)01/96]
The climate control system provides fresh outside air in all
function control settings except for MAX A/C andm(OFF).
Only recirculated interior air is available in MAX A/C.
[CF02100(ALL)01/96]
InMAX A/C, air from inside the passenger compartment is
recirculated continuously and the A/C compressor is engaged.
In this position, the system provides maximum cooling,
maximum dehumidifying, and greater fuel efficiency. It also has
a greater noise level because the sound of the air from the
blower motor is not muffled by a closed damper door as it
would be in all other functional settings.
[CF02200(ALL)01/96]
InA/C, outside air is drawn into the system and the A/C
compressor is engaged. The cooling process and the distribution
of cooled air is the same as that provided with MAX A/C.
Because outside air is drawn into the system, it will not have
the advantage of cooling already cooled air. It will have a lower
noise level because a closed damper door muffles the sound of
the air from the blower motor.
[CF02300(ALL)01/96]
InQ(PANEL), air is drawn from the outside and directed into
the passenger compartment through the instrument panel
registers. The temperature of the air can be varied by adjusting
the Temperature Control Knob. This mode is normally used as a
vent setting. The A/C compressor does not operate in this
mode, only heating capabilities are provided.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

86
[CF03100(ALL)01/96]
InV(DEFROST), most of the air is directed through the
defrosters and onto the windshield. A small amount is diverted
to the floor.
*
[CF03200(ALL)01/96]
Heater Controls (Heater-Only Vehicles)
[CF03300(ALL)01/96]
The fan speed, temperature, and function controls are essentially
the same as the A/C controls described previously with the
exception that the control assembly has no function settings for
MAX A/C and A/C and no A/C compressor operation is
provided in any of the function settings. An illustration of the
control for a heater-only system follows.
[CF03400(ALL)01/96]
10-1/2 pica
art:0050238-C
Climate control panel Ð Heater-Only System
*
[CF03500(ALL)04/96]
Turning On the Heat
[CF03600(ALL)01/96]
Heat will not be available until the engine has been running for
sufficient time as indicated by the engine coolant temperature
gauge.
*
[CF03700(ALL)01/96]
To heat the inside of your vehicle:
[CF03800(ALL)01/96]1.
Turn the Function Selector Knob toR(FLOOR). Outside
air is drawn in and directed into the passenger compartment
through the floor outlets. Small quantities of air are also
directed to the defrost and side window demist outlets.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
91
[CF07400(ALL)01/96]
When stopped in traffic for long periods of time in hot weather,
place the automatic transaxle gearshift selector lever in Park (P)
or in Neutral (N). This aids in engine cooling and air
conditioner efficiency. (If the engine overheats, turn the
Function Selector Knob toQ(PANEL) and turn the
Temperature Control Knob to WARM.)
*
[CF07500(ALL)01/96]
When your vehicle's engine is operated at full throttle, the air
conditioner compressor will automatically be turned off to allow
maximum engine power. This may occur during passing or
when climbing steep grades. The compressor will return to
normal operation within a few seconds after full throttle is no
longer needed.
[CF07600(ALL)01/96]
NOTE: The compressor will not operate when the outside
temperature is less than about45ÊF (7ÊC).
% [CF07700(ALL)01/96]
Rear Climate Control System (If equipped)
[CF07800(ALL)01/96]
If your vehicle is equipped with a rear climate control system,
the rear seat occupants can select their own personal fan speed
settings.
[CF07900(ALL)01/96]
The rear seat climate control system is controlled from the main
climate control system on the instrument panel. If the rear
passenger compartment climate control knob in the front climate
control panel is set in OFF, the fan in the rear seat climate
control system will also be off. If the knob is set in any of the
fan speed positions (Medium Low, Medium High, or High), air
will be discharged from the rear seat vents at the corresponding
speed. However, when the knob is set at REAR CTRL, rear seat
passengers can control their own fan speed.
