1997 FORD WINDSTAR jacking

266
[ER08900(ALL)01/96]
13-1/2 pica
art:0050045-A
Wheel cover removal (optional cast aluminum wheels)
*
[ER09000(ALL)01/96]4.
Fit the hex-shaped end of the lug wrench over the wheel lug
nuts and loosen them one-half turn (counterclockwise). Do
not remove the wheel lug nuts until you raise the tire off the
ground.
%*
[ER09100(ALL)01/96]
If your vehicle has the optional locking lug nuts, you must
use the lug nut removal tool provided with your vehicle's
tool kit.
*
[ER09200(ALL)01/96]
7-1/2 pica art:0040182-A
Anti-theft lug nut
*
[ER09300(ALL)01/96]5.
Fit the jack under the proper jacking point indicated by the
notch in the bottom of the door frame panel.
File:10wners.ex
Update:Tue Jul 9 12:14:55 1996

Roadside Emergencies
267
[ER09400(ALL)01/96]
10-1/2 pica
art:0050210-B

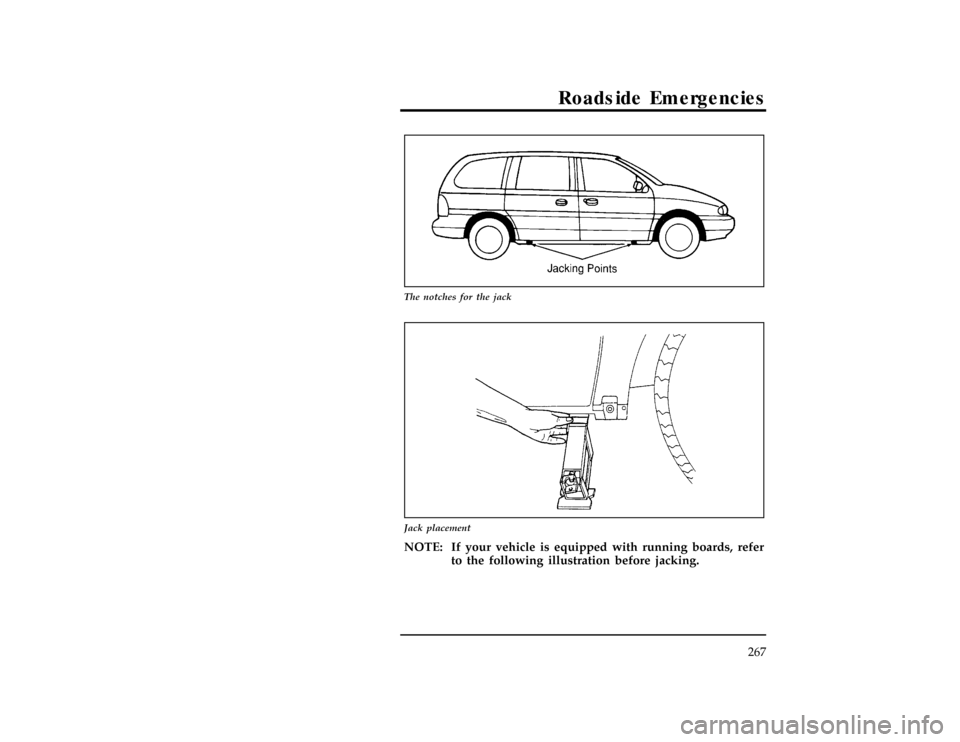

The notches for the jack
[ER09500(ALL)01/96]
13-1/2 pica
art:0050047-B
Jack placement
[ER09600(ALL)01/96]

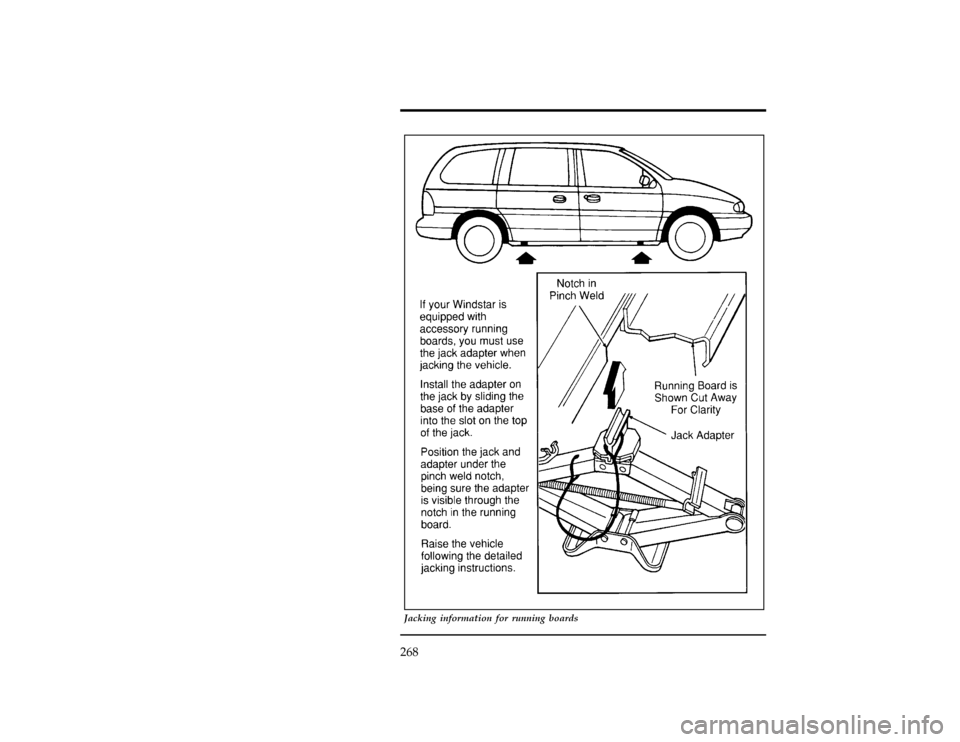

NOTE: If your vehicle is equipped with running boards, refer
to the following illustration before jacking.
File:10wners.ex
Update:Tue Jul 9 12:14:55 1996

268
[ER09700(ALL)01/96]
33-1/2 pica
art:0050211-A
Jacking information for running boards
