1997 FORD AEROSTAR Owners Manual

14 [IS06315(ALL)04/96]
one inch art:0020778-BSupplemental air bag readiness light
%*
[IS06350(ALL)05/96]
High Beam Light
*
[IS06360(ALL)03/96]
This light illuminates when the headlamps are
turned to high beam or when you flash the
lights.
*
[IS06370(ALL)03/96]
one inch art:0020537-B
High beam indicator light
*
[IS06371(ALL)08/95]
Chime for Headlamps On
[IS06372(ALL)03/96]
This chime sounds if the driver or passenger
door is open when the parking lamps or
headlamps are on. The chime sounds until you
close the door, turn off the lamps or turn the
ignition to the ON position.
[IS06373(ALL)03/96]
NOTE: The chime will not sound when the
autolamp has activated the shutoff
delay.
%*
[IS06380(ALL)03/96]
Ignition Key Buzzer or Chime
*
[IS06390(ALL)05/96]
The buzzer or chime will sound if you open the
driver's door while the key is in the ignition and
in the OFF, LOCK, or ACCESSORY position.
Never leave your vehicle unattended with the
key in the ignition.
File:03cpisa.ex
Update:Fri Jun 7 14:23:36 1996

15 %
*
[IS06400(ALL)05/96]
Battery Voltage Gauge (Voltmeter)
*
[IS06601(ALL)04/96]
This gauge shows you the battery voltage when
the ignition key is in the ON position.
*
[IS06700(ALL)01/96]
If you are running electrical accessories (when
the engine is off, or idling at a low speed), the
pointer may move toward the lower end of the
normal band. If it stays outside the normal band
area, have your vehicle's electrical system
checked as soon as it is safely possible.
*
[IS06701(ALL)04/96]
If the battery is operating under cold weather
conditions, the pointer may indicate in the upper
range of the NORMAL band while the battery is
charging. If you are running electrical accessories
with the engine off or idling at a low speed, or
the battery is not fully charged, the pointer may
move toward the lower end of the NORMAL
band.
*
[IS06750(ALL)04/96]
If it stays outside the NORMAL band, have your
vehicle's electrical system checked as soon as it
is safely possible.
*
[IS06900(ALL)03/96]
quarter page art:0020052-D
Battery voltage gauge
File:03cpisa.ex
Update:Fri Jun 7 14:23:36 1996

16 %
*
[IS07500(ALL)04/96]
Engine Oil Pressure Gauge
*
[IS07601(ALL)01/96]
This gauge indicates the engine's oil pressure,
not the oil level. However, if your engine's oil
level is low, it could affect the oil pressure. With
the engine running, the pointer should move
into the NORMAL band. If the pointer drops
below the NORMAL band while the engine is
running, you have lost oil pressure and
continued operation will cause severe engine
damage.
*
[IS07701(ALL)05/96]
If you lose engine oil pressure:
*
[IS07801(ALL)04/96]
1. Pull off the road as soon as safely possible.
*
[IS07901(ALL)04/96]
2. Shut off the engine immediately or severe
engine damage could result.
*
[IS08001(ALL)01/96]
3. Check the engine's oil level, following the
instructions on checking and adding engine
oil. Refer toEngine oilin the Index. If you
do not follow these instructions, you or
others could be injured. To assure an
accurate reading, your vehicle should be on
level ground.
*
[IS08051(ALL)01/96]
4. If the level is low, add only as much oil as
necessary before you start the engine again.
Do not overfill. Do not operate the engine if
the pointer is below the NORMAL band,
regardless of the oil level. Contact your
nearest dealer for further service actions.
*
[IS08200(ALL)03/96]
quarter page art:0020057-D
Engine oil pressure gauge
File:03cpisa.ex
Update:Fri Jun 7 14:23:36 1996

17 %
*
[IS09500(ALL)05/96]
Fuel Gauge
*
[IS09700(ALL)01/96]
The fuel gauge displays approximately how
much fuel is in the fuel tank only when the
ignition switch is ON.
*
[IS09850(ALL)01/96]
For a proper fuel gauge indication after adding
fuel, the ignition switch should be in the OFF
position while the vehicle is being refueled.
*
[IS09900(ALL)01/96]
The fuel gauge indicator may vary slightly while
the vehicle is in motion. This is the result of fuel
movement within the tank. An accurate reading
may be obtained with the vehicle on smooth,
level ground.
[IS10000(ALL)01/96]
one inch art:0020061-C
Fuel gauge
%*
[IS11100(ALL)03/96]
Engine Coolant Temperature Gauge
*
[IS11201(ALL)02/96]
This gauge indicates the temperature of the
engine coolant, not the coolant level. If the
coolant is not at its proper level or mixture, the
gauge indication will not be accurate.
*
[IS11301(ALL)05/96]
The pointer moves from the C (cold) mark into
the NORMAL band as the engine coolant warms
up. It is acceptable for the pointer to fluctuate
within the NORMAL band under normal driving
conditions. Under certain driving conditions,
such as heavy stop and go traffic or driving up
hills in hot weather, the pointer may move to
the top of the NORMAL band.
*
[IS11401(ALL)04/96]
If, under any circumstances, the pointer moves
above the NORMAL band, the engine is
overheating and continued operation may cause
engine damage.
File:03cpisa.ex
Update:Fri Jun 7 14:23:36 1996

18
*
[IS11501(ALL)03/96]
If your engine overheats:
*
[IS11601(ALL)03/96]
1. Pull off the road as soon as it is safely
possible.
*
[IS11701(ALL)01/96]
2. Turn off the engine.
*
[IS11801(ALL)03/96]
3. Let the engine cool.DO NOT REMOVE
COOLANT SYSTEM FILL CAP UNTIL
THE ENGINE IS COOL.
*
[IS11901(ALL)01/96]
4. Check the coolant level following the
instructions on checking and adding coolant
to your engine. Refer toEngine coolantin the
Index. If you do not follow these
instructions, you or others could be injured.
[IS12325(ALL)01/96]
quarter page art:0020541-B
Engine coolant temperature gauge
%*
[IS12601(ALL)03/96]
Speedometer
*
[IS12700(ALL)03/96]
The speedometer tells you how many miles
(kilometers) per hour your vehicle is moving.
*
[IS12750(ALL)03/96]
Your vehicle contains a speedometer which
receives its input from the Anti-Lock brake
sensor. The speedometer is also used to provide
a speed signal for correct operation of the
vehicle's Powertrain Control Module (PCM),
electronic transmission, and speed control (if so
equipped). Because of this, it is very
IMPORTANT to change the speedometer's
internal conversion constant if the size of the
tires on the vehicle is changed. Changing the
conversion constant to the proper value when
File:03cpisa.ex
Update:Fri Jun 7 14:23:36 1996

19
the tires are changed will also ensure that the
speedometer retains the original factory-set
accuracy.
[IS12752(ALL)01/96]
NOTE: The conversion constant can only be
changed six times once the vehicle
leaves the factory. Your Ford dealership
service personnel can change the
conversion constant.
*
[IS12753(ALL)03/96]
Some vehicles are equipped with a vehicle speed
(mph/km/h) limiting device that is contained
within the Powertrain Control Module (PCM).
The purpose of this device is to maintain peak
vehicle speed below a specified limit. (Vehicle
speed limits may vary based on engine
displacement.)
*
[IS12756(ALL)03/96]
If you are experiencing an ªengine cut-outº
condition at high speeds, it may be the result of
this limiting device. It is a normal condition and
can be avoided by reducing vehicle/engine
speed.
[IS12760(ALL)01/96]
one third page art:0095036-A
Speedometer
File:03cpisa.ex
Update:Fri Jun 7 14:23:36 1996

20 %
*
[IS13130(ALL)01/96]
Odometer/Trip Odometer
*
[IS13160(ALL)05/96]
The Liquid Crystal Display (LCD) odometer is a
combination trip odometer and total odometer.
The total odometer is normally displayed. To see
the trip odometer, press and release the SELECT
control on the upper right side of the
speedometer. To zero out the trip odometer,
press and release the RESET control on the
upper left side of the speedometer while the trip
odometer is displayed. If the trip odometer is
displayed, press and release the SELECT control
to return the display to the total odometer value.
File:03cpisa.ex
Update:Fri Jun 7 14:23:36 1996

21
Electronic Sound Systems
*
[AS00200(ALL)08/95]
full page art:0060648-B

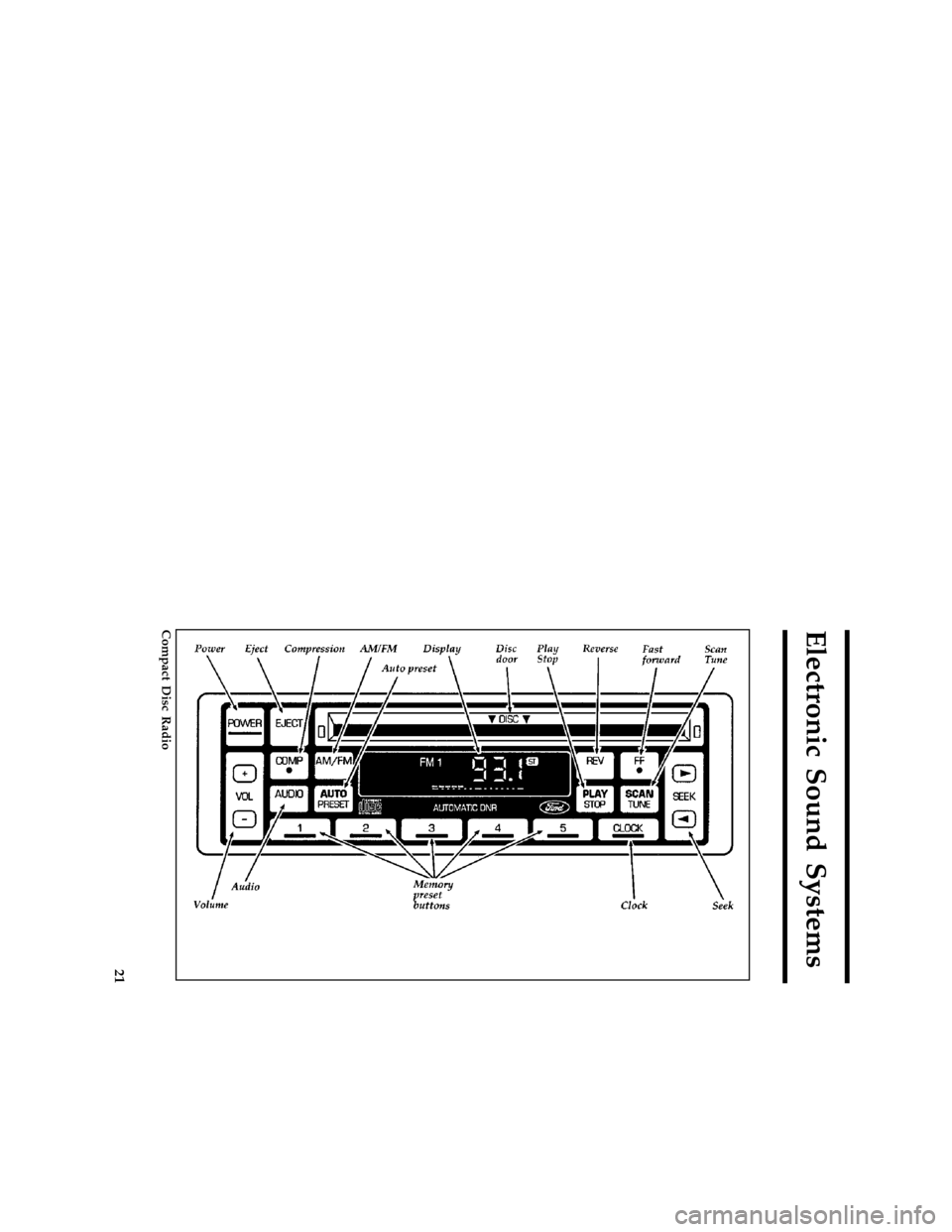

Compact Disc Radio
