1997 FORD AEROSTAR Owners Manual

217
*
[ER15420(ALL)03/96]
When one of the back wheels is off the ground,
the transmission alone will not prevent the
vehicle from moving or slipping off the jack,
even if the vehicle is in P (Park). To prevent the
vehicle from moving when you change a tire, be
sure the parking brake is set, then block the
wheel (both directions) that is diagonally
opposite (other side and end of the vehicle) to
the tire being changed.
*
[ER15430(ALL)03/96]
RWARNING
If the vehicle slips off the jack, you or
someone else could be seriously injured.
*
[ER15550(ALL)01/96]
2. Get out the spare tire and jack.
[ER15600(ALL)01/96]
The jack, jack handle and lug nut wrench are
stowed separately on the left hand wheelhouse
inner panel on standard length models. And in
the right rear storage compartment on extended
length models.
[ER15700(ALL)01/96]
one third page art:0020285-A
Jack stowage
File:10cpera.ex
Update:Thu Jun 6 14:45:00 1996

218 [ER15750(ALL)01/96]

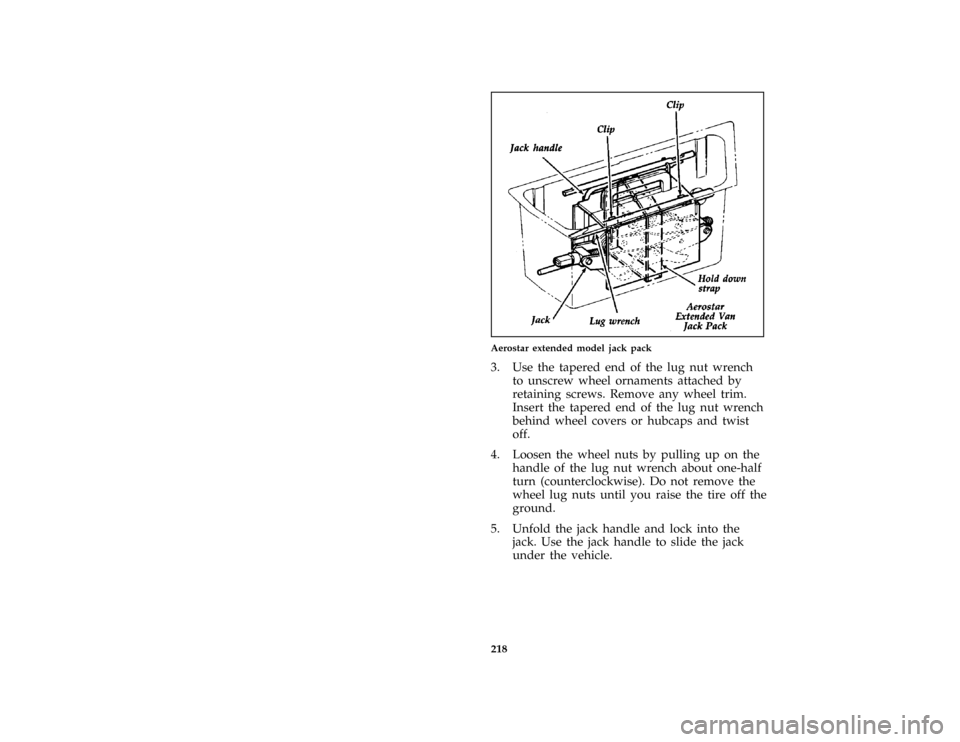

half page art:0020269-BAerostar extended model jack pack
*
[ER16800(ALL)01/96]
3. Use the tapered end of the lug nut wrench
to unscrew wheel ornaments attached by
retaining screws. Remove any wheel trim.
Insert the tapered end of the lug nut wrench
behind wheel covers or hubcaps and twist
off.
*
[ER16900(ALL)01/96]
4. Loosen the wheel nuts by pulling up on the
handle of the lug nut wrench about one-half
turn (counterclockwise). Do not remove the
wheel lug nuts until you raise the tire off the
ground.
[ER17000(ALL)01/96]
5. Unfold the jack handle and lock into the
jack. Use the jack handle to slide the jack
under the vehicle.
File:10cpera.ex
Update:Thu Jun 6 14:45:00 1996

219 %
*
[ER17100(ALL)01/96]
Removing and Replacing the Tire
%*
[ER17300(ALL)01/96]
1. Positioning the jack
[ER17400(ALL)01/96]
a. To raise a front wheel, place the jack
under a horizontal portion of the
underbody member behind the wheel, as
shown.
[ER17500(ALL)01/96]
one third page art:0020293-A
Front jacking point
[ER17600(ALL)01/96]
b. To raise a rear wheel, place the jack
under a horizontal portion of the
underbody member ahead of the wheel
as shown.
[ER17700(ALL)01/96]
one third page art:0020294-A
Rear jacking point
[ER17800(ALL)01/96]
c. Turn the jack handle clockwise until the
wheel is completely off the ground.
File:10cpera.ex
Update:Thu Jun 6 14:45:00 1996

220 [ER17900(ALL)01/96]
RWARNING
Never place the jack under the rocker
panels.
*
[ER21151(ALL)01/96]
one third page art:0020939-B
*
[ER21400(ALL)01/96]
2. Remove the lug nuts with the lug nut
wrench.
*
[ER21500(ALL)01/96]
3. Replace the flat tire with the spare tire.
*
[ER21700(ALL)01/96]
4. Thread the lug nuts on the wheel studs with
the beveled face toward the wheel. Use the
lug nut wrench to screw the lug nut snug
against the wheel but do not tighten.
*
[ER22200(ALL)03/96]
5. Lower the vehicle by turning the jack handle
counterclockwise.
*
[ER22300(ALL)01/96]
6. Remove the jack and fully tighten the lug
nuts in the order shown in the following
illustration.
File:10cpera.ex
Update:Thu Jun 6 14:45:00 1996

221 % [ER22400(ALL)04/96]

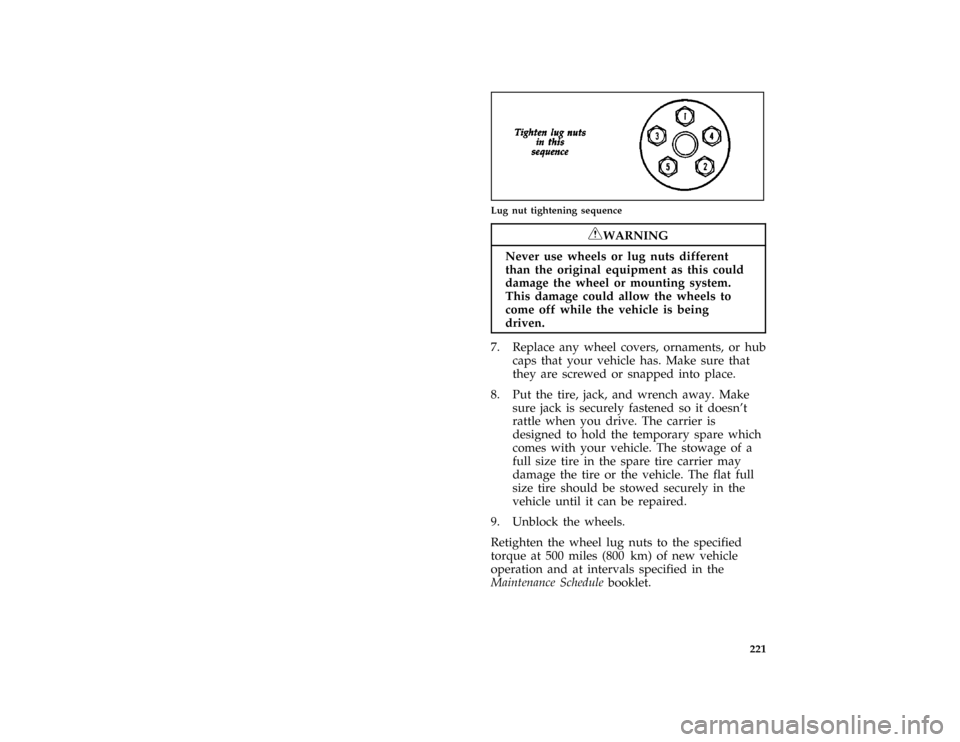

quarter page art:0020312-B
Lug nut tightening sequence
*
[ER23400(ALL)01/96]
RWARNING
Never use wheels or lug nuts different
than the original equipment as this could
damage the wheel or mounting system.
This damage could allow the wheels to
come off while the vehicle is being
driven.
*
[ER23500(ALL)01/96]
7. Replace any wheel covers, ornaments, or hub
caps that your vehicle has. Make sure that
they are screwed or snapped into place.
[ER23625(ALL)01/96]
8. Put the tire, jack, and wrench away. Make
sure jack is securely fastened so it doesn't
rattle when you drive. The carrier is
designed to hold the temporary spare which
comes with your vehicle. The stowage of a
full size tire in the spare tire carrier may
damage the tire or the vehicle. The flat full
size tire should be stowed securely in the
vehicle until it can be repaired.
*
[ER23700(ALL)03/96]
9. Unblock the wheels.
*
[ER23800(ALL)03/96]
Retighten the wheel lug nuts to the specified
torque at 500 miles (800 km) of new vehicle
operation and at intervals specified in the
Maintenance Schedulebooklet.
File:10cpera.ex
Update:Thu Jun 6 14:45:00 1996

222
*
[ER24200(ALL)01/96]
Also retighten to the specified torque at 500
miles (800 km) of operation after any wheel
change or any time the lug nuts are loosened.
*
[ER24301(ALL)01/96]
RWARNING
Failure to retighten wheel lug nuts at
mileages specified could allow wheels to
come off while the vehicle is in motion.
[ER24315(ALL)01/96]

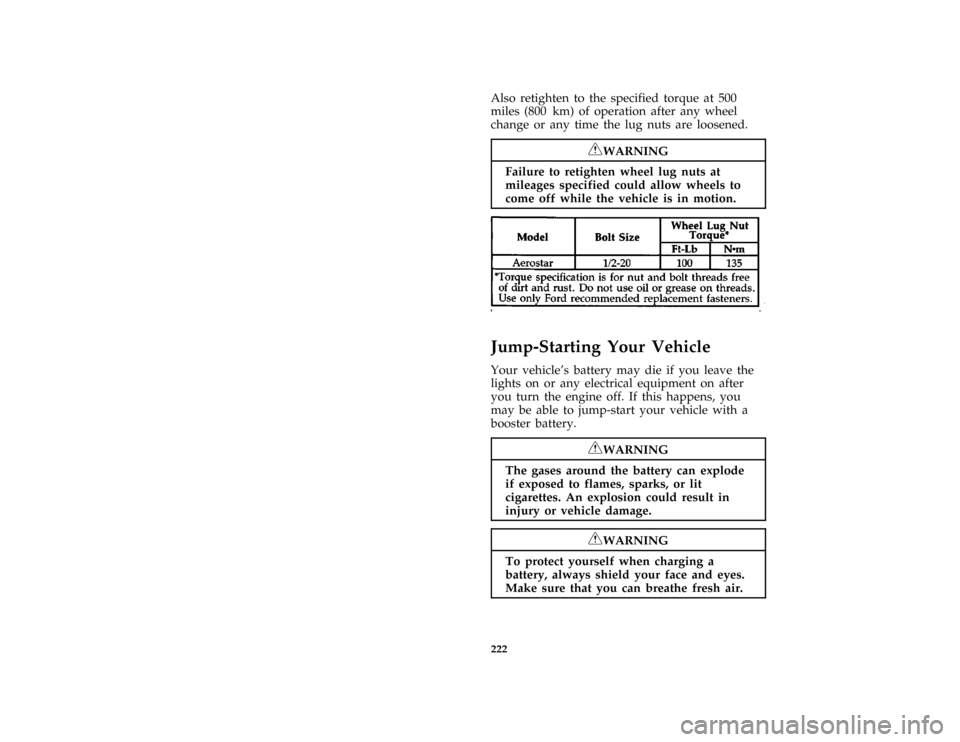

eight pica chart:0020313-A%*
[ER24400(ALL)02/96]
Jump-Starting Your Vehicle
*
[ER24410(ALL)02/96]
Your vehicle's battery may die if you leave the
lights on or any electrical equipment on after
you turn the engine off. If this happens, you
may be able to jump-start your vehicle with a
booster battery.
*
[ER24420(ALL)02/96]
RWARNING
The gases around the battery can explode
if exposed to flames, sparks, or lit
cigarettes. An explosion could result in
injury or vehicle damage.
*
[ER24430(ALL)02/96]
RWARNING
To protect yourself when charging a
battery, always shield your face and eyes.
Make sure that you can breathe fresh air.
File:10cpera.ex
Update:Thu Jun 6 14:45:00 1996

223 %
*
[ER24440(ALL)02/96]
RWARNING
Applying too much pressure on the ends
when lifting a battery could cause acid to
spill. Lift the battery with a carrier or
with your hands on the opposite corners.
%*
[ER24450(ALL)05/96]
RWARNING
Batteries contain sulfuric acid which burns
skin, eyes, and clothing.
*
[ER24460(ALL)02/96]
If the acid touches someone's skin, eyes, or
clothing, immediately flush the area with water
for at least 15 minutes. If someone swallows the
acid, have him or her drink lots of milk or water
first, then Milk of Magnesia, a beaten egg, or
vegetable oil. Call a doctor immediately.
*
[ER24470(ALL)01/96]
RWARNING
Do not push-start your vehicle. You could
damage the catalytic converter. For further
information, seeJumper Cablesin the
Index.
*
[ER24480(ALL)02/96]
To avoid damaging your vehicle or your battery,
and to avoid injury to yourself, follow these
directions for preparing your vehicle to
jump-start and connecting the jumper cables in
the order they are given. If in doubt, call for
road service.
%*
[ER24490(ALL)02/96]
Preparing Your Vehicle
*
[ER24500(ALL)02/96]
1. Your vehicle has a 12-volt starting system, so
you need to use a 12-volt jumper system.
You will damage your starting motor,
ignition system, and other electrical parts if
you connect them to a 24-volt power supply
(either two 12-volt batteries in series or a
24-volt generator set).
File:10cpera.ex
Update:Thu Jun 6 14:45:00 1996

224
*
[ER24510(ALL)02/96]
2. Do not disconnect the battery of the disabled
vehicle. You could damage the vehicle's
electrical system.
*
[ER24520(ALL)02/96]
3. Park the booster vehicle close to the hood of
the disabled vehicle.Make sure the vehicles
do not touch each other.Set the parking
brake on both vehicles and stay clear of the
engine cooling fan and other moving parts.
*
[ER24530(ALL)02/96]
4. Check all battery terminals and remove any
excessive corrosion before you attach the
jumper cables.
[ER24540(ALL)03/96]
5. Turn on the heater fan in both vehicles. Turn
the function selector knob to theV
position. Turn off all other switches.
%*
[ER24550(ALL)02/96]
Connecting the jumper cables
*
[ER24560(ALL)02/96]
1. Connect one end of the first jumper cable to
the positive (+) terminal of the discharged
battery. (You can connect either jumper cable
to the positive (+) terminal, as long as you
use the same cable for both positive
terminals.) Most jumper cables have a red
cable and a black cable. The red cable is
generally used for the positive terminals and
the black for the negative ones.
*
[ER24570(ALL)02/96]
2. Connect the other end of the first cable to
the positive (+) terminal of the booster
battery.
*
[ER24580(ALL)02/96]
3. Connect one end of the second cable to the
negative (S) terminal of the booster battery
Ð NOT to the discharged battery.
*
[ER24590(ALL)01/96]
4. Connect the other end of that cable to a
good metallic surface on the engine or frame
of the disabled vehicle. The following
illustration shows where you can find a
metallic surface.
