1997 FORD AEROSTAR Owners Manual

225
*
[ER24600(ALL)02/96]
RWARNING
Do not connect the end of the second
cable to the negative (S) terminal of the
battery to be jumped. A spark may cause
an explosion of the gases that surround
the battery.
[ER24610(ALL)01/96]

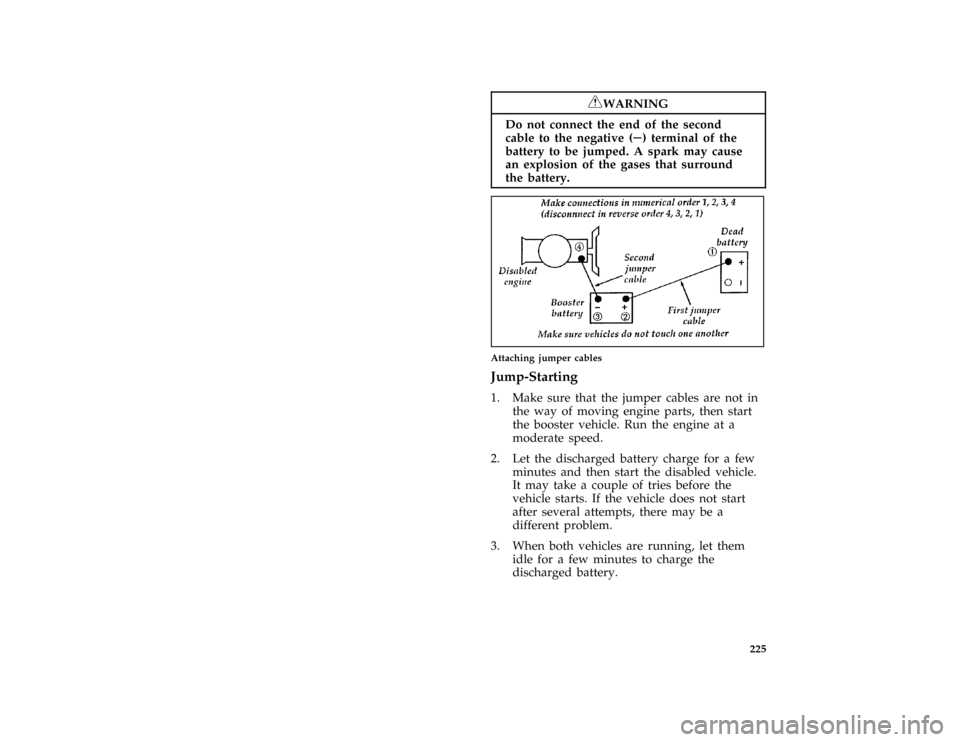

one third page art:0095070-A
Attaching jumper cables
*
[ER24620(ALL)02/96]
Jump-Starting
*
[ER24630(ALL)02/96]
1. Make sure that the jumper cables are not in
the way of moving engine parts, then start
the booster vehicle. Run the engine at a
moderate speed.
*
[ER24640(ALL)02/96]
2. Let the discharged battery charge for a few
minutes and then start the disabled vehicle.
It may take a couple of tries before the
vehicle starts. If the vehicle does not start
after several attempts, there may be a
different problem.
*
[ER24650(ALL)02/96]
3. When both vehicles are running, let them
idle for a few minutes to charge the
discharged battery.
File:10cpera.ex
Update:Thu Jun 6 14:45:00 1996

226 %
*
[ER24660(ALL)02/96]
Removing jumper cables
*
[ER24670(ALL)02/96]
1.Always remove the jumper cables in the
reverse order.Remove the negative (S) end
of the jumper cable from the metallic surface
on the engine or frame of the disabled
vehicle.
*
[ER24680(ALL)03/96]
2. Remove the negative (S) cable from the
booster battery.
*
[ER24690(ALL)02/96]
3. Remove the positive (+) cable from the
booster battery.
*
[ER24692(ALL)02/96]
4. Remove the other end of the positive (+)
cable from the discharged battery.
*
[ER24694(ALL)02/96]
After the vehicle is started, let it idle for a while
to let the engine ªrelearnº its idle conditions.
Drive it around for a while with all electrical
accessories turned off to let the battery recharge.
Driveability may be deteriorated slightly until all
drive modes are ªrelearned.ºYou may need to
use a battery charger to fully recharge the
battery.
*
[ER24695(ALL)03/96]
If you need to replace your battery, seeBattery
in theMaintenance and Carechapter.
%
*
[ER24700(ALL)04/96]

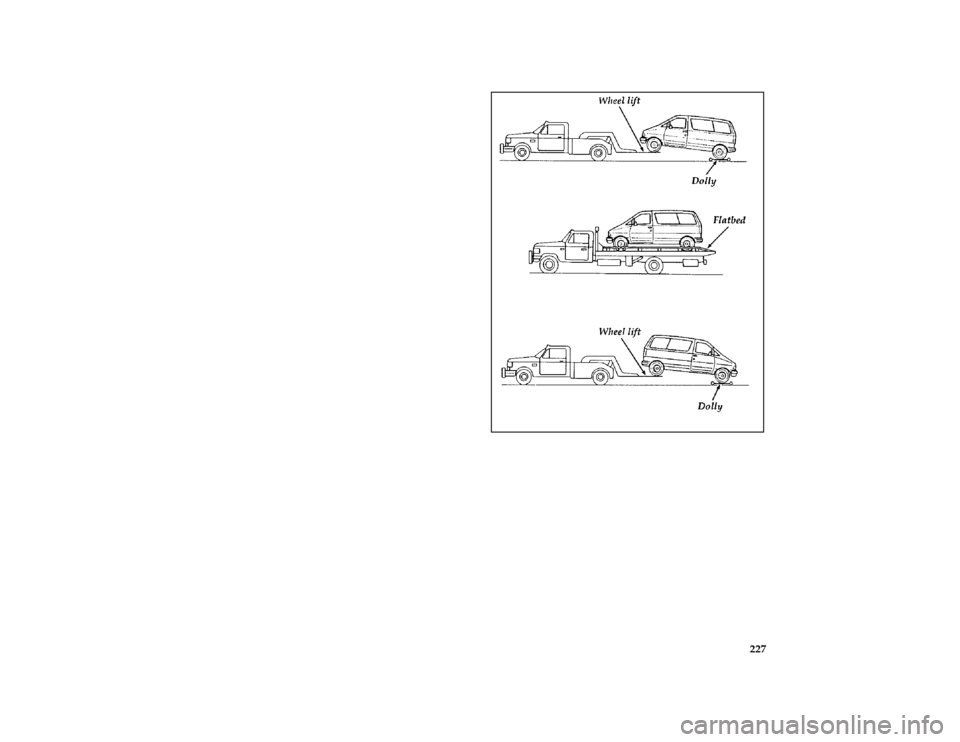

Towing Your Vehicle
[ER24750(ALL)01/96]
The recommended method to tow your Aerostar
is with flatbed or wheel lift equipment.
However, slingbelt towing is acceptable. On
vehicles equipped with an under-vehicle spare
tire carrier, remove the tire assembly from the
carrier and store it in a secure area before
towing. For E-4WD vehicles, the 4-wheel drive
system must be disabled prior to towing. The
transmission must be in N (Neutral) and the
ignition switch must be in the OFF position to
disable the Electronic 4-Wheel Drive System.
File:10cpera.ex
Update:Thu Jun 6 14:45:00 1996

227 [ER24775(ALL)01/96]
two third page art:0095060-A
File:10cpera.ex
Update:Thu Jun 6 14:45:00 1996

229
Maintenance and Care
%*
[MC00300(ALL)01/96]
Service Made Easy
*
[MC00400(ALL)01/96]
Ford has two goals for servicing your vehicle.
*
[MC00500(ALL)01/96]
1. When we can, we design parts that do not
need to be serviced.
*
[MC00600(ALL)01/96]
2. We want to make servicing your vehicle as
easy as possible. To help you:
*
[MC00700(ALL)01/96]
q
We highlight do-it-yourself items in yellow in
the engine compartment so that you can find
them easily.
*
[MC00800(ALL)03/96]
q
When possible, we design parts that can be
replaced without tools.
*
[MC00900(ALL)02/96]
q
We give you a Maintenance Schedule that
makes tracking routine service for your
vehicle easy. The maintenance schedule is
located in theMaintenance Schedulebooklet.
*
[MC01000(ALL)01/96]
This chapter tells you about the basic parts that
you need to check and service regularly.
*
[MC01050(ALL)01/96]
If your vehicle needs professional servicing, your
dealership can provide the parts and service
required. Check yourWarranty Information Booklet
to find out which parts and services are covered.
Also see theCustomer Assistancechapter of this
Owner Guide.
*
[MC01300(ALL)03/96]
Ford Motor Company recommends that you
perform the Owner Maintenance Checks listed in
theMaintenance Schedulebooklet. These services
are important for the proper operation of your
vehicle. In addition to the conditions listed in
the Owner Maintenance Checklist, be alert for
File:11cpmca.ex
Update:Fri Jun 7 14:30:56 1996

230any unusual noise, vibration, or other indication
that your vehicle may need service. If you do
notice something unusual, see that your vehicle
is serviced promptly.
*
[MC01350(ALL)01/96]
Use only recommended fuels, lubricants, fluids,
and service parts conforming to Ford
specifications. Motorcraft parts are designed and
built to provide the best performance in your
vehicle. Using these parts for replacement is
your assurance that Ford-built quality stays in
your vehicle.
%*
[MC01400(ALL)05/96]
NOTE: Always dispose of used automotive
fluids in a responsible manner. Follow
your community's standards for
disposing of these types of fluids. Call
your local recycling center to find out
about recycling automotive fluids.
%
*
[MC01600(ALL)01/96]
Precautions When Servicing Your
Vehicle
*
[MC01700(ALL)01/96]
Be especially careful when inspecting or
servicing your vehicle. Here are some general
precautions for your safety:
*
[MC01900(ALL)01/96]
q
If you must work with the engine running,
avoid wearing loose clothing or jewelry that
could get caught in moving parts. Take
appropriate precautions with long hair.
*
[MC02000(ALL)01/96]
q
Do not work on a vehicle in an enclosed
space with the engine running, unless you are
sure you have enough ventilation.
*
[MC02100(ALL)01/96]
q
Never get under a vehicle while it is
supported only by a jack. If you must work
under a vehicle, use safety stands.
*
[MC02200(ALL)01/96]
q
Keep all lit cigarettes and other smoking
materials away from the battery and all
fuel-related parts.
File:11cpmca.ex
Update:Fri Jun 7 14:30:56 1996

231
*
[MC02500(ALL)01/96]
If you disconnect the battery, the engine must
ªrelearnº its idle conditions before your vehicle
will drive properly. To find out how the engine
does this, seeBatteryin this chapter.
*
[MC02600(ALL)01/96]
Working with the engine off:
*
[MC02650(ALL)01/96]
1. Set the parking brake fully and make sure
that the gearshift is securely latched in P
(Park).
*
[MC02700(ALL)01/96]
2. Remove the key from the ignition after you
turn the engine off.
*
[MC02725(ALL)01/96]
3. Block the wheels. This will prevent your
vehicle from moving unexpectedly.
*
[MC02750(ALL)01/96]
Working with the engine on:
*
[MC02785(ALL)01/96]
1. Set the parking brake fully and make sure
that the gearshift is securely latched in P
(Park).
*
[MC02800(ALL)01/96]
2. Block the wheels. This will prevent your
vehicle from moving unexpectedly.
*
[MC02900(ALL)01/96]
RWARNING
Do not start your engine with the air
cleaner removed and do not remove it
while the engine is running.
%*
[MC02950(ALL)02/96]
Opening the Hood
*
[MC03000(ALL)01/96]
1. Pull the hood release handle, located next to
the parking brake pedal.
File:11cpmca.ex
Update:Fri Jun 7 14:30:56 1996

232 [MC03025(ALL)01/96]

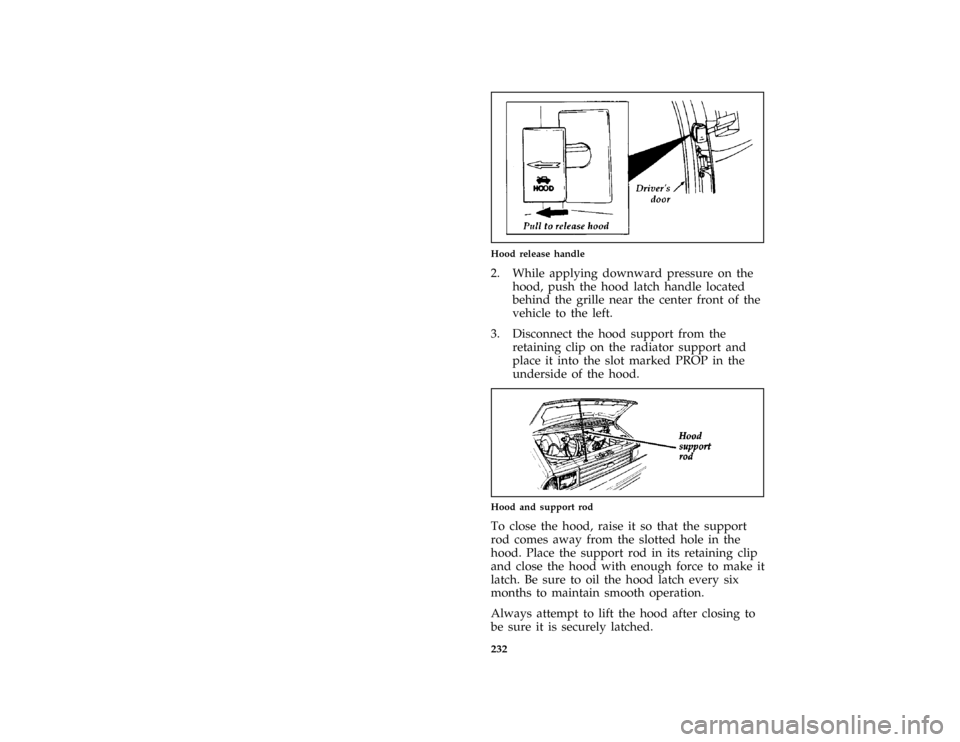

one third page art:0095045-AHood release handle
*
[MC03050(ALL)01/96]
2. While applying downward pressure on the
hood, push the hood latch handle located
behind the grille near the center front of the
vehicle to the left.
*
[MC03100(ALL)01/96]
3. Disconnect the hood support from the
retaining clip on the radiator support and
place it into the slot marked PROP in the
underside of the hood.
[MC03400(ALL)01/96]
quarter page art:0020335-A
Hood and support rod
*
[MC03800(ALL)01/96]
To close the hood, raise it so that the support
rod comes away from the slotted hole in the
hood. Place the support rod in its retaining clip
and close the hood with enough force to make it
latch. Be sure to oil the hood latch every six
months to maintain smooth operation.
*
[MC03900(ALL)01/96]
Always attempt to lift the hood after closing to
be sure it is securely latched.
File:11cpmca.ex
Update:Fri Jun 7 14:30:56 1996

233
%*
[MC06000(ALL)01/96]
Engine Oil Recommendations
*
[MC06010(ALL)01/96]
We recommend using Motorcraft oil or an
equivalent oil meeting Ford Specification
WSS-M2C153-F and displaying the American
Petroleum Institute CERTIFICATION MARK on
the front of the container.
*
[MC06020(ALL)01/96]
one third page art:0060021-E
The API Certification Mark
*
[MC06030(ALL)01/96]
Neveruse:
*
[MC06040(ALL)01/96]
q
ªNon-Detergentº oils
*
[MC06050(ALL)02/96]
q
Oils labeled API SA, SB, SC, SD, SE, SF or SG
%*
[MC06060(ALL)01/96]
q
Additional engine oil additives, oil treatments
or engine treatments
%*
[MC06070(ALL)03/96]
Engine oils with anSAE 5W-30viscosity are
PREFERREDfor your vehicle. They provide the
best engine performance, fuel economy and
engine protection for all climates down to-15ÊF
(-25ÊC).
%*
[MC06080(ALL)03/96]
Synthetic engine oils which are CERTIFIED and
of the preferred viscosity may be used in your
engine. The engine oil and oil filter must still be
changed according to the maintenance schedule.
