Before replacing a headlamp that does not light, check
to make sure that the wiring connector is securely
fastened to it.
See “Replacement Bulbs” in the Index to check the size
and type
of headlamp you need to use before you begin
to replace the headlamp. You must replace a headlamp
with
one that is exactly the same.
Be careful not to move the aiming screws when you
replace the headlamp.
If the headlamp being replaced
was properly aimed, the new one will be also if it
is
properly installed.
1. Remove the Tom@ head screws at the end of the
aiming ring.
6-43

Downloaded from www.Manualslib.com manuals search engine 2. The aiming ring will swing open like a gate. Remove
the aiming ring from the assembly. Place it face
down, with the aim indicator up.
Be careful not to
damage the aiming bubble.
3. Pull the headlamp out of the assembly. Remove the
wiring connector from the headlamp socket by lifting
the plastic locking tabs on the connector and pulling
it from the socket.
6-44

Downloaded from www.Manualslib.com manuals search engine 4. Check the new headlamp again. The number on the
lamp must match the number
of the headlamp being
replaced. The letter
U or L must also match.
5. Plug the wiring connector into the headlamp socket.
6. Place the new headlamp in the headlamp assembly.
Snap
the locking tabs onto the socket.
The socket must be pointing in the same direction
the socket
on the burned out bulb was.
7. Insert the tabs on the aiming ring into the tabs in the
8. Hold the aiming ring closed, insert the screws at the
end
of the ring. Tighten the screws until the aiming
ring touches the plastic nuts on both the top and
bottom.
Do not overtighten. Do not damage the
vertical aiming bubble.
headlamp assembly. 9. Check the
headlamp aim indicators. The horizontal
indicator
(A) should be on 0 (zero). If the vehicle is
level, the vertical indicator
(B) should also be on
0 (zero). If the vehicle isn’t level, check the vertical
aim on a level surface as soon as you can.
If either
indicator doesn’t read
0 (zero), adjust the headlamp
aim. See “Adjusting Headlamp Aim’’ in the Index.
If your vehicle is damaged in an accident and the
headlamp aim seems to be affected, see your
Chevrolet dealer. Headlamps on damaged vehicles may
require recalibration of the horizontal aim by your
Chevrolet dealer.
6-45

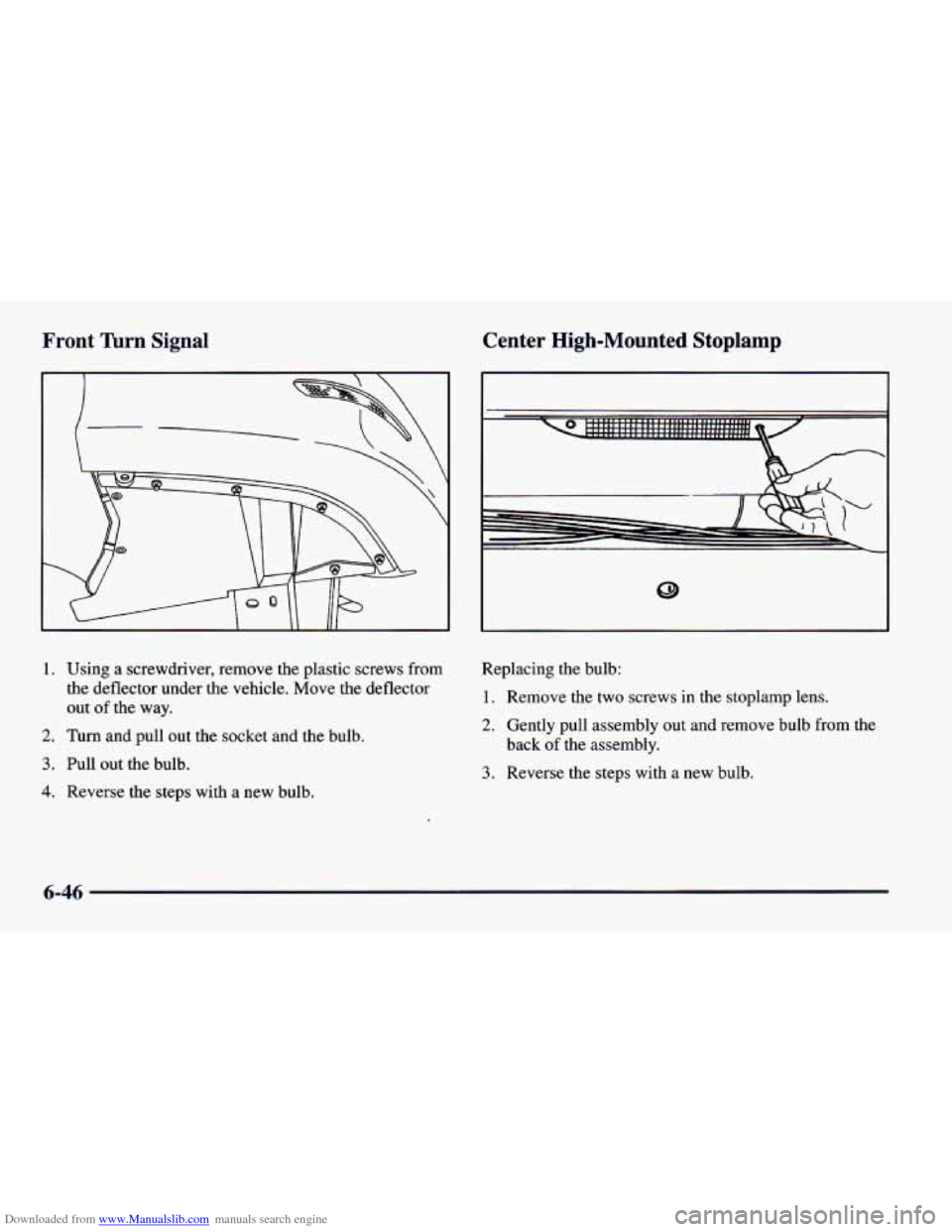

Downloaded from www.Manualslib.com manuals search engine Front Turn Signal Center High-Mounted Stoplamp
1. Using a screwdriver, remove the plastic screws from
the deflector under the vehicle. Move the deflector
out
of the way.
2. Turn and pull out the socket and the bulb.
3. Pull out the bulb.
4. Reverse the steps with a new bulb. Replacing
the bulb:
1. Remove the two screws in the stoplamp lens.
2. Gently pull assembly out and remove bulb from the
3. Reverse the steps with a new bulb.
back
of the
assembly.
6-46

Downloaded from www.Manualslib.com manuals search engine Rear Lamps
To change any rear bulb, you have to remove the
entire housing.
1. Remove the trim panel from the side that you are
replacing the bulb.
2. Pull the carpet back.
3. Remove the wing nuts.
I
4.
5.
6.
7.
Pull the assembly off from the outside.
To remove a socket with a tab, press the tab and turn
the socket counterclockwise.
To remove a socket
without a tab, turn the socket counterclockwise.
To remove the bulb, push in and turn it
counterclockwise, then pull it out.
Reverse the steps with a new bulb.
6-47

Downloaded from www.Manualslib.com manuals search engine Rear Sidemarker
c
Replacing a rear sidemarker bulb:
1. Remove the screw from the sidemarker assembly.
2. To pull out the bulb housing, tilt the housing to
remove the tabbed end.
3. Turn counterclockwise and pull out the socket and
4. Pull out the bulb. the bulb.
5. Reverse the steps with a new bulb.
6-48

Downloaded from www.Manualslib.com manuals search engine Wiper Blade Assembly Replacement Wiper Blade Element Replacement
Replacement blades
come in different types and are
removed in different ways.
To remove the wiper blade assembly:
1. Lift the wiper arm until it locks into an upright position.
2. Press the locking tab down while sliding the blade
assembly down.
To replace the wiper blade element, refer to the wiper
blade assembly replacement instructions.
To replace the
element, follow these steps:
1. Locate the heel end of the wiper blade assembly that
has the two notches held by
the wiper blade claw.
2. Hold the wiper blade assembly with one hand and
pull the element gently with the other hand. (Replacement blade elements have three plastic caps
which retain two metal flexor strips.
Do not remove
these caps before the element is installed).
6-49

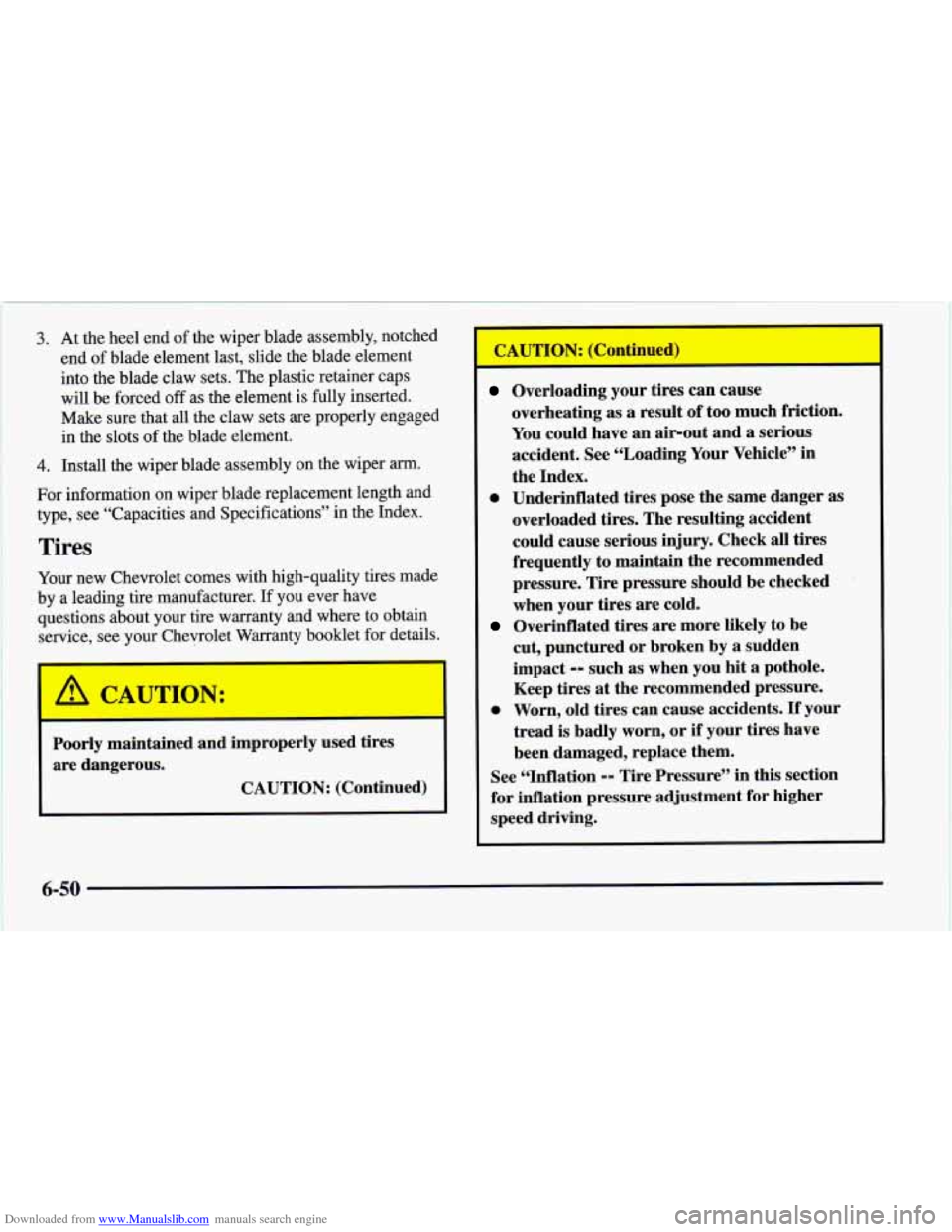

Downloaded from www.Manualslib.com manuals search engine ~ 3. At
the heel end of the wiper blade assembly, notched
end of blade element last, slide the blade element
into the blade claw sets. The plastic retainer caps
will be forced
off as the element is fully inserted.
Make sure that all the claw sets are properly engaged
in the slots of the blade element.
4. Install the wiper blade assembly on the wiper arm.
For information on wiper blade replacement length and
type, see “Capacities and Specifications” in the Index.
Tires
Your new Chevrolet comes with high-quality tires made
by a leading tire manufacturer. If you ever have
questions about your tire warranty and where to obtain
service, see your Chevrolet Warranty booklet for details.
Poorly maintained and improperly used tires
are dangerous.
CAUTION: (Continued)
Overloading your tires can cause
overheating as
a result of too much friction.
You could have an air-out and a serious
accident. See “Loading Your Vehicle” in
the Index.
0 Underinflated tires pose the same danger as
overloaded tires. The resulting accident
could cause serious injury. Check all tires
frequently to maintain the recommended
pressure. Tire pressure should be checked
when your tires are cold.
cut, punctured or broken
by a sudden
impact
-- such as when you hit a pothole.
Keep tires at the recommended pressure.
0 Worn, old tires can cause accidents. If your
tread
is badly worn, or if your tires have
been damaged, replace them.
See “Inflation
-- Tire Pressure’’ in this section
for inflation pressure adjustment for higher
speed driving.
Overinflated tires are more likely to be
6-50
