1997 CHEVROLET ASTRO Owners Manual

Downloaded from www.Manualslib.com manuals search engine Starter Switch Check
I A CAUTION: I
When you are doing this check, the vehicle could
move suddenly. If it does, you or others could be injured. Follow the steps below.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake (see “Parking
Brake” in the Index if necessary) and the
regular brake.
NOTE: Do not use the accelerator pedal, and be
ready to turn off the engine immediately if
it starts.
3. Try to start the engine in each gear. The starter
should work only in PARK
(P) or NEUTRAL (N).
If the starter works in any other position, your
vehicle needs service.
Brake-Transmission Shift Interlock (BTSI) Check
A CAUTION:
When you are doing this check, the vehicle could
move suddenly.
If it does, you or others could be
injured. Follow the steps below.
1.
2.
3.
Before you start, be sure you have enough room
around the vehicle. It should be parked
on a
level surface.
Firmly apply the parking brake (see “Parking Brake”
in
the Index if necessary).
NOTE: Be ready to apply the regular brake
immediately if
the vehicle begins to move.
With the engine off, turn the key to
the RUN
position, but don’t start the engine. Without applying
the regular brake, try to move the shift lever out
of PARK (P) with normal effort. If the shift lever
moves out
of PARK (P), your vehicle’s BTSI
needs service.
7-45

Downloaded from www.Manualslib.com manuals search engine Ignition Ransmission Lock Check
While parked, and with the parking brake set, try to turn
the ignition key to
LOCK in each shift lever position.
0 The key should turn to LOCK only when the shift
lever
is in PARK (P).
0 The key should come out only in LOCK.
Parking Brake and Automatic Transmission
PARK
(P) Mechanism Check
I A CAUTION: I
When you are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there is room in front of your vehicle in case
it begins to roll. Be ready to apply the regular
brake
at once should the vehicle begin to move.
Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot
on the regular brake,
set the parking brake.
0 To check the parking brake’s holding ability:
With the engine running and transmission
in
NEUTRAL (N), slowly remove foot pressure from
the regular brake pedal.
Do this until the vehicle is
held by the parking brake only.
0 To check the PARK (P) mechanism’s holding ability:
With the engine running, shift to PARK
(P). Then
release all brakes.
7-46

Downloaded from www.Manualslib.com manuals search engine Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed at least twice a year (for instance, each
spring and fall).
You should let your GM dealership’s
service department or other qualified service center do
these jobs. Make sure any necessary repairs
are
completed at once.
Proper procedures to perform these services may be
found in
a GM service manual. See “Service and Owner
Publications” in the Index.
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear or lack of lubrication. Inspect the power steering
lines and hoses for proper hook-up, binding, leaks,
cracks, chafing, etc. Clean and then inspect the drive
axle boot seals for damage, tears or leakage. Replace
seals if necessary.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system.
Look for broken, damaged,
missing or out-of-position parts as well as open seams,
holes, loose connections or other conditions ‘which could
cause
a heat build-up in the floor pan or could let
exhaust fumes into the vehicle. See “Engine Exhaust”
in
the Index.
Radiator and Heater Hose Inspection
Inspect the hoses and have them replaced if they are
cracked, swollen or deteriorated. Inspect all pipes,
fittings and clamps; replace as needed.
Throttle Linkage Inspection
Inspect the throttle linkage for interference or binding,
and for damage or missing parts. Replace parts as
needed. Replace any cables that have high effort or
excessive wear.
Do not lubricate accelerator and cruise
control cables.
i;.
7-47

Downloaded from www.Manualslib.com manuals search engine Drive Axle Service
Check readfront axle fluid level and add as needed.
Check constant velocity joints and axle seals for leaking.
Transfer Case (All-Wheel Drive) Inspection
Every 12 months or at oil change intervals, check front
axle and transfer case and add lubricant when necessary.
Oil the control lever pivot point and all exposed control
linkage. Check vent hose at transfer case for kinks and
proper installation.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and rotors
for surface condition.
Also inspect drum brake linings
for wear and cracks. Inspect other brake parts, including
drums, wheel cylinders, calipers, parking brake, etc.
Check parking brake adjustment. You may need
to have
your brakes inspected more
often if your driving habits
or conditions result
in frequent braking.
7-48

Downloaded from www.Manualslib.com manuals search engine !‘ Part D: Recommended Fluids
and Lubricants
NOTE: Fluids and lubricants identified below by name, part number or specification may be obtained from your
GM dealer.
I USAGE
Engine Coolant
Coolant Supplement
Sealer
FLUIDLUBRICANT
Engine oil with the American
Petroleum Institute Certified For
Gasoline Engines “Starburst”
symbol of the proper viscosity.
To
determine the preferred viscosity
for your vehicle’s engine, see
“Engine Oil” in the Index.
50/50 mixture of clean water
(preferably distilled) and GM
Goodwrench@ DEX-COOL
or
Havoline@ DEX-COOL TM
(silicate-free) antifreeze. See
“Engine Coolant’’ in the Index.
GM Part No. 3634621 or
equivalent with a complete flush
and refill.
-_
USAGE
Delco Supreme 11 @ Brake Fluid Hydraulic Brake
FLUIDLUBRICANT
(GM Part No. 12377967 or System equivalent DOT-3 brake fluid).
Parking Brake Chassis lubricant (GM
Part
Cable Guides No. 1052497 or equivalent) or
lubricant meeting requirements
of NLGI
# 2, Category LB
or GC-LB.
Power Steering
GM Power Steering Fluid
System (GM
Part No. 1052884 - 1 pint,
Automatic DEXRON@-I11 Automatic
Transmission Transmission Fluid.
Key
Lock Multi-Purpose lubricant, Superlube@
Cylinders
(GM Part No. 12346241
or equivalent).
1050017
- 1 quart, or equivalent).
Chassis Chassis lubricant
(GM Part
Lubrication No. 1052497 or equivalent)
or
lubricant meeting requirements
of NLGI # 2, Category LB
or GC-LB.
7-49

Downloaded from www.Manualslib.com manuals search engine I USAGE
Front Wheel Bearings
Differential,
Front and Rear Axle
I Transfer Case
Windshield Washer Solvent
FLUIDLUBRICANT
Wheel bearing lubricant meeting
requirements
of NLGI ## 2,
Category GC or GC-LB (GM
Part
No. 105 1344 or equivalent).
Axle Lubricant (GM Part
No.
105227 1) or SAE 8OW-90
GL-5 Gear Lubricant.
DEXRON@-111 Automatic
Transmission Fluid.
GM Optikleen@ Washer Solvent
(GM Part
No. 1051515)
or equivalent.
I USAGE I FLUIDLUBRICANT
Hood Latch
(GM Part No. 12346293 or
Assembly, Lubriplate lubricant aerosol
Category LB or GC-LB.
Release Pawl requirements
of NLGI ## 2, Anchor
and equivalent)
or lubricant meeting
Pivots, Spring
Hood and Door or equivalent).
(GM Part No. 12346241
Hinges Multi-purpose lubricant, Superlube@
~
Weatherstrip
replacement filters, valves and spark plugs.
See
“Replacement Parts” in the Index
for recommended
Part No.
12345579 or equivalent).
Conditioning Dielectric
Silicone Grease
(GM
7-50

Downloaded from www.Manualslib.com manuals search engine Part E: Maintenance Record
After the scheduled services are performed, record the
date, odometer reading and who performed
the service
in the boxes provided after the maintenance interval.
Any additional information from “Owner Checks and
Services” or “Periodic Maintenance” can be added
on
the following record pages. Also, you should retain all
maintenance receipts. Your owner information portfolio
is
a convenient place to store them.
ODOMETER
READING
Maintenance Record
SERVICED BY MAINTENANCE PERFORMED
7-51

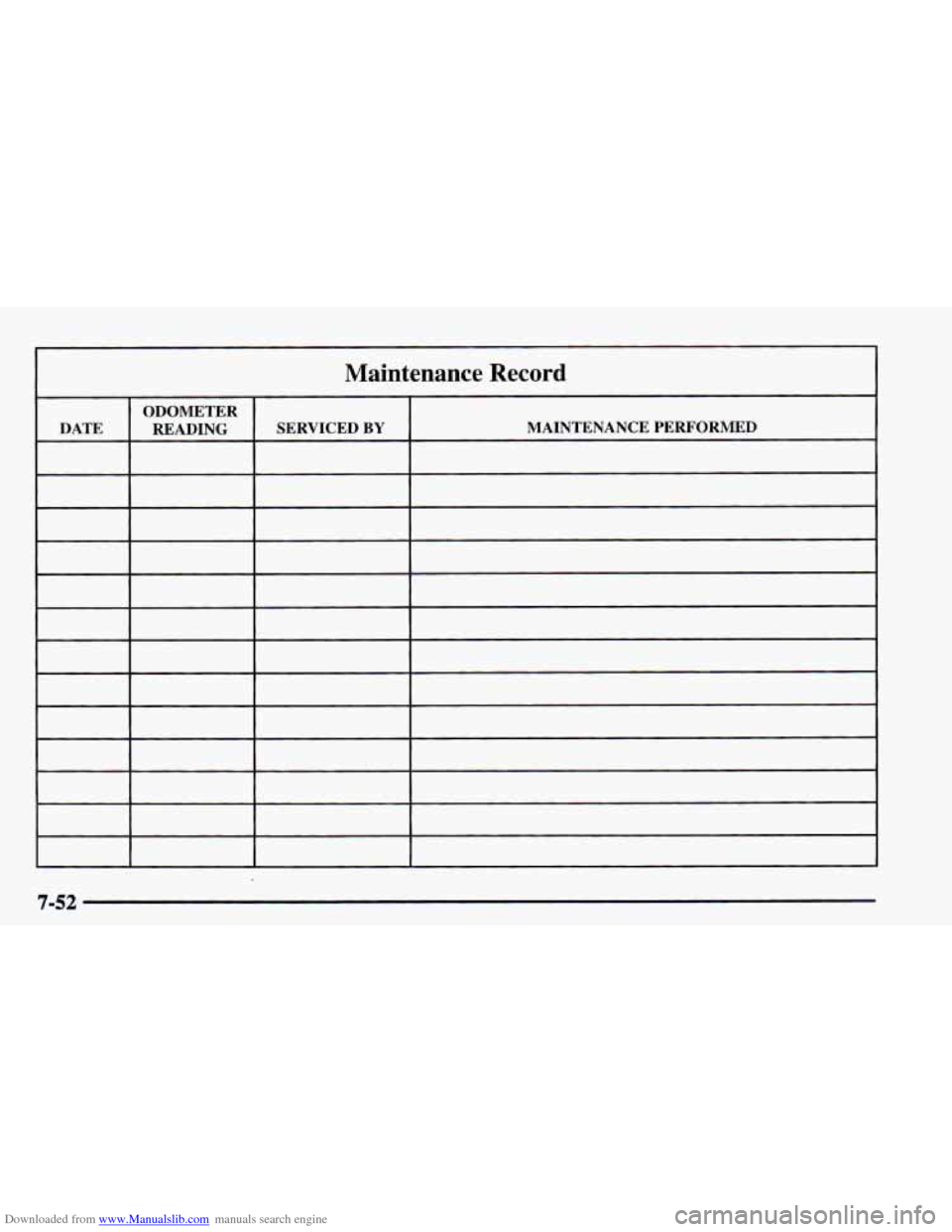

Downloaded from www.Manualslib.com manuals search engine Maintenance Record
ODOMETER
DATE READING SERVICED
BY MAINTENANCE PERFORMED
7-52
