1997 CHEVROLET ASTRO Owners Manual

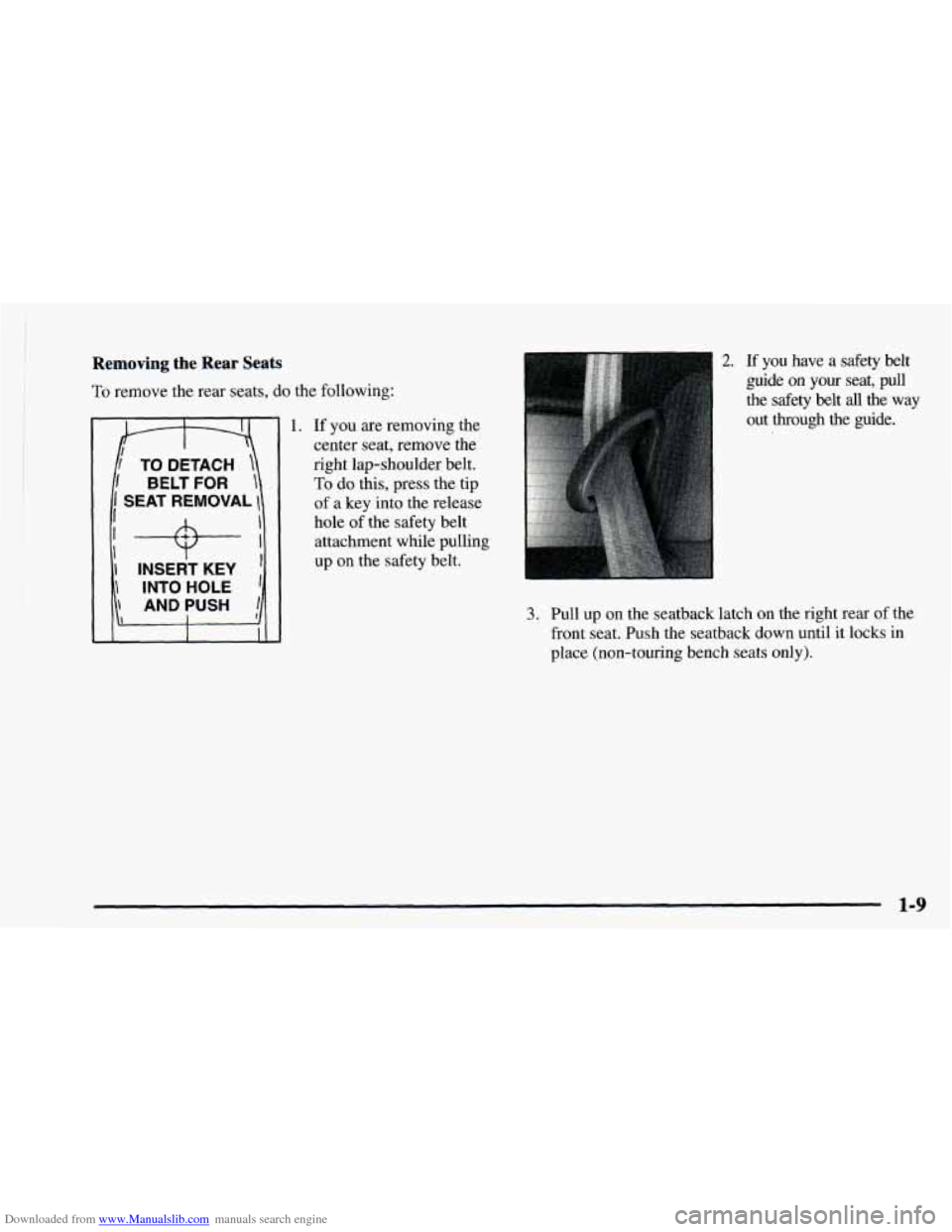

Downloaded from www.Manualslib.com manuals search engine Removing the Rear Seats
To remove the rear seats, do the following:
c I TO DETACH
‘1 BELT FOR
SEAT REMOVAL
-9.- I
INSERT KEY , 1
INTO HOLE
AND PUSH I
I I
1 I
1. If you are removing the
center seat, remove the
right lap-shoulder belt.
To do this, press the tip
of a key into the release
hole of the safety belt
attachment while pulling
up on the safety belt.
2. If you have a safety belt
guide on
your seat, pull
the
safety belt all the way
I, out through the guide.
3. Pull up on the seatback latch on the right rear of the
front seat. Push the seatback
down until it locks in
place (non-touring bench seats only).
1-9

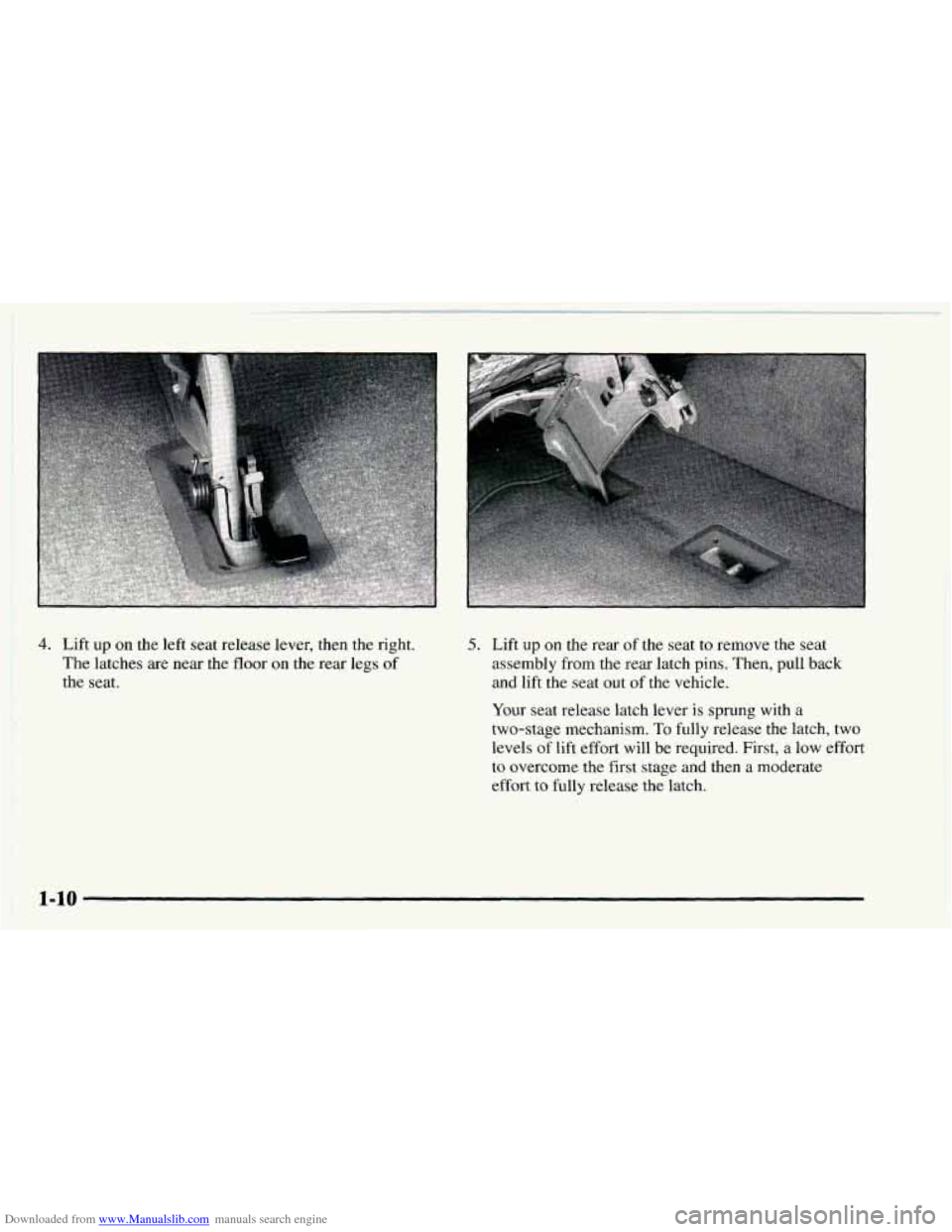

Downloaded from www.Manualslib.com manuals search engine 4. Lift up on the left seat release lever, then the right.
The latches
are near the floor on the rear legs of
the seat.
5. Lift up on the rear of the seat to remove the seat
assembly from the rear latch pins. Then, pull back
and lift the seat out of the vehicle.
Your seat release latch lever
is sprung with a
two-stage mechanism.
To fully release the latch, two
levels of lift effort will be required. First, a low effort
to overcome the first stage and then a moderate
effort to fully release the latch.
1-10

Downloaded from www.Manualslib.com manuals search engine Replacing the Rear Seats
To replace the rear seats, do the following:
1. Lower the seat into position. Make sure the front
retainers are hooked onto the anchor pins.
2. Pull the seat down to latch the rear retainers. Make
sure the seat
is locked in by pulling up and down on
the seat.
3. Raise the seatback by pushing forward on the latch at
the right rear of the seat, while pushing down on the
upper edge of the seatback. Pull up on the seatback
until
it is locked securely in the up position.
1-11

Downloaded from www.Manualslib.com manuals search engine 4. If you are replacing the center seat, connect the right
lap-shoulder belt to
the attachment on the seat
cushion. If
you have a safety belt guide on your seat,
pull the belt through
the guide before reattaching the
lap-shoulder belt to the side
of the seat. The release
hole should be facing outward.
If you installed the safety belt with the release hole
facing inward (toward the seat), slide the plastic
cover up
so you can see the buckle. Disconnect the
seat belt. Slide the cover back down and reinstall the
belt correctly.
NOTICE:
Be sure to put the correct seats back in the proper
positions
so the safety belts will work properly.
Safety Belts: They’re for Everyone
This part of the manual tells you how to use safety belts
properly. It also tells
you some things you should not do
with safety belts.
And it explains the Supplemental Inflatable Restraint
(SIR), or air bag system.
Don’t let anyone ride whel he or she can’t wear
a safety belt properly. If you are in a crash and
you’re not wearing
a safety belt, your injuries
can be much worse.
You can hit things inside the
vehicle or be ejected from it.
You can be seriously
injured or killed. In the same crash, you might
not be if you are buckled up. Always fasten your
safety belt, and check that your passengers’ belts
are fastened properly too.
1-12

Downloaded from www.Manualslib.com manuals search engine I A CALION:
It is extremely dangerous to ride in a cargo area,
inside or outside
of a vehicle. In a collision,
people riding in these areas are more likely to be
seriously injured or killed.
Do not allow people to
ride in any area
of your vehicle that is not
equipped with seats and safety belts. Be sure
everyone in your vehicle
is in a seat and using a
safety belt properly.
Your vehicle has a light
that comes on as a reminder
to buckle up. (See “Safety
Belt
Reminder Light” in
the Index .)
In most states and Canadian provinces, the law says to
wear safety belts. Here’s why: They work.
You never know if you’ll be in a crash. If you do have a
crash,
you don’t know if it will be a bad one.
A few crashes are mild, and some crashes can be
so
serious that even buckled up a person wouldn’t survive.
But most crashes are in between. In many
of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly hurt
or killed.
After more than
25 years of safety belts in vehicles, the
facts are clear. In most crashes buckling up does
matter
... a lot!
Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
1-13

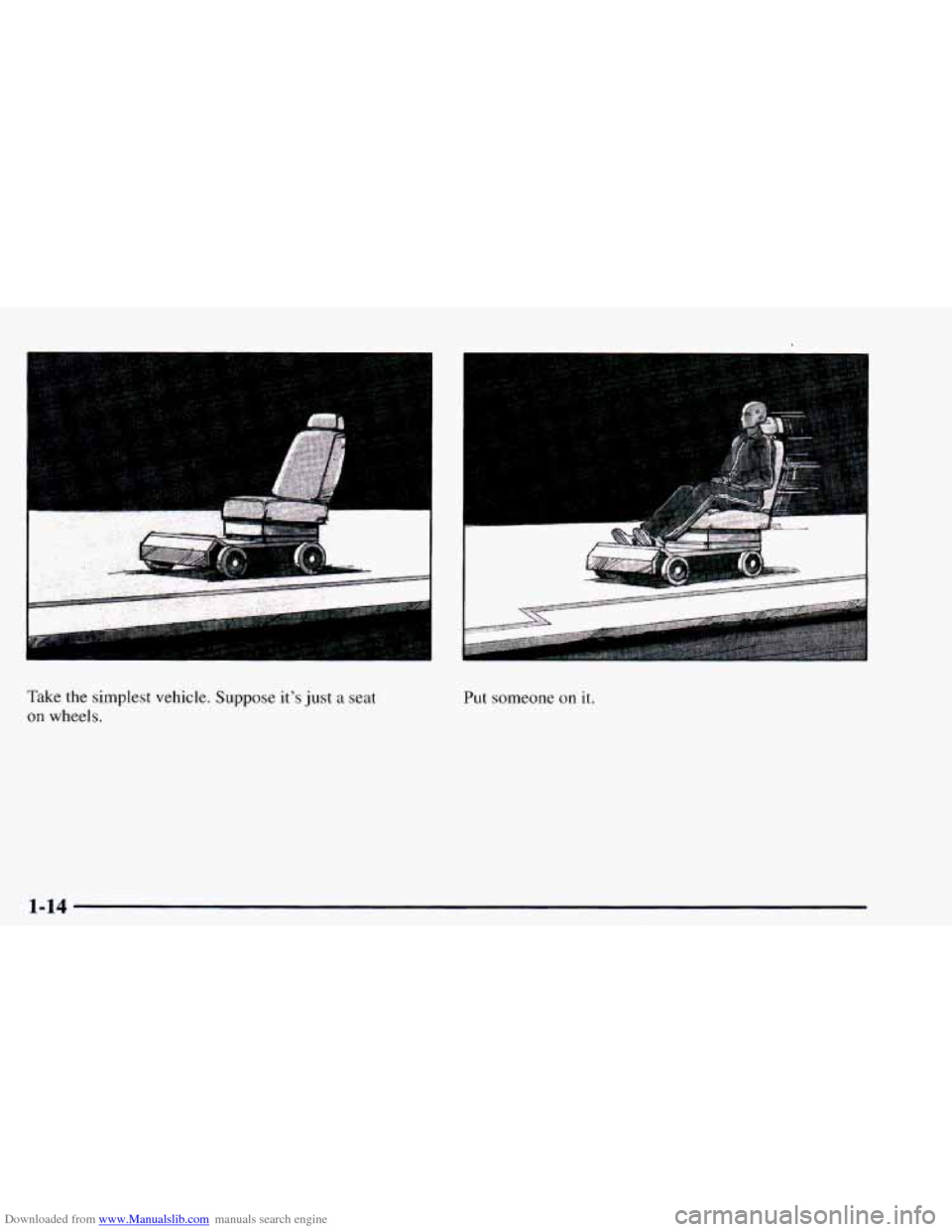

Downloaded from www.Manualslib.com manuals search engine Take the simplest vehicle. Suppose it's just a seat
on wheels. Put
someone on it.
1-14

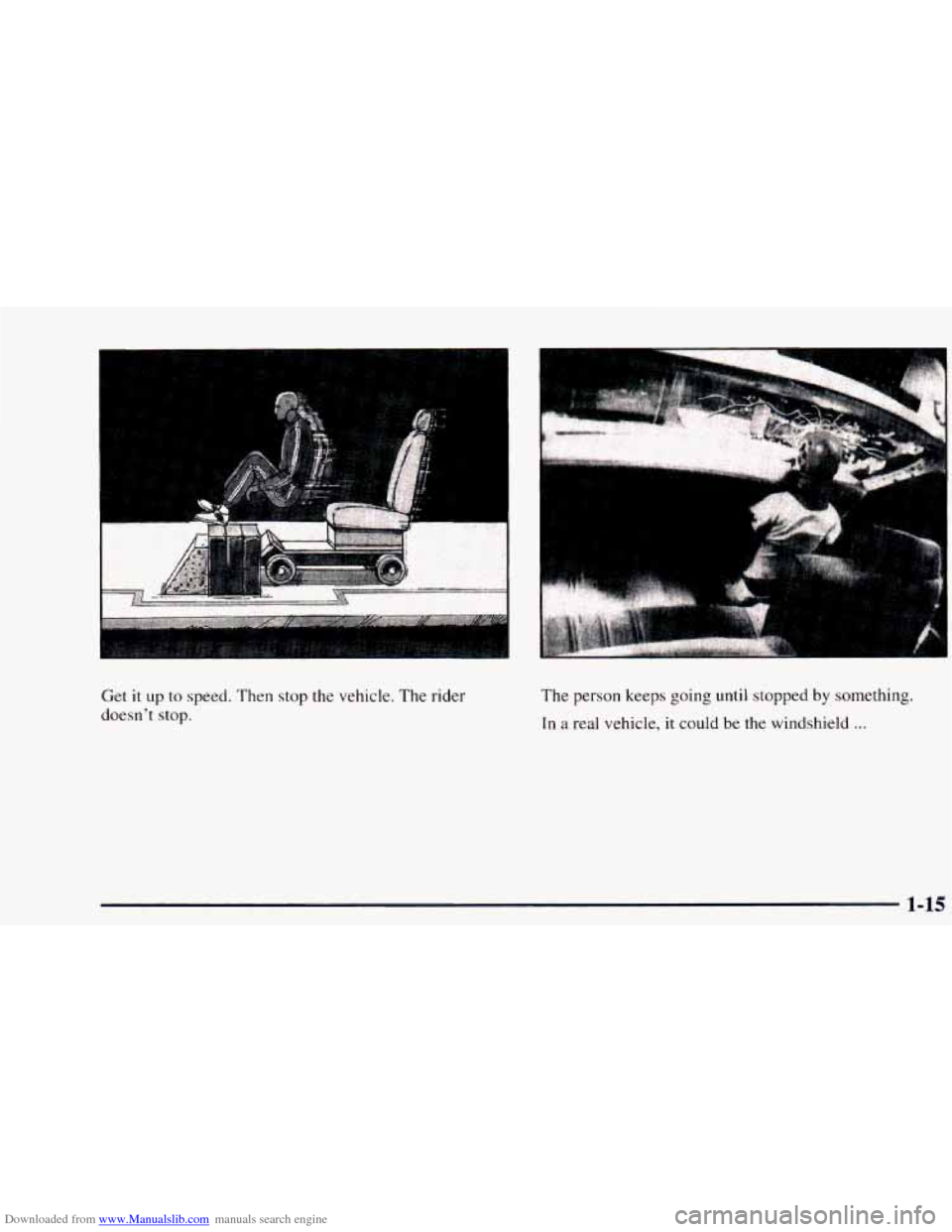

Downloaded from www.Manualslib.com manuals search engine Get it up to speed. Then stop the vehicle. The rider
doesn’t stop. The person keeps going until stopped by something.
In a
real vehicle, it could be the windshield ...
1-15

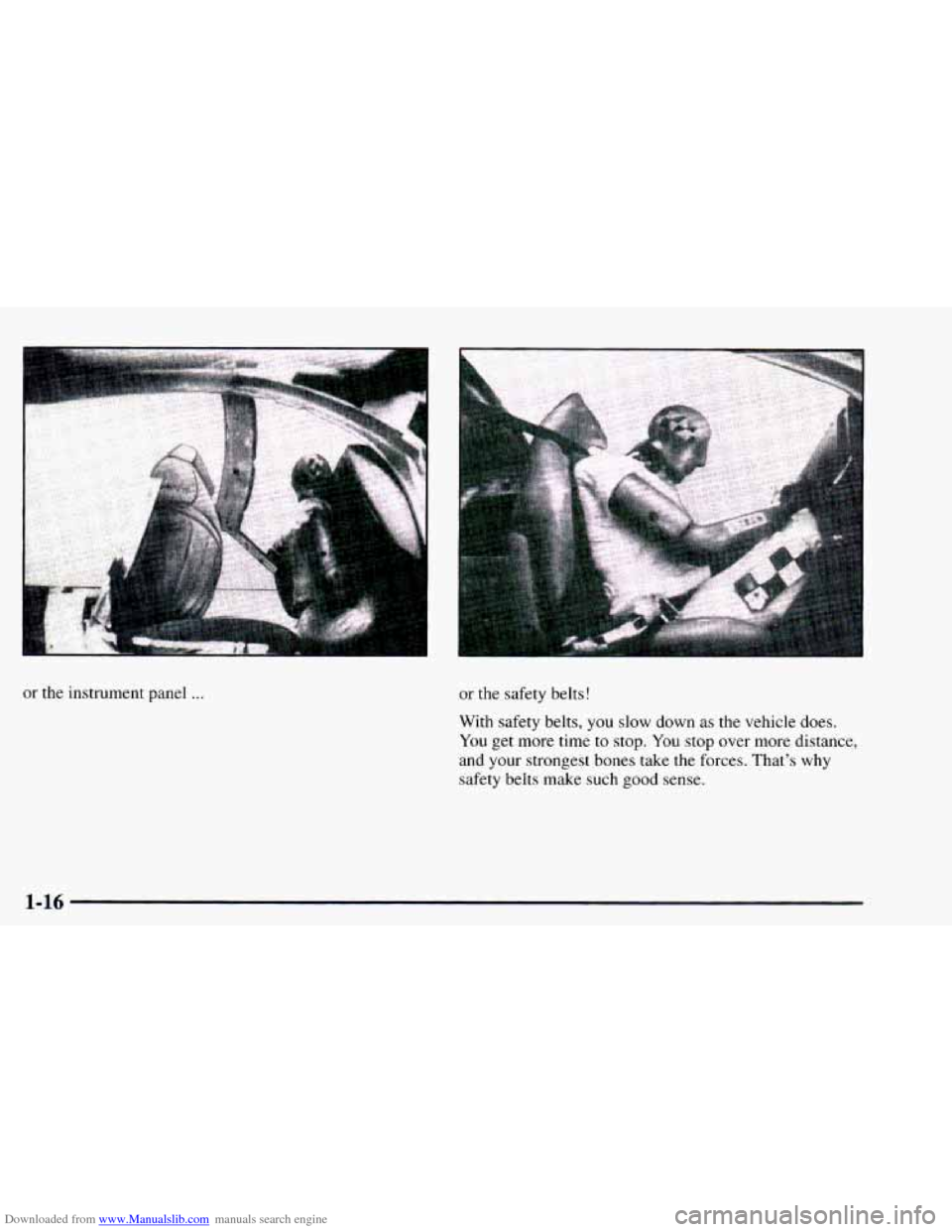

Downloaded from www.Manualslib.com manuals search engine L
or the instrument panel ... or the safety belts!
With safety belts, you slow down as the vehicle does.
You get more time
to stop. You stop over more distance,
and your strongest bones take the forces. That’s why
safety belts make such good sense.
1-16
