1997 CHEVROLET ASTRO Owners Manual

Downloaded from www.Manualslib.com manuals search engine Changing a Flat Tire
If a tire goes flat, avoid further tire and wheel damage
by driving slowly to
a level place. Turn on your hazard
warning flashers.
I A CAUTION:
I
Changing a tire can cause an injury. The vehicle
can slip
off the jack and roll over you or other
people.
You and they could be badly injured.
Find
a level place to change your tire. To help
prevent the vehicle from moving:
1. Set the parking brake firmly.
2. Put the shift lever in PARK (P).
3. 'hrn off the engine.
4. Put the wheel blocks at the front and
rear of the tire farthest away from the
one being changed. That would be the
tire on the other side of the vehicle, at
the opposite end.
The following steps will tell you how to use the jack and
change
a tire.
5-23

Downloaded from www.Manualslib.com manuals search engine Removing the Spare Tire and Tools
The jacking equipment you’ll need is stored by your
vehicle’s rear doors, along the passenger side wall.
Remove your jack cover by pulling it away from the
side wall and down
to release the tabs securing the top
of the cover. Remove the wheel blocks
by turning the top nut
counterclockwise. Remove the nut and washer, then pull
the wheel blocks off the bolt. Push down on the bolt and
remove
the hooked end from the slot. Slide the jack
toward the front
of the vehicle and lift it from the
mounting. Remove the extension and
the ratchet from
the pouch.
5-24

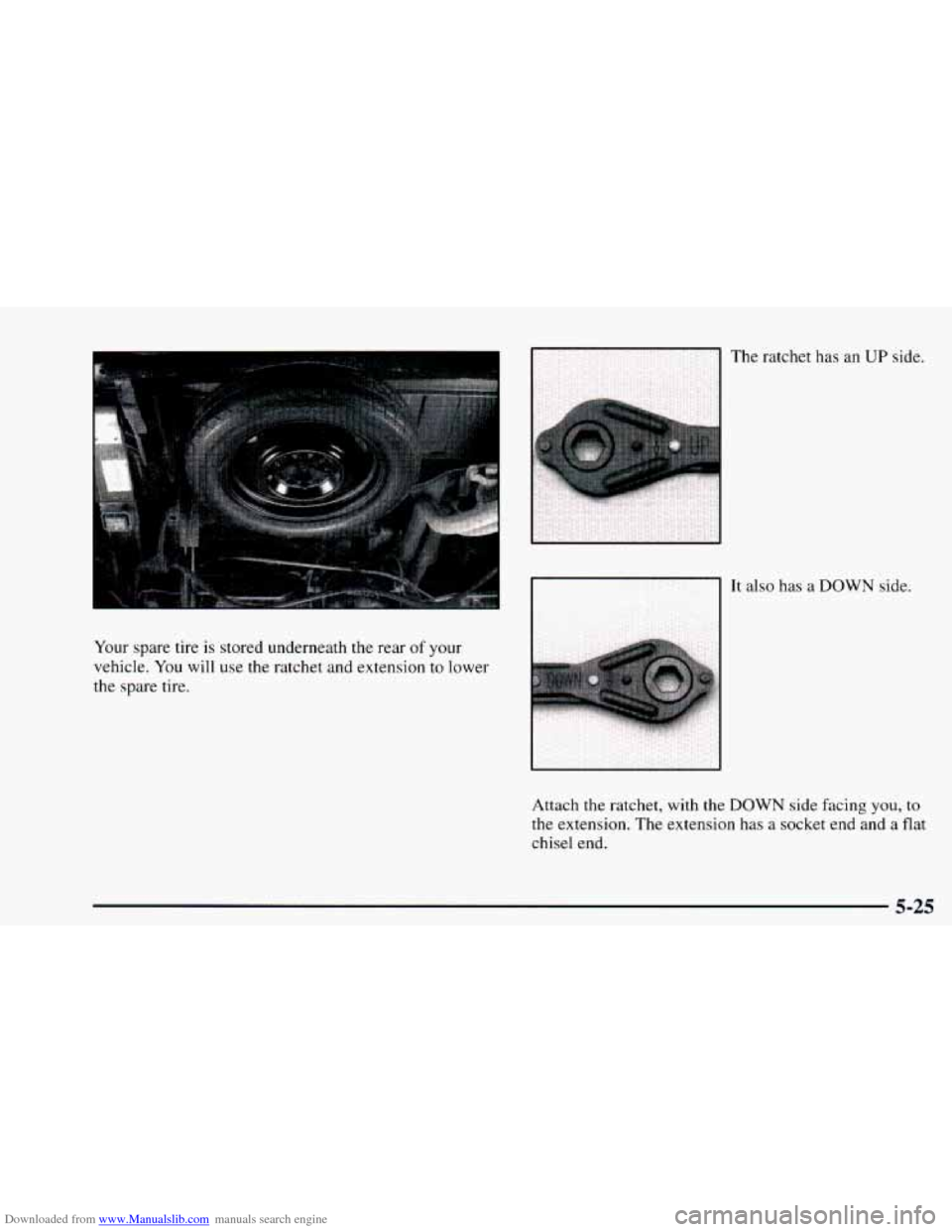

Downloaded from www.Manualslib.com manuals search engine Your spare tire is stored underneath the rear of your
vehicle. You will use the ratchet and extension to lower
the spare tire. It
also has a DOWN side.
Attach the ratchet, with the
DOWN side facing you, to
the extension. The extension has
a socket end and a flat
chisel end.
5-25

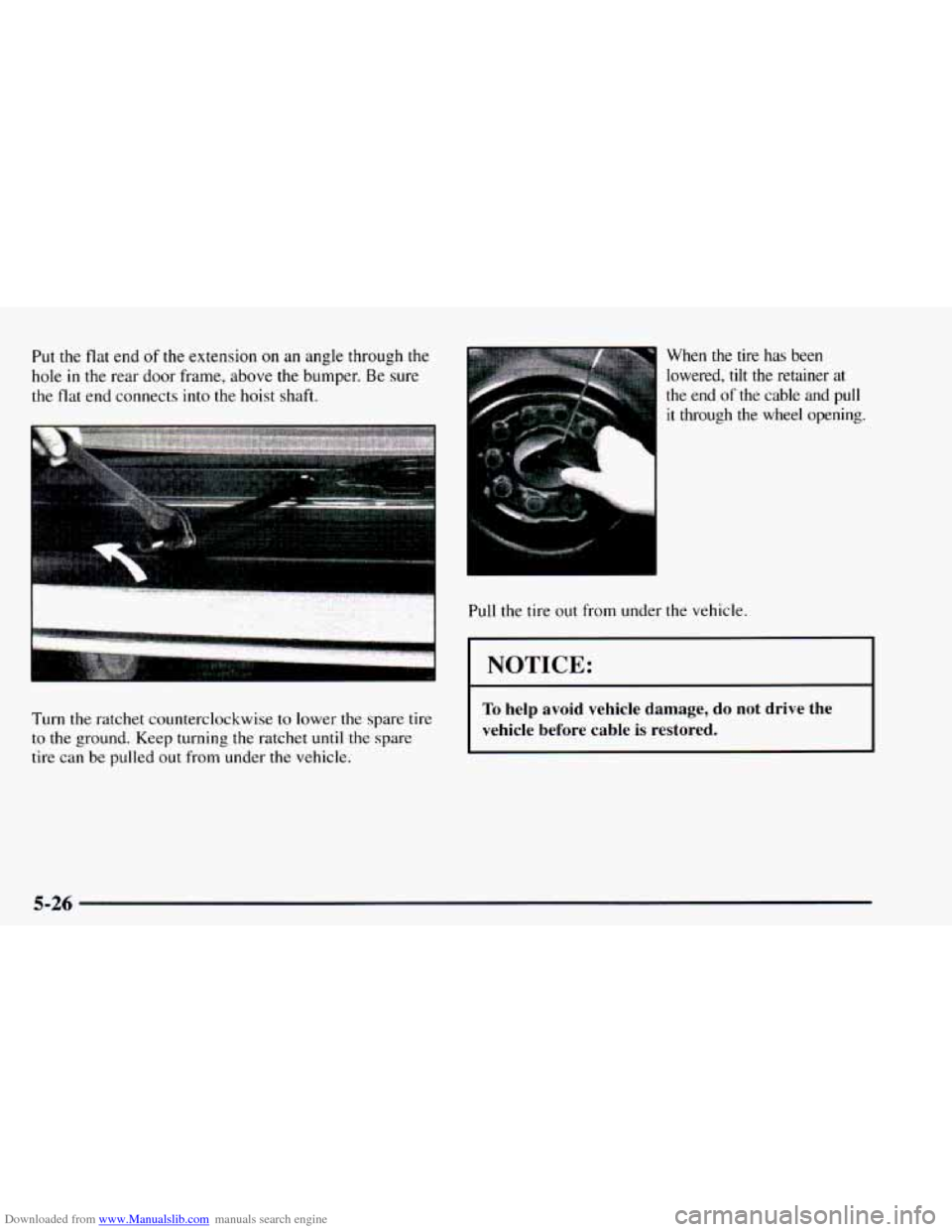

Downloaded from www.Manualslib.com manuals search engine Put the flat end of the extension on an angle through the
hole in the rear door frame, above the bumper. Be sure
the flat end connects into the hoist shaft.
Turn the ratchet counterclockwise to lower the spare tire
to the ground. Keep turning the ratchet
until the spare
tire can
be pulled out from under the vehicle. When the
tire has been
lowered,
tilt the retainer at
the end
of the cable and pull
it through the wheel opening.
Pull the tire out from under the vehicle.
I NOTICE:
To help avoid vehicle damage, do not drive the
vehicle before cable is restored.
5-26

Downloaded from www.Manualslib.com manuals search engine A
The tools you'll be using include the jack (A), wheel
blocks
(B), extension (C) and ratchet (D).
Removing the Wheel Covers
You will have to take off hub caps or wheel nut caps to
reach your wheel nuts.
If you have a standard steel wheel, carefully pry along
the edge
of the hub cap until it comes off. Be careful, the
rim edges may be sharp. Don't try to remove the hub
cap with your bare hands.
If you have the styled steel wheel, loosen the plastic nut
caps with the ratchet and socket. Make sure the DOWN
side faces you.
To remove the hub cap from the aluminum wheel, fit the
flat end
of the extension into the notch. Then, remove
the center cap.
5-27

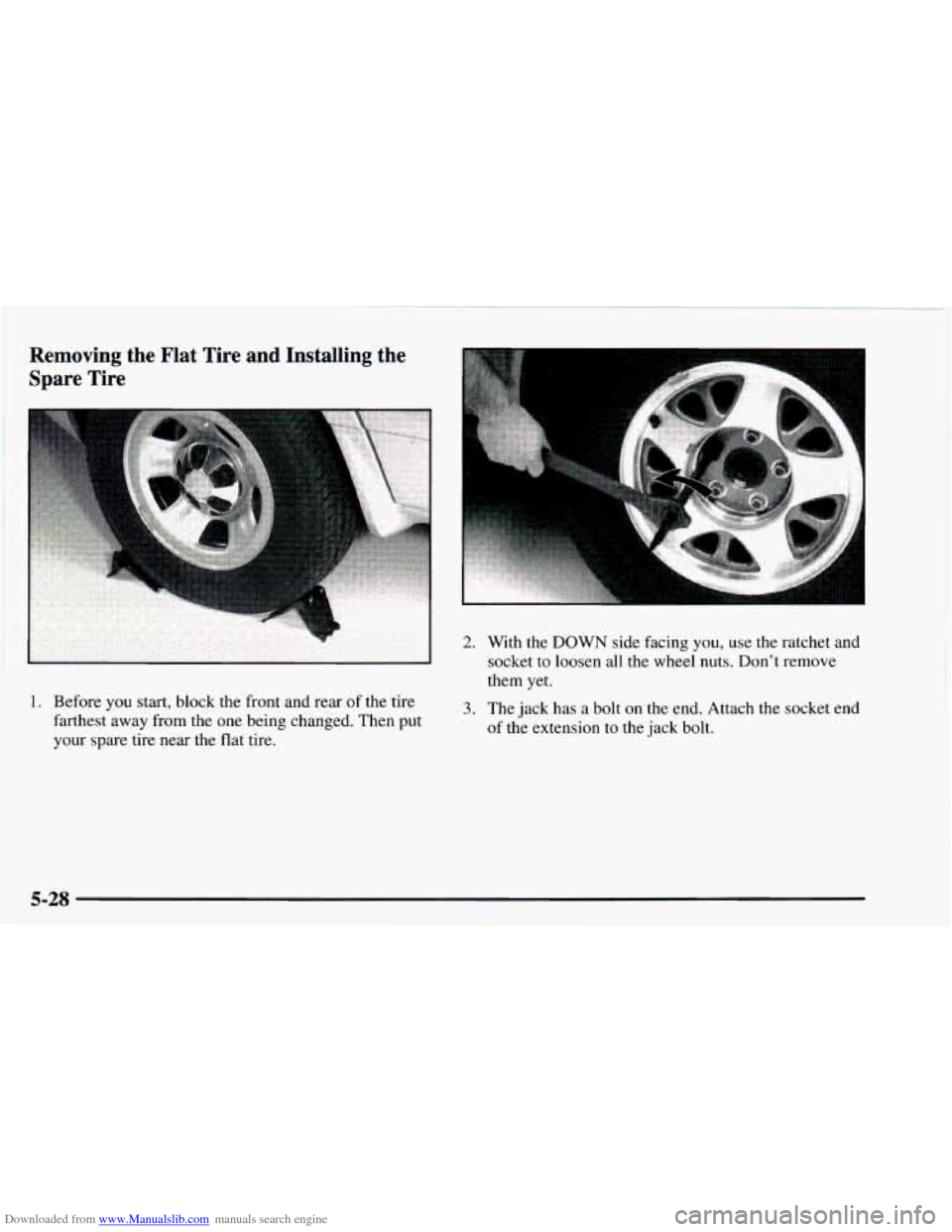

Downloaded from www.Manualslib.com manuals search engine 5-28

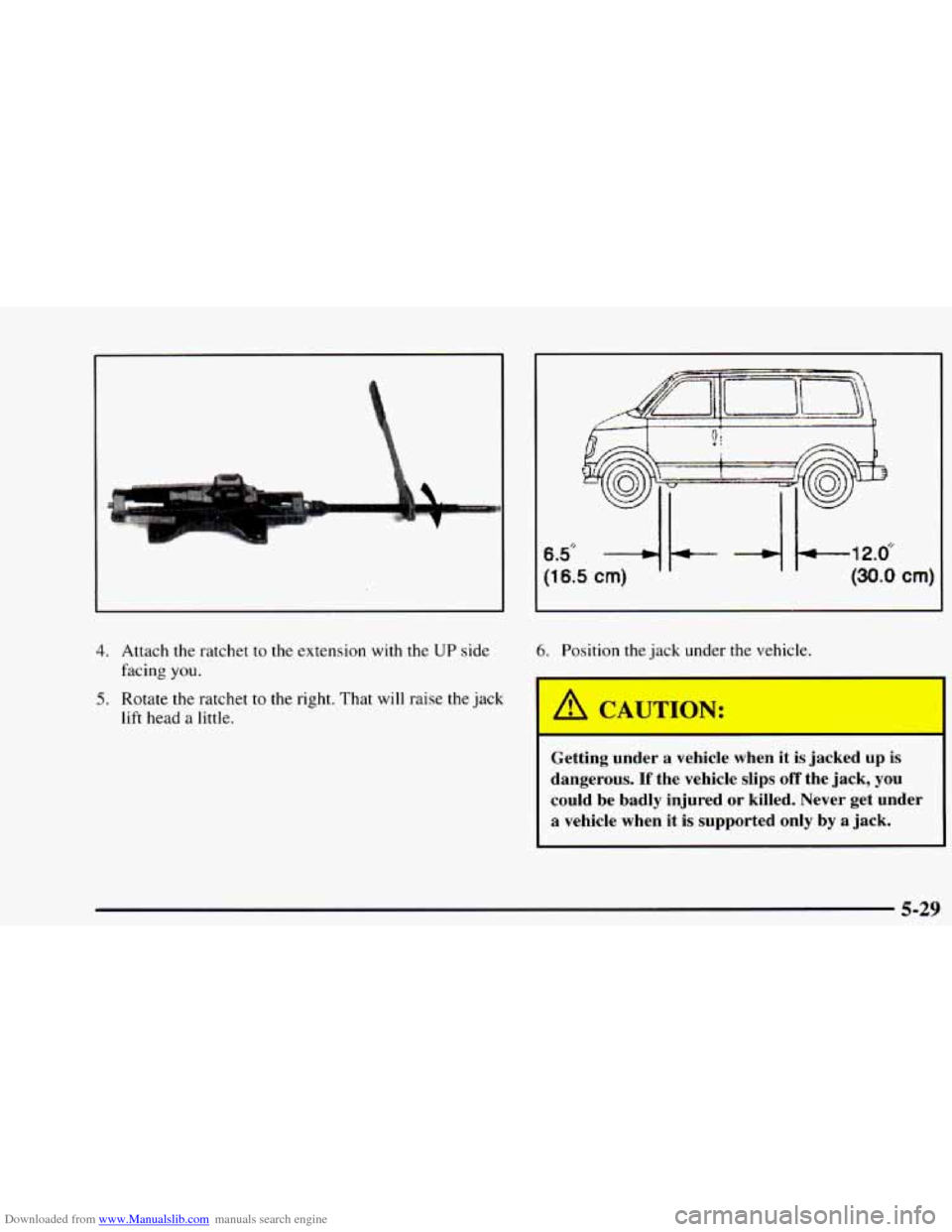

Downloaded from www.Manualslib.com manuals search engine 4. Attach the ratchet to the extension with the UP side
facing you.
5. Rotate the ratchet to the right. That will raise the jack
lift head
a little.
6. Position the jack under the vehicle.
-
A CAUTION:
I
Getting under a vehicle when it is jacked up is
dangerous.
If the vehicle slips off the jack, you
could be badly injured
or killed. Never get under
a vehicle when
it is supported only by a jack.
5-29

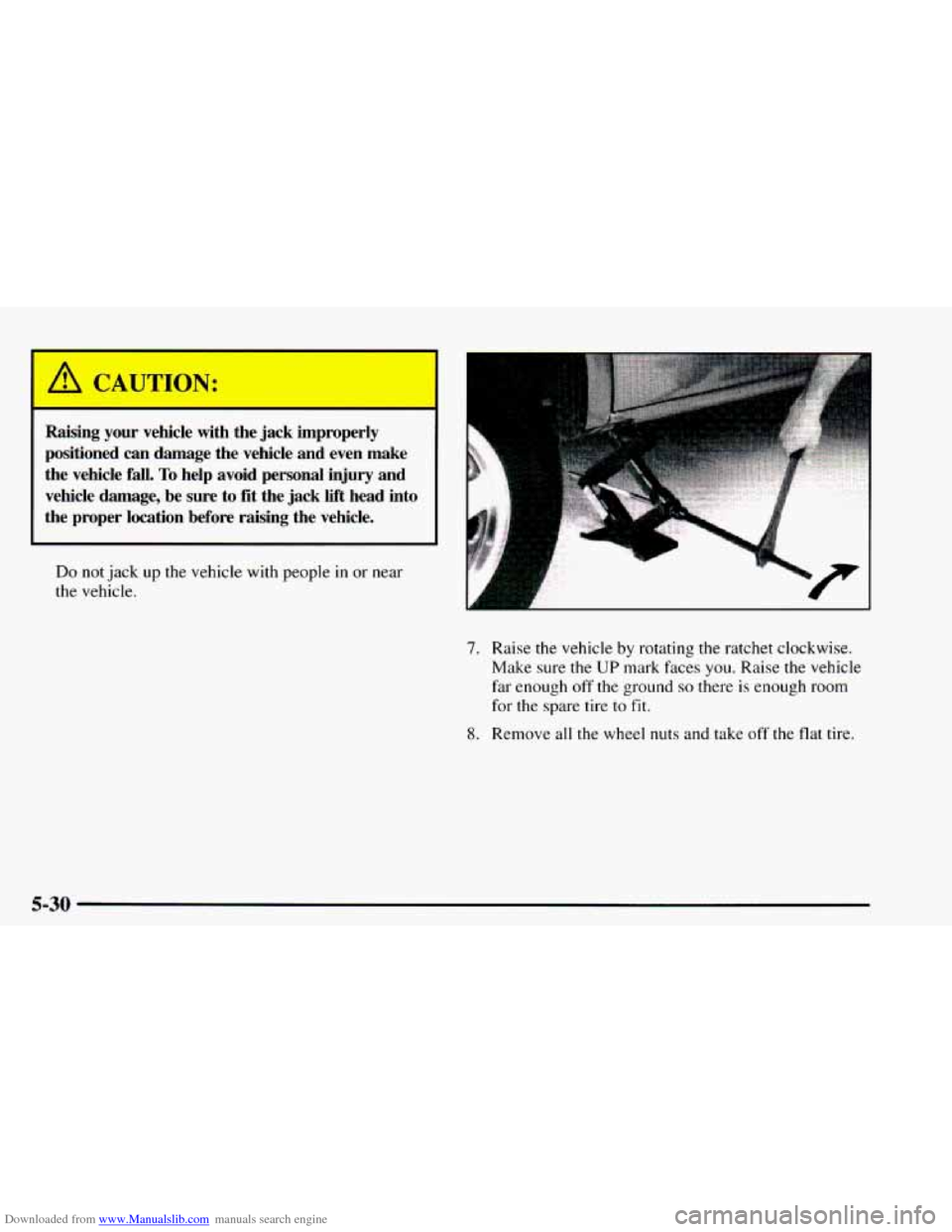

Downloaded from www.Manualslib.com manuals search engine Raising your vehicle with the jack improperly
positioned can damage the vehicle and even make
the vehicle fall.
To help avoid personal injury and
vehicle damage, be
sure to fit the jack lift head into
the proper location before raising the vehicle.
~ ~ ~ ~~~~~~~~ ~~ ~ ~ ~
Do not jack up the vehicle with people in or near
the vehicle.
7. Raise the vehicle by rotating the ratchet clockwise.
Make sure the
UP mark faces you. Raise the vehicle
far enough off the ground
so there is enough room
for the spare tire
to fit.
8. Remove all the wheel nuts and take off the flat tire.
5-30
