1996 FORD WINDSTAR steering

Steering Column Controls
137
*
[SC05000(ALL)03/95]
To change the position of the steering column:
[SC05100(ALL)02/95]1.
Make sure your vehicle is stopped.
*
[SC05200(ALL)03/95]2.
Pull the tilt release lever on the column toward you.
[SC05300(ALL)02/95]3.
Tilt the steering wheel up or down until you find the best
position for you.
[SC05400(ALL)02/95]4.
Release the lever to lock the wheel in place.
[SC05500(ALL)02/95]
Be sure the steering wheel is locked in place. It can only be
adjusted to specific positions. Do not adjust the steering wheel
while the vehicle is in motion.
%*
[SC05600(ALL)03/91]
Speed Control (If equipped)
*
[SC07500(ALL)03/95]
If your vehicle has speed control, you can automatically
maintain a constant speed at or above 30 mph (50 km/h).
[SC07515(ALL)05/95]
When driving in hilly terrain, at high elevations, or when
pulling a trailer, it may be desirable to drive in the Overdrive
Lockout mode. This can be done by depressing the O/D button
on the end of the gearshift lever. Driving in this mode helps
prevent excessive transaxle shifting and helps speed control to
maintain speed when going down steep hills.
*
[SC07530(ALL)05/95]
Use of radio transmitting equipment that is not Federal
Communications Commission (FCC) or in Canada the Canadian
Radio and Telecommunications Commission (CRTC) approved
may cause the speed control to malfunction. Therefore, use only
properly installed FCC (CRTC in Canada) approved radio
transmitting equipment in your vehicle.
[SC07560(ALL)04/95]
NOTE: Do not shift to N (Neutral) when using the speed
control. This will cause the engine to overspeed.
File:wnscs.ex
Update:Tue Mar 19 08:22:27 1996

138
[SC08001(ALL)06/94]
13-1/2 pica
art:0050018-A
The speed control switches on the steering wheel
*
[SC08200(ALL)03/95]
To set the speed control:
[SC08300(ALL)08/94]1.
Find the speed control switches on the steering wheel.
*
[SC08400(ALL)03/95]2.
Press and release the ON switch.
*
[SC08500(ALL)03/95]3.
Accelerate to the desired speed above 30 mph (50 km/h)
using the accelerator pedal.
*
[SC08601(ALL)03/95]4.
Make sure you are driving faster than 30 mph (50 km/h).
[SC08610(ALL)05/94]5.
Press SET ACCEL and release it immediately. This will set
your speed. If you keep this switch pressed, your speed will
continue to increase and will not be set at the desired speed.
[SC08620(ALL)01/95]6.
Take your foot off the accelerator pedal. Your vehicle will
maintain the speed you set.
*
[SC08630(ALL)01/95]
If you drive up or down a steep hill, your vehicle may
momentarily slow down or speed up, even though the speed
control is on. This is normal.
File:wnscs.ex
Update:Tue Mar 19 08:22:27 1996

Steering Column Controls
139
[SC09010(ALL)05/95]
NOTE: On a downhill grade, if your speed increases above
your set speed while driving inj(Overdrive) on a
downhill grade, you may want to downshift to Third
(3) gear to reduce vehicle speed. To do this, push the
Overdrive ON/OFF button on the end of the gearshift
lever. The OVERDRIVE OFF lamp will illuminate
when you press the switch.
[SC09020(ALL)05/95]
You may want to drive in 3 (Third) when driving in hilly
terrain, at high altitudes, or when pulling a trailer. This will
improve speed control performance.
[SC09030(ALL)06/94]
NOTE: When driving uphill, especially with a heavy load,
you may notice your speed decreasing even if you
have the speed control set. If the speed drops more
than 8 to 14 mph (13-23 km/h) it is normal for the
automatic speed control feature to be cancelled. You
may need to use the accelerator pedal to help your
vehicle maintain the selected speed when driving up
steep grades.
*
[SC09100(ALL)05/95]
RWARNING
Do not use the speed control in heavy traffic or on roads
that are winding, slippery, or unpaved.
[SC09200(ALL)09/93]
Accelerating With the Speed Control On
[SC09300(ALL)03/94]
If you want to speed up momentarily, or regain preset speed on
hills when the speed control is on, accelerate using the
accelerator pedal. Manually accelerating to a higher speed does
not interfere with the speed control. When you take your foot
off the accelerator, your vehicle returns to the set speed.
File:wnscs.ex
Update:Tue Mar 19 08:22:27 1996

Steering Column Controls
141
[SC09450(ALL)04/95]
n
TAP-UPÐ Press and then quickly release the SET ACCEL
switch. Each time you ªtapº the switch, the set speed will
increase by 1 mph (1.6 km/h). Multiple taps will cause the
set speed to increase in increments of 1 mph (1.6 km/h). For
example, if the current set speed is 55 mph (88 km/h), five
taps of the SET ACCEL switch will increase the vehicle
speed and set it at 60 mph (97 km/h).
[SC10525(ALL)04/95]
To Cancel or Turn Off Speed Control
[SC10530(ALL)05/95]
The speed control can be cancelled at any time by depressing
the brake pedal slightly. After cancelling, you can return to the
speed you set by pressing the RESUME switch, or set a new
speed by pressing the SET ACCEL or COAST switch.
[SC10550(ALL)03/94]
Speed control can also be cancelled when you press the OFF
switch. The speed control system will remain off until you press
the ON switch and reset the speed control.
*
[SC10700(ALL)04/95]
In addition, the speed control is turned off each time you turn
the vehicle off.
%*
[SC10900(ALL)03/95]
Resuming a Set Speed
*
[SC11000(ALL)07/94]
If you press the brake pedal, the speed control is cancelled. You
can return to the speed you set by using the RSM switch, as
long as you did not press the OFF switch.
*
[SC11200(ALL)05/95]
To resume the speed you had before, you must be driving at
least 30 mph (50 km/h).
*
[SC11300(ALL)11/94]
Press and release the RESUME switch. Your vehicle gradually
returns to the previously set speed and then maintains it.
File:wnscs.ex
Update:Tue Mar 19 08:22:27 1996

Features
187
[FV30160(ALL)12/93]
17-1/2 pica
art:0050015-B
The full console
% [FV30200(ALL)03/94]
Cupholders
[FV30300(ALL)11/93]
The front seat cupholders are located with the ashtray. To access
the cupholders, pull open the ashtray drawer which is located
to the right of the steering column, above the compact disc and
cassette storage console.
[FV30400(ALL)03/94]
As you close the ashtray drawer, the cupholders will
automatically fold back into place.
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996

235
Driving Your Windstar
%*
[DR01000(ALL)01/93]
Automatic Transaxle Operation
%*
[DR01100(ALL)01/95]
Putting Your Vehicle in Gear
*
[DR01200(ALL)04/95]
Your vehicle's gearshift lever is on the steering column. The
OVERDRIVE ON/OFF button is located on the end of the
gearshift lever. You can put the gearshift lever in any one of
several positions.
[DR01300(ALL)10/93]
13-1/2 pica
art:0050016-A

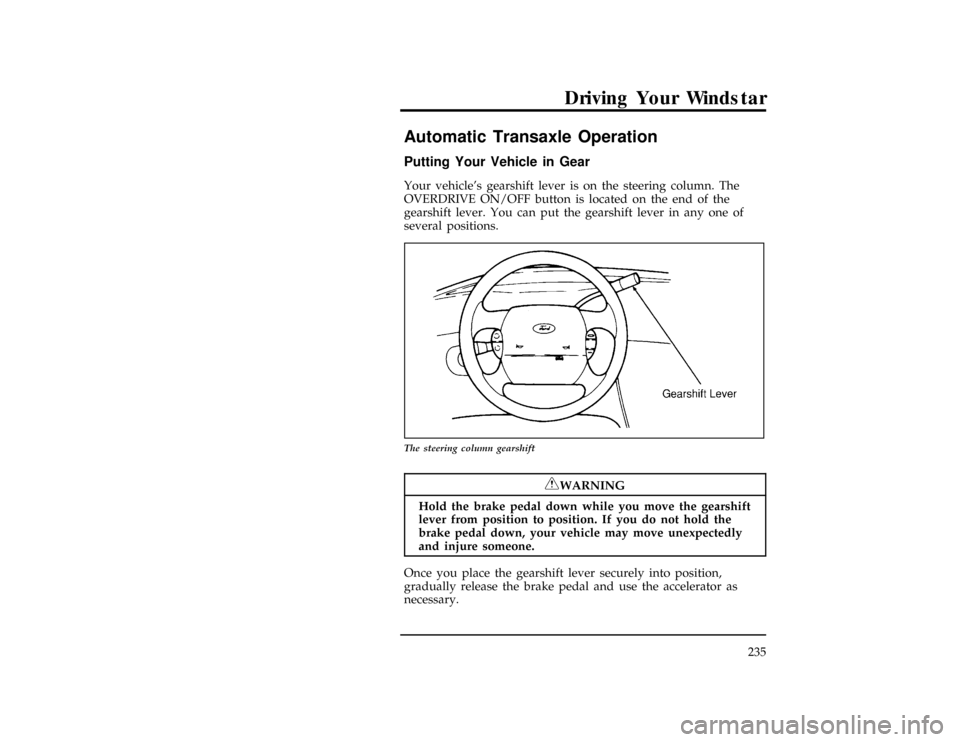

The steering column gearshift
*
[DR01400(ALL)01/93]
RWARNING
Hold the brake pedal down while you move the gearshift
lever from position to position. If you do not hold the
brake pedal down, your vehicle may move unexpectedly
and injure someone.
*
[DR01500(ALL)01/93]
Once you place the gearshift lever securely into position,
gradually release the brake pedal and use the accelerator as
necessary.
File:wndrs.ex
Update:Tue Mar 19 08:18:48 1996

240
%*
[DR05700(ALL)01/95]
Steering Your Vehicle
*
[DR05800(ALL)01/93]
Your vehicle has power steering. Power steering uses energy
from the engine to help steer your vehicle.
*
[DR05900(ALL)01/93]
Never hold the steering wheel in the extreme right or left
position for more than five seconds if the engine is running.
This can damage the power steering pump.
%*
[DR06000(ALL)04/95]
If the amount of effort needed to steer your vehicle changes at a
constant vehicle speed, have the power steering system checked.
If the power steering system breaks down (or if the engine is
turned off), you can steer the vehicle manually but it takes more
effort.
*
[DR06100(ALL)01/93]
NOTE: After any severe impact such as striking large
potholes, sliding into curbs on icy roads, or a collision
involving the front end, have the front suspension
and steering checked for possible damage.
%*
[DR06200(ALL)03/95]
Brakes
*
[DR06300(ALL)01/93]
When the foot (service) brake pedal is depressed, the
high-mount brake lamp should illuminate.
*
[DR06400(ALL)01/93]
Front Disc Brakes
[DR06500(ALL)11/93]
The front disc brakes are self-adjusting. They only require
periodic inspection for pad wear.
[DR06525(ALL)04/95]
Rear Disc Brakes (If equipped)
[DR06550(ALL)04/95]
The rear disc brakes are self-adjusting. They only require
periodic inspection for pad wear.
[DR06575(ALL)04/95]
The rear disc parking brakes need to be adjusted manually.
*
[DR06600(ALL)10/94]
Rear Drum Brakes
*
[DR06700(ALL)01/93]
The rear drum brakes are self-adjusting. Automatic adjustment
occurs through normal use of the brakes.
File:wndrs.ex
Update:Tue Mar 19 08:18:48 1996

246
*
[DR09500(ALL)07/93]
For example, even with anti-lock brakes, extreme braking can
make it difficult to control the direction of the vehicle. Use a
ªsqueezeº technique. Push on the brake pedal with steadily
increasing force. This allows the wheels to brake, yet continue to
roll so that you may steer in the direction you want to travel.
*
[DR09600(ALL)01/93]
If you release the accelerator abruptly or brake hard while
going too fast around a severe curve, your vehicle may change
its direction of travel. Avoid applying the brakes, if possible. If
you must apply the brakes, use the ªsqueezeº technique
described earlier.
*
[DR09700(ALL)02/95]
Wheel Spin
[DR09800(ALL)05/95]
Extreme acceleration can cause the front wheels to spin,
resulting in reduced steering control. If the wheels spin during
vehicle start-up, shift to 2 (Second) gear. Move forward slowly
and evenly. If this does not work, try rocking the vehicle.
%*
[DR09900(ALL)01/93]
Driving at High Speeds
*
[DR10000(ALL)05/95]
RWARNING
Driving too fast for conditions creates the possibility of
loss of vehicle control. Driving at very high speeds for
extended periods of time may result in damage to vehicle
components.
*
[DR10020(ALL)05/95]
Ford Motor Company recommends obeying posted speed limits.
*
[DR10100(ALL)06/95]
RWARNING
Do not spin the wheels at over 35 mph (55 km/h). The
tires may fail and injure a passenger or bystander.
