1996 FORD PROBE Owners Manual

47 [ST10025(ALL)01/95]
three fourths page art:0030295-I

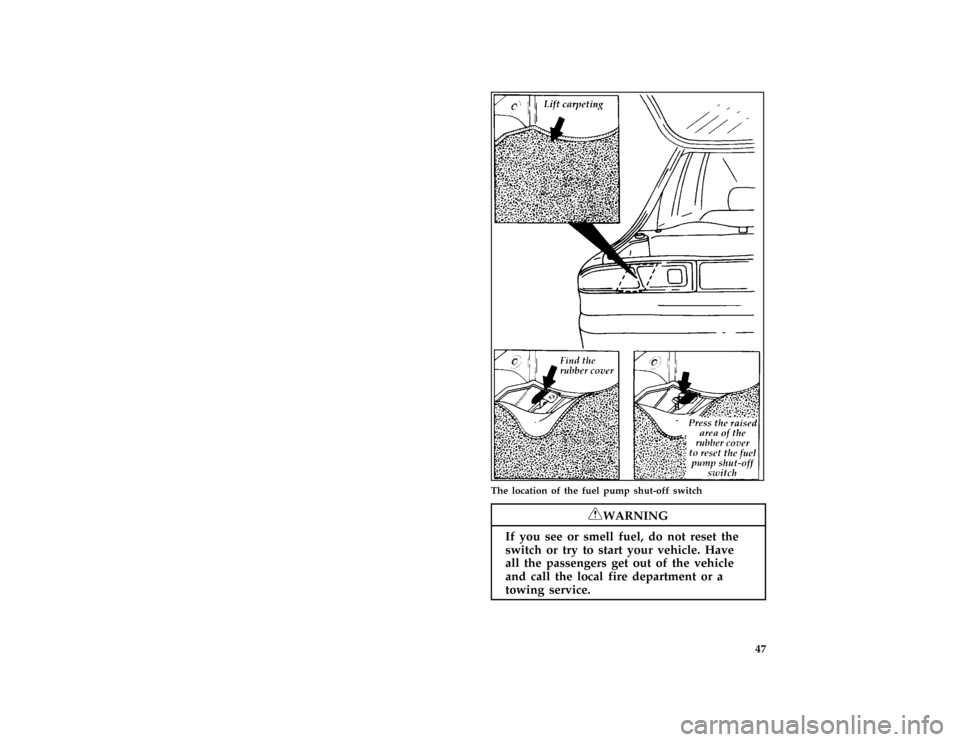

The location of the fuel pump shut-off switch
*
[ST10030(ALL)05/95]
RWARNING
If you see or smell fuel, do not reset the
switch or try to start your vehicle. Have
all the passengers get out of the vehicle
and call the local fire department or a
towing service.
File:prstp.ex
Update:Fri Jun 23 19:38:23 1995

48
*
[ST10035(ALL)03/95]
If your engine cranks but does not start after a
collision or substantial jolt:
*
[ST10040(ALL)02/95]
1. Turn the key in the ignition to the LOCK
position.
*
[ST10045(ALL)03/95]
2. Check under the vehicle for leaking fuel.
*
[ST10050(ALL)01/95]
3. If you do not see or smell fuel, push the red
reset button on the fuel pump shut-off
switch down.
[ST10052(ALL)04/95]
The reset switch on your vehicle is located on
the left side of the luggage compartment
under the carpet. The red reset button is
under the raised area of the rubber cover.
*
[ST10055(ALL)02/95]
4. Attempt to start your vehicle. If the vehicle
starts, let it run a few seconds, then turn the
key to the LOCK position.
*
[ST10060(ALL)03/95]
5. Check under the vehicle again for leaking
fuel.If you see or smell fuel, do not start
your vehicle again.If you do not see or
smell fuel, you can try to start your vehicle
again.
%*
[ST11700(ALL)05/95]
Guarding Against Exhaust Fumes
*
[ST11800(ALL)02/95]
Carbon monoxide, although colorless and
odorless, is present in exhaust fumes. Take
precautions to avoid its dangerous effects.
*
[ST11900(ALL)05/95]
RWARNING
Do not start your vehicle in a closed
garage or other enclosed area. Never sit in
a stopped vehicle for more than a short
period of time with the engine running.
Exhaust fumes are toxic. SeeGuarding
Against Exhaust Fumesin this chapter for
more instructions.
File:prstp.ex
Update:Fri Jun 23 19:38:23 1995

49
*
[ST12000(ALL)05/95]
RWARNING
If you smell exhaust fumes inside your
vehicle, have your dealer inspect your
vehicle immediately. Do not drive if you
smell exhaust fumes.
*
[ST12100(ALL)01/95]
Have the exhaust and body ventilation systems
checked whenever:
*
[ST12200(ALL)02/95]
q
your vehicle is raised for service
*
[ST12300(ALL)02/95]
q
the sound of the exhaust system changes
*
[ST12400(ALL)01/95]
q
your vehicle has been damaged in a collision
*
[ST12500(ALL)01/95]
Improve your ventilation by keeping all air inlet
vents clear of snow, leaves, and other debris.
*
[ST12600(ALL)03/95]
If the engine is idling while you are stopped in
an open area for long periods of time, open the
windows at least one inch (2.5 cm). Also, adjust
the heating or air conditioning to bring in
outside air.
[ST12800(ALL)08/91]
q
If you are using the heater, set the fan speed
on MEDIUM or HIGH with the function
selector control on VENT.
[ST13000(ALL)11/91]
q
If you want to use the air conditioner, set the
function selector control in the NORM A/C
position which brings in fresh air.
File:prstp.ex
Update:Fri Jun 23 19:38:23 1995

51
Warning Lights and
Gauges
*
[LG00600(ALL)01/95]
The instrument panel (dashboard) on your
vehicle is divided into several different sections.
The illustrations on the following pages show
the major parts of the instrument panel that are
described in this chapter. Some items shown
may not be on all vehicles.
*
[LG00700(ALL)06/93]
In your vehicle, the warning lights and gauges
are grouped together on the instrument panel.
We call this grouping a cluster.
[LG00750(ALL)03/95]
To clean the lenses on your instrument panel,
use Ford Glass Cleaner and a soft cloth. Never
use paper towels or abrasive cleaners; they can
scratch the lenses.
*
[LG00800(ALL)01/95]
Your vehicle has a mechanical cluster.
File:prlgp.ex
Update:Fri Jun 23 19:38:06 1995

52
%*
[LG01690(ALL)06/94]
The Mechanical Cluster
[LG01700(ALL)01/92]
full page art:0032080-B
Mechanical cluster
File:prlgp.ex
Update:Fri Jun 23 19:38:06 1995

53 [LG01750(ALL)05/95]
full page art:0032045-I

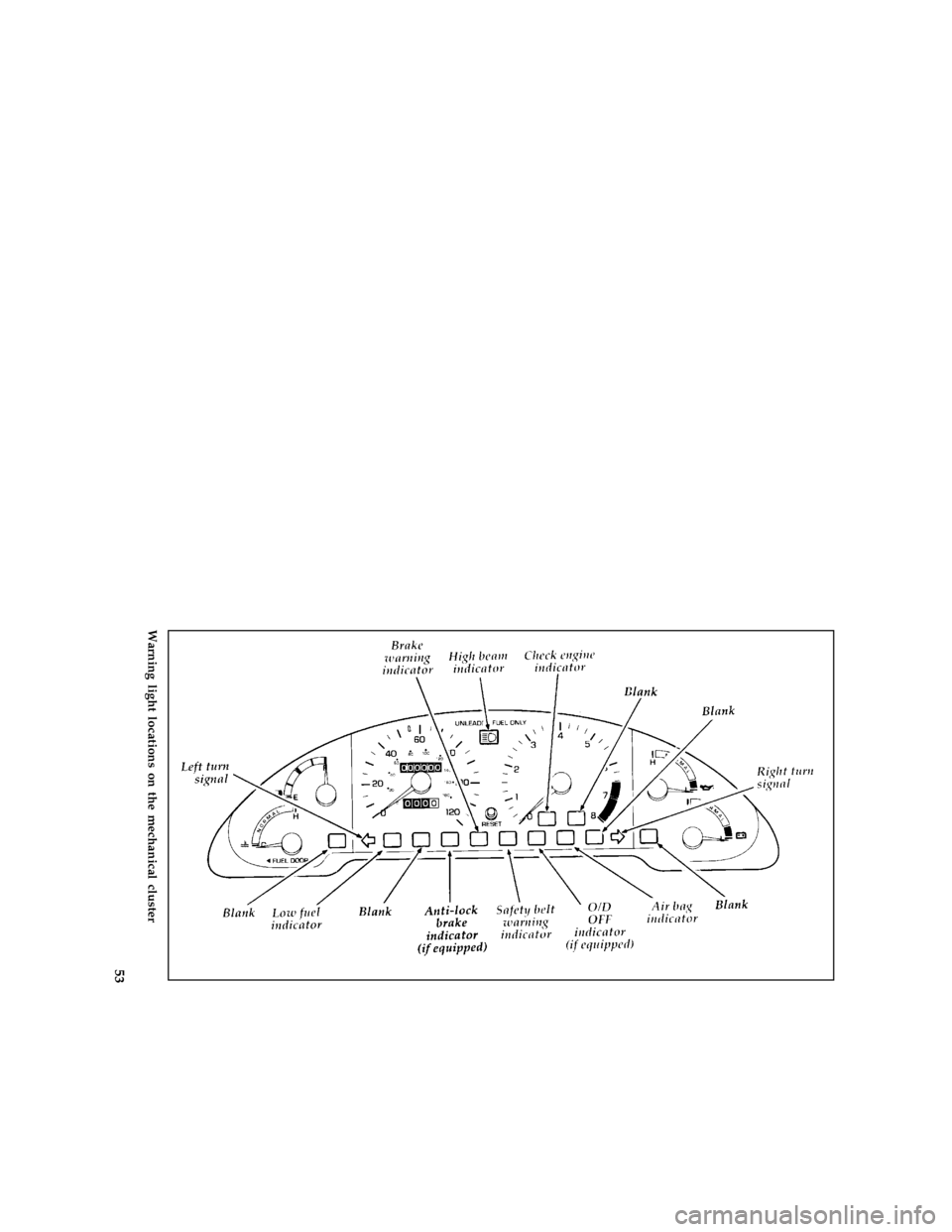

Warning light locations on the mechanical cluster
File:prlgp.ex
Update:Fri Jun 23 19:38:06 1995

54 [LG01775(ALL)04/93]The mechanical cluster on the Probe GT model is
similar to the one shown. The two exceptions
are: the speedometer on the GT model shows
140 mph (225 km/h) and it has a 7,000 rpm
red-line tachometer.
[LG01780(ALL)01/92]
one third page art:0032087-B
GT model speedometer and tachometer
[LG01800(ALL)01/94]
The following warning lights and gauges are on
the cluster. All of the warning lights and gauges
alert you to possible problems with your vehicle.
The following sections detail what each of these
indicators means.
*
[LG01950(ALL)01/95]
Indicator Lights and Chimes
%*
[LG01975(ALL)05/95]
Safety Belt Warning Light and Chime
[LG01980(ALL)03/94]
This warning light and chime remind you to
fasten your safety belt. If you do not fasten your
safety belt before the ignition is turned to ON,
the chime will sound for 4 to 8 seconds and the
warning light will illuminate for 1 to 2 minutes,
or until the safety belt is fastened. If you fasten
the safety belt before the ignition is turned to
ON, neither the light nor chime will activate.
File:prlgp.ex
Update:Fri Jun 23 19:38:06 1995

55 [LG01995(ALL)01/92]
one inch art:0032097-A
Safety belt light
*
[LG02000(ALL)01/95]
Air Bag Readiness Light
*
[LG02050(ALL)06/93]
This light illuminates for six seconds when the
ignition is turned to the ON position. If the light
fails to illuminate, continues to flash, remains on,
or if a series of five beeps is heard, have the
system serviced as soon as possible.
[LG02100(ALL)01/92]
one inch art:0032051-A
Air bag readiness light
*
[LG02120(ALL)05/95]
RWARNING
If any of these things happen, even
intermittently, have the air bag system
serviced at your Ford or Lincoln-Mercury
dealer immediately.
*
[LG02200(ALL)03/95]
Brake System Warning Light
[LG02300(ALL)02/91]
Your vehicle has a divided brake system. If one
part isn't working, the other part can still work
and stop you. For good braking, though, you
need both systems working well. If the warning
light goes on, there could be a problem. Have
your brake system inspected right away.
File:prlgp.ex
Update:Fri Jun 23 19:38:06 1995
