1996 FORD PROBE Owners Manual

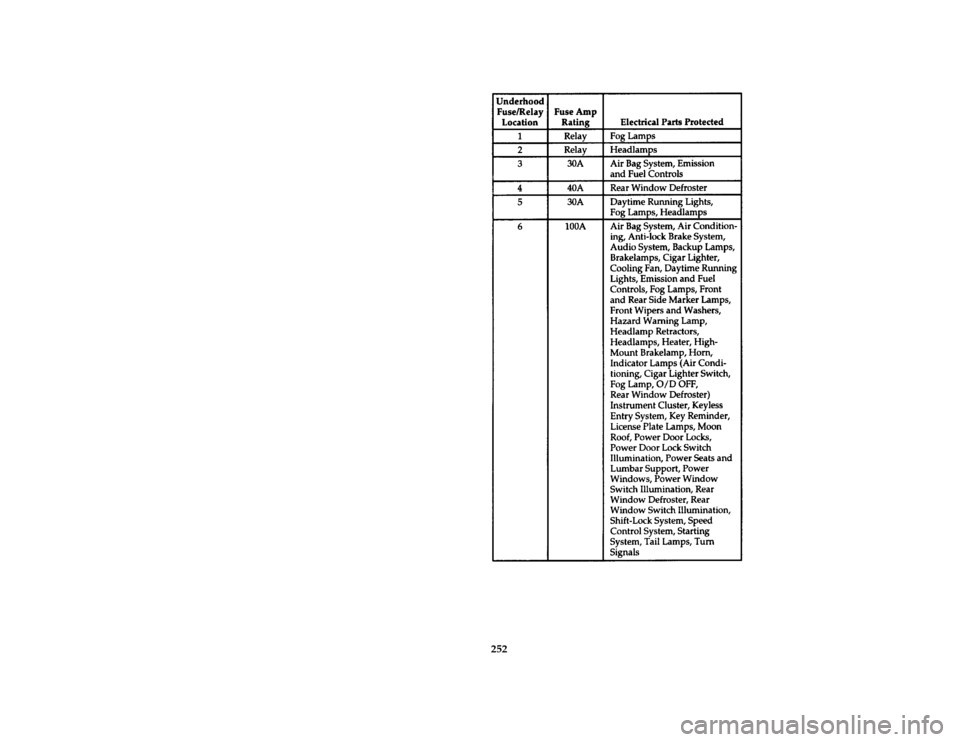

252 [SV35900(ALL)05/95]
thirty-six pica chart:0032188-D
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

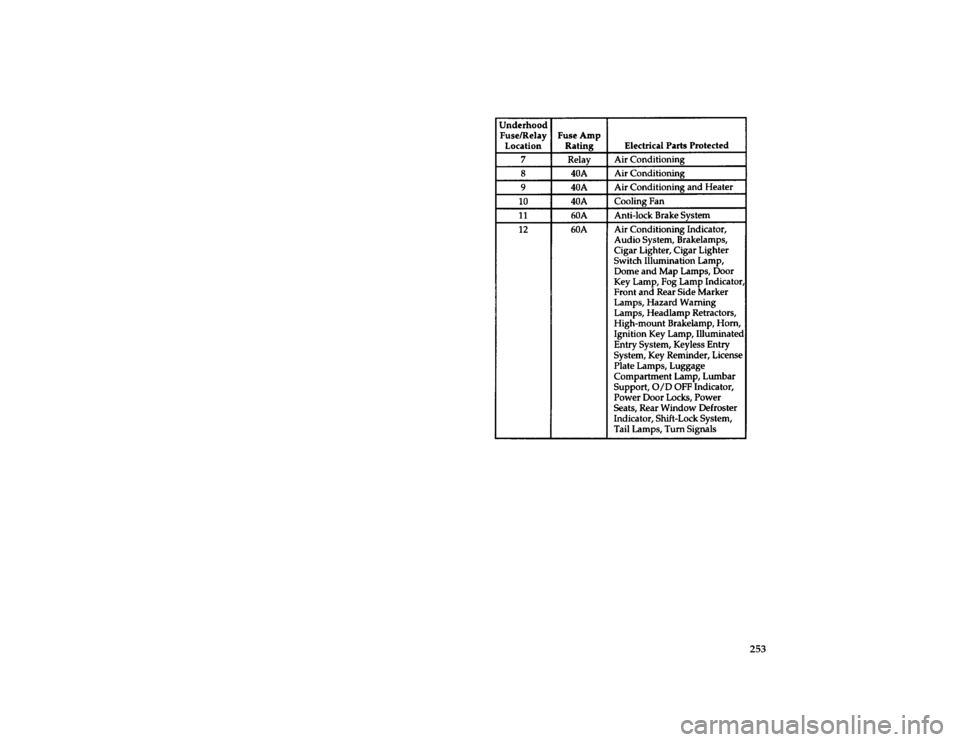

253 [SV35950(ALL)05/95]
thirty-six pica chart:0032189-D
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

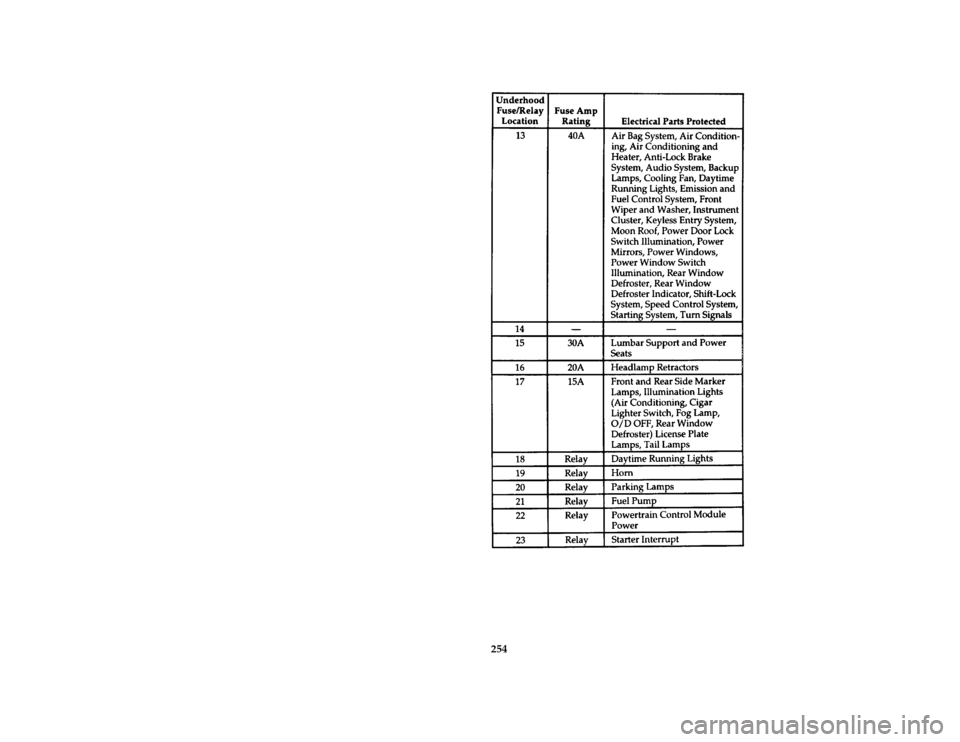

254 [SV36000(ALL)05/95]
thirty-two pica chart:0032190-D
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

255 [SV36200(ALL)05/95]
To remove and replace a fuse, use the fuse
puller provided.
*
[SV37100(ALL)05/95]
quarter page art:0030248-B
Fuse puller tool and fuse
*
[SV37300(ALL)05/95]
RWARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
[SV37425(ALL)05/95]
To find a fuse's amperage rating, check the
number on the fuse or check the color.
[SV37475(ALL)05/95]
twelve pica chart:0032119-A*
[SV37500(ALL)05/93]
Even after you replace a fuse, it will continue to
blow if you do not find what caused the
overload. If the fuse continues to blow, have
your electrical system checked.
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

256
*
[SV38800(ALL)03/95]
Lights and Bulb Replacement
*
[SV38900(ALL)01/95]
It is a good idea to check the operation of the
following lights frequently:
*
[SV39000(ALL)01/95]
q
headlamps
[SV39050(ALL)05/95]
q
high-mount brakelamp
*
[SV39100(ALL)01/95]
q
tail lamps
*
[SV39200(ALL)01/95]
q
brakelamps
*
[SV39300(ALL)01/95]
q
hazard flasher
*
[SV39400(ALL)01/95]
q
turn signals
*
[SV39500(ALL)01/95]
q
side markers
*
[SV39600(ALL)01/95]
q
license plate lamp
[SV39700(ALL)01/89]
q
fog lamps (GT model)
%*
[SV39800(ALL)01/95]
The alignment of your headlamps should be
checked if:
*
[SV39900(ALL)01/95]
q
oncoming motorists frequently signal you to
turn off your vehicle's high beams when you
do not have the high beams on
*
[SV40000(ALL)01/95]
q
the headlamps do not seem to give you
enough light to see clearly at night
*
[SV40100(ALL)01/95]
q
the headlamp beams are pointed substantially
away from a position slightly down and to
the right
*
[SV40200(ALL)03/95]
Headlamp Bulb
[SV40300(ALL)03/94]
Your vehicle has retractable halogen headlamps.
If you need to replace a headlamp, have it done
by a Ford service technician.
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

257 [SV42000(ALL)01/95]
High-Mount Brakelamp Bulb
[SV42050(ALL)02/89]
To replace the bulb:
[SV42200(ALL)02/92]
1. Remove the two side trim liftgate panels.
[SV42300(ALL)02/92]
2. Remove the liftgate trim clip and the liftgate
trim.
[SV42400(ALL)02/92]
3. Remove the bulb from the socket by pushing
it in and turning it counterclockwise.
[SV42500(ALL)02/92]
4. Install the bulb by pushing straight into the
lamp socket and turning it clockwise until it
locks in place.
[SV42600(ALL)02/92]
5. Replace the liftgate trim and trim clip.
[SV42700(ALL)02/92]
6. Replace the two side trim liftgate panels.
[SV42800(ALL)04/93]

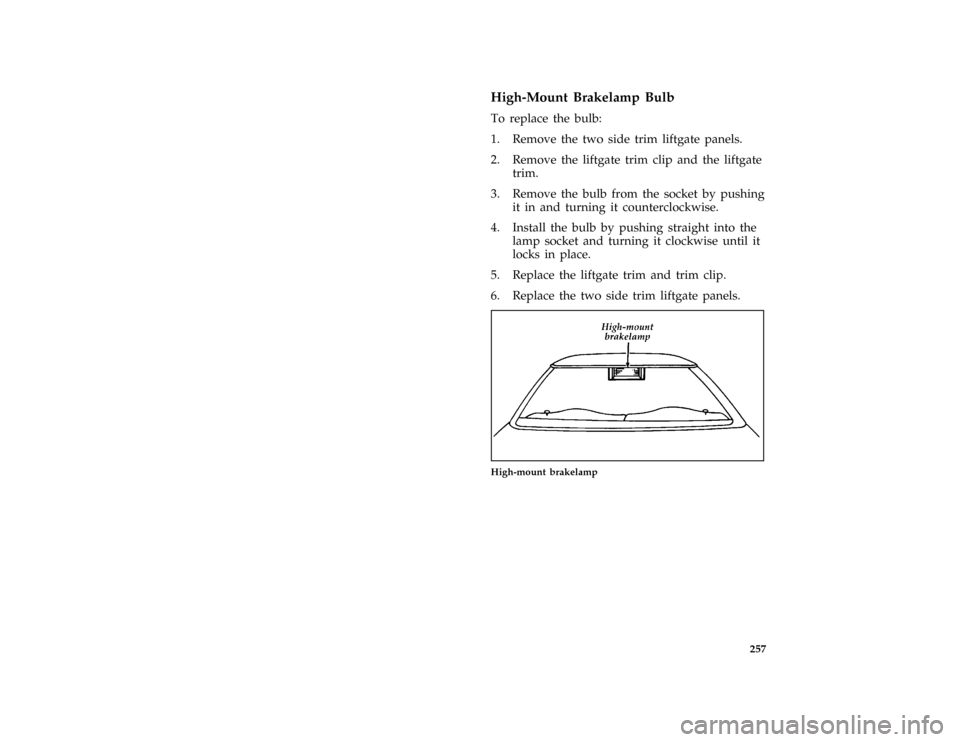

one third page art:0032061-B
High-mount brakelamp
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

258 [SV42900(ALL)01/95]Rear Lamp Bulbs
[SV43000(ALL)04/93]
To replace a bulb:
[SV43100(ALL)04/93]
1. Remove the attaching screw and the rear
lens cover.
[SV43200(ALL)04/93]
one third page art:0032120-A
Removing the attaching screw and lens
[SV43300(ALL)04/93]
2. Partially remove the rear lens by pulling the
lock tabs out of the slots.
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

259 [SV43400(ALL)03/94]

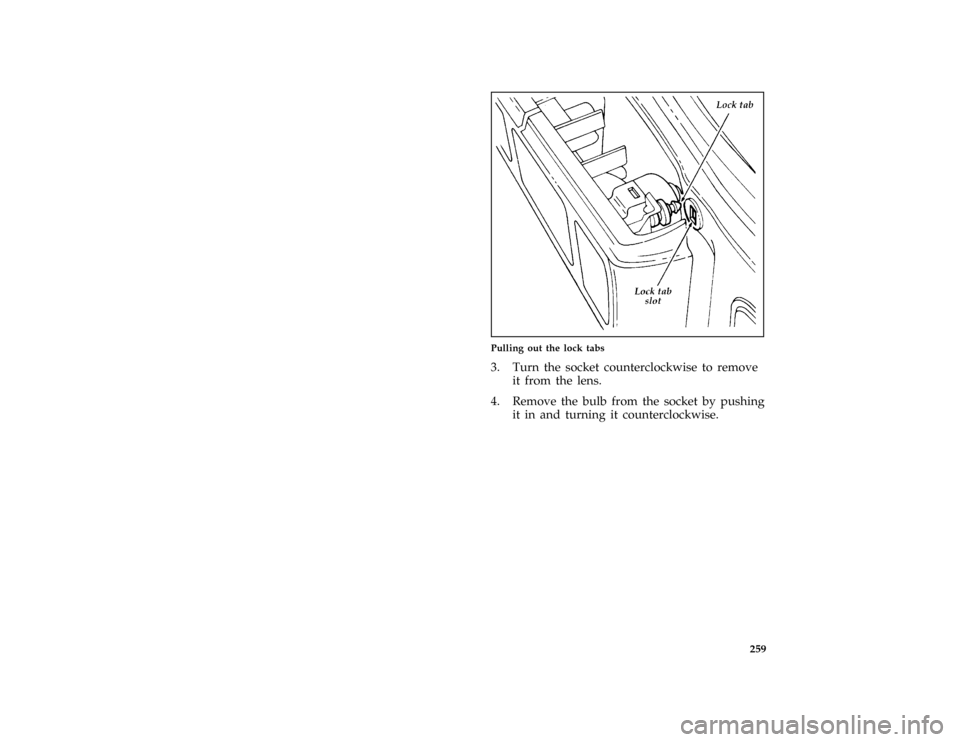

half page art:0032121-C
Pulling out the lock tabs
[SV43500(ALL)04/93]
3. Turn the socket counterclockwise to remove
it from the lens.
[SV43600(ALL)04/93]
4. Remove the bulb from the socket by pushing
it in and turning it counterclockwise.
