1996 FORD PROBE Owners Manual

129
*
[AS07900(ALL)04/95]
NOTE: Once a disc is inserted, the disc
opening is secured to prevent the
accidental insertion of a second disc.
*
[AS08000(ALL)04/95]
NOTE: The CD player has heat protection
circuitry to protect the laser diode. If
the temperature of the player reaches
167ÊF (75ÊC), theheat detection circuit
will shut off the player and ªTOO
HOTº will scroll in the display for
approximately five seconds (radio will
resume playing). When the temperature
returns to normal operating range, the
CD player will again be operational.
*
[AS08100(ALL)04/95]
How to stop and restart the CD player
*
[AS08200(ALL)04/95]
When a disc is loaded, the unit automatically
enters the play mode and the play indicator
a
illuminates. To stop temporarily, press the
ªPLAY/STOPº button or the ªAM/FMº button.
The stop indicator
Xin the display illuminates
and operation returns to the radio mode. To
resume CD play, press the ªPLAY/STOPº
button once again.
*
[AS08300(ALL)04/95]
NOTE: If the ignition key is turned OFF
during play and then is set to the ON
or ACCESSORY position, the CD
player will resume playing in the mode
it was in when ignition was turned off.
*
[AS08310(ALL)04/95]
Using the ªSEEKº feature
*
[AS08320(ALL)04/95]
The ªSEEKº feature allows you to quickly find a
particular selection on the disc.
*
[AS08330(ALL)05/95]
Press the bottom (
b) half of the ªSEEKº button
once to repeat the current playing selection.
Press the top (
a) half of the ªSEEKº button to
advance to the next selection.
File:prasp.ex
Update:Fri Jun 23 19:35:26 1995

130
*
[AS08350(ALL)05/95]
Pressing and holding the bottom (
b) or top (
a)
half of the ªSEEKº button will scroll backward
and forward respectively through the tracks.
*
[AS08400(ALL)05/95]
How to fast forward or reverse your CD
player
*
[AS08500(ALL)05/95]
To quickly search for a particular point in a
selection, press the ªFFº button (to fast forward)
or the ªREVº button (to reverse). While either
button is pressed, the disc goes forward or
backward at two different speeds depending on
how long the button is held down. (Pressing
either button for more than approximately three
seconds will speed up the process.) Release the
button at the desired point (found by watching
the elapsed playing time in the display or by
listening to the sound during fast forward or
reverse). When you have reached the beginning
of track 1, the CD player will begin playing.
*
[AS08600(ALL)04/95]
When you have reached the end of the disc by
keeping the fast forward button pressed, the
display will show ªENDº and the player will go
into pause mode. Push the ªPLAY/STOPº
button to begin playing the first track of the
disc, press the ªREVº button to back up from
the end of the disc, or use the ªSEEKº function
to locate a desired track.
*
[AS08700(ALL)04/95]
Using the ªSCANº function
[AS08800(ALL)05/94]
Press the ªSCAN/TUNEº button to enter the
scan mode. Once in the scan mode, press the top
(
b) or bottom (
a) half of the ªSEEKº button to
scan forward or reverse, respectively. The CD
player will begin scanning the disc, stopping on
each listenable track for approximately an
eight-second sampling. This continues until you
press the ªSCAN/TUNEº button a second time.
File:prasp.ex
Update:Fri Jun 23 19:35:26 1995

131
*
[AS09500(ALL)04/95]
How to eject the disc
*
[AS09600(ALL)04/95]
Push the ªEJECTº button to stop play, eject the
disc and resume radio operation of your audio
system.
*
[AS09700(ALL)04/95]
NOTE: You can eject the disc while the radio
power and/or ignition is on or off.
%*
[AS09710(ALL)04/95]
How To Take Care of and Clean Your CD
Player and Discs
*
[AS09720(ALL)04/95]
To ensure the continued performance of your
Ford Compact Disc Player, carefully read the
following precautions:
*
[AS09730(ALL)04/95]
q
Always handle the disc by its edge. Never
touch the playing surface.
*
[AS09740(ALL)04/95]
q
Before playing, inspect the disc for any
contamination. If needed, clean the disc with
an approved disc cleaner, such as the
DiscwasherHCompact Disc Cleaner or the
Allsop 3HCompact Disc Cleaner, by wiping
from the center out to the edges.Do not use
a circular motion to clean.
*
[AS09750(ALL)04/95]
q
Do not clean discs with solvents such as
benzine, thinner, commercially available
cleaners or antistatic spray intended for
analog records.
*
[AS09760(ALL)04/95]
q
Do not expose the disc to direct sunlight or
heat sources such as defroster and floor
heating ducts. Do not leave any discs in a
parked car in direct sunlight where there may
be a considerable rise in temperature or
damage may result.
File:prasp.ex
Update:Fri Jun 23 19:35:26 1995

132
*
[AS09765(ALL)04/95]
q
After playing, store the disc in its case.
*
[AS09770(ALL)04/95]
q
If a disc has already been inserted, do not try
to insert another disc. Doing so may damage
the disc player.
*
[AS09780(ALL)04/95]
q
Do not insert anything other than a disc into
the disc player.
*
[AS09790(ALL)04/95]
CAUTION:The use of optical instruments with
this product will increase eye hazard as the laser
beam used in this compact disc player is
harmful to the eyes. Do not attempt to
disassemble the case. Refer servicing to qualified
personnel only.
*
[AS09800(ALL)04/95]
Common Operating Conditions of Your
CD Player
*
[AS09810(ALL)04/95]
The following information is designed to help
you recognize typical situations that could be
mistakenly interpreted as mechanical
malfunctions of the disc player.
*
[AS09820(ALL)04/95]
q
A disc is already loaded.
*
[AS09830(ALL)04/95]
q
The disc is inserted with the label surface
downward.
*
[AS09840(ALL)04/95]
q
The disc is dusty or defective.
*
[AS09850(ALL)04/95]
q
The player's internal temperature is above
140ÊF (60ÊC).Allow the player to cool off
before operating.
*
[AS09869(ALL)04/95]
q
Different manufacturers of compact discs may
produce discs with different dimensions or
tolerances, some of which may not be within
industry standards or in accordance with the
CD format. Because of this, a new disc that is
free of dust and scratches could be defective
and may not play on your Ford Compact
Disc Player.
File:prasp.ex
Update:Fri Jun 23 19:35:26 1995

133
*
[AS09870(ALL)04/95]
If play does not begin after the CD button is
pushed:
*
[AS09880(ALL)04/95]
q
The radio is not on.
*
[AS09890(ALL)04/95]
q
The unit is in the stop mode.
*
[AS09900(ALL)06/95]
q
Moisture may have condensed on the lenses
within the unit. If this occurs, remove the
disk and wait approximately an hour until
the moisture evaporates.
*
[AS09910(ALL)04/95]
If the sound skips:
*
[AS09920(ALL)04/95]
q
Badly scratched discs or extremely rough
roads will cause the sound to skip. Skipping
will not damage the disc player or scratch the
discs.
File:prasp.ex
Update:Fri Jun 23 19:35:26 1995

134
*
[AS21300(ALL)05/95]
Electronic Stereo and Stereo
Cassette Radios
*
[AS21330(ALL)04/95]
full page art:0060586-C

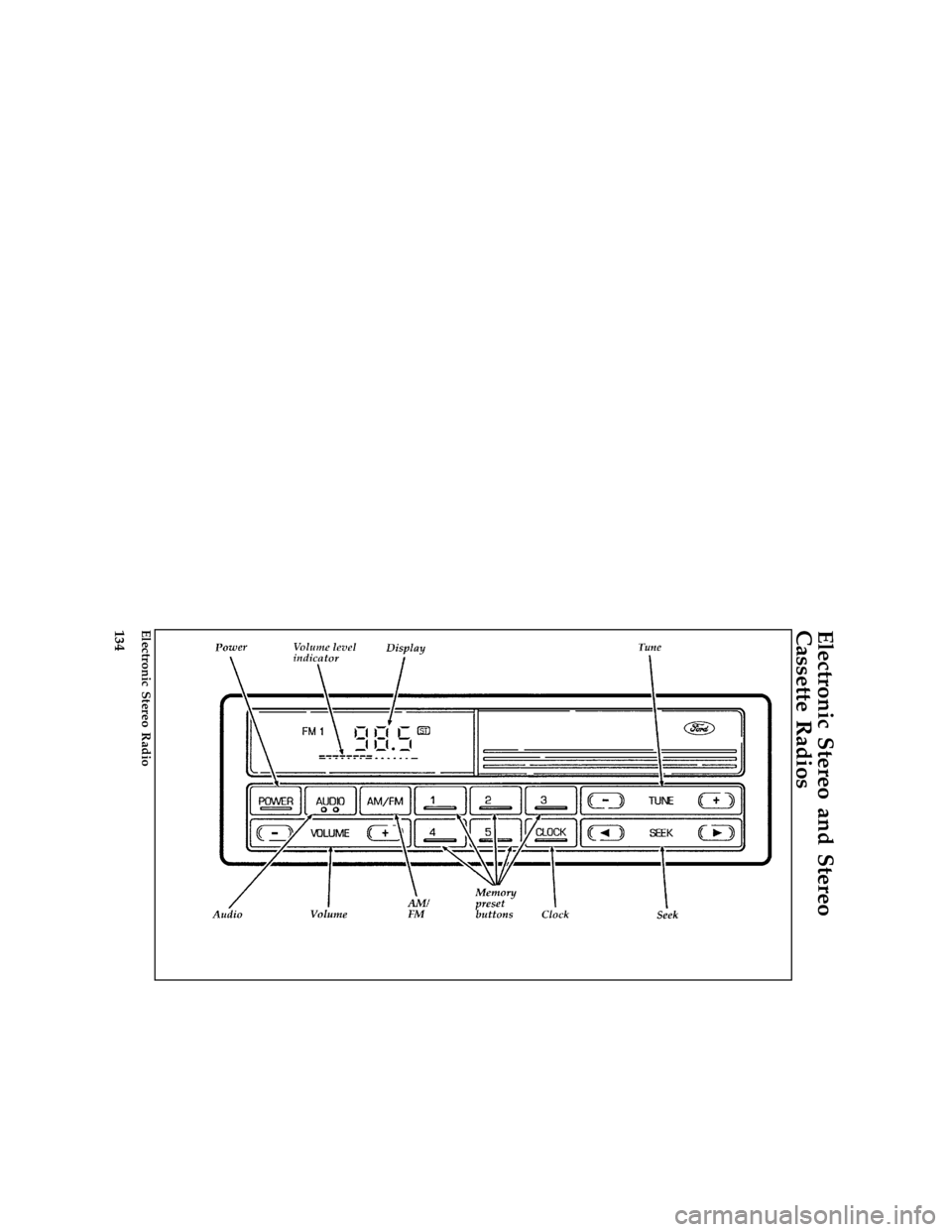

Electronic Stereo Radio
File:prasp.ex
Update:Fri Jun 23 19:35:26 1995

135
*
[AS21360(ALL)04/95]
full page art:0060587-C

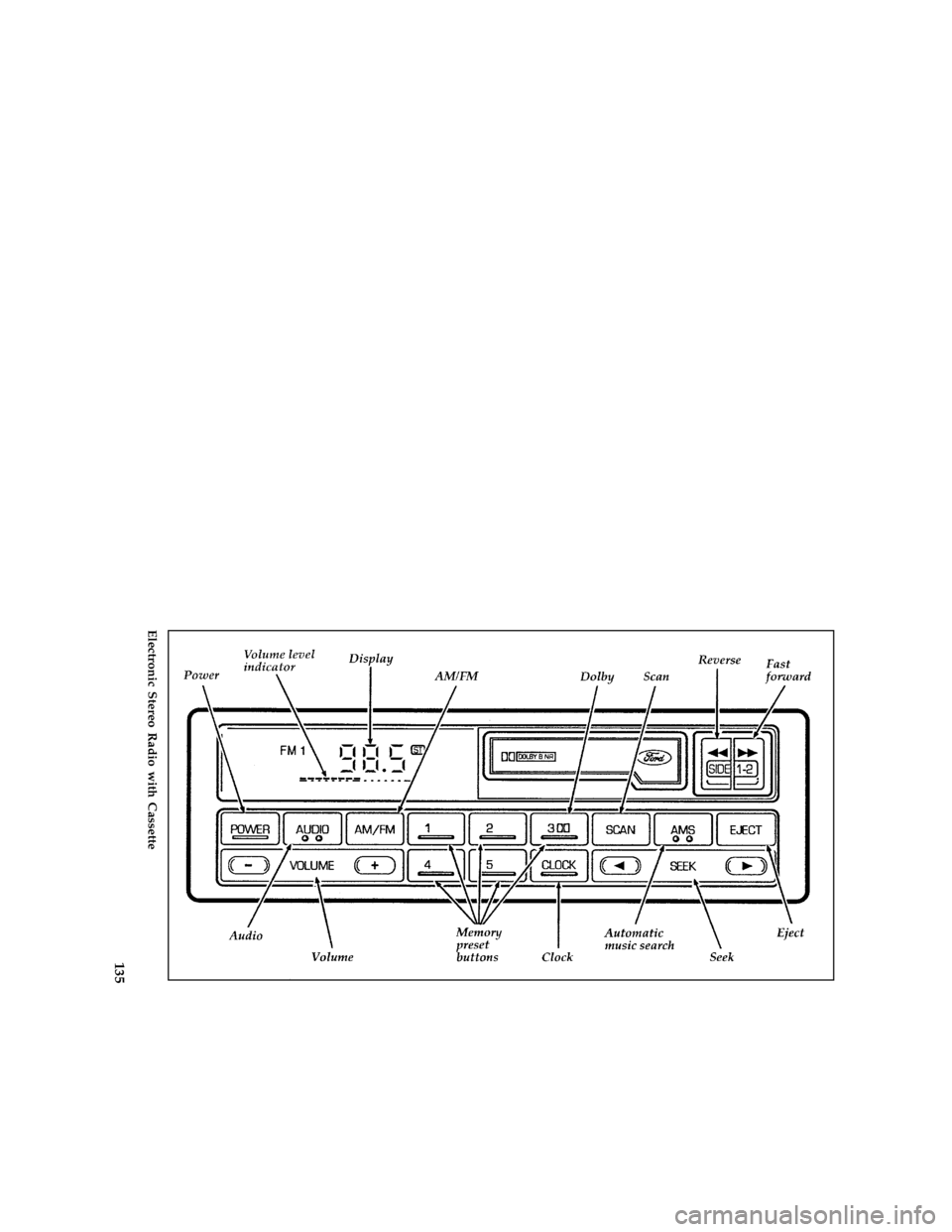

Electronic Stereo Radio with Cassette
File:prasp.ex
Update:Fri Jun 23 19:35:26 1995

136
*
[AS21400(ALL)02/95]
Using the Controls on Your New Radio
*
[AS21500(ALL)02/95]
How to turn the radio on and adjust the
volume
*
[AS21701(ALL)04/95]
Press the ªPOWERº button to turn the radio on.
Press it again to turn it off.
*
[AS21950(ALL)05/95]
Press the right (+) side of the ªVOLUMEº
button to increase the volume. Press the left (-)
side of the button to decrease the volume.
Illuminated bars in the display show the relative
volume level.
*
[AS21975(ALL)04/95]
NOTE: If the volume level is set above a
certain listening level when the
ignition switch is turned off, when the
ignition switch is turned back on, the
volume will come back to a ªnominalº
listening level. However, if the radio
power is turned off (with the
ªPOWERº button), the volume will
remain in the position it was set at
when radio power is switched back on.
*
[AS22100(ALL)04/95]
Selecting the AM or FM frequency band
*
[AS22225(ALL)02/95]
Push the ªAM/FMº button to select the desired
frequency band. Pushing the button more than
once will alternate between AM, FM1 and FM2.
These functions are used with the station
memory buttons described underHow to tune
radio stations.
*
[AS22300(ALL)05/95]
How to tune radio stations (Stereo Radio)
*
[AS22400(ALL)05/95]
There are three ways for you to tune in to a
particular station. You can manually locate the
station by using the ªTUNEº button, ªSEEKº the
station or select the station by using the memory
preset buttons, which you can set to any desired
frequency.
File:prasp.ex
Update:Fri Jun 23 19:35:26 1995
