1996 FORD PROBE window

49
*
[ST12000(ALL)05/95]
RWARNING
If you smell exhaust fumes inside your
vehicle, have your dealer inspect your
vehicle immediately. Do not drive if you
smell exhaust fumes.
*
[ST12100(ALL)01/95]
Have the exhaust and body ventilation systems
checked whenever:
*
[ST12200(ALL)02/95]
q
your vehicle is raised for service
*
[ST12300(ALL)02/95]
q
the sound of the exhaust system changes
*
[ST12400(ALL)01/95]
q
your vehicle has been damaged in a collision
*
[ST12500(ALL)01/95]
Improve your ventilation by keeping all air inlet
vents clear of snow, leaves, and other debris.
*
[ST12600(ALL)03/95]
If the engine is idling while you are stopped in
an open area for long periods of time, open the
windows at least one inch (2.5 cm). Also, adjust
the heating or air conditioning to bring in
outside air.
[ST12800(ALL)08/91]
q
If you are using the heater, set the fan speed
on MEDIUM or HIGH with the function
selector control on VENT.
[ST13000(ALL)11/91]
q
If you want to use the air conditioner, set the
function selector control in the NORM A/C
position which brings in fresh air.
File:prstp.ex
Update:Fri Jun 23 19:38:23 1995

65 %
*
[IP00875(ALL)05/95]
NOTE: Any cleaner or polish that increases the
gloss (shine) of the upper part of the
instrument panel should be avoided.
The dull finish in this area is to help
protect the driver from undesirable
windshield reflection.
*
[IP00900(ALL)05/95]
The Climate Control System
*
[IP01000(ALL)02/91]
Heating Only System (Without Air
Conditioning)
[IP01100(ALL)01/95]
Function selection
[IP01300(ALL)05/95]
The heater in your vehicle has three controls
used for air direction, temperature and fan
speed. The function selector control lets you
direct heated or unheated air through the
instrument panel registers, or down to the floor.
It also allows you to vent your vehicle with
outside air.
[IP01400(ALL)02/93]

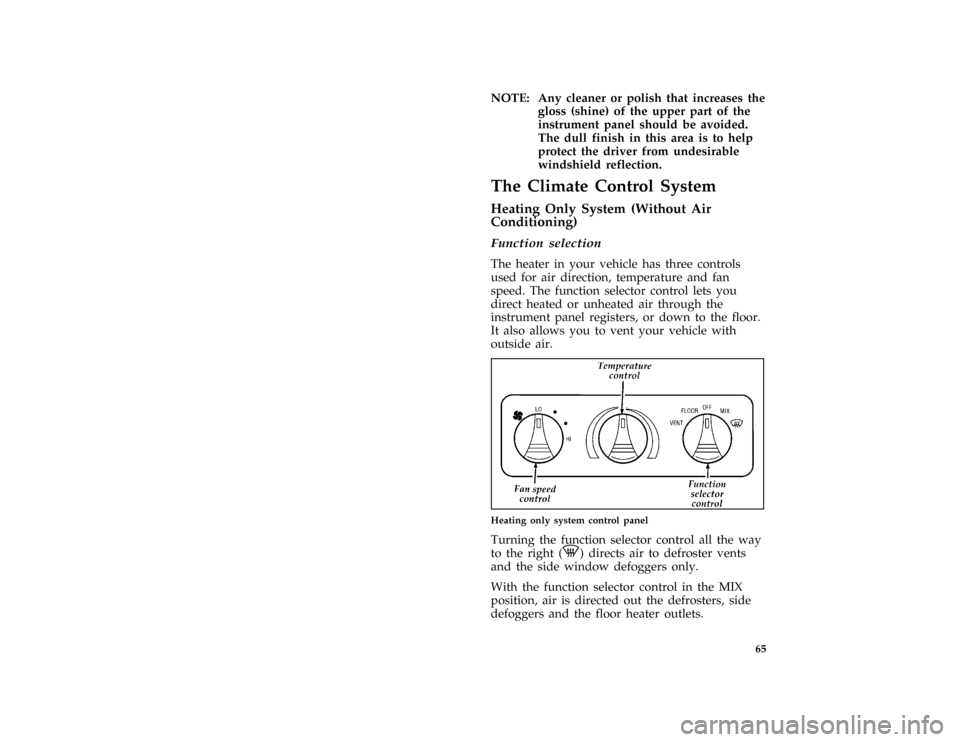

one third page art:0032040-C
Heating only system control panel
[IP01800(ALL)04/95]
Turning the function selector control all the way
to the right (V) directs air to defroster vents
and the side window defoggers only.
[IP01900(ALL)04/95]
With the function selector control in the MIX
position, air is directed out the defrosters, side
defoggers and the floor heater outlets.
File:pripp.ex
Update:Fri Jun 23 19:37:35 1995

66 [IP02000(ALL)08/91]The FLOOR position directs air out the floor
outlets and the side window defoggers.
[IP02025(ALL)01/95]
Ventilate your vehicle with outside air by
choosing the VENT position.
[IP03325(ALL)06/94]
Temperature control
[IP03330(ALL)11/91]
The air temperature can be adjusted by moving
the marker on the temperature control to the red
area for warm air, or to the blue area for
unheated air. The air will become warmer or
cooler depending on how far the control is
turned.
[IP03400(ALL)06/94]
Fan speed control
[IP03500(ALL)04/95]
Fan speed can be controlled by turning the
control from LO to HI.
*
[IP03600(ALL)06/94]
Turning On the Heat
*
[IP03800(ALL)10/93]
To heat the inside of your vehicle:
[IP03850(ALL)08/91]
1. Turn the function selector control to FLOOR.
[IP03900(ALL)08/91]
When FLOOR is selected, air is directed
through the floor registers, and a little air is
also directed at the windshield and side
windows to help prevent fogging.
[IP03975(ALL)08/91]
2. Turn the temperature control all the way to
the right in the red area, or to the desired
temperature.
[IP04000(ALL)08/91]
3. Set the fan at the desired speed.
File:pripp.ex
Update:Fri Jun 23 19:37:35 1995

67
*
[IP04300(ALL)01/89]
Defrosting the Windshield and Side
Windows
[IP04500(ALL)04/95]
1. Turn the function selector control to the
defrost position.
[IP04550(ALL)04/95]
WhenVis selected, air is directed to the
windshield and side windows.
[IP04600(ALL)08/91]
2. Turn the temperature control to the desired
temperature.
*
[IP04650(ALL)10/93]
3. Set the fan at the desired speed.
*
[IP04700(ALL)01/89]
Heating and Defrosting at the Same Time
[IP05000(ALL)08/91]
1. Set the function selector control to MIX.
[IP05100(ALL)01/89]
2. Set the temperature and fan speed as
desired.
*
[IP05200(ALL)01/94]
Ventilating Your Vehicle With Outside Air
*
[IP05300(ALL)01/93]
On mild days, you may want to ventilate your
vehicle with outside air. To open the vents:
[IP05450(ALL)08/91]
1. Turn the function selector control to VENT.
[IP05475(ALL)08/91]
When VENT is selected, air is directed out of
the panel registers.
[IP05550(ALL)08/91]
2. Turn the temperature control to the desired
temperature.
*
[IP05600(ALL)01/89]
3. Set the fan speed as desired.
File:pripp.ex
Update:Fri Jun 23 19:37:35 1995

68
*
[IP05800(ALL)12/91]
Tips for Controlling the Temperature in
Your Vehicle
*
[IP05900(ALL)03/94]
q
To vary the temperature inside your vehicle,
move the temperature selector toward the red
area for warmer air and toward the blue area
for cooler air.
*
[IP06000(ALL)03/94]
q
If you drive with the fan off and the
windows closed, the windows may fog up.
To prevent fogging:
[IP06150(ALL)04/95]
1. Set the function selector control to VENT,
MIX, FLOOR or theVposition.
*
[IP06200(ALL)01/89]
2. Set the desired temperature.
*
[IP06300(ALL)01/89]
3. Set the desired fan speed.
*
[IP06400(ALL)12/91]
q
Do not put objects under the front seats that
will interfere with the flow of air to the back
seats.
*
[IP06500(ALL)12/03]
q
Remove any snow, ice, or leaves from the
area below the windshield on the outside of
your vehicle. They could block the air intake.
*
[IP06600(ALL)06/93]
Air Conditioning System (If equipped)
[IP06850(ALL)01/95]
Operate the air conditioning by using the climate
controls on the center of the instrument panel.
[IP06900(ALL)08/91]

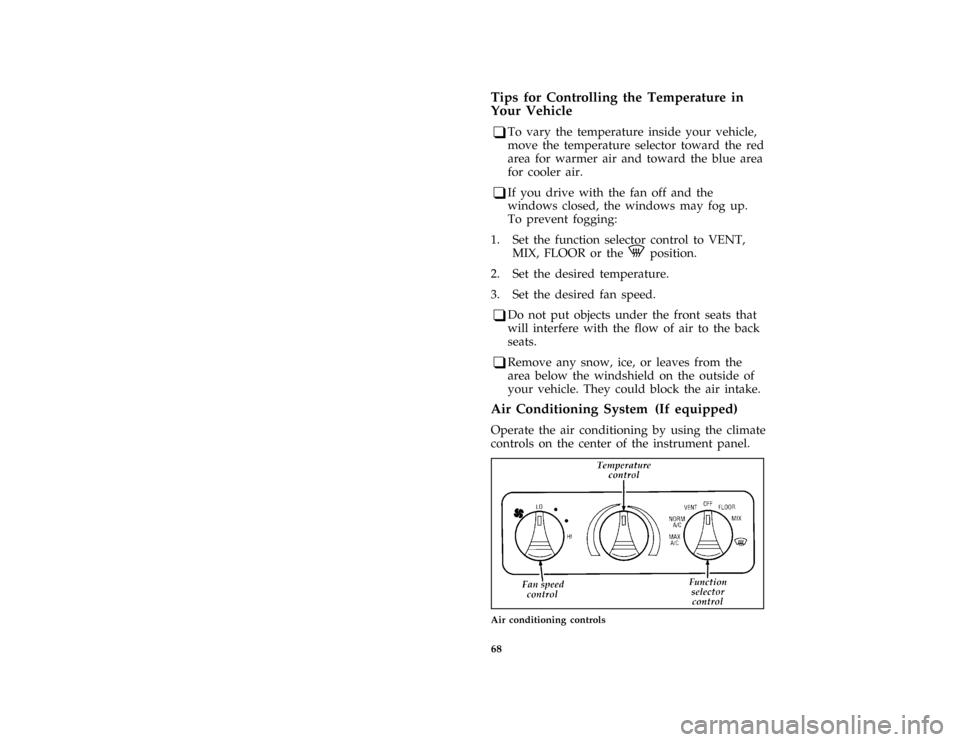

one third page art:0032041-A
Air conditioning controls
File:pripp.ex
Update:Fri Jun 23 19:37:35 1995

69
*
[IP06950(ALL)01/95]
Sometimes you may notice slight engine surging
if you have the air conditioner on. This is
normal, as the system is designed to cycle the
compressor on and off to maintain desired
cooling. The reduced compressor operation
should benefit fuel economy.
*
[IP07000(ALL)01/95]
On some vehicles with air conditioning,
wide-open throttle acceleration will temporarily
cut off the air conditioning.
*
[IP07050(ALL)01/95]
Since the air conditioner removes a lot of
moisture from the air during operation, it is
normal for water to drip on the pavement under
the air conditioner drain after you have stopped
the vehicle.
[IP07150(ALL)08/91]
Action for heating and windshield defrosting are
identical for cars equipped with either the
Heating Only Systemor theHeating and Air
Conditioning System. For instructions about these
functions, see the previous section,Heating Only
System. For instructions about using the air
conditioning, see the following sections.
[IP07350(ALL)01/95]
MAX A/C
[IP07360(ALL)01/95]
When MAX A/C is selected, cooled interior air
is recirculated through the system. This position
is more efficient than NORM A/C.
*
[IP07375(ALL)09/93]
To cool your vehicle quickly in warm weather:
[IP07400(ALL)08/91]
1. Turn the function selector control to MAX
A/C.
[IP07450(ALL)08/91]
2. Turn the temperature control to the blue
(cool) area.
[IP07475(ALL)08/91]
3. Set the fan at the desired speed.
*
[IP07500(ALL)09/93]
If the inside of your vehicle is very warm,
drive for a few minutes with the windows
down. This forces most of the hot, stale air
out of the vehicle and helps the air
conditioning cool the vehicle faster.
File:pripp.ex
Update:Fri Jun 23 19:37:35 1995

71
*
[IP13850(ALL)02/91]
Engine Idle Speed Control System
*
[IP13875(ALL)02/91]
Genuine Ford air conditioning (either
factory-installed or dealer-installed) has an
engine idle speed control system that
compensates for engine speed loss that may
occur when the air conditioning compressor is
running. This idle speed control holds the engine
idle essentially constant, regardless of whether
the air conditioning system is on or off.
[IP13890(ALL)01/95]
NOTE: Whenever service to the air
conditioning system is required, make
sure the service facility uses a
refrigerant recycling system. These
systems will capture the refrigerant for
reuse. Releasing certain refrigerants
into the atmosphere is hazardous to the
environment.
*
[IP13900(ALL)12/93]
Rear Window Defroster (If equipped)
(Standard in Canada)
[IP14000(ALL)06/94]

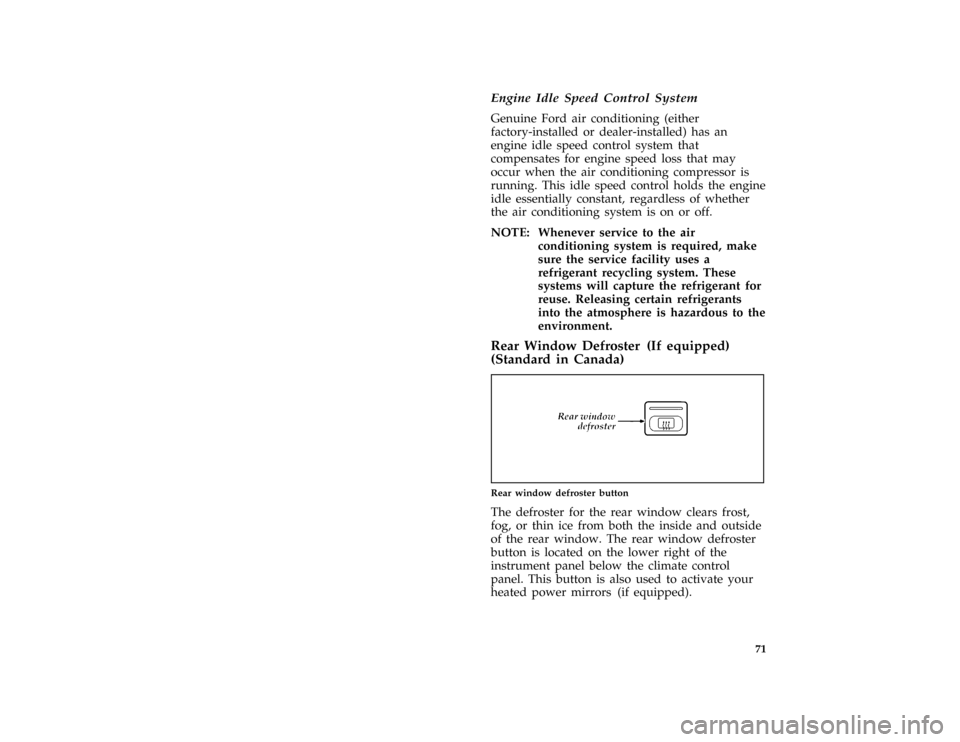

quarter page art:0032068-D
Rear window defroster button
[IP14200(ALL)01/95]
The defroster for the rear window clears frost,
fog, or thin ice from both the inside and outside
of the rear window. The rear window defroster
button is located on the lower right of the
instrument panel below the climate control
panel. This button is also used to activate your
heated power mirrors (if equipped).
File:pripp.ex
Update:Fri Jun 23 19:37:35 1995

72
*
[IP14300(ALL)02/95]
To defrost the rear window:
*
[IP14400(ALL)02/95]
1. Clear any snow from the rear window.
*
[IP14500(ALL)09/93]
2. Get in your vehicle and start the engine.
[IP14600(ALL)03/91]
3. Press the rear defrost button. The indicator
light turns on.
[IP14800(ALL)01/92]
The defroster turns off automatically after 15 to
25 minutes. If the window is not clear, turn on
the defroster again. It will also automatically
shut off any time the engine is shut off.
%*
[IP14900(ALL)03/94]
NOTE: Never use sharp instruments or
window cleaners with abrasives to
clean the inside of your rear window.
If you do, you may damage the heating
elements that are bonded to the inside
of the rear window and cause damage
to the rear window defroster.
*
[IP17700(ALL)01/92]
Interior Lights
*
[IP20500(ALL)01/95]
Lighting Up the Interior and Instrument
Panel
*
[IP20600(ALL)01/92]
With the parking lamps or headlamps on, the
brightness of the instrument panel lighting can
be adjusted.
*
[IP20700(ALL)09/93]
To brighten or dim the instrument panel
lighting, rotate the dimmer control thumbwheel
as desired.
[IP20800(ALL)01/94]
quarter page art:0030050-B
Dimmer control thumbwheel
