1996 FORD F SERIES MOTORHOME AND COMMERCIAL CHASSIS Owners Manual

61
*
[DR27801( ALL)01/95]
After you drive through the standing water,
apply your brakes gently several times as your
vehicle moves slowly. This helps to dry the
brakes.
*
[DR27820( ALL)07/94]
NOTE: If the transmission is submerged in
water, the fluid should be checked and
changed, if necessary.
*
[DR27825( ALL)03/93]
NOTE: All rear axle lube quantities must be
replaced every 100,000 miles
(160,000 km) or if the axle has been
submerged in water. Otherwise, the
lube should not be checked or changed
unless a leak is suspected or repair
required.
*
[DR27850( ALL)11/89]
Rocking the vehicle
*
[DR27950( ALL)05/95]
If your vehicle gets stuck (for example, in mud
or snow), you may rock it out of the spot. Shift
in a steady rhythm between forward and reverse
gears. Allow the transmission to fully engage,
then press lightly on the accelerator. Do not rock
the vehicle for more than a few minutes. This
may overheat the engine and transmission,
causing damage to both. In addition, other
vehicle systems and components may also be
damaged.
*
[DR27975( ALL)05/95]
RWARNING
Do not spin the wheels at over 35 mph
(55 km/h). The tires may fail and injure a
passenger or bystander.
File:ltdrm.ex
Update:Tue Jun 20 16:46:11 1995

62
*
[DR28750( ALL)01/93]
Vehicle/Trailer Loads
*
[DR28801( ALL)06/92]
All vehicles may tow a Class I trailer provided
the Gross Combined Weight (GCW) is less than
or equal to the GVWR shown on the Safety
Compliance Certification Label. For heavier
trailer applications, refer to the towing
information found later in this chapter.
*
[DR28850( M)04/95]
Trailer Towing
*
[DR29001( ALL)03/91]
Towing a trailer puts additional loads on your
vehicle's engine, transmission, axle, brakes, tires
and suspension. For your safety and for the
good of your vehicle, use the right equipment
for the type of trailer you tow.
*
[DR29025( ALL)09/92]
Your trailer towing capability will vary based on
the standard and optional equipment on your
vehicle. Refer to the followingVehicle
Loading/Towing Informationand the Trailer
Towing Tables to determine the specific towing
capability of your vehicle.
*
[DR29050( ALL)02/92]
q
Stay within the load limits when you tow.
*
[DR29101( ALL)01/95]
q
Carefully and thoroughly prepare your
vehicle for towing, making sure to use the
right equipment and to attach it properly.
(SeePreparing to Towin this chapter.)
*
[DR29151( ALL)01/95]
q
Use extra caution when driving your vehicle
while you tow. (SeeDriving while you towin
this chapter.)
*
[DR29201( ALL)01/95]
q
Service your vehicle more frequently if you
tow a trailer. (SeeServicing your vehicle if you
towin this chapter.)
*
[DR29350( ALL)05/94]
Do not tow a trailer until your vehicle has been
driven at least 500 miles (800 km).
File:ltdrm.ex
Update:Tue Jun 20 16:46:11 1995

63
%*
[DR29401( ALL)06/92]
Vehicle Loading/Towing
Information
[DR29475( M)06/90]
Your vehicle's load capacity is designed by
weight, not volume, so you cannot necessarily
use all available space with large or heavy loads.
Maximum safe vehicle weights as well as tire,
rim sizes and inflation pressures are specified for
your vehicle on the Safety Compliance
Certification Label. A Safety Compliance
Certification Label was supplied by Ford Motor
Company to the Motorhome Manufacturer. The
manufacturer uses this information and supplies
a Compliance Certification Label which is
located inside the vehicle to the left of the
driver.
*
[DR29501( ALL)12/91]
Trucks, unlike passenger cars, are basically
custom vehicles designed to carry a load. Most
owners start with a base vehicle and add
production and dealer installed and/or
aftermarket components to suit their tastes and
purposes. Even trucks that are purchased for
personal transportation only are likely to have
considerable optional equipment, such as step
bumpers and light bars, for example.
*
[DR29525( ALL)05/95]
RWARNING
Passengers should not be allowed to ride
in the cargo area. Persons not riding in a
seat with a fastened seat belt are much
more likely to suffer serious injury in a
collision. Cargo should always be secured
to prevent it from shifting and causing
damage to the vehicle or harm to
passengers.
File:ltdrm.ex
Update:Tue Jun 20 16:46:11 1995

64
*
[DR29551( ALL)03/91]
Each additional item of equipment affects how
much cargo a vehicle can carry. If a vehicle is
overloaded, performance will suffer and service
concerns may arise.
*
[DR30001( ALL)06/92]
Understanding Loading/Towing
Information
*
[DR30050( ALL)03/94]
The following terms are used to describe the
ability to carry or tow a load:
*
[DR30101( ALL)01/93]
q
Base Curb Weight
*
[DR30150( ALL)01/93]
q
Payload
*
[DR30200( ALL)01/93]
q
GVW (Gross Vehicle Weight)
*
[DR30250( ALL)01/93]
q
GVWR (Gross Vehicle Weight Rating)
*
[DR30301( ALL)01/93]
q
GAWR (Gross Axle Weight Rating)
*
[DR30310( ALL)06/92]
q
GCWR (Gross Combined Weight Rating)
*
[DR30320( ALL)06/92]
q
Maximum Trailer Weight Rating
*
[DR30330( ALL)06/92]
q
Maximum Trailer Weight
*
[DR30340( ALL)06/92]
q
Trailer Weight Range
*
[DR30351( ALL)03/91]
Base Curb Weight
*
[DR30401( ALL)03/94]
The Base Curb Weight is the weight of the
vehicle including fuel, coolants, lubricants,
emergency tools, spare wheel and tire. It also
includes any equipment that isstandardon that
model. It does not include passengers, cargo or
optional equipment installed by factory, dealer,
aftermarket supplier or customer.
*
[DR30451( ALL)03/91]
Payload
*
[DR30501( ALL)03/91]
Payload is the combined, maximum allowable
weight of cargo, occupants and optional
equipment that the truck is designed to carry. It
is Gross Vehicle Weight Rating minus the base
curb weight.
File:ltdrm.ex
Update:Tue Jun 20 16:46:11 1995

65
*
[DR30550( ALL)03/91]
Gross Vehicle Weight (GVW)
*
[DR30601( ALL)05/95]
If you add base curb weight and the weight of a
load (including passengers, cargo and optional
equipment) being carried at a particular time,
you get the Gross Vehicle Weight (GVW).
*
[DR30650( ALL)10/94]
It is important to remember that GVWis not a
limit or a specification.If an owner loads up a
vehicle and weighs it, that's the GVW at that
moment. If the owner piles on more of a load
and weighs it again, that becomes the GVW
until such time as the vehicle is unloaded.
%*
[DR30701( ALL)03/91]
Gross Vehicle Weight Rating (GVWR)
*
[DR30750( ALL)10/94]
To avoid overloading a vehicle, the owner
should observe the manufacturer's specified
Gross Vehicle Weight Rating. The GVWR is the
maximum total weight of base vehicle,
passengers, optional components and cargo that
a particular vehicle was designed to carry.
%*
[DR30801( ALL)01/93]
Gross Axle Weight Rating (GAWR)
*
[DR30850( ALL)03/91]
We have all seen a car or a truck that is loaded
down in the rear and riding high in the front.
This is a dangerous condition that usually means
that the rear suspension components are under
severe strain and that vehicle handling is
impaired. There is more to carrying a load than
just payload or GVWR.
*
[DR30901( ALL)03/91]
Your Safety Compliance Certification Label not
only gives the GVWR, it also gives the Gross
Axle Weight Rating (GAWR) which is the
carrying capacity for each axle system. For
trucks, the rear axle will be designed to carry
more weight than the front.
File:ltdrm.ex
Update:Tue Jun 20 16:46:11 1995

66
*
[DR30950( ALL)06/92]
The rating is based on the carrying capacity of
thelowest ratedaxle and suspension component
as well as other factors. This is why it's so
important to observe vehicle loading ratings.
Overloading a vehicle punishes components and
can lead to shortened service life or outright
failure.
*
[DR31001( ALL)06/92]
The capacity of the tires is included as part of
the axle and suspension system, which is to be
considered when determining the lowest rated
component. Tires are rated to carry a specific
maximum load at a specific maximum tire
pressure.
*
[DR31050( ALL)06/92]
Passenger car type tires when installed on light
trucks and multipurpose passenger vehicles are
rated at 10% lower load carrying capacity due to
the differences in vehicle usages.
*
[DR31110( ALL)06/92]
With the tires inflated to the specified pressure
the total weight of your vehicle must not exceed
the GVWR and GAWR specified on the Safety
Compliance Certification Label. This includes full
fuel tank(s), vehicle equipment, and occupants as
well as the cargo load.
*
[DR31120( ALL)06/92]
GCWR (Gross Combined Weight Rating)
*
[DR31130( ALL)06/92]
GCWR is the maximum combined weight of the
towing vehicle (including passengers and cargo)
and the loaded trailer. The GCWR is specified
by the manufacturer to indicate the combined
maximum loaded weight that the vehicle is
designed to tow.
File:ltdrm.ex
Update:Tue Jun 20 16:46:11 1995

67
*
[DR31140( ALL)06/92]
Maximum Trailer Weight Rating
*
[DR31150( ALL)05/95]
The maximum trailer weight rating is the
maximum weight of a trailer the vehicle is
permitted to tow. It is specified by the
manufacturer and is determined by subtracting
the vehicle curb weight for each
engine/transmission combination, any required
option weight for trailer towing and the weight
of the driver from the GCWR for the towing
vehicle.
*
[DR31160( ALL)06/92]
Maximum Trailer Weight
*
[DR31170( ALL)05/95]
The maximum trailer weight is the maximum
weight of a trailer the loaded vehicle is
permitted to tow. It is determined by subtracting
the weight of the loaded towing
vehicle (including passengers and cargo) from
the GCWR for the towing vehicle.
*
[DR31180( ALL)06/92]
Trailer Weight Range
*
[DR31190( ALL)06/92]
The trailer weight range is a specified range by
weight, which the trailer must fall within,
ranging from zero to the maximum trailer
weight rating.
%*
[DR31301( ALL)03/91]
Calculating The Load
*
[DR31350( ALL)03/91]
To know how much weight your vehicle can
carry:
*
[DR31401( ALL)12/91]
q
Obtain ratings from your Safety Compliance
Certification Label, and the Trailer towing
specifications in the owner guide (refer to the
Index)
*
[DR31450( ALL)09/93]
Ð Refer to the following sample illustration
to locate the various ratings on your
Safety Compliance Certification Label.
*
[DR31501( ALL)03/91]
Ð If you do not plan on pulling a trailer, do
not include these ratings into your
calculations.
File:ltdrm.ex
Update:Tue Jun 20 16:46:11 1995

68
*
[DR31550( ALL)03/91]
q
Weigh your vehicle as you customarily
operate the vehicle without cargo.
*
[DR31601( ALL)03/91]
q
Subtract the total weight of passengers, driver
and optional equipment added by the factory,
dealer or aftermarket supplier to determine
how much cargo weight you can carry.
*
[DR31650(B FM)03/94]

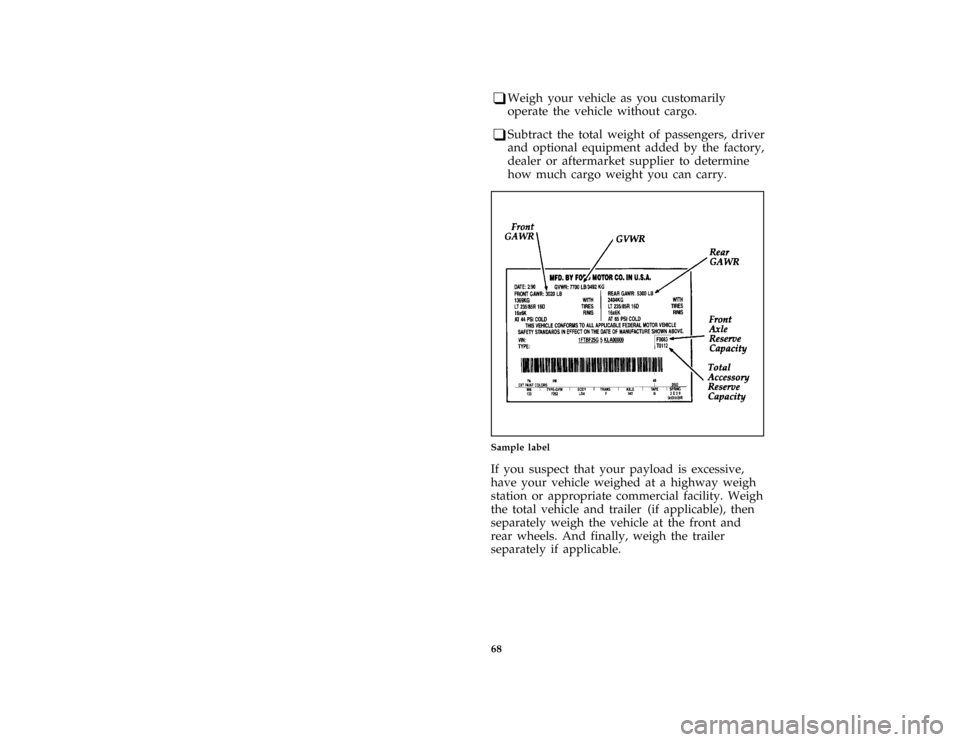

half page art:0020837-B
Sample label
*
[DR31702( ALL)03/91]
If you suspect that your payload is excessive,
have your vehicle weighed at a highway weigh
station or appropriate commercial facility. Weigh
the total vehicle and trailer (if applicable), then
separately weigh the vehicle at the front and
rear wheels. And finally, weigh the trailer
separately if applicable.
File:ltdrm.ex
Update:Tue Jun 20 16:46:11 1995
