1996 FORD F SERIES MOTORHOME AND COMMERCIAL CHASSIS Owners Manual

37
*
[SC04400( ALL)03/95]
Windshield Wipers and Washer
*
[SC04500( ALL)03/95]
To turn on the windshield wipers, the ignition
key must be turned to the ON or ACC position.
*
[SC04600( ALL)05/95]
Turn the knob on the end of the turn signal
lever toward the front of the vehicle. You can
turn it to either the LO or HI speed position.
*
[SC04700( ALL)05/95]
Variable Interval Wipers
*
[SC04800( ALL)03/95]
In addition to two speed wipers, your vehicle is
equipped with wipers that you can set to
operate at varying intervals. For example, you
can set the interval so they wipe less often when
it drizzles or more often in heavier rain.
*
[SC04950( ALL)05/95]

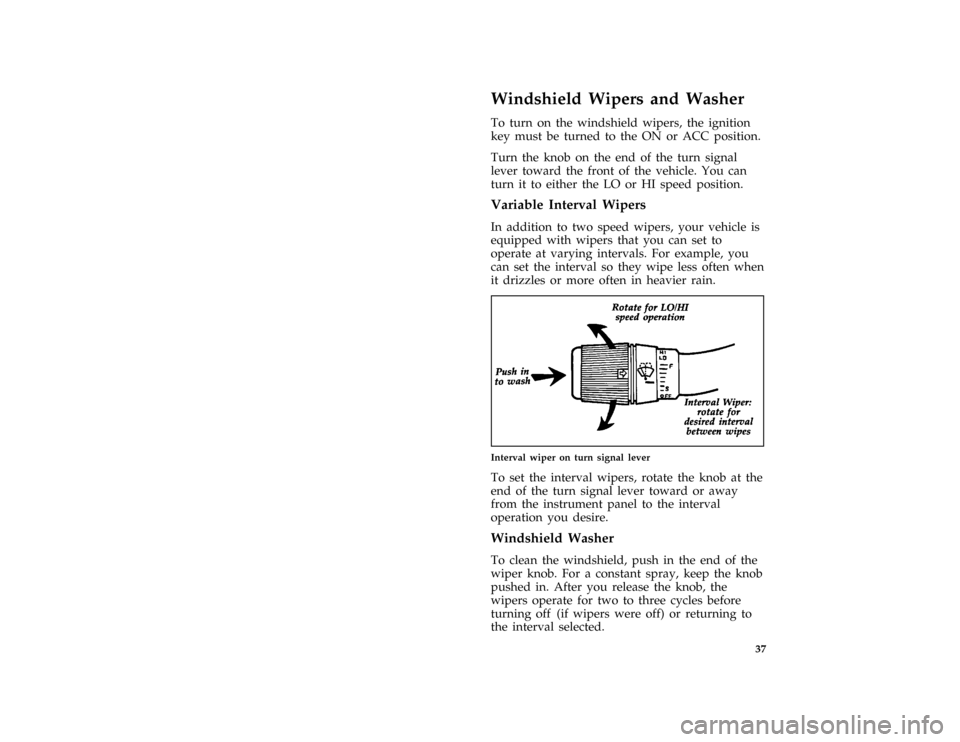

one third page art:0020831-A
Interval wiper on turn signal lever
*
[SC05000( ALL)02/95]
To set the interval wipers, rotate the knob at the
end of the turn signal lever toward or away
from the instrument panel to the interval
operation you desire.
*
[SC05100( ALL)05/95]
Windshield Washer
*
[SC05200( ALL)05/95]
To clean the windshield, push in the end of the
wiper knob. For a constant spray, keep the knob
pushed in. After you release the knob, the
wipers operate for two to three cycles before
turning off (if wipers were off) or returning to
the interval selected.
File:ltscm.ex
Update:Tue Jun 20 16:46:36 1995

38
*
[SC05300( ALL)01/95]
Do not try to clean the windshield when the
washer fluid container is empty or activate the
washers at any time for more than 15 seconds
continuously. This could damage the washer
pump system.
*
[SC05400( ALL)01/93]
RWARNING
In freezing weather, the washer solution
may freeze on the windshield and obscure
your vision. Always warm up the
windshield with the defroster before you
use the washer fluid. If you cannot see
through the windshield clearly, it can
increase the risk of being involved in a
collision.
%
*
[SC05510( ALL)03/95]
Hazard Flasher
*
[SC05520( ALL)04/95]
The hazard flasher is used to alert other drivers
to hazardous situations.
*
[SC05525( FM)10/92]
The flashers will continue to flash with the brake
pedal depressed.
*
[SC05530( ALL)03/95]
The flashers work whether your vehicle is
running or not. The flashers work for up to two
hours when the battery is fully charged and in
good condition without draining the battery
excessively. If the flashers run for longer than
two hours or if the battery is not fully charged,
the battery can be drained.
*
[SC05540( ALL)09/93]
To use the hazard flasher:
*
[SC05550( ALL)10/92]
1. Push in the flasher button; it will pop out
and the lamps will begin to flash.
*
[SC05560( ALL)10/92]
2. To stop the flashers, push in the flasher
button again.
File:ltscm.ex
Update:Tue Jun 20 16:46:36 1995

39
*
[SC05562( ALL)10/92]
NOTE: The flasher button will be sticking up
slightly higher when ON than when
OFF.
[SC05580( M)06/93]
one third page art:0020076-E
Hazard flasher
*
[SC05600( ALL)01/95]
Horn
*
[SC05700( M)05/95]
To sound the horn, push the center pad area of
the steering wheel.
[SC06100( M)03/94]
one third page art:0020087-E
Horn location
File:ltscm.ex
Update:Tue Jun 20 16:46:36 1995

40
%*
[SC06250( M)01/95]
Tilt Steering
*
[SC06300( ALL)05/95]
RWARNING
Never adjust the steering wheel when the
vehicle is moving.
[SC06600( M)03/94]

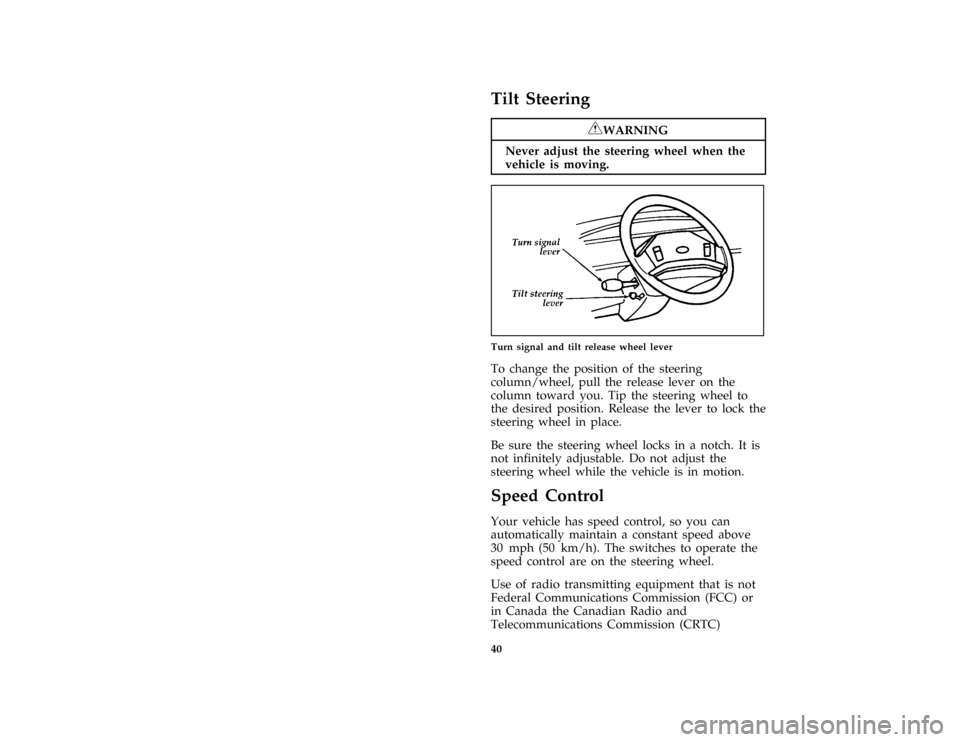

one third page art:0020090-D
Turn signal and tilt release wheel lever
*
[SC06700( ALL)04/95]
To change the position of the steering
column/wheel, pull the release lever on the
column toward you. Tip the steering wheel to
the desired position. Release the lever to lock the
steering wheel in place.
*
[SC07250( ALL)12/89]
Be sure the steering wheel locks in a notch. It is
not infinitely adjustable. Do not adjust the
steering wheel while the vehicle is in motion.
%
*
[SC07350( M)01/95]
Speed Control
*
[SC07450( ALL)05/95]
Your vehicle has speed control, so you can
automatically maintain a constant speed above
30 mph (50 km/h). The switches to operate the
speed control are on the steering wheel.
*
[SC07500( ALL)05/95]
Use of radio transmitting equipment that is not
Federal Communications Commission (FCC) or
in Canada the Canadian Radio and
Telecommunications Commission (CRTC)
File:ltscm.ex
Update:Tue Jun 20 16:46:36 1995

41
approved may cause the speed control to
malfunction. Therefore, use only properly
installed FCC (CRTC in Canada) approved radio
transmitting equipment in your vehicle.
[SC07600( M)05/95]
quarter page art:0020092-C
The speed control switches
*
[SC07800( ALL)03/95]
To set the speed control:
*
[SC08000( ALL)06/95]
1. Press and release the ON switch.
*
[SC08100( ALL)06/95]
2. Accelerate to the desired speed above
30 mph (50 km/h) using the accelerator
pedal.
*
[SC08400( ALL)06/95]
3. Press the SET±ACCEL switch and release it
immediately to set your speed. If you keep
this switch pressed, your speed will continue
to increase.
*
[SC08500( ALL)03/95]
4. Take your foot off the accelerator pedal.
Your vehicle will maintain the speed you set.
*
[SC08600( ALL)06/95]
If you drive up or down a steep hill, your
vehicle may momentarily slow down or speed
up, even though the speed control is on. This is
normal.
File:ltscm.ex
Update:Tue Jun 20 16:46:36 1995

42
*
[SC08640( ALL)04/95]
NOTE: If your speed increases above your set
speed while driving inj(Overdrive)
on a downhill grade, you may want to
depress the transmission control switch
located on the shift lever to turn off
overdrive to reduce vehicle speed.
Speed control cannot reduce the vehicle
speed if it goes above your set speed
on a downhill grade. For the best fuel
economy during normal driving
conditions, leave the shift select inj
(Overdrive), or resume as soon as
practical.
*
[SC08700( ALL)05/95]
RWARNING
Do not use the speed control in heavy
traffic or on roads that are winding,
slippery, or unpaved.
*
[SC08801( ALL)05/95]
In mountainous areas, at higher elevations, or
when pulling a trailer, the speed control may
not be able to maintain the preset speed with
the transmission inj(Overdrive).
*
[SC09325( ALL)05/95]
RWARNING
Do not shift the transmission into N
(Neutral) with the speed control on.
*
[SC09350( ALL)03/94]
To maintain a preset speed under the above
conditions, with electronically controlled
transmissions Ð press the Transmission Control
Switch. The indicator light will turn on and
illuminate the word ªOFF.º This will cancel
ªOverdriveº. You can press the Transmission
Control Switch on or off at any speed. For the
best fuel economy during normal driving
conditions, press the Transmission Control
Switch to turn off the light. This allows
overdrive operation.
File:ltscm.ex
Update:Tue Jun 20 16:46:36 1995

43
*
[SC09375( ALL)05/95]

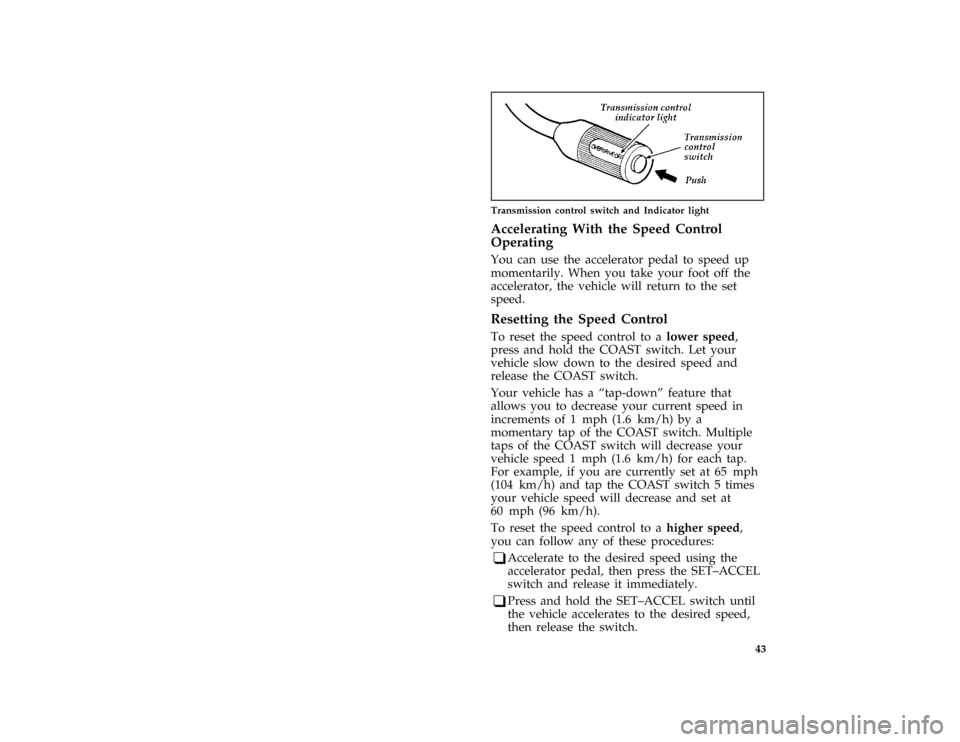

quarter page art:0020771-C
Transmission control switch and Indicator light
%*
[SC09400( ALL)06/95]
Accelerating With the Speed Control
Operating
*
[SC09500( ALL)05/95]
You can use the accelerator pedal to speed up
momentarily. When you take your foot off the
accelerator, the vehicle will return to the set
speed.
%*
[SC09600( ALL)01/95]
Resetting the Speed Control
*
[SC09700( ALL)06/95]
To reset the speed control to alower speed,
press and hold the COAST switch. Let your
vehicle slow down to the desired speed and
release the COAST switch.
*
[SC09750( ALL)10/94]
Your vehicle has a ªtap-downº feature that
allows you to decrease your current speed in
increments of 1 mph (1.6 km/h) by a
momentary tap of the COAST switch. Multiple
taps of the COAST switch will decrease your
vehicle speed 1 mph (1.6 km/h) for each tap.
For example, if you are currently set at 65 mph
(104 km/h) and tap the COAST switch 5 times
your vehicle speed will decrease and set at
60 mph (96 km/h).
*
[SC09800( ALL)06/95]
To reset the speed control to ahigher speed,
you can follow any of these procedures:
*
[SC10000( ALL)06/95]
q
Accelerate to the desired speed using the
accelerator pedal, then press the SET±ACCEL
switch and release it immediately.
*
[SC10200( ALL)06/95]
q
Press and hold the SET±ACCEL switch until
the vehicle accelerates to the desired speed,
then release the switch.
File:ltscm.ex
Update:Tue Jun 20 16:46:36 1995

44
*
[SC10300( ALL)06/95]
Turning the Speed Control Off
*
[SC10400( ALL)06/95]
You can cancel the speed control while you are
driving.
*
[SC10500( ALL)06/95]
q
Press the OFF switch. The speed control is
off. If you want to resume speed control,
press the ON switch and reset the speed
control by pressing the SET ACCEL button.
[SC10750( ALL)04/95]
q
Press the brake pedal slightly. The speed
control is suspended, but you can reset it by
pressing SET ACCEL or return to the
previous set speed with the RESUME switch.
*
[SC10800( ALL)05/95]
In addition, the speed control is turned off each
time you turn the vehicle off.
*
[SC11100( ALL)11/89]
Driving uphill or on a steep grade
*
[SC11200( ALL)05/95]
When the speed control is on, your vehicle may
significantly drop speed when driving uphill,
especially with a heavy load. If the speed drops
more than 8 to 14 mph (15 - 25 km/h) the
automatic speed control will, by design, be
canceled. You may have to temporarily resume
manual speed control while driving up a steep
grade in order to maintain the speed you desire.
*
[SC11250( ALL)03/93]
Frequent shifting of an automatic transmission or
speed loss during speed control operation can be
eliminated by shifting out of overdrive into
drive (or by pressing the Transmission Control
Switch, if equipped). These conditions could
occur in hilly terrain or at higher elevations.
*
[SC11400( ALL)12/91]
If the speed control ªdropped outº after your
climb is completed, the speed of your vehicle
can be reset with the SET ACCEL switch, or
returned to the previous set speed with the
RESUME switch, as long as you are driving over
30 mph (50 km/h).
