1996 CHEVROLET CAVALIER Owners Manual

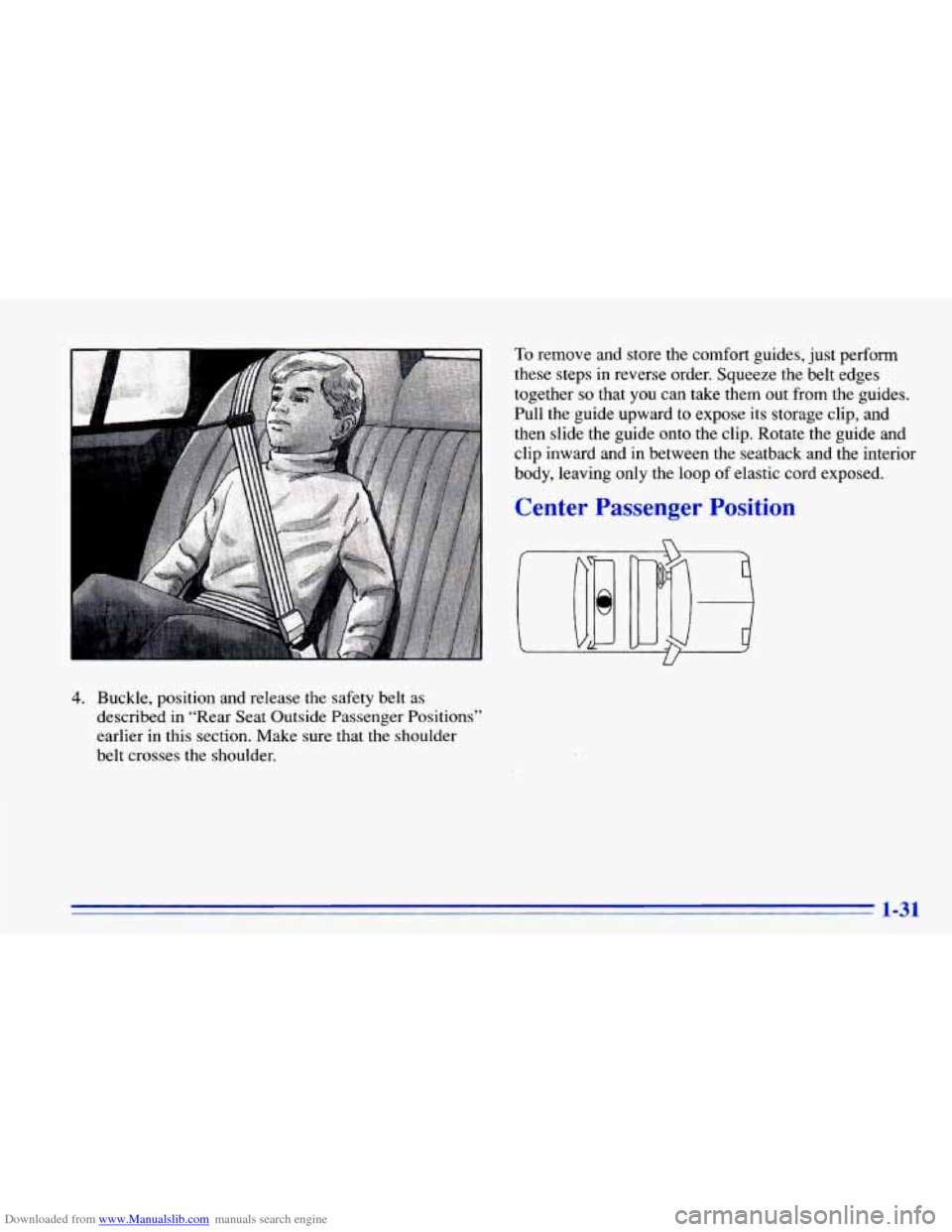

Downloaded from www.Manualslib.com manuals search engine 4. Buckle, position and release the safety belt as
described in “Rear Seat Outside Passenger Positions’’
earlier in this section. Make sure that the shoulder
belt crosses the shoulder.
To remove and store the comfort guides, just perform
these steps in reverse order. Squeeze the belt edges
together
so that you can take them out from the guides.
Pull the guide upward to expose its storage clip, and
then slide the guide onto the clip. Rotate the guide and
clip inward and in between the seatback and
the interior
body, leaving only the loop
of elastic cord exposed.
Center Passenger Position
1-31

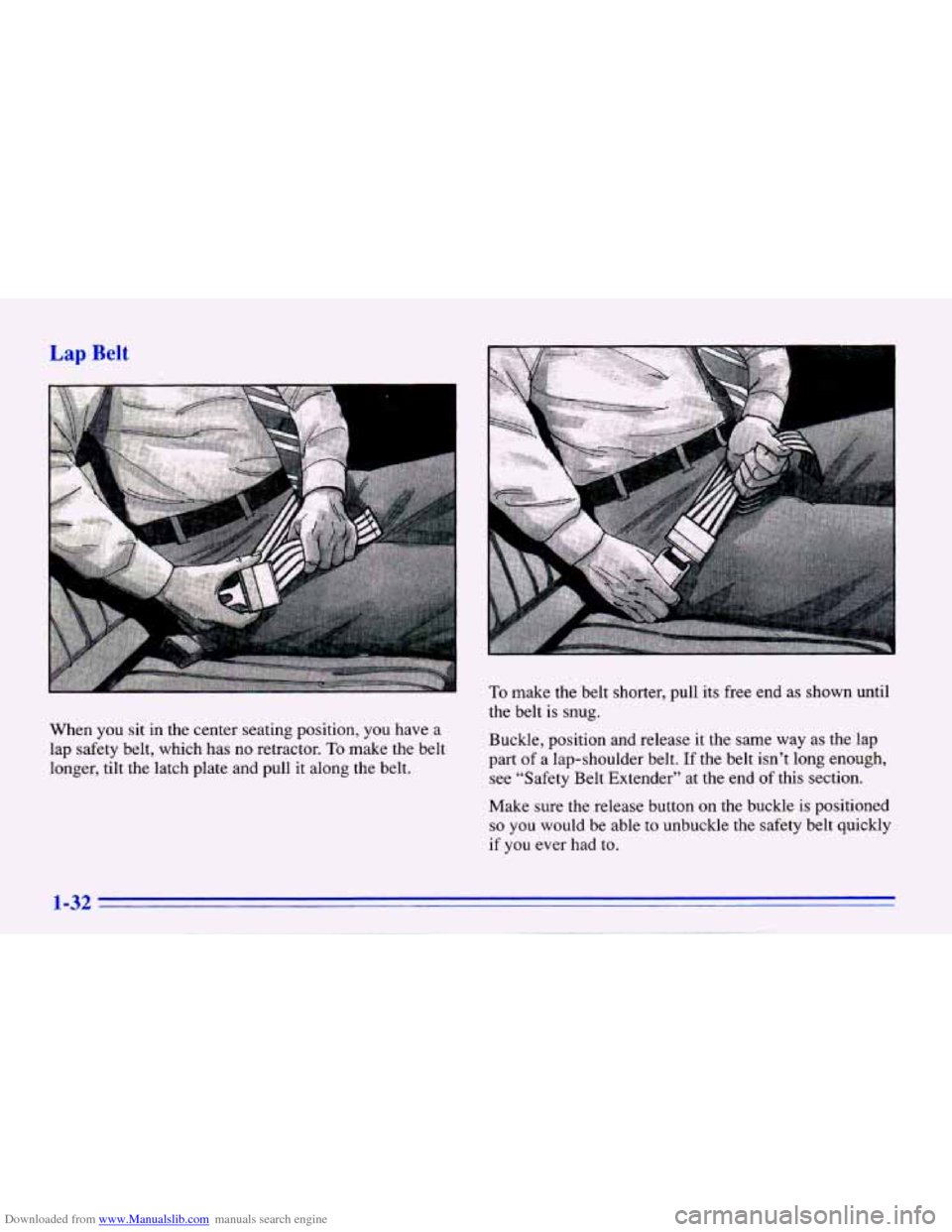

Downloaded from www.Manualslib.com manuals search engine Lap Belt
When you sit in the center seating position, you have a
lap safety belt, which has
no retractor. To make the belt
longer, tilt the latch plate
and pull it along the belt.
To make the belt shorter, pull its free end as shown until
the belt is snug.
Buckle, position and release it the same way as the lap
part of a lap-shoulder belt.
If the belt isn’t long enough,
see “Safety Belt Extender” at the end of this section.
Make sure the release button on the buckle
is positioned
so you would be able to unbuckle the safety belt quickly
if
you ever had to.

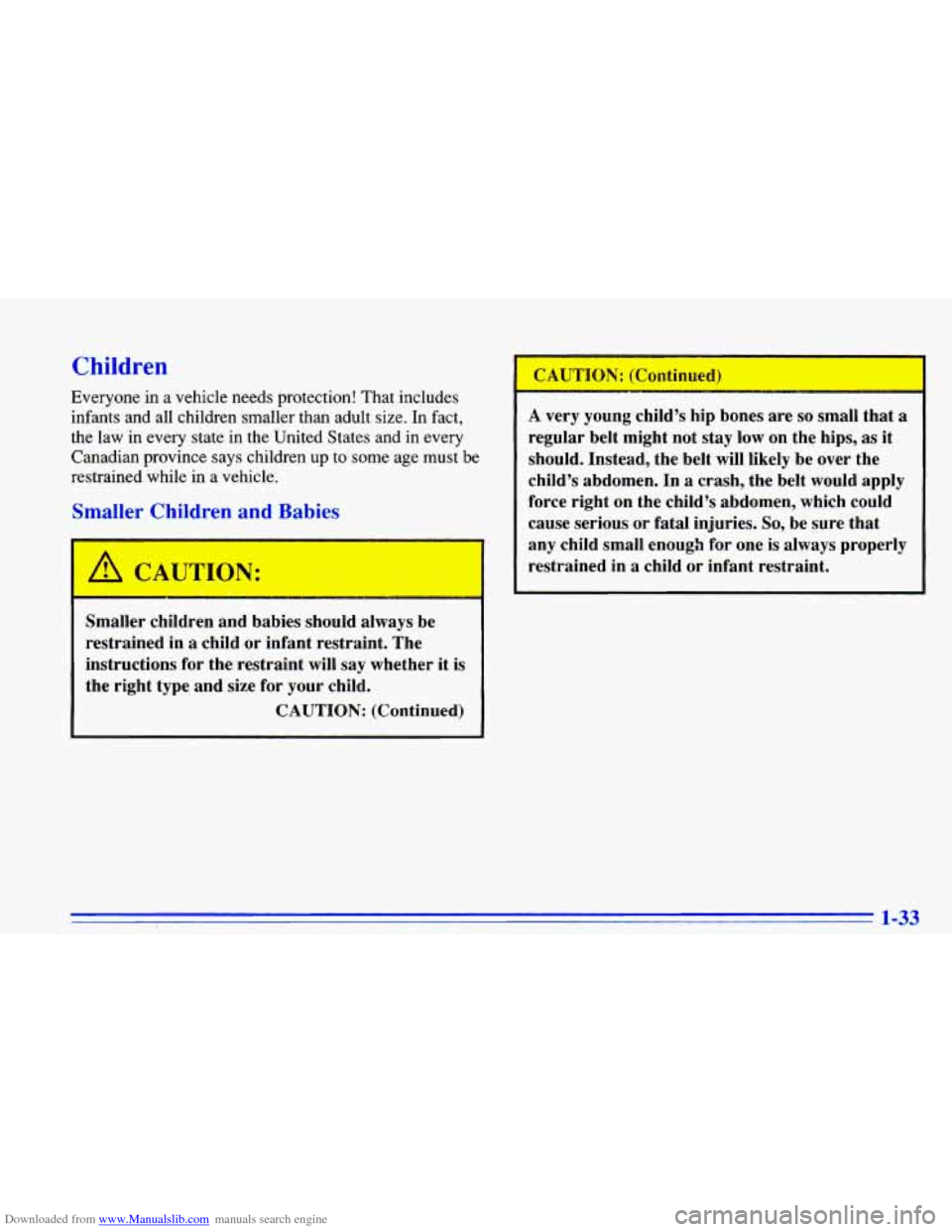

Downloaded from www.Manualslib.com manuals search engine Children
Everyone in a vehicle needs protection! That includes infants and all children smaller than adult size. In fact,
the law in every state in the United States and in every
Canadian province says children
up to some age must be
restrained while in a vehicle.
Smaller Children and Babies
Smaller children and babies should always be
restrained in
a child or infant restraint. The
instructions for the restraint will say whether it is
the right type and size for your child.
CAUTION: (Continued)
A very young child's hip bones are so small that a
regular belt might not stay low on the hips, as it
should. Instead, the belt will likely be over the
child's abdomen. In
a crash, the belt would apply
force right on the child's abdomen, which could
cause serious or fatal injuries.
So, be sure that
any child small enough for one is always properly
restrained in
a child or infant restraint.
1-33

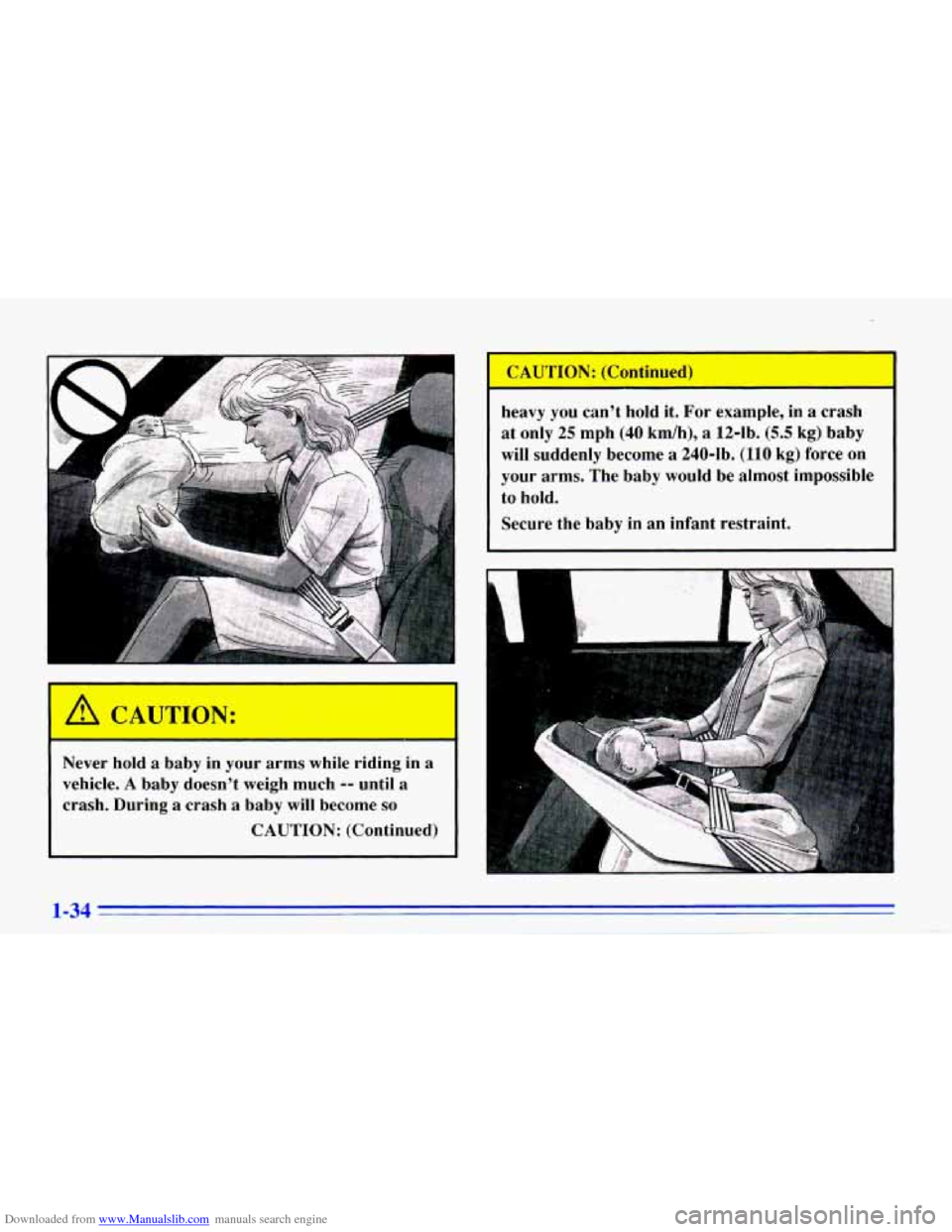

Downloaded from www.Manualslib.com manuals search engine A
Never hold a baby in your arms while riding in a
vehicle. A baby doesn't weigh much -- until a
crash. During
a crash a baby will become so
CAUTION: (Continued) heavy
you can't hold it. For example, in
a crash
at only 25 mph (40 km/h), a 12-lb. (5.5 kg) baby
will suddenly become
a 240-lb. (110 kg) force on
your arms. The baby would be almost impossible
to hold.
Secure the baby in an infant restraint.

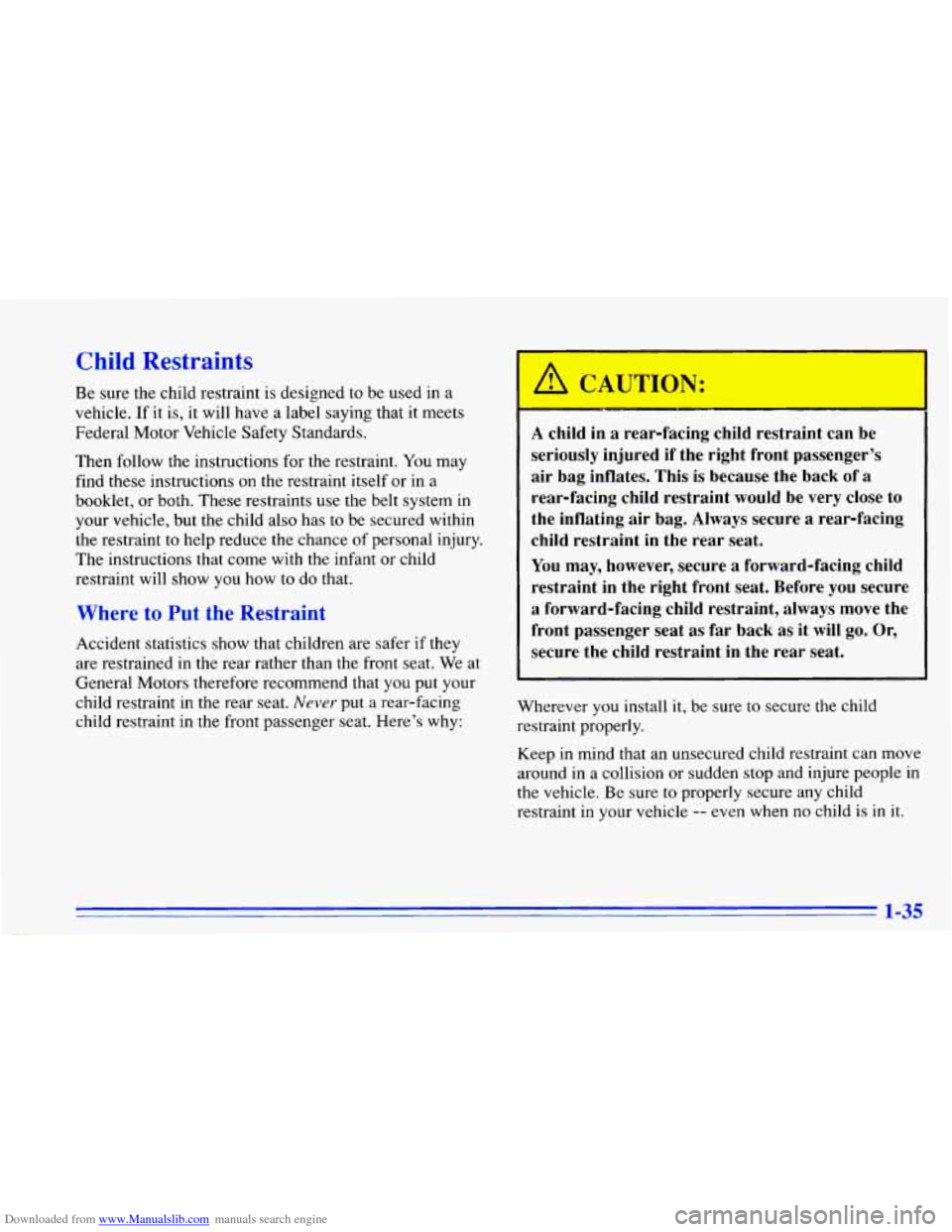

Downloaded from www.Manualslib.com manuals search engine Child Restraints
Be sure the child restraint is designed to be used in a
vehicle. If it is, it will have a label saying that it meets
Federal Motor Vehicle Safety Standards.
Then follow the instructions for the restraint. You may
find
these instructions on the restraint itself or in a
booklet, or both. These restraints use the belt system in
your vehicle, but the child also has to be secured within
the restraint to help reduce
the chance of personal injury.
The instructions that come with the infant or child
restraint will show
you how to do that.
Where to Put the Restraint
Accident statistics show that children are safer if they
are restrained in
the rear rather than the front seat. We at
General Motors therefore recommend that you put your
child restraint in the rear seat.
Never put a rear-facing
child restraint in the front passenger seat. Here’s why:
A CAUTION:
-
A child in a rear-facing child restraint can be
seriously injured if the right front passenger’s
air bag inflates. This is because the back of
a
rear-facing child restraint would be very close to
the inflating air bag. Always secure
a rear-facing
child restraint
in the rear seat.
You may, however, secure a forward-facing child
restraint in the right front seat. Before
you secure
a forward-facing child restraint, always move the
front passenger seat as
far back as it will go. Or,
secure the child restraint in the rear seat.
Wherever you install
it, be sure to secure the child
restraint properly.
Keep in mind that an unsecured child restraint can move
around in a collision or sudden stop and injure people in
the vehicle. Be sure
to properly secure any child
restraint in your vehicle
-- even when no child is in it.
1-35

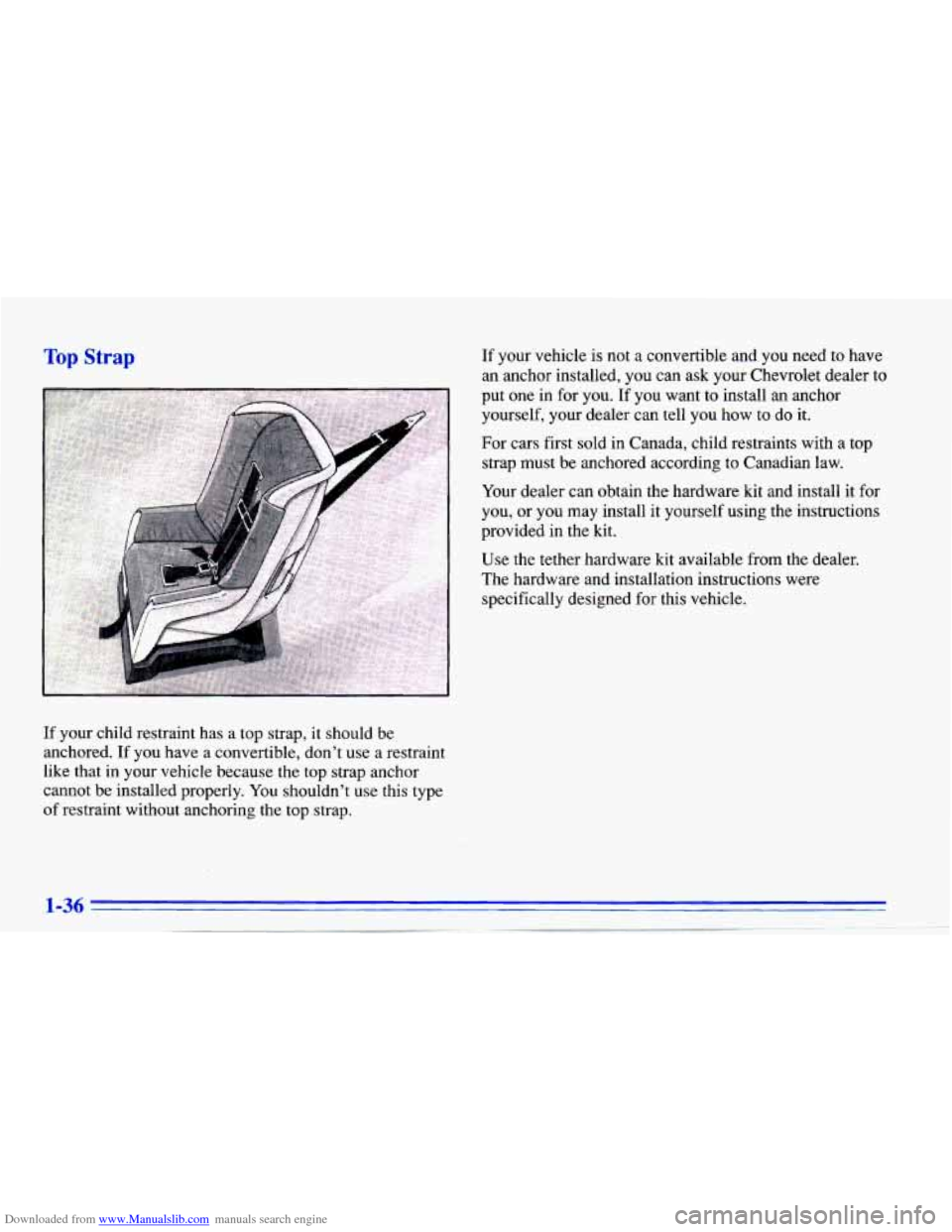

Downloaded from www.Manualslib.com manuals search engine Top Strap
If your child restraint has a top strap, it should be
anchored. If you have a convertible, don’t use a restraint
like that in your vehicle because the top strap anchor
cannot be installed properly. You shouldn’t use this type
of restraint without anchoring the top strap.
If your vehicle is not a convertible and you need to have
an anchor installed, you can ask your Chevrolet dealer to
put one in for you.
If you want to install an anchor
yourself, your dealer can tell you how to do it.
For cars first sold in Canada, child restraints with
a top
strap must be anchored according to Canadian law.
Your dealer can obtain the hardware kit and install it for
you, or you may install it yourself using the instructions
provided in the kit.
Use the tether hardware kit available from the dealer.
The hardware and installation instructions were
specifically designed for this vehicle.

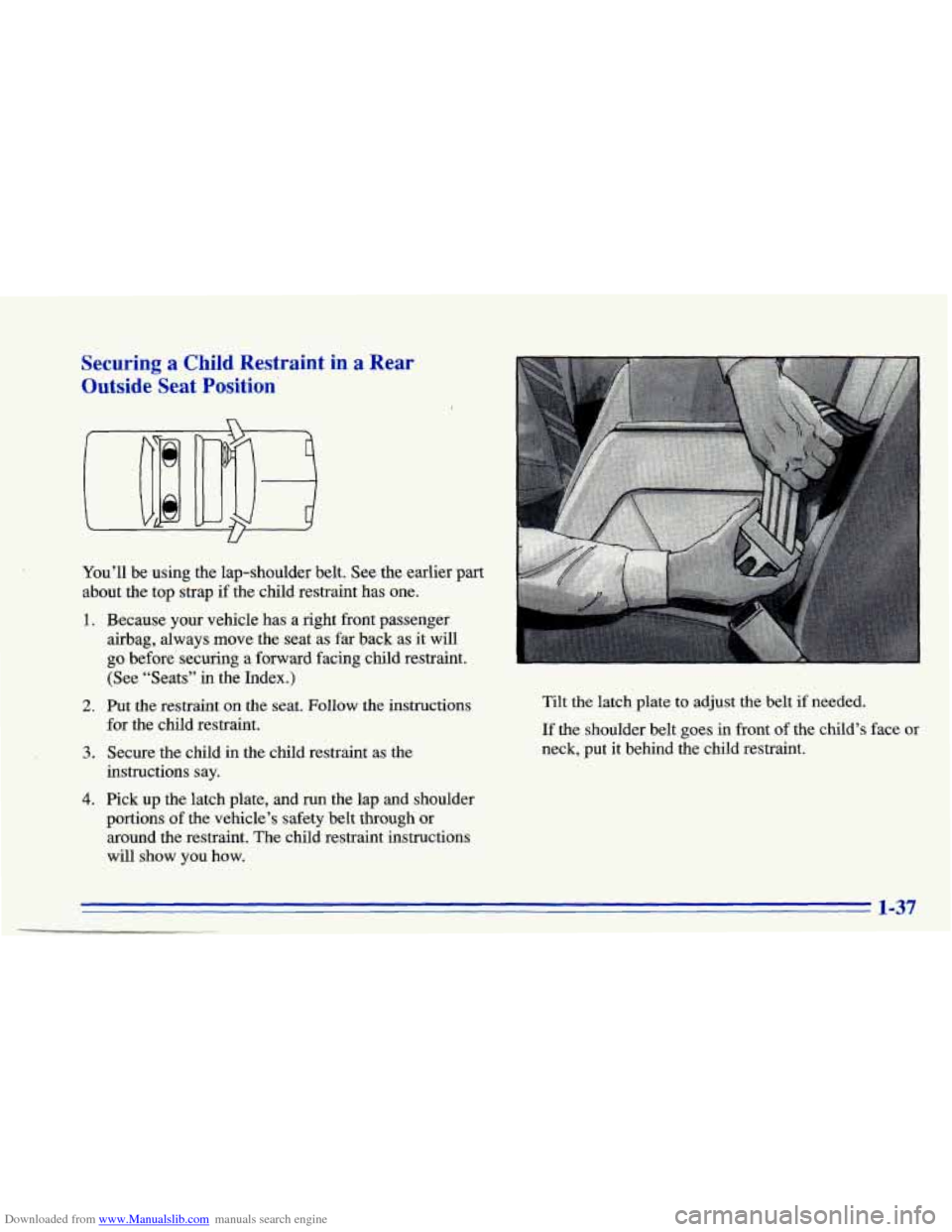

Downloaded from www.Manualslib.com manuals search engine Securing a Child Restraint in a Rear
Outside
Seat Position’
You’ll be using the lap-shoulder belt. See the earlier part
about the top strap if the child restraint has one.
1. Because your vehicle has a right front passenger
airbag, always move the seat as far back as it will
go before securing a forward facing child restraint.
(See “Seats” in the Index.)
2. Put the restraint on the seat. Follow the instructions
for the child restraint.
3. Secure the child in the child restraint as the
instructions say.
4. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through
or
around the restraint. The child restraint instructions
will show you
how.
Tilt the latch plate to adjust the belt if needed.
If the shoulder belt goes in front of the child’s face or
neck, put it behind the child restraint.
1-37

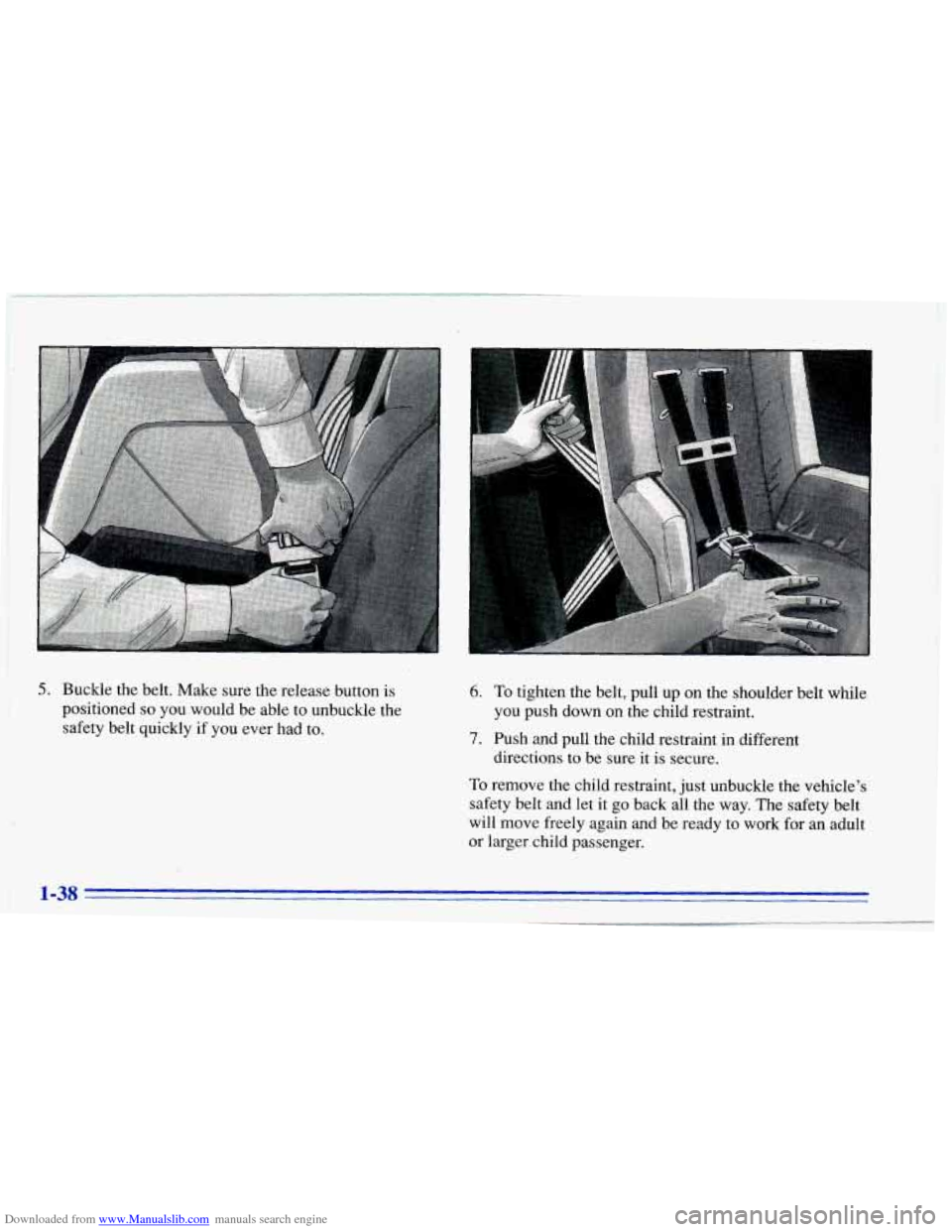

Downloaded from www.Manualslib.com manuals search engine 5. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly if you ever had to.
6. To tighten the belt, pull up on the shoulder belt while
7. Push and pull the child restraint in different
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it
go back all the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger. you push down on the child restraint.
directions to be sure it
is secure.
1-38
