1996 ACURA RL KA9 engine

Troubleshooting
DTC 83 : VS A Inhibitio n (cont'd )
(With DT C 35 fro m pag e 19-247 )
Check fo r a shor t t o bod y groun din th e T C ST B circuit :
1 . Tur n th e ignitio n switc h OFF .
2 . Disconnec t th e PC M connec -
tor C (12P ) and th e VS A con -verte r uni t 26 P connector .
3 . Chec k fo r continuit y betwee n
th e VS A converte r uni t 26 P
connecto r termina l No . 2 4an d bod y ground .
I s ther e continuity ?
Check fo r a shor t t o bod y groun din th e T C F C circuit :
Chec k fo r continuit y betwee n th e
VS A converte r uni t 26 P connecto rterminal No . 2 2 an d bod y ground .
I s ther e continuity ?
Chec k the VSA converte r uni t
(TC STB) :1. Connec t th e VS A converte runit 26 P connecto r an d th ePC M connecto r C (12P) .2. Rais e th e fron t o f th e vehicle ,
an d suppor t i t wit h safet y
stands.3. Star t th e engine .
4 . Measur e th e voltag e betwee n
th e VS A converte r uni t 26 P
connecto r termina l No . 2 4
an d bod y ground .
I s th e voltag e a s specified ?
— VS A is functioning : abou t O V
— VS A is no t functioning : abou t5V
(T o pag e 19-249 )
VSA CONVERTE R UNI T 26 P CONNECTO R
Wire sid e o f femal e terminal s
Repair shor t t o bod y groun d i nth e wir e betwee n th e PC M an d
th e VS A converte r unit .
Repai r shor t t o bod y groun d i nth e wir e betwee n th e PC M an d
th e VS A converte r unit .
Chec k fo r loos e terminal s i n th eVS A converte r uni t 26 P connec -
tor . I f necessary , substitut e a
known-goo d VS A converte r unit ,
and recheck .
NOTE: Sto p th e wheel s b y pressin g th e
brak e peda l lightly .
ProCarManuals.com

VSA Modulator-Control Unit

Removal/Installation

NOTE:

Do not spill brake fluid on the vehicle; it may damage the paint; if brake fluid does contact the paint, wash it off imme-

diately with water.

Take care not to damage or deform the brake lines during removal and installation.

To prevent the brake fluid from flowing, plug and cover the hose ends and joints with a shop towel or equivalent material.

Removal

1. Disconnect the pressure sensor 3P connector.

2. Pull the locking lever of the VSA control unit 42P connec-

tor up, then disconnect the connector.

3. Disconnect the six brake lines.

4. Remove the two 8 mm nuts.

5. Remove the VSA modulator-control unit.

Installation

1. Install the VSA modulator-control unit, then tighten the

two 8 mm nuts.

2. Align the connecting surfaces of the VSA control unit 42P

connector.

3. Push the locking lever of the VSA control unit 42P connec-

tor down until you hear a click.

4. Connect the pressure sensor 3P connector.

5. Connect the six brake lines.

6. Perform the precharge brake line bleeding (see page 19-

271).

7. Bleed the brake system, starting with the front wheels.

8. Start the engine, and check that the ABS indicator goes

off.

9. Test-drive the vehicle, and check that the ABS indicator

does not come on.

To right-rear

To left-rear

PRESSURE SENSOR

3P CONNECTOR

VSA MODULATOR

CONTROL UNIT
LOCKING LEVER

VSA CONTROL UNIT

42P CONNECTOR

To right-front

To left-front

FLARE NUT

15 N-m (1.5 kgf-m, 11 Ibf-ft)

MOUNTING BOLT

VSA CONTROL UNIT 42P CONNECTOR

8 mm BOLT

22 N-m (2.2 kgf-m, 16 Ibf-ft)
8 mm NUT

9 N-m (0.9 kgf-m, 7 Ibf-ft)

RUBBER MOUNT

BRACKETProCarManuals.com

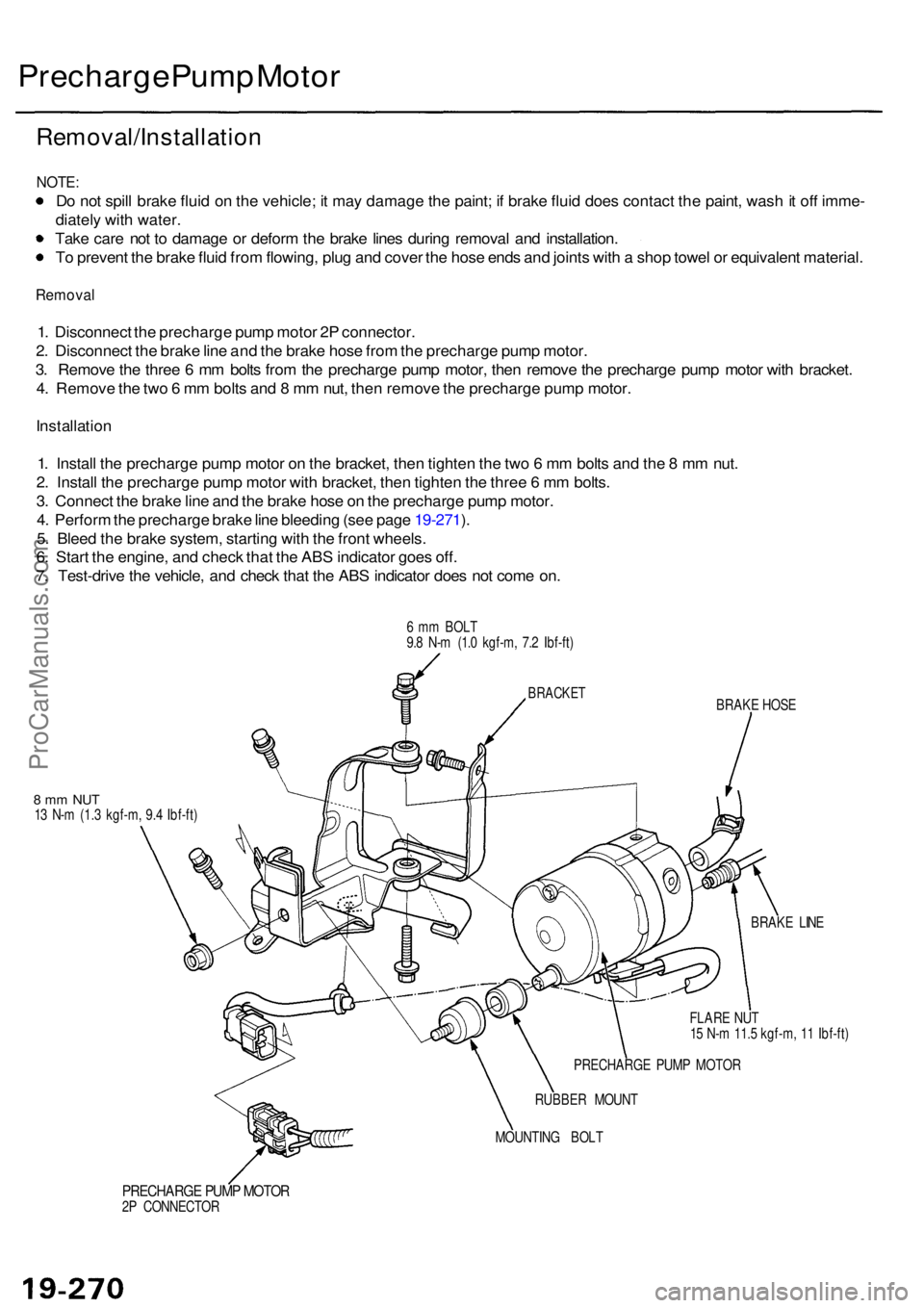

Precharge Pum p Moto r
Removal/Installatio n
NOTE:
Do no t spil l brak e flui d o n th e vehicle ; i t ma y damag e th e paint ; i f brak e flui d doe s contac t th e paint , was h it of f imme -
diatel y wit h water .
Tak e car e no t t o damag e o r defor m th e brak e line s durin g remova l an d installation .
T o preven t th e brak e flui d fro m flowing , plu g an d cove r th e hos e end s an d joint s wit h a sho p towe l o r equivalen t material .
Remova l
1. Disconnec t th e precharg e pum p moto r 2 P connector .
2 . Disconnec t th e brak e lin e an d th e brak e hos e fro m th e precharg e pum p motor .
3 . Remov e th e thre e 6 m m bolt s fro m th e precharg e pum p motor , the n remov e th e precharg e pum p moto r wit h bracket .
4 . Remov e th e tw o 6 m m bolt s an d 8 m m nut , the n remov e th e precharg e pum p motor .
Installatio n
1. Instal l th e precharg e pum p moto r o n th e bracket , the n tighte n th e tw o 6 m m bolt s an d th e 8 m m nut .
2 . Instal l th e precharg e pum p moto r wit h bracket , the n tighte n th e thre e 6 m m bolts .
3 . Connec t th e brak e lin e an d th e brak e hos e o n th e precharg e pum p motor .
4 . Perfor m th e precharg e brak e lin e bleedin g (se e pag e 19-271 ).
5 . Blee d th e brak e system , startin g wit h th e fron t wheels .
6 . Star t th e engine , an d chec k tha t th e AB S indicato r goe s off .
7 . Test-driv e th e vehicle , an d chec k tha t th e AB S indicato r doe s no t com e on .
6 m m BOL T
9. 8 N- m (1. 0 kgf-m , 7. 2 Ibf-ft )
BRAKE HOS E
8 m m NU T13 N- m (1. 3 kgf-m , 9. 4 Ibf-ft )
BRAKE LIN E
FLAR E NU T
1 5 N- m 11. 5 kgf-m , 1 1 Ibf-ft )
PRECHARG E PUM P MOTO R
RUBBE R MOUN T
MOUNTIN G BOL T
PRECHARG E PUM P MOTO R2P CONNECTO R
BRACKET
ProCarManuals.com

Troubleshooting
Engine Coolan t Temperatur e (ECT ) Senso r
The blowe r moto r doe s no t ru n immediately , eve n thoug h th e engin e is full y warme d up . (NOTE : Th e temperatur e contro l
dia l mus t b e se t betwee n 61° F [18°C ] an d 89° F [32°C]. )
Does th e malfunctio n indica -
to r lam p com e on ?
Chec k fo r a n ope n in th e wire :
1 . Tur n th e ignitio n switc h OFF .
2 . Remov e th e climat e contro l
uni t (se e pag e 22-55 ), an d dis -
connec t th e 8 P an d 20 P con -
nectors .
3 . Disconnec t th e EC T senso r 2 P
connecto r (se e sectio n 11 ).
4 . Chec k fo r continuit y betwee n
th e No . 1 7 termina l o f th e 20 P
connecto r an d th e No . 2 ter -
mina l o f th e 2 P connector .
I s ther e continuity ?
Chec k fo r loos e wire s o r poo r
connection s a t th e climat e con -trol uni t 20 P connecto r an d a t
th e EC T senso r 2 P connector . I f
th e connection s ar e good , substi -
tut e a known-goo d climat e con -
trol unit , an d recheck . I f th esymptom/indicatio n goe s away ,
replac e th e origina l climat e con -
tro l unit . Se
e sectio n 11 .
CLIMATE CONTRO L UNI T 20 P CONNECTO R
Wir e sid e o f femal e terminal s
Repai r ope n in th e wir e betwee n
th e climat e contro l uni t an d th e
EC T sensor .
ECT SENSO R 2P CONNECTO R
Wir e side of femal e terminal s
Chec
k th e malfunctio n indicato r
lam p (MIL) .
ProCarManuals.com

Both Fans Low Speed

Both fans do not run at low speed

(but both fans run at high speed).

Check for an open in the wire:

1. Remove the radiator fan main

relay from the under-hood

relay box A.

2. Disconnect the radiator fan 2P

connector.

3. Check for continuity between

the No. 2 terminal of the radi-

ator fan main relay 5P socket

and the No. 2 terminal of the

radiator fan 2P connector.
NOTE: It is normal for both fans to run at high speed when the system pressure is above

1,520 kPa (15.5 kgf/cm2, 220 psi), or when the engine coolant temperature is above 194°F

(90°C).

RADIATOR FAN 2P CONNECTOR

Wire side of female terminals

RADIATOR FAN MAIN RELAY 5P SOCKET

Is there continuity?
Repair open in the wire between

the radiator fan main relay and

the radiator fan.

Replace the radiator fan main

relay.ProCarManuals.com

From pag e 22-4 9
Chec k th e PC M (AC C an d AC S
lines) :1. Tur n th e ignitio n switc h OFF ,then reinstal l th e compresso r
clutc h relay .
2 . Disconnec t th e fa n contro l
uni t 12 P connector .
3 . Connec t th e No . 8 termina l an d
bod y groun d wit h a jumpe rwire.
4 . Tur n th e ignitio n switc h O N (II) ,
an d star t th e engine .
Doe s th e compresso r clutc h
engage ?
Is ther e continuity ?
Test th e radiato r fa n contro l sen -
so r (se e Fa n Control s i n
section 10 ).
Is th e senso r OK ?
Chec k fo r loos e wire s o r poo r
connection s a t th e fa n contro l
uni t 12 P connector . I f th e con -
nection s ar e good , substitut e a
known-goo d fa n contro l unit ,
an d recheck . I f th e symptom /
indicatio n goe s away , replac e
origina l fa n contro l unit . FA
N CONTRO L UNI T 12 P CONNECTO R
T o pag e 22-5 2 Wir
e sid e o f femal e terminal s
RADIATO R FA N CONTRO L SENSO R 2 P CONNECTO R
Wir e sid e o f femal e terminal s
Repai r shor t i n th e wir e betwee n
th e radiato r fa n contro l senso r
an d th e fa n contro l unit .
Replac e th e radiato r fa n contro lsensor.
Check fo r a shor t i n th e wire :1. Tur n th e ignitio n switc h OFF ,then disconnec t th e jumpe rwire.2. Disconnec t th e radiato r fa n
contro l senso r 2 P connector .
3 . Chec k fo r continuit y betwee n
th e No . 2 termina l an d bod y
ground . JUMPE
R
WIRE
ProCarManuals.com

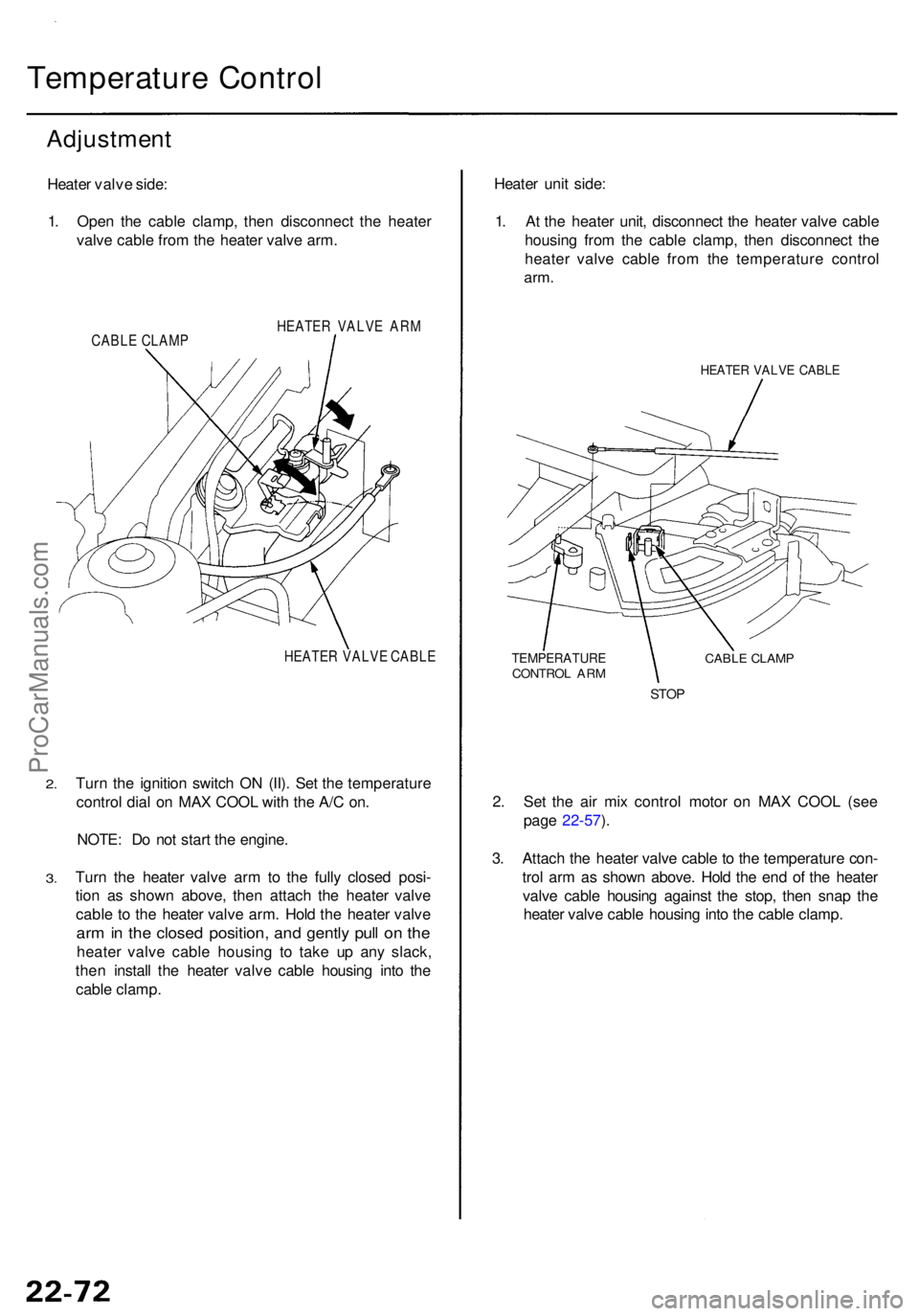

Temperature Contro l
Adjustmen t
Heater valv e side :
1 . Ope n th e cabl e clamp , the n disconnec t th e heate r
valv e cabl e fro m th e heate r valv e arm .
CABL E CLAM P HEATE
R VALV E AR M
HEATE R VALV E CABL E
2.
3.
Tur n th e ignitio n switc h O N (II) . Se t th e temperatur e
contro l dia l o n MA X COO L wit h th e A/ C on .
NOTE : D o no t star t th e engine .
Tur n th e heate r valv e ar m to th e full y close d posi -
tio n a s show n above , the n attac h th e heate r valv e
cabl e t o th e heate r valv e arm . Hol d th e heate r valv e
arm in th e close d position , an d gentl y pul l o n th e
heate r valv e cabl e housin g t o tak e u p an y slack ,
the n instal l th e heate r valv e cabl e housin g int o th e
cabl e clamp . Heate
r uni t side :
1 . A t th e heate r unit , disconnec t th e heate r valv e cabl e
housin g fro m th e cabl e clamp , the n disconnec t th e
heate r valv e cabl e fro m th e temperatur e contro l
arm.
HEATE R VALV E CABL E
TEMPERATUR ECONTROL AR MCABL E CLAM P
STOP
2. Se t th e ai r mi x contro l moto r o n MA X COO L (se e
pag e 22-57 ).
3 . Attac h th e heate r valv e cabl e to th e temperatur e con -
tro l ar m a s show n above . Hol d th e en d o f th e heate r
valv e cabl e housin g agains t th e stop , the n sna p th e
heate r valv e cabl e housin g int o th e cabl e clamp .
ProCarManuals.com

Compressor
Replacemen t
1. I f th e compresso r i s marginall y operable , ru n th e
engin e a t idl e speed , an d le t th e ai r conditione r
wor k fo r a fe w minutes , the n shu t th e engine off.
2 . Mak e sur e yo u hav e th e anti-thef t cod e fo r th e radio ,
the n writ e dow n th e frequencie s fo r th e radio' s pre -
se t buttons .
3 . Disconnec t th e negativ e cabl e fro m th e battery .
4 . Recove r th e refrigeran t wit h a recovery/recycling /
chargin g statio n (se e pag e 22-75 ).
5 . Loose n th e A/ C compresso r bel t (se e pag e 22-85 ).
A/ C COMPRESSO R BEL T
6. Remov e th e nuts , the n disconnec t th e suctio n lin e
an d th e discharg e lin e fro m th e compressor .
NOTE : Plu g o r ca p th e line s immediatel y afte r dis -
connectin g the m to avoi d moistur e an d dus t con -
tamination .
SUCTION LIN E
DISCHARG E LIN E
6 x 1. 0 m m9.8 N- m (1. 0 kgf-m ,
7 Ibf-ft )
7. Remov e th e mountin g bolt s an d th e compressor .
8 x 1.2 5 mm22 N- m (2. 2 kgf-m , 1 6 Ibf-ft )
8. Remov e th e bolt s an d th e suctio n servic e valv e
fro m th e compressor .
25.5 N- m (2. 6 kgf-m , 18. 8 Ibf-ft )
SUCTIO N SERVIC E
VALV E
O-RIN G
Replace .
