Confirming the Function

1. Shifting to the sleep mode:

1) Turn the ignition switch OFF.

2) Cancel the key-off operation timer in power window system by opening and closing one of the front doors.

3) Make sure that the trunk is closed, and exterior lights are off.

4) If you do not operate the switches related to the multiplex control units more than one minute after meeting the

above conditions, the system function shifts to the sleep mode.

(All of the switches must be turned OFF except door lock knob switches, ignition key switch, audio switch, and hood

switch.)

2. Confirming the sleep mode:

1) Check for voltage between the wake up line (PNK/BLU wire between driver's and passenger's control unit).

There should be no voltage with the sleep mode OFF.

There should be battery voltage with the sleep mode ON.

2) Check for voltage between each communication line and body ground while shifting to the sleep mode. There

should be no voltage.

3) Check the parasitic draw at the battery while shifting to the sleep mode. The ampere should change from 100 mA to

less than 100 mA.

3. Confirming the wake up mode:

After confirming the sleep mode, turn the related switch (see previous table) ON, and wake up each control unit. If all of

the operations works properly, the wake up mode is OK.

(If any of the control units are faulty and cannot wake up, several parts of the system will not work at the same time.)
Multiplex Control SystemProCarManuals.com

Multiplex Contro l Syste m
Self-diagnosi s Functio n (Mod e 2 )
Fro m mod e 1 , disconnec t th e SC S servic e connecto r fro m th e multiple x contro l inspectio n connecto r fo r 5 to 1 0
seconds , the n reconnec t th e SC S servic e connecto r again , an d th e functio n goe s fro m mod e 1 to mod e 2 .
T o cance l mod e 2 , disconnec t th e SC S servic e connecto r fro m th e multiple x contro l inspectio n connecto r fo r mor e tha n 1 0
second s o r tur n th e ignitio n switc h OFF .
1 . Operat e th e switche s a s show n belo w in mod e 2 .
2 . I f th e relate d circui t lin e o f th e switc h i s OK , th e functio n indicate s thi s b y th e ignitio n ke y ligh t blinkin g onc e an d th e
beepe r soundin g once .
NOTE : I f th e lin e is faulty , ther e shoul d b e n o indication . Refe r t o th e test s fo r eac h system .
Objec t Inpu t Table :
Mod
e 2 :
Hoo d switc h (OPEN )
Trun k latc h switc h (OPEN )
Radi o securit y inpu t
Trun k opene r mai n switc h
Fron t passenger' s doo r switc h
(OPEN )
Front passenger' s ke y cylinde r switc h
(LOCK/UNLOCK )
Front passenger' s doo r loc k switc h
(LOCK/UNLOCK )
Front passenger' s doo r loc k kno b
switc h (UNLOCK )
Righ t rea r doo r switc h (OPEN )
Righ t rea r doo r loc k kno b switc h
(UNLOCK )
Keyless transmitte r
(LOC K button )
(UNLOC K button )
(TRUN K button )
(PANI C button )
Rea r windo w defogge r switc h
Engin e oi l pressur e switc h
Multiple x Contro l Uni t (Passenger's )Multiplex Contro l Uni t (Driver's )
Combinatio n ligh t switc h (ON )
Fron t fo g ligh t switc h (ON )
Das h light s brightnes s controlle r
Lef t rea r doo r switc h (OPEN )
Lef t rea r doo r loc k kno b switc h
(UNLOCK )
Trunk ke y cylinde r switc h (OPEN )
Driver' s sea t bel t switc h
(UNBUCKLED )
Windshield wiper/washe r switc h
(Excep t MIS T switch )
Brak e switc h (ON )
Vehicl e spee d senso r (VSS )
Parkin g brak e switc h (ON )
Transmissio n rang e switc h
Multiple x Contro l Uni t (Door )
Driver' s doo r switc h (OPEN )
Driver' s doo r ke y cylinde r switc h
(LOCK/UNLOCK )
Driver's doo r loc k switc h
(LOCK/UNLOCK )
Driver's doo r loc k kno b switc h
(LOCK/UNLOCK )
Trunk opene r switc h (PUSH )
Powe r windo w maste r switc h
(Excep t driver' s switch )
ProCarManuals.com

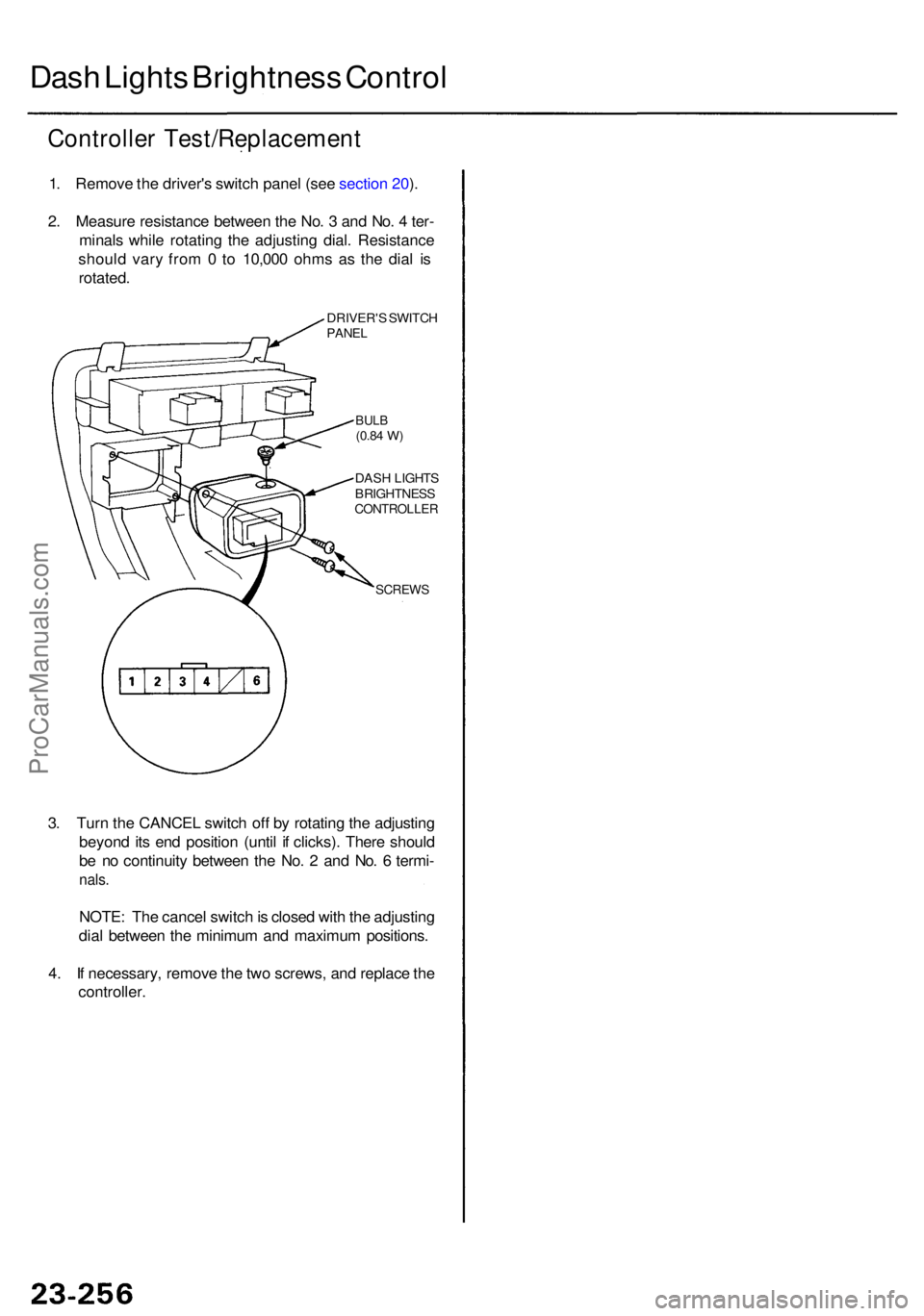

Dash Light s Brightnes s Contro l
Controlle r Test/Replacemen t
1. Remov e th e driver' s switc h pane l (se e sectio n 20 ).
2 . Measur e resistanc e betwee n th e No . 3 an d No . 4 ter -
minal s whil e rotatin g th e adjustin g dial . Resistanc e
shoul d var y fro m 0 t o 10,00 0 ohm s a s th e dia l i s
rotated .
DRIVER' S SWITC HPANEL
BULB(0.84 W)
DAS H LIGHT S
BRIGHTNES S
CONTROLLE R
3. Tur n th e CANCE L switc h of f b y rotatin g th e adjustin g
beyon d it s en d positio n (unti l i f clicks) . Ther e shoul d
b e n o continuit y betwee n th e No . 2 an d No . 6 termi -
nals.
NOTE : Th e cance l switc h is close d wit h th e adjustin g
dia l betwee n th e minimu m an d maximu m positions .
4 . I f necessary , remov e th e tw o screws , an d replac e th e
controller .
SCREWS
ProCarManuals.com

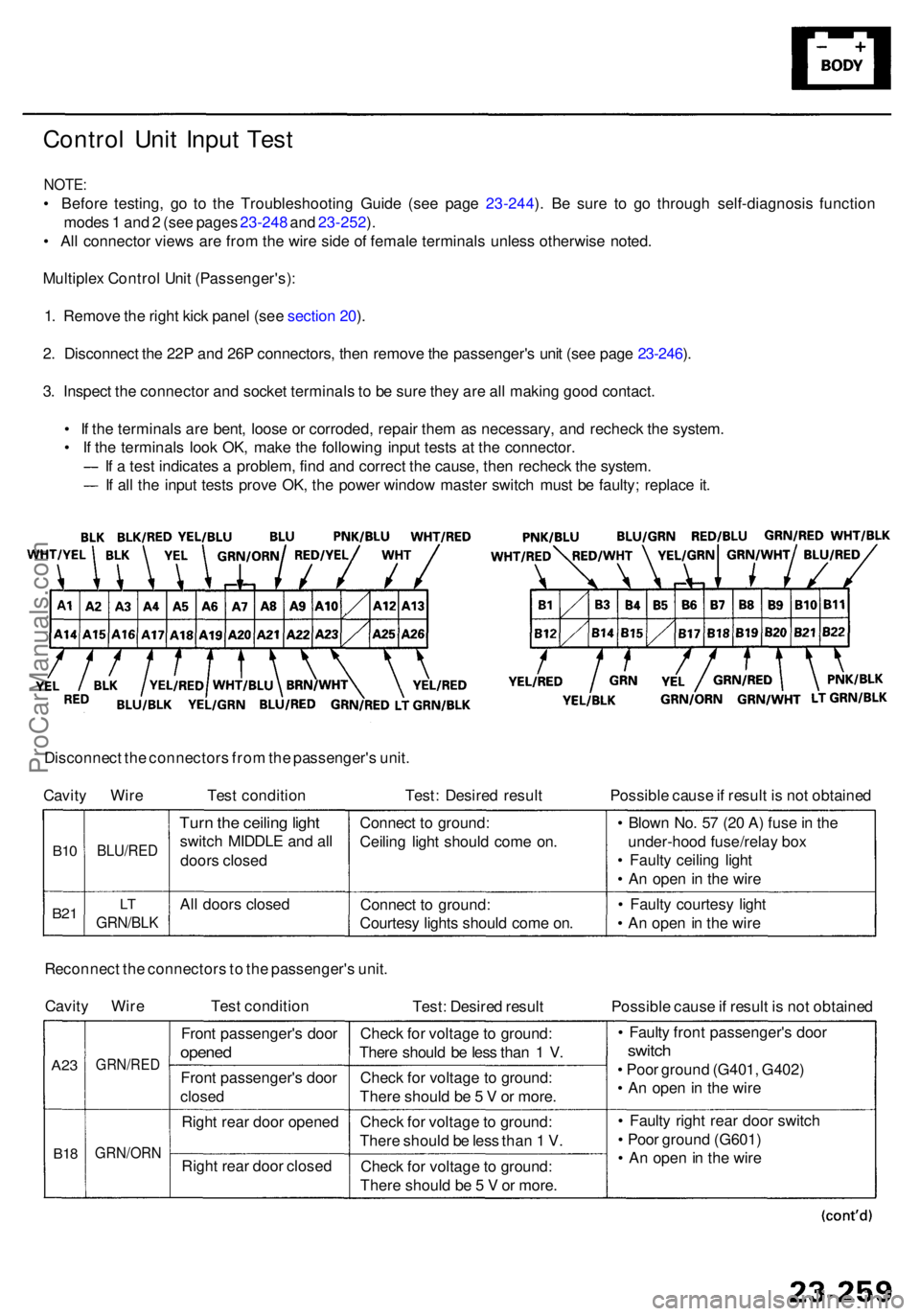

Control Uni t Inpu t Tes t
NOTE :
• Befor e testing , g o t o th e Troubleshootin g Guid e (se e pag e 23-244 ). B e sur e t o g o throug h self-diagnosi s functio n
mode s 1 an d 2 (se e page s 23-24 8 an d 23-252 ).
• Al l connecto r view s ar e fro m th e wir e sid e o f femal e terminal s unles s otherwis e noted .
Multiple x Contro l Uni t (Passenger's) :
1 . Remov e th e righ t kic k pane l (se e sectio n 20 ).
2 . Disconnec t th e 22 P an d 26 P connectors , the n remov e th e passenger' s uni t (se e pag e 23-246 ).
3 . Inspec t th e connecto r an d socke t terminal s t o b e sur e the y ar e al l makin g goo d contact .
• I f th e terminal s ar e bent , loos e o r corroded , repai r the m a s necessary , an d rechec k th e system .
• I f th e terminal s loo k OK , mak e th e followin g inpu t test s a t th e connector .
I f a tes t indicate s a problem , fin d an d correc t th e cause , the n rechec k th e system .
I f al l th e inpu t test s prov e OK , th e powe r windo w maste r switc h mus t b e faulty ; replac e it .
Disconnec t th e connector s fro m th e passenger' s unit .
Cavit y Wir e Tes t conditio n Test : Desire d resul t Possible caus e if resul t i s no t obtaine d
B10
B2 1
BLU/RE D
LT
GRN/BL K
Turn th e ceilin g ligh t
switc h MIDDL E an d al l
door s close d
Al l door s close d Connec
t t o ground :
Ceilin g ligh t shoul d com e on .
Connec t t o ground :
Courtes y light s shoul d com e on . •
Blow n No . 5 7 (2 0 A ) fus e in th e
under-hoo d fuse/rela y bo x
• Fault y ceilin g ligh t
• A n ope n in th e wir e
• Fault y courtes y ligh t
• A n ope n in th e wir e
Reconnec t th e connector s to th e passenger' s unit .
Cavit y Wir e Test conditio n
Test: Desire d resul t Possible caus e if resul t i s no t obtaine d
A23
B18
GRN/RE D
GRN/OR N
Front passenger' s doo r
opene d
Front passenger' s doo r
close d
Right rea r doo r opene d
Righ t rea r doo r close dChec
k fo r voltag e to ground :
Ther e shoul d b e les s tha n 1 V .
Chec k fo r voltag e t o ground :
Ther e shoul d b e 5 V or more .
Chec k fo r voltag e to ground :
Ther e shoul d b e les s tha n 1 V .
Chec k fo r voltag e to ground :
Ther e shoul d b e 5 V or more . •
Fault y fron t passenger' s doo r
switc h
• Poo r groun d (G401 , G402 )
• A n ope n in th e wir e
• Fault y righ t rea r doo r switc h
• Poo r groun d (G601 )
• A n ope n in th e wir e
ProCarManuals.com

Courtesy Ligh t Replacemen t
NOTE: Th e bul b o r len s alon e ca n b e replace d withou t re -
movin g th e doo r panel .
1 . Remov e th e doo r pane l (se e sectio n 20 ).
2 . Remov e th e tw o screw s an d retaine r plat e fro m be -
hin d th e doo r panel .
RETAINE R PLAT E
HOUSIN G
DOOR PANE L
BULB (3. 4 W )
3. Replac e th e courtes y light .
LENS
3. Chec k continuit y betwee n th e No . 2 an d No . 7 termi -
nals .
• Ther e shoul d b e continuit y wit h th e ignitio n ke y
inserted .
• Ther e shoul d b e n o continuit y whe n th e ignitio n
ke y i s removed .
Ignition Ke y Switc h Tes t
1. Remov e th e dashboar d lowe r cove r (se e sectio n 20 ).
2 . Disconnec t th e 8 P connecto r fro m th e mai n wir e
harness .
8P CONNECTO R
Wire sid e o ffemal e terminal s
ProCarManuals.com

Control Uni t Inpu t Tes t
NOTE :
• Befor e testing , g o t o th e Troubleshootin g Guid e (se e pag e 23-244 ). B e sur e t o g o throug h self-diagnosi s functio n
mode s 1 an d 2 (se e page s 23-24 8 an d 23-252 ).
• Al l connecto r view s ar e fro m th e wir e sid e o f femal e terminal s unles s otherwis e noted .
Multiple x Contro l Uni t (Passenger's) :
1 . Remov e th e righ t kic k pane l (se e sectio n 20 ).
2 . Disconnec t th e 22 P an d 26 P connectors , the n remov e th e passenger' s uni t (se e pag e 23-246 ).
3 . Inspec t th e connecto r an d socke t terminal s t o b e sur e the y ar e al l makin g goo d contact .
• I f th e terminal s ar e bent , loos e o r corroded , repai r the m a s necessary , an d rechec k th e system .
• I f th e terminal s loo k OK , mak e th e followin g inpu t test s a t th e connector .
I f a tes t indicate s a problem , fin d an d correc t th e cause , the n rechec k th e system .
I f al l th e inpu t test s prov e OK , th e contro l uni t mus t b e faulty ; replac e it .
Disconnec t th e connector s fro m th e passenger' s unit .
Cavit y Wir e Tes t conditio n Test : Desire d resul t Possibl e caus e if resul t i s no t obtaine d
Ignition switc h O N (II )
Ignitio n switc h a t
STAR T (III ) an d rea r
windo w defogge r
switc h O N
YEL/GR N
YEL
BLKUnde r al l condition sCheck fo r continuit y t o ground :
Ther e shoul d b e continuit y
Chec k fo r voltag e t o ground :
Ther e shoul d b e batter y voltage .
Chec k fo r voltag e t o ground :
Ther e shoul d b e batter y voltage .
A19
A1 4
A3
A 2
• Blow n No . 1 9 (7. 5 A ) fus e in th e
under-das h fuse/rela y bo x
• Fault y rea r windo w defogge r rela y
• Fault y indicator light
• A n ope n i n th e wir e
•
Blow n No . 1 3 (7. 5 A ) fus e in th e
under-das h fuse/rela y bo x
• A n ope n in th e wir e
•
Poo r groun d (G401 , G402 )
• A n ope n in th e wir e
Reconnec t th e connector s to th e passenger' s unit .
Cavit y Wir e Tes t conditio n Test : Desire d resul t Possibl e caus e if resul t i s no t obtaine d
• Fault y rea r windo w defogge r
switc h
• Poo r groun d (G401 , G402 )
• A n ope n in th e wir e
Chec k fo r voltag e t o ground :
Ther e shoul d b e les s tha n 1 V .Ignitio n switc h O N (II )
an d rea r windo w
defogge r switc h O NYEL/BL UA6
ProCarManuals.com

Rear Windo w Defogge r
Function Tes t
CAUTION : B e carefu l no t t o scratc h o r damag e th e defog -
ge r wire s wit h th e teste r probe .
1. Chec k fo r voltag e betwee n th e positiv e termina l an d
bod y groun d wit h th e ignitio n switc h an d defogge r
switc h ON .
Ther e shoul d b e batter y voltage .
• I f ther e is n o voltage , chec k for :
fault y defogge r relay ,
fault y defogge r switch .
fault y defogge r coil .
a n ope n in th e YEL/BL U wire .
• I f ther e i s batter y voltage , g o t o ste p 2 .
NEGATIV E TERMINA LPOSITIVE TERMINA L
2. Chec k fo r continuit y betwee n th e negativ e termina l
and bod y ground .
I f ther e i s n o continuity , chec k fo r a n ope n i n th e
defogge r groun d wire .
3. Touc h th e voltmete r positiv e prob e t o th e halfwa y
poin t o f eac h defogge r wire , an d th e negativ e prob e
t o th e negativ e terminal .
Ther e shoul d b e abou t 6 V with th e ignitio n switc h
an d th e defogge r switc h ON .
I f th e voltag e i s a s specified , th e defogge r wir e i s
OK .
If th e voltag e i s no t a s specified , repai r th e
defogge r wire .
I f i t i s mor e tha n 6 V , ther e i s a brea k i n th e
negativ e hal f o f th e wire .
I f i t i s les s tha n 6 V , ther e i s a brea k i n th e
positiv e hal f o f th e wire .
Defogge r Wir e Repai r
NOTE: T o mak e a n effectiv e repair , th e broke n sectio n
mus t b e n o longe r tha n 1 inch .
1. Lightl y ru b th e are a aroun d th e broke n sectio n wit h
fine stee l wool , the n clea n it wit h alcohol .
2 . Carefull y mas k abov e an d belo w th e broke n portio n
o f th e defogge r wir e wit h cellophan e tape .
3 . Usin g a smal l brush , appl y a heav y coa t o f silve r
conductiv e pain t extendin g abou t 1/8 " o n bot h
sides o f th e break . Allo w 3 0 minute s t o dry .
BROKE N WIR E
CELLOPHAN ETAPE
NOTE : Thoroughl y mi x th e pain t befor e use .
4. Chec k fo r continuit y in th e repaire d wire .
5 . Appl y a secon d coa t o f pain t i n th e sam e way . Le t i t
dr y 3 hour s befor e removin g th e tape .
ProCarManuals.com

Wiper/Washer
• I n intermittent , th e wiper s operat e
ever y fe w seconds . Th e swee p inter -
val wil l chang e slightl y wit h speed ;
getting shorte r a s yo u driv e faster .
• I f yo u tur n th e IN T TIM E rin g t o th e
shortes t delay , th e wiper s wil l
chang e fro m intermitten t t o lo w
spee d operatio n whe n vehicl e
spee d exceed s 12mp h (2 0 km/h) .
Troubleshootin g
NOTE:
• Befor e testing , g o t o th e Troubleshootin g Guid e (se e pag e 23-244 ). B e sur e t o g o throug h self-daignosi s functio n
mode s 1 an d 2 (se e page s 23-24 8 an d 23-252 ).
• Th e number s i n th e tabl e sho w th e troubleshootin g sequence .
ProCarManuals.com
