1996 ACURA RL KA9 engine

'00 - 01 models:

Vacuum hose No.

LEFT PRIMARY HEATED OXYGEN SENSOR (LEFT PRIMARY

HO2S) (BANK 2, SENSOR 1)

RIGHT PRIMARY HEATED OXYGEN SENSOR (RIGHT
PRIMARY
HO2S) (BANK
1,
SENSOR
1)

SECONDARY HEATED OXYGEN SENSOR (SECONDARY

HO2S) (SENSOR 2)

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

INTAKE AIR TEMPERATURE (IAT) SENSOR

LEFT KNOCK SENSOR (BANK 2)

RIGHT KNOCK SENSOR (BANK 1)

IDLE AIR CONTROL (IAC) VALVE

IDLE AIR CONTROL (IAC) THERMAL VALVE

THROTTLE BODY

IDLE ADJUSTING SCREW

INJECTOR

FUEL PULSATION DAMPER

FUEL FILTER

FUEL PRESSURE REGULATOR

PRESSURE REGULATOR VACUUM CONTROL SOLENOID

VALVE

FUEL PUMP

FUEL TANK

FUEL TANK VAPOR CONTROL VALVE

FUEL TANK VAPOR RECIRCULATION VALVE

AIR CLEANER

RESONATOR

INTAKE MANIFOLD RUNNER CONTROL (IMRC) CHECK

VALVE
INTAKE MANIFOLD RUNNER CONTROL (IMRC) VACUUM

RESERVOIR

INTAKE MANIFOLD RUNNER CONTROL (IMRC) SOLENOID

VALVE 1

INTAKE MANIFOLD RUNNER CONTROL (IMRC)

DIAPHRAGM 1

INTAKE MANIFOLD RUNNER CONTROL (IMRC) SOLENOID

VALVE 2

INTAKE MANIFOLD RUNNER CONTROL (IMRC)

DIAPHRAGM 2

EXHAUST GAS RECIRCULATION (EGR) VALVE VACUUM

CONTROL VALVE

EXHAUST GAS RECIRCULATION (EGR) VALVE VACUUM

CONTROL SOLENOID VALVE

EXHAUST GAS RECIRCULATION (EGR) VALVE and POSI-

TION SENSOR

POSITIVE CRANKCASE VENTILATION (PCV) VALVE

EVAPORATIVE EMISSION (EVAP) CANISTER PURGE VALVE

EVAPORATIVE EMISSION (EVAP) CANISTER

EVAPORATIVE EMISSION (EVAP) CANISTER VENT SHUT

VALVE

EVAPORATIVE EMISSION (EVAP) CANISTER FILTER

EVAPORATIVE EMISSION (EVAP) TWO WAY VALVE

EVAPORATIVE EMISSION (EVAP) BYPASS SOLENOID

VALVE

FUEL TANK PRESSURE (FTP) SENSOR

THREE WAY CATALYTIC CONVERTER (TWC)

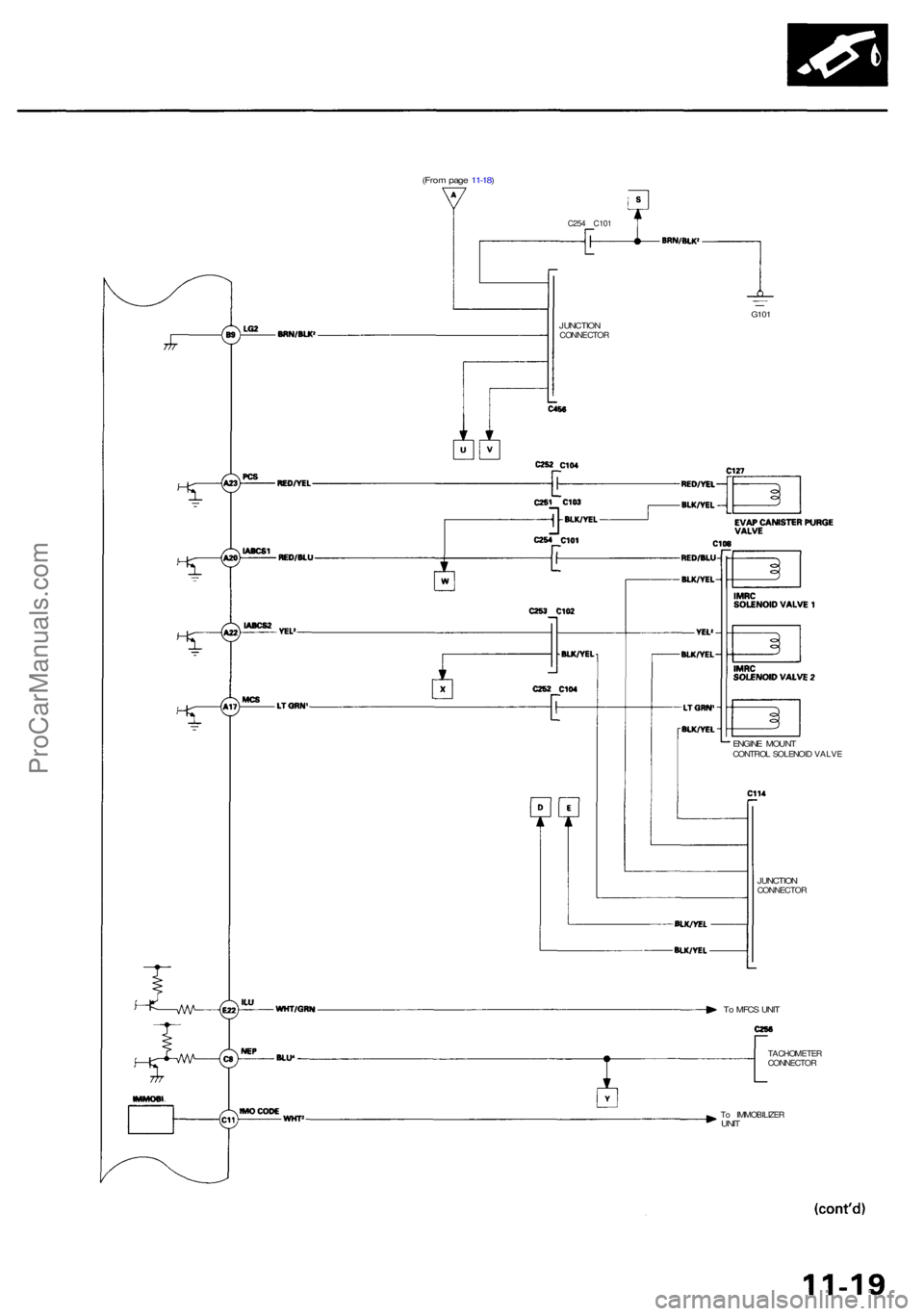

ENGINE MOUNT CONTROL SOLENOID VALVEProCarManuals.com

(From pag e 11-18 )
To IMMOBILIZE RUNIT
TACHOMETE R
CONNECTO R
To MFC S UNI T
JUNCTIO
N
CONNECTO R
ENGINE MOUN TCONTRO L SOLENOI D VALV E
C254 C10 1
G101JUNCTIO NCONNECTO R
ProCarManuals.com

System Description

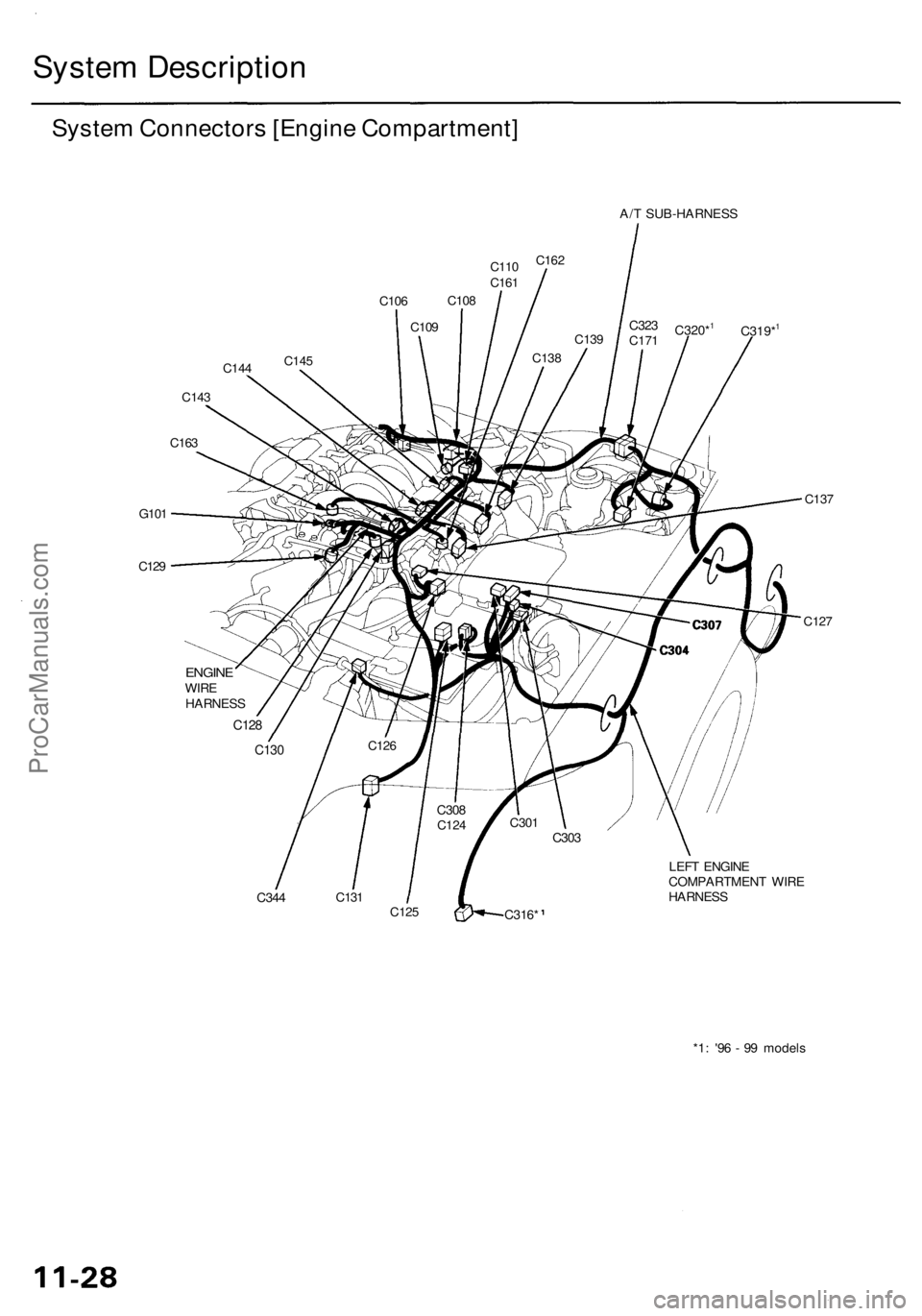

System Connectors [Engine Compartment]

A/T SUB-HARNESS

C144

C143

C163

G101

C129
C110

C161
C162

C106

C137

C127

C344
LEFT ENGINE

COMPARTMENT WIRE

HARNESS

C125

C316*

*1: '96 - 99 models
C131
C308

C124
C301

C303
C130
C128

C126
ENGINE

WIRE

HARNESS
C145
C109
C108

C138
C139
C323

C171
C320*1

C319*1ProCarManuals.com

System Descriptio n

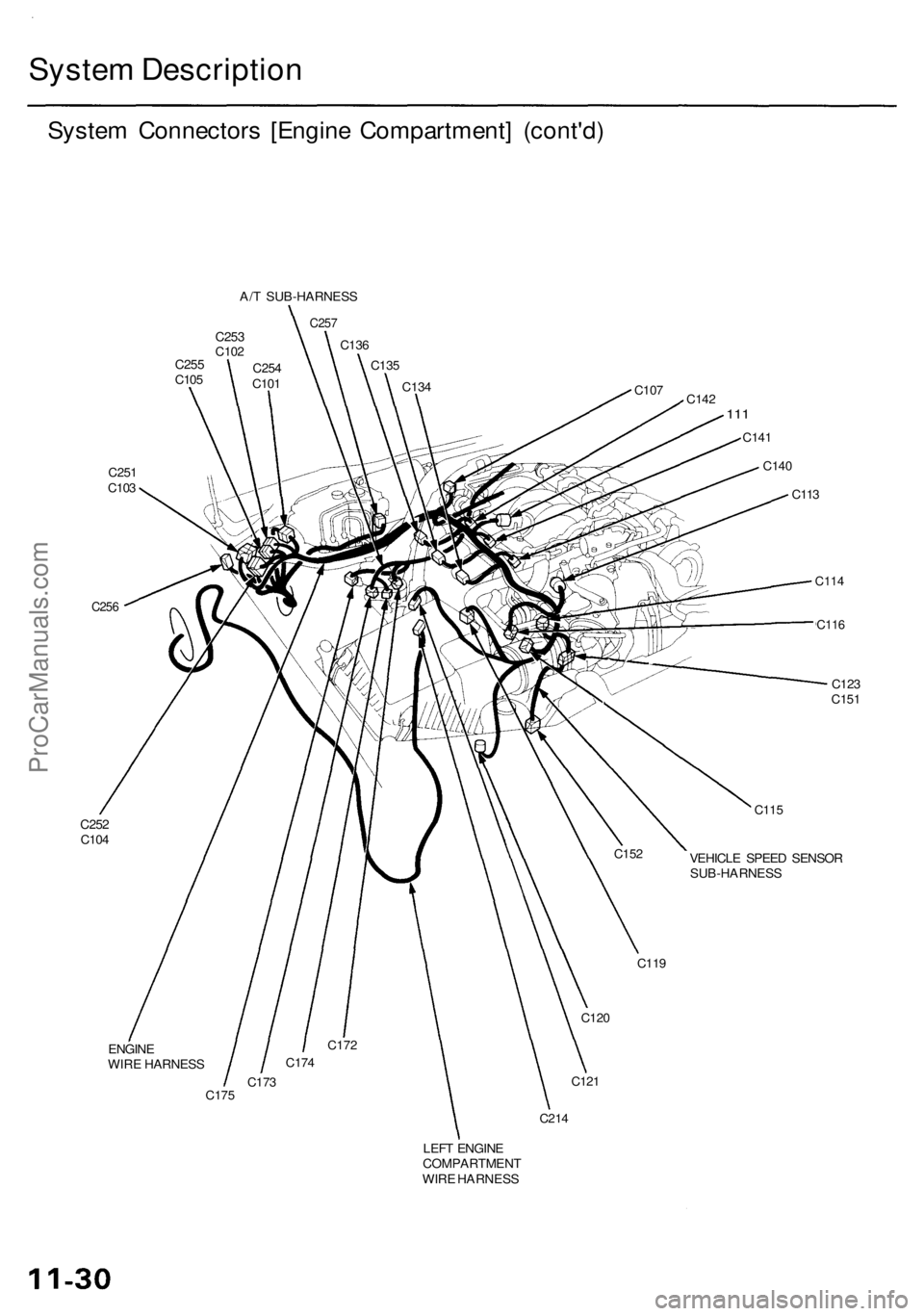

System Connector s [Engin e Compartment ] (cont'd )
A/T SUB-HARNES S
C257
C10 7C142
C25 1
C10 3
C113
C25 6
C12 3C15 1
C115
VEHICL E SPEE D SENSO RSUB-HARNES S
ENGINE
WIR E HARNES S
C121
C17 5
C214
LEF T ENGIN E
COMPARTMEN T
WIR E HARNES S
C173
C174C17
2
C252C104
C120 C11
9
C15
2
C11 6
C11 4
C140
C14
1
111
C255C105C25 4C101
C25 3C10 2 C13
6
C13 5
C13 4
ProCarManuals.com

PCM
PCM

COVER
9.8 N-m

(1.0 kgf-m,

7.2 Ibf-ft)
6. After completing your tests, reinstall both PCM's, and destroy the temporary key.

If the inspection for a particular code requires voltage or resistance checks at the PCM connectors, remove the right

door sill molding. Pull the carpet back to expose the PCM. Unbolt the PCM cover, and connect the backprobe sets and

a digital multimeter as described below. Check the system according to the procedure described for the appropriate code(s)

listed on the following pages.
DONOR

KEY
TEMPORARY

KEY
Troubleshooting

Troubleshooting Procedures (cont'd)

IV. Known-Good PCM Substitution

Use the following procedure if you need a known-good PCM to test a vehicle. It allows you to swap an PCM from a

"donor" vehicle without having to program it to the test vehicle's ignition key.

1. Cut a temporary ignition key for the test vehicle with a non-immobilizer key blank.

2. Remove the PCM from the test vehicle.

3. Write the test vehicle's VIN on the PCM you just removed to avoid confusing it with the donor vehicle's PCM.

4. Remove the known-good PCM from the donor vehicle, and install it in the test vehicle.

5. Tape the donor vehicle's ignition key head-to-head to the test vehicle's temporary key. The PCM will recognize the code

from the donor vehicle's key and allow you to start the engine with the temporary key.ProCarManuals.com

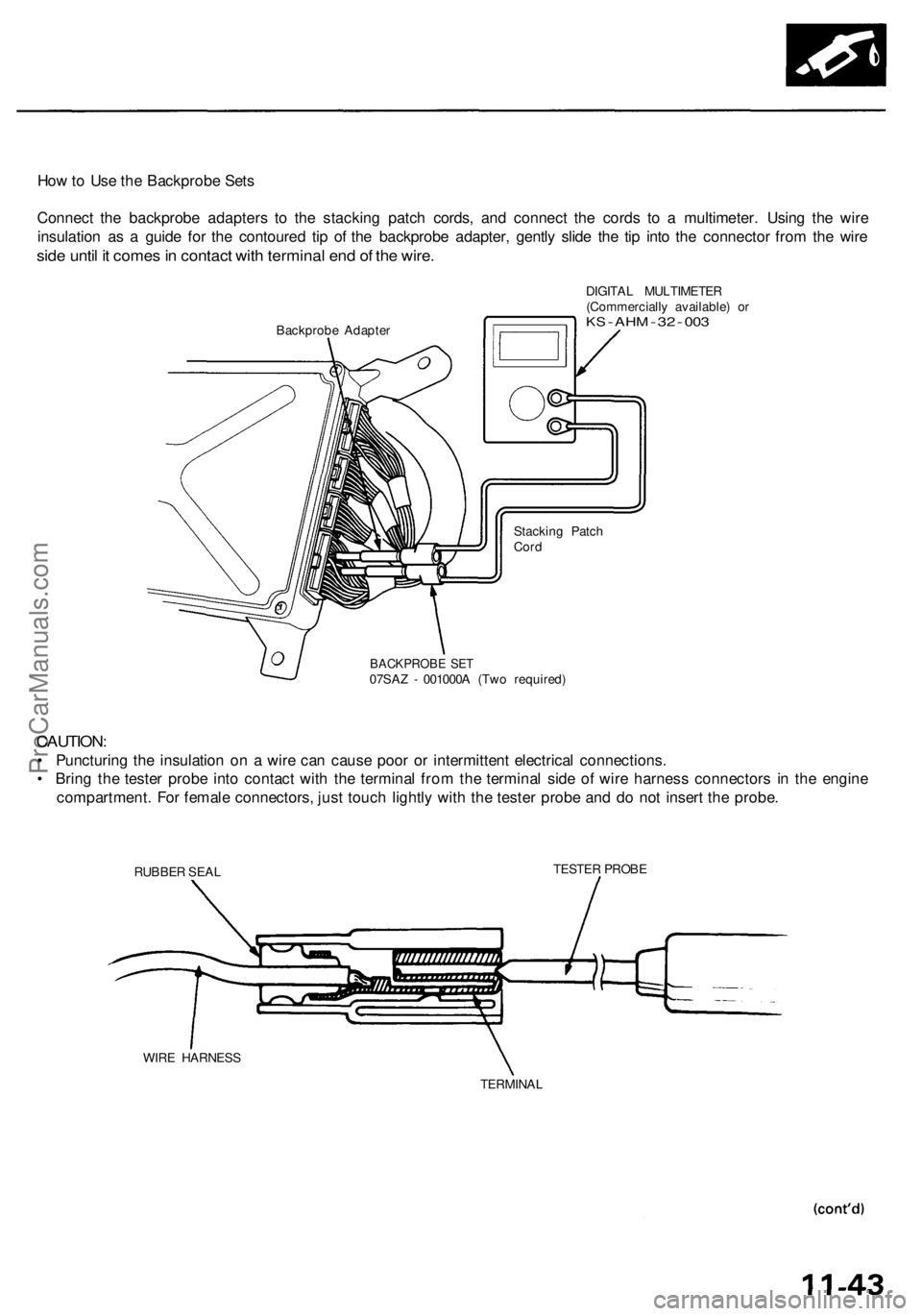

How to Use the Backprobe Sets

Connect the backprobe adapters to the stacking patch cords, and connect the cords to a multimeter. Using the wire

insulation as a guide for the contoured tip of the backprobe adapter, gently slide the tip into the connector from the wire

side until it comes in contact with terminal end of the wire.

Backprobe Adapter
DIGITAL MULTIMETER

(Commercially available) or

KS
-
AHM
-
32
-
003

Stacking Patch

Cord

BACKPROBE SET

07SAZ - 001000A (Two required)

CAUTION:

• Puncturing the insulation on a wire can cause poor or intermittent electrical connections.

• Bring the tester probe into contact with the terminal from the terminal side of wire harness connectors in the engine

compartment. For female connectors, just touch lightly with the tester probe and do not insert the probe.

TESTER PROBE

RUBBER SEAL

WIRE HARNESS

TERMINALProCarManuals.com
