1996 ACURA RL KA9 engine

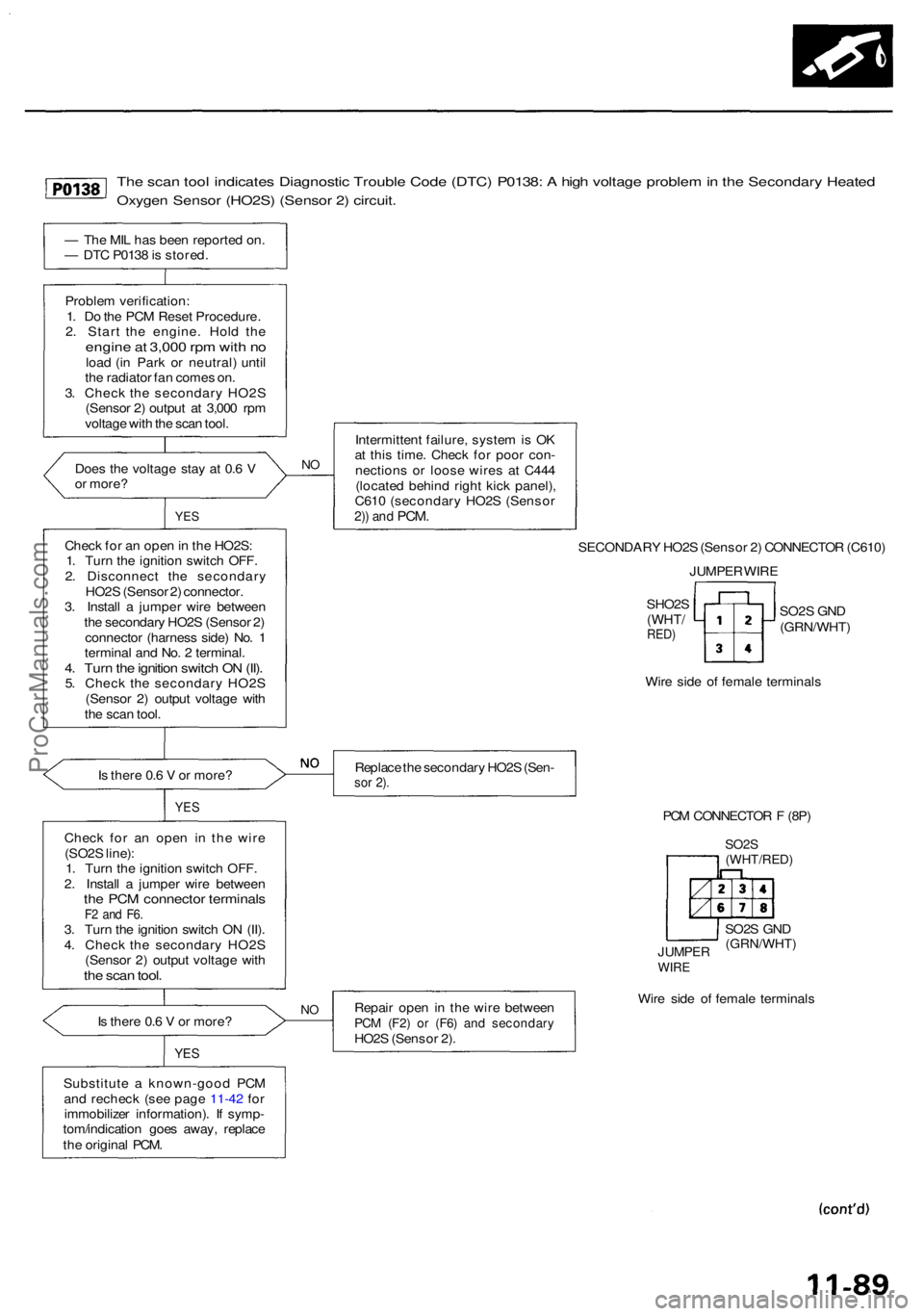

The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0138 : A hig h voltag e proble m in th e Secondar y Heate d
Oxygen Senso r (HO2S ) (Senso r 2 ) circuit .
— Th e MI L ha s bee n reporte d on .
— DT C P013 8 is stored .
Proble m verification :
1 . D o th e PC M Rese t Procedure .
2 . Star t th e engine . Hol d th e
engin e a t 3,00 0 rp m wit h n oloa d (i n Par k o r neutral ) unti l
th e radiato r fa n come s on .
3 . Chec k th e secondar y HO2 S
(Senso r 2 ) outpu t a t 3,00 0 rp m
voltag e wit h th e sca n tool .
Doe s th e voltag e sta y a t 0. 6 V
o r more ?
YES
Chec k fo r a n ope n in th e HO2S :
1 . Tur n th e ignitio n switc h OFF .
2 . Disconnec t th e secondar y
HO2 S (Senso r 2 ) connector .
3 . Instal l a jumpe r wire betwee n
th e secondar y HO2 S (Senso r 2 )
connecto r (harnes s side ) No . 1
termina l an d No . 2 terminal .
4. Tur n th e ignitio n switc h O N (II) .5. Chec k th e secondar y HO2 S
(Senso r 2 ) outpu t voltag e wit h
th e sca n tool .
I s ther e 0. 6 V or more ?
YES
Chec k fo r a n ope n i n th e wir e
(SO2 S line) :
1 . Tur n th e ignitio n switc h OFF .
2 . Instal l a jumpe r wir e betwee n
the PC M connecto r terminal sF2 an d F6 .3. Tur n th e ignitio n switc h O N (II) .
4 . Chec k th e secondar y HO2 S
(Senso r 2 ) outpu t voltag e wit h
the sca n tool .
Is ther e 0. 6 V or more ?
YES
Substitut e a known-goo d PC M
an d rechec k (se e pag e 11-42 fo r
immobilize r information) . I f symp -
tom/indicatio n goe s away , replac e
th e origina l PCM .
NO
Intermitten t failure , syste m is O K
a t thi s time . Chec k fo r poo r con -
nection s o r loos e wire s a t C44 4
(locate d behin d righ t kic k panel) ,
C61 0 (secondar y HO2 S (Senso r
2)) an d PCM .
SECONDAR Y HO2 S (Senso r 2 ) CONNECTO R (C610 )
SHO2 S
(WHT /RED)
SO2S GN D(GRN/WHT )
Wire sid e o f femal e terminal s
Replac e th e secondar y HO2 S (Sen -
sor 2) .
JUMPE RWIRE
SO2S GN D(GRN/WHT )
Repair ope n i n th e wir e betwee nPCM (F2 ) o r (F6 ) an d secondar yHO2S (Senso r 2) . Wir
e sid e o f femal e terminal s
NO
PC M CONNECTO R F (8P )
SO2 S(WHT/RED )
JUMPER WIR E
ProCarManuals.com

PGM-FI System

Secondary Heated Oxygen Sensor (HO2S) (Sensor 2) (cont'd)

Does the voltage stay within

0.3 - 0.6 V for 2 minutes?
NO
Intermittent failure, system is OK

at this time. Check for poor con-

nections or loose wires at C444

(located behind right kick panel),

C610 (secondary HO2S (Sensor

2)) and
PCM.
The scan tool indicates Diagnostic Trouble Code (DTC) P0139: A slow response problem in the Secondary

Heated Oxygen Sensor (Secondary HO2S) (Sensor 2) circuit.

— The MIL has been reported on.

— DTC P0139 is stored.

Problem verification:

1. Do the PCM Reset Procedure.

2. Start the engine. Hold the

engine at 3,000 rpm with no

load (in Park or neutral) until

the radiator fan comes on.

3. Check the secondary HO2S

(Sensor 2) or output at 3,000

rpm with the scan tool.

Replace the secondary HO2S (Sen-

sor 2).
YESProCarManuals.com

Heated Oxyge n Senso r (HO2S ) Heate r
The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0135 : A proble m in th e Righ t Primar y Heate d Oxyge n
Sensor (Righ t Primar y HO2S ) (Ban k 1 , Senso r 1 ) Heate r circuit .
The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0141 : A proble m in th e Secondar y Heate d Oxyge n
Sensor (Secondar y HO2S ) (Senso r 2 ) Heate r circuit .
The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0155 : A proble m in th e Lef t Primar y Heate d Oxyge n
Sensor (Lef t Primar y HO2S ) (Ban k 2 , Senso r 1 ) Heate r circuit .
— Th e MI L ha s bee n reporte d on .
— DT C P0135 , P014 1 and/o r
P015 5 ar e stored .
Proble m verification :
1 . D o th e PC M Rese t Procedure .
2 . Star t th e engine .
I s DT C P0135 , P014 1 o r P015 5
indicated ?
YES
Chec k fo r a n ope n o r shor t i n th eHO2S :1. Tur n th e ignitio n switc h OFF .2. Disconnec t th e righ t primar y
HO2 S (Ban k 1 , Senso r 1) , sec -
ondar y HO2 S (Senso r 2)*
1 o rleft primar y HO2 S (Ban k 2 ,Senso r 1 )*2 connector .
3 . Measur e resistanc e betwee n
th e 4 P connecto r No . 3 an d
No . 4 terminal s o n th e HO2 S
side .
Is there 10 - 40 ?
YE S
Chec k fo r continuit y t o bod y
groun d o n HO2 S terminal s No . 3
termina l an d No . 4 individually .
Is ther e continuity ?
NO
Chec k fo r a n ope n o r shor t i n th e
wire s H G 1, O2SHT C lines) :
1. Tur n th e ignitio n switc h O N (II) .2. Measur e voltag e betwee n No .
3 termina l an d No . 4 termina l
o n th e harnes s sid e o f th e 4 P
connector . RIGH
T PRIMAR Y HO2 S (Ban k 1 , Senso r 1 ) CONNECTOR ,
LEF T PRIMAR Y HO2 S (Ban k 2 , Senso r 1 ) CONNECTOR *
SECONDAR Y HO2 S (Senso r 2 ) CONNECTOR*
1
N O
Intermitten t failure , syste m is O K
a t thi s time . Chec k fo r poo r con -
nection s o r loos e wire s a t C251 ,
C25 3 (locate d a t lef t shoc k tower) ,
C442 , C44 4 (locate d behin d righ t
kic k panel)*
1, C11 9 (righ t primar y
HO2 S (Ban k 1 , Senso r 1)) , C61 0
(secondar y HO2 S (Senso r 2))*
1 o r
C12 6 (lef t primar y HO2 S (Ban k 2 ,
Senso r 1)*
2 an d PCM . Termina
l sid e o f mal e terminal s
Replac e th e HO2S .
Replac e th e HO2S .
RIGHT PRIMAR Y HO2 S (Ban k 1 , Senso r 1 ) CONNECTO R (C119) ,
LEF T PRIMAR Y HO2 S (Ban k 2 , Senso r 1 ) CONNECTO R (C126)*
2
SECONDAR Y HO2 S (Senso r 2 ) CONNECTO R (C610)*1
Is ther e batter y voltage ?YES
NO
(T o pag e 11-92 ) (T
o pag e 11-92 ) Wir
e sid e o f femal e terminal s*1: P014 1*2: P015 5
YES
NO
ProCarManuals.com

PGM-FI System

Fuel Supply System (cont'd)

— The MIL has been reported on.

— DTC P0171, P0172, P0174 and/

or P0175 are stored.

Check the fuel pressure.

Is the fuel pressure OK?
NO

YES

Check the Primary HO2S:

1. Start the engine. Hold the

engine at 3,000 rpm with no

load (in Park or neutral) until

the radiator fan comes on.

2. Check the right primary or left

primary* HO2S (Sensor 1) out-

put with the scan tool.
Is the fuel pressure too high

or too low?
Check the fuel pressure regulator

and fuel return pipe.

LOW

Check the fuel pump, fuel feed

pipe, fuel filter, and fuel pressure

regulator.

Does it stay at less than 0.3 V

or more than 0.6 V?
Replace the HO2S.

NO

Check for a sticking or leaking

EVAP canister purge valve:

With a vacuum pump, apply vacu-

um to the EVAP canister purge

valve from the intake manifold

side.

Does it hold vacuum?

('96 model only)
Replace the EVAP canister purge

valve.

YES

Check the MAP sensor output:

1. Turn the ignition switch ON (II).

2. Check the MAP with the scan

tool.

Does it indicate atmospheric

pressure?
YES

*: P0174 or P0175
Check the response of the MAP

sensor:

1. Start the engine.

2. Check the MAP with the scan

tool.

Is a MAP of 40.0 kPa (300 mmHg,

12.0 inHg) or less indicated within

one second after starting the

engine?
Replace the MAP sensor.

YES

Check the EGR system. If it is OK,

replace the fuel injectors.
NO
NO

Replace the MAP sensor.
NO
YES
HIGH
Troubleshooting FlowchartProCarManuals.com

The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0325 : A proble m in th e Righ t Knoc k Senso r (Ban k 1 ) cir -
cuit .
The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0330 : A proble m in th e Lef t Knoc k Senso r (Ban k 2 ) cir -
cuit .
— Th e MI L ha s bee n reporte d on .
— DT C P032 5 and/o r P033 0 ar e
stored .
Proble m verification :1. D o th e PC M Rese t Procedure .2. Star t th e engine . Hol d th eengin e a t 3,00 0 rp m wit h n oloa d (i n Par k o r neutral ) unti l
th e radiato r fa n come s on ,
the n le t i t idle .
3 . Hol d th e engin e a t 3,00 0 -
4,00 0 rp m fo r 1 0 seconds .
Is DT C P032 5 and/o r P033 0indicated ?
YES
Chec k fo r a shor t i n th e wir e
(knoc k senso r line) :
1 . Tur n th e ignitio n switc h OFF .
2 . Disconnec t th e knoc k senso r
sub-harnes s connector .
3 . Chec k fo r continuit y betwee n
PC M connecto r terminal s D 2
o r D13 * an d bod y ground .
I s ther e continuity ?
NO
Chec k fo r a n ope n i n th e wir e
(knoc k senso r line) :
Chec k fo r continuit y betwee n PC M
connecto r termina l D 2 o r D13 *
an d knoc k senso r connecto r ter -
mina l No . 1 o r No . 3* .
I s ther e continuity ?
YES
Substitut e a known-goo d righ t o r
lef t knoc k senso r an d recheck .
I s DT C P032 5 and/o r P033 0
indicated ?
YES
Substitut e a known-goo d PC M
an d rechec k (se e pag e 11-42 fo r
immobilize r information) . I f symp -
tom/indicatio n goe s away , replac e
th e origina l PCM .
NO
Intermitten t failure , syste m is O K
a t thi s tim e (tes t driv e ma y b e
necessary) . Chec k fo r poo r con -
nection s o r loos e wire s betwee n
C25 1 (locate d a t lef t shoc k
tower) , C11 0 (locate d a t lef t rea r
corne r o f engine) , C162* , C16 3
(knoc k sensor ) an d PCM .
PCM CONNECTO R D (22P )
Repai r shor t i n th e wir e betwee n
PC M (D 2 o r D13* ) an d knoc k sen -
sor.
Wir e sid e o f femal e terminal s
Repai r ope n in th e wir e betwee n
PCM (D 2 o r D13* ) an d knoc k sen -sor.
KNOC K SENSO RCONNECTO RReplace th e origina l knoc k sensor .
Wire sid e o f femal e terminal s
*: P033 0
NO
N
O
YE S
Knoc k Senso r
ProCarManuals.com

Back u p Circui t
('00 - 0 1 model ) Th e sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0560 : Lo w Voltag e i n PC M Bac k u p
Circuit .
NOTE: If th e BAC K UP RADI O (7.5 A) fus e is remove d and th e ignitio n switch ON (II) , MIL will repor t on an d PC M will stor e
the DT C P0560 .
— Th e MI L ha s bee n reporte d o n
— DTCP056 0
Proble m verification :
1 . D o th e PC M Rese t Procedure .
2 . Star t th e engine .
I s DT C P056 0 indicated ?
YES
Intermitten t failure , syste m is O K
a t thi s time . Chec k fo r poo r con -
nection s o r loos e wire s a t BAC K
U P RADI O (7. 5 A ) fus e an d PCM .
Chec k th e fuse :
1. Tur n th e ignitio n switc h OFF .2. Inspect the BAC K U P RADI O
(7. 5 A ) fus e i n th e under-hoo d
fuse/rela y box .
I s th e fus e OK ?
NO
YE S
— Repai r shor t i n th e wir e
betwee n th e EC M (D1 ) an d
BAC K U P RADI O (7. 5 A ) fuse .
— Repai r shor t i n th e wir e th e
othe r bac k u p circui t (se e
Powe r Distribution) .
— Replac e th e BAC K U P RADI O
(7. 5 A ) fuse .
PCM CONNECTO R D (22P )
Chec k fo r a n ope n i n th e wir e
(VB U line) :
Measur e voltag e betwee n th e
PC M connecto r termina l D 1 an d
body ground .Wire sid e o f femal e terminal s
I s ther e batter y voltage ?
YES
Repai r ope n i n th e wir e betwee n
PC M (D1 ) an d BUC K U P RADI O
(7. 5 A ) fuse .
Substitut e a known-goo d PC M
an d rechec k ( se e pag e 11-42 fo r
immobilize r information) . I f symp -
tom/indicatio n goe s away , replac e
the origina l PCM .
NO
NO
ProCarManuals.com

PGM-FI Syste m

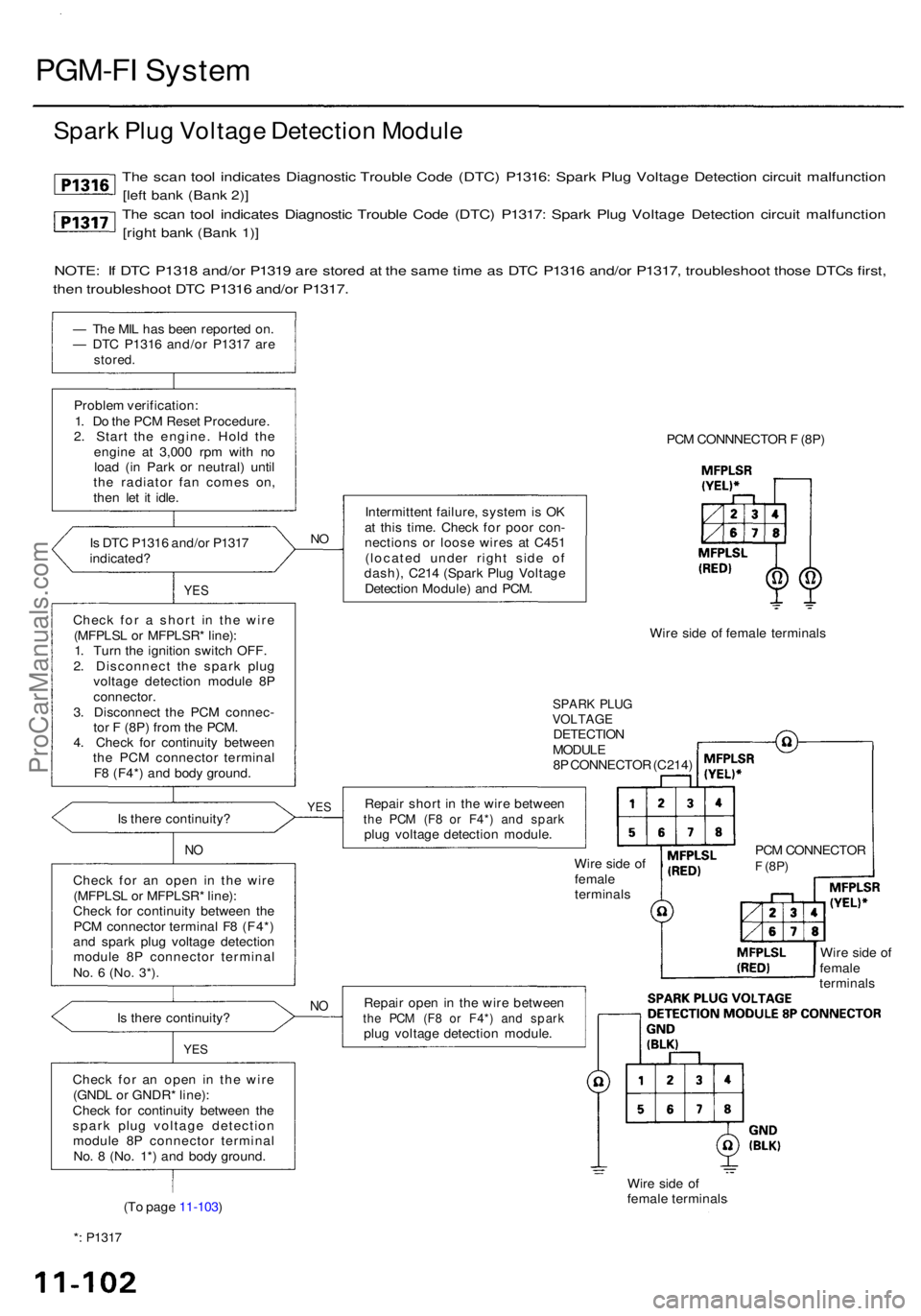

Spark Plu g Voltag e Detectio n Modul e
The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P1316 : Spar k Plu g Voltag e Detectio n circui t malfunctio n
[left ban k (Ban k 2) ]
The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P1317 : Spar k Plu g Voltag e Detectio n circui t malfunctio n
[right ban k (Ban k 1) ]
NOTE : I f DT C P131 8 and/o r P131 9 ar e store d a t th e sam e tim e a s DT C P131 6 and/o r P1317 , troubleshoo t thos e DTC s first ,
then troubleshoo t DT C P131 6 and/o r P1317 .
— Th e MI L ha s bee n reporte d on .
— DT C P131 6 and/o r P131 7 ar e
stored .
Proble m verification :
1 . D o th e PC M Rese t Procedure .
2 . Star t th e engine . Hol d th e
engin e a t 3,00 0 rp m wit h n o
loa d (i n Par k o r neutral ) unti l
th e radiato r fa n come s on ,
the n le t i t idle .
I s DT C P131 6 and/o r P131 7
indicated ?
YES
Chec k fo r a shor t i n th e wir e
(MFPLS L o r MFPLSR * line) :
1 . Tur n th e ignitio n switc h OFF .
2 . Disconnec t th e spar k plu g
voltag e detectio n modul e 8 P
connector .
3 . Disconnec t th e PC M connec -
to r F (8P ) fro m th e PCM .
4 . Chec k fo r continuit y betwee n
th e PC M connecto r termina l
F 8 (F4* ) an d bod y ground .
I s ther e continuity ?
NO
Chec k fo r a n ope n i n th e wir e
(MFPLS L o r MFPLSR * line) :
Chec k fo r continuit y betwee n th e
PC M connecto r termina l F 8 (F4* )
an d spar k plu g voltag e detectio n
modul e 8 P connecto r termina l
No. 6 (No . 3*) .
Is ther e continuity ?
YES
Chec k fo r a n ope n i n th e wir e
(GND L o r GNDR * line) :
Chec k fo r continuit y betwee n th e
spar k plu g voltag e detectio n
modul e 8 P connecto r termina l
No . 8 (No . 1* ) an d bod y ground .
(T o pag e 11-103 ) PC
M CONNNECTO R F (8P )
NO
Intermitten t failure , syste m is O K
a t thi s time . Chec k fo r poo r con -
nection s o r loos e wire s a t C45 1
(locate d unde r righ t sid e o f
dash) , C21 4 (Spar k Plu g Voltag e
Detectio n Module ) an d PCM .
Wire sid e o f femal e terminal s
SPARK PLU GVOLTAG EDETECTIO NMODULE
8 P CONNECTO R (C214 )
Repai r shor t i n th e wir e betwee n
the PC M (F 8 o r F4* ) an d spar kplug voltag e detectio n module .
Wire sid e o f
femal e
terminal s
Repai r ope n in th e wir e betwee n
the PC M (F 8 o r F4* ) an d spar kplug voltag e detectio n module .
Wire sid e o f
femal e terminal s
*: P131 7
Wire sid e o f
femal e
terminal s
NO
PC M CONNECTO RF (8P)
YES
ProCarManuals.com

PGM-FI Syste m
The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P1318 : Spar k Plu g Voltag e Detectio n Modul e Rese t circui t
malfunctio n [lef t ban k (Ban k 2) ]
The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P1319 : Spar k Plu g Voltag e Detectio n Modul e Rese t circui t
malfunctio n [righ t ban k (Ban k 1) ]
— Th e MI L ha s bee n reporte d on .
— DT C P131 8 and/o r P131 9 i s
stored .
Proble m verification :
1 . D o th e PC M Rese t Procedure .
2 . Star t th e engine . Hol d th e
engin e a t 3,00 0 rp m wit h n o
loa d (i n Par k o r neutral ) unti l
th e radiato r fa n come s on ,
the n le t i t idle .
I s DT C P131 8 and/o r P131 9
indicated ?
YES
Chec k fo r a shor t i n th e wir e
(PHRST L o r PHRSTR * line) :
1. Tur n th e ignitio n switc h OFF .2. Disconnec t th e spar k plu g
voltag e detectio n modul e 8 P
connector .3. Disconnec t th e PC M connec -tor F (8P) .4. Chec k fo r continuit y betwee n
th e PC M connecto r termina l
F 7 (F3* ) an d bod y ground .
I s ther e continuity ?
NO
Chec k fo r a n ope n i n th e wir e
(PHRST L o r PHRSTR * line) :
Chec k fo r continuit y betwee n th e
PC M connecto r termina l F 7 (F3* )
an d spar k plu g voltag e detectio n
modul e 8 P connecto r termina l
No. 7 (No . 2*) .
Is ther e continuity ?
YES
Chec k fo r a n ope n i n th e wir e
(IG1 L o r lG1R * line) :
1. Tur n th e ignitio n switc h O N (II) .2. Measur e voltag e betwee n th e
spar k plu g voltag e detectio n
modul e 8 P connecto r termina l
No . 5 (No . 4* ) an d bod y ground .
(T o pag e 11-105 )
NO
Intermitten t failure , syste m is O K
a t thi s time . Chec k fo r poo r con -
nection s o r loos e wire s a t C45 1
(locate d unde r righ t sid e o f
dash) , C21 4 (Spar k Plu g Voltag e
Detectio n Module ) an d PCM .
Wire sid e o f femal e terminal s
SPARK PLU GVOLTAG EDETECTIO NMODULE
8 P CONNECTO R (C214 )
Repai r shor t i n th e wir e betwee n
th e PC M (F 7 o r F3* ) an d spar k
plu g voltag e detectio n module .
Wire sid e o f
femal e
terminal s PC
M CONNECTO R
F (8P)
Repai r ope n in th e wir e betwee n
th e PC M (F 7 o r F3* ) an d spar k
plu g voltag e detectio n module . Wir
e sid e o f
femal e
terminal s
*: P131 9
YES
NO
Spar k Plu g Voltag e Detectio n Modul e (cont'd )
PCM CONNECTO R F (8P )
SPAR K PLU G VOLTAG EDETECTIO N MODUL E
8 P CONNECTO R
(C214)
ProCarManuals.com
