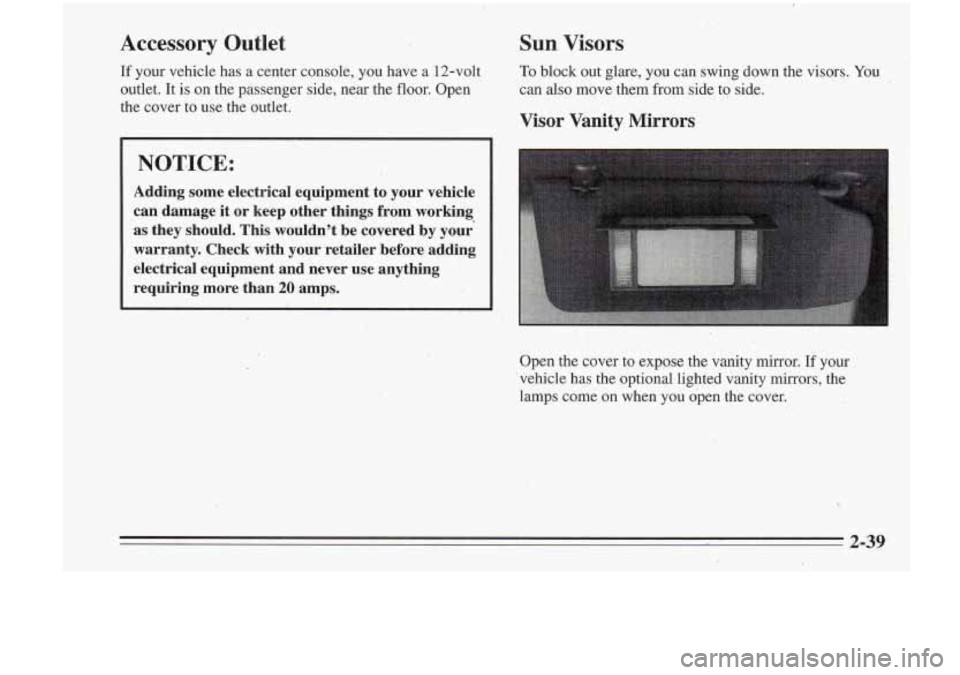

Accessory Outlet
II If your vehicle has a center console, you have a 12-volt
outlet. It is .on the passenger side, near the floor. Open
the cover to use the outlet.
Sun Visors
To block out glare, you can swing down the visors. You
can
also move them from side to side.
Visor Vanity Mirrors
NOTICE:
Adding some electrical'! equipment to your vehicle
can damage it
or keep other things from working
as they should. This wouliin't be covered by your
warranty. Check with your retailer before adding
electrical equipment and never use anything
requiring more than
20 amps.
Open the cover to expose the vanity mirror. If your
vehicle has the optional lighted vanity mirrors, the
lamps come on when you open the cover.
2-39

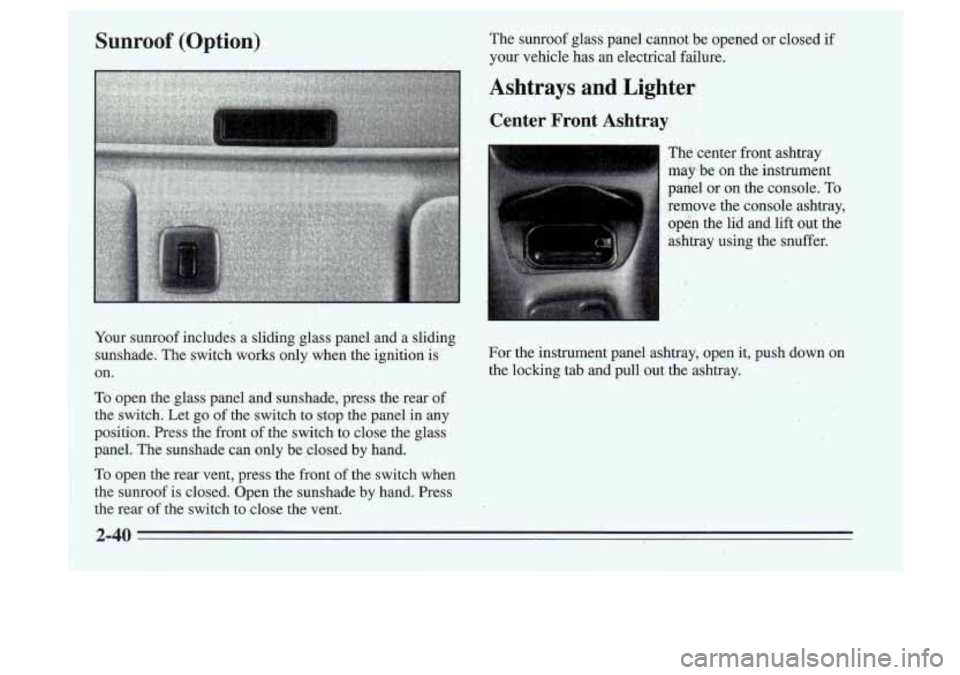

Sunroof (Option)
Your sunroof includes a sliding glass panel and a sliding sunshade. The switch works only when the ignition is
on.
To open the glass panel and sunshade, press the rear of
the switch. Let go of the switch to stop the panel in
any
position. Press the front of the switch to close the glass
panel. The sunshade can only be,closed by hand.
To open the rear vent, press the front
of the switch when
the sunroof is closed. Open the sunshade by hand. Press
the rear of the switch to close the vent.
.. ~~~ ~ ~.
The sunroof glass panel cannot be opened or closed if
your vehicle has an electrical failure.
I
Ashtrays and Lighter
Center Front Ashtray
The center front ashtray
may. be on the instrument
panel or on the console. To
'emove the console ashtray,
open the lid and lift out the
ashtray using the snuffer.
For the instrument panel ashtray, open it, push down on
the locking tab and pull out the ashtray.
2-40 . .

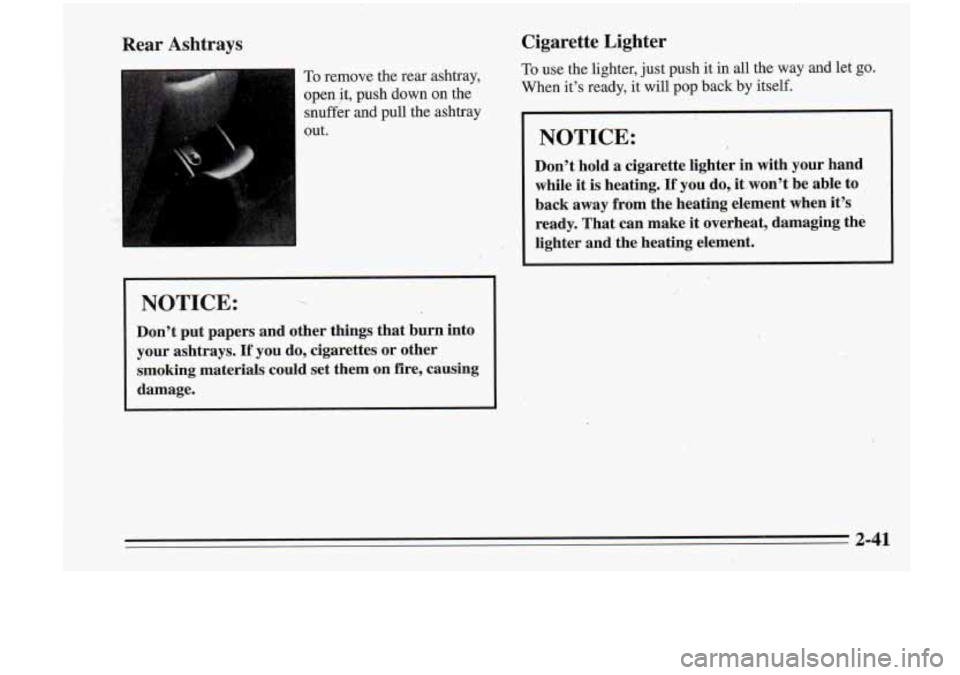

Rear Ashtrays
To remove the rear ashtray, --
I open it, push down on the
snuffer and pull the ashtray
out.
NOTICE: ~
Don’t put papers and other things that burn into
your ashtrays.
If you do, cigarettes or other
smoking materials
could set them on fire, causing
damage.
Cigarette Lighter
To use the lighter, just push it in all the way and let go.
When it’s ready, it will pop back by itself.
NOTICE:
Don’t hold a cigarette lighter in with your hand
while it is heating.
If you do, it..won’t be able to
back away from the heating element when it’s
ready. That can make it overheat, damaging the
lighter and the heating element.
. -- ~-
2-41

,Instrument Panel -- Your Information System
1 2 3 2
9 8’ 7 6 5
The main components of your instrument panel are: 5. comfort Controls
1. Side Window Defogger Vent 6. Audio System
2. Instrument Panel Outlet 7. Cigarette. Lighter
3. Instrument~Cluster 8. HUD Controls
4. Glove Box 9. Lamp C,ontrols
2-42 .. .’ . . , ..

HOT APPLY BRAKE TO SHIFT FROM PARK ,/ \ UNLEADED FUEL ONLY
United States Version Shown, Canadian Similar
Your instrument cluster is designed to let you know at a glance how your vehicle is running. You’ll know how -fast
you’re
going, about how much fuel is in your tank and many other things you need to drive safely and economically.
2-43
- -.

!
!
Tachometer
The tachometer displays the engine speed in thousands
of revolutiotts per minute (rpm).
NOTICE:
Do not operate the engine with the tachometer in
the red area, or engine damage may occur.
1. '
2-44 < ., ., . .I .,. , ...
.-

Warning Lights, Gages and Indicators
This part describes the warning lights and,gages that
may be
on your vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that something
is
wrong before it becomFs serious enough to cause an
expensive repair or replacement. Paying attention to
your warning.lights and gages could also save you or
others from injury.
Warning lights come on when there may be or is a
problem with one of your vehicle’s functions.
As you
will see in the details on the next few pages, some
warning lights come on briefly when you start the
engine just to let you know they’re working.
If you are
‘familiar with this section, you should not be alarmed
when this happens.
Gages can indicate when there may be or is a problem
with one-of your vehicle’s functions. Often gages and
warning lights work together to let you know when
there’s a problem with your vehicle.
When one
of the warning lights comes on and stays on
when you are driving, or when one of the gages shows
there may be a problem, check the section that
tells you
what to do about
it. Please follow this manual’s advice.
Waiting to do repairs can be costly
-- and even dangerous.
So please
get to know your warning lights
and gages. They’re
a big help.
Fuel Gage
Your fuel gage tells you
about how much fuel
YOU
have left when the ignition
is on. When the indicator
nears
EMPTY (E), you still
have
a little fuel left, but
you should get more soon.
UNLEADED FUEL ONLY I
I
Here are some things owners ask about. All these
situations are normal and do not show a problem with
your fuel gage:
0 At the service station, the pump shuts off before the
gage reads
FULL (F).
0 . It takes a little more or less fuel to fill up than the gage
indicated. For example, the gage may have indicated
the
tank was half full, but it actually took a little more
or less
than half the tank‘s capacity to fill it.
The gage moves a little when you turn a corner or
speed up.
2-45

I

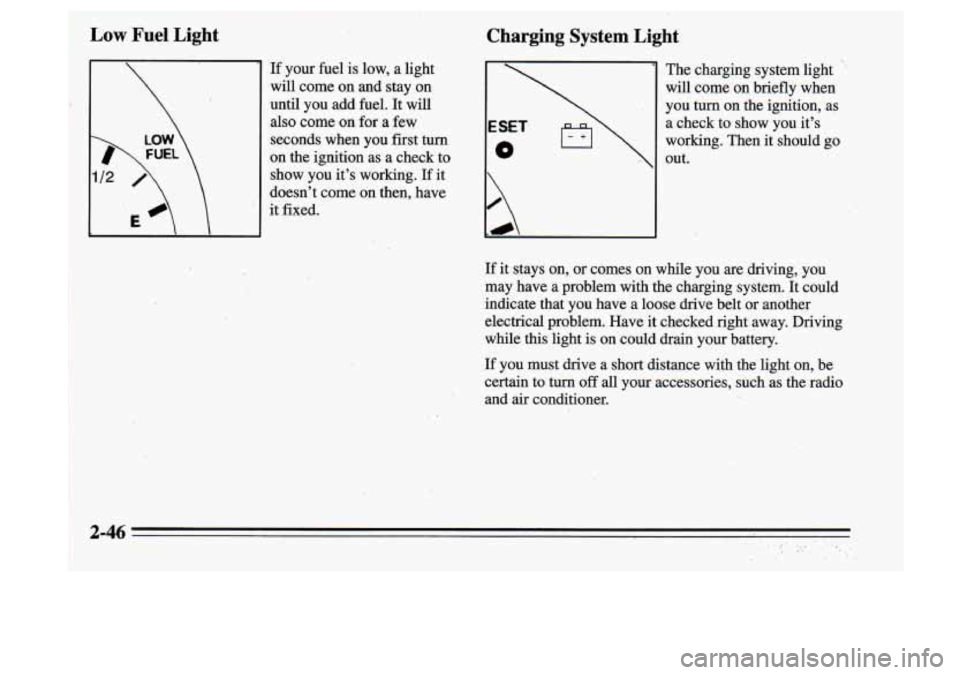

Low Fuel Light
If your fuel is low, a light
will come on and stay on
until you add fuel. It will
also come on for a few
secQnds when you
first turn
on the ignition as a check to
show you it's working.
If it
doesn't come
on then, have
it fixed.
