Page 9 of 340
lllll Section 1 Seats and Restraint 'Systems
11)1
Here you'll find information about the seats in your
Oldsmobile and how to use your safety belts properly.
You can also learn about some things you should not do
with air bags and safety belts.
Seats and Seat Controls
This section tells you how to adjust the seats and explains
reclining seatbacks, folding rear seats and head restraints.
Manual Front Seat
Lift the bar under the front of the seat to unlock it. Slide
the seat
to where you want it and release the bar. Try to
move the seat with your body to be sure the seat is
locked in place.
1-1
Page 10 of 340

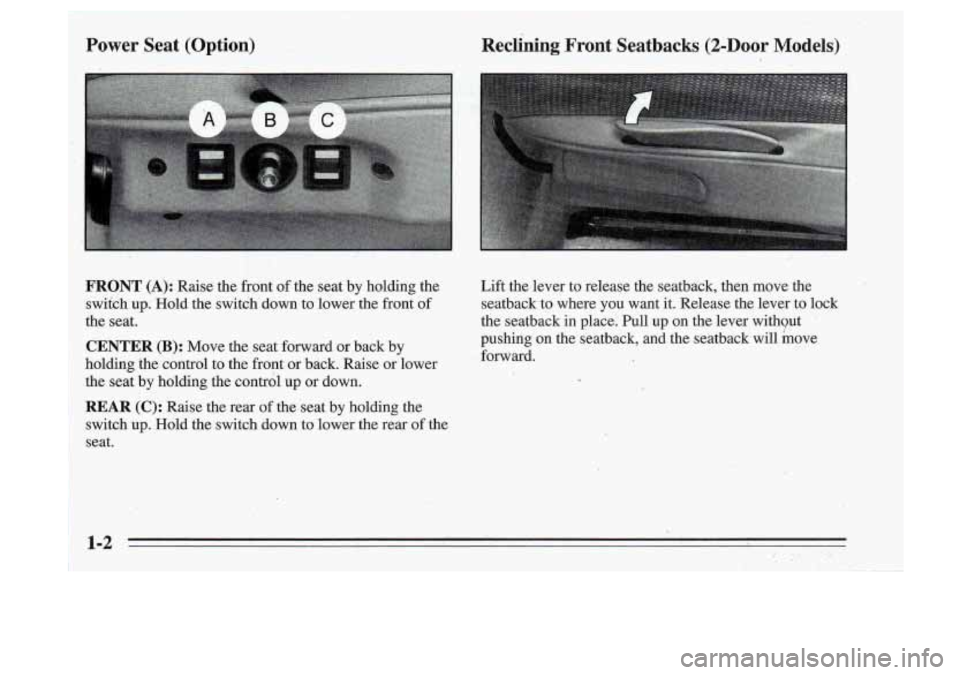

Power Seat (Option) Reclining Front Seatbacks (2-Door Models)
:.
FRONT (A): Raise the front of the seat by holding the
switch
up. Hold the switch'down to lower the front of
the seat.
CENTER (B): Move the seat forward or back by
holding
the control to the front or back. Raise or lower
the seat by holding the control up or down.
REAR (C): Raise the rear of the 'seat by holding the
switch
up. Hold the switch down to lower the rear of the
seat. Lift
the lever to release the seatback, then move the
seatback'to where you want it. Release the lever to lock
the seatback in place: Pull
up on the lever withyut '
pushing on the seatback, and the seatback will move
forward.
Page 11 of 340
Page 12 of 340

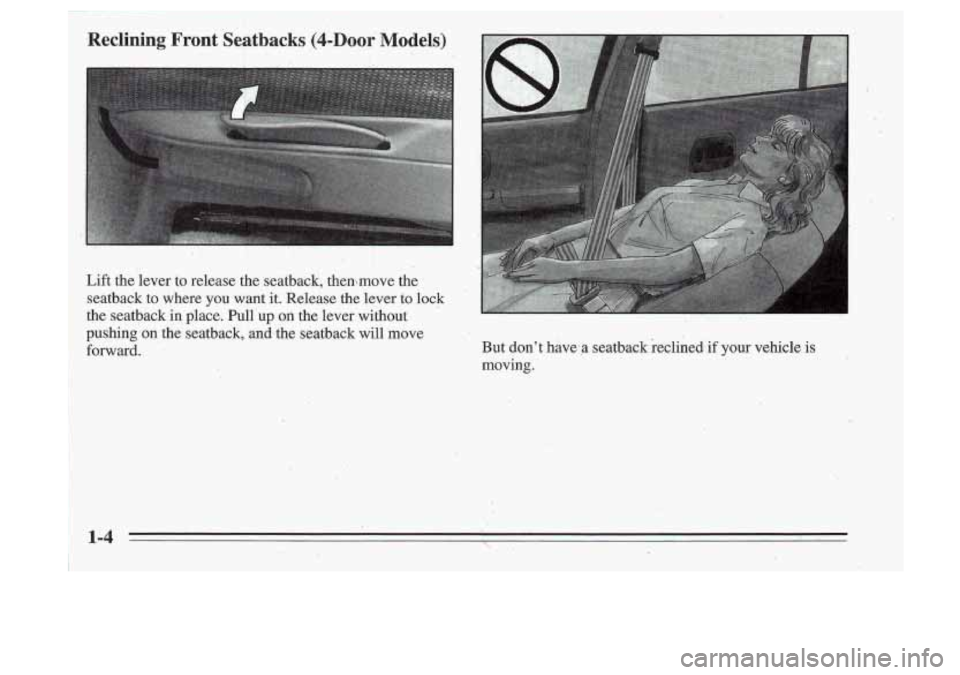

.Reclining Front Seatbacks (4-DOor Models)
Lift the lever to release the seatback, themmove the
seatback to where
you want it. Release the lever to lock
the seatback in place. Pull up
on the lever without
pushing on the seatback,
and the seatback will move

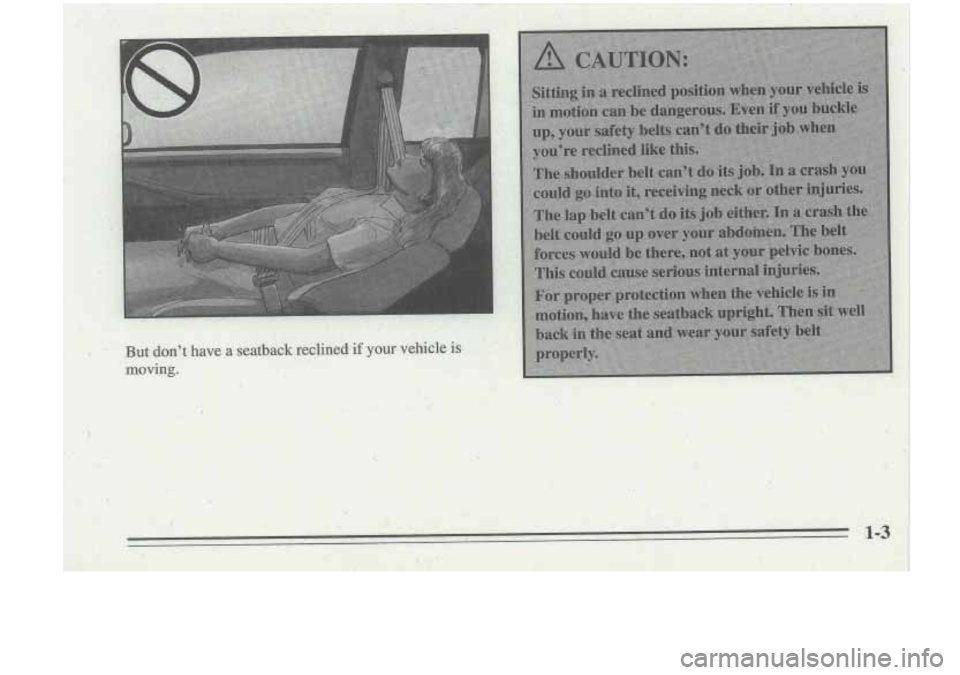

forwgrd. But don’t
have/,a seatback reclined: if your vehicle is
moving.
1-4
.,
Page 13 of 340

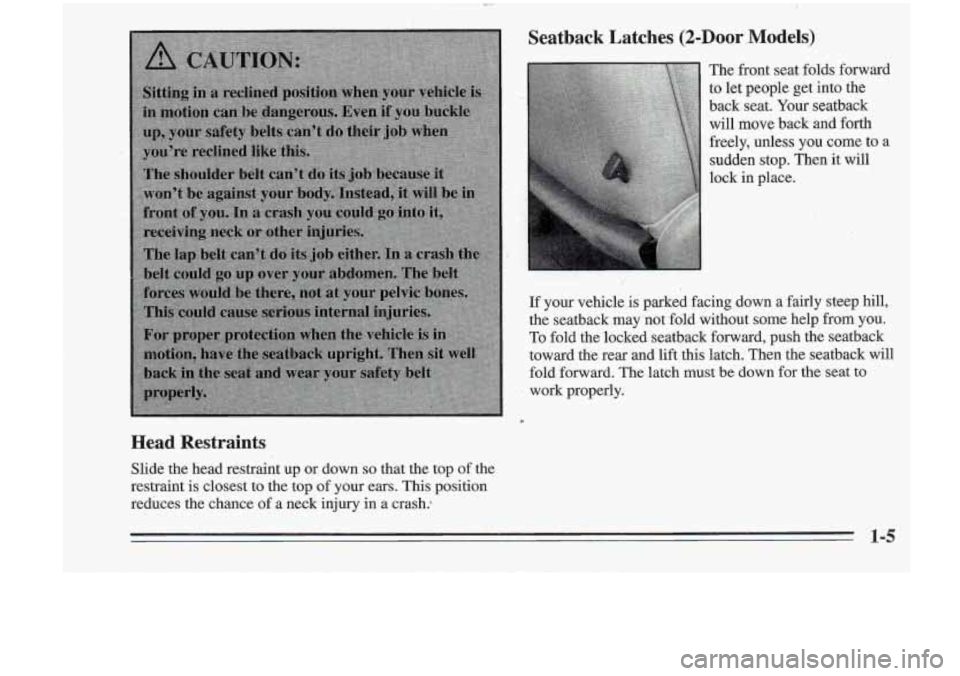

Head Restraints
I
Seatback Latches (2=Door,Models)
The front seat folds forward
to let people get into the
back seat. Your seatback
will move back and forth
freely,
unless YQU come to a
sudden stop. Then it will
lock
in place.
If your vehicle is parked facing down a fairly steep hill,
the seatback may not fold without some help from you.
To fold thelocked seatback forward, push the seatback
toward the rear and lift this latch. Then the seatback will
fold forward. The latch must
be down for the seat to
I work properly.
Slide the head restraint up or down
so that the top of the
restraint is closest to the top of your ears. This position
reduces the chance of a neck injury in a crash:
/' , .. ..
Page 14 of 340
I

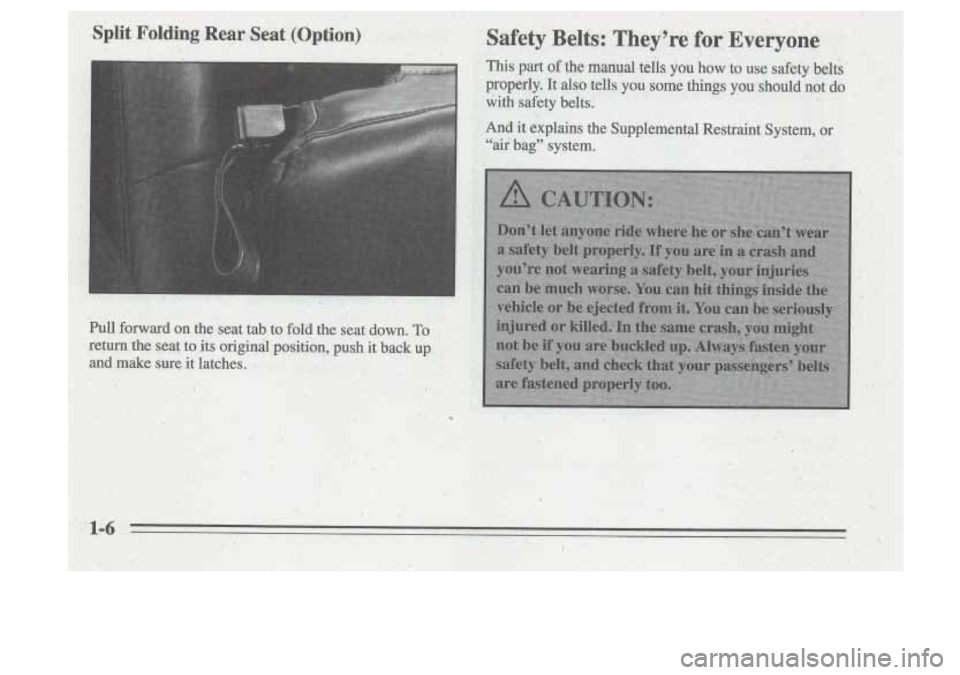

Split Folding Rear Seat (Option)
,
Safety, Belts: They’re for Everyone
‘This part of the manual tells you how to use safety bel&
properly.
It qlso tells you some things you’,should not do
with safety beltsi
And it explains the Supplemental Restraint System, or
“air bag’” system.
I’ ’, ..
Page 15 of 340

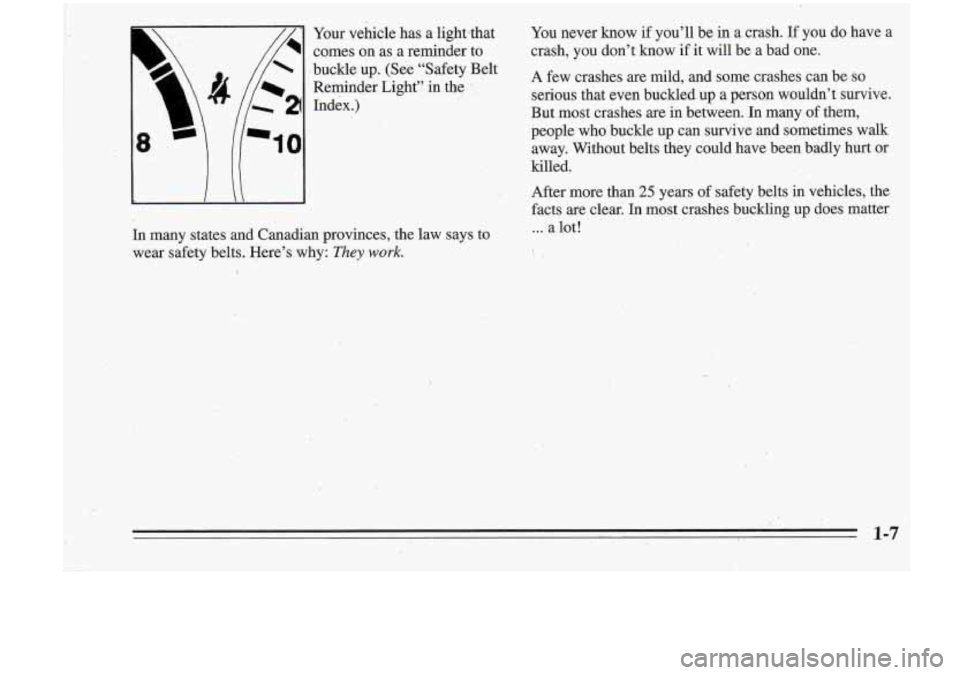

Your vehicle has a light-that
comes on as ,a reminder to
buckle up. (See “Safety Belt
Reminder Light” in the
Index.)
In many states and Canadian provinces, the law says to
wear safety belts. Here’s why:
They work.
I
You never know if you’ll be, in a crash. If you do have a
crash, you don’t know
if it will be a bad one.
A few crashes are mild, and
some crashes can be so
serious that even buckled up a person wouldn’t survive.
But most crashes are in between. In many of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly hurt
or
killed.
After more than
25 years of safety belts in vehicles, the
facts are clear. In most crashes buckling up does matter
... a lot!.
,
1-7
Page 16 of 340

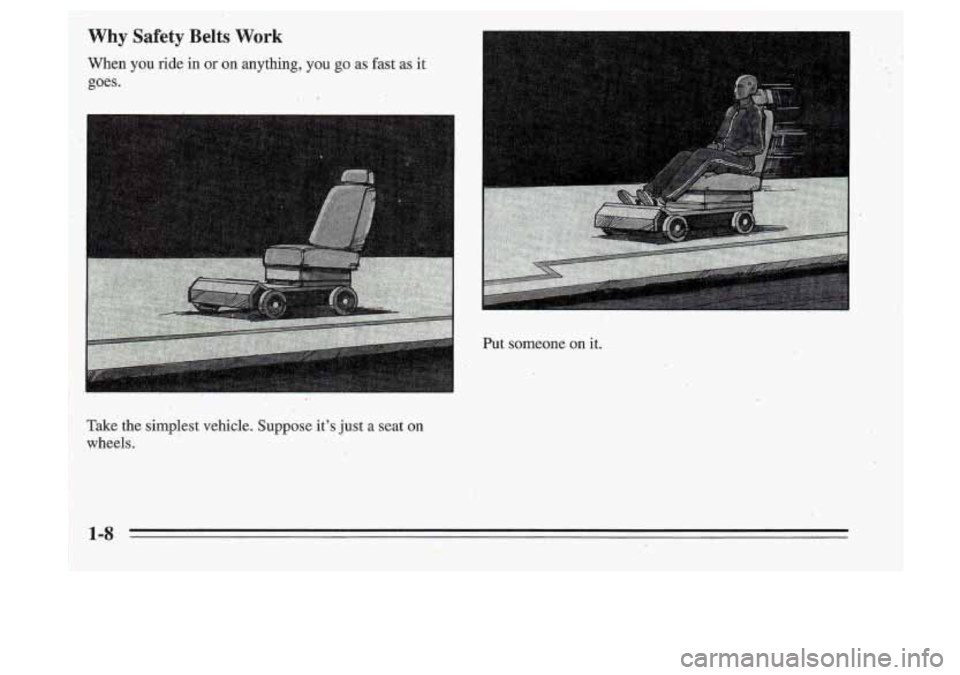

Put someone on it.
Take the simplest vehicle. Suppose it’s just a seat
on
wheels.
1-8
