1995 Oldsmobile Cutlass Supreme Owner's Manuals

I-
I , “F
+ 100
+ 80
+ 60
+ 40
+ 20
0
- -
I- -
I- -
I- -
I- -
I- -
-_

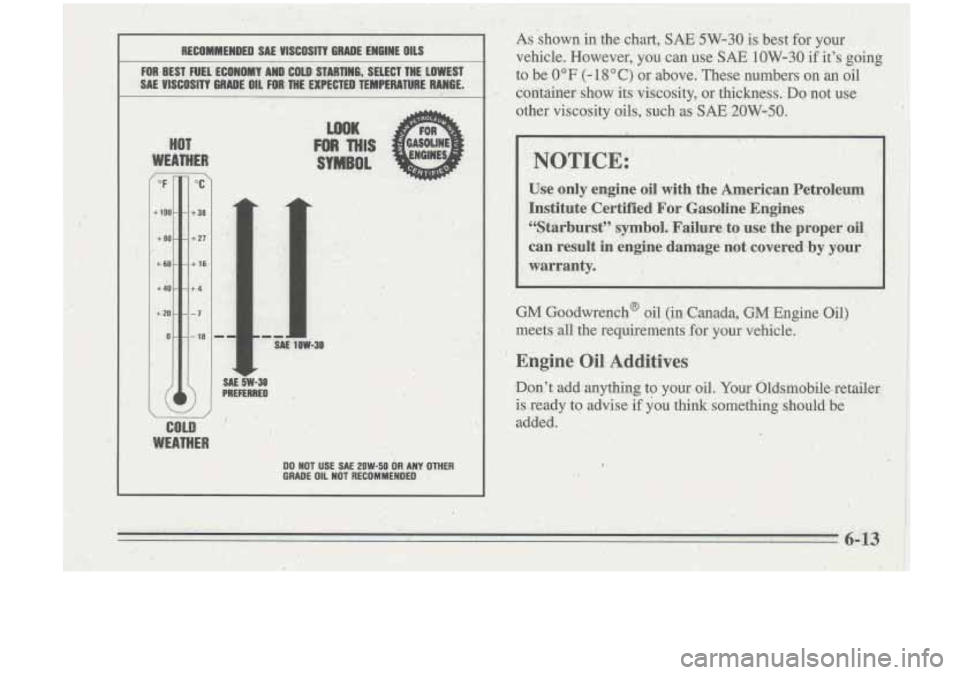

COLD
WEAT~EA
n “C
- +3a
- +27
- + 16,
- f~4
- -7
- -18
I
. MOT
WEATHER
PO. NOT USE S4E OOW-50 6R.ANV OTHER GRAUE OIL NOT RECOMMENDED .,
..
I

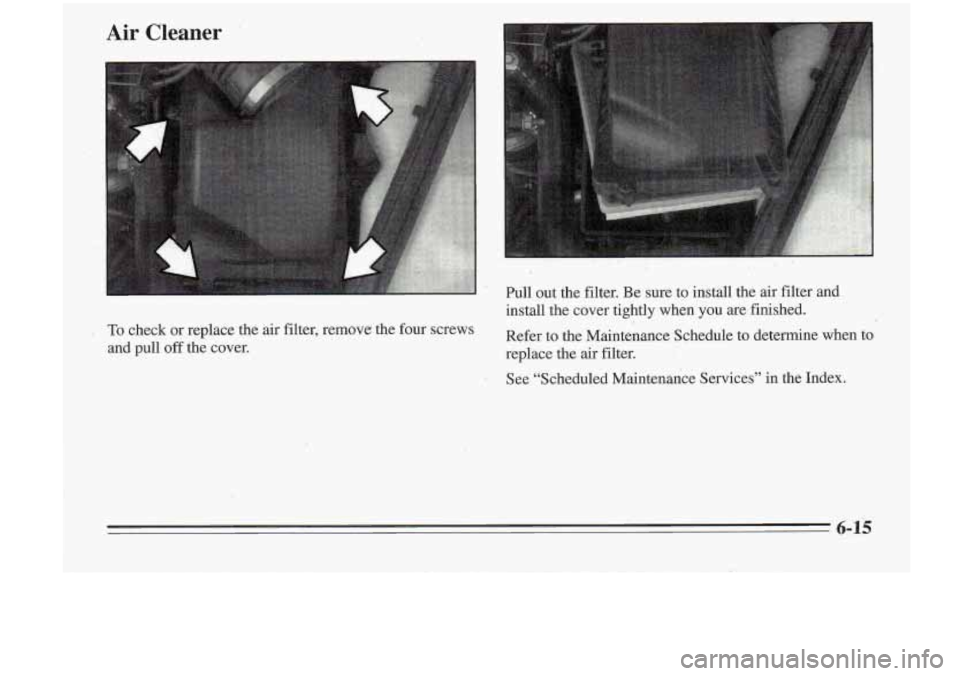

Air Cleaner
Pull out the filter. Be sure to install the air filter and
install the cover tightly when you are finished.
To check or replace the air filter, remove the four screws Refer to the Schedule to determine when to’
and pull off the cover.
replace the air filter.
See “Scheduled Maintenance Services” in the Index.
6-15

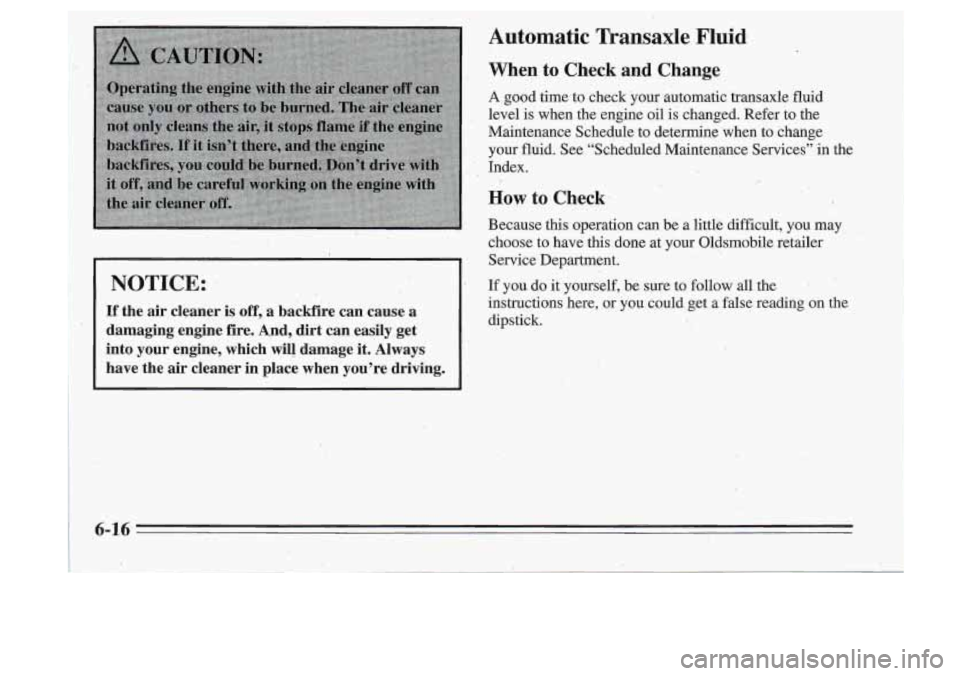

NOTICE:
If the air cleaner is off, a backfire can cause a
damaging engine fire. And, dirt can easily ,get
into your engine, which will damage it. Always
have the air cleaner in place when you’re driving.
Automatic Transaxle Fluid
When to Check and Change
A good time to check your automatic transaxle fluid
level is when the engine oil is changed. Refer to the
Maintenance Schedule to determine when to change
your fluid. See “Scheduled Maintenance Services’’ in the
Index.
How to Check
Because this operation can be a little difficult, you may
choose to have this done at your Oldsmobile retailer
Service Department.
If yon do it yourself, be sure to follow all the
instructions here,
or you could get a false reading on the
dipstick.

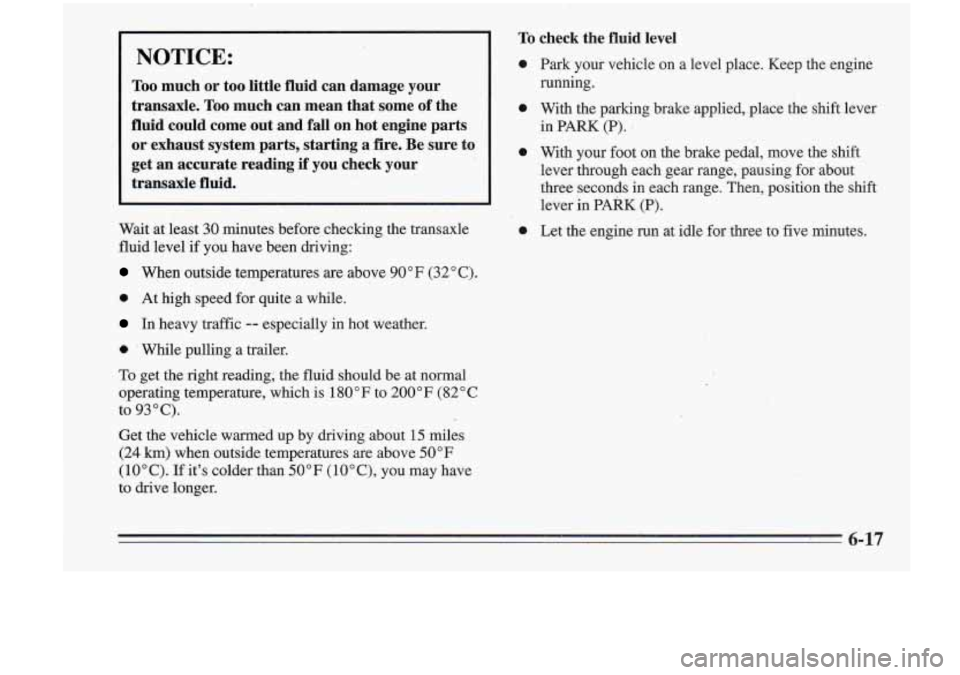

NOTICE:
Too much or too little fluid can damage your
transaxle.
Too much can mean that some of the
fluid could come
out and fall on hot engine parts
or exhaust system parts, starting a fire. Be sure to
get an accurate reading if
you check your
transaxle fluid.
Wait at least 30 minutes before, checking the transaxle
fluid level
if you have been driving:
When outside temperatures are above 90°F (32°C).
0 At high speed for quite a while.
In heavy traffic -- especially in hot weather.
a ' While pulling a trailer.
To get the right reading; the fluid should be at normal
operating temperature, which is 180°F to 200°F (82°C
to 93°C).
Get the vehicle warmed up by driving about 15 miles
(24
km) when outside temperatures are above 50°F
(10°C). If it's colder than 50°F (lO"C), you may have
to drive longer.
To check the fluid level
0
0
0
0
Park your vehicle on a level place. Keep the engine
running.
With the parking brake applied,.place the shift lever
in PARK
(P). J
With your foot on the brake pedal, move the shift
lever through each gear range, pausing for about
three seconds in each range. Then, position the shik:
lever in
PAkK (P).
Let the engine-run at idle for three to five minutes.
6-17

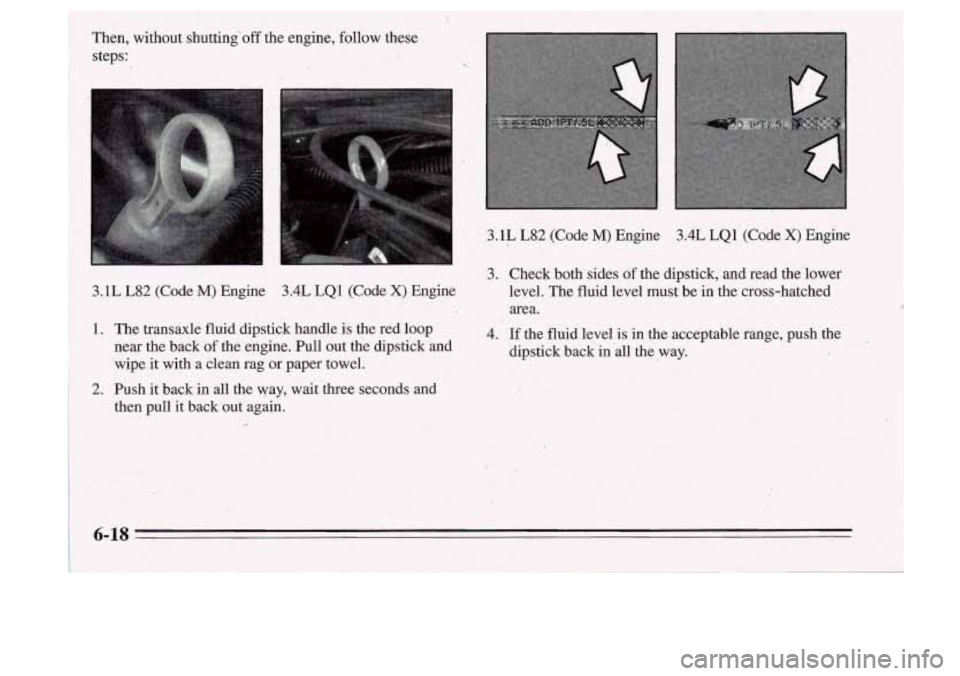

3.1L L82 (Code M) Engine 3.4L LQ1 (Code X) Engine
3. Check both'sides of the dipstick, and read the lower
level. The fluid level must be:in the cross-hatched
area.
1. The transaxle fluid dipstick handle is the red loop 4. If the fluid level is in the acceptable range, push the
near the back
of the engine. Pull out the dipstick and dipstick back in all the way.
'wipe it with a clean rag or paper towel.
then pull it back out again.
2. Push
it back
in all the yay, wait three seconds and

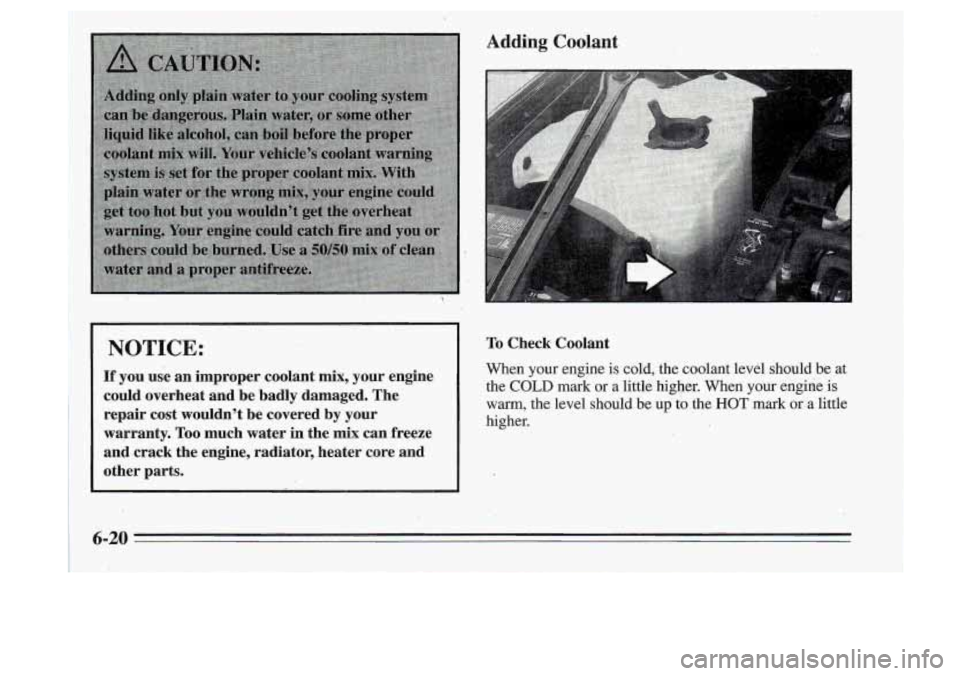

NOTICE:
~f you use an improper coolant mix, your engine
could overheat and be badly damaged. The repair cost wouldn’t be covered by your
warranty. Too much water in the mix can freeze
and crack the engine, radiator, heater core and
other parts.
..
To Check Coolant
When your engine is cold, the coolant level should be at
the
COLD mark or a little higher. When your engine is
warm, the level should be up to the HOT mark or a little
higher.
4-20
