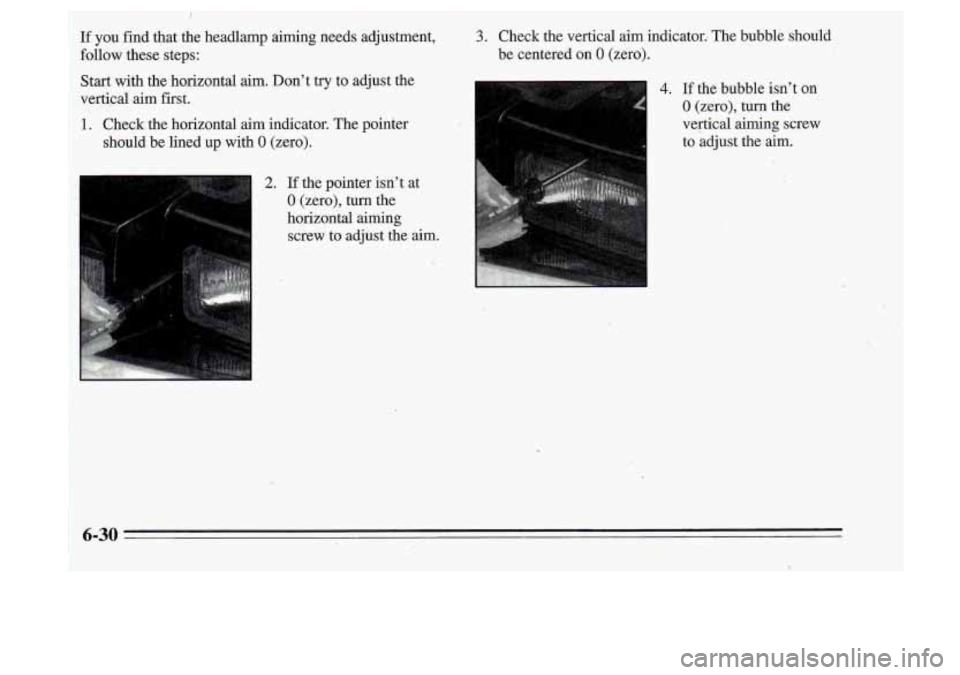

If you fid that the headlamp aiming needs adjustment, 3. Check the vertical aim indicator. The bubble should
follow these steps:
Start with the horizontal aim. Don’t try to adjust the
vertical aim first.
1. Check the horizontal aim indicator. The pointer
should be lined up with
0 (zero). be
centered on
0 (zero).
4. If the bubble isn’t on
0 (zero), turn the
vertical aiming screw
to adjust the aim.
2. If the pointer isn’t at
0 (zero), turn the
horizontal aiming screw to adjust the
aim. I
i
6-30

L
2.

*.

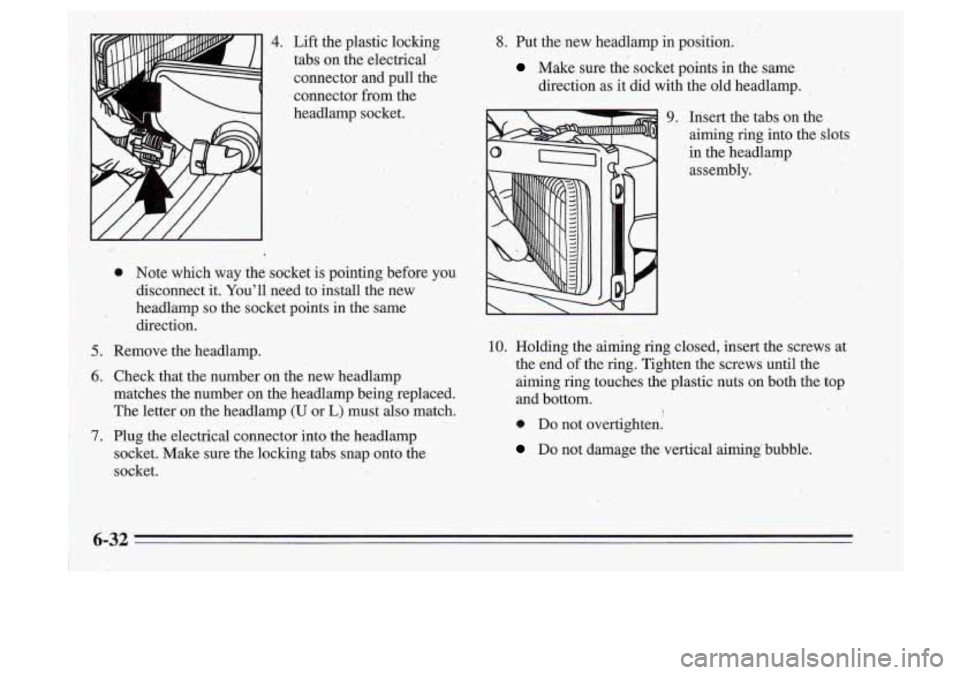

4. 8. Put the new headlamp in position.
Make sure the socket points in the same
direction
as it did with the old headlamp.
9. Insert the tabs on the
aiming
ring into the slots
in the headlamp
assembly.
10. Holding the aiming ring closed, insert the screws at
the end
of the ring. Tighten the screws until the
aiming ring touches the plastic nuts on both the
top
and bottom.
0. Do not overtighten.
Do not damage the vertical aiming bubble.
1
1 6-32

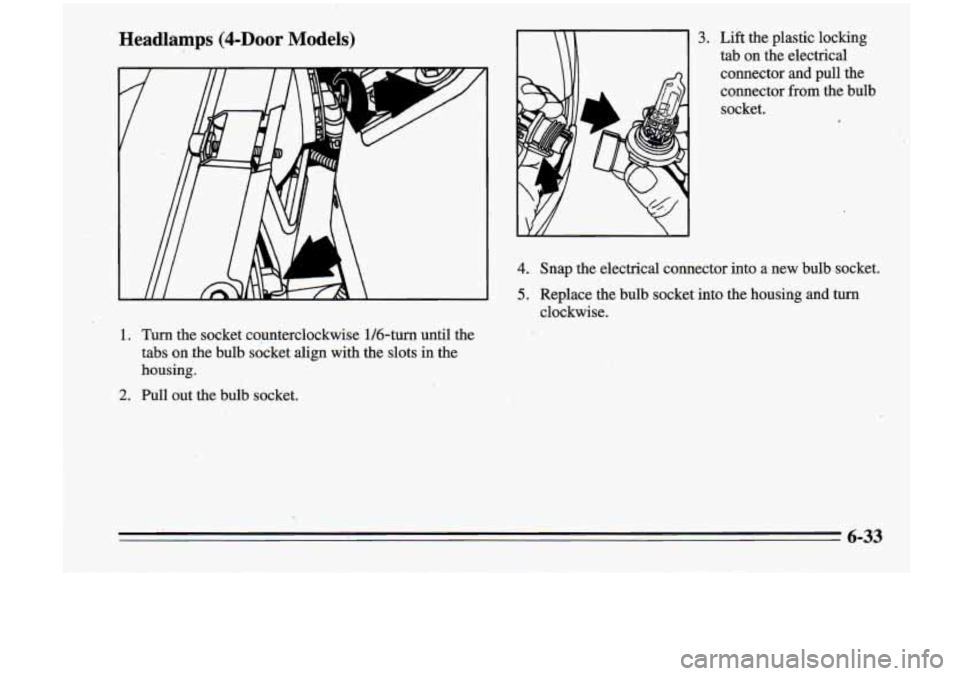

'Headlamps (4-DOOr Models)
1. Turn the socket c0,unterclockwise 1/6-turn until the tabs
on jhe bulb socket align with the slots in the
housing.
2. Pull out the bulb socket.
3. Lift the plastic locking
tab on the electrical
connector and pull the
connector from the bulb
socket.
1
4. Snap the electrical connector into a new bulb socket.
5. Replace the bulb socket into the housine and turn
clockwise.

6-33
