1995 HONDA ODYSSEY Owners Manual

Audio System

Radio Frequencies
Your Honda's radio can tune in all frequencies in both the AM and FM

bands.

Those bands cover these frequen-
cies:

AM band:530 to 1,710 kilohertz
FM band:
87.7 to 107.9 megahertz
Radio stations on the AM band are
assigned frequencies at least 10
kilohertz apart (530, 540, 550).
Those on the FM band are assigned frequencies at least 0.2 megahertz
apart (87.9, 88.1, 88.3).
Stations must use these exact
frequencies. It is fairly common forstations to round-off the frequency in
their advertising, so your radio will show a frequency of 100.9 even
though the announcer may call the
station "FM101."

Comfort and Convenience Features
PWR/VOL KNOB
STEREO INDICATOR
TUNE/SEEK SWITCH
AM/FM
BUTTON
PRESET

BUTTONSProCarManuals.comMain Menu Table of Contents s t

Audio System
Operating the Cassette Player
Turn the system ON. Insert the cassette into the slot with the tape
opening to the right. Push the
cassette in most of the way. The drive will pull it in the rest of the way
and begin to play. The or will light to show you
which side of the cassette is playing. The indicates the side you
inserted facing upward is now
playing. To play the other side of the
tape, press the PROG button.
The system also has an Auto-reverse feature. It will automatically reversedirection when it reaches the end of
the cassette.
PWR/VOL KNOB
EJECT
BUTTON
CASSETTE
SLOT
TAPE DIRECTION

INDICATOR

PROG BUTTON
Dolby ®
noise reduction turns on
when you insert a cassette. If the tape was not recorded with Dolby"B" noise reduction, turn it off by pressing the button.
To remove the cassette from the
drive, press the EJECT button.

Comfort and Convenience Features
PLAY

BUTTON

DOLBY
BUTTONProCarManuals.comMain Menu Table of Contents s t

Audio System
Cassette Search Functions Once a cassette is playing, you can
use the FF, REW, RPT, or SKIP
function to look for desired songs or
passages.

To rewind the tape, push the FF/ REW/SKIP switch down, then
release it. You will see REW in the
display. To fast forward the tape,
push the switch up, then release it.
You will see FF displayed. To stop rewind or fast forward, press thePLAY button. If the system reaches
the end of the cassette while in fast
forward or rewind, it automatically stops that function, reverses
direction, and begins to play.
Press the RPT button to replay the
current passage. You will see RPT
displayed. When the system reaches
the end of the song or passage that is being played, it automatically goes
into rewind. When it senses the
beginning of that passage, it goes back to play. The system will
continue repeating this passage until
you turn off RPT by pressing the button again.

CONTINUED

Comfort and Convenience Features
RPT BUTTON

FF/REW/SKIP
SWITCH
PLAY

BUTTONProCarManuals.comMain Menu Table of Contents s t

Audio System

The SKIP function lets you skip to
the beginning of a song or other
passage. The tape skips forward or
backward, depending on which direction you push the FF/REW/
SKIP switch.
Activate SKIP by pushing the FF/ REW/SKIP switch and holding it
until you hear a beep. If you push the
switch down, you will see REW
blinking in the display as the tape rewinds. If you push the switch up,
you will see FF blinking in the display as the tape fast forwards.
When the system senses a silent period on the tape, it goes back toPLAY mode. The SKIP and RPT functions use
silent periods on the tape to find the
end of a selection. These features may not work satisfactorily on tapes
that have almost no gap between
songs, a high noise level between
songs, or silent periods in the middle
of songs. Caring for Cassettes
Damaged cassettes can jam inside
the drive or cause other problems. See page 105 for information on
cassette care and protection.

Comfort and Convenience Features
RPT BUTTON
FF/REW/SKIP
SWITCHProCarManuals.comMain Menu Table of Contents s t

Audio System

Operating the CD Player
(Optional)
A Compact Disc changer is available for your car. It holds up to six discs,
providing several hours of continu-ous programming. You operate the
CD changer with the same controls
used for the radio and cassette
player.
Load the desired CD's in the
magazine and load the magazine in
the changer according to the
instructions that came with the unit.
Your dealer has Genuine Honda accessory in-dash CD players
available that are operated by the
radio controls. If you have one of
these units, use the directions in this section (except for multi-disc
selection) to operate it. To operate the CD changer, the
ignition key must be in ACCESSORY (I) or ON (II). If you are listening to
a cassette tape, eject it before
playing a CD.
Press the CD button until "CD" appears on the display. Once in the
CD mode, the system will start to
play the first track of the first disc in the magazine.
When that disc ends, the next disc in the magazine is loaded and played.
After disc 6 has completed, the system will return to disc 1. To make
your own disc selection, push one of the six preset buttons. Your selection
will appear in the display and start
playing.
U.S. EX model

You can use the TUNE/SEEK switch while a disc is playing to
select passages and change tracks.
To move rapidly forward within a track, push up and hold the TUNE/SEEK switch. Push down and hold
the switch to move rapidly backward
within a track. You will hear a beep a
half second after you push the switch up or down. Keep pushing the
switch until you think the track has
advanced or returned to the desired
position. The disc will start playing
when you release the switch.
If you push the TUNE/SEEK switch
up and release it before you hear a
beep, the system will skip forward to the beginning of the next track on
that CD.
It will skip backward to the begin-
ning of the current track if you push
the switch down and release it.

Comfort and Convenience Features
CONTINUEDProCarManuals.comMain Menu Table of Contents s t

Audio System

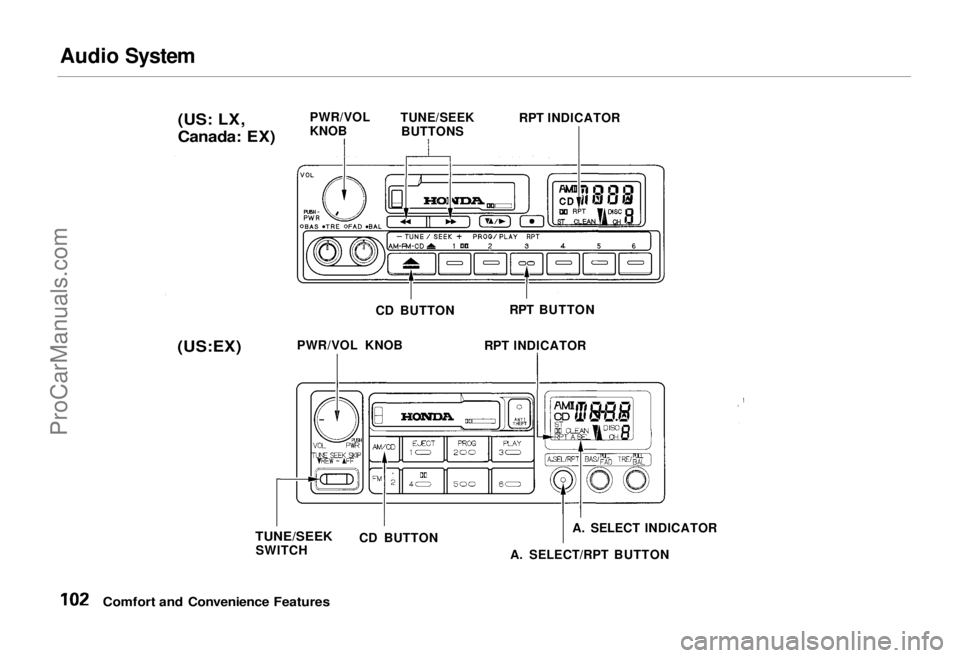

Comfort and Convenience Features (US: LX,
Canada: EX)

PWR/VOL
KNOB
TUNE/SEEK
BUTTONS RPT INDICATOR
CD BUTTON RPT BUTTON
PWR/VOL KNOB RPT INDICATOR

TUNE/SEEK
SWITCH CD BUTTON
A. SELECT INDICATOR
A. SELECT/RPT BUTTON

(US:EX)ProCarManuals.comMain Menu Table of Contents s t

Audio System
U.S. LX and Canadian EX models

You can use the TUNE/SEEK buttons while a disc is playing to select passages and change tracks.
To move rapidly forward within a track, push and hold the button.
Push and hold the button to
move rapidly backward within a
track. You will hear a beep a half second after you push the button.
Keep pushing the button until you
think the track has advanced or
returned to the desired position. The disc will start playing when you
release the button. If you push the button and
release it before you hear a beep, the system will skip forward to the
beginning of the next track on that
CD.

It will skip backward to the begin-
ning of the current track if you push the button and release it. If you push the RPT button on the
U.S. LX and Canadian EX models or
the A. SELECT/RPT button on the
U.S. EX model, the system will
continuously play the track you are
listening to. You will see RPT in the display. Push the switch again to
turn off the RPT (REPEAT) mode.

On U.S. EX model
You can get the CD player to randomly select tracks by pressing
A. SELECT/RPT until you see "A. SEL" in the display.
With this active, the system selects and plays the tracks randomly,
rather than sequentially, on each disc. When the system has played all
the tracks on that disc, it loads the
next disc and starts to play randomly.
The system continues to select and play tracks randomly on each of thesix discs until you press the
A. SELECT/RPT button again. To turn on random play mode while
the system is in the REPEAT mode,
turn off REPEAT mode first by
pressing the A. SELECT/RPT
button. Then, press the button againas explained above.
If you change modes to radio or
tape while a CD is playing, thenchange back to CD mode, thesame disc and track will play.
If you turn off the system while a CD is playing, either with the
PWR/VOL knob or by turning off
the ignition, the system will begin at the same disc and track when
you turn it back on.
If you try to select an empty slot in
the magazine, the system willselect and play the first track of
the next disc in the magazine.
To return to the radio function, press the CD button.

Comfort and Convenience FeaturesProCarManuals.comMain Menu Table of Contents s t

Audio System

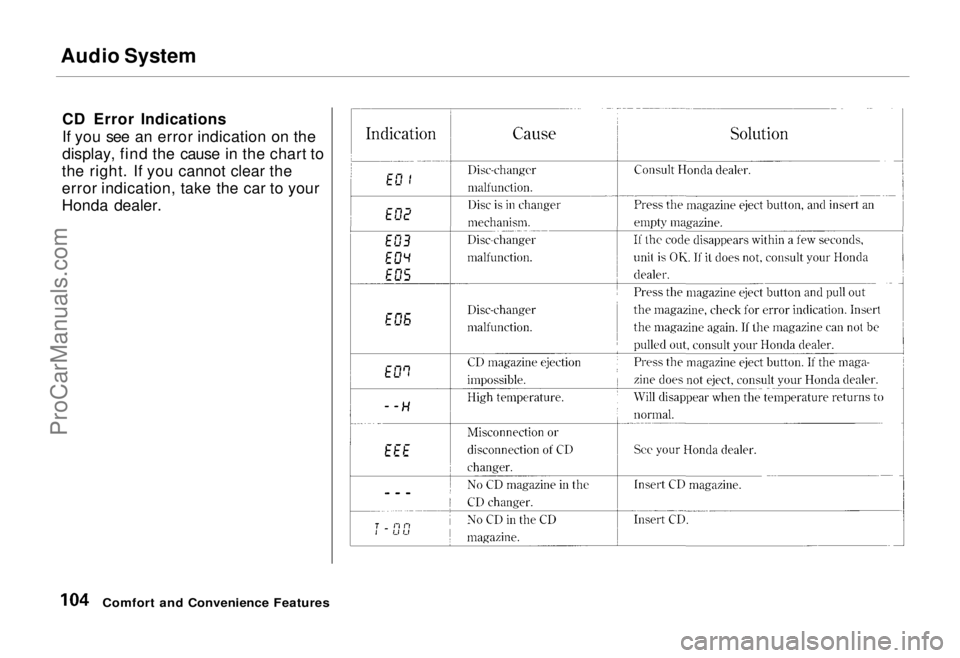

CD Error Indications
If you see an error indication on the
display, find the cause in the chart to
the right. If you cannot clear the
error indication, take the car to your
Honda dealer.

Comfort and Convenience FeaturesProCarManuals.comMain Menu Table of Contents s t
