1995 HONDA ODYSSEY Owners Manual

Heating and Cooling

To Heat and Dehumidify with Air
Conditioning

Air conditioning removes moisture from the air as it operates. Whenused in combination with the heater,
it makes the interior warm and dry.
1. Switch the fan on.
2. Turn on the air conditioning. 3. Select and any desired
mode button.
4. Adjust the temperature control lever so the mixture of heated andcooled air feels comfortable.
This setting is suitable for all driving conditions whenever the outside
temperature is above 32° F (0°C).

CONTINUED

Comfort and Convenience Features
RECIRCULATION AIR BUTTON
FRESH AIR
BUTTON
MODE BUTTONS
TEMPERATURE CONTROL LEVER FAN CONTROL

LEVER
AIR CONDITIONING
SWITCHProCarManuals.comMain Menu Table of Contents s t

Heating and Cooling

To Defog and Defrost

To remove fog from the inside of the windows:
1. Switch the fan on.
2. Turn on the air conditioning. 3. Select and
4. Adjust the temperature control lever so the airflow from the
defroster vents feels warm.
5. Turn on the rear window defogger to help clear the rear window.
To remove exterior frost or ice from the windshield and side windowsafter the car has been sitting out in
cold weather:
1. Start the engine. 2. Select and
3. Switch the fan and temperature
controls to maximum. To rapidly remove exterior frost or
ice from the windshield (on very cold days), first select Once the
windshield is clear, select to
avoid fogging the windows.
These settings direct all the air flow to the defroster vents at the base ofthe windshield and the side windowdefroster vents. The air flow will get
warmer and clear the windows faster as the engine warms up. You can
close the side vents with the dial
beside each vent. This will send more warm air to the windshielddefroster vents.
For safety, make sure you have a
clear view through all the windows
before driving away.
To Turn Everything Off

To shut off the system temporarily, slide the fan speed and temperature
control levers all the way to the left.
You should shut the system com- pletely off only for the first few
minutes of driving in cold weather,until the engine coolant warms up
enough to operate the heater. Keep
the fan on at all other times so stale air does not build up in the interior.

Comfort and Convenience FeaturesProCarManuals.comMain Menu Table of Contents s t

Heating and Cooling

Rear A/C Unit (U.S. models only)

The rear A/C can be used when the
A/C switch on the front control panel is ON. Turn the rear A/C on
by moving the fan control lever outof the "OFF" position. The indicator
will come on. Adjust the fan speed by sliding the fan control lever. To
change the direction of air flow,
move the tab in the center of each
vent up-and-down and side-to-side.
Comfort and Convenience Features
FAN CONTROL

LEVERProCarManuals.comMain Menu Table of Contents s t

Audio System

AM/FM/Cassette Stereo Audio
System

For U.S. LX and Canadian models

Your Honda audio system is easy to use, and will give clear AM/FM
reception. The preset buttons allow
you to select six stations on AM andtwelve stations on FM.
The cassette system uses Dolby B ®
* noise reduction to give
excellent sound reproduction. The
system also senses when a metal or
chromium-dioxide (CrO2) tape is
being played and adjusts accordingly.
* Dolby noise reduction manufac-
tured under license from Dolby Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation. PWR/VOL KNOB
CASSETTE SLOT

AM/FM
BUTTON
PRESET

BUTTONS
Comfort and Convenience FeaturesProCarManuals.comMain Menu Table of Contents s t

Audio System

Operating the Radio
The ignition switch must be in
ACCESSORY (I) or ON (II) to operate the audio system. Turn the
system on by pushing the PWR/
VOL knob. The radio comes on and displays the frequency of the station
it was last tuned to.
Adjust the volume by turning the PWR/VOL knob.
Select the band you want to listen to
by pressing the AM/FM button. You
will see the selected band and the
frequency in the display.
ST will be displayed under the fre- quency if the station is broadcasting
in FM stereo. The AM stereo feature
is not available. Finding the Radio Station
You can use any of three methods to find radio stations on the selected
band: TUNE, SEEK, or the Preset

buttons.
The TUNE function lets you find a
desired frequency. Push the TUNE/ SEEK button ( ) to change to a
higher frequency, and ( ) to
change to a lower frequency.
To change the frequency up or down a single increment, push and release
the appropriate TUNE/SEEK button.
Comfort and Convenience Features
PWR/VOL KNOB

AM/FM
BUTTON
PRESET

BUTTONS
STEREO INDICATOR
TUNE/SEEK
BUTTONS

CONTINUEDProCarManuals.comMain Menu Table of Contents s t

Audio System

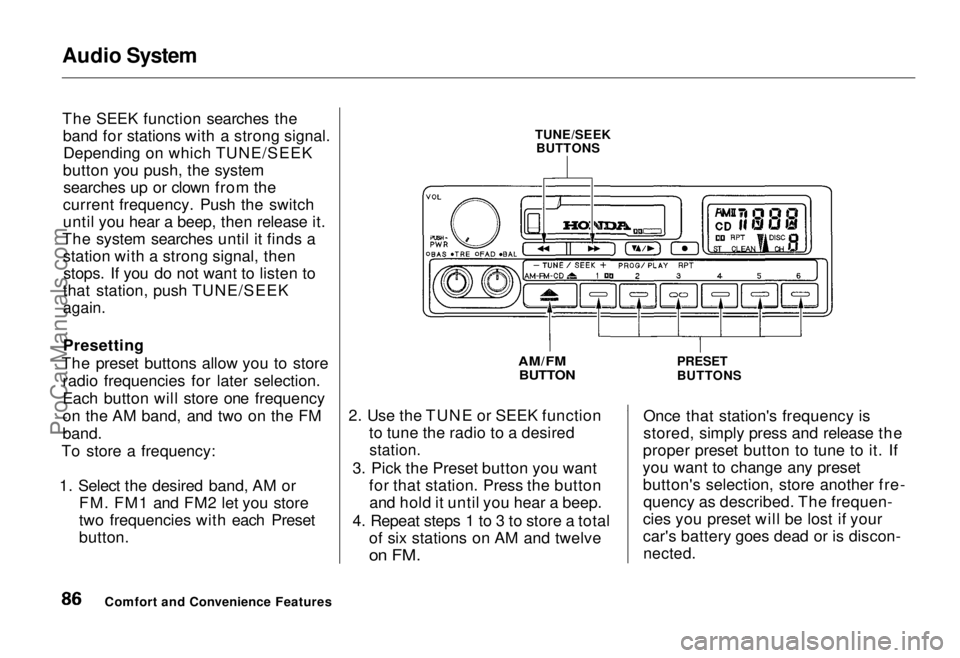

The SEEK function searches the
band for stations with a strong signal.Depending on which TUNE/SEEK
button you push, the system searches up or clown from the
current frequency. Push the switch
until you hear a beep, then release it.
The system searches until it finds a station with a strong signal, thenstops. If you do not want to listen to
that station, push TUNE/SEEK

again.

Presetting
The preset buttons allow you to store radio frequencies for later selection.
Each button will store one frequency
on the AM band, and two on the FM

band.

To store a frequency:
1. Select the desired band, AM or FM. FM1 and FM2 let you store
two frequencies with each Preset
button. 2. Use the TUNE or SEEK function
to tune the radio to a desired
station.

3. Pick the Preset button you want for that station. Press the buttonand hold it until you hear a beep.
4. Repeat steps 1 to 3 to store a total of six stations on AM and twelve

on FM.
Once that station's frequency is
stored, simply press and release the
proper preset button to tune to it. If
you want to change any preset button's selection, store another fre-quency as described. The frequen-
cies you preset will be lost if your
car's battery goes dead or is discon-
nected.

Comfort and Convenience Features TUNE/SEEK
BUTTONS

AM/FM BUTTON
PRESET

BUTTONSProCarManuals.comMain Menu Table of Contents s t

Audio System

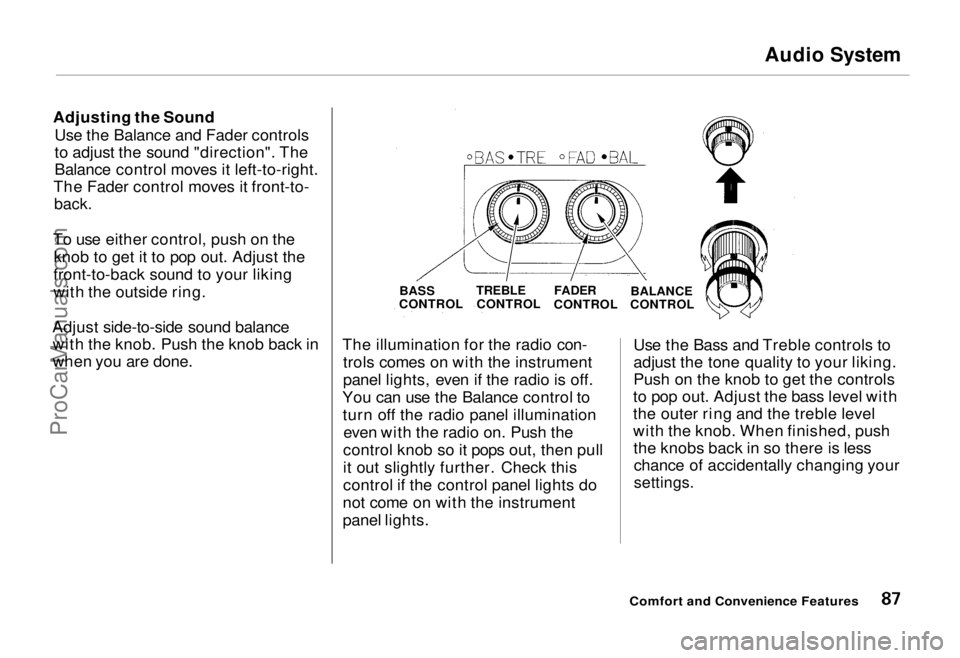

Adjusting the Sound Use the Balance and Fader controls
to adjust the sound "direction". The
Balance control moves it left-to-right.
The Fader control moves it front-to-
back.

To use either control, push on the knob to get it to pop out. Adjust the
front-to-back sound to your liking
with the outside ring.
Adjust side-to-side sound balance with the knob. Push the knob back in
when you are done. The illumination for the radio con-
trols comes on with the instrument
panel lights, even if the radio is off.
You can use the Balance control to turn off the radio panel illumination even with the radio on. Push the
control knob so it pops out, then pull
it out slightly further. Check this
control if the control panel lights do
not come on with the instrument
panel lights. Use the Bass and Treble controls to
adjust the tone quality to your liking.
Push on the knob to get the controls
to pop out. Adjust the bass level with
the outer ring and the treble level
with the knob. When finished, push the knobs back in so there is lesschance of accidentally changing your

settings.

Comfort and Convenience Features

BASS
CONTROL
TREBLE

CONTROL
FADER

CONTROL BALANCE
CONTROLProCarManuals.comMain Menu Table of Contents s t

Audio System
Radio Frequencies

Your Honda's radio can tune in all
frequencies in both the AM and FM

bands.

Those bands cover these frequen-
cies:

AM band:530 to 1,710 kilohertz
FM band:
87.7 to 107.9 megahertz
Radio stations on the AM band are
assigned frequencies at least 10
kilohertz apart (530, 540, 550).
Those on the FM band are assigned frequencies at least 0.2 megahertz
apart (87.9, 88.1, 88.3). Stations must use these exact
frequencies. It is fairly common forstations to round-off the frequency in
their advertising, so your radio will show a frequency of 100.9 even
though the announcer may call the
station "FM101."

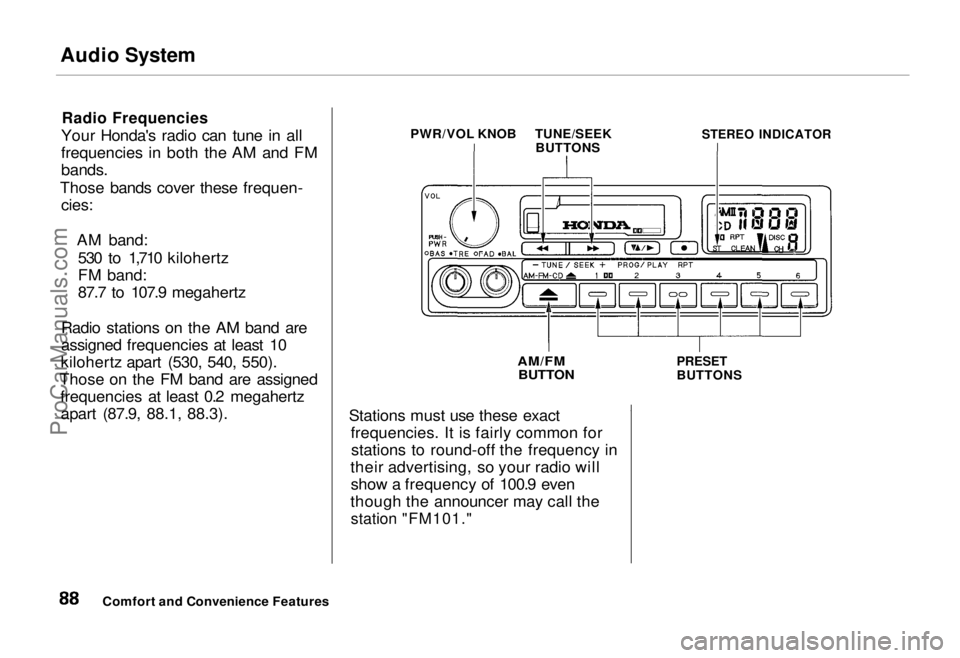

Comfort and Convenience Features PWR/VOL KNOB

AM/FMBUTTON
PRESET

BUTTONS
TUNE/SEEK
BUTTONS
STEREO INDICATORProCarManuals.comMain Menu Table of Contents s t
