1995 CHEVROLET MONTE CARLO Owners Manual

Downloaded from www.Manualslib.com manuals search engine Fuse
1
5
10
11
12
14
15
16
19
21
Rating
Description
CIGAR LIGHTER -- Instrument Panel and
Console Cigar Lighters
HAZARD FLASHER
I/P ELECTRONICS BATTERY FEED
-- Chime
Module, Electronic Brake Control Module
(EBCM), Theft Deterrent Module, Radio
AIR BAG #2
-- Sensing and Diagnostic Module
(SDM), Starter Relay
ANTI-THEFT
-- Theft Deterrent Module
HVAC BLOWER MOTOR
-- Blower Motor
Relay
HVAC
#1 -- Air Temperature Valve Motor,
Daytime Running Lamps Module (with DRL),
HVAC Control Assembly, Multifunction Lever
Cruise Control Switch
REAR DEFOG
-- WAC Control Assembly
Rear Window Defogger Switch
POWER ACCESSORY
#I -- Door Lock
Switches
AIR BAG
#1 -- Sensing and Diagnostic Module
(SDM)
Fuse Rating
Description
23
24
28
29
30
32
33
38
39 STOPLAMPS
-- TCC/Brake Switch
HVAC #2
-- HVAC Control Assembly, Solenoid
Box
CTSY LAMPS
-- Vanity Mirrors, Defogger
Relay,
UP Compartment Lamp, Trunk Courtesy
Lamp, Header Courtesy and Reading Lamp,
I/S Lighted Rearview Mirror, Dome Lamp
WIPER
-- Wiper Switch
TURN SIGNAL
-- Turn Signal Flasher
POWER LOCKS
-- Door Lock Relay, Keyless
Entry Receiver
ABS
-- Electronic Brake Control Module
(EBCM), ABS Relay
RADIO
-- Radio
I/€' ELECTRONICS IGNITION FEED
--
Headlamp Switch, Cruise Control Cut-Out
Switch, Sensing and Diagnostic Module
(SDM),
TCC/Brake Switch, Instrument Cluster, Chime
Module, Keyless Entry Receiver, Daytime
Running Lamps Module (with DRL)
6-55

Downloaded from www.Manualslib.com manuals search engine Underhood Electrical Center -- Passenger
Side
I, I 1
on0
000
R/CMPT REL ECM BAT
TCC ENG EMIS CRUISE
on0 F/INJN ECM IGN ELEK IGN
TCC
ENG EMIS
CRUISE
F/INJN
Fuse Description
WCMPT REL Remote Trunk Release
ECM BAT Powertrain Control Module
(PCM), Fuel Pump/Oil Pressure
Switch, Fuel Pump Relay, Fan
Cont
#1 Relay
Automatic Transaxle, Transaxle
Range Switch (VIN
M only)
Generator, Digital Exhaust
Recirculation (DEGR) Valve,
Evaporative Emissions (EVAP)
Canister Purge Valve Solenoid,
Heated Oxygen Sensor,
Fan Cont
#2 Relay, A/C CMPR Relay
(VIN
M only)
Cruise Control Module, A/C
CMPR Relay (VIN
X only)
Fuel Injectors, High Resolution
24X Crankshaft Position Sensor,
Camshaft Position Sensor
6-56

Downloaded from www.Manualslib.com manuals search engine Fuse
ECM IGN
ELEK IGN
10
11
12
13
Description
Powertrain Control Module
(PCM), Mass Air Flow (MAF) Sensor (VIN
X only)
Electronic Ignition (EI) Control
Module
UP Fuse Block
FAN CONT #1 Relay
Passenger Side Underhood
Electrical Center and I/P Fuse
Blocks: Fuses
5, 14,23 and 32
FAN CONT #2 Relay and
I/P Fuse
Block: Fuse 16, Power Seat
Circuit Breaker
“D”
Relay
14
15
16
17
18
Description
FUEL PUMP
A/C CMPR
FAN CONT #2
-- Secondary
Cooling Fan (Passenger Side)
FAN CONT
# 1 -- Primary
Cooling Fan (Driver Side)
Not Used
6-57

Downloaded from www.Manualslib.com manuals search engine Underhood Electrical Center -- Driver Side
ODD
000
uno
FOG LPS PARKLPS HORN
VAR PIS
Fuse
FOG LPS
PARK LPS
HORN
VAR
P/S
Description
Fog Lamps
Headlamp Switch Horn Relay, Underhood Lamp
EVO Steering
Fuse
10
11
12
13
Relay
14
15
16
Description
IGN SW2 -- I/P Fuse Block: PWR
WDO and Circuit Breaker “D”;
Passenger Side Underhood
Electrical Center: TCC and
ENG
EMIS Fuses
IGN
SWl -- I/P Fuse Block:
Radio, Wiper, HVAC, ABS and
Turn Signal Fuses; Passenger Side
Underhood Electrical Center:
F/IJN, ECM IGN and ELEK IGN
Fuses
HD
LPS -- Circuit Breaker to
Headlamp Switch
ABS -- ABS Relay
Description
ABS -- Anti-lock Brake System
FOG LPS
HORN
6-58

Downloaded from www.Manualslib.com manuals search engine Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the underhood electrical center. An electrical overload
will cause the lamps to go on and off, or in some cases
to remain off.
If this happens, have your headlamp
system checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse.
If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If
the overload is caused by some electrical problem, have
it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem
is fixed.
6-59

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Exterior Lamps Bulb Number
Back-up ................................. 3057
Center High-Mounted Stop
................. 891T2
Front Parking/Turn Signal
................. 3057NA
Headlamp. High Beam
..................... 9005
Headlamp. Low Beam
...................... 9006
License Plate
..................... 194 or 24 (234)
Sidemarker. Front
.......................... 194
Sidemarker. Rear
........................... 194
Stop/Tail/Turn Signal
...................... 3057
Interior Lamps
Bulb Number
Ashtray .................................. 194
Center Instrument Cluster
............... 161 or 194
Console
Shift Indicator ....................... 73
Door Lock Switch
........................... 73
Glove Box
................................ 194
High-Beam Indicator
....................... 161
Luggage Compartment
...................... 920
Inside Rearview Mirror Reading ............... 192
Side Window Switch
......................... 73
Dome
.................................... 561
Heater and Air Conditioning Control
.... T-1.75, T-1.5

Downloaded from www.Manualslib.com manuals search engine Capacities and Specifications
Automatic Transaxle
Pan Removal and Replacement ..... 7 quarts (6.7 L)
After Complete Overhaul ......... 10 quarts (9.5 L)
When drainingheplacing converter; nzore.fZuid may be
needed.
Cooling System Including Reservoir
3.1L (Code M) .............. 11.6 quarts (10.94 L)
3.4L (Code
X) .............. 12.3 quarts (11.65 L)
............................ 2.0 pounds (0.9 1 kg)
Refrigerant (R-l34a), Air Conditioning* Engine Crankcase
Oil and Filter
Change ............. 5 quarts (4.7 L)
Fuel Tank ................... 17.1 gallons (64.7 L)
*See “Air Conditioning Refrigerants” later in this
section.
Engine Specifications
Type ..................................
Displacement ...........................
Compression Ratio .....................
Firing Order ............................
Valve Arrangement ......................
Thermostat Temperature ..................
3.1L (Code M)
V6
191 CID (3.1L)
9.6: 1
1-2-3-4-5-6
195°F (91°C)
In-Head
3.4L (Code X)
V6
207 CID (3.4L)
9.25: 1
1-2-3-4-5-6
195°F (91 “C)
In-Head
6-61

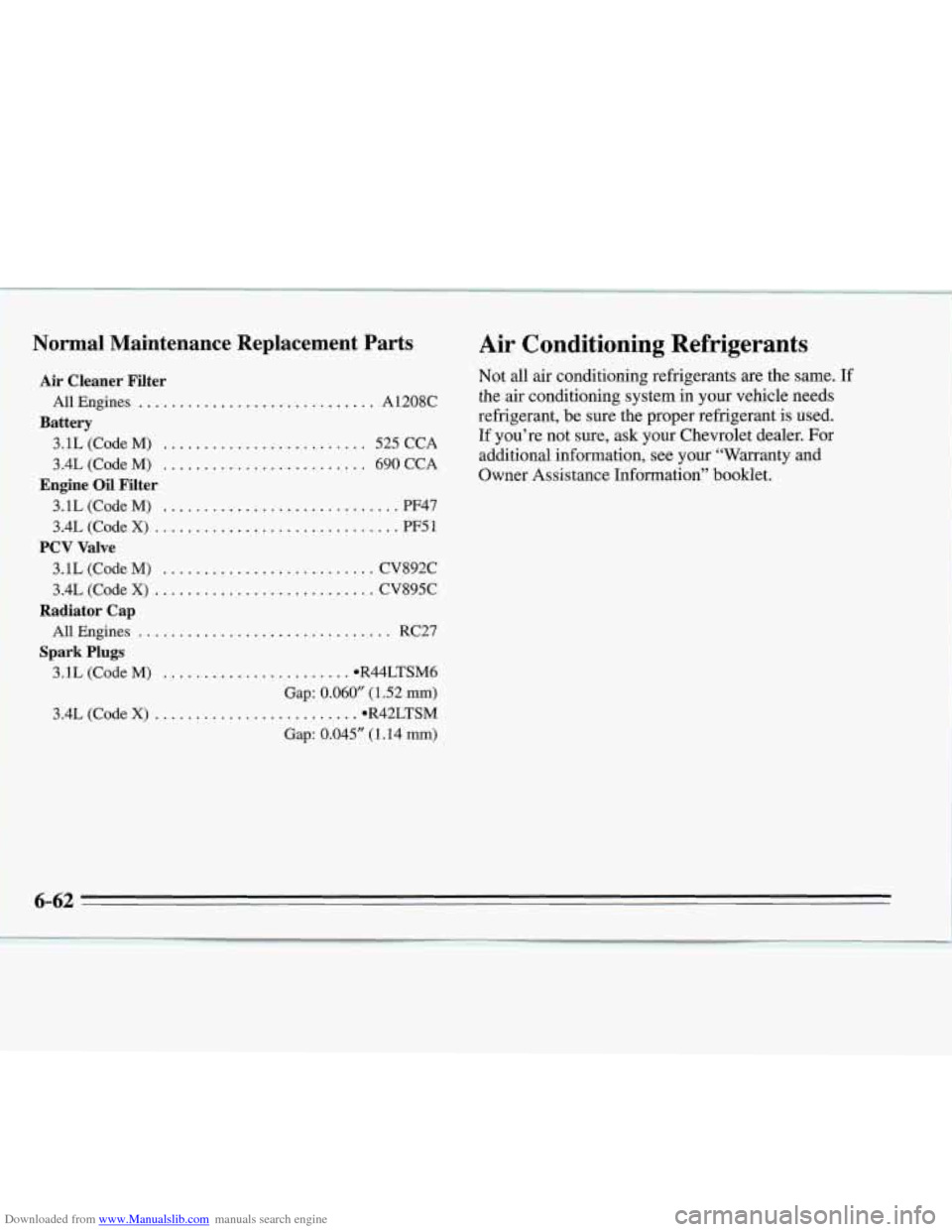

Downloaded from www.Manualslib.com manuals search engine Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same. If
the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If you’re not sure, ask your Chevrolet dealer. For
additional information, see your “Warranty and
Owner Assistance Information” booklet.
