1995 CHEVROLET MONTE CARLO Owners Manual

Downloaded from www.Manualslib.com manuals search engine Air Conditioning
On very hot days, open the windows long enough to
let
hot inside air escape. This reduces the time the
compressor has to run, which should help fuel economy.
For quick cool-down on very hot days, use
MAX with
the temperature control all the way in the blue area. If
this setting is used for long periods of time, the air in
your vehicle may become too dry.
Heating
For normal cooling on hot days, use A/C with the
temperature control in the blue area. The system will
bring in outside air and cool it.
On cool but sunny days, the sun may warm your upper
body, but your lower body may not be warm enough.
You can use BI-LEVEL with the temperature control in
the middle. The system will bring in outside air and
direct it to your upper body, while sending slightly
warmed air to your lower body. You may notice this
temperature difference more at some times
than others. On
cold days use FLOOR with the temperature control
all the way in the red area. The system will bring in
outside air, heat it and send it to the floor ducts.
If your vehicle has an engine coolant heater, you can use
it
to help your system provide warm air faster when it’s
cold outside
(0°F (-18°C) or lower). An engine
coolant heater warms the coolant your engine and
heating system use to provide heat. See “Engine
Coolant Heater”
in the Index.
Ventilation
For mild outside temperatures when little heating or
cooling
is needed, use VENT to direct outside air
through your vehicle. Your vehicle also has the
flow-through ventilation system described later
in
this section.
Defogging and Defrosting Windows
Your system has two settings for clearing the front and
side windows.
To defrost the windows quickly, use
DEFROST with the temperature knob all
the way in
the red area. To warm passengers while keeping the
windows clean, use
DEFOG.
3-3

Downloaded from www.Manualslib.com manuals search engine Rear Window Defogger
The rear window defogger
uses a warming grid to
remove fog from the rear
window. Press the button to
turn the defogger on. It will
turn itself-off after about
10 minutes.
Flow-Through Ventilation System
Your velucle's flow-through ventilation system supplies
outside
air into the vehicle when it is moving. Outside air will
also enter the vehicle when the air conditioning fan is running.
Ventilation Tips
Keep the hood and front air inlet free of ice, snow or
any other obstruction, such as leaves. The heater and
defroster will work far better, reducing the chance of
fogging the inside of your windows.
If you
turn it on again, the defogger will only run for about
five minutes before turning
off. You can also turn it off by
turning
off the ignition or pressing the button again.
Do not attach anything like a temporary vehicle license
or decal across the defogger
grid.
NOTICE:
Don't use a razor blade or something else sharp
on the inside of the rear window. If you do,' you
could cut or damage the warming grid, and the
repairs wouldn't be covered by your warranty.
0 When you enter a vehicle in cold weather, set the
mode to
FLOOR and the fan to the highest speed for
a few moments before driving off. This helps clear
the intake ducts
of snow and moisture and reduces
the chance of fogging the inside of your windows.
0 Keep the air path under the front seats clear of objects.
This helps air to circulate throughout your vehicle.
3-4

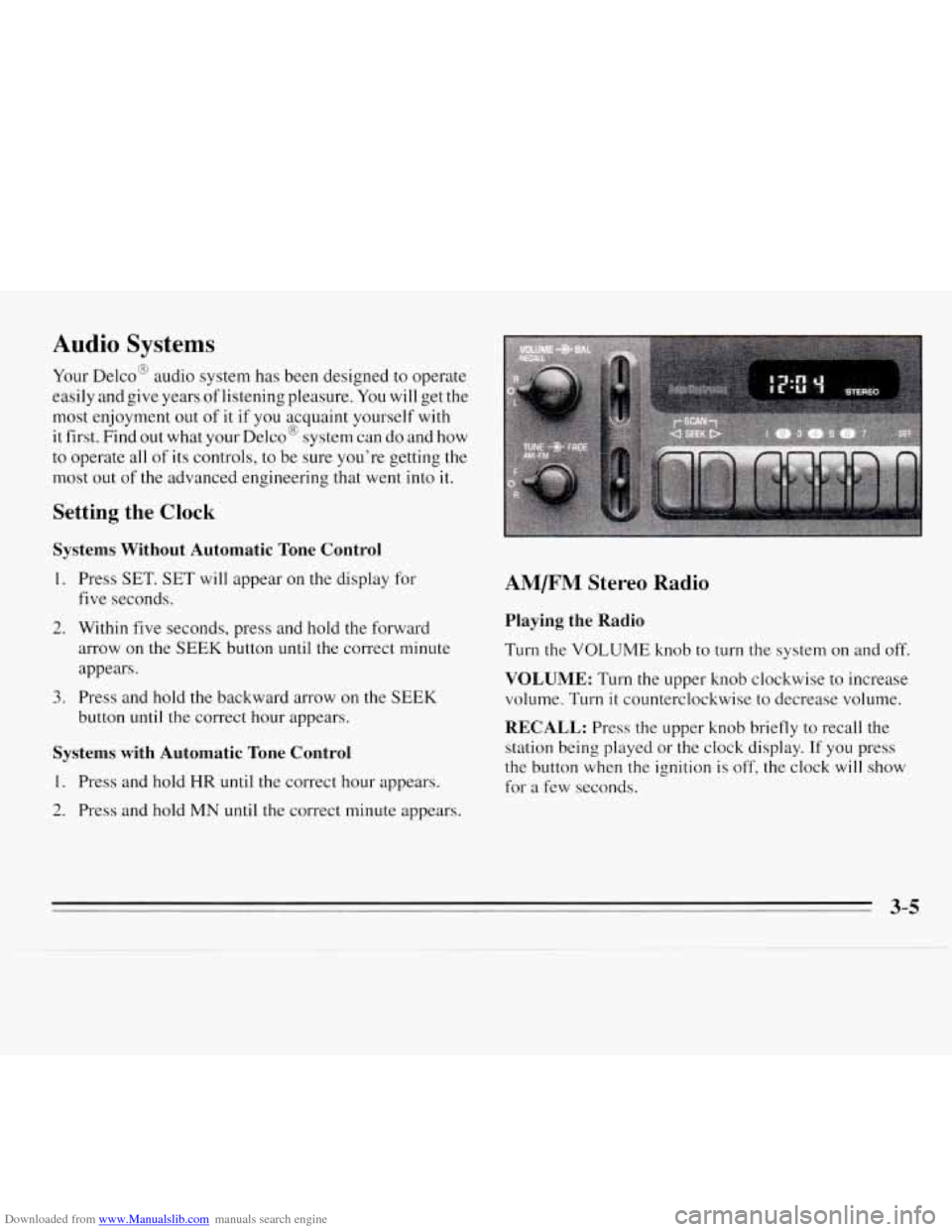

Downloaded from www.Manualslib.com manuals search engine Audio Systems
Your Delco@ audio system has been designed to operate
easily and give years of listening pleasure.
You will get the
most enjoyment out
of it if you acquaint yourself with
it first. Find
out what your Delco@ system can do and how
to operate all
of its controls, to be sure you’re getting the
most out
of the advanced engineering that went into it.
Setting the Clock
Systems Without Automatic Tone Control
1.
2.
3.
Press SET. SET will appear on the display for
five seconds.
Within five seconds, press and hold the forward
arrow on the
SEEK button until the correct minute
appears.
Press and hold
the backward arrow on the SEEK
button until the correct hour appears.
Systems with Automatic Tone Control
1. Press and hold HR until the correct hour appears.
2. Press and hold MN until the correct minute appears.
AM/FM Stereo Radio
Playing the Radio
Turn the VOLUME knob to turn the system on and off.
VOLUME: Turn the upper knob clockwise to increase
volume. Turn
it counterclockwise to decrease volume.
RECALL: Press the upper knob briefly to recall the
station being played
or the clock display. If you press
the button when the ignition is
off, the clock will show
for a few seconds.

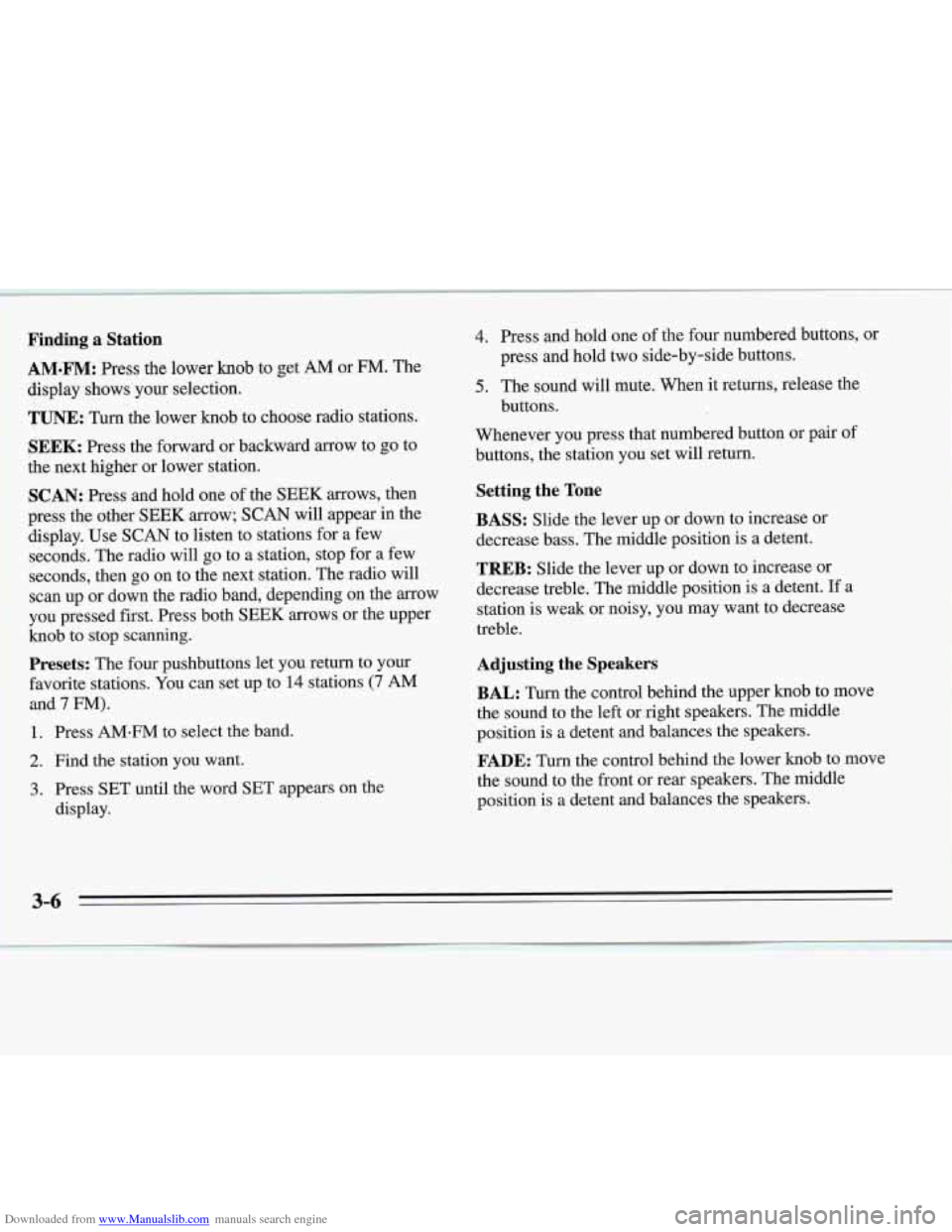

Downloaded from www.Manualslib.com manuals search engine Finding a Station
AM*FM: Press the lower knob to get AM or FM. The
display shows your selection.
TUNE: Turn the lower knob to choose radio stations.
4. Press and hold one of the four numbered buttons, or
press and hold
two side-by-side buttons.
5. The sound will mute. When it returns, release the
buttons.
SEEK: Press the forward or backward arrow to go to
the next higher or lower station.
SCAN: Press and hold one of the SEEK arrows, then
press the other SEEK arrow;
SCAN will appear in the
display. Use
SCAN to listen to stations for a few
seconds. The radio will go to a station, stop for a few
seconds, then go on to the next station. The radio will
scan up or down the radio band, depending on the arrow
you pressed first. Press both SEEK arrows or the upper
knob
to stop scanning.
Presets: The four pushbuttons let you return to your
favorite stations. You can set up to
14 stations (7 AM
and 7 FM).
1. Press AM-FM to select the band. Whenever
you press that numbered button
or pair of
buttons, the station you set will return.
Setting the Tone
BASS: Slide the lever up or down to increase or
decrease bass. The middle position is
a detent.
TREB: Slide the lever up or down to increase or
decrease treble. The middle position is
a detent. If a
station is weak or noisy, you may want to decrease
treble.
Adjusting the Speakers
BAL: Turn the control behind the upper knob to move
the sound to the left or right speakers. The middle
position is
a detent and balances the speakers.
2. Find the station you want.
3. Press SET until the word SET appears on the
display.
FADE: Turn the control behind the lower knob to move
the sound to the front or rear speakers. The middle
position is a detent and balances the speakers.
3-6

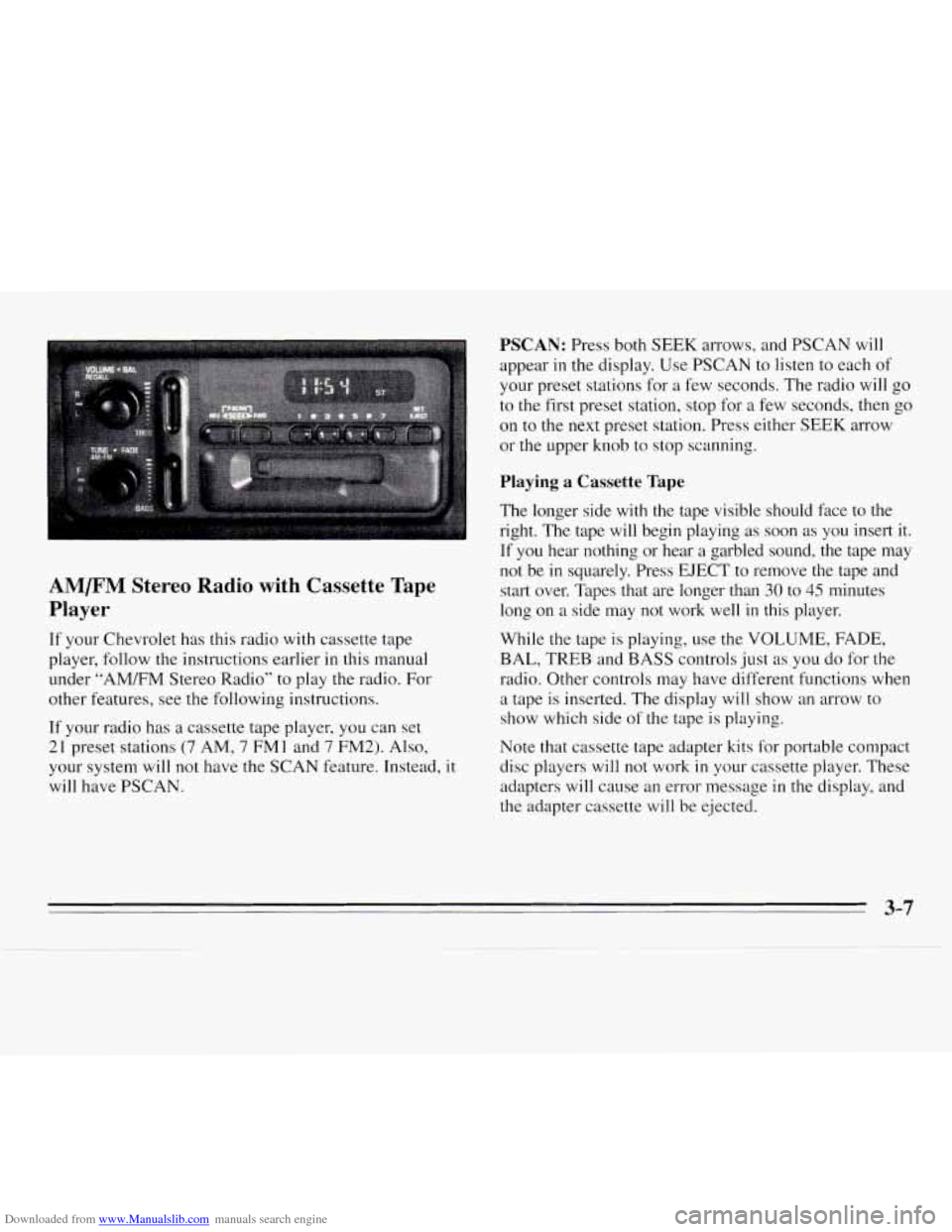

Downloaded from www.Manualslib.com manuals search engine AM/FM Stereo Radio with Cassette Tape
Player
If your Chevrolet has this radio with cassette tape
player, follow the instructions earlier
in this manual
under “AMEM Stereo Radio’’
to play the radio. For
other features, see the following instructions.
If your radio has
a cassette tape player, you can set
21 preset stations (7 AM, 7 FMl and 7 FM2). Also,
your system will not have the SCAN feature. Instead, it
will have PSCAN.
PSCAN: Press both SEEK arrows, and PSCAN will
appear
in the display. Use PSCAN to listen to each of
your preset stations for
a few seconds. The radio will go
to
the first preset station, stop for a few seconds, then go
on to the next preset station. Press either SEEK arrow
or the upper knob to stop scanning.
Playing a Cassette Tape
The longer side with the tape visible should face to the
right.
The tape will begin playing as soon as you insert it.
If you hear nothing or hear
a garbled sound, the tape may
not be
in squarely. Press EJECT to remove the tape and
start over. Tapes that are longer than
30 to 45 minutes
long on a side may not work well in this player.
While the tape is playing, use the VOLUME, FADE,
BAL, TREB and BASS controls just
as you do for the
radio. Other controls may have different functions when
a tape is inserted. The display will show an arrow to
show which side
of the tape is playing.
Note that cassette tape adapter kits
for portable compact
disc players will not work
in your cassette player. These
adapters
will cause an error message in the display, and
the adapter cassette will be ejected.
3-7

Downloaded from www.Manualslib.com manuals search engine REV: Press this button to reverse the tape rapidly. Press
it again to return
to playing speed. The radio will play
while the tape reverses.
FWD: Press this button to advance quickly to another
part of the tape. Press the button again to return to
playing speed. The radio will play while the tape
advances.
PROGRAM: Press the upper knob to change the side of
the tape that is playing.
EJECT Press this button to remove the tape. The radio
will play.
Cln: This message may appear on the display. If it does,
your cassette tape player needs to be cleaned. It will still
play tapes, but you should clean
it as soon as possible to
prevent damage
to your tapes and player. See “Care of
Your Cassette Tape Player” in the Index. After you clean
the player, press and hold EJECT for five seconds to
reset the Cln indicator.
“- - -” will appear in the display
to show the indicator was reset.
AM/FM Stereo Radios with Automatic Tone
Control
If your Chevrolet has a radio with Automatic Tone
Control,
the instructions below will explain how to use
the radio. To find out if your radio has Automatic Tone
Control, look for an AUTO TONE button. If the system
has one, you have Automatic Tone Control. If not,
see
the systems explained earlier in this section.
Playing the Radio
Press the PWR knob to turn the system on and off.
VOL: Turn this knob clockwise to increase volume.
Turn it counterclockwise to decrease volume.
SCV: Your system has a feature called
speed-compensated volume (SCV). With SCV, your
audio system makes up for road noise by getting louder
as you drive faster. The control behind the upper knob
has SCV positions. The top position has a higher
maximum volume and gets louder faster than the middle
two positions. If you don’t want to use SCV, turn the
control all the way down.
RECALL: Press this button to recall the station being
played. If you press the button when the ignition is off,
the clock will show for a few seconds.
3-8

Downloaded from www.Manualslib.com manuals search engine Finding a Station
AM FM: Press this button to get AM, FMl or FM2.
The display shows your selection.
TUNE: Press this knob lightly so it extends. Turn it to
choose radio stations. Push the
knob back in when
you’re not using it.
SEEK: Press the forward or backward arrow to go to
the next higher or lower station. The sound will be
muted while seeking.
SCAN: Press one of the SEEK arrows for two seconds,
and
SCAN will appear in the display. Use SCAN to
listen to stations for a few seconds. The radio will go to
a station, stop for a few seconds, then go on to the next
station. Press
SEEK again to stop scanning.
Presets: The six pushbuttons let you return to your
favorite stations.
You can set up to 18 stations (6 AM,
6 FM1 and 6 FM2). You can also set an equalization
setting with each preset station.
1. Press AM FM to select the band.
2. Find the station you want.
3. Press AUTO TONE to choose the equalization
setting for the station.
4. Press and hold one of the six numbered buttons.
5. The sound will mute. When it returns, release the
button.
Whenever you press that numbered button, the station
you set will return.
P SCAN: Press P SCAN to listen to each of your preset
stations for a few seconds. The radio will go to the first
preset station, stop for a few seconds, then
go on to the
next preset station. Press
P SCAN again to stop
scanning.
Setting the Tone
BASS:
Press this knob lightly so it extends. Turn the
knob to increase or decrease bass. The middle position is
a detent.
TREB: Press this button lightly so it extends. Turn the
knob to increase or decrease treble. The middle
position
is a detent.
Push the knobs back in when you’re not using them.
3-9

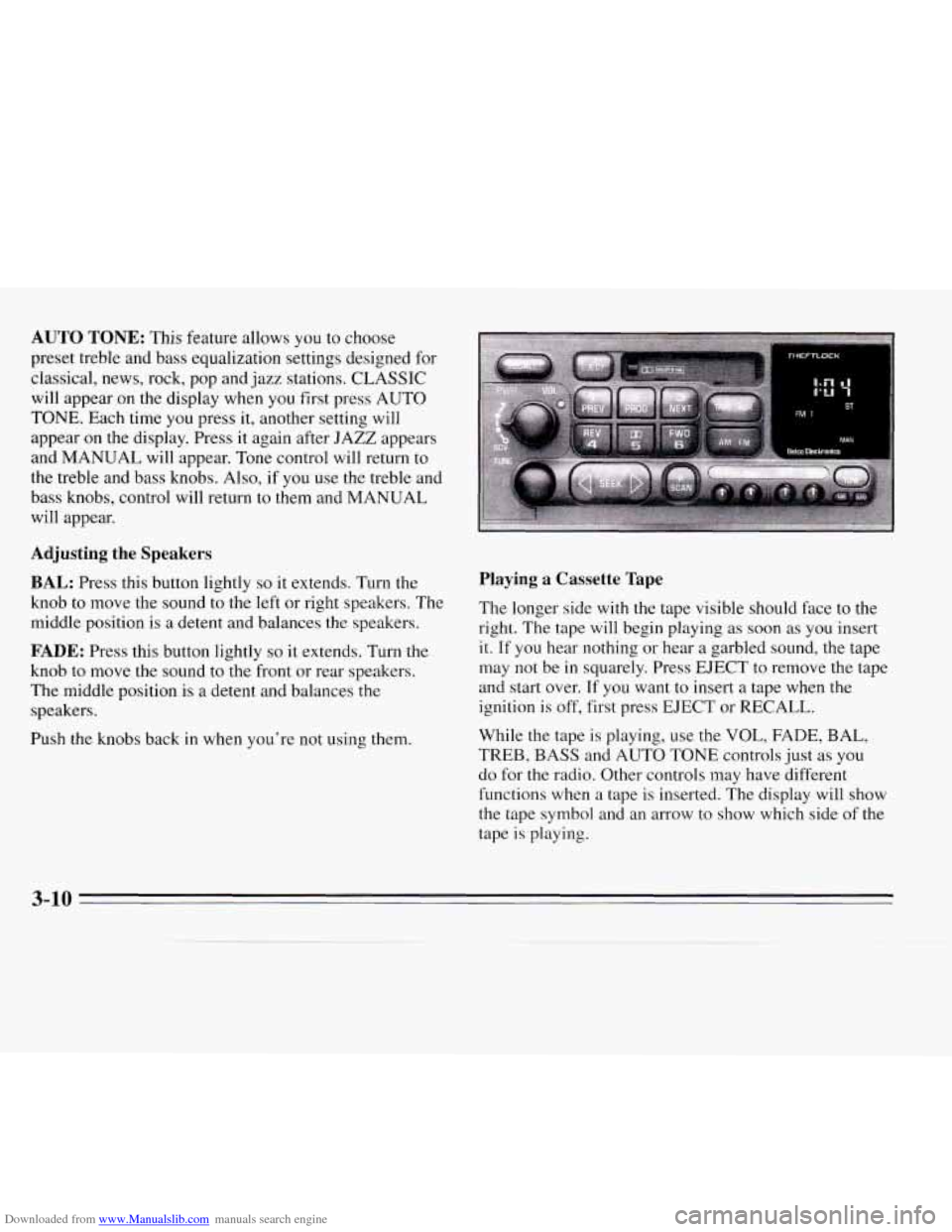

Downloaded from www.Manualslib.com manuals search engine AUTO TONE: This feature allows you to choose
preset treble and bass equalization settings designed for
classical, news, rock, pop and jazz stations. CLASSIC
will appear on the display when you first press AUTO
TONE. Each time you press it, another setting will
appear on the display. Press it again after JAZZ appears
and MANUAL will appear. Tone control will return to
the treble and bass knobs. Also, if
you use the treble and
bass knobs, control will return to them and MANUAL
will appear.
Adjusting the Speakers
BAL: Press this button lightly so it extends. Turn the
knob to move the sound
to the left or right speakers. The
middle position is
a detent and balances the speakers.
FADE: Press this button lightly so it extends. Turn the
knob to move
the sound to the front or rear speakers.
The middle position is a detent and balances the
speakers.
Push
the knobs back in when you're not using them.
Playing a Cassette Tape
The longer side with the tape visible should face to the
right. The tape
will begin playing as soon as you insert
it. If you hear nothing or hear a garbled sound, the tape
may
not be in squarely. Press EJECT to remove the tape
and start over.
If you want to insert a tape when the
ignition is off, first press EJECT or RECALL.
While the tape
is playing, use the VOL, FADE, BAL,
TREB, BASS and AUTO TONE controls just as you
do for the radio. Other controls may have different
functions when a tape is inserted. The display will show
the tape symbol and an arrow to show which side of the
tape
is playing.
3-10
