1995 CHEVROLET CAMARO Owners Manual

Downloaded from www.Manualslib.com manuals search engine
The door key unlocks the panels. Turn the key to the left Then
pull on the release handle to unlatch the panel. Lift
to unlock the panel. the
outer edge
of the panel and pull it towad you.
2-53

Downloaded from www.Manualslib.com manuals search engine Open the close-out panel completely. Place the panel in
the correct slot (driver or passenger) in the rear area of
your vehicle. Make sure the handle is open and facing
you when you put it in the storage slot. Push the handle closed
to secure the
panel in the slot. To
lock each panel in the storage area, use your door key.

Downloaded from www.Manualslib.com manuals search engine I
I NOTICE: 1
High pressure car washes may cause water to
enter your vehicle. Never spray water directly at
the roof panel joints. This will cause leaks.

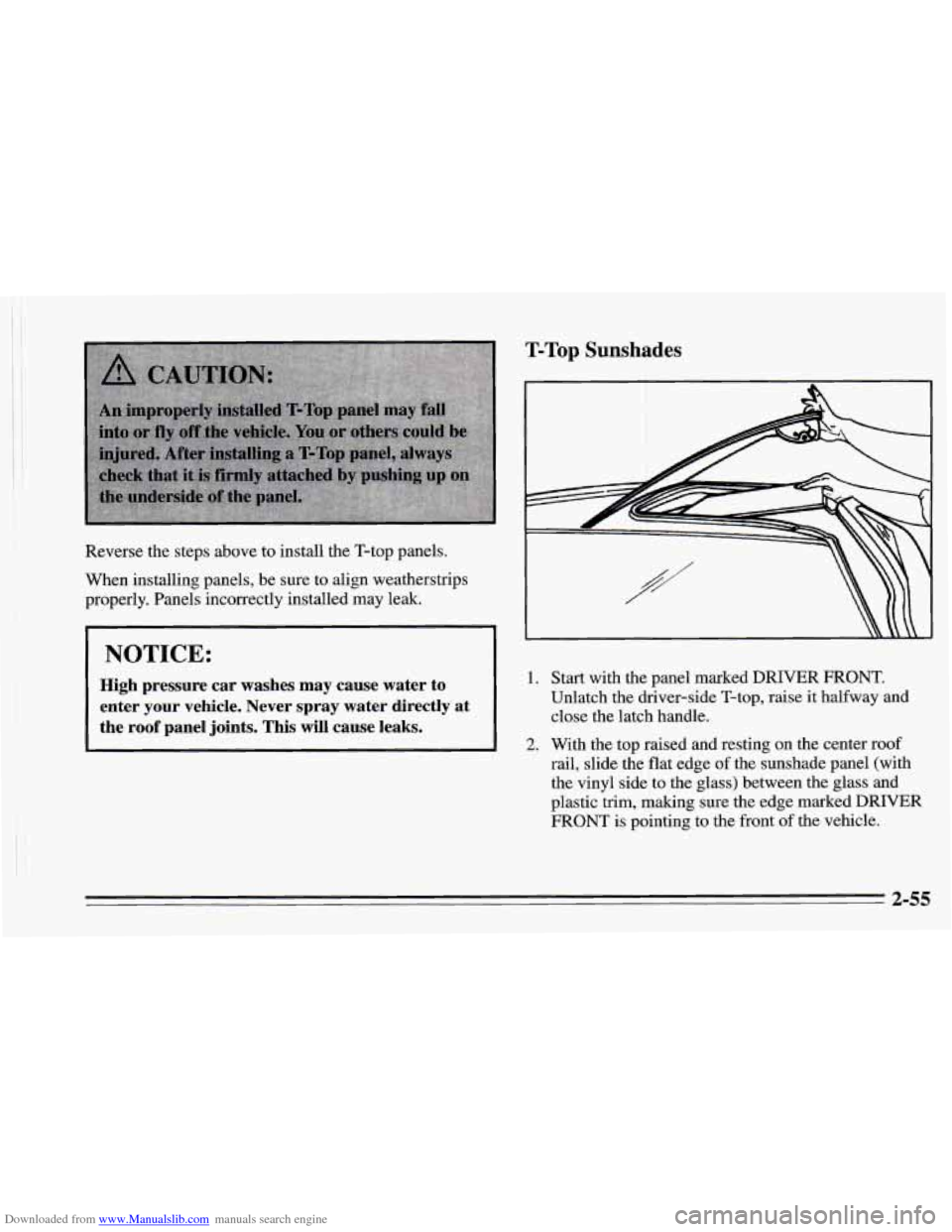

Reverse the steps aDove to install the T-top panels.
When installing panels, be sure to align weatherstrips
properly. Panels incorrectly installed
may leak.
T-Top Sunshades
1.
2.
Start with the panel marked DRIVER FRONT.
Unlatch the driver-side T-top, raise it halfway and
close the latch handle.
With the top raised and resting on the center roof
rail, slide the flat edge of the sunshade panel (with
the vinyl side to the glass) between the glass and
plastic trim, making sure the edge marked
DRIVER
FRONT is pointing to the front of the vehicle.
2-55

Downloaded from www.Manualslib.com manuals search engine 3. Open the latch and close the T-top. Check to see if
there are any gaps showing. Unlatch the T-top and
adjust the sunshade as required.
stick the Velcro@ buttons on the glass for a proper fit
every time you install the sunshades. To do this, first
remove the T-top with the sunshade installed and
place it upside down on a table or bench. Take care
not to scratch the glass.
4. Once the sunshade is installed properly, you can
5. Pull the sunshade back a little and remove the
backing paper from the Velcro@ buttons. Push the sunshade back into place sticking the Velcro@ to the
glass.
Repeat the above steps for the passenger-side
sunshade.
6. Install the T-top, close the latch and lock the T-top.

Downloaded from www.Manualslib.com manuals search engine You can store the sunshades two different ways:
1. When the T-tops are in use, store the sunshades in
their storage area in the rear
of the vehicle and make
sure
the close-out panel is in its closed, upright
position.
2. When you have the T-tops off, and in their storage
slots, store the sunshades
on the T-tops in their
installed position.
Storage and Compartments
Glove Box
To open the glove box, lift up on the lever. Use your
door
key to lock and unlock it. The glove box has a light
inside.
2-57

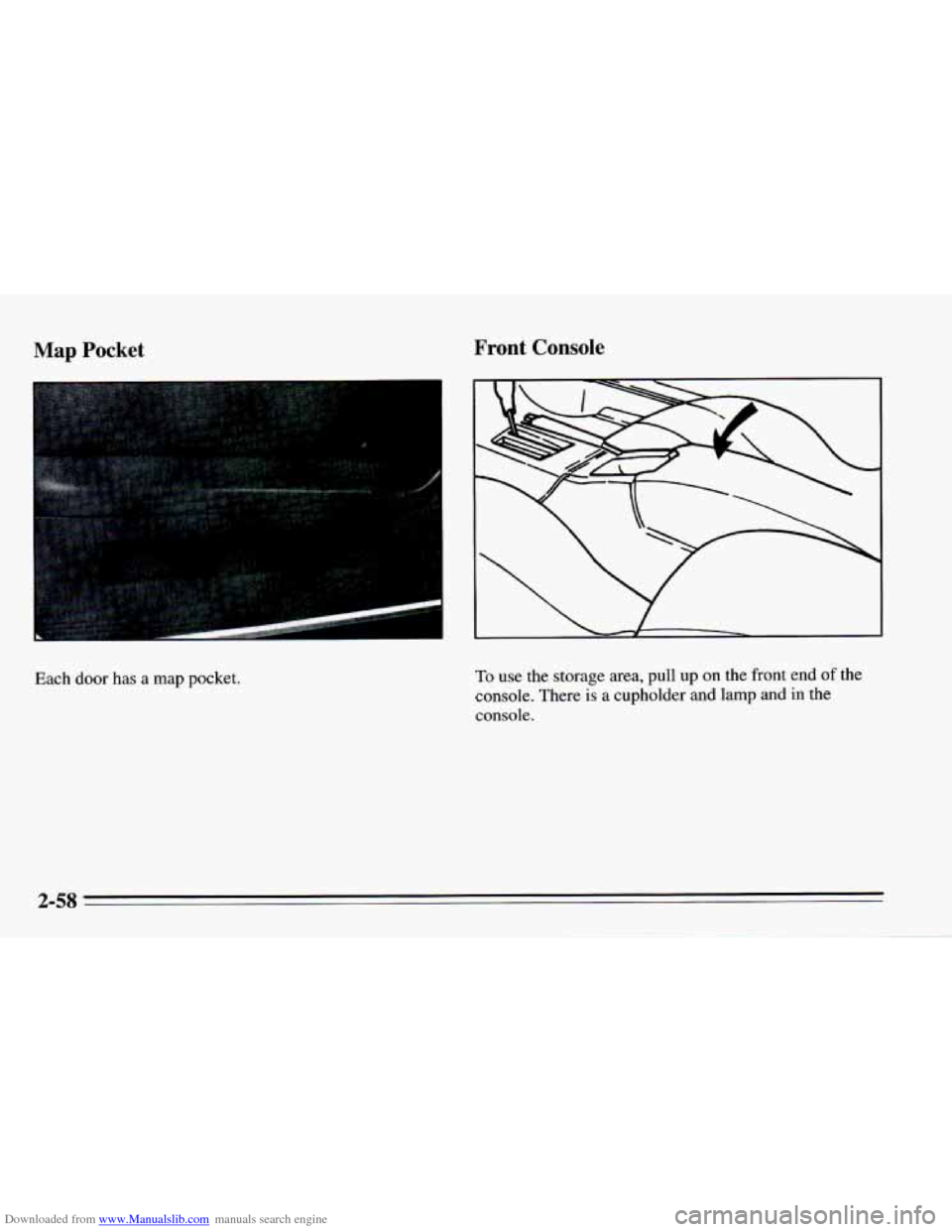

Downloaded from www.Manualslib.com manuals search engine Map Pocket Front Console
L
Each door has a map pocket. To use the storage area, pull up on the front end of the
console. There is
a cupholder and lamp and in the
console.
2-58

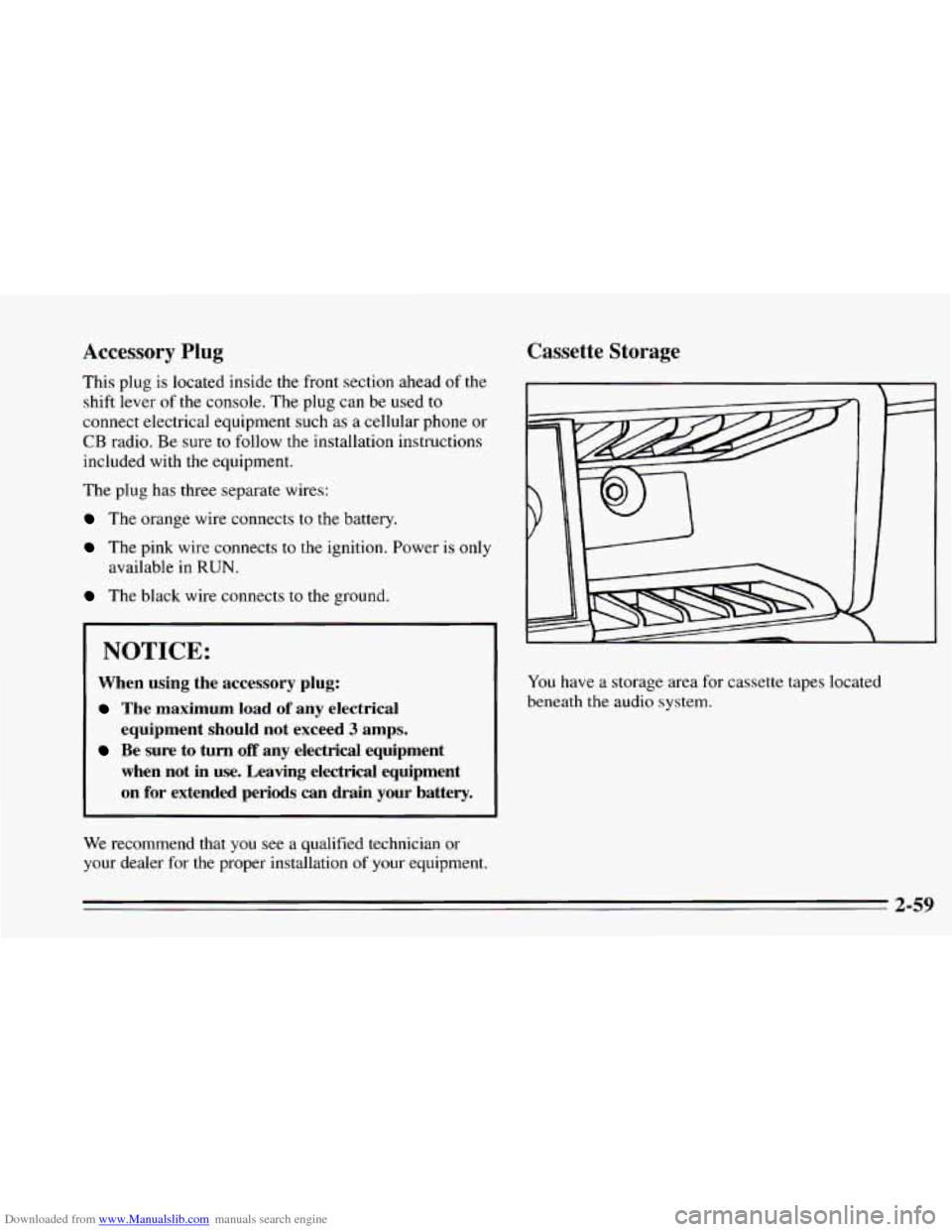

Downloaded from www.Manualslib.com manuals search engine Accessory Plug
This plug is located inside the front section ahead of the
shift lever of
the console. The plug can be used to
connect electrical equipment such
as a cellular phone or
CB radio. Be sure to follow the installation instructions
included with the equipment.
The plug has three separate wires:
The orange wire connects to the battery.
The pink wire connects to the ignition. Power is only
The black wire connects to the ground.
available
in
RUN.
NOTICE:
When using the accessory plug:
The maximum load of any electrical
Be sure to turn off any electrical equipment
equipment should not exceed
3 amps.
when not in use. Leaving electrical equipment
on
for extended periods can drain your battery.
We recommend that you see a qualified technician or
your dealer for the proper installation of your equipment.
Cassette Storage
You have a storage area for cassette tapes located
beneath the audio system.

Downloaded from www.Manualslib.com manuals search engine Close-Out Pane1
The close-out panel can be closed for hidden storage in
the rear area of your vehicle.
To remove the close-out panel:
Close the panel. If the close-out panel is not closed
and resting on the trim panel, it cannot be removed.
Pull the panel toward you to unsnap it. Then slide the
close-out panel along the groove
in the trim panel.
Reverse the steps to install
the panel.
2-60
