1995 CHEVROLET CAMARO Owners Manual

Downloaded from www.Manualslib.com manuals search engine Low Oil Light
I
Damage to your engine from neglected oil
problems can be costly and
is not covered by your
warranty.
This red warning light
should come on while
you are starting your
engine. If the light
1 NOTICE:
If the light stays on after starting your engine, your
engine oil level may be too
low. You may need to add
oil. See “Engine
Oil” in the Index.
NOTICE:
The oil level monitoring system only checks the
oil level when you are starting your engine.
It
does not keep monitoring the level once the
engine
is running. Also, the oil level check only
works when the engine has been turned off long
enough for the oil to drain back into the oil pan.
2-77

Downloaded from www.Manualslib.com manuals search engine Voltmeter
You can read battery voltage on your voltmeter. If it
reads less than
11 volts or more than 16 volts while your
engine is running, and
it stays there, you may have a
problem with the electrical charging system. Have it
checked right away. Driving with the voltmeter reading
in a warning zone could drain your battery.
If you idle your engine for a while, the voltmeter
reading might move into the yellow zone.
If the reading
stays in the yellow zone while you are driving, you may
have a problem with the electrical charging system.
Have it checked. While the voltmeter reads in the yellow
zone, your battery may
not be able to power certain
electrical accessories, like ABS.
(If this happens, your
ABS INOP light will come on. See “Anti-Lock Brake
System Warning Light” in this section.)
If you must drive a short distance with the voltmeter
reading in a warning zone, turn
off all your accessories,
including your air conditioning system and audio
systems.
Check Gages Light
CHECK GAGES
This red warning light
will come
on briefly
when you are starting
the engine.
If the light
comes on and stays on
while you are driving,
check your gages to
see if they are in the
warning areas.
2-78

Downloaded from www.Manualslib.com manuals search engine Fuel Gage Here are four concerns some owners have had about the
fuel gage. All
these situations are normal and do not
indicate that anything is wrong with the fuel gage.
0
0
0
0
Your fuel gage shows about how much fuel is in your
tank. The fuel gage works only when the ignition switch
is in the RUN position. When the gage pointer first
indicates EMPTY
(E) you still have a little fuel left
(about
one to two gallons), but you need to get more
right away. At the
gas station,
the gas pump shuts off before the
gage reads
FULL (F).
It takes more (or less) gas to fill up than the gage
reads. For example, the gage reads 1/2 full, but
it
took more (or less) than half of the tank’s capacity to
fill
it.
The gage moves a little when you turn, stop or speed
UP.
When
you turn the engine off, the gage doesn’t PO
back to EMPTY (E),

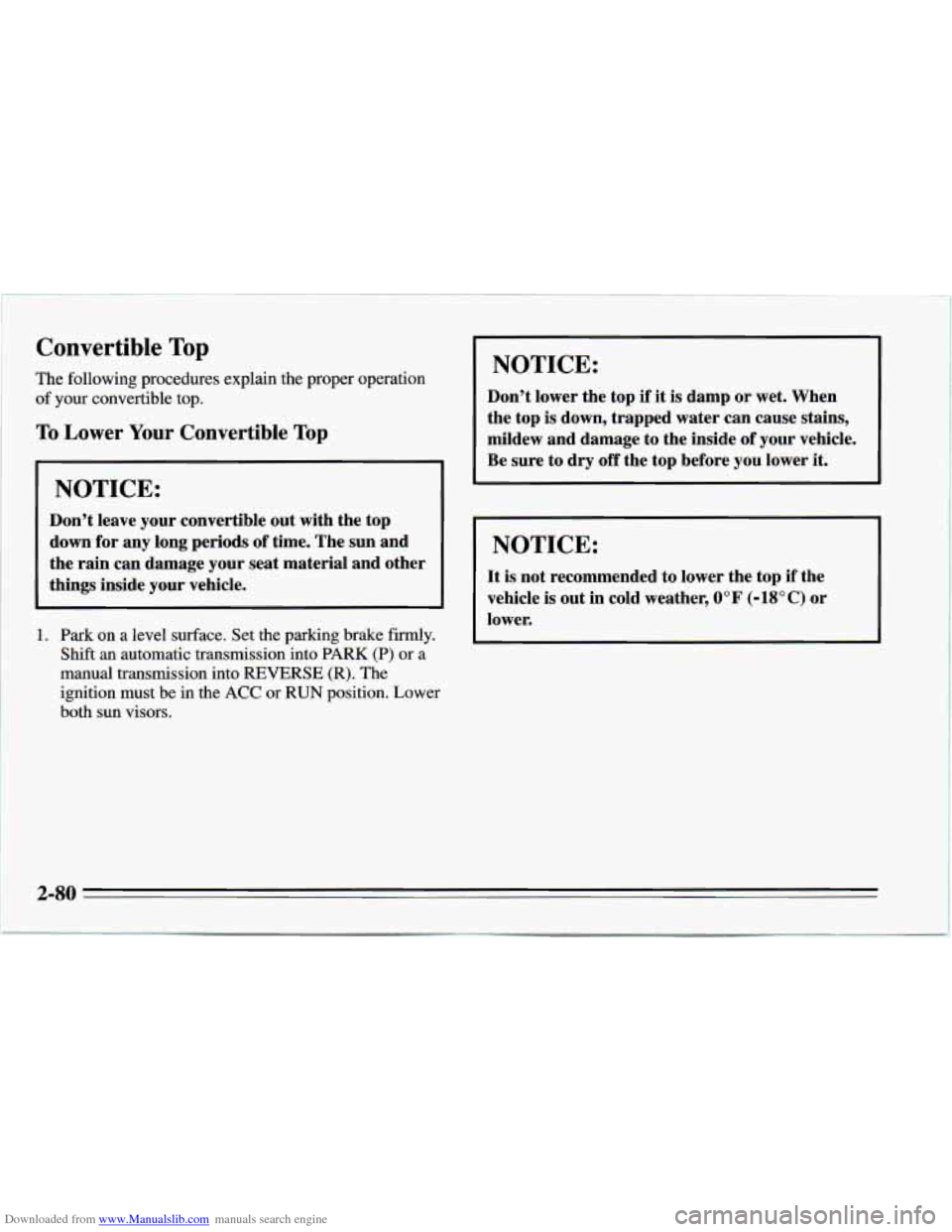

Downloaded from www.Manualslib.com manuals search engine Convertible Top
The following procedures explain the proper operation
of
your convertible top.
To Lower Your Convertible Top
NOTICE:
Don't leave your convertible out with the top
down for any long periods of time. The sun and
the rain can damage your seat material and other
things inside your vehicle,
1. Park on a level surface. Set the parking brake firmly.
Shift an automatic transmission into
PARK (P) or a
manual transmission into REVERSE (R). The
ignition must be in the
ACC or RUN position. Lower
both sun visors.
NOTICE:
Don't lower the top if it is damp or wet, When
the top is down, trapped water can cause stains,
mildew and damage to the inside of your vehicle.
Be sure to dry
off the top before you lower it.
I NOTICE:
It is not recommended to lower the top if the
vehicle
is out in cold weather, 0" F (-18" C) or
lower.
2-80
I

Downloaded from www.Manualslib.com manuals search engine 1 NOTICE:
Before lowering the convertible top into the
storage area, be sure there are no objects in the
way of the folded, stored top. The weight of a
stored top
on items in the storage area will cause
the convertible top back glass to break.
2. Unlock the front of the convertible top by pushing on
the smaller part of the latch, then pulling down on the
larger part of the latch. Be sure the hook on the latch
that attaches into the hole at
the windshield releases.
UP TOP
DOWN 1
3. Be sure no one or nothing is on or around the top.
Push
and hold “DOWN” or on the convertible
top switch.
The switch is below your cigarette
lighter.
The top will automatically lower into the
storage area.
2-81

Downloaded from www.Manualslib.com manuals search engine Installing the Boot Cover
After lowering the convertible top, you’ll want to install
the boot cover. The three-piece boot cover
is stored in a
bag in the trunk.
3. Install the middle section of the cover by sliding tabs
into slots
on right side cover. Lower the cover and
engage latch.
1. Open the trunk and remove the two side covers from
the storage bag.
2. Install the two side covers by engaging the tab into
the front seatbelt cover. Lower covers onto vehicle.
4. Close the trunk.
2-82

Downloaded from www.Manualslib.com manuals search engine To Raise Your Convertible Top
1. Park on a level surface. Set the parking brake firmly.
If
you have an automatic transmission, shift into
PARK
(P). If you have a manual transmission, shift
into REVERSE (R). The ignition must be in the
ACC or RUN position. Then lower both sun visors
and lower both windows at least three inches. If the
boot cover is in place, it must be removed first.
2. Open the trunk. Remove the middle piece of the
cover
by pushing in on the latch and lifting up on the
cover.
3. Remove the two side pieces of the boot cover by
lifting
the rear of cover and sliding them out of their
slots.
2-83

Downloaded from www.Manualslib.com manuals search engine 4. Store each piece of the cover in its separate
compartment in the storage bag, store in the trunk
and close the
trunk.
UP TOP
DOWN
5. Push and hold UP or A on the convertible top
switch.
2-84
