1995 CHEVROLET CAMARO power steering fluid

Downloaded from www.Manualslib.com manuals search engine 3800 L36 (Code K) When you open the hood you’ll see:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Battery
Engine Coolant Reservoir
Engine
Oil Dipstick
Automatic Transmission Dipstick
(if equipped)
Air Cleaner
Oil
Fill Cup
Brake Fluid Reservoir
Power Steering Reservoir
Windshield Washer Reservoir
Engine Fan
Clutch Fluid Reservoir
(if equipped)
6-8

Downloaded from www.Manualslib.com manuals search engine 3.4L L32 (Code S) When you open the hood you’ll see:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Battery
Engine Coolant Reservoir
Engine Oil Dipstick
Automatic Transmission Dipstick (if equipped)
Air Cleaner
Oil Fill Cap
Brake Fluid Reservoir
Power Steering Reservoir
Windshield Washer Reservoir
Engine Fan
Clutch Fluid Reservoir (if equipped)
6-9

Downloaded from www.Manualslib.com manuals search engine 5.7L LT1 (Code P) When you open the hood you’ll see:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Battery
Engine Coolant Reservoir
Engine Oil Dipstick
Automatic Transmission Dipstick (if equipped)
Air Cleaner
Oil Fill Cap
Brake Fluid Reservoir
Power Steering Reservoir
Windshield Washer Reservoir
Engine Fans
Clutch
Fluid Reservoir (if equipped)

Downloaded from www.Manualslib.com manuals search engine Power Steering Fluid
3.4L Engine
I
3800 Engine
6-31

Downloaded from www.Manualslib.com manuals search engine 5.7L Engine
How To Check Power Steering Fluid
When the engine compartment is cool, unscrew the cap
and wipe the dipstick with a clean rag. Replace the cap
and completely tighten it. Then remove the cap again
and
look at the fluid level on the dipstick.
The level should be at the
FULL COLD mark. Add
enough fluid to bring the level up to the mark.
A fluid loss in this system could indicate a problem.
Have the system inspected and repaired.
\'
When the engine compartment is hot, the level
should be at the
H or HOT mark.
When the engine compartment is cool, the level
should be at the
C or FULL COLD mark.
6-32

Downloaded from www.Manualslib.com manuals search engine What to Add
Refer to the Maintenance Schedule to determine what
kind
of fluid to use. See “Recommended Fluids and
car
” in the Index.
NOTICE:
When adding power steering fluid or making a
complete fluid change, always use the proper
fluid. Failure to use the proper fluid can cause
leaks and damage hoses and seals.
Windshield Washer Fluid
What to Use
When you need windshield washer fluid, be sure to read
the manufacturer’s instructions before use. If you will be
operating your vehicle
in an area where the temperature
may fall below freezing, use a fluid that has sufficient
protection against freezing.
To Add
Open the cap labeled WASHER FLUID ONLY. Add
washer fluid
until the tank is full.
- 6-33

Downloaded from www.Manualslib.com manuals search engine Part D: Recommended Fluids and
Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from your
GM dealer.
I USAGE
Supplement
FLUIDLUBRICANT
Engine oil with the American
Petroleum Institute Certified For
Gasoline Engines “Starburst”
symbol
of the proper viscosity. To
determine the preferred viscosity
for your vehicle’s engine, see
“Engine Oil” in the Index.
50/50 mixture of water (preferably
distilled) and good quality
ethylene glycol base antifreeze
(GM Part No. 1052753 or
equivalent) conforming to GM
Specification 1825M or approved
recycled coolant conforming to
GM Specification 1825M.
GM Part No. 3634621 or
equivalent.
USAGE FLUIDLUBRICANT
Hydraulic Brake Delco Supreme 11 @ Brake Fluid
System (GM Part
No. 1052535 or
equivalent DOT-3 brake fluid).
Hydraulic Clutch Hydraulic Clutch Fluid
(GM Part
System No. 12345347
or equivalent).
Power Steering
GM Hydraulic Power Steering
System Fluid (GM Part
No. 1052884 or
equivalent).
Manual DEXRON@-I11 Automatic
Transmission Transmission Fluid.
Automatic DEXRON@-IIT Automatic
Transmission Transmission Fluid.
Key Lock Lubricate with Multi-Purpose
Cylinders Lubricant (GM Part
No. 12345120)
or synthetic
SAE 5W-30 engine
oil.
Automatic Engine oil.
Transmission
Shift Linkage
Clutch Linkage Engine oil.
Pivot Points

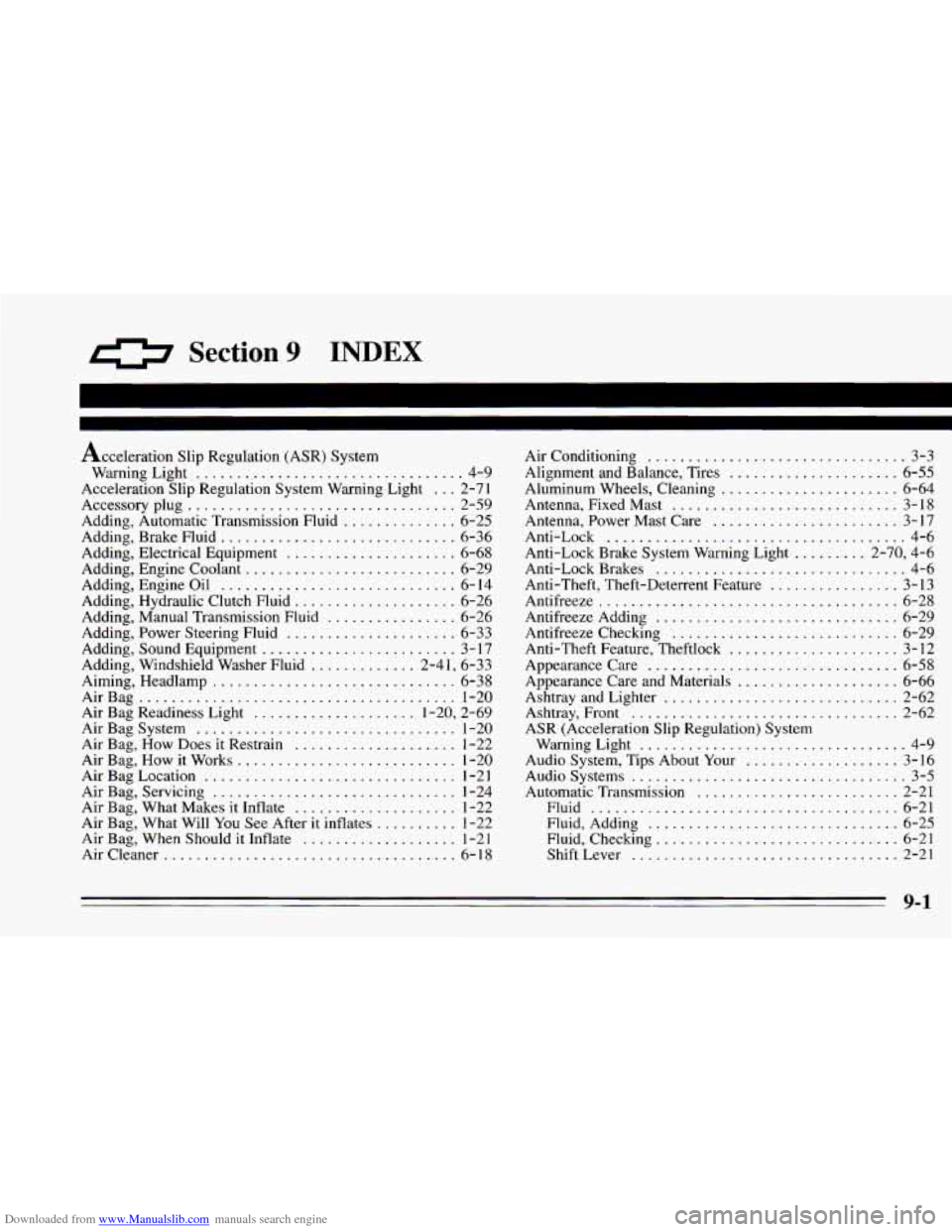

Downloaded from www.Manualslib.com manuals search engine 0 Section 9 INDEX
Acceleration slip Regulation (ASR) System
WarningLight
................................. 4-9
Acceleration Slip Regulation System Warning Light
... 2-71
Accessory plug
................................. 2-59
Adding. Automatic Transmission Fluid
.............. 6-25
Adding. Brake Fluid
............................. 6-36
Adding. Electrical Equipment
..................... 6-68
Adding. Engine Coolant .......................... 6-29
Adding. Engine Oil
............................. 6- 14
Adding. Manual Transmission Fluid
................ 6-26
Adding. Sound Equipment
........................ 3- 17
Adding. Windshield Washer Fluid
............. 2-41. 6-33
Aiming. Headlamp
.............................. 6-38
AirBag
....................................... 1-20
Air Bag Readiness Light .................... 1-20. 2-69
Air Bag. How Does
it Restrain .................... 1-22
Air Bag. How it Works
........................... 1-20
Air Bag Location
............................... 1-2 1
Air Bag. Servicing .............................. 1-24
Air Bag. What Makes
it Inflate .................... 1-22
Air Bag. What Will
You See After it inflates .......... 1-22
Air Bag. When Should it Inflate
................... 1-21
Aircleaner
.................................... 6-18
Adding.
Hydraulic Clutch Fluid
.................... 6-26
Adding. Power Steering Fluid
..................... 6-33
Air Bag System
................................ 1-20 Air Conditioning
................................ 3-3
Alignment and Balance. Tires
..................... 6-55
Aluminum Wheels. Cleaning ...................... 6-64
Antenna. Fixed Mast
............................ 3-18
Antenna. Power Mast Care
....................... 3-17
Anti-Lock
..................................... 4-6
Anti-Lock Brake System Warning Light
......... 2-70. 4-6
Anti-Lock Brakes
............................... 4-6
Anti-Theft. Theft-Deterrent Feature
................ 3-13
Antifreeze
..................................... 6-28
Antifreeze Adding
.............................. 6-29
Antifreeze Checking
............................ 6-29
Anti-Theft Feature. Theftlock
..................... 3-12
Appearance Care
............................... 6-58
Appearance Care and Materials
.................... 6-66
Ashtray and Lighter
............................. 2-62
Ashtray. Front
................................. 2-62
ASR (Acceleration Slip Regulation) System
Warning Light
................................. 4-9
Audio System. Tips About Your
................... 3-16
Audio Systems
.................................. 3-5
Automatic Transmission
......................... 2-21
Fluid
...................................... 6-21
Fluid. Adding ............................... 6-25
Fluid. Checking
.............................. 6-21
ShiftLever
................................. 2-21
9-1
