Charging System

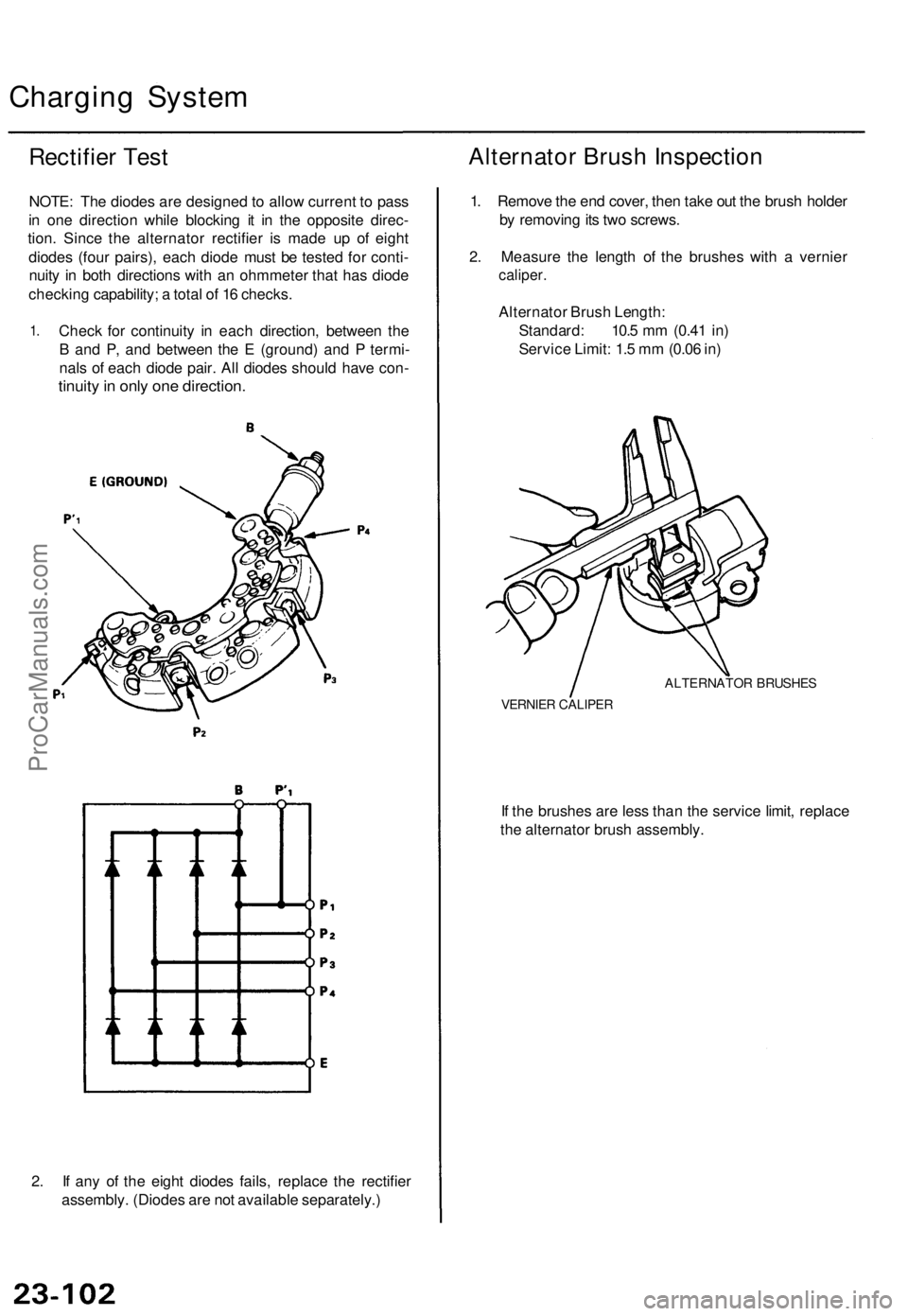

Rectifier Test
NOTE: The diodes are designed to allow current to pass
in one direction while blocking it in the opposite direc-
tion. Since the alternator rectifier is made up of eight
diodes (four pairs), each diode must be tested for conti-
nuity in both directions with an ohmmeter that has diode
checking capability; a total of 16 checks.
1.
Check for continuity in each direction, between the
B and P, and between the E (ground) and P termi-
nals of each diode pair. All diodes should have con-
tinuity in only one direction.
2. If any of the eight diodes fails, replace the rectifier
assembly. (Diodes are not available separately.)
Alternator Brush Inspection
1. Remove the end cover, then take out the brush holder
by removing its two screws.
2. Measure the length of the brushes with a vernier
caliper.
Alternator Brush Length:
Standard: 10.5 mm (0.41 in)
Service Limit: 1.5 mm (0.06 in)
ALTERNATOR BRUSHES
VERNIER CALIPER
If the brushes are less than the service limit, replace
the alternator brush assembly.ProCarManuals.com
Charging Syste m

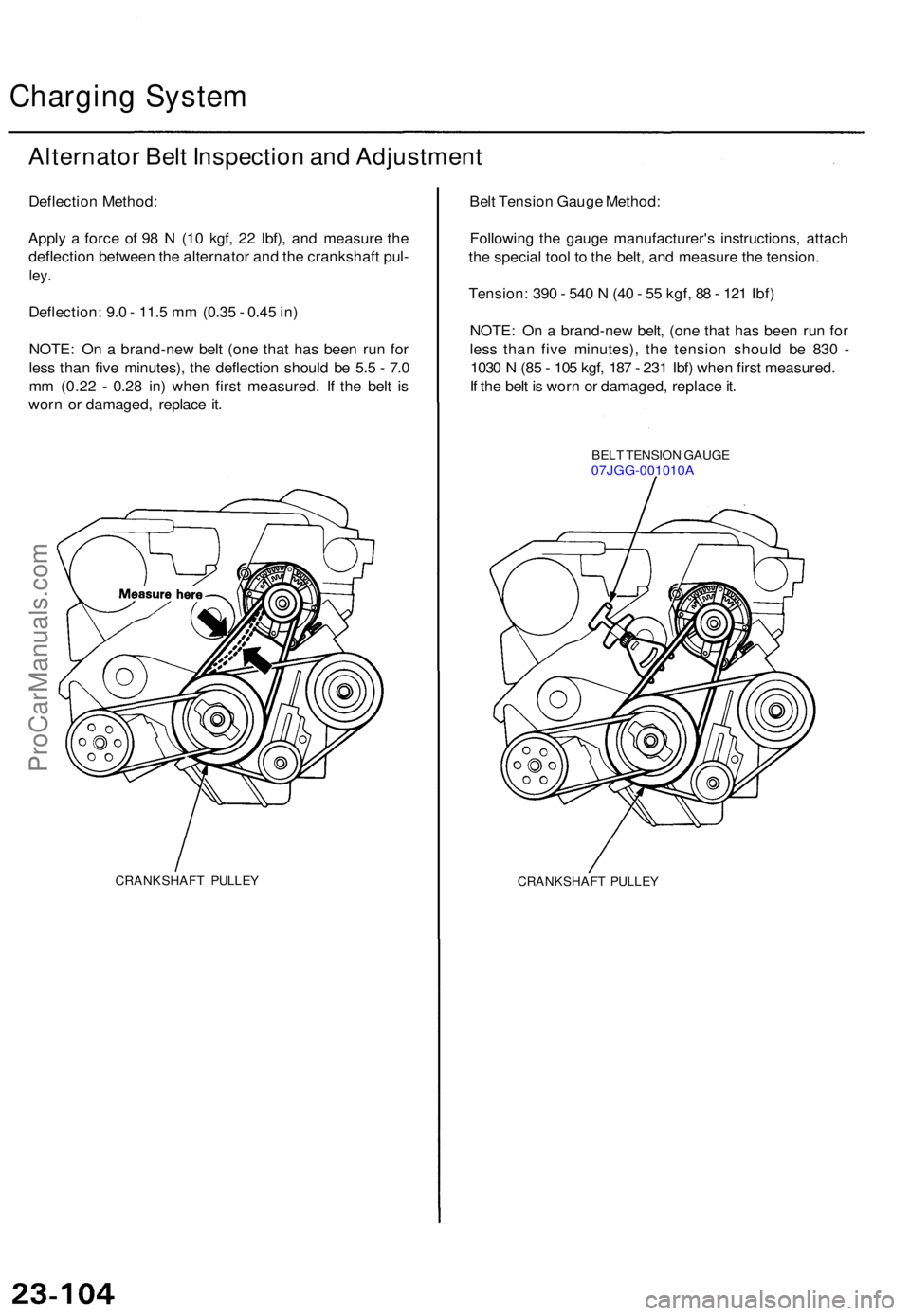

Alternato r Bel t Inspectio n an d Adjustmen t
Deflection Method :
Appl y a forc e o f 9 8 N (1 0 kgf , 2 2 Ibf) , an d measur e th e
deflectio n betwee n th e alternato r an d th e crankshaf t pul -
ley.
Deflection : 9. 0 - 11. 5 m m (0.3 5 - 0.4 5 in )
NOTE : O n a brand-ne w bel t (on e tha t ha s bee n ru n fo r
les s tha n fiv e minutes) , th e deflectio n shoul d b e 5. 5 - 7. 0
m m (0.2 2 - 0.2 8 in ) whe n firs t measured . I f th e bel t i s
wor n o r damaged , replac e it .
CRANKSHAF T PULLE Y
Belt Tensio n Gaug e Method :
Followin g th e gaug e manufacturer' s instructions , attac h
th e specia l too l t o th e belt , an d measur e th e tension .
Tension : 39 0 - 54 0 N (4 0 - 5 5 kgf , 8 8 - 12 1 Ibf )
NOTE : O n a brand-ne w belt , (on e tha t ha s bee n ru n fo r
les s tha n fiv e minutes) , th e tensio n shoul d b e 83 0 -
103 0 N (8 5 - 10 5 kgf , 18 7 - 23 1 Ibf ) whe n firs t measured .
I f th e bel t i s wor n o r damaged , replac e it .
BEL T TENSIO N GAUG E07JGG-001010 A
CRANKSHAFT PULLE Y
ProCarManuals.com

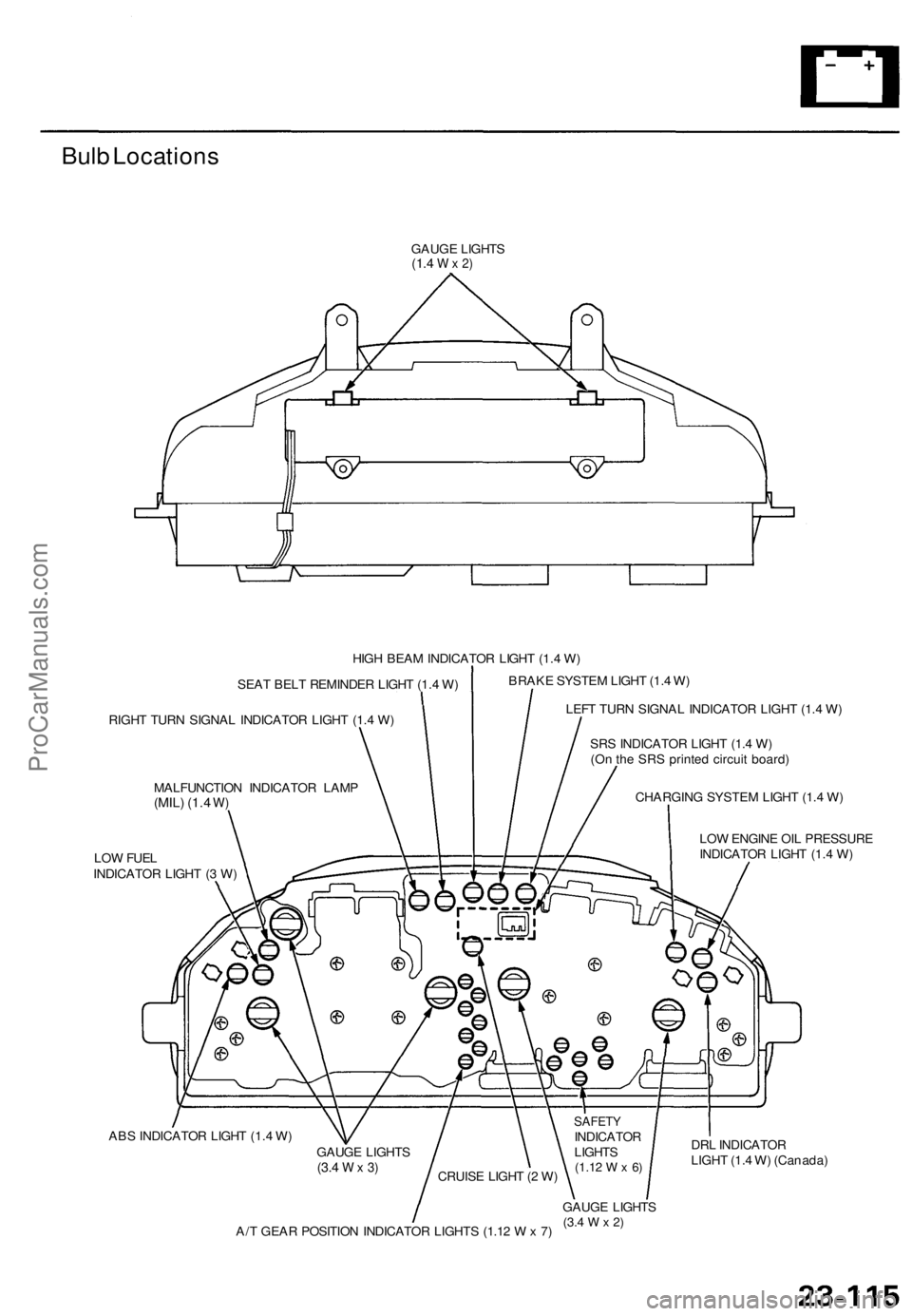

Bulb Locations
GAUGE LIGHTS
(1.4
W x 2)
HIGH BEAM INDICATOR LIGHT (1.4 W)
SEAT BELT REMINDER LIGHT (1.4 W)
RIGHT TURN SIGNAL INDICATOR LIGHT (1.4 W)
MALFUNCTION INDICATOR LAMP
(MIL) (1.4
W)
LOW FUEL
INDICATOR LIGHT (3 W)
BRAKE SYSTEM LIGHT (1.4 W)
LEFT TURN SIGNAL INDICATOR LIGHT (1.4 W)
SRS INDICATOR LIGHT (1.4 W)
(On the SRS printed circuit board)
CHARGING SYSTEM LIGHT (1.4 W)
LOW ENGINE OIL PRESSURE
INDICATOR LIGHT (1.4 W)
ABS INDICATOR LIGHT (1.4 W)
DRL INDICATOR
LIGHT (1.4 W) (Canada)
CRUISE LIGHT (2 W)
A/T GEAR POSITION INDICATOR LIGHTS (1.12 W x 7)
GAUGE LIGHTS
(3.4
W x 2)
SAFETY
INDICATOR
LIGHTS
(1.12
W x 6)
GAUGE LIGHTS
(3.4
W x 3)ProCarManuals.com
