1995 ACURA TL engine

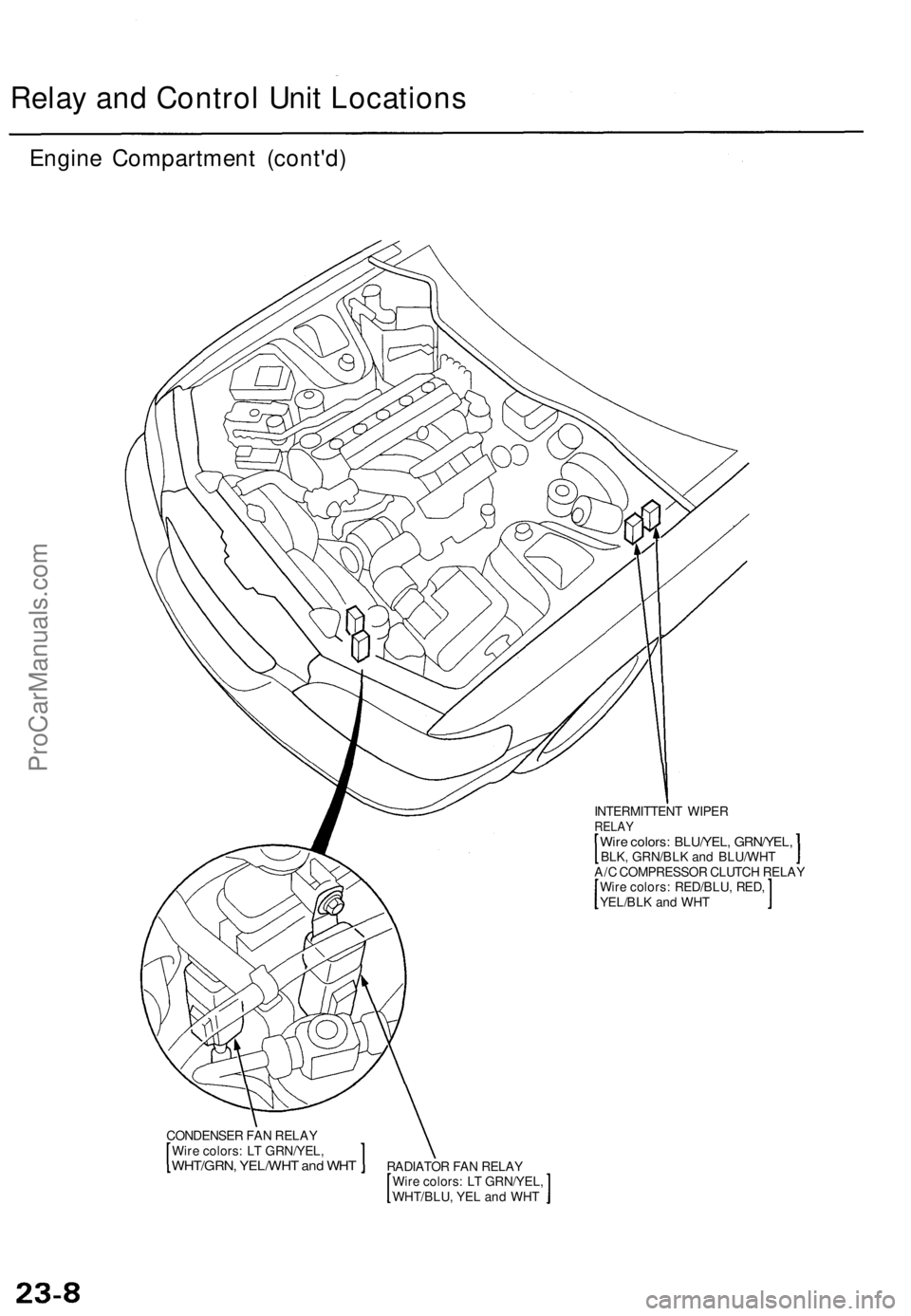

Relay and Control Unit Locations

Engine Compartment (cont'd)

INTERMITTENT WIPER

RELAY

Wire colors: BLU/YEL, GRN/YEL,

BLK, GRN/BLK and BLU/WHT

A/C COMPRESSOR CLUTCH RELAY

Wire colors: RED/BLU, RED,

YEL/BLK and WHT

CONDENSER FAN RELAY

Wire colors: LT GRN/YEL,

WHT/GRN, YEL/WHT and WHT

RADIATOR FAN RELAY

Wire colors: LT GRN/YEL,

WHT/BLU, YEL and WHTProCarManuals.com

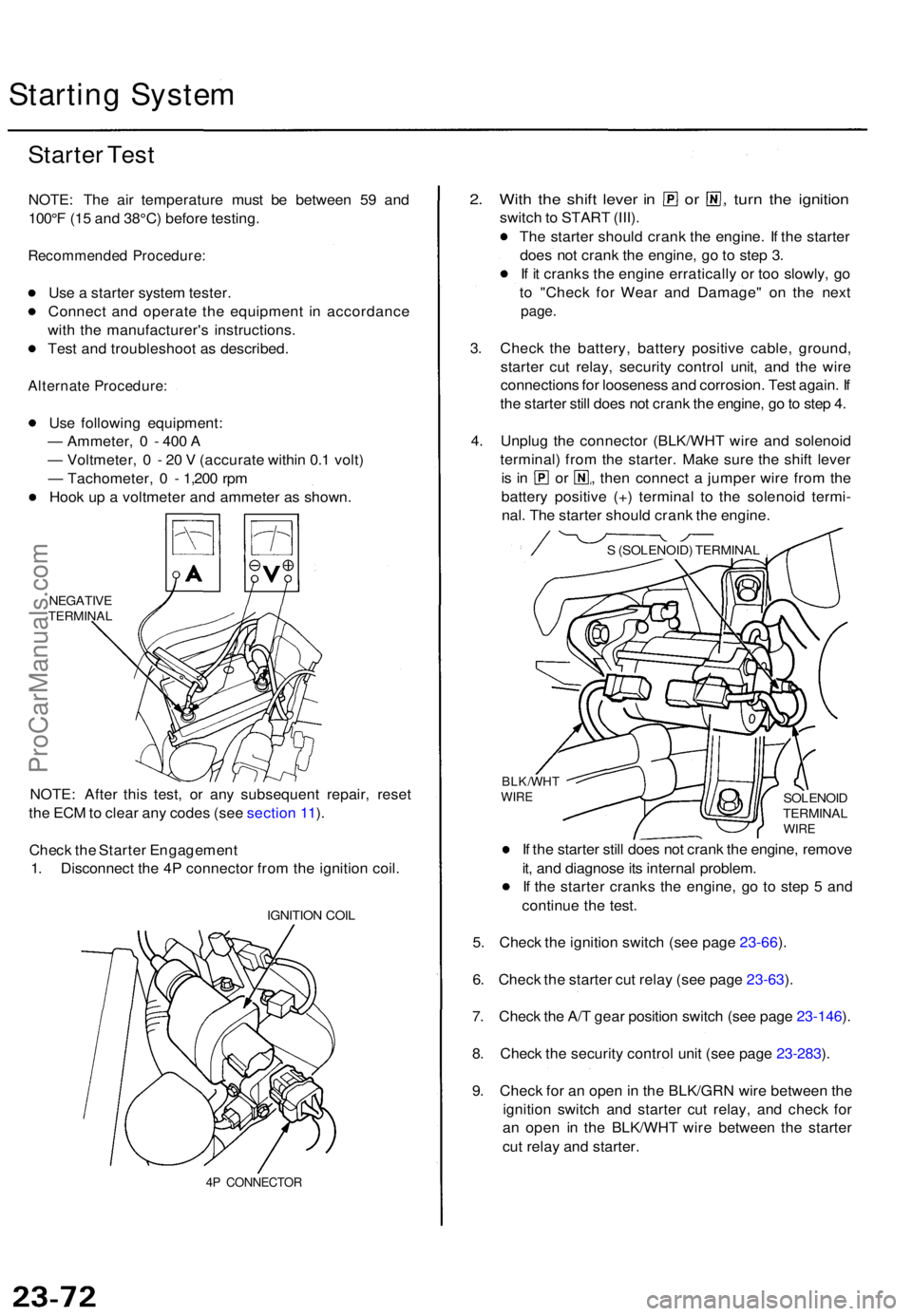

Starting Syste m
Starter Tes t
NOTE : Th e ai r temperatur e mus t b e betwee n 5 9 an d
100° F (1 5 an d 38°C ) befor e testing .
Recommende d Procedure :
Use a starte r syste m tester .
Connec t an d operat e th e equipmen t i n accordanc e
wit h th e manufacturer' s instructions .
Tes t an d troubleshoo t a s described .
Alternate Procedure :
Use followin g equipment :
— Ammeter , 0 - 400 A
— Voltmeter , 0 - 20 V (accurat e withi n 0. 1 volt )
— Tachometer , 0 - 1,20 0 rp m
Hoo k u p a voltmete r an d ammete r a s shown .
NEGATIV ETERMINA L
NOTE: Afte r thi s test , o r an y subsequen t repair , rese t
th e EC M to clea r an y code s (se e sectio n 11 ).
Chec k th e Starte r Engagemen t
1 . Disconnec t th e 4 P connecto r fro m th e ignitio n coil .
IGNITIO N COI L
4P CONNECTO R
2. Wit h th e shif t leve r i n o r , turn th e ignitio n
switch to STAR T (III) .
Th e starte r shoul d cran k th e engine . I f th e starte r
doe s no t cran k th e engine , g o to ste p 3 .
I f i t crank s th e engin e erraticall y o r to o slowly , g o
t o "Chec k fo r Wea r an d Damage " o n th e nex t
page .
3. Chec k th e battery , batter y positiv e cable , ground ,
starte r cu t relay , securit y contro l unit , an d th e wir e
connection s fo r loosenes s an d corrosion . Tes t again . I f
th e starte r stil l doe s no t cran k th e engine , g o to ste p 4 .
4 . Unplu g th e connecto r (BLK/WH T wir e an d solenoi d
terminal ) fro m th e starter . Mak e sur e th e shif t leve r
is i n o r , then connec t a jumpe r wir e fro m th e
batter y positiv e (+ ) termina l t o th e solenoi d termi -
nal . Th e starte r shoul d cran k th e engine .
I f th e starte r stil l doe s no t cran k th e engine , remov e
it , an d diagnos e it s interna l problem .
I f th e starte r crank s th e engine , g o t o ste p 5 an d
continu e th e test .
5 . Chec k th e ignitio n switc h (se e pag e 23-66 ).
6 . Chec k th e starte r cu t rela y (se e pag e 23-63 ).
7 . Chec k th e A/ T gea r positio n switc h (se e pag e 23-146 ).
8 . Chec k th e securit y contro l uni t (se e pag e 23-283 ).
9 . Chec k fo r a n ope n in th e BLK/GR N wir e betwee n th e
ignitio n switc h an d starte r cu t relay , an d chec k fo r
a n ope n i n th e BLK/WH T wir e betwee n th e starte r
cu t rela y an d starter .
SOLENOI DTERMINA LWIRE
BLK/WH TWIRE
S (SOLENOID ) TERMINA L
ProCarManuals.com

Check for Wear and Damage

The starter should crank the engine smoothly and steadily.

If the starter engages, but cranks the engine erratically,

remove it, and inspect the starter drive gear and torque

converter ring gear for damage.

Check the drive gear overrunning clutch for binding or

slipping when the armature is rotated with the drive

gear held. If the clutch is damaged, replace the clutch

assembly.

Check Cranking Voltage and Current Draw

Cranking voltage should be no less than 8.5 volts.

Current draw should be no more than 380 amperes.

If cranking voltage is too low, or current draw too high,

check for:

Dead or low battery

Open circuit in starter armature commutator segments

Starter armature dragging

Shorted armature winding

Excessive drag in engine

Check Cranking rpm

Engine speed during cranking should be above 100 rpm.

If speed is too low, check for:

Loose battery or starter terminals

Excessively worn starter brushes

Open circuit in commutator segments

Dirty or damaged helical spline or drive gear

Defective drive gear overrunning clutch

Check Starter Disengagement

With the shift lever in turn the ignition switch to

"START (III)", and release to "ON (II)". The starter drive

gear should disengage from the drive plate/ring gear

when you release the key.

If the drive gear hangs up on the drive plate/ring gear,

check for:

• Solenoid plunger and switch malfunction

• Dirty drive gear assembly or damaged overrunning

clutchProCarManuals.com

Ignition Syste m
Descriptio n
Ignition Timin g Control :
Th e programme d ignitio n (PGM-IG ) use d i n thi s engin e provide s optimu m contro l o f ignitio n timing . A microcompute r
determine s th e timin g i n respons e t o engin e spee d an d intak e ai r flo w mass . Th e inpu t signal s ar e transmitte d b y th e
TDC/CKP/CY P sensor , throttl e positio n (TP ) sensor , engine coolant temperatur e (ECT ) sensor , an d MA F sensor . Thi s sys -
tem , whic h i s no t dependen t o n a governo r o r vacuu m diaphragm , i s capabl e o f settin g lea d angle s wit h complicate d char -
acteristic s whic h canno t b e provide d b y conventiona l governor s o r diaphragms .
Basi c Control :
The contro l uni t ha s store d withi n it th e optimu m basi c ignitio n timin g fo r operatin g condition s base d upo n engin e spee d
and intak e ai r flo w mass . Wit h compensatin g signal s fro m sensors , th e syste m determine s optimu m ignitio n timin g an d
duratio n fo r ambien t condition s an d send s voltag e pulse s t o th e ICM .
Compensatio n of ignitio n timing :
Compensatio n Ite m
Idlin g
Compensatio n a t warm-u p
ECT compensatio n Relate
d Senso r an d Informatio n
TDC/CKP/CY P senso r
MAF senso r
ECT senso r
ECT senso r
Descriptio n
Ignition timin g i s controlle d t o th e targe t spee d
wit h compensatio n accordin g t o th e idlin g speed .
La g angl e is adjuste d accordin g t o warm-u p con -
dition s t o brin g abou t a goo d balanc e betwee n
operating performanc e an d exhaus t ga s level .
Compensatio n fo r lea d angl e a t lo w engin e
coolan t temperatur e an d la g angl e a t hig h engin e
coolan t temperature .
Control a t Start :
Ignitio n timin g is fixe d a t 5 ° BTD C fo r cranking . Th e crankin g is detecte d b y th e TD C senso r (crankin g rpm ) an d starte r signal .
ProCarManuals.com

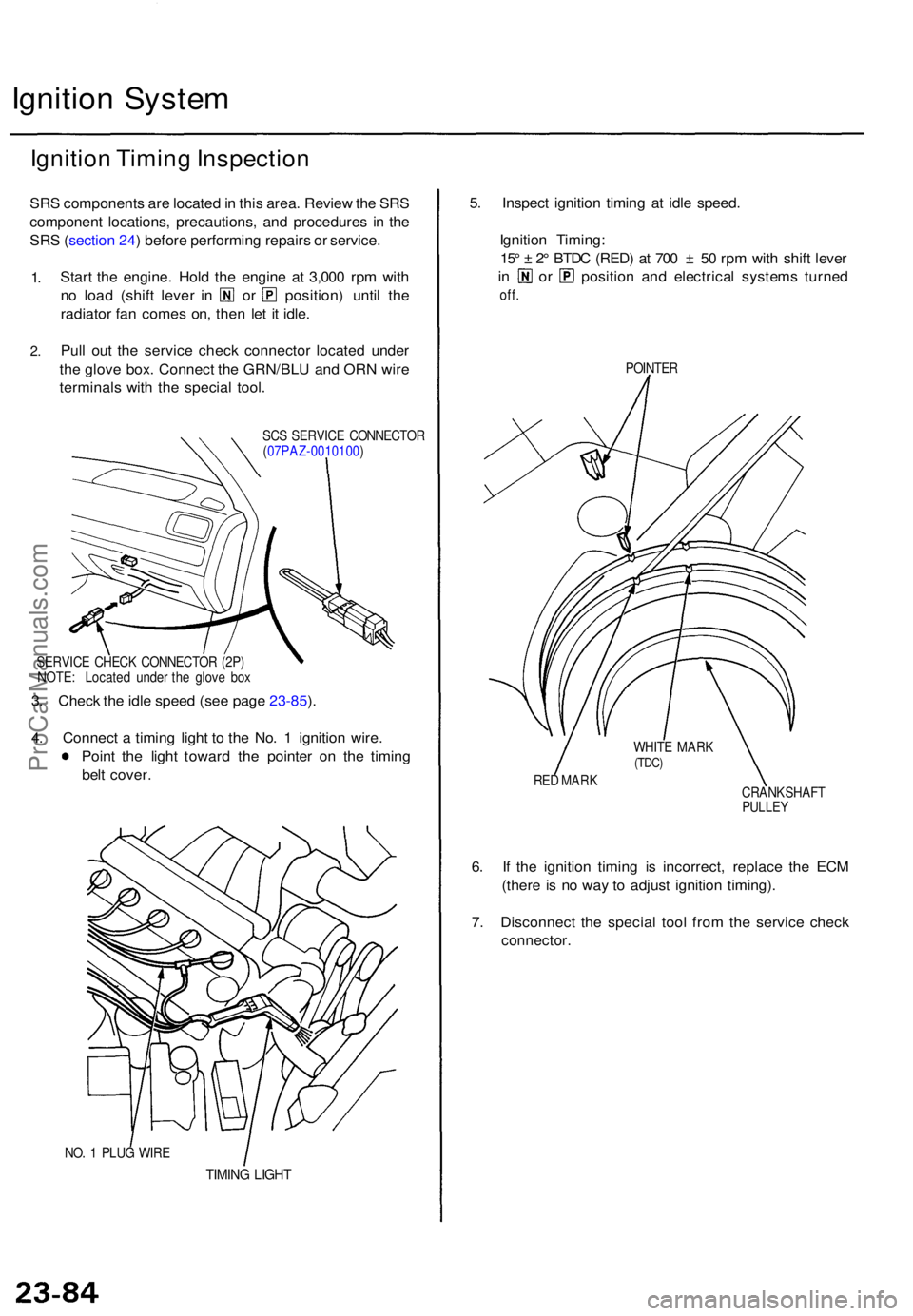

Ignition Syste m
Ignition Timin g Inspectio n
SRS component s ar e locate d in thi s area . Revie w th e SR S
componen t locations , precautions , an d procedure s i n th e
SR S (sectio n 24 ) befor e performin g repair s o r service .
1.
2 .
Star t th e engine . Hol d th e engine at 3,00 0 rp m wit h
no loa d (shif t leve r i n o r position ) unti l th e
radiato r fa n come s on , the n le t i t idle .
Pul l ou t th e servic e chec k connecto r locate d unde r
th e glov e box . Connec t th e GRN/BL U an d OR N wir e
terminal s wit h th e specia l tool .
SCS SERVIC E CONNECTO R
( 07PAZ-0010100 )
SERVIC E CHEC K CONNECTO R (2P)
NOTE : Locate d unde r th e glov e bo x
3. Chec k th e idl e spee d (se e pag e 23-85 ).
4 . Connec t a timin g ligh t t o th e No . 1 ignitio n wire .
Poin t th e ligh t towar d th e pointe r o n th e timin g
bel t cover .
NO. 1 PLU G WIR E
TIMIN G LIGH T
5. Inspec t ignitio n timin g a t idl e speed .
Ignitio n Timing :
15 ° ± 2° BTD C (RED ) a t 70 0 ± 50 rp m wit h shif t leve r
in o r positio n an d electrica l system s turne d
off.
POINTE R
RE D MAR K
CRANKSHAFT
PULLEY
6. I f th e ignitio n timin g i s incorrect , replac e th e EC M
(ther e is n o wa y t o adjus t ignitio n timing) .
7 . Disconnec t th e specia l too l fro m th e servic e chec k
connector .
WHITE MAR K(TDC)
ProCarManuals.com

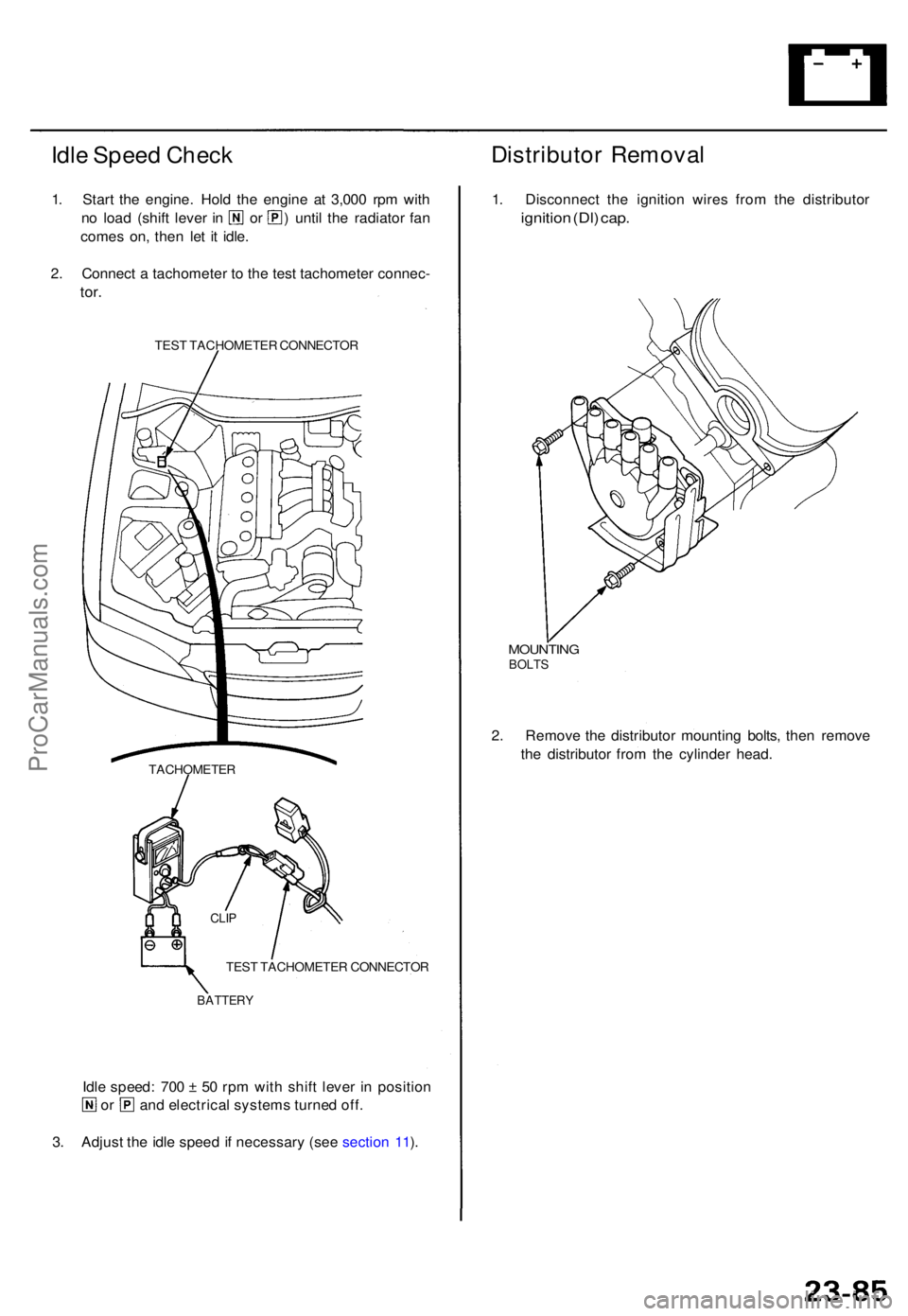

Idle Spee d Chec k
1. Star t th e engine . Hol d th e engin e a t 3,00 0 rp m wit h
no loa d (shif t leve r i n o r ) unti l th e radiato r fa n
come s on , the n le t i t idle .
2 . Connec t a tachomete r t o th e tes t tachomete r connec -
tor.
TES T TACHOMETE R CONNECTO R
TES T TACHOMETE R CONNECTO R
BATTERY
Idle speed : 70 0 ± 5 0 rp m wit h shif t leve r i n positio n
or an d electrica l system s turne d off .
3 . Adjus t th e idl e spee d if necessar y (se e sectio n 11 ).
Distributo r Remova l
1. Disconnec t th e ignitio n wire s fro m th e distributo r
ignition (Dl ) cap .
MOUNTIN GBOLTS
2. Remov e th e distributo r mountin g bolts , the n remov e
th e distributo r fro m th e cylinde r head .
CLIP
TACHOMETE R
ProCarManuals.com

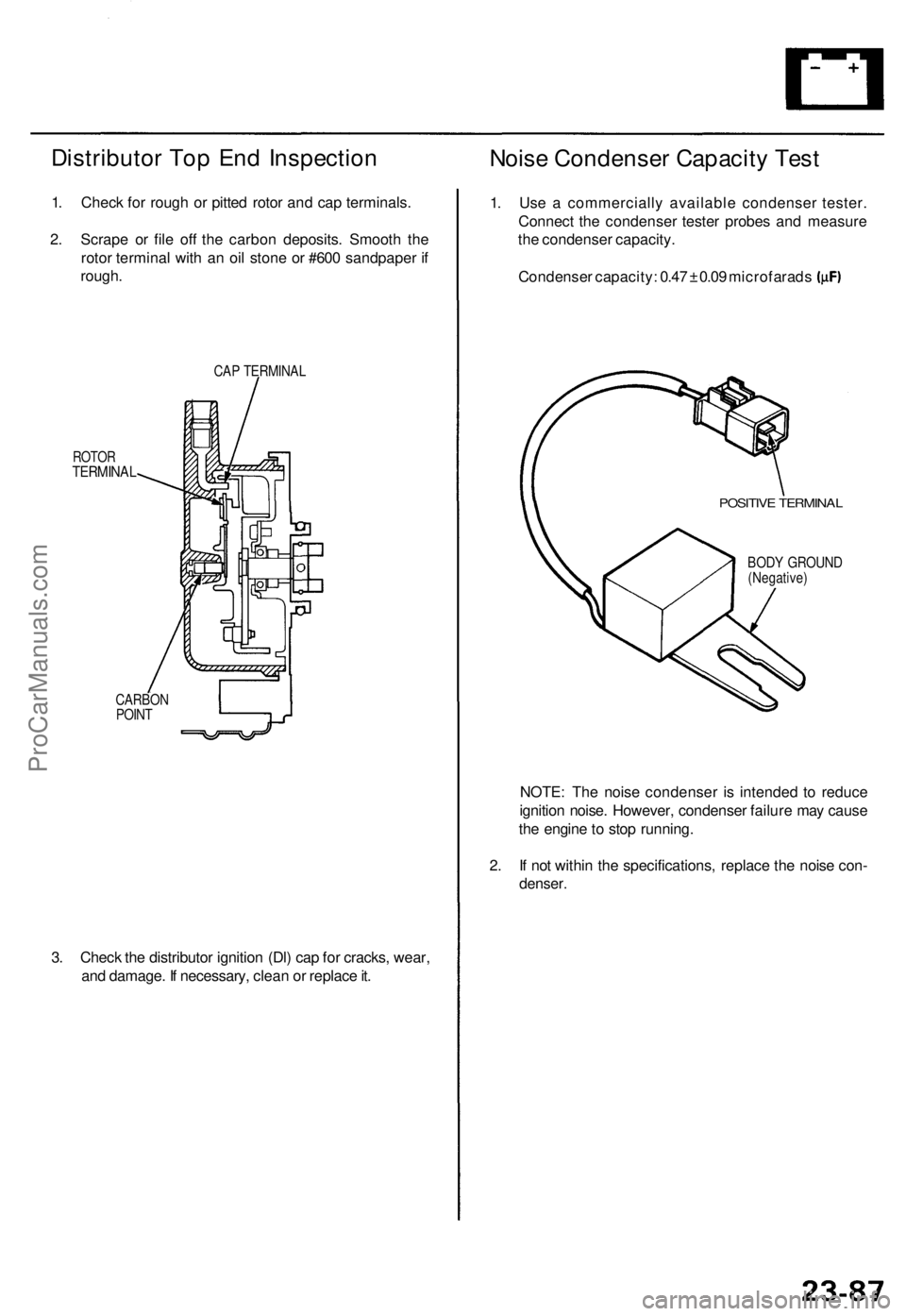

Distributor Top End Inspection

1. Check for rough or pitted rotor and cap terminals.

2. Scrape or file off the carbon deposits. Smooth the

rotor terminal with an oil stone or #600 sandpaper if

rough.

ROTOR

TERMINAL
CAP TERMINAL

CARBON

POINT

3. Check the distributor ignition (Dl) cap for cracks, wear,

and damage. If necessary, clean or replace it.
Noise Condenser Capacity Test

1. Use a commercially available condenser tester.

Connect the condenser tester probes and measure

the condenser capacity.

Condenser capacity: 0.47 ± 0.09 microfarads

POSITIVE TERMINAL

BODY GROUND

(Negative)

NOTE: The noise condenser is intended to reduce

ignition noise. However, condenser failure may cause

the engine to stop running.

2. If not within the specifications, replace the noise con-

denser.ProCarManuals.com

Charging System

Description

To improve fuel economy, the alternator control system within the ECM changes the voltage generated at the alternator in

accordance with driving conditions.

Throttle position (TP) sensor

Engine coolant temperature

(ECT) sensor

Intake air temperature (IAT)

sensor

TDC/CKP/CYP sensor

Vehicle speed sensor (VSS)

ELD

Air conditioning signal
ECM

Alternator

STARTER SWITCH ON
Generated voltage decreases from 14.0 V to 12.5 V

AND

ELECTRICAL LOAD below 15 A

and

VEHICLE SPEED between 9 mph (15 km/h) and

44 mph (70
km/h)

and

ENGINE SPEED between 1,100 rpm and 3,000 rpm

and

ENGINE COOLANT TEMPERATURE above 176°F

(80°C)

and

A/C SWITCH OFF

and

INTAKE AIR TEMPERATURE above 65°F (18°C)
AND

FUEL CUT-OFF CON-

TROL function is not
