1994 OLDSMOBILE SILHOUETTE Owners Manual

0

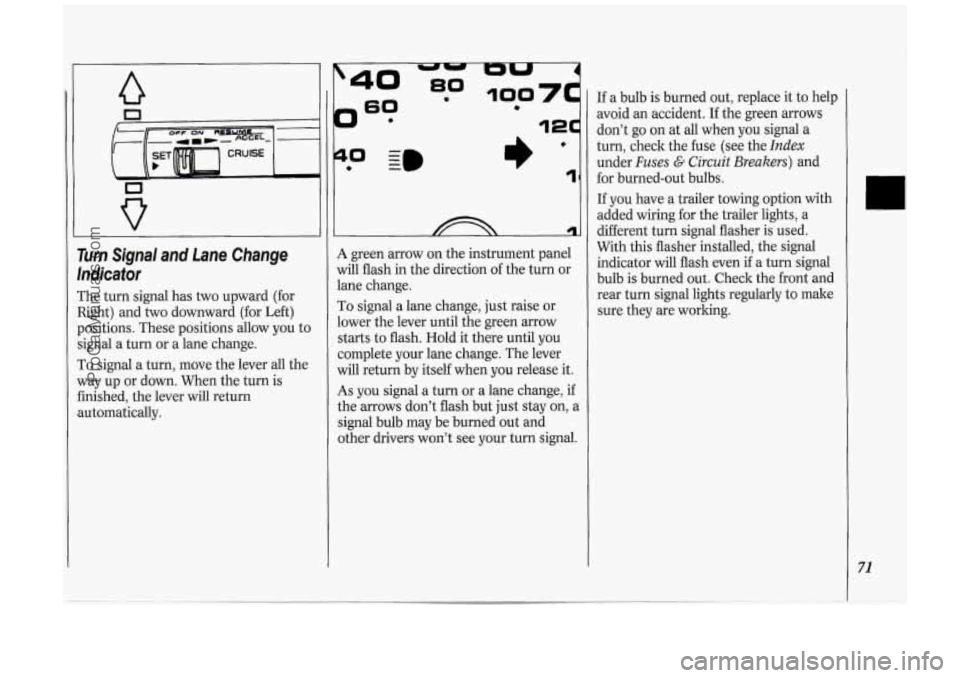

Turn Signal and Lane Change
lndicafor
The turn signal has two upward (for
Right) and two downward (for Left)
positions. These positions allow you to
signal a turn or a lane change.
To signal a turn, move the lever all the
way up or down. When the turn is
finished, the lever will return
automatically.
?
0 - I)’ 1
A green arrow on the instrument panel
will flash in the direction of the turn or
lane change.
To signal a lane change, just raise or
lower the lever until the green arrow
starts to flash. Hold it there until you
complete your lane change. The lever
will return by itself when you release it.
As you signal a turn or a lane change, if
the arrows don’t flash but just stay on, a
signal bulb may be burned out and
other drivers won’t see your turn signal. If
a bulb is burned out, replace it to help
avoid an accident. If the green arrows
don’t go on at all when you signal a
turn, check the fuse (see the
Index
under Fuses G Circuit Breakers) and
for burned-out bulbs.
If you have a trailer towing option with
added wiring for the trailer lights, a
different turn signal flasher is used.
With this flasher installed, the signal
indicator will flash even
if a turn signal
bulb is burned out. Check the front and
rear turn signal lights regularly to make
sure they are working.
71
ProCarManuals.com

Features & Controls
72

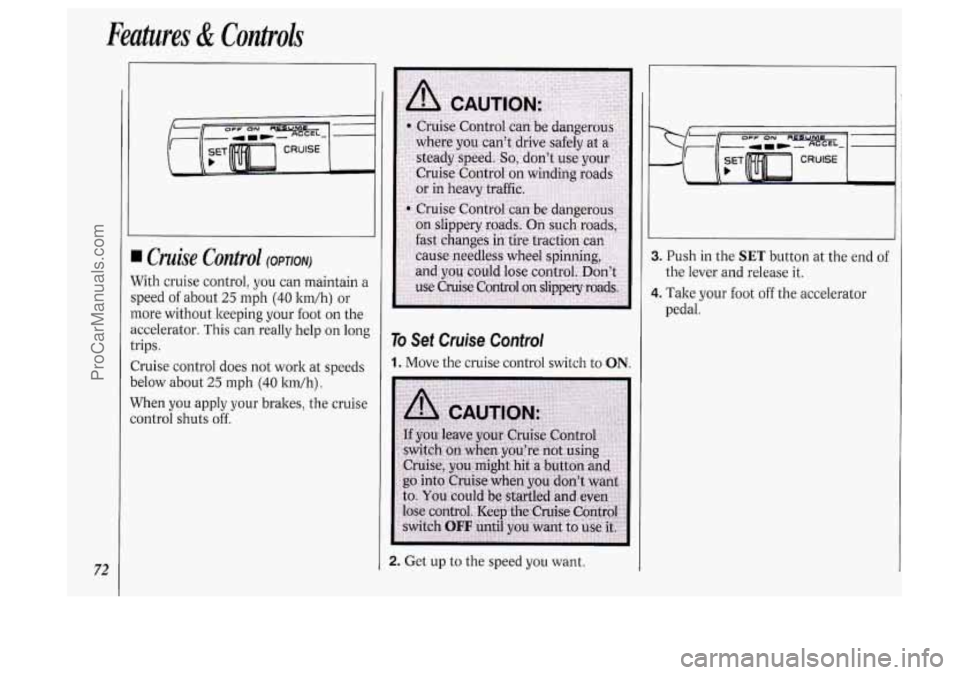

I Cruise Control (OPTION)
With cruise control, you can maintain a
speed of about
25 mph (40 lun/h) or
more without keeping your foot on the
accelerator.
This can really help on long
trips.
Cruise control does not work at speeds
below about
25 rnph (40 ltm/h).
When you apply your brakes, the cruise
control shuts
off.
To Sef Cruise Control
1. Move the cruise control switch to ON.
2. Get up to the speed you want.
3. Push in the SET button at the end of
4. Take your foot off the accelerator
the
lever and release it.
pedal.
ProCarManuals.com

ro Resume a Set Speed
Suppose you set your cruise control at a
lesired speed and then you apply the
brake. This, of course, shuts
off the
mise control. But you don’t need to
reset it. Once you’re going about
25
rnph (40 km/h) or more, you can move
the cruise control- switch from
ON to
RESUME/ACCEL (which stands for
Resume/Accelerate) for about half a
second.
You’ll go right back up to your chosen
speed and stay there.
If you have the
3800 V6 engine, cruise
control memory will be erased when
you place the transaxle in P (Park). If
this is the case, you will not be able to resume
your set speed by moving the
cruise control switch to
RESUME/
ACCEL.
Use the SET button to reset cruise (see
To Set Cruise Control earlier in this
section).
If you hold the switch at
RESUME/ACCEL longer than half a
second, the vehicle will keep going
faster until
you release the switch or
apply the brake. You could be startled
and even lose control.
So unless you
want to go faster, don’t hold the switch
at
RESUME/ACCEL.
To Increase Speed While Using
Cruise Control
There are two ways to go to a higher
speed. Here’s the first:
1. Use the accelerator pedal to get to the
2. Push the button at the end of the
higher
speed.
lever, then release the button and the
accelerator pedal. You’ll now cruise
at the higher speed. Here’s the second
way to go to a higher
speed:
Move the cruise switch from ON to
RESUME/ACCEL. Hold it there
until you get up to the speed you
want, and then release the switch.
To increase your speed in very small
amounts, move the switch to
RESUME/ACCEL for less than half
a second and then release it. Each
time you do this, your vehicle will go
about
1 mph (1.6 km/h) faster.
If you have the 3800 V6 engine, the
accelerate feature will only work after
you have set the initial cruise control
speed by pushing the
SET button. If
you have the
3100 V6 engine, the
accelerate feature will work whether or
not you have set an initial cruise control
speed.
To Reduce Speed While Using
Cruise Control
Push in the button at the end of the
lever until you reach the lower speed
you want, then release it.
73
ProCarManuals.com

74
Features & Controls

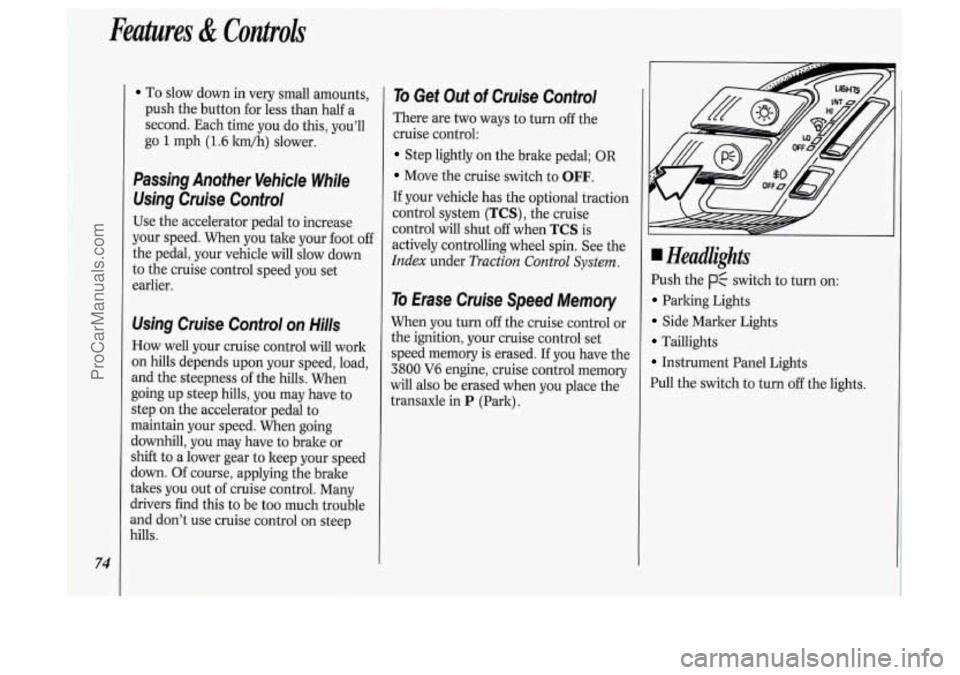

To slow down in very small amounts,
push the button for less than half
a
second. Each time you do this, you'll
go
1 mph (1.6 ltm/h) slower.
Passing Another Vehicle While
Using Cruise Control
Use the accelerator pedal to increase
your speed. When you take your foot off
the pedal, your vehicle will slow down
to the cruise control speed you set
earlier.
Using Cruise Control on Hills
How well your cruise control will work
on hills depends upon your speed, load,
and the steepness of the hills. When
going up steep hills, you may have to
step on the accelerator pedal to
maintain your speed. When going
downhill,
you may have to brake or
shift to a lower gear to keep your speed
down. Of course, applying the brake
takes
you out of cruise control. Many
drivers find this to be too much trouble
and don't use cruise control on steep
hills.
To Get Out of Cruise Control
There are two ways to turn off the
cruise control:
Step lightly on the brake pedal; OR
Move the cruise switch to OFF.
If your vehicle has the optional traction
control system
(TCS), the cruise
control will shut
off when TCS is
actively controlling wheel spin. See the
Index under Traction Control System.
To Erase Cruise Speed Memory
When you turn off the cruise control or
the ignition, your cruise control set
speed memory is erased. If you have the
3800 V6 engine, cruise control memory
will also be erased when you place the
transaxle in
P (Park).
Headlights
Push the p$ switch to turn on:
Parking Lights
Side Marker Lights
Taillights
Instrument Panel Lights
Pull the switch to turn
off the lights.
ProCarManuals.com

Push the -:a- switch to turn on the
headlights, kogether with:
Parking Lights
Side Marker Lights
Taillights
Instrument Panel Lights
Pull the switch to turn off the lights.
Operation of Lights
Although your vehicle’s lighting system
(headlights, parking lights, fog lamps,
side marker lights and taillights) meets
all applicable federal lighting
requirements, certain states and
provinces may apply their own lighting
regulations that may require special
attention before you operate these
lights.
For example, some jurisdictions may
require that you operate your fog lamps
only when your lower beam headlights
are also on, or that headlights be turned
on whenever you must use your
windshield wipers.
In addition, most
jurisdictions prohibit driving solely with
parking lights, especially at dawn or
dusk. It is recommended that you check
with your
own state or provincial
highway authority for applicable
lighting regulations.
Lights On Reminder
If you turn the ignition key to the Off or
Lock position while leaving the lights
on, you will hear
a warning chime.
Headlight High-Low Beam
Changer
To change the headlights from high to
low beam, or low to high, simply pull
the turn signal lever all the way toward
you. Then release it.
When the high beams are
on, a blue
light on the instrument cluster also will
be on.
75
ProCarManuals.com

Features & Controls
76

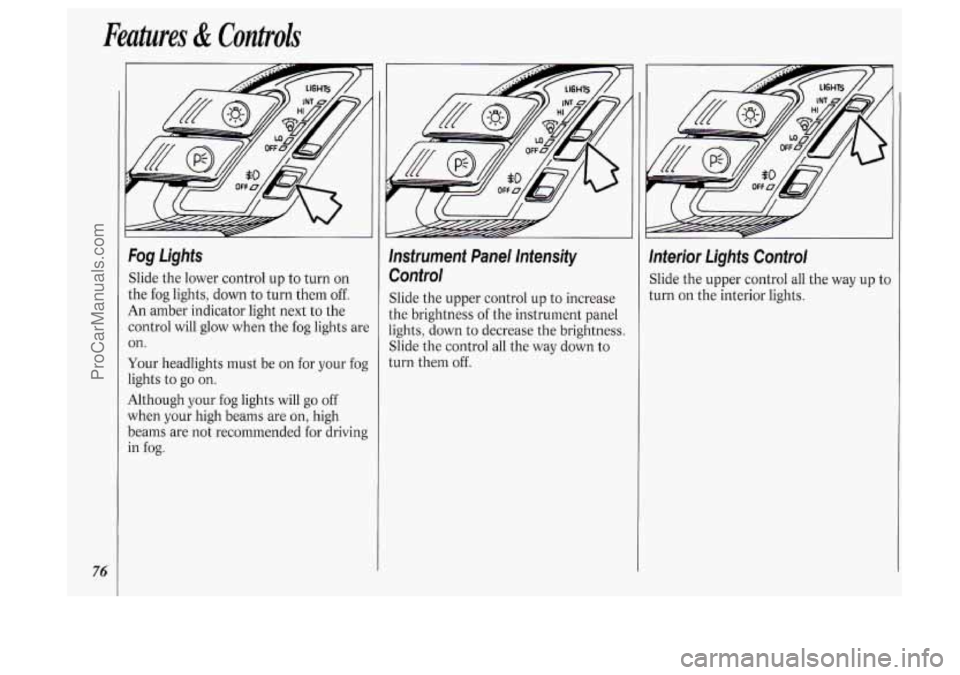

Fog Lights
Slide the lower control up to turn on
the fog lights, down to turn them
off.
An amber indicator light next to the
control will glow when the fog lights are
on.
Your headlights must be on for your fog
lights to
go on.
Although your fog lights will go off
when your high beams are on, high
beams are not recommended for driving
in
fog.
lnsfrument Panel lntensify
Control
Slide the upper control up to increase
the brightness of the instrument panel
lights, down to decrease the brightness.
Slide the control all the way down to
turn them off.
lnterior Lights Control
Slide the upper control all the way up tc
turn on the interior lights.
ProCarManuals.com

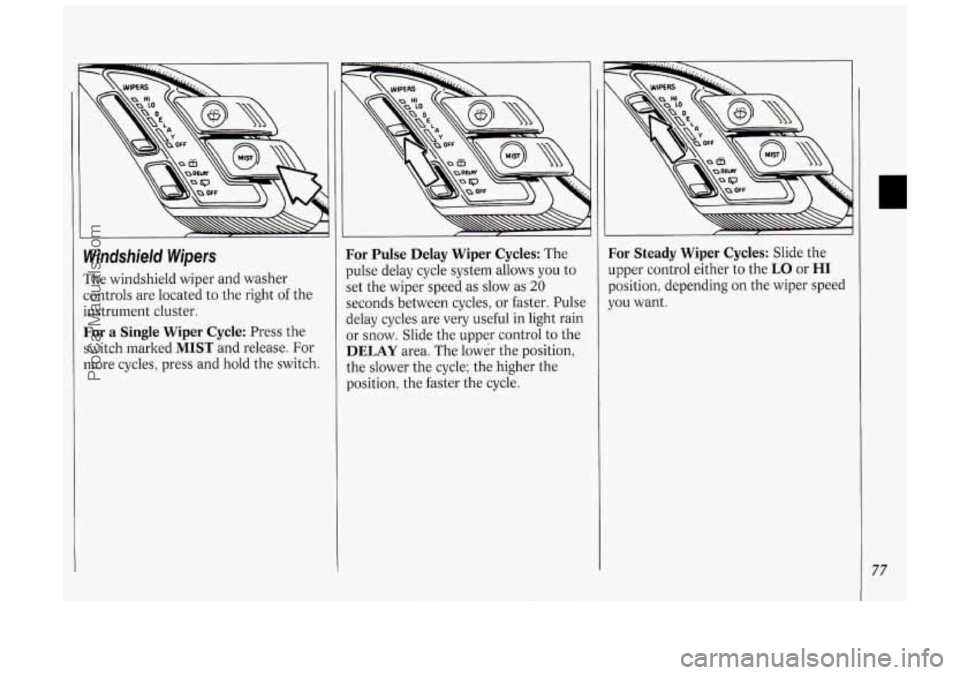

Windshield Wipers
The windshield wiper and washer
controls are located to the right of the
instrument cluster.
For a Single Wiper Cycle: Press the
switch marked
MIST and release. For
more cycles, press and hold the switch.
For Pulse Delay Wiper Cycles: The
pulse delay cycle system allows you to
set the wiper speed as slow as 20
seconds between cycles, or faster. Pulse
delay cycles are very useful in light rain
or snow. Slide the upper control to the
DELAY area. The lower the position,
the slower the cycle; the higher the
position, the faster the cycle.
For Steady Wiper Cycles: Slide the
lpper control either to the
LO or HI
?osition, depending on the wiper speed
JOU want.
77
ProCarManuals.com

Feutuves & Conlrok
78

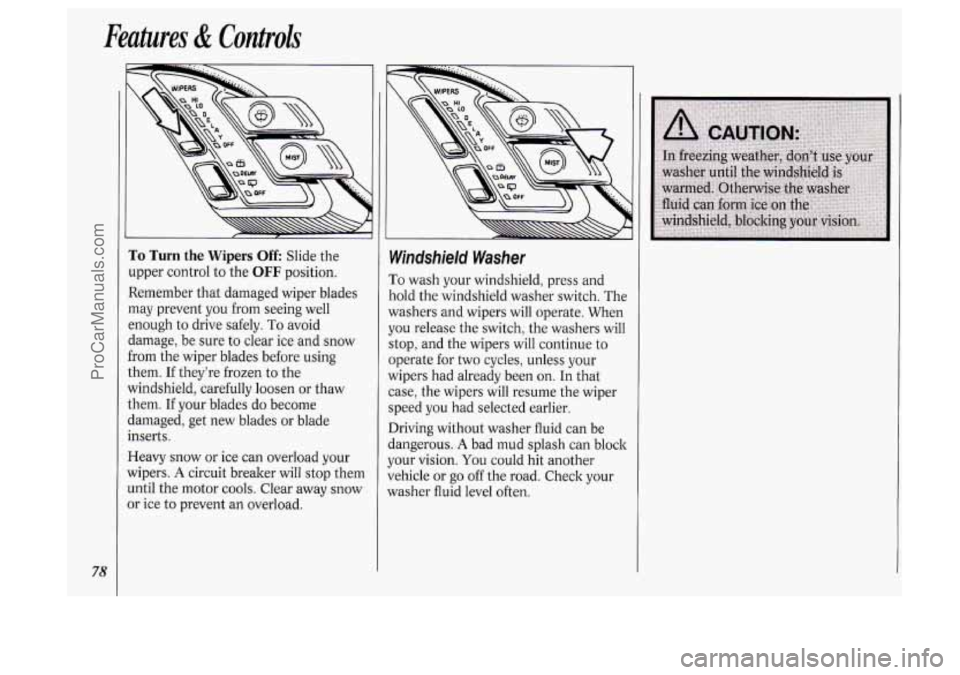

To Turn the Wipers Off Slide the
upper control to the
OFF position.
Remember that damaged wiper blades
may prevent you from seeing well
enough to drive safely.
To avoid
damage, be sure to clear ice and snow
from the wiper blades before using
them. If they’re frozen to the
windshield, carefully loosen or thaw
them.
If your blades do become
damaged, get new blades or blade
inserts.
Heavy snow or ice can overload your
wipers.
A circuit breaker will stop them
until the motor cools. Clear away snow
or ice
to prevent an overload.
Windshield Washer
ro wash your windshield, press and
Told the windshield washer switch. The
washers and wipers will operate. When
JOU release the switch, the washers will
;top, and the wipers will continue to
lperate for two cycles, unless your
wipers had already been on. In that
case, the wipers will resume the wiper
speed you had selected earlier.
Driving without washer fluid can be
dangerous.
A bad mud splash can block
your vision.
You could hit another
vehicle or go off the road. Check your
washer fluid level often.
