1994 OLDSMOBILE SILHOUETTE Owners Manual

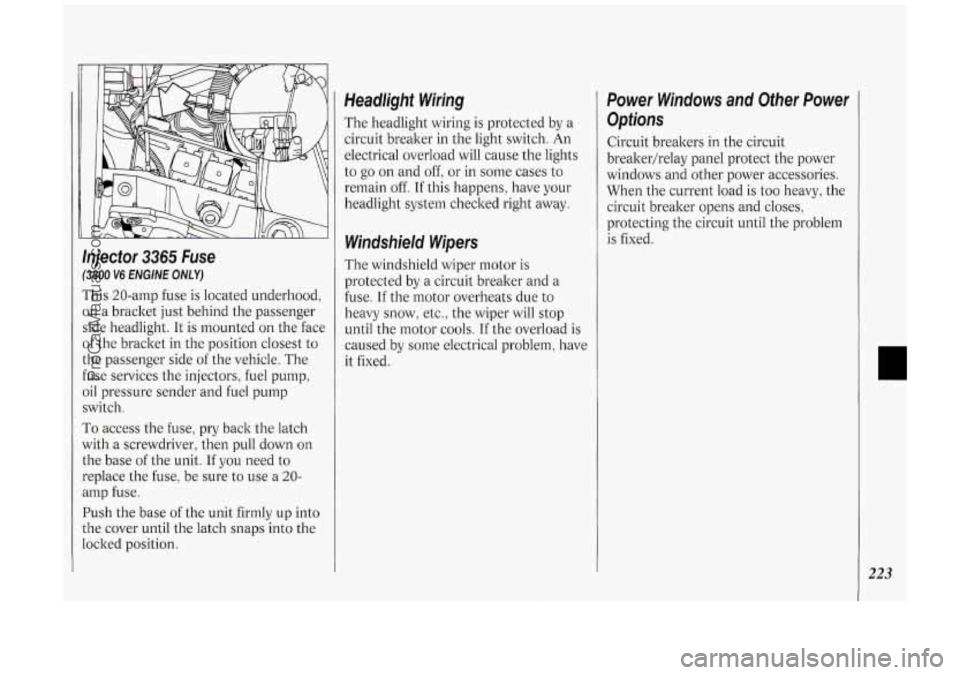

Injector 3365 Fuse
(3800 V6 ENGINE ONLY)
This 20-amp fuse is located underhood,
on a bracket just behind the passenger
side headlight. It is mounted on the face
of the bracket in the position closest to
the passenger side of the vehicle. The
fuse services the injectors, fuel pump,
oil pressure sender and fuel pump
switch.
To access the fuse, pry back the latch
with a screwdriver, then pull down on
the base
of the unit. If you need to
replace the fuse, be sure to use a 20-
amp fuse.
Push the base of the unit firmly up into
the cover until the latch snaps into the
locked position.
Headlight Wiring
The headlight wiring is protected by a
circuit breaker in the light switch. An
electrical overload will cause the lights
to go on and off: or
in some cases to
remain off. If this happens, have your
headlight system checked right away.
Windshield Wipers
The windshield wiper motor is
protected by a circuit breaker and a
fuse.
If the motor overheats due to
heavy snow, etc., the wiper will stop
until the motor cools.
If the overload is
caused by some electrical problem, have
it fixed.
Power Windows and Other Power
Options
Circuit breakers in the circuit
breakerhelay panel protect the power
windows and other power accessories.
When the current load is too heavy, the
circuit breaker opens and closes,
protecting the circuit until the problem
is fixed.
223
ProCarManuals.com

Service & Appearance Care
224

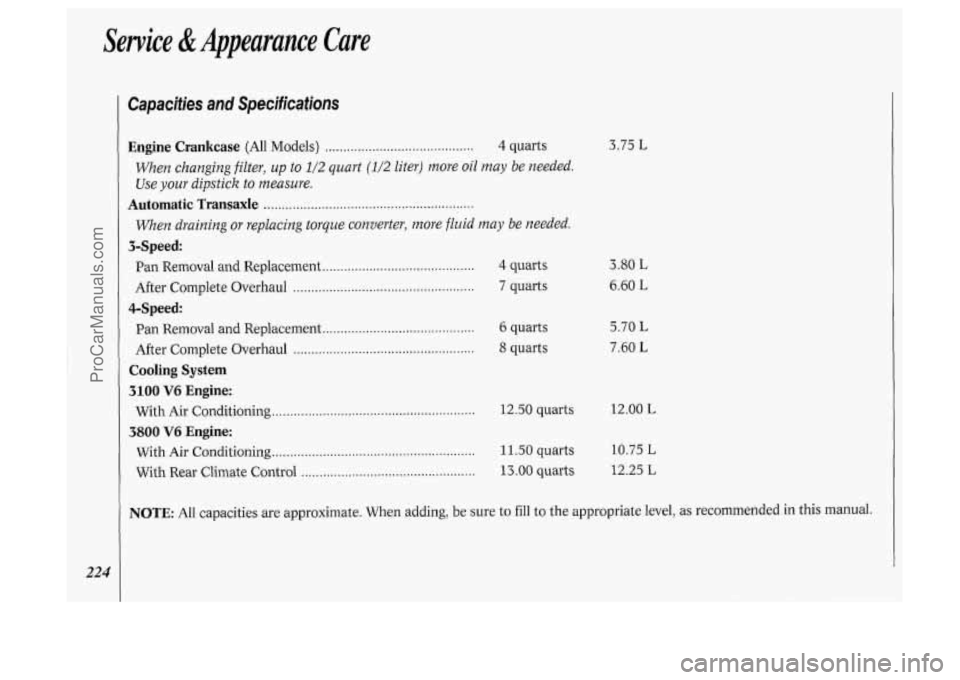

Capacities and Specifications
Engine Crankcase (All Models) ......................................... 4 quarts
When changing filter, up to 112 quart (1/2 liter) more oil may be needed.
Use
your dipstick to measure.
Automatic Transaxle ..........................................................
When draining or replacing torque converter, more fluid may be needed.
Pan Removal and Replacement .......................................... 4 quarts
After Complete Overhaul
.................................................. 7 quarts
3-Speed:
4-Speed:
Pan Removal and Replacement .......................................... 6 quarts
After Complete Overhaul
.................................................. 8 quarts
Cooling System
3100 V6 Engine:
3800 V6 Engine:
With Air Conditioning ........................................................ 12.50 quarts
With Air Conditioning ........................................................ 11.50 quarts
With Rear Climate Control
................................................ 13 .OO quarts
3.75 L
3.80 L
6.60 L
5.70 L
7.60 L
12.00 L
10.75
L
12.25 L
NOTE: All capacities are approximate. When adding, be sure to fill to the appropriate level, as recommended in this manual.
ProCarManuals.com

1.02 kg
1.36 kg

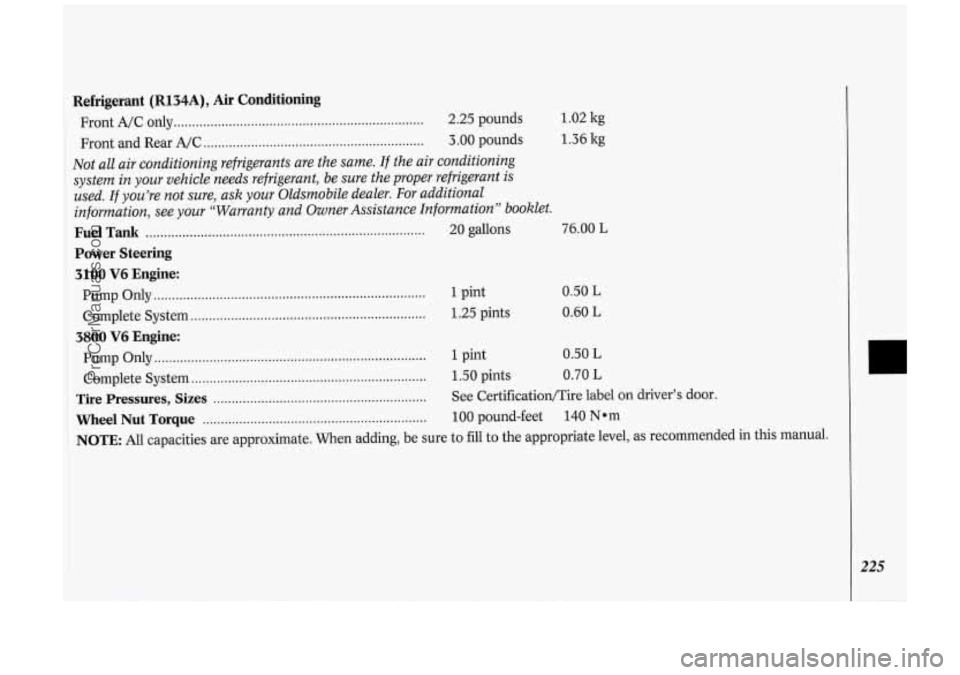

Refrigerant (R134A), Air Conditioning
Front A/C only .................................................................... 2.25 pounds
Front and Rear A/C
............................................................ 3.00 pounds
Not all air conditioning refrigerants are the same. If the air conditioning
system in your vehicle needs refrigerant, be sure the proper refrigerant
is
used. If you’re not sure, ask your Oldsmobile dealer. For additional
infomation, see your “Warranty and Owner Assistance Information
” booklet.
Fuel Tank ........................................................................\
..... 20 gallons 76.00 L
Power Steering
3100
V6 Engine:
Pump Only ........................................................................\
..
Complete System ................................................................
1 pint
1.25 pints 0.50 L
0.60 L
3800 V6 Engine:
Pump Only ........................................................................\
.. 1 pint 0.50 L
Complete System ................................................................ 1.50 pints 0.70 L
Tire Pressures, Sizes .......................................................... See CertificatiorVTire label on driver’s door.
Wheel Nut Torque ............................................................. 100 pound-feet 140 Nom
NOTE: All capacities are approximate. When adding, be sure to fill to the appropriate level, as recommended in this manual.
r
ProCarManuals.com

226
Service & Appearance Care
Engine Specifications
VIN Engine Code ...........................................
Type ................................................................
Displacement ..................................................
Compression Ratio .......... ....... .. .. .. ..... .............
Firing Order ...................... .. ....................... ... ..
Thermostat Temperature Specification . . . . . . . . .
31 00 V6 Engine
D
V6
3.1 Liters
8.5:1
1-2-3-4-5-6
195°F (91°C)
3800 V6 Engine
1
V6
3.8 Liters
9.0:
1
1-6-5-4-3-2
195°F (91°C)
Normal Maintenance Replacement Parts
Air Cleaner Element ....................................... AC Type A-773C AC Type A-974C
Engine
Oil Filter ............................................. AC Type PF-51 AC Type PF-47
PCV Valve
................. .. ................... .... ... . . . ...... AC Type CV-789C AC Type CV-892C
Spark Plugs
...... . , . . . . . . . . . . . . .. . . . . . . .. . . . . . . , . . . . . . . . . . . . . . . . AC Type oR43TS AC Type 41-600
Remote Lock Control Batteries (2)
............... DL 2016 DL 2016
Gap: 0.045
inch (1.14
mm) Gap: 0.060 inch (1.52 mm)
ProCarManuals.com

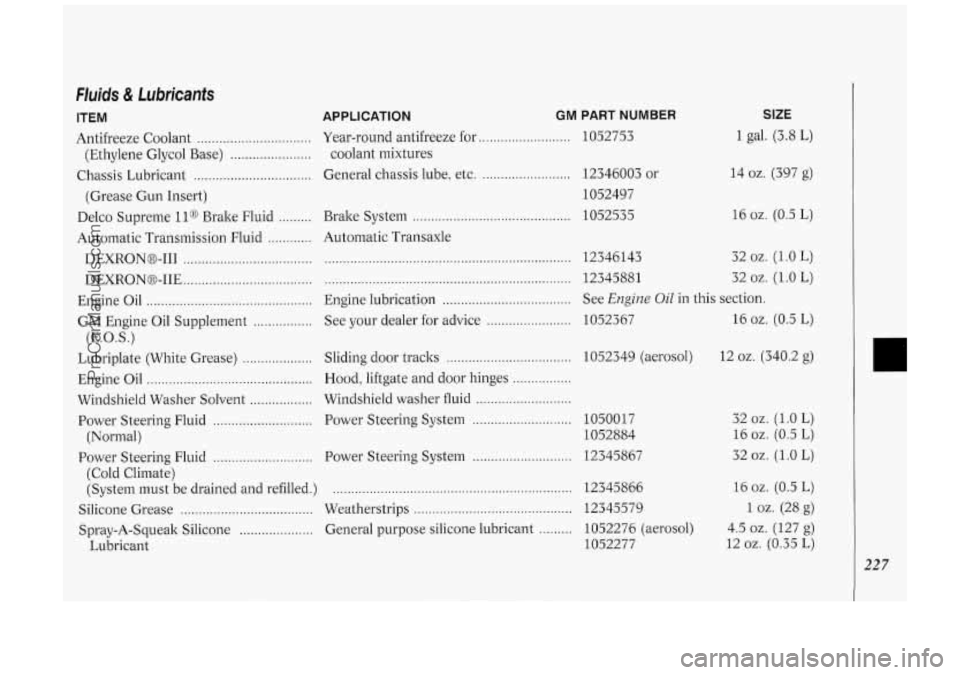

Fluids & Lubricants
ITEM
Antifreeze Coolant ...............................
(Ethylene Glycol Base) ......................
Chassis Lubricant ................................
(Grease Gun Insert)
Delco Supreme
ll@ Brake Fluid .........
Automatic Transmission Fluid ............
DEXRONO-I11 ...................................
DEXRONO-IIE ...................................
Engine Oil .............................................
GM Engine Oil Supplement ................
Lubriplate (White Grease) ...................
Engine Oil .............................................
Windshield Washer Solvent .................
Power Steering Fluid ...........................
(E.O.S.)
(Normal)
(Cold Climate)
Power
Steering Fluid
...........................
APPLICATION GM PART NUMBER
Year-round antifreeze for ......................... 1052753
General chassis lube, etc.
........................ 12346003 or
coolant mixtures
1052497
Brake System
........................................... 1052535
Automatic Transaxle
................................................................... 12346143 32 oz. (1.0 L)
................................................................... 12345881 32 oz. (1 .O L)
Engine lubrication ................................... See Engine Oil in this section.
See your dealer for advice
....................... 1052367 16 oz. (0.5 L)
Sliding door tracks
.................................. 1052349 (aerosol) 12 oz. (340.2 g)
Hood, liftgate and door hinges
................
Windshield washer fluid ..........................
Power Steering System ........................... 1050017
1052884
Power Steering System
........................... 12345867
SIZE
1 gal. (3.8 L)
14 oz. (397 g)
16
02. (0.5 L)
32 oz. (1.0
L)
16 oz. (0.5 L)
32 oz. (1 .O L)
(System must 'be drained and refilled.) ................................................................. 12345866
Silicone Grease Weatherstrips 12345579
Lubricant 1052277
.................................... ...........................................
......... Spray-A-Squeak Silicone .................... General purpose silicone lubricant 1052276 (aerosol) 16
oz. (0.5 L)
1 oz. (28 g)
4.5
oz. (127 g)
12
oz. (0.35 L)
22 7
ProCarManuals.com

~ Service & Appearance .... Care
228

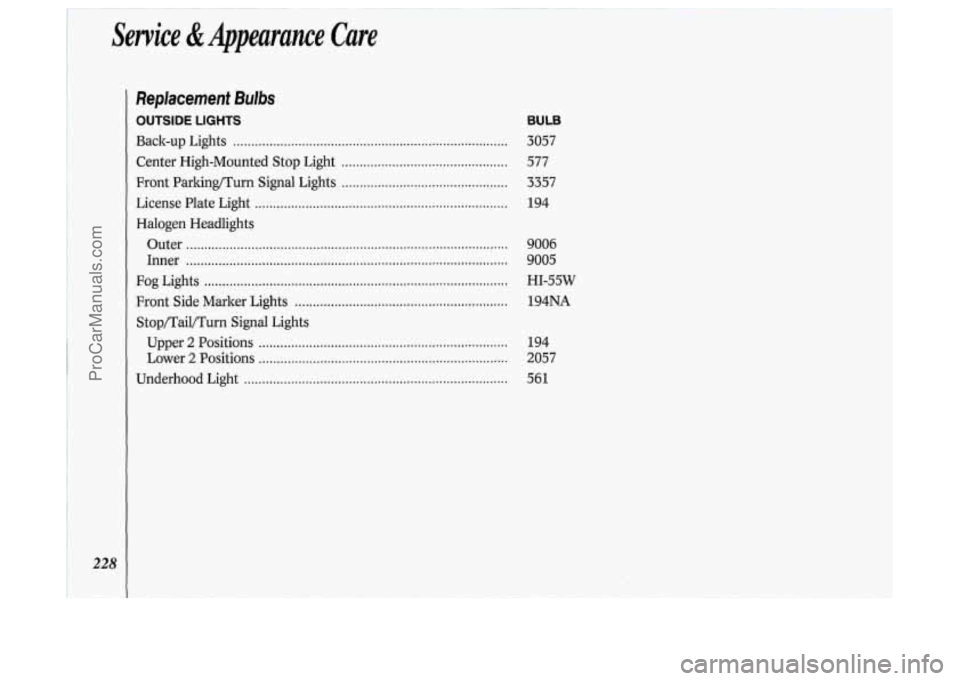

Replacement Bulbs
OUTSIDE LIGHTS
Back-up
Lights ........................................................................\
....
Center High-Mounted Stop Light ..............................................
Front Parkinflurn Signal Lights ..............................................
License Plate Light ......................................................................
Halogen Headlights
Outer
........................................................................\
.................
Inner ........................................................................\
.................
Fog Lights ........................................................................\
............
Front Side Marker Lights ...........................................................
Stop/Tail/Turn Signal Lights
Upper
2 Positions .....................................................................
Lower 2 Positions .....................................................................
Underhood Light ........................................................................\
.
BULB
3057
577
3357
194
9006
9005
HI-55W 194NA
194
2057
561
.
ProCarManuals.com

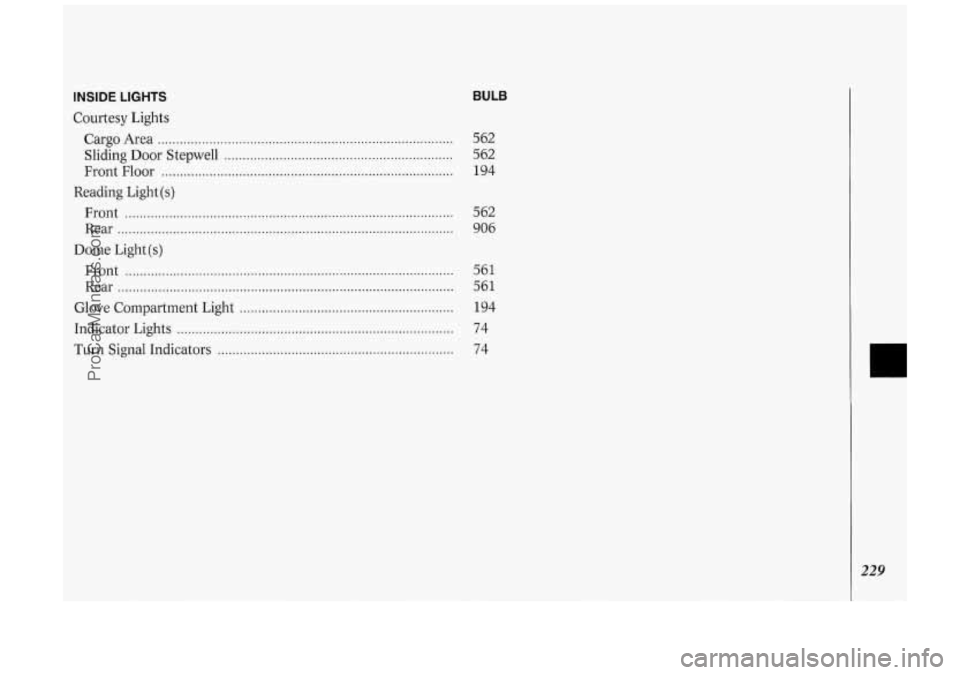

INSIDE LIGHTS
Courtesy Lights
BULB
Cargo Area ........................................................................\
........ 562
Front Floor
........................................................................\
....... 194
Sliding
Door Stepwell
.............................................................. 562
Reading Light
(s)
Front ........................................................................\
................. 562
Rear
........................................................................\
................... 906
Dome Light
(s)
Front ........................................................................\
................. 561
Rear
........................................................................\
................... 561
Glove Compartment Light
.......................................................... 194
Indicator Lights
........................................................................\
... 74
Turn Signal Indicators
................................................................ 74
229
ProCarManuals.com

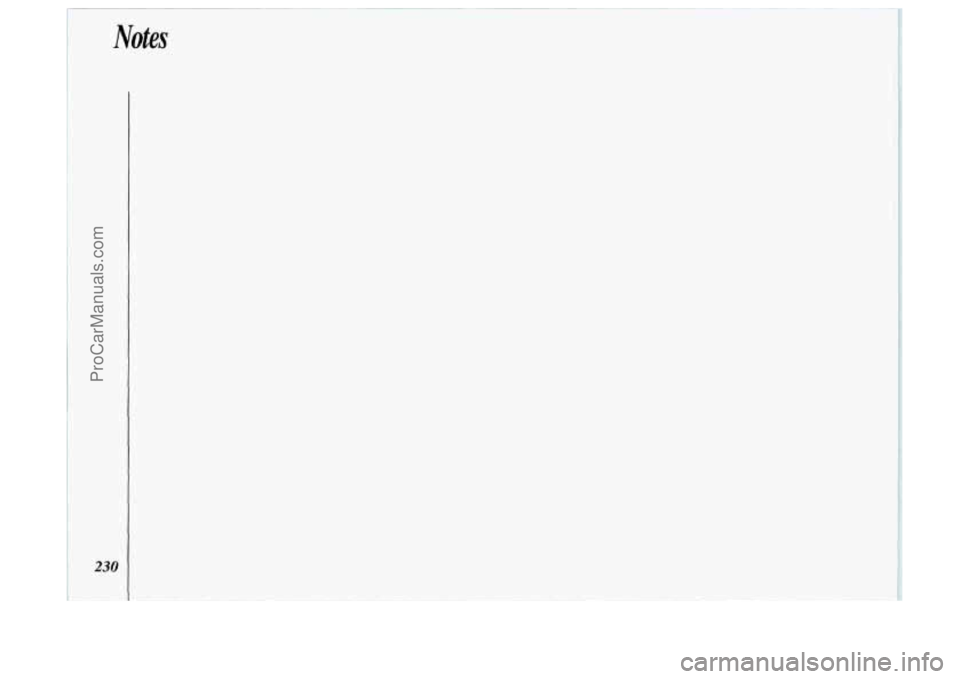

Notes
