1994 OLDSMOBILE SILHOUETTE Owners Manual

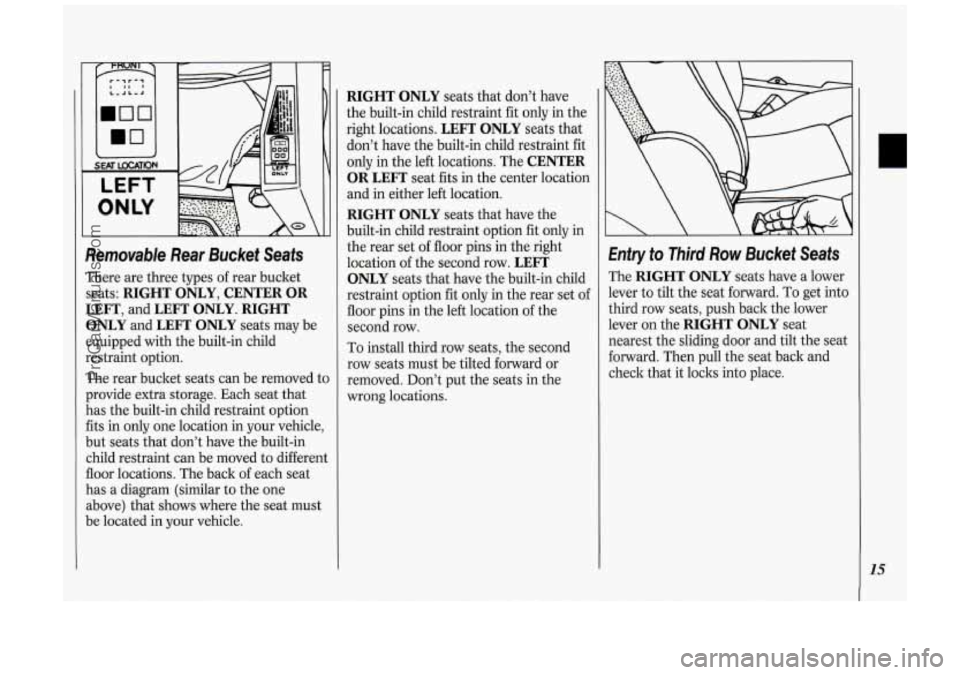

Removable Rear Bucket Seats
There are three types of rear bucket
seats:
RIGHT ONLY, CENTER OR
LEFT, and LEFT ONLY. RIGHT
ONLY
and LEFT ONLY seats may be
equipped with the built-in child
restraint option.
The rear bucket seats can be removed to
provide extra storage. Each seat that
has the built-in child restraint option
fits in only one location in your vehicle,
but seats that don’t have the built-in
child restraint can be moved to different
floor locations. The back of each seat
has a diagram (similar to the one
above) that shows where the seat must
be located in your vehicle.
RIGHT ONLY seats that don’t have
the built-in child restraint fit only in the
right locations.
LEFT ONLY seats that
don’t have the built-in child restraint fit
only in the left locations. The
CENTER
OR LEFT
seat fits in the center location
and in either left location.
RIGHT ONLY seats that have the
built-in child restraint option fit only in
the rear set of floor pins in the right
location of the second row.
LEFT
ONLY
seats that have the built-in child
I restraint option fit only in the rear set of
floor pins in the left location of the
second row.
To install third row seats, the second
row seats must be tilted forward or
removed. Don’t put the seats in the
wrong locations.
Entry to Third Row Bucket Seats
The RIGHT ONLY seats have a lower
lever to tilt the seat forward.
To get into
third row seats, push back the lower
lever on the
RIGHT ONLY seat
nearest the sliding door and tilt the seat
forward. Then pull the seat back and
check that it locks into place.
0
15
ProCarManuals.com

Seats & Restraint Systems
16
To get out of the third row seats, push
down on the rear release bar under the
seat ahead
of you to tilt the seat
forward.
Removing Rear Bucket Seats
Removing the RIGHT ONLY Seats:
1. Lift the upper lever to fold the
2. Push the lower lever back so the
seatback forward.
entire seat and seatback tilt forward.
3. Then, from behind the seat, squeeze
the front release bar toward the
crossbar. The seat will release from
the floor pins.
ProCarManuals.com

I. G
Removing LEFT ONLY and CENTER
OR LEFT Seats:
1. Lift the upper lever to fold the
seatback forward.
2. Push down on the rear release bar
The entire seat will tilt forward.
3. Then, from behind the seat, squeeze
the front release bar toward the
crossbar. The seat will release from
the floor pins. adjusting Rear Seats
Each rear seat location has two sets of
floor pins. Seats equipped with the
built-in child restraint option must be
secured in the rear set of floor pins.
Seats that don’t have the built-in child
restraint can be secured in either set of
floor pins. Move the position
of these
seats up or back to provide a little more
room behind or in front of a seat.
17
ProCarManuals.com

Seats & Restraint Systems
18
1 CAUTION -

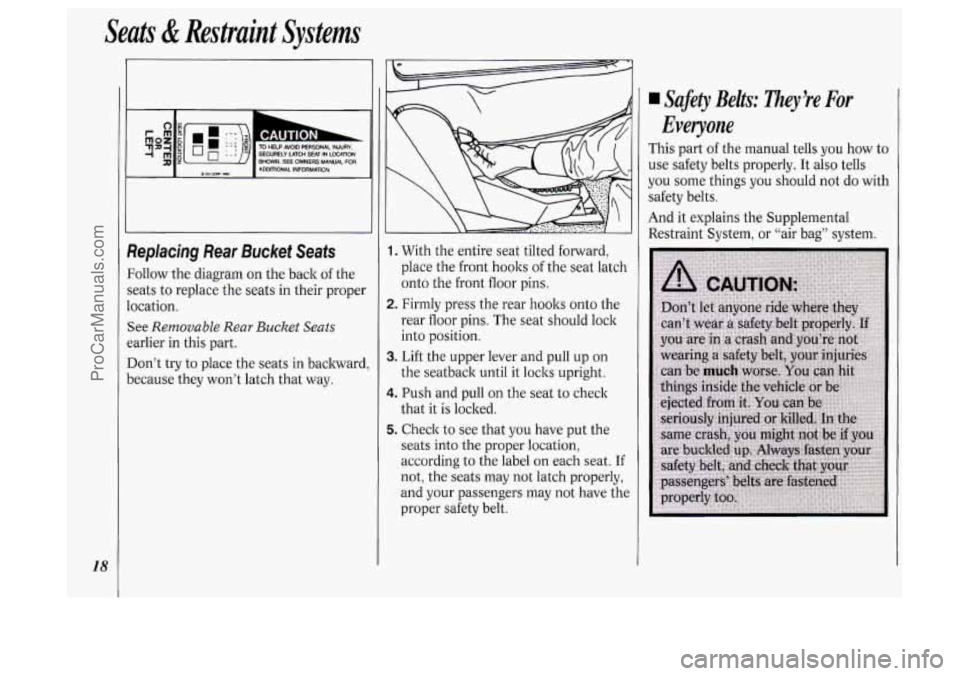

Zeplacing Rear Bucket Seats
:allow the diagram on the back of the
eats to replace the seats in their proper
xation.
;ee
Removable Rear Bucket Seats
arlier in this part.
Ion‘t try to place the seats in baclnvard,
lecause they won’t latch that way.
1. With the entire seat tilted forward,
place the front hooks
of the seat latch
onto the front floor pins.
2. Firmly press the rear hooks onto the
rear floor pins. The seat should lock
into position.
3. Lift the upper lever and pull up on
the seatbacls. until it loclts upright.
4. Push and pull on the seat to check
that it is locked.
5. Check to see that you have put the
seats into the proper location,
according
to the label on each seat. If
not, the seats may not latch properly,
and your passengers may not have the
proper safety belt.
Safety Belts: Zkey%e For
Everyone
This part of the manual tells you how to
use safety belts properly. It also tells
you some things you should not do with
safety belts.
And it explains the Supplemental
Restraint System, or “air bag” system.
ProCarManuals.com

I’

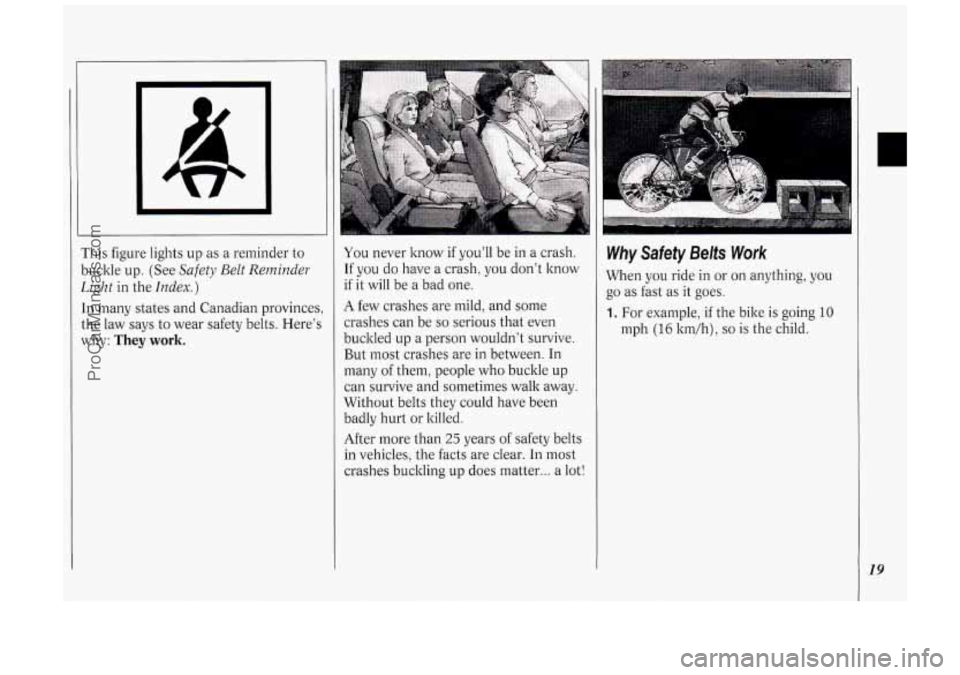

This figure lights up as a reminder to
buclde up. (See
Safety Belt Reminder
Light in the Index.)
In many states and Canadian provinces,
the law says to wear safety belts. Here’s
why:
They work.
You never know if you’ll be in a crash.
If you do have a crash, you don’t know
if it will be a bad one.
A few crashes are mild, and some
crashes can be
so serious that even
buckled up
a person wouldn’t survive.
But most crashes are in between. In
many of them, people who buckle up
can survive and sometimes walk away.
Without belts they could have been
badly hurt or killed.
After more than
25 years of safety belts
in vehicles, the facts are clear. In most
crashes buckling up does matter
... a lot!
Why Safety Belts Work
When you ride in or on anything, you
go as fast as it goes.
1. For example, if the bike is going 10
mph (16 l 19
ProCarManuals.com

Seats & Restraint Systems
4. Put someone on it. 2. When the bike hits the block, it stops.
But the child keeps going! 3. Take the simplest vehicle. Suppose
it's just a seat on wheels.
I
5. Get it up to speed. Then stop the
vehicle. The rider doesn't stop. i: 6. The person keeps
going until stopped
In a real vehicle, it could be the
windshield..
.
by something. nstrurnent panel
...
20
ProCarManuals.com

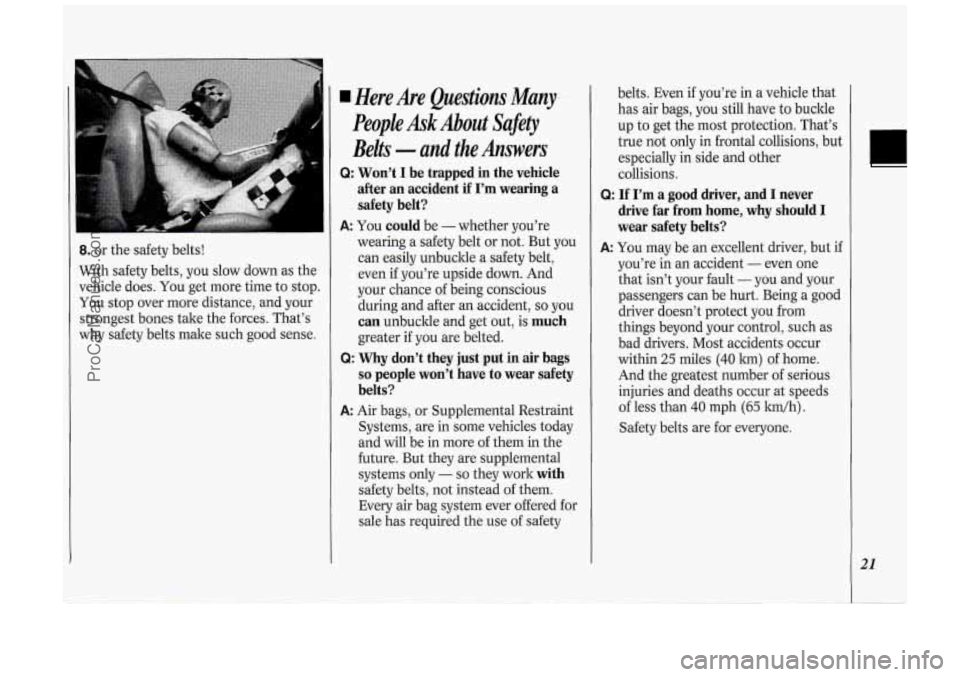

8. or the safety belts!
With safety belts, you slow down as the
vehicle does. You get more time to stop.
You stop over more distance, and your
strongest bones take the forces. That’s
why safety belts make such good sense.
I Here Are Questions Many
People
Ask About Safety
Belts
- and the Answers
Q: Won’t I be trapped in the vehicle
after an accident
if I’m wearing a
safety belt?
A: You could be - whether you’re
wearing a safety belt or not. But you
can easily unbuckle a safety belt,
even if you’re upside down. And
your chance of being conscious
during and after an accident,
so you
can unbuckle and get out, is much
greater if you are belted.
Q: Why don’t they just put in air bags
so people won’t have to wear safety
belts?
A: Air bags, or Supplemental Restraint
Systems, are in some vehicles today
and will be in more of them in the
future. But they are supplemental
systems only
- so they work with
safety belts, not instead of them.
Every air bag system ever offered for
sale has required the use of safety belts.
Even if you’re in a vehicle that
has air bags, you still have
to buckle
up to get the most protection. That’s
true not only in frontal collisions, but
especially in side and other
collisions.
drive far from home, why should I
wear safety belts?
A: You may be an excellent driver, but i
you’re in an accident
- even one
that isn’t your fault
- you and your
passengers can be hurt. Being a good
driver doesn’t protect you from
things beyond your control, such as
bad drivers. Most accidents occur
within
25 miles (40 lun) of home.
And the greatest number of serious
injuries and deaths occur at speeds
of less than
40 mph (65 lun/h) .
Safety belts are for everyone.
Q: If I’m a good driver, and I never
21
ProCarManuals.com

22
Seats & Restraint Systems

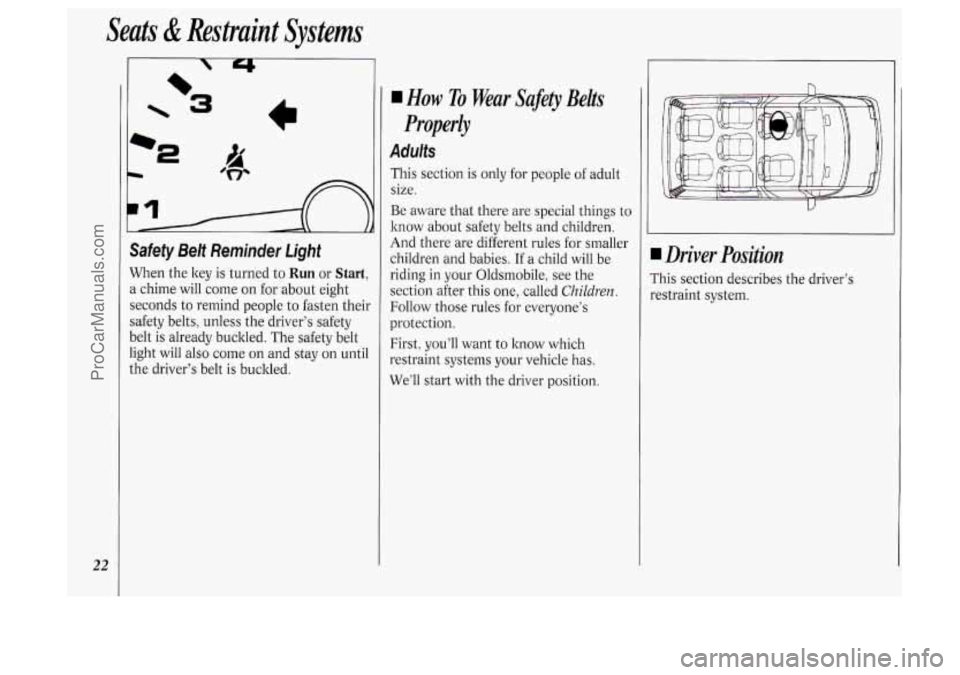

Safety Belt Reminder Light
When the key is turned to Run or Start,
a chime will come on for about eight
seconds to remind people to fasten their
safety belts, unless the driver’s safety
belt is already buckled. The safety belt
light will also come on and stay on until
the driver’s belt is buckled.
I How To Wear Safety Belts
Adults
Properly
This section is only for people of adult
size.
Be aware that there are special things to
know about safety belts and children.
And there are different
rules for smaller
children and babies. If a child will be
riding in your Oldsrnobile, see the
section after this one, called
ChiZdren.
Follow those rules for everyone’s
protection.
First, you’ll want to know which
restraint systems your vehicle has.
We’ll start with the driver position.
n
I Driver Position
This section describes the driver’s
restraint system.
ProCarManuals.com
