1994 OLDSMOBILE SILHOUETTE Owners Manual

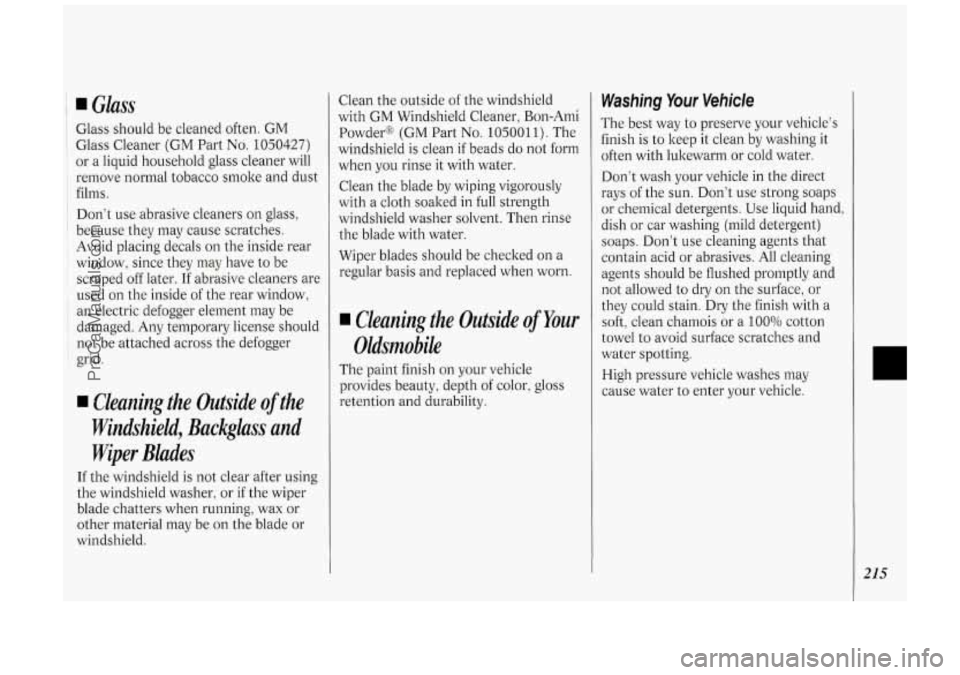

1 I Glass
’ Glass should be cleaned often. GM
~ Glass Cleaner (GM Part No. 1050427)
or a liquid household glass cleaner will
remove normal tobacco smoke and dust
films.
Don’t use abrasive cleaners on glass,
’ because thejr may cause scratches.
Avoid placing decals on the inside rear
window, since they may have to be
scraped off later.
If abrasive cleaners are
used on the inside of the rear window,
~ an electric defogger element may be
~ damaged. Any temporary license should
not be attached across the defogger
grid.
Cleaning the Outside of the
Windshield, Backglass and Wiper Blades
If the windshield is not clear after using
the windshield washer, or if the wiper
blade chatters when running, wax or
other material may be
on the blade or
windshield. Clean
the outside
of the windshield
with GM Windshield Cleaner, Bon-Ami
Powder@
(GM Part No. l050011). The
windshield is clean
if beads do not form
when you rinse it with water.
Clean the blade by wiping vigorously
with a cloth soaked in
full strength
windshield washer solvent. Then rinse
the blade with water.
Wiper blades should be checked on a
regular basis and replaced when worn.
I Cleaning the Outside of Your
Oldsmobile
The paint finish on your vehicle
provides beauty, depth of color, gloss
retention and durability.
Washing Your Vehicle
The best way to preserve your vehicle‘s
finish is to keep it clean by washing it
often with lukewarm or cold water.
Don’t wash your vehicle in the direct
rays of the sun. Don’t use strong soaps
or chemical detergents. Use liquid hand,
dish
or car washing (mild detergent)
soaps. Don’t use cleaning agents that
contain acid or abrasives. All cleaning
agents should be flushed promptly and
not allowed to dry on the surface, or
they could stain. Dry the finish with a
soft, clean chamois or a
100*/0 cotton
towel to avoid surface scratches and
water spotting.
High pressure vehicle washes may
cause water to enter your vehicle.
215
ProCarManuals.com

Service & Appearance Care
21 6

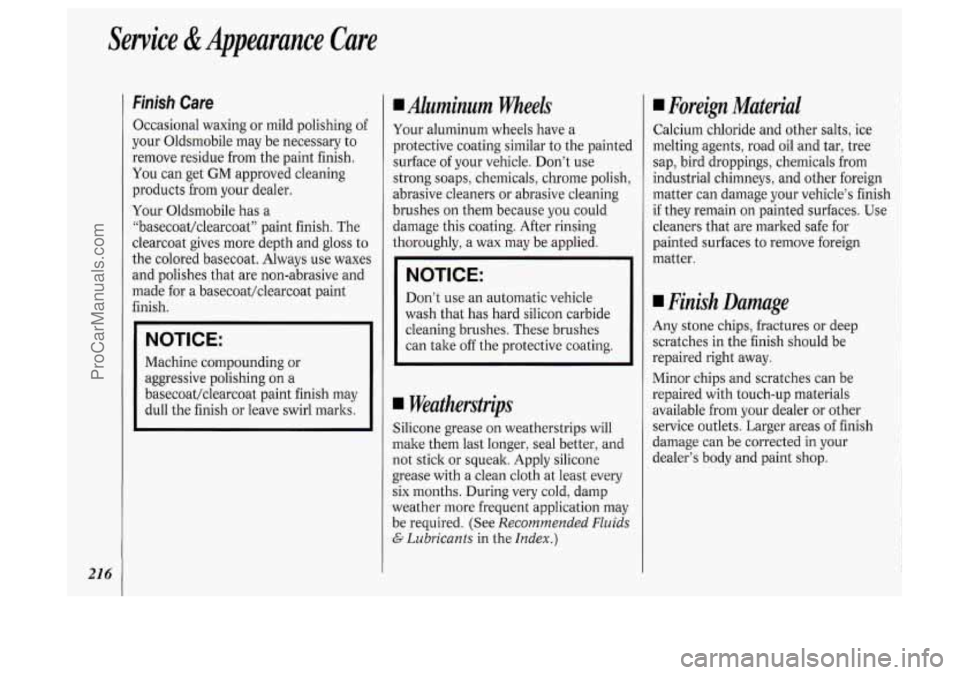

Finish Care
Occasional waxing or mild polishing of
your Oldsmobile may be necessary to
remove residue from the paint finish.
You can get GM approved cleaning
products from your dealer.
Your Oldsmobile has
a
“basecoat/clearcoat” paint finish. The
clearcoat gives more depth and gloss to
the colored basecoat. Always use waxes
and polishes that are non-abrasive and
made for
a basecoat/clearcoat paint
finish.
NOTICE:
Machine compounding or
aggressive polishing on a
basecoat/clearcoat paint finish may
dull the finish or leave swirl marks.
UAluminum Week
Your aluminum wheels have a
protective coating similar to the painted
surface of your vehicle. Don’t use
strong soaps, chemicals, chrome polish,
abrasive cleaners or abrasive cleaning
brushes on them because you could
damage this coating. After rinsing
thoroughly,
a wax may be applied.
NOTICE:
Don’t use an automatic vehicle
wash that has hard silicon carbide
cleaning brushes. These brushes
can take off the protective coating.
I Weatherstrips
Silicone grease on weatherstrips will
make them last longer, seal better, and
not stick or squeak. Apply silicone
grease with a clean cloth at least every
six months. During very cold, damp
weather more frequent application may
be required. (See
Recommended Fluids
G- Lubricants in the Index.)
Foreigpt Material
Calcium chloride and other salts, ice
melting agents, road oil and tar, tree
sap, bird droppings, chemicals from
industrial chimneys, and other foreign
matter can damage your vehicle’s finish
if they remain on painted surfaces. Use
cleaners that are marked safe for
painted surfaces to remove foreign
matter.
I Finish Damage
Any stone chips, fractures or deep
scratches in the finish should be
repaired right away.
Minor chips and scratches can be
repaired with touch-up materials
available from your dealer or other
service outlets. Larger areas of finish
damage can be corrected in your
dealer’s body and paint shop.
ProCarManuals.com

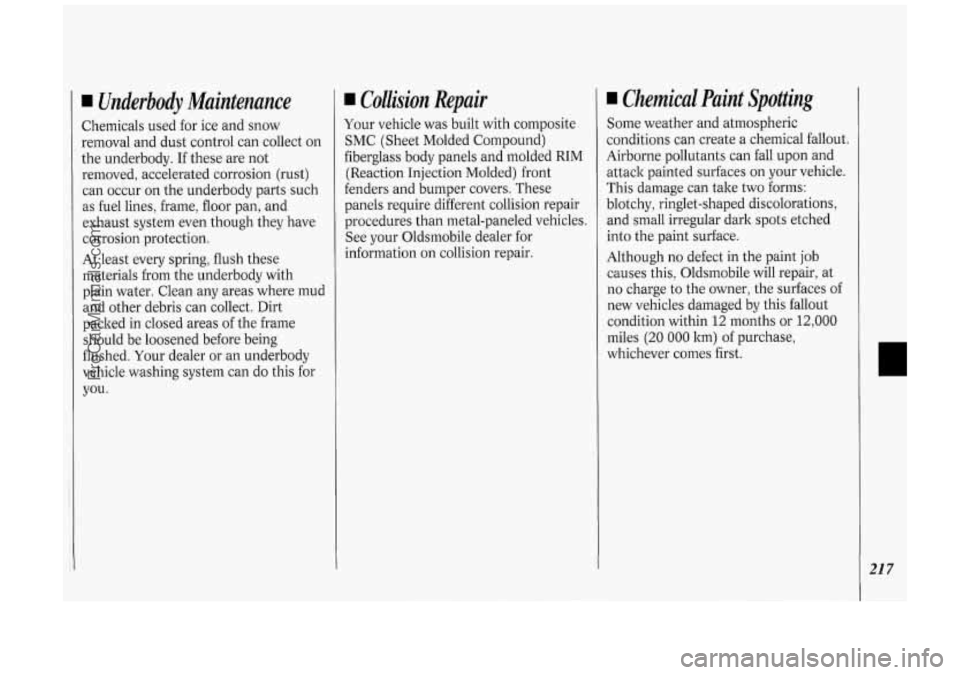

Underbody Maintenance
Chemicals used for ice and snow
removal and dust control can collect on
the underbody.
If these are not
removed, accelerated corrosion (rust)
can occur on the underbody parts such
as fuel lines, frame, floor pan, and
exhaust system even though they have
corrosion protection.
At least every spring, flush these
materials from the underbody with
plain water. Clean any areas where mud
and other debris can collect. Dirt
packed in closed areas of the frame
should be loosened before being
flushed. Your dealer or an underbody
vehicle washing system can do this for
you.
I Collision Repair
Your vehicle was built with composite
SMC (Sheet Molded Compound)
fiberglass body panels and molded
RIM
(Reaction Injection Molded) front
fenders and bumper covers. These
panels require different collision repair
procedures than metal-paneled vehicles.
See your Oldsmobile dealer for
information on collision repair.
I Chemical Paint Spotting
Some weather and atmospheric
conditions can create
a chemical fallout.
Airborne pollutants can fall upon and
attack painted surfaces on your vehicle.
This damage can take two forms:
blotchy, ringlet-shaped discolorations,
and small irregular dark spots etched
into the paint surface.
Although no defect in the paint job
causes this, Oldsmobile will repair, at
no charge to the owner, the surfaces of
new vehicles damaged by this fallout
condition within 12 months or 12,000
miles (20
000 ltm) of purchase,
whichever comes first.
21 7
ProCarManuals.com

Service & Appearance Care
218

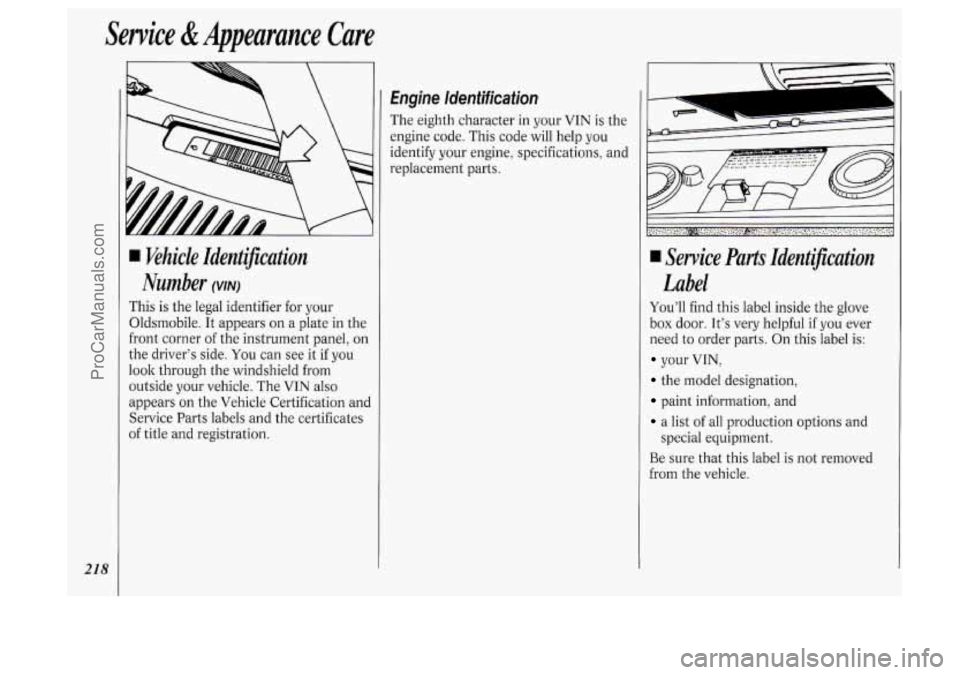

Yehicle Identijication
Number
(VIN)
This is the legal identifier for your
Oldsmobile. It appears on a plate in the
front corner of the instrument panel, on
the driver’s side.
You can see it if you
look through the windshield from
outside your vehicle. The
VIN also
appears on the Vehicle Certification and
Service Parts labels and the certificates
of title and registration.
Engine ldenfificafion
The eighth character in your VIN is the
engine code. This code will help you
identify your engine, specifications, and
replacement parts.
1
._. _. .- .. .. .-
~.:~:~.~~~:~~~~:;~~~~~:~;.’:~,‘~~~.~~~~.~:~~~~;~:~,~~~;~~.~~,~;.~~\
~,~~~:~;:~~~::~~~:::.~,~~.’.~:. . . . . . . , . . .
Service Parts Identz!jication
Label
You’ll find this label inside the glove
box door. It’s very helpful if you ever
need to order parts. On this label is:
your VIN,
the model designation,
paint information, and
a list of all production options and
Be sure that this label is not removed
from the vehicle.
special equipment.
ProCarManuals.com

Ad-On Electrical Equiprnent
NOTICE:
Don’t add anything electrical to
your Oldsmobile unless you check
with your dealer first. Some electrical
equipment can damage your vehicle
and the damage wouldn’t be
covered by your warranty. Some
add-on electrical equipment can
keep other components from
working as they should.
Your vehicle has an air bag system.
Before attempting to add anything
electrical to your Oldsmobile, see
Servicing Your Air Bag-Equipped
Oldsmobile
in the Index.
Fuses & Circuit Breakers
The wiring circuits in your vehicle are
protected from short circuits
by a
:ombination of fuses and circuit
breakers in the wiring itself. This greatly
reduces the chance of damage caused
by electrical problems.
To identify and check fuses, refer to the
Fuse panel, which is behind the
glove
box door, and the fuse usage chart later
in this section.
To remove a fuse, grasp it firmly and
pull.
U
Look at the silver-colored band inside
the fuse.
If the band is broken or
melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the
correct size.
219
ProCarManuals.com

Service &Appeurunce Cure
220
+I
r=J
HORN
prpl
m
STOP-HA2 F-PUMP
m3 AUX
r?]
.pg
TURN BIU
GAGE
prpl LPS
(31 ABS
RDO 2
pTo4
ca
rn
ca
R-WIPER F-WIPER
rfpl IGN
HTR-A/C R-BLWR
Position Rating (AMP.)
CTSY
ELC
HORN STOP HAZ
F PUMP
AUX
TAIL
ECM
TURN B/U
GAGE
LPS
ABS RD02
WIPER
FflIPER
IGN
HTR A/C
R BLWR 15
20
15
15
10
20
15
10
15
7.5
7.5
3
15
20
25 15
25
25
Circuitry
Dome Lamps, Courtesy Lamps, Power Door Lock Switches, Glove
Box Lamp, Power Mirrors, Power Sliding Delay Lock Module
Auto Level Control, Underhood Lamp
Horns, Horn Relay, Safety Belt Buzzer
Front/Rear Turn Lamps, Front Side Marker Lamps, Rear Stop Lamps,
Instrument Cluster Turn Indicator Lamps, Cruise Brake Switch
Fuel Pump, Oil Pressure Sender/Fuel Pump Switch
Radio, Front Cigar Lighter, Accessory Power Outlet
Front Park Lamps, Rear Tail Lamps, Front Side Marker Lamps,
License Plate Lamp, Radio, Heat/Vent/AC Control Head, Power
Sliding Door
Throttle Body Fuel Injection, Fuel Pump Relay, Elec. Vac. Reg. Valve,
Elec. Control Module, Elec. Spark Control Module
Front/Rear Turn Lamps, Front Side Marker Lamps, Cluster Turn
Telltale, Back-up Lamps, Fog Lamps
Cluster, Anti-Lock Brake System Lamp Module, Elec. Level Control Sensor
Cluster, Radio, Wiper Switch, Headlamp Switch? Rear Blower Switch,
Heat/Vent/AC Control Head, Door Switch Illumination, Front/Rear
Ashtray Illumination Bulbs
Anti-Lock Brake System Radio
Rear WiperNasher Motors; Overhead Console Compass
Front Wiperflasher Motor
A/C Compressor, A/C Solenoid Box, Compressor Relay, Temp.
Door
Motor, Low Blower Relay; Heat/Vent/AC Control Head; Cruise
Module; Cooling Fan Relay; Rear Defogger Relay; Key Chime; Vehicle
Speed Sensor Buffer and Generator Charge Discrete, Transaxle
Converter Clutch Switch
Front/Rear Blower Motors, High Blower Relay
Rear Blower, Rear Heat/Vent/AC
ProCarManuals.com

r&
p.L34
R-WIPER
F-WIPER
c-,
HTR-AIC
m3 R-BLWR
1
Position Rating
(AMP.)
CTSY
ELC HORN
STOP HAZ
RDOl/AUX
TAIL
ABS ECM
TURN B/U
GAGE
LPS
RD02
WIPER
FmIPER
IGN
HTR A/C
R BLWR 15
20
15
15
20
15
3
10
15
7.5
7.5
15
20
25
15
25
25
Circuitry
Dome
Lamps! Courtesy Lamps, Power Door Lock Switches, Glove Box
Lamp, Power Mirrors, Power Sliding Delay Lock Module
Auto Level Control, Underhood Lamp
Horns, Horn Relay, Safety Belt Buzzer
Front/Rear Turn Lamps, Front Side Marker Lamps, Rear Stop Lamps,
Instrument Cluster Turn Indicator Lamps
Radio, Front Cigar Lighter, Accessory Power Outlet
Front Park Lamps, Rear Tail Lamps, Front Side Marker Lamps, License
Plate Lamp, Radio, Heat/Vent/AC Control Head, Power Sliding Door
Anti-Lock Bralte/Traction Control System
Mass Air Flow Sensor, Electronic Control Module
Front/Rear Turn Lamps, Front Side Marker Lamps, Cluster Turn Telltale,
Back-up Lamps,
Fog Lamps
Cluster, Anti-Lock Brake System Lamp Module, Elec. Level Control Sensor
Cluster, Radio, Wiper Switch, Headlamp Switch, Rear Blower Switch,
Heat/Vent/AC Control Head, Door Switch Illumination, Front/Rear
Ashtray Illumination Bulbs
Radio
Rear Wiper/Washer Motors; Overhead Console Compass
Front Wipermasher Motor
A/C Solenoid Box, Temp. Door Motor, Low Blower Relay; Heat/Vent/AC
Control Head; Cooling Fan Relay; Rear Defogger Relay; Key Chime;
Transaxle Converter Clutch Solenoid and Generator Charge Discrete
Front/Rear Blower Motors, High Blower Relay
Rear Blower, Rear Heat/Vent/AC
221
ProCarManuals.com

Service &Appearance Care
222
I
1-
9 0
U
Circuit BreakerlRelay Panel
Circuit breakers and relays are located in the circuit breakerhelay panel. This is
located behind the panel under the glove box, near the passenger's door.
Position Rating
(AMP.)
1
2
3
I
5
6
7
3
3
10
15
30
30
30
Circuitry
Hazard Flasher
With
3800 V6 engine only: Canister Purge Solenoid, A/C
Clutch Control Relay, Cruise Control
Not Used
Power Windows Circuit Breaker
Power Seat/Power Sliding
Door Motor Circuit Breaker
Rear Defogger Circuit Breaker
Air Conditioning Blower Relay
Horn Relay
Chime Module
Defogger Timer Relay
Anti-Lock Brake System (ABS)
Junction Block Fuse
You'll find this fuse under the hood in
the
ABS junction block, located next to
the remote positive
jump starting
terminal.
To open the junction block, press in on
both sides of the cover.
ProCarManuals.com
