1994 JEEP CHEROKEE Transfer case

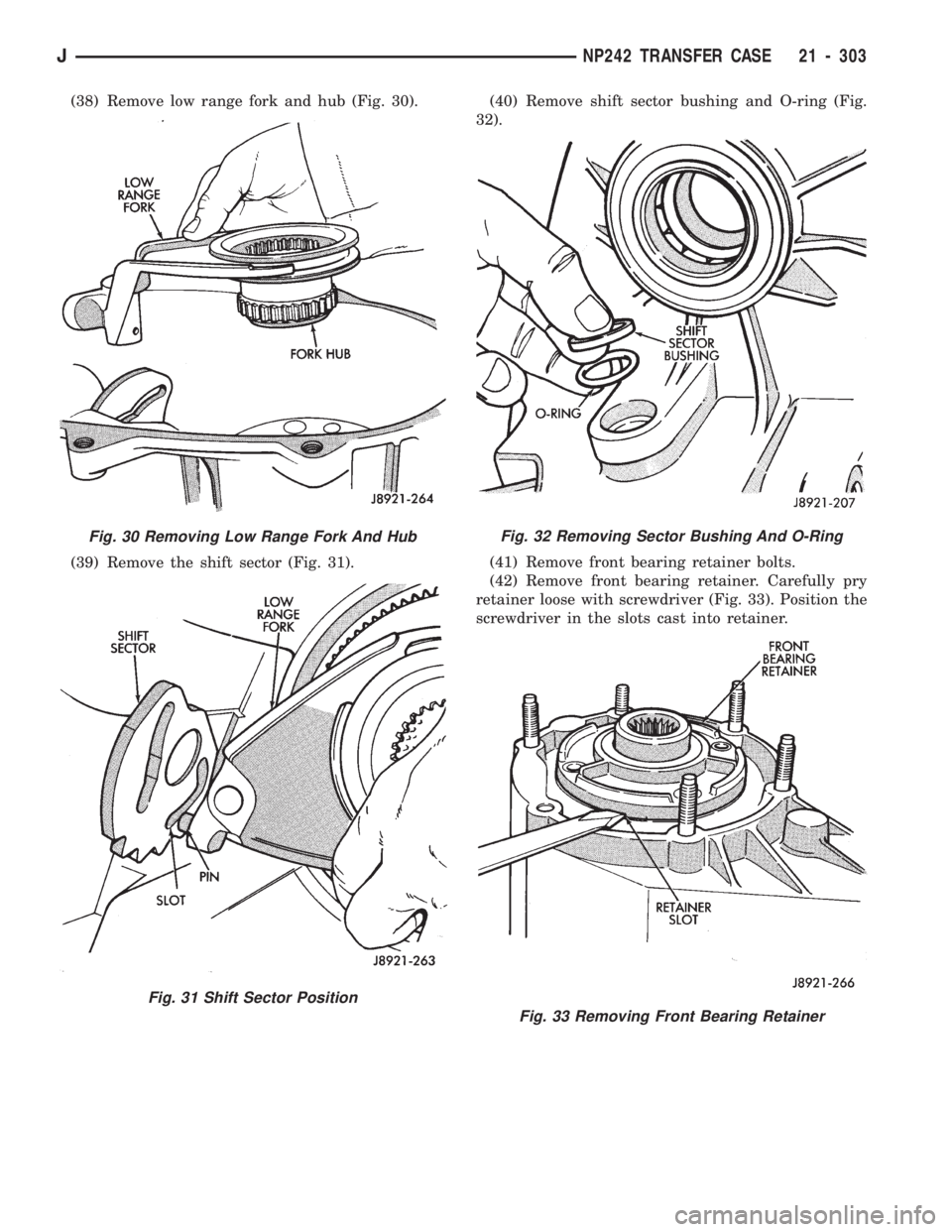

(38) Remove low range fork and hub (Fig. 30).
(39) Remove the shift sector (Fig. 31).(40) Remove shift sector bushing and O-ring (Fig.
32).
(41) Remove front bearing retainer bolts.
(42) Remove front bearing retainer. Carefully pry
retainer loose with screwdriver (Fig. 33). Position the
screwdriver in the slots cast into retainer.
Fig. 30 Removing Low Range Fork And Hub
Fig. 31 Shift Sector Position
Fig. 32 Removing Sector Bushing And O-Ring
Fig. 33 Removing Front Bearing Retainer
JNP242 TRANSFER CASE 21 - 303

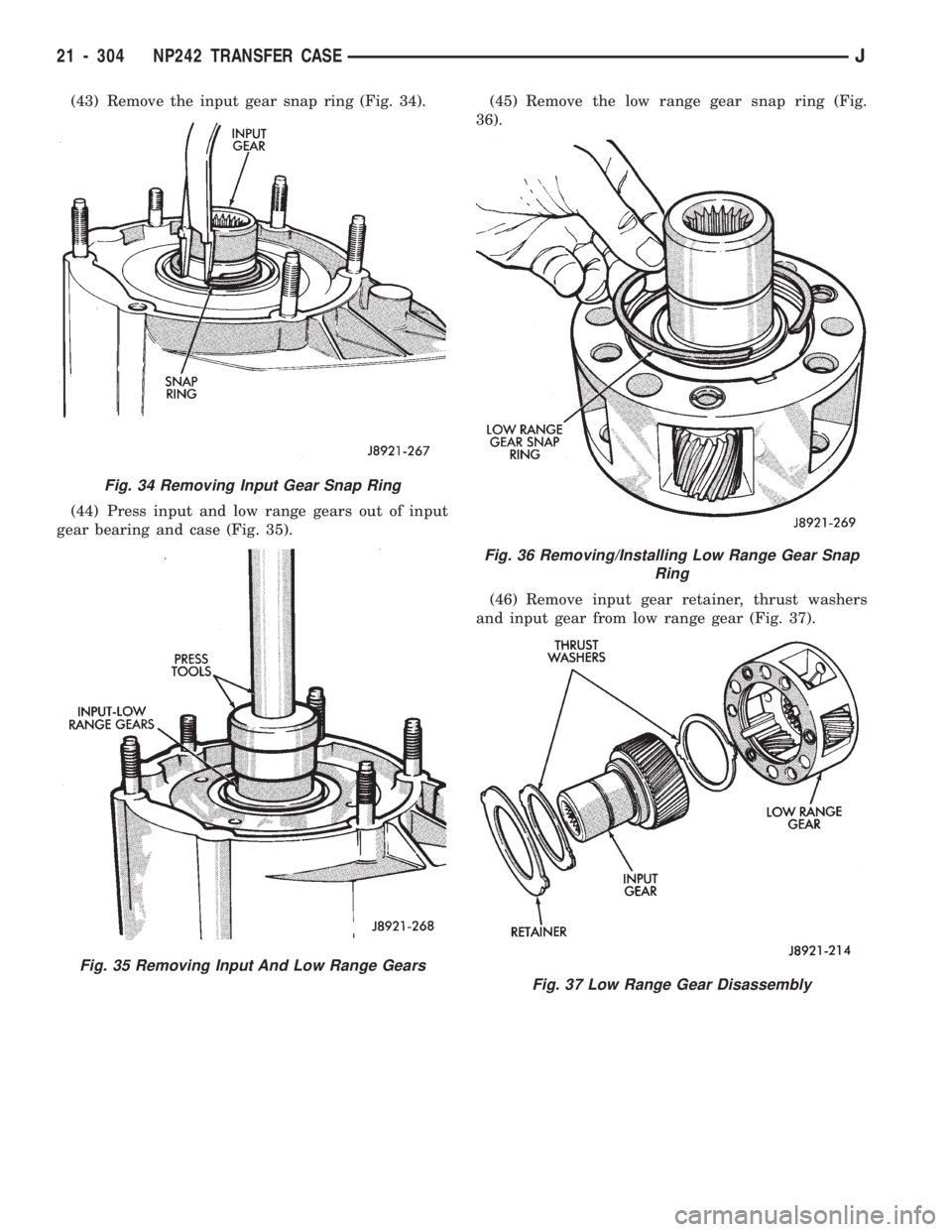

(43) Remove the input gear snap ring (Fig. 34).
(44) Press input and low range gears out of input
gear bearing and case (Fig. 35).(45) Remove the low range gear snap ring (Fig.
36).
(46) Remove input gear retainer, thrust washers
and input gear from low range gear (Fig. 37).
Fig. 34 Removing Input Gear Snap Ring
Fig. 35 Removing Input And Low Range Gears
Fig. 36 Removing/Installing Low Range Gear Snap
Ring
Fig. 37 Low Range Gear Disassembly
21 - 304 NP242 TRANSFER CASEJ

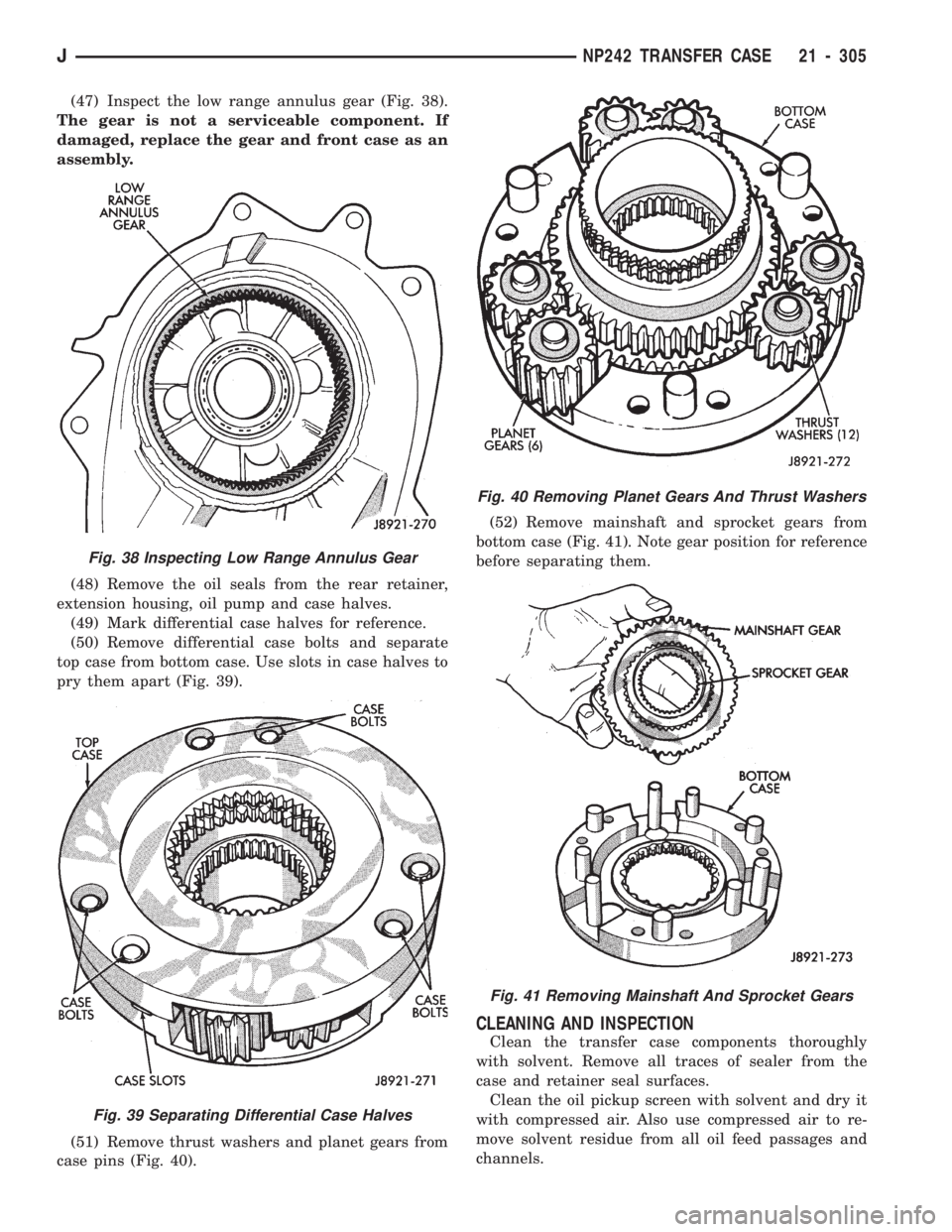

(47) Inspect the low range annulus gear (Fig. 38).
The gear is not a serviceable component. If
damaged, replace the gear and front case as an
assembly.
(48) Remove the oil seals from the rear retainer,
extension housing, oil pump and case halves.
(49) Mark differential case halves for reference.
(50) Remove differential case bolts and separate
top case from bottom case. Use slots in case halves to
pry them apart (Fig. 39).
(51) Remove thrust washers and planet gears from
case pins (Fig. 40).(52) Remove mainshaft and sprocket gears from
bottom case (Fig. 41). Note gear position for reference
before separating them.
CLEANING AND INSPECTION
Clean the transfer case components thoroughly
with solvent. Remove all traces of sealer from the
case and retainer seal surfaces.
Clean the oil pickup screen with solvent and dry it
with compressed air. Also use compressed air to re-
move solvent residue from all oil feed passages and
channels.
Fig. 38 Inspecting Low Range Annulus Gear
Fig. 39 Separating Differential Case Halves
Fig. 40 Removing Planet Gears And Thrust Washers
Fig. 41 Removing Mainshaft And Sprocket Gears
JNP242 TRANSFER CASE 21 - 305

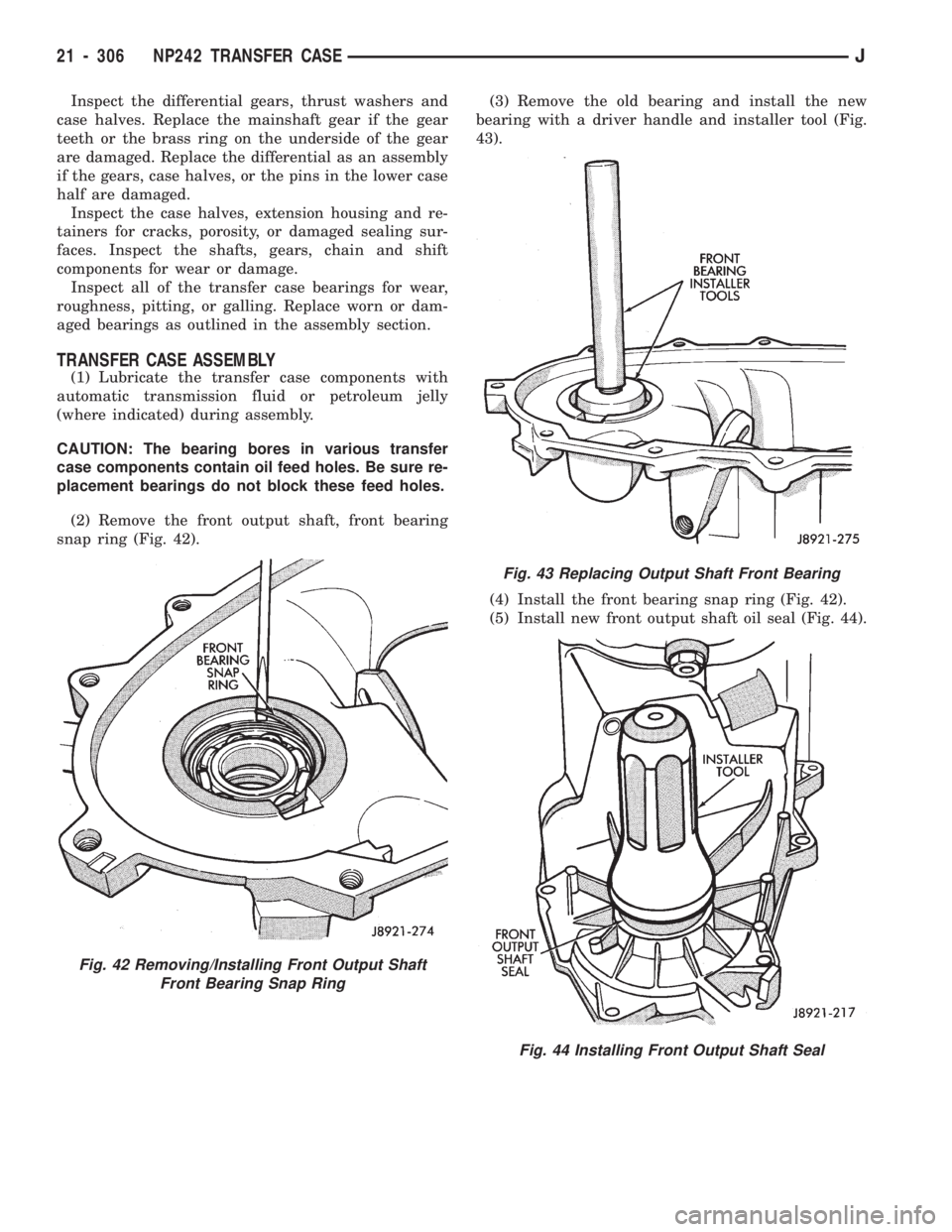

Inspect the differential gears, thrust washers and
case halves. Replace the mainshaft gear if the gear
teeth or the brass ring on the underside of the gear
are damaged. Replace the differential as an assembly
if the gears, case halves, or the pins in the lower case
half are damaged.
Inspect the case halves, extension housing and re-
tainers for cracks, porosity, or damaged sealing sur-
faces. Inspect the shafts, gears, chain and shift
components for wear or damage.
Inspect all of the transfer case bearings for wear,
roughness, pitting, or galling. Replace worn or dam-
aged bearings as outlined in the assembly section.
TRANSFER CASE ASSEMBLY
(1) Lubricate the transfer case components with
automatic transmission fluid or petroleum jelly
(where indicated) during assembly.
CAUTION: The bearing bores in various transfer
case components contain oil feed holes. Be sure re-
placement bearings do not block these feed holes.
(2) Remove the front output shaft, front bearing
snap ring (Fig. 42).(3) Remove the old bearing and install the new
bearing with a driver handle and installer tool (Fig.
43).
(4) Install the front bearing snap ring (Fig. 42).
(5) Install new front output shaft oil seal (Fig. 44).
Fig. 42 Removing/Installing Front Output Shaft
Front Bearing Snap Ring
Fig. 43 Replacing Output Shaft Front Bearing
Fig. 44 Installing Front Output Shaft Seal
21 - 306 NP242 TRANSFER CASEJ

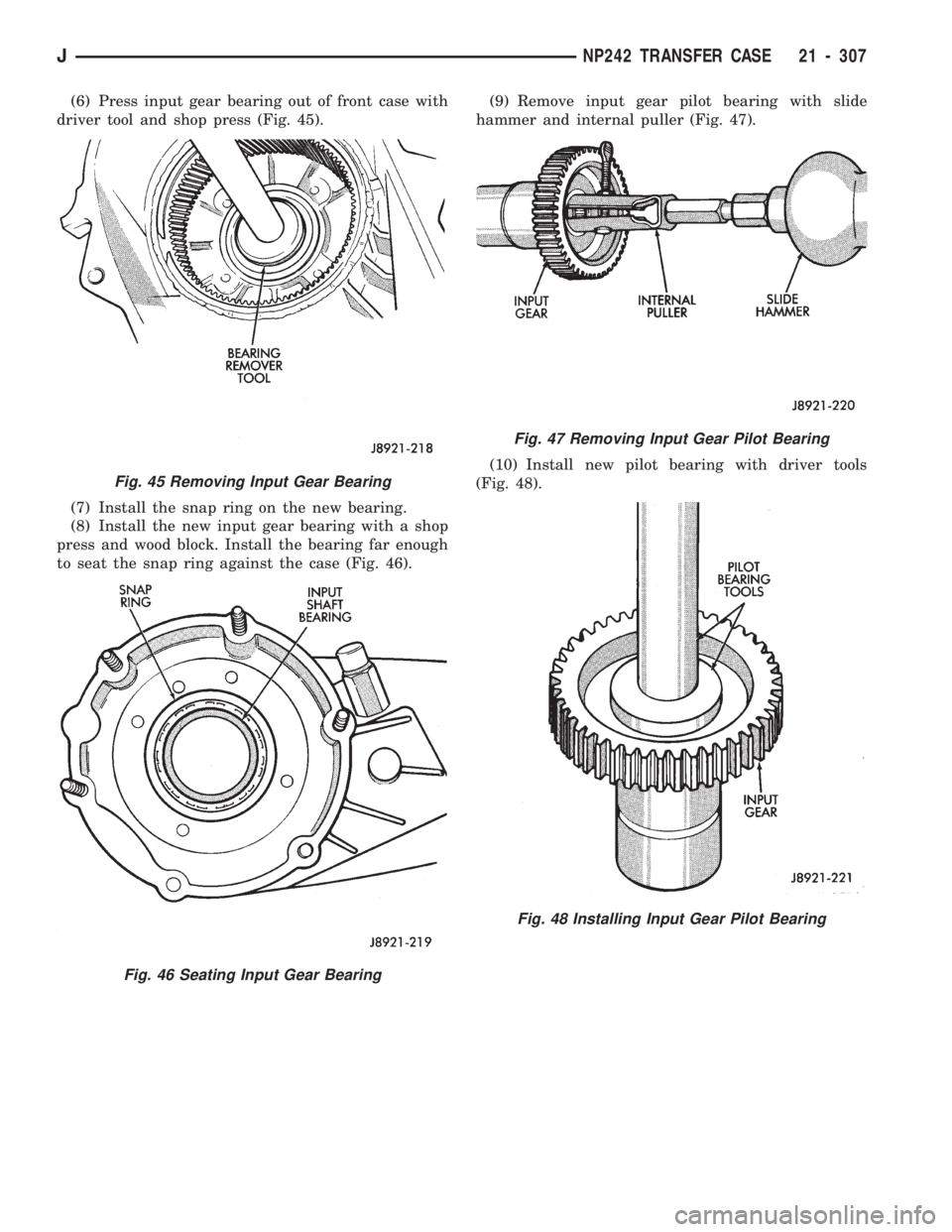

(6) Press input gear bearing out of front case with
driver tool and shop press (Fig. 45).
(7) Install the snap ring on the new bearing.
(8) Install the new input gear bearing with a shop
press and wood block. Install the bearing far enough
to seat the snap ring against the case (Fig. 46).(9) Remove input gear pilot bearing with slide
hammer and internal puller (Fig. 47).
(10) Install new pilot bearing with driver tools
(Fig. 48).
Fig. 45 Removing Input Gear Bearing
Fig. 46 Seating Input Gear Bearing
Fig. 47 Removing Input Gear Pilot Bearing
Fig. 48 Installing Input Gear Pilot Bearing
JNP242 TRANSFER CASE 21 - 307

(11) Assemble low range gear, input gear thrust
washers, input gear and input gear retainer (Fig. 49).
(12) Install low range gear snap ring (Fig. 50).
(13) Lubricate input gear and low range gears with
automatic transmission fluid.
(14) Start the input gear shaft into the front case
bearing.
(15) Press the input gear shaft into the front bear-
ing.CAUTION: Be sure the input gear installer tool is
the proper size. The wrong size tool could push the
input gear pilot bearing too far into the gear bore
(Fig. 51). Also, do not press against the end sur-
faces of the low range gear. The gear case and
thrust washers could be damaged.
(16) Install new input gear snap ring (Fig. 52).
Fig. 49 Low Range And Input Gear Assembly
Fig. 50 Install Low Range Gear Snap Ring
Fig. 51 Input Gear Installation
Fig. 52 Install Input Gear Snap Ring
21 - 308 NP242 TRANSFER CASEJ

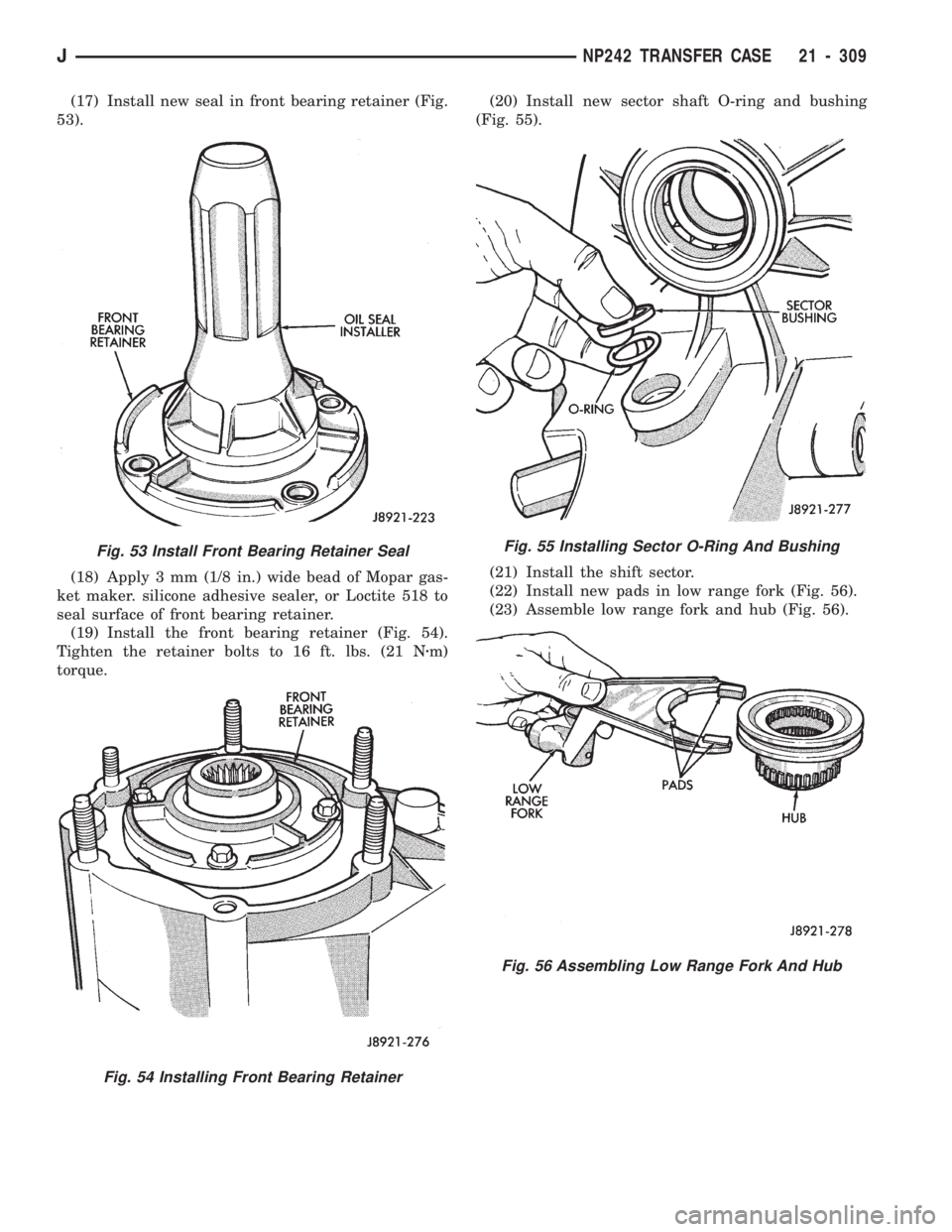

(17) Install new seal in front bearing retainer (Fig.
53).
(18) Apply 3 mm (1/8 in.) wide bead of Mopar gas-
ket maker. silicone adhesive sealer, or Loctite 518 to
seal surface of front bearing retainer.
(19) Install the front bearing retainer (Fig. 54).
Tighten the retainer bolts to 16 ft. lbs. (21 Nzm)
torque.(20) Install new sector shaft O-ring and bushing
(Fig. 55).
(21) Install the shift sector.
(22) Install new pads in low range fork (Fig. 56).
(23) Assemble low range fork and hub (Fig. 56).
Fig. 55 Installing Sector O-Ring And Bushing
Fig. 56 Assembling Low Range Fork And Hub
Fig. 53 Install Front Bearing Retainer Seal
Fig. 54 Installing Front Bearing Retainer
JNP242 TRANSFER CASE 21 - 309

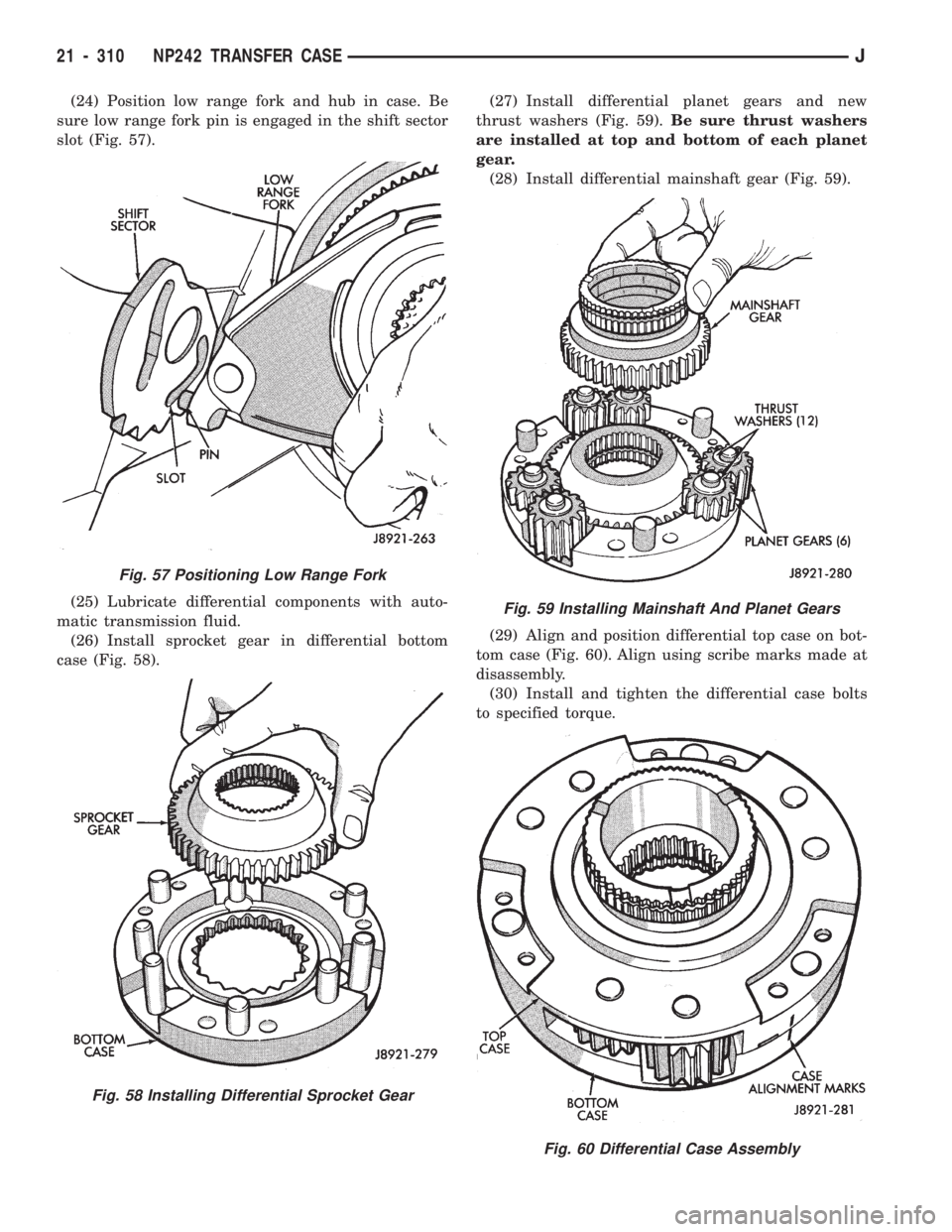

(24) Position low range fork and hub in case. Be
sure low range fork pin is engaged in the shift sector
slot (Fig. 57).
(25) Lubricate differential components with auto-
matic transmission fluid.
(26) Install sprocket gear in differential bottom
case (Fig. 58).(27) Install differential planet gears and new
thrust washers (Fig. 59).Be sure thrust washers
are installed at top and bottom of each planet
gear.
(28) Install differential mainshaft gear (Fig. 59).
(29) Align and position differential top case on bot-
tom case (Fig. 60). Align using scribe marks made at
disassembly.
(30) Install and tighten the differential case bolts
to specified torque.
Fig. 57 Positioning Low Range Fork
Fig. 58 Installing Differential Sprocket Gear
Fig. 59 Installing Mainshaft And Planet Gears
Fig. 60 Differential Case Assembly
21 - 310 NP242 TRANSFER CASEJ
