1994 CHEVROLET BLAZER Owners Manual

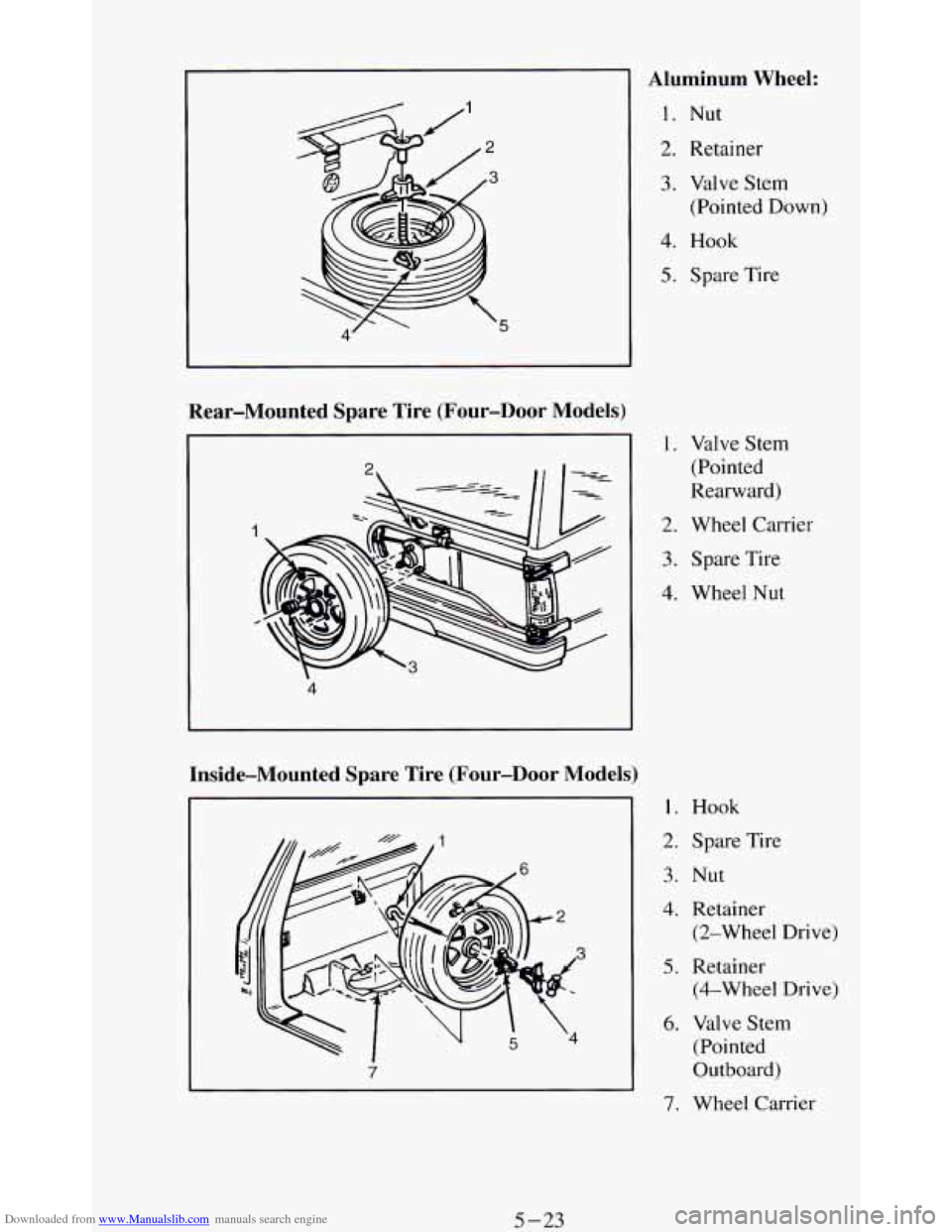

Downloaded from www.Manualslib.com manuals search engine Rear-Mounted Spare Tire (Four-Door Models)
4
Aluminum Wheel:
I. Nut
2. Retainer
3. Valve Stem
(Pointed Down)
4. Hook
5. Spare Tire
1. Valve Stem
(Pointed
Rearward)
2. Wheel Carrier
3. Spare Tire
4. Whee
Inside-Mounted Spare Tire (Four-Door Models)
1. Hook
:1 Nut
?
2. Spare Tire
3. Nut
4. Retainer
(2-Wheel Drive)
5. Retainer
(4-Wheel Drive)
6. Valve Stem
(Pointed
Outboard)
7. Wheel Carrier
5-23

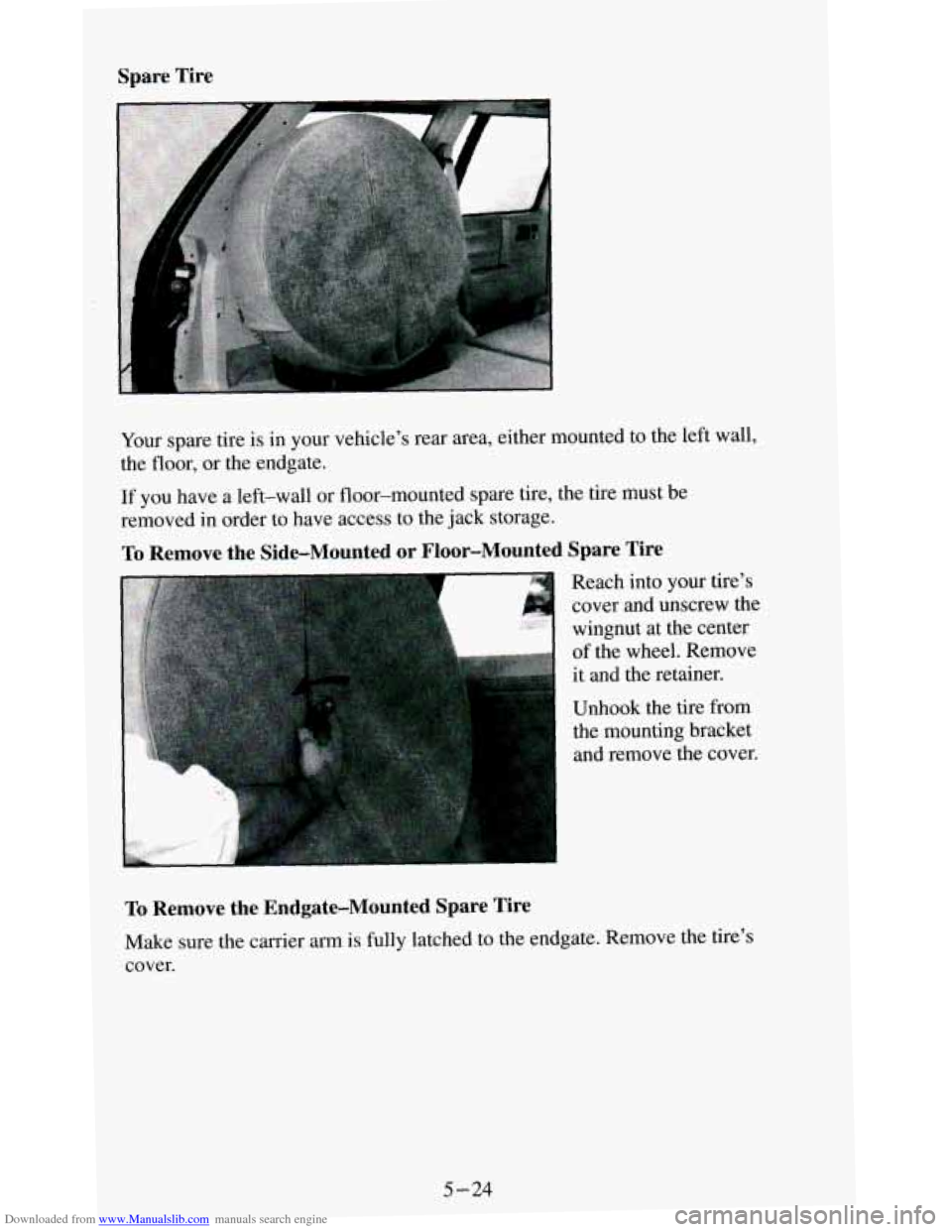

Downloaded from www.Manualslib.com manuals search engine Spare Tire
Your spare tire is in your vehicle's rear area, either mounted to the left wall,
the floor, or the endgate.
If you have a left-wall or floor-mounted spare tire, the tire must be
removed
in order to have access to the jack storage.
TO Remove the Side-Mounted or Floor-Mounted Spare Tire
Reach into your tire's
cover and unscrew the
wingnut at the center
of the wheel. Remove
it and the retainer.
Unhook the tire from
the mounting bracket
and remove the cover.
To Remove the Endgate-Mounted Spare Tire
5-24

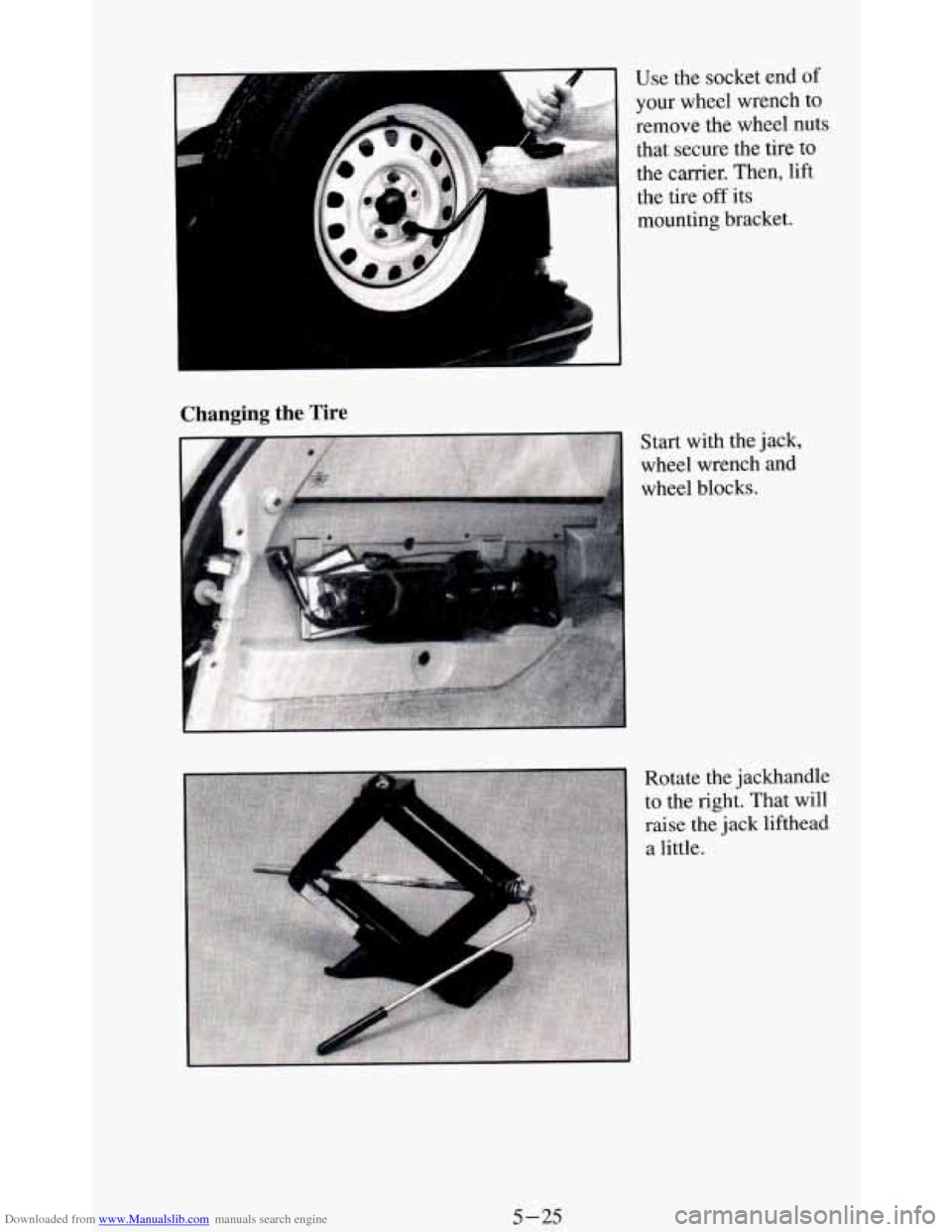

Downloaded from www.Manualslib.com manuals search engine Changing the Tire
Use the socket end of
your wheel wrench to
remove the wheel nuts
that secure the
tire to
the carrier. Then, lift
the tire
off its
mounting bracket.
Start with the jack,
wheel wrench
and
wheel blocks.
Rotate the jackhandle to the right. That will
raise the jack lifthead
a little.
5-25

Downloaded from www.Manualslib.com manuals search engine e

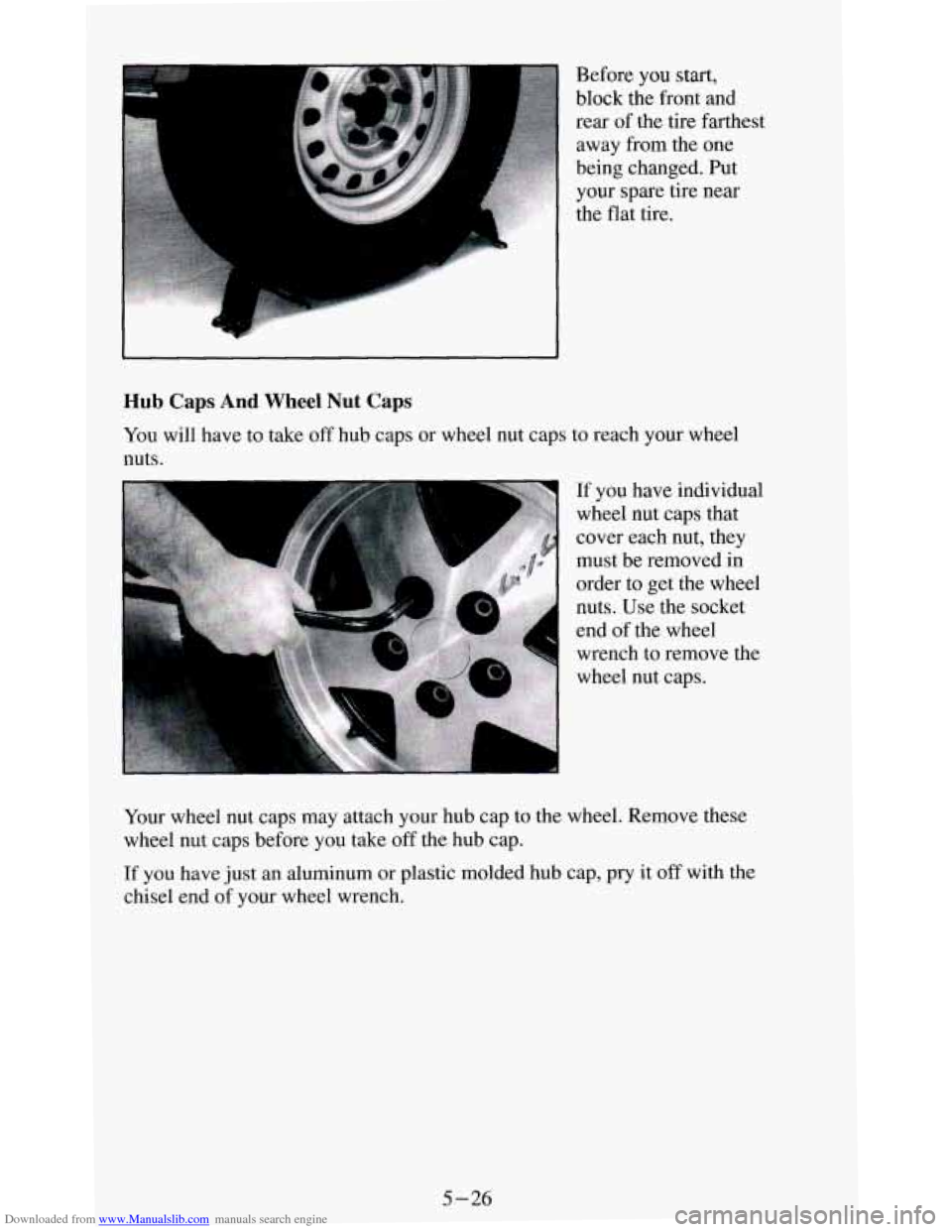

Before you start,
block the front and
rear of the tire farthest
away from the one
being changed. Put
your spare tire near
the flat tire.
Hub Caps And Wheel Nut Caps
You will have to take off hub caps or wheel nut caps to reach your wheel
nuts.
I --
If you have individual
wheel nut caps that
cover each nut, they
must be removed in
order to get the wheel
nuts. Use the socket
end
of the wheel
wrench to remove the
wheel nut caps.
Your wheel nut caps may attach your hub cap to the wheel. Remove these
wheel nut caps before you take
off the hub cap.
If you have just an aluminum or plastic molded hub cap, pry it off with the
chisel end of your wheel wrench.
5-26

Downloaded from www.Manualslib.com manuals search engine k , ...

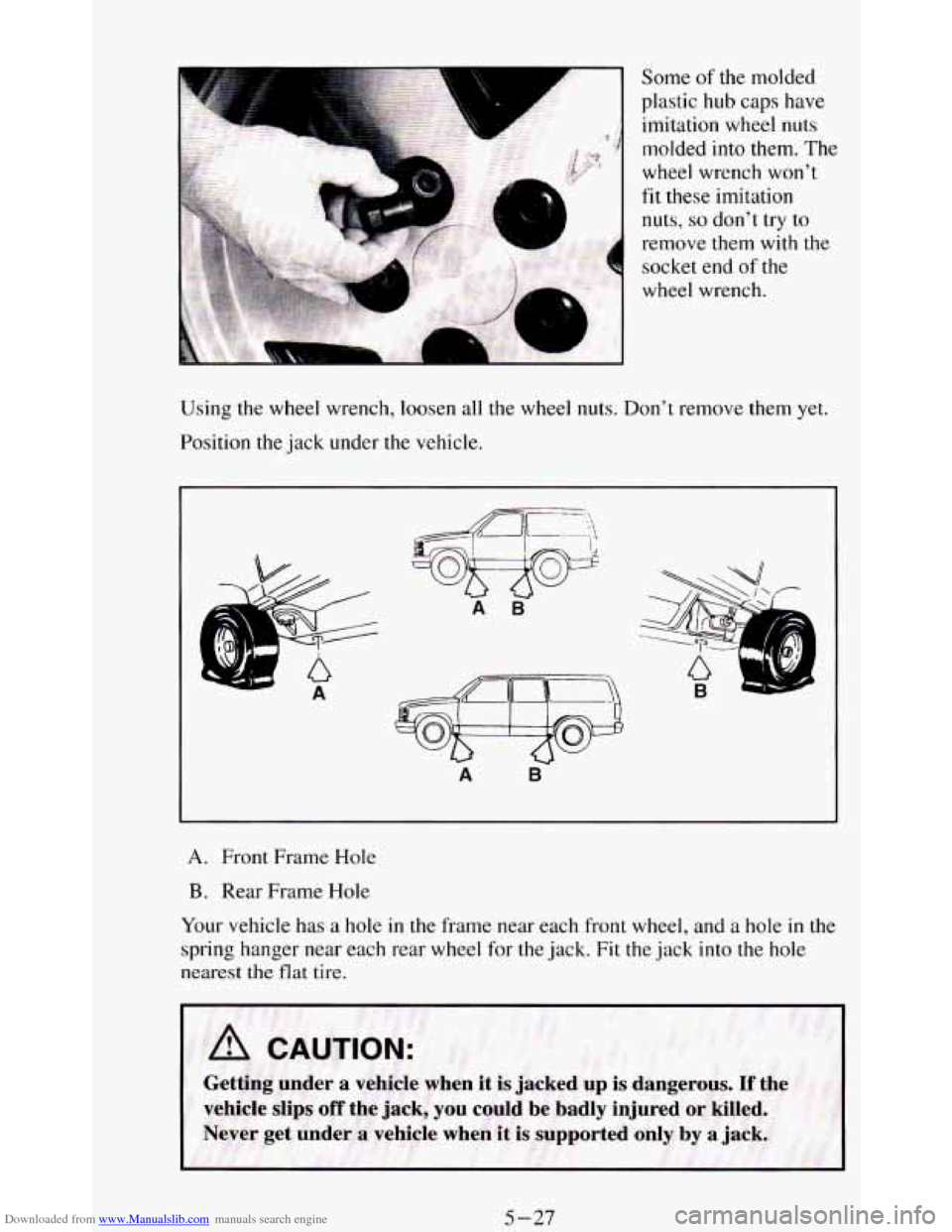

Some of the molded
plastic
hub caps have
imitation
wheel nuts
molded into them. The
wheel wrench won’t
fit these imitation
nuts,
so don’t try to
remove them
with the
socket end
of the
wheel wrench.
Using the wheel wrench, loosen all the wheel nuts. Don’t remove them
yet.
Position the jack under the vehicle.
ce,
A
A A
B-
A B
A. Front Frame Hole
B. Rear Frame
Hole
Your vehicle has
a hole in the frame near each front wheel, and a hole in the
spring hanger near each
rear wheel for the jack. Fit the jack into the hole
nearest
the flat tire.
5-27

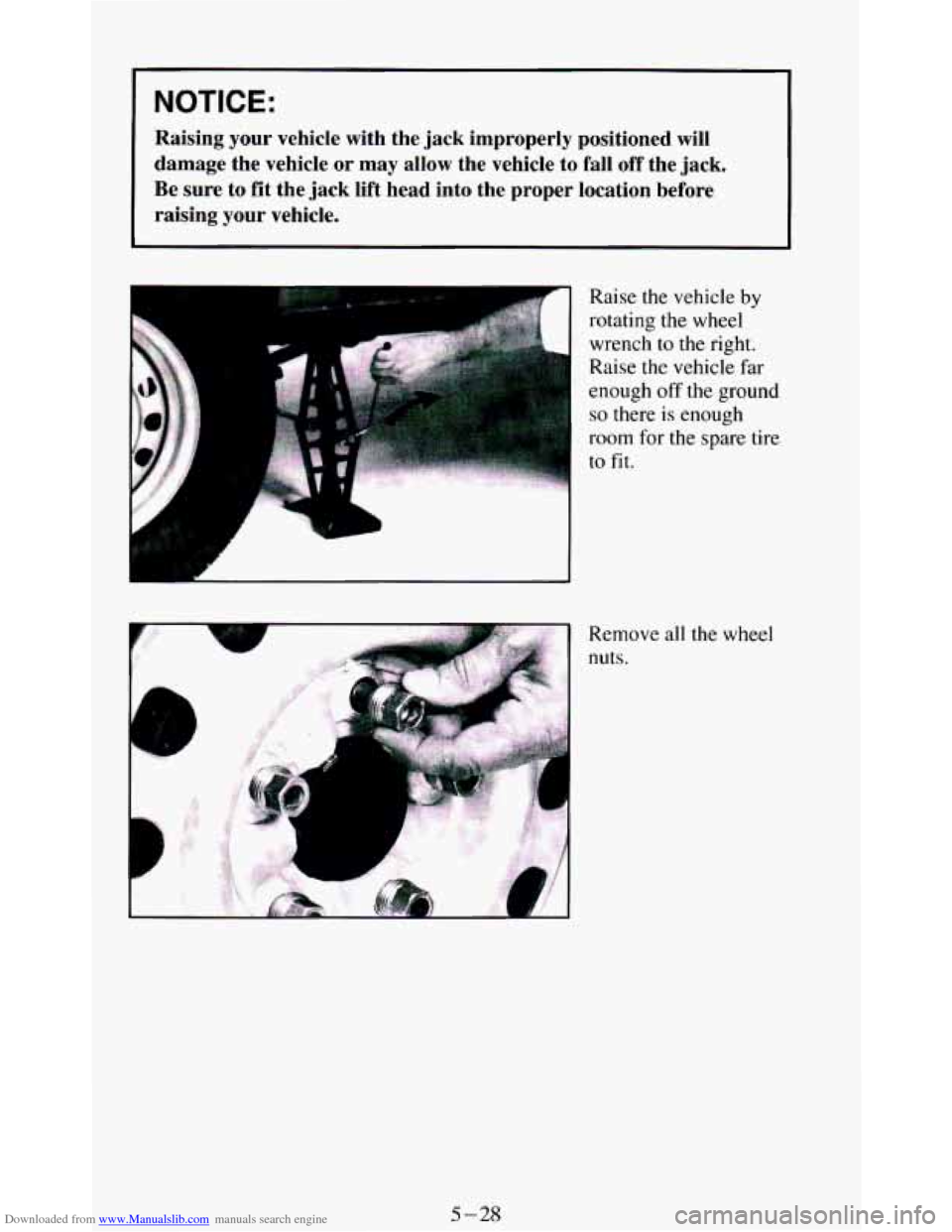

Downloaded from www.Manualslib.com manuals search engine NOTICE:
Raising your vehicle with the jack improperly positioned will
damage the vehicle or may allow the vehicle to fall off the jack.
Be sure to fit the jack lift head into the proper location before
raising
your vehicle.
h.
Raise the vehicle by
rotating the wheel
wrench to
the right.
~ Raise the vehicle far
enough off the ground
so there is enough
room for the spare tire
to fit.
Remove all the wheel
nuts.
5-28

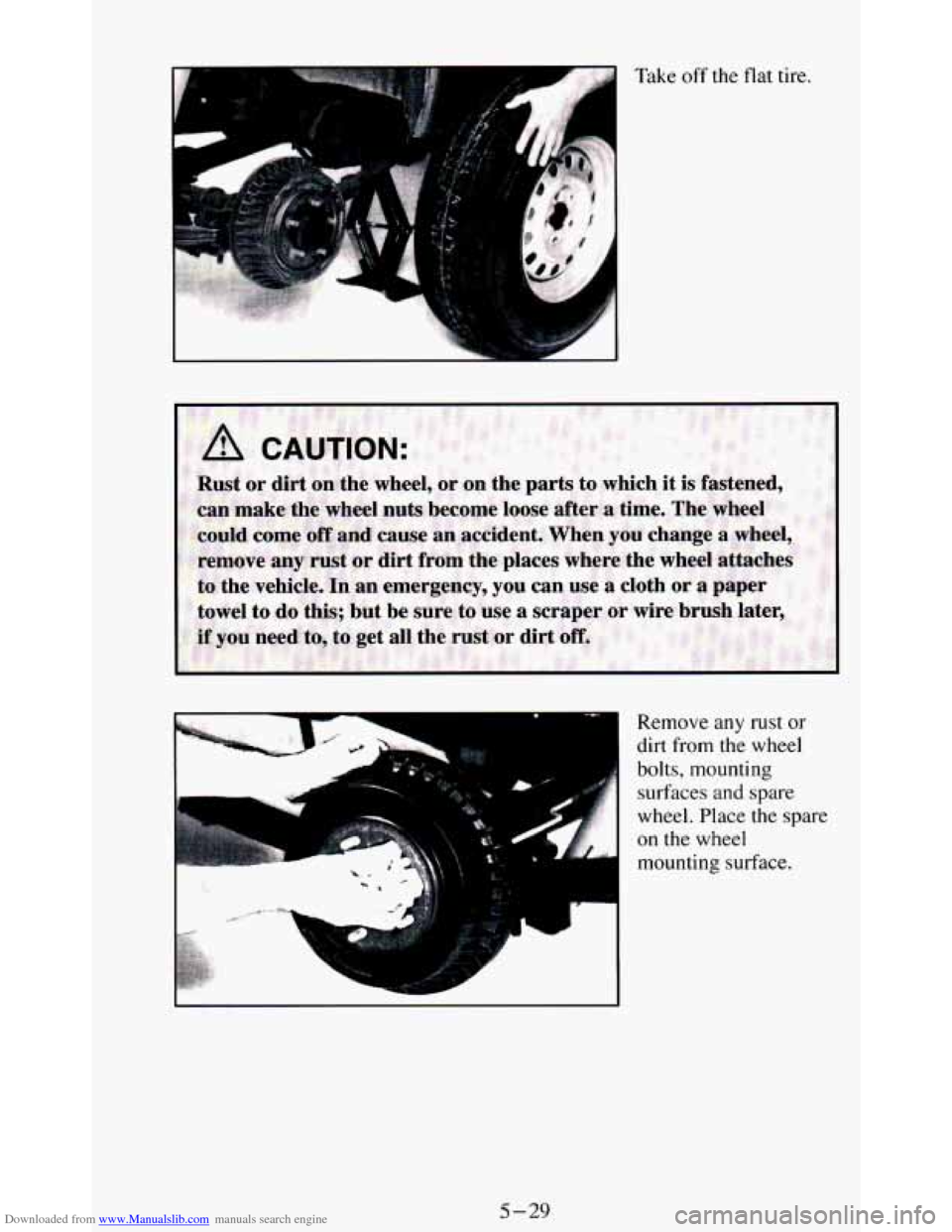

Downloaded from www.Manualslib.com manuals search engine Take off the flat tire.
L Remove any rust or
dirt from the wheel
bolts, mounting
surfaces
and spare
wheel. Place the spare
on the wheel
mounting surface.
5-29

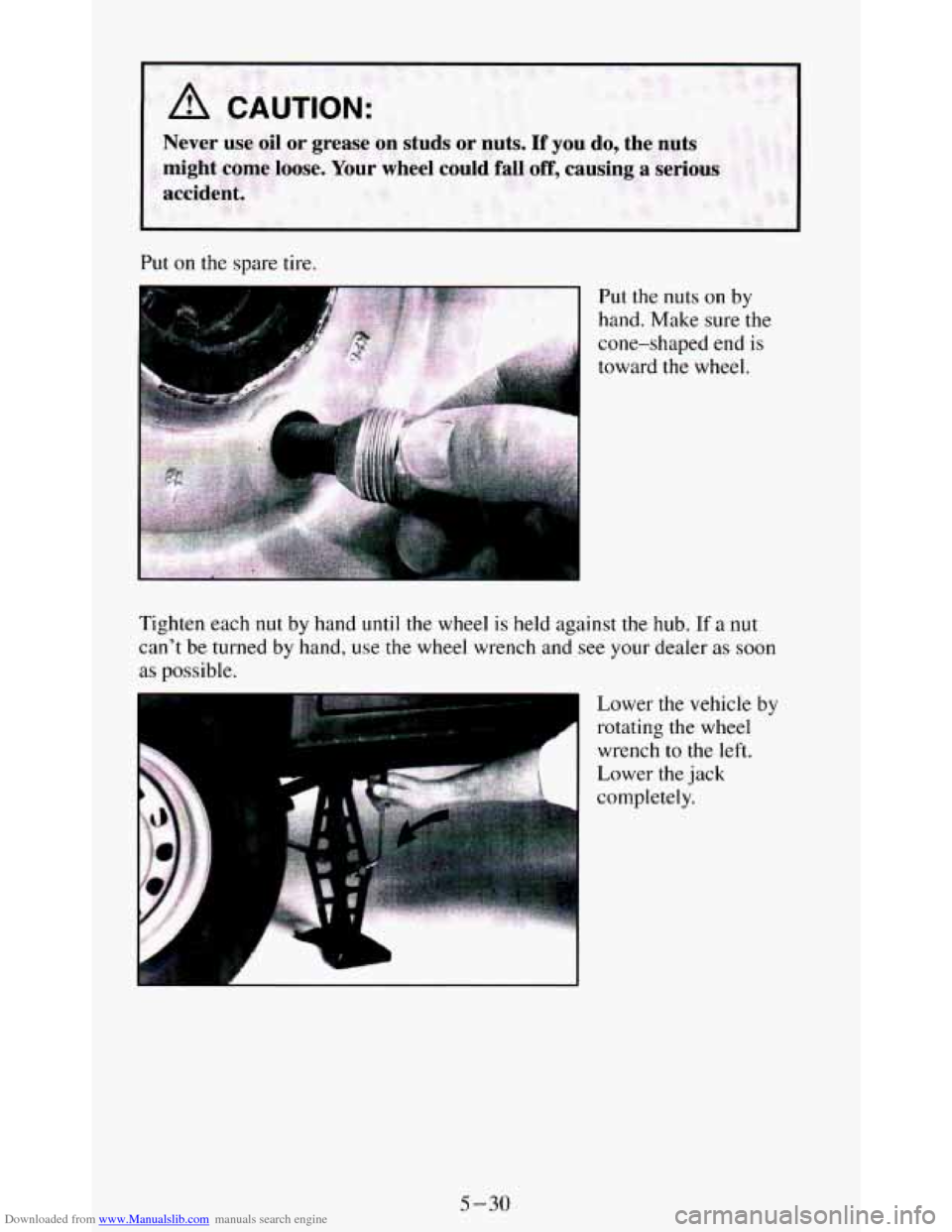

Downloaded from www.Manualslib.com manuals search engine Never use oil or grease on studs or nuts. If you do, the nuts
might cum@ loose. Your wheel could fall off, causing a serious
accident.
~~
Put on the spare tire.
Put the nuts
on by
hand.
Make sure the
cone-shaped end is
toward the wheel.
Tighten each
nut by hand until the wheel is held against the hub. If a nut
can't be turned by hand, use the wheel wrench and see your dealer as soon
as possible.
Lower the vehicle by
rotating the wheel
wrench
to the left.
Lower the jack
completely.
si:..
5-30
