1994 CHEVROLET BLAZER Owners Manual

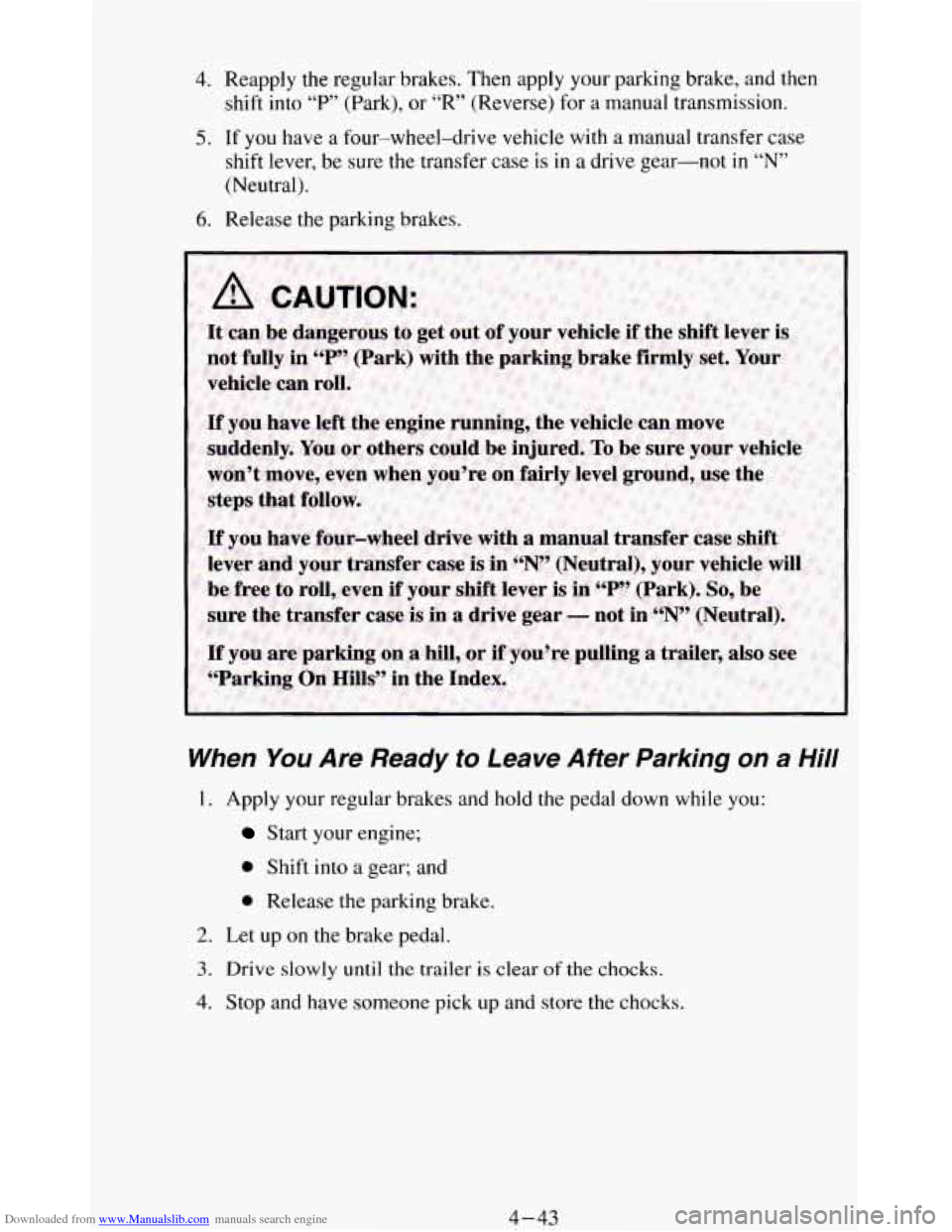

Downloaded from www.Manualslib.com manuals search engine 4. Reapply the regular brakes. Then apply your parking brake, and then
shift into
“P” (Park), or “R” (Reverse) for a manual transmission.
5. If you have a four-wheel-drive vehicle with a manual transfer case
shift lever, be sure
the transfer case is in a drive gear-not in “N”
(Neutral).
6. Release the parking brakes.
When You Are Ready to Leave After Parking on a Hill
1. Apply your regular brakes and hold the pedal down while you:
Start your engine;
0 Shift into a gear; and
0 Release the parking brake.
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the chocks.
4. Stop and have someone pick up and store the chocks.
4-43

Downloaded from www.Manualslib.com manuals search engine Maintenance When Trailer Towing
Your vehicle will need service more often when you’re pulling a trailer. See
the Maintenance Schedule for more on this. Things that are especially
important in trailer operation are automatic transmission fluid (don’t
overfill), engine oil, axle lubricant, belt, cooling system, and brake
adjustment. Each of these is covered
in this manual, and the Index will help
you find them quickly. If you’re trailering,
it’s a good idea to review these
sections before you start your trip.
Check periodically to see that
all hitch nuts and bolts are tight.
Trailer Light Wiring
See “Trailer Wiring Harness” in the Index.
Power Winches
If you wish to use a power winch on your vehicle, only use it when your
vehicle
is stationary or anchored.
! NOTICE:
~ When operating a power winch on your vehicle always leave the \
l transmission in the neutral position. Do not leave an automatic
transmission in
P (Park) or a manual transmission in gear or the
transmission may be damaged.
Use the regular brakes, set the parking brake or block the wheels to keep
your vehicle from rolling.
4-44

Downloaded from www.Manualslib.com manuals search engine Here you’ll find what to do about some problems
Hazard Warning Flasher
...................
Other Warning Devices ....................
Jump Starting ............................
Towing Your Vehicle ......................
Engine Overheating .......................
Engine Fan Noise .........................
If a Tire Goes Flat ........................
Changing a Flat Tire ....................
If You’re Stuck: In Sand. Mud. Ice or Snow ....
Seciion
that can occur on
..............
..............
..............
..............
..............
..............
the road .
....
5-2
.... 5-3
.... 5-3
.... 5-7
... 5-11
... 5-18
................. 5-18
................. 5-19
................. 5-32
5-1

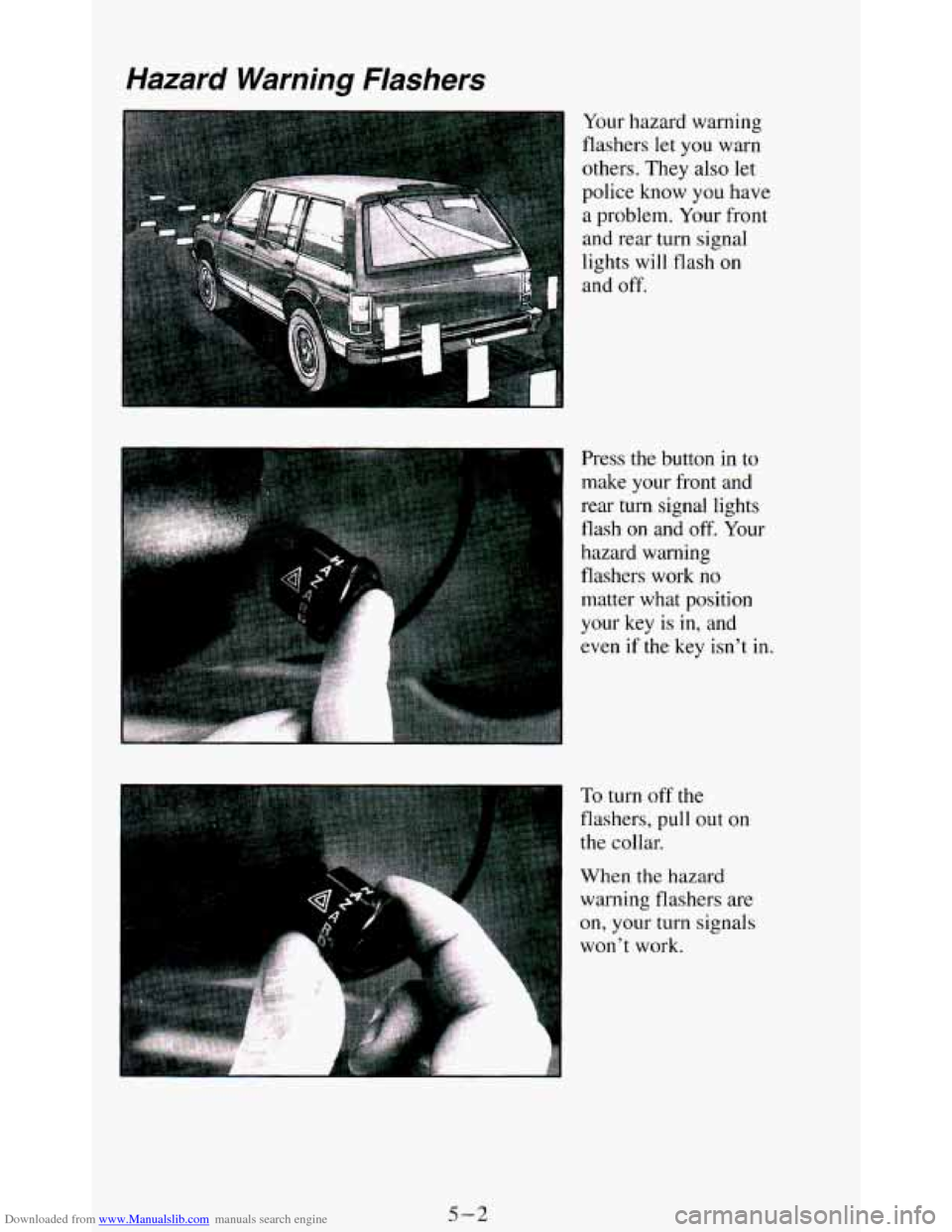

Downloaded from www.Manualslib.com manuals search engine Hazard Warning Flashers
Your hazard warning
flashers let
you warn
others. They also let
~ police know you have
1 a problem. Your front
and rear turn signal
lights will flash
on
and off.
Press the button in to
make your front and
rear turn signal lights
flash on and
off. Your
hazard warning
flashers work no matter what position
your key is
in, and
even
if the key isn’t in.
To turn off the
flashers,
pull out on
the collar.
When the hazard
warning flashers are
on, your turn signals
won’t work.
5-2

Downloaded from www.Manualslib.com manuals search engine Other Warning Devices
If you carry reflective triangles, you can set one up at the side of the road
about
300 feet (100 m) behind your vehicle.
Jump Starting
If your battery has run down, you may want to use another vehicle and some
jumper cables to start your vehicle. But please follow the steps below to
do
it safely.
NOTICE:
Ignoring these steps could result in costly damage to your
vehicle that wouldn’t be covered by your warranty.
Trying to start your vehicle by pushing or pulling it could damage
your vehicle, even
if you have a manual transmission. And if you
~ have an automatic transmission, it won’t start that way.
To Jump Start Your Vehicle:
1. Check the other vehicle. It must have a 12-volt battery with a negative
ground system.
NOTICE:
If the other system isn’t a 12-volt system with a negative
ground, both vehicles can be damaged.
5-3

Downloaded from www.Manualslib.com manuals search engine 2.
3.
Get the vehicles close enough so the jumper cables can reach, but be
sure the vehicles
aren’t touching each other. If they are, it could cause
ground connection you don’t want. You wouldn’t be able to start you1
vehicle, and the bad grounding could damage the electrical systems.
You could be injured if the vehicles roll. Set
the parking brake firmly
on each vehicle. Put an automatic transmission in “P’ (Park) or a
a
manual transmission in “N” (Neutral). If you have a four-wheel-drive
vehicle with
a manual transfer case shift lever, be sure the transfer case
is not in “N” (Neutral).
Turn
off the ignition on both vehicles. Turn off all lights that aren’t
needed, and radios. This will avoid sparks and help save both batteries.
And it could save your radio!
~~~
NOTICE:
~~
If you leave your radio on, it could be badly damaged. The
repairs wouldn’t be covered by your warranty.
4. Open the hoods and locate the batteries. Find the positive (+) and
negative (-) terminals on each battery.
5. Check that the jumper cables don’t have loose or missing insulation. If
they do, you could get a shock. The vehicles could be damaged, too.
Before you connect the cables, here are some basic things you should
know. Positive
(+) will go to positive (+) and negative (-) will go to
5-4

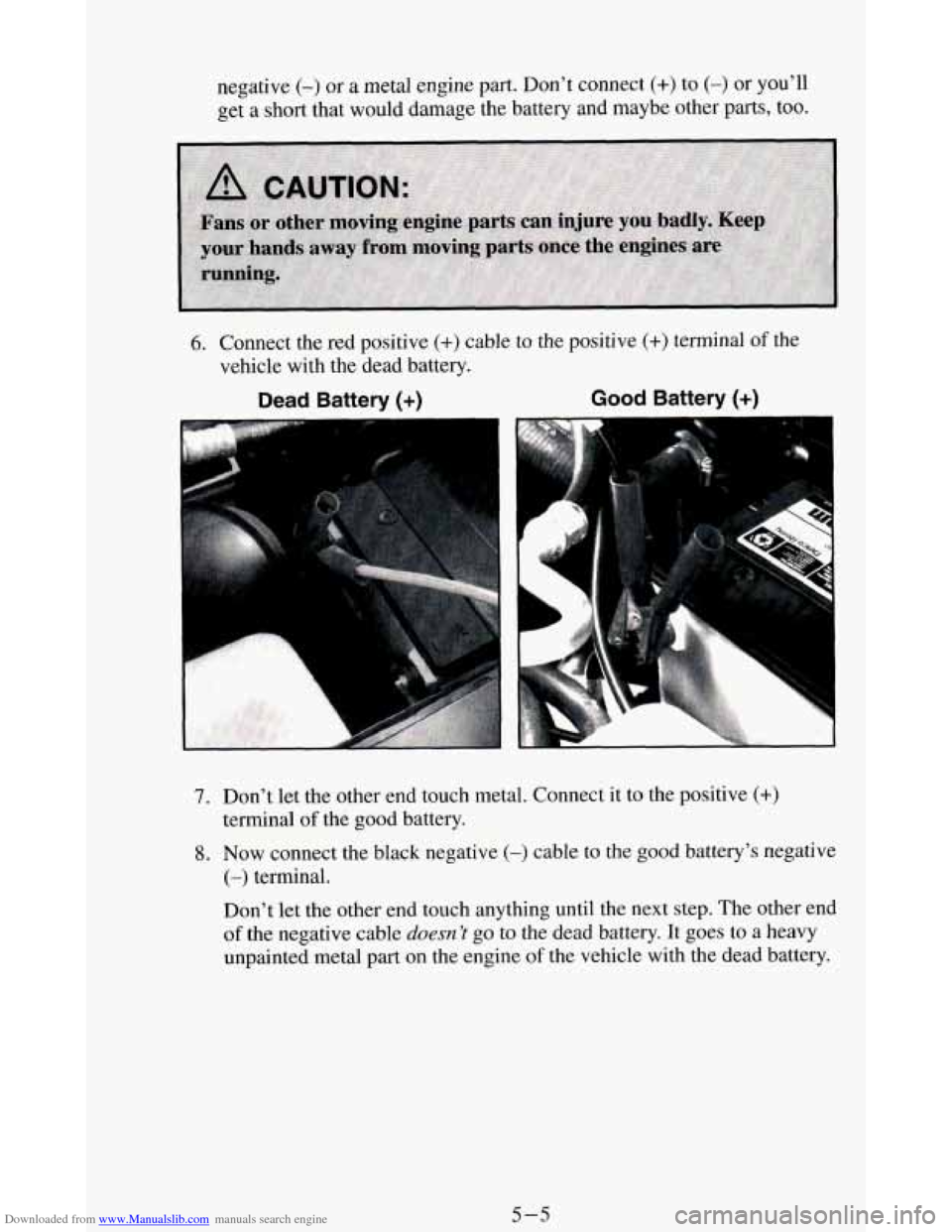

Downloaded from www.Manualslib.com manuals search engine negative (-) or a metal engine part. Don’t connect (+) to (-) or you’ll
get
a short that would damage the battery and maybe other parts, too.
6. Connect the red positive (+) cable to the positive (+) terminal of the
vehicle with the dead battery.
Dead Battery (+) Good Battery (+)
I
7. Don’t let the other end touch metal. Connect it to the positive (+)
terminal of the good battery.
8. Now connect the black negative (-) cable to the good battery’s negative
(-) terminal.
Don’t let the other end touch anything until
the next step. The other end
of the negative cable duesn ’t go to the dead battery. It goes to a heavy
unpainted metal part
on the engine of the vehicle with the dead battery.
5-5

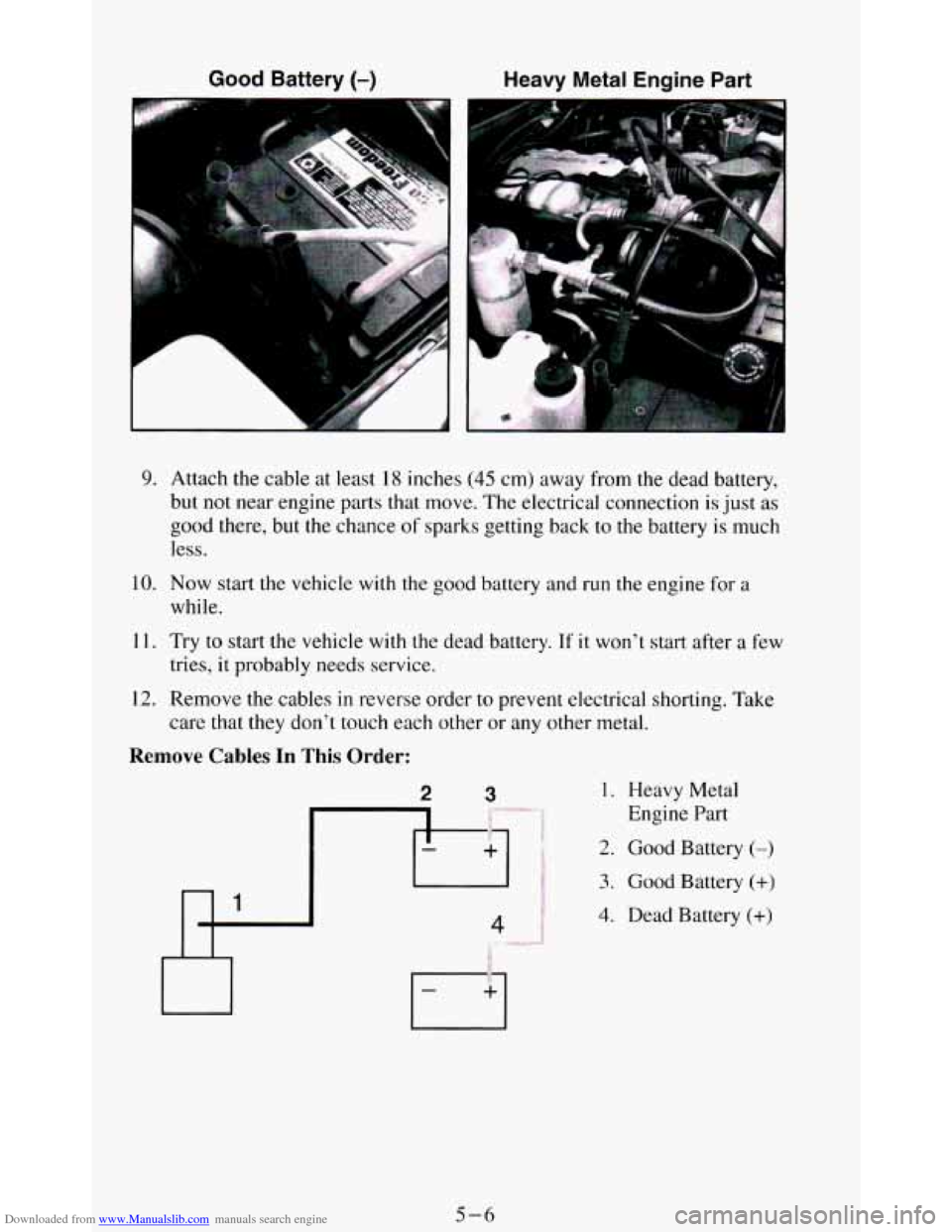

Downloaded from www.Manualslib.com manuals search engine Good Battery (-) Heavy Metal Engine Part
P
9. Attach the cable at least 18 inches (45 cm) away from the dead battery,
but not near engine parts that move. The electrical connection
is just as
good there, but the chance of sparks getting back to the battery is much
less.
10. Now start the vehicle with the good battery and run the engine for a
11. Try to start the vehicle with the dead battery. If it won't start after a few
while.
tries, it probably needs service.
12. Remove the cables in reverse order to prevent electrical shorting. Take
Remove Cables In This Order:
care that they don't touch each other or any other metal.
2 3 1. Heavy Metal
Engine Part
2. Good Battery (-)
3. Good Battery (+)
4. Dead Battery (+)
5-6
