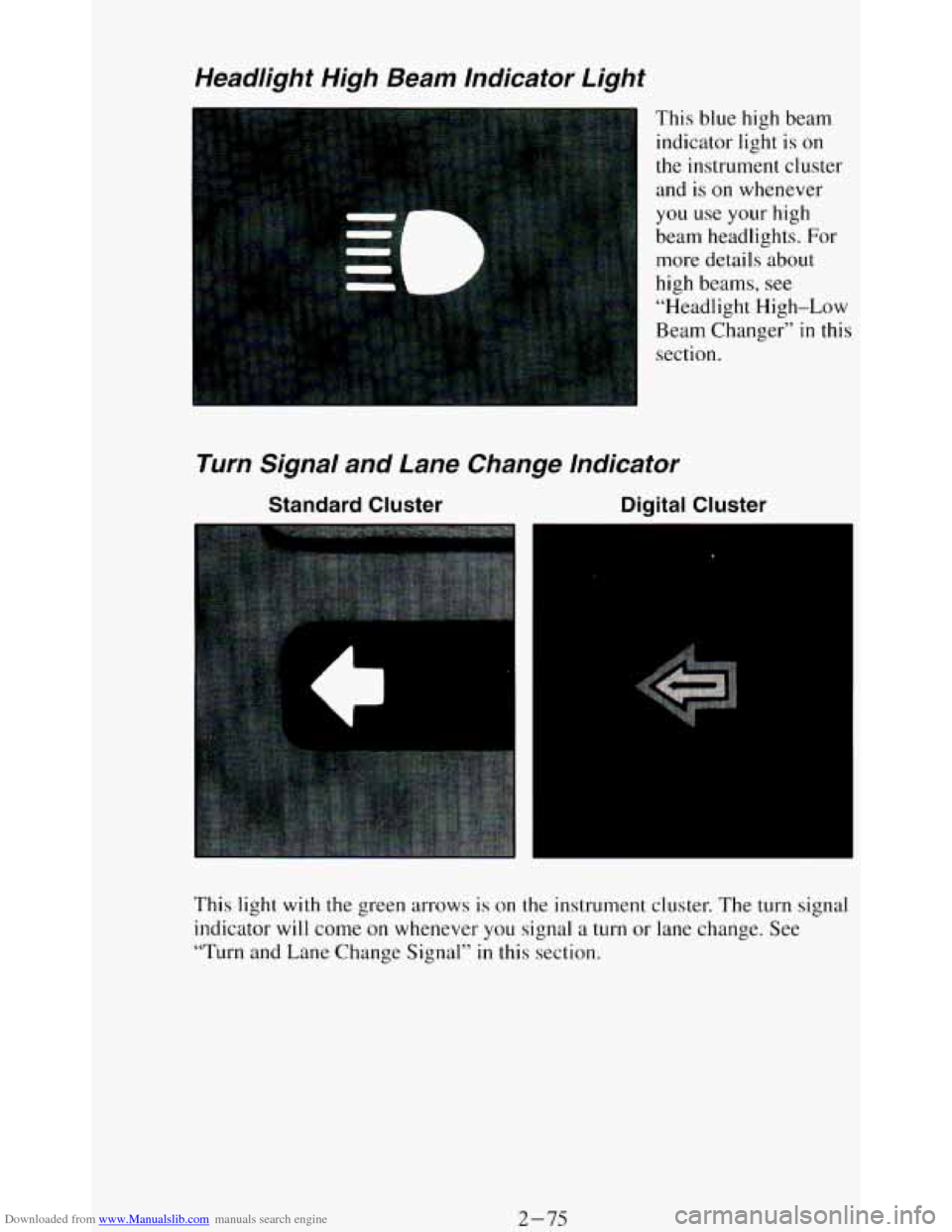

Downloaded from www.Manualslib.com manuals search engine Headlight High Beam lndicator Light
This blue high beam
indicator light is
on
the instrument cluster
and is
on whenever
you use
your high
beam headlights. For
more details about
high beams, see
“Headlight High-Low
Beam Changer”
in this
section.
Turn Signal and Lane Change lndicator
Standard Cluster Digital Cluster
4
This light with the green arrows is on the instrument cluster. The turn signal
indicator will come on whenever
you signal a turn or lane change. See
“Turn and Lane Change Signal”
in this section.
2-75

Downloaded from www.Manualslib.com manuals search engine Gages

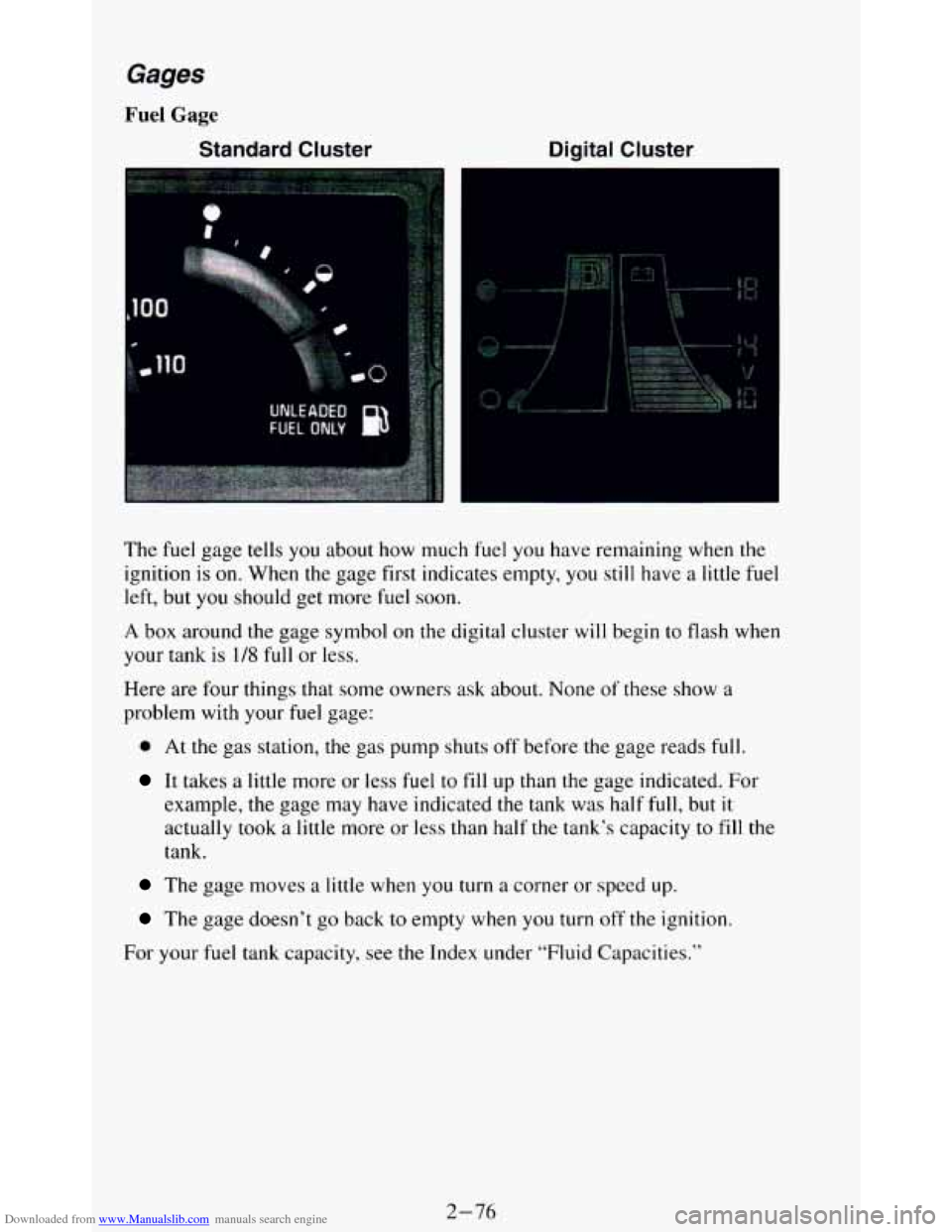

Fuel Gage
Standard Cluster Digital Cluster
The fuel gage tells you about how much fuel you have remaining when the
ignition is
on. When the gage first indicates empty, you still have a little fuel
left, but you should get more fuel soon.
A box around the gage symbol on the digital cluster will begin to flash when
your tank
is 1/8 full or less.
Here are four things that some owners ask about. None
of these show a
problem with your fuel gage:
0 At the gas station, the gas pump shuts off before the gage reads full.
It takes a little more or less fuel to fill up than the gage indicated. For
example, the gage may have indicated the tank was half
full, but it
actually took a little more or less than half the tank’s capacity to fill the
tank.
The gage moves a little when you turn a corner or speed up.
The gage doesn’t go back to empty when you turn off the ignition.
For your fuel tank capacity, see
the Index under “Fluid Capacities.”
2-76

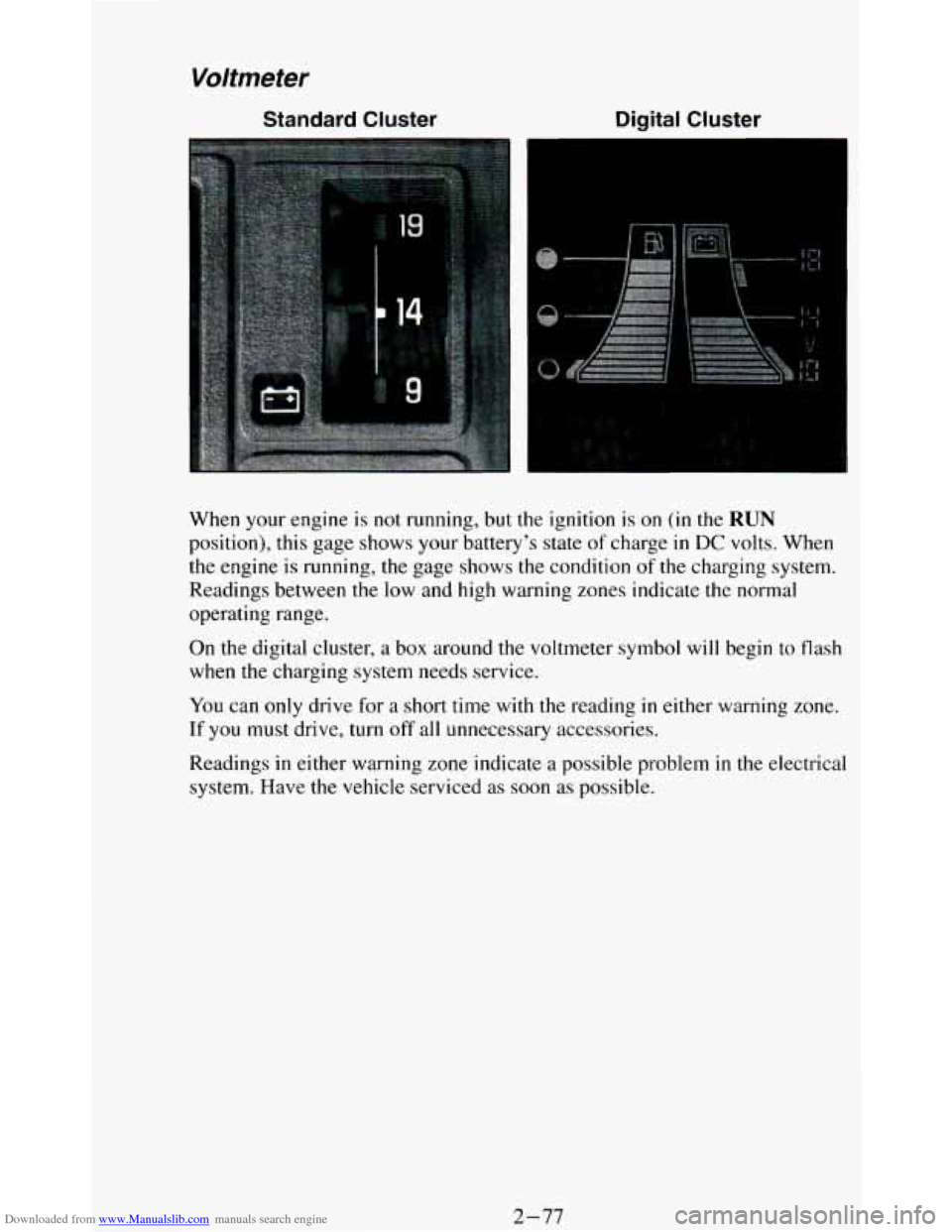

Downloaded from www.Manualslib.com manuals search engine Voltmeter
Standard Cluster Digital Cluster
I
When your engine is not running, but the ignition is on (in the RUN
position), this gage shows your battery’s state of charge in DC volts, When
the engine is running, the gage shows
the condition of the charging system.
Readings between the low and
high warning zones indicate the normal
operating range.
On the digital cluster, a box around the voltmeter symbol will begin to flash
when the charging system needs service.
You can only drive for a short time with the reading in either warning zone.
If you must drive, turn off all unnecessary accessories.
Readings in either warning zone indicate a possible problem
in the electrical
system. Have the vehicle serviced as soon as possible.
2-77

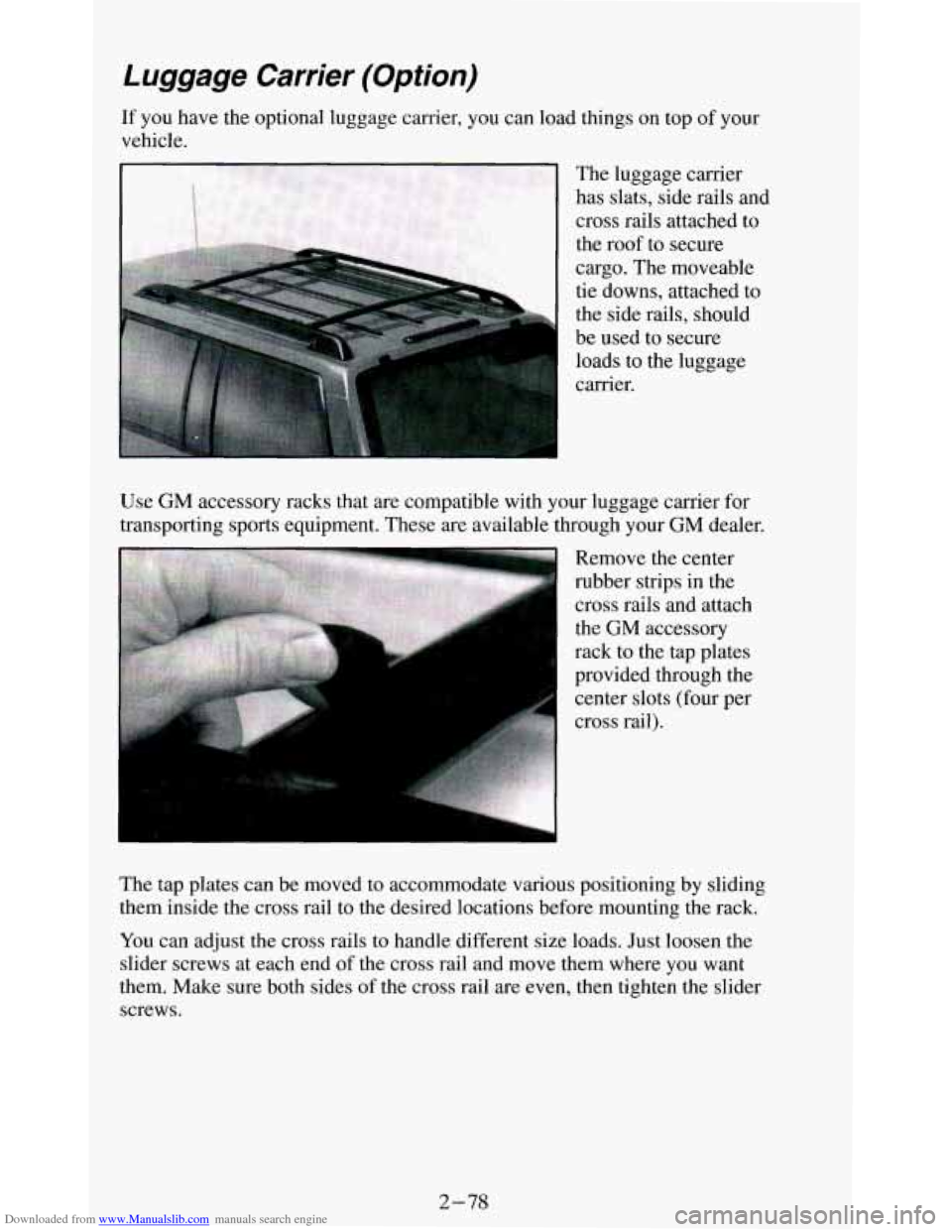

Downloaded from www.Manualslib.com manuals search engine Luggage Carrier (Option)
carrier.
Use
GM accessory racks that are compatible with your luggage carrier for
transporting sports equipment. These are available through your GM dealer.
Remove the center
rubber
strips in the
cross rails and attach
the GM accessory
rack to the tap plates
provided through the center slots (four per
cross rail).
The tap plates can be moved to accommodate various positioning by sliding
them inside the cross rail to the desired locations before mounting the rack.
You can adjust the cross rails to handle different size loads. Just loosen the
slider screws at each end
of the cross rail and move them where you want
them. Make sure both sides
of the cross rail are even, then tighten the slider
screws.
2-78

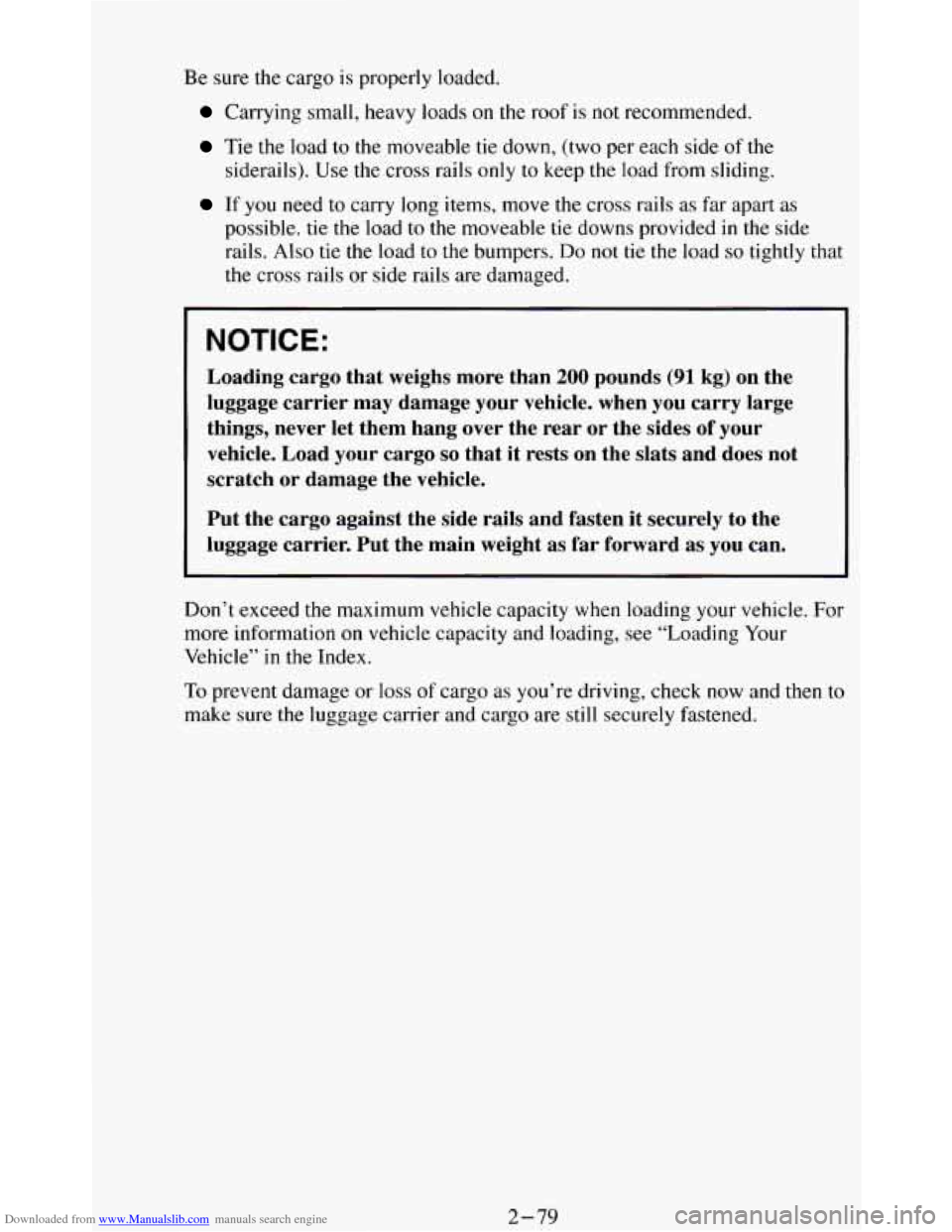

Downloaded from www.Manualslib.com manuals search engine Be sure the cargo is properly loaded.
Carrying small, heavy loads on the roof is not recommended.
Tie the load to the moveable tie down, (two per each side of the
siderails). Use the cross rails only to keep the load from sliding,
If you need to carry long items, move the cross rails as far apart as
possible. tie the load to the moveable tie downs provided
in the side
rails.
Also tie the load to the bumpers. Do not tie the load so tightly that
the cross rails or side rails are damaged.
NOTICE:
~ ~~
Loading cargo that weighs more than 200 pounds (91 kg) on the
luggage carrier may damage your vehicle. when you carry large
things, never let them hang over the rear or the sides of your
vehicle. Load your cargo
so that it rests on the slats and does not
scratch or damage the vehicle.
Put the cargo against the side rails and fasten it securely t\
o the
luggage carrier. Put the main weight as far forward
as you can.
Don’t exceed the maximum vehicle capacity when loading your vehicle.
For
more information on vehicle capacity and loading, see “Loading Your
Vehicle”
in the Index.
To prevent damage or loss of cargo as you’re driving, check now and then to
make sure the luggage carrier and cargo are still securely fastened.
2-79

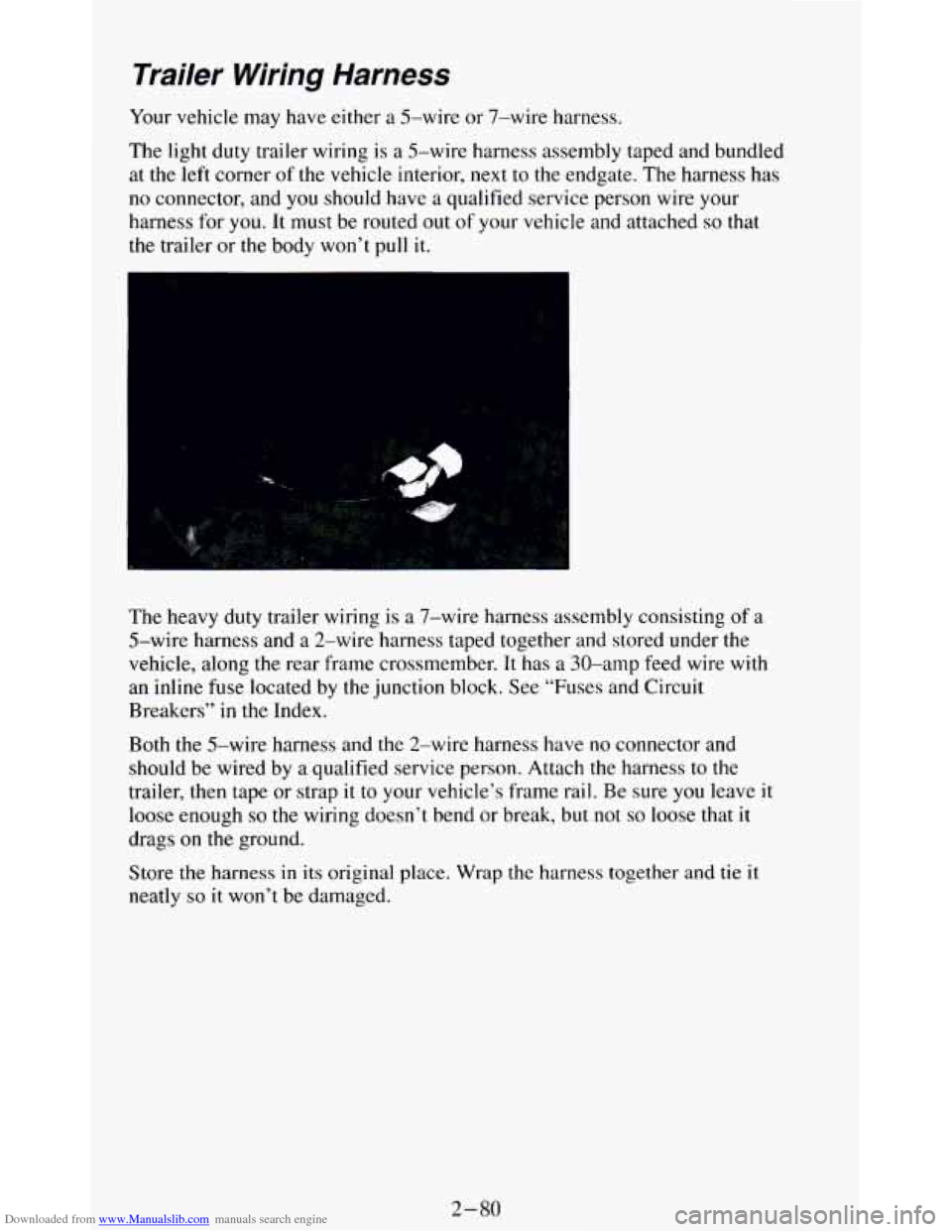

Downloaded from www.Manualslib.com manuals search engine Trailer Wiring Harness
Your vehicle may have either a 5-wire or 7-wire harness.
The light duty trailer wiring is a 5-wire harness assembly taped and bundled
at the left corner
of the vehicle interior, next to the endgate. The harness has
no connector, and you should have a qualified service person wire your
harness for
you. It must be routed out of your vehicle and attached so that
the trailer or the body won’t pull
it.
The heavy duty trailer wiring is a 7-wire harness assembly consisting of a
5-wire harness and a 2-wire harness taped together and stored under the
vehicle, along
the rear frame crossmember. It has a 30-amp feed wire with
an inline fuse located by the junction block. See “Fuses and Circuit
Breakers” in the Index.
Both the 5-wire harness and the 2-wire harness have no connector and
should be wired by a qualified service person. Attach the harness to the
trailer, then tape or strap
it to your vehicle’s frame rail. Be sure you leave it
loose enough so the wiring doesn’t bend or break, but not so loose that it
drags
on the ground.
Store the harness in its original place.
Wrap the harness together and tie it
neatly so it won’t be damaged.
2-80

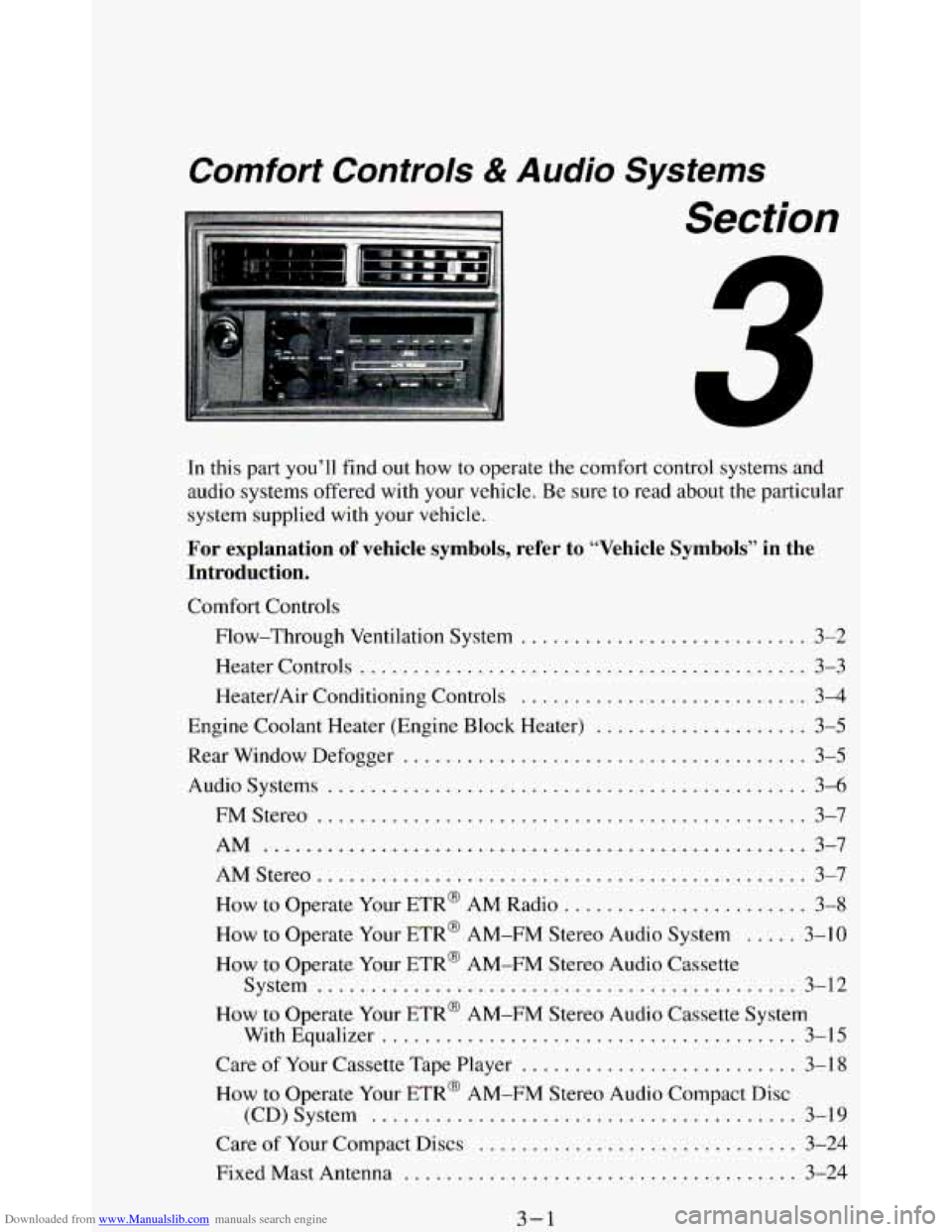

Downloaded from www.Manualslib.com manuals search engine Comrort Controls & Audio Systems
Section
In this part you’ll find out how to operate the comfort control systems and
audio systems offered with your vehicle
. Be sure to read about the particular
system supplied with your vehicle
.
For explanation of vehicle symbols, refer to “Vehicle Symbols” in the
Introduction
.
Comfort Controls
Flow-Through Ventilation System
........................... 3-2
Heater Controls
.......................................... 3-3
Heater/Air Conditioning Controls ........................... 3-4
Engine Coolant Heater (Engine Block Heater) .................... 3-5
Rear Window Defogger
...................................... 3-5
Audiosystems ............................................. 3-6
FMStereo
.............................................. 3-7
AM
................................................... 3-7
AMStereo
.............................................. 3-7
How to Operate Your ETR@ AM Radio
....................... 3-8
How to Operate Your ETR@ AM-FM Stereo Audio System ..... 3-10
How to Operate Your ETR@ AM-FM Stereo Audio Cassette
System
............................................. 3-12
How to Operate Your ETR’ AM-FM Stereo Audio Cassette System
With Equalizer
....................................... 3-15
Care
of Your Cassette Tape Player .......................... 3-18
How to Operate Your ETR’ AM-FM Stereo Audio Compact Disc
(CD)System
........................................ 3-19
Care of Your Compact Discs ...................... **t!%*BB 3-24
Fixed Mast Antenna ..................................... 3-24
3-1

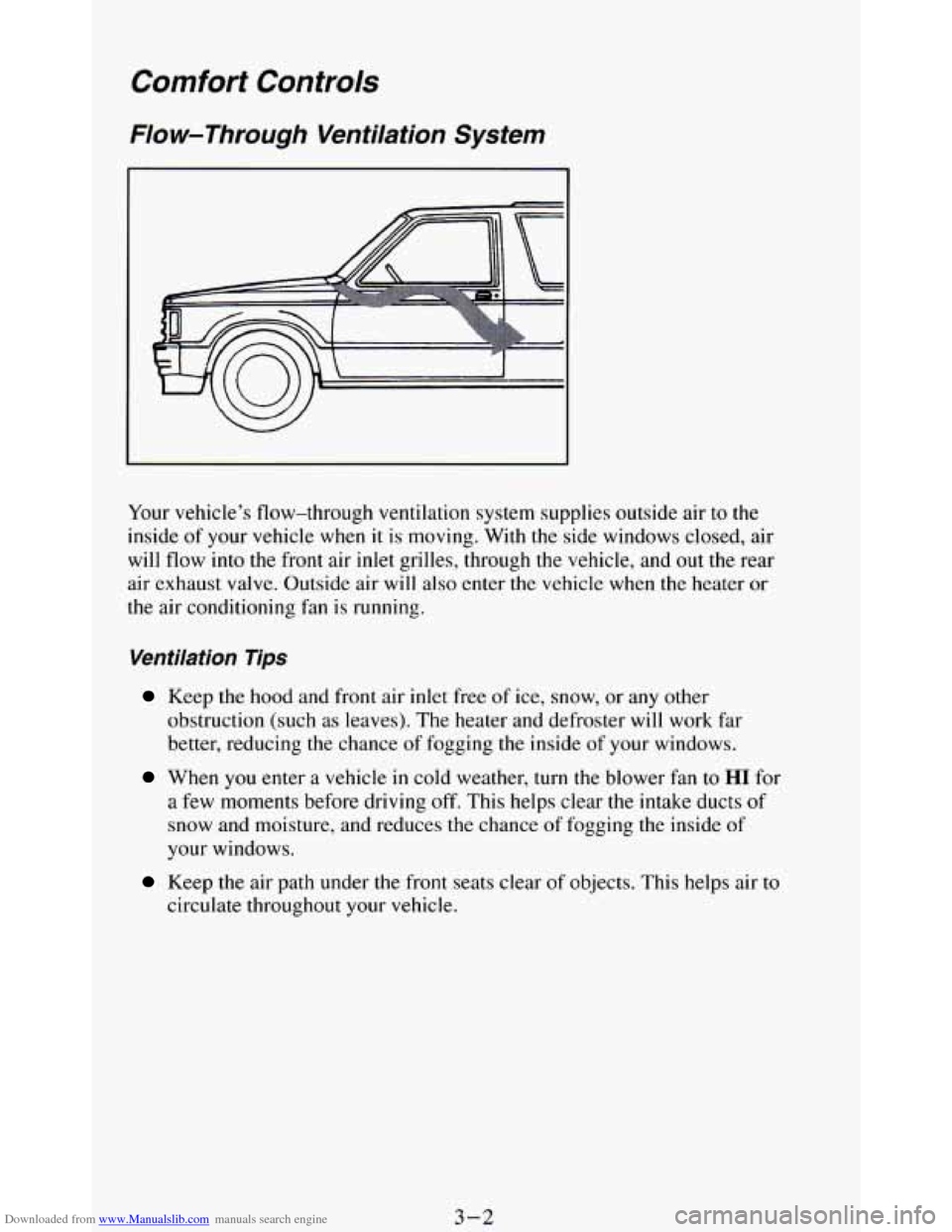

Downloaded from www.Manualslib.com manuals search engine Comfort Controls
Flow-Through Ventilation System
Your vehicle’s flow-through ventilation system supplies outside air to the
inside of your vehicle when it is moving. With the side windows closed, air
will flow into the front air
inlet grilles, through the vehicle, and out the rear
air exhaust valve. Outside air will also enter the vehicle when the heater
or
the air conditioning fan is running.
Ventilation Tips
Keep the hood and front air inlet free of ice, snow, or any other
obstruction (such
as leaves). The heater and defroster will work far
better, reducing the chance of fogging the inside
of your windows.
When you enter a vehicle in cold weather, turn the blower fan to HI for
a few moments before driving
off. This helps clear the intake ducts of
snow and moisture, and reduces the chance of fogging the inside of
your windows.
Keep the air path under the front seats clear of objects. This helps air to
circulate throughout your vehicle.
3-2
