1994 CHEVROLET BLAZER Owners Manual

Downloaded from www.Manualslib.com manuals search engine NOTICE:
0 When using concentrated washer fluid, follow the
manufacturer’s instructions for adding water.
Don’t mix water with ready-to-use washer fluid. Water can
cause the solution to freeze and damage your washer fluid
tank and other parts
of the washer system. Also, water
doesn’t clean as well
as washer fluid.
Fill your washer fluid tank only 3/4 full when it’s very cold,
This allows for expansion, which could damage the tank if it is
completely full,
Don’t use radiator antifreeze in your windshield washer. It
can damage your washer system and paint.
Rear Window Wipermasher
I
To turn on the wiper, press the part of the switch with the washer
symbol on
it to the first position.
To wash the window, press the part of the switch with the wasner
symbol
on it in all the way. The wipers will continue to work after you
release the switch.
Press “OFF” to turn the wiper off.
The rear window washer uses the same fluid bottle as the windshield
washer. However,
the rear window washer will run out of fluid before the
windshield washer.
If you can wash your windshield but not your rear
window, check your fluid level.
2-43

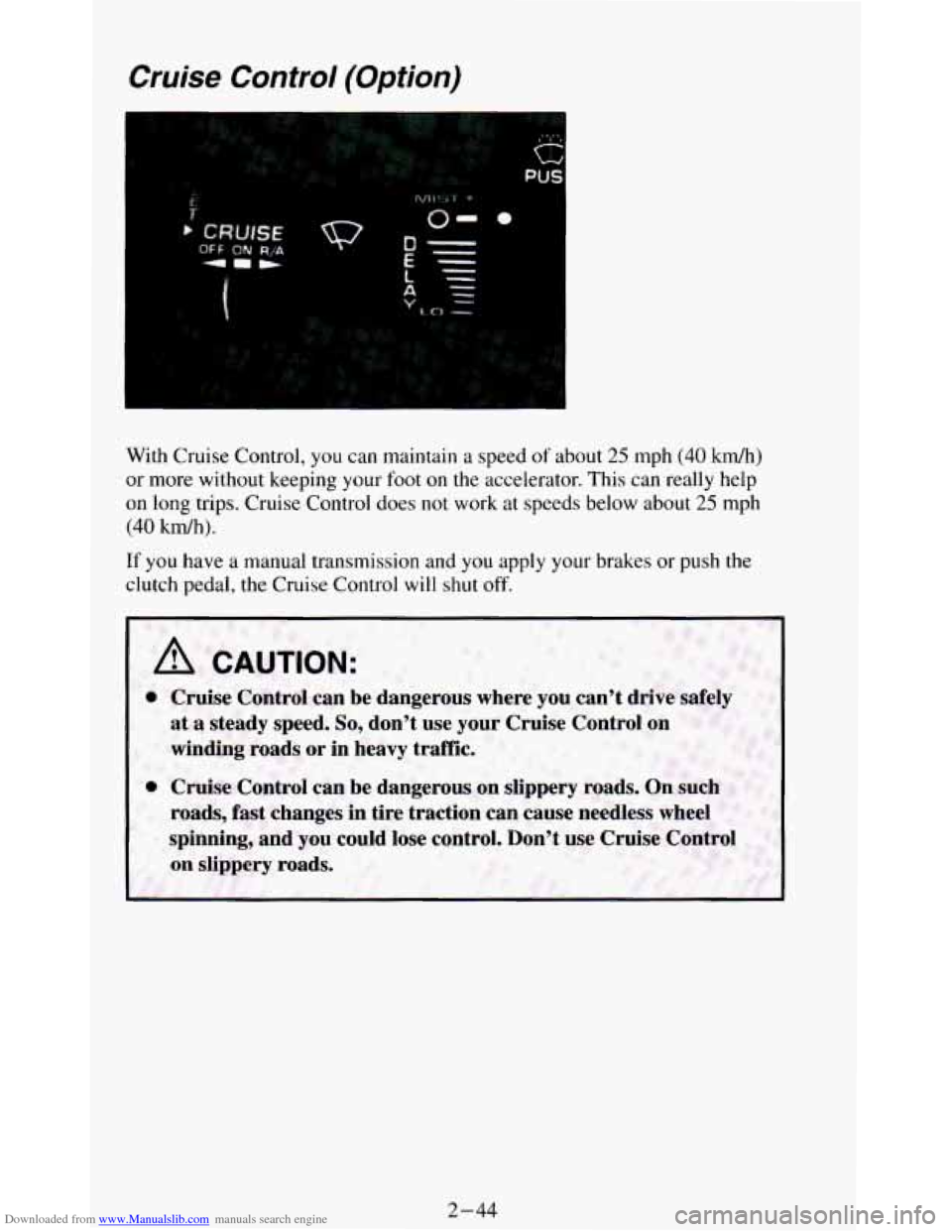

Downloaded from www.Manualslib.com manuals search engine Cruise Control (Option)
With Cruise Control, you can maintain a speed of about 25 mph (40 kdh)
or more without keeping your foot
on the accelerator. This can really help
on long trips. Cruise Control does not work at speeds below about 25 mph
(40 kdh).
If you have a manual transmission and you apply your brakes or push the
clutch pedal, the Cruise Control will shut
off.
2-44

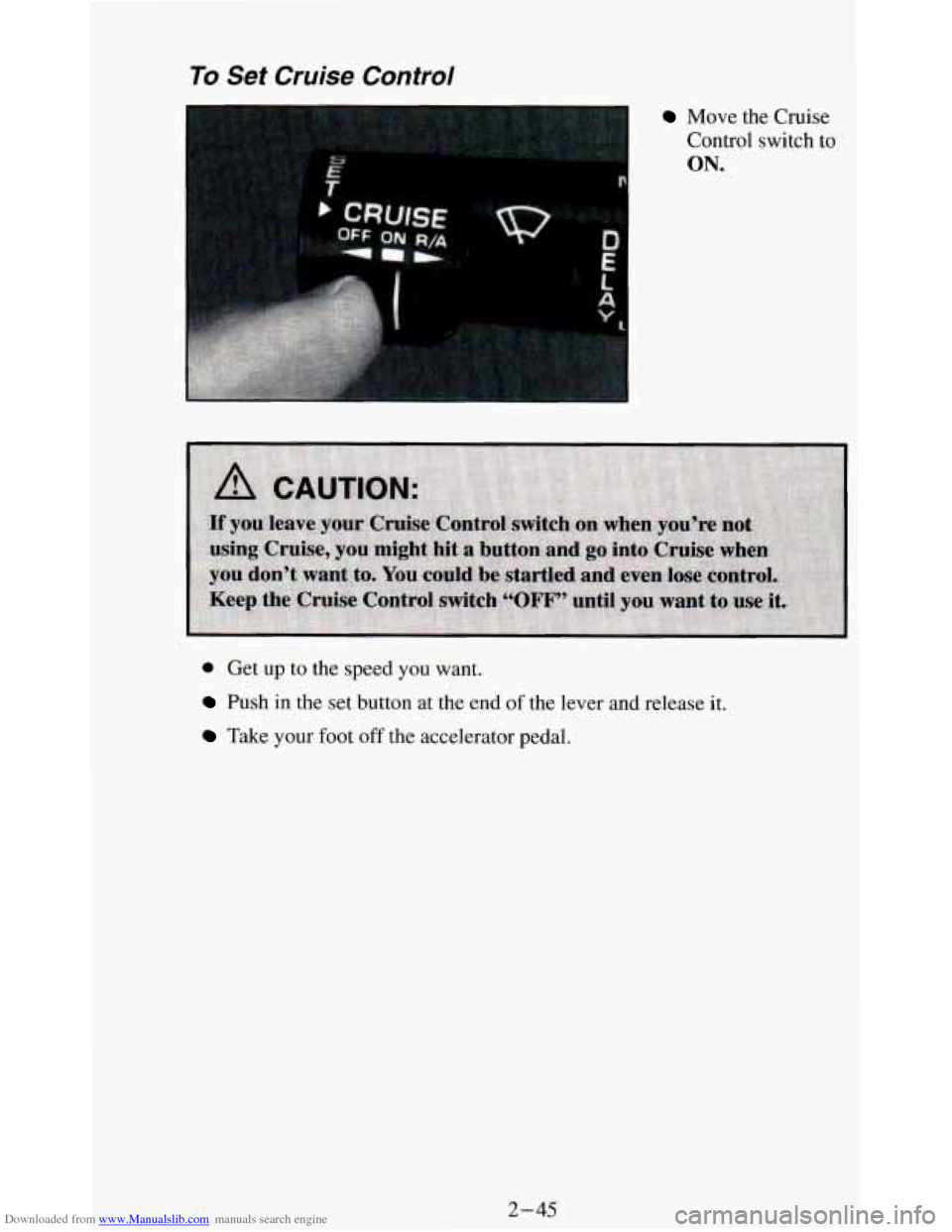

Downloaded from www.Manualslib.com manuals search engine To Set Cruise
E
Control
Move the Cruise
Control switch to
ON.
0 Get up to the speed you want.
Push in the set button at the end of the lever and release it.
Take your foot off the accelerator pedal.
2-45

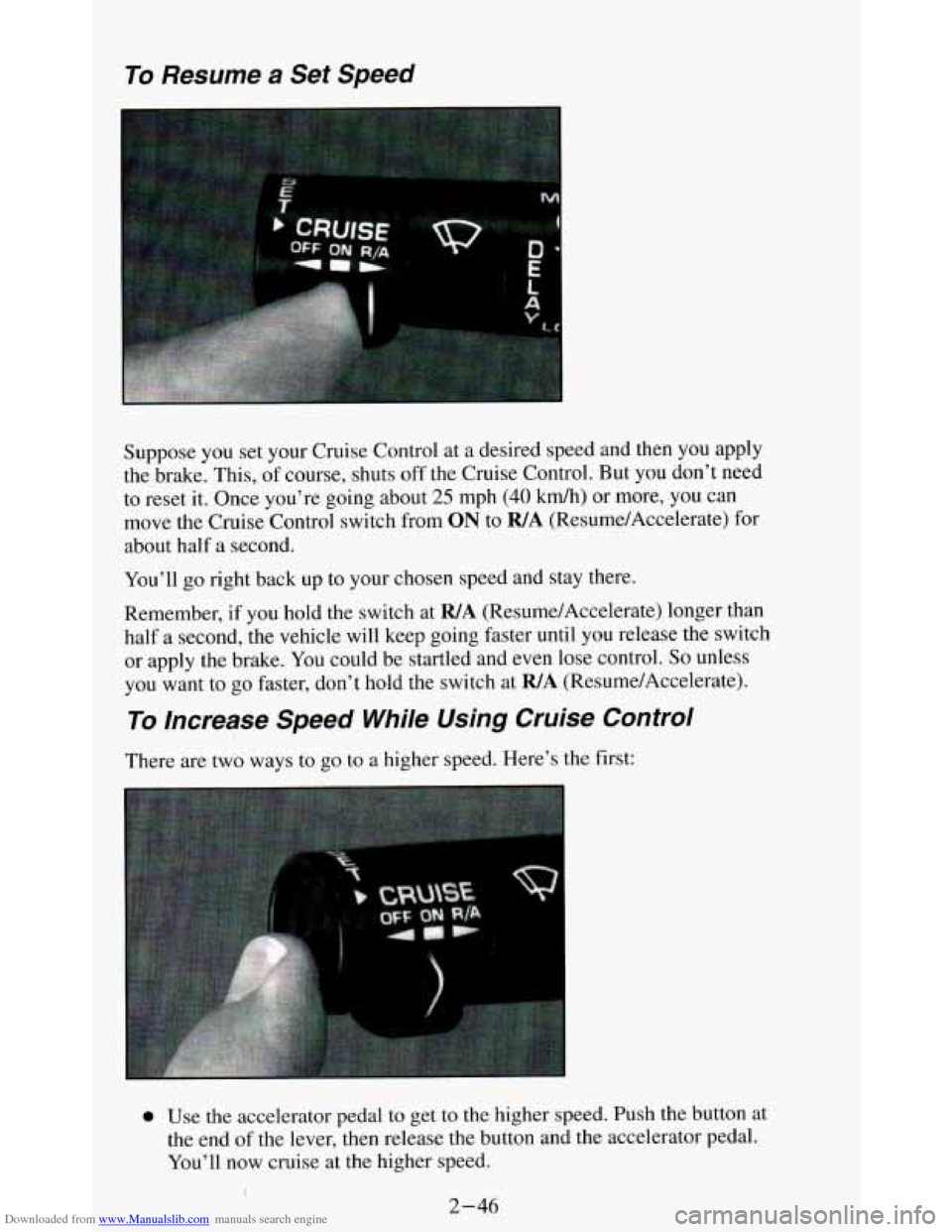

Downloaded from www.Manualslib.com manuals search engine To Resume a Set Speed
Suppose you set your Cruise Control at a desired speed and then you apply
the brake. This, of course, shuts
off the Cruise Control. But you don’t need
to reset it. Once you’re going about
25 mph (40 kdh) or more, you can
move the Cruise Control switch from
ON to R/A (Resume/Accelerate) for
about half a second.
You’ll go right back up to your chosen speed and stay there.
Remember, if you hold the switch at
R/A (Resume/Accelerate) longer than
half a second, the vehicle will keep going faster until you release the switch
or apply the brake. You could be startled and even lose control.
So unless
you want
to go faster, don’t hold the switch at R/A (Resume/Accelerate).
To Increase Speed While Using Cruise Control
There are two ways to go to a higher speed. Here’s the first:
0 Use the accelerator pedal to get to the higher speed. Push the button at
the end of the lever, then release the button and the accelerator pedal.
You’ll now cruise at the higher speed.
!
2-46

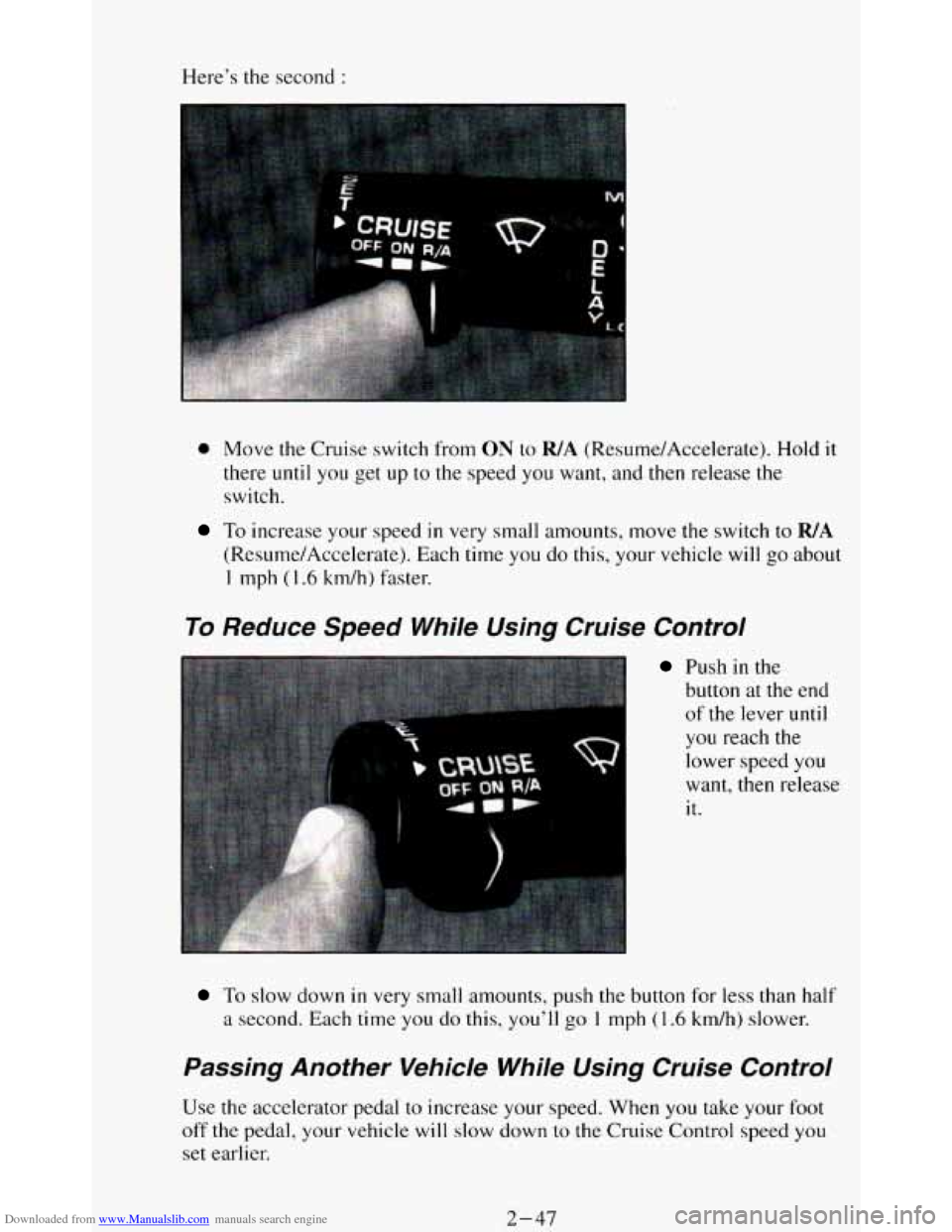

Downloaded from www.Manualslib.com manuals search engine Here’s the second :
0 Move the Cruise switch from ON to WA (R&sur%e/Accelerate). Hold it
there until you get
up to the speed you want, and then release the
switch.
To increase your speed in very small amounts, move the switch to WA
(Resume/Accelerate). Each time you do this, your vehicle will go about
1 mph ( I .6 km/h) faster.
To Reduce Speed While Using Cruise Control
Push in the
button at the end
of the lever until
you reach the
lower speed you
want, then release
it.
To slow down in very small amounts, push the button for less than half
a second. Each time you do this, you’ll go 1 mph (1.6 krdh) slower.
Passing Another Vehicle While Using Cruise Control
Use the accelerator pedal to increase your speed, When you take your foot
off the pedal, your vehicle will slow down to the Cruise Control speed you
set earlier.
2-47

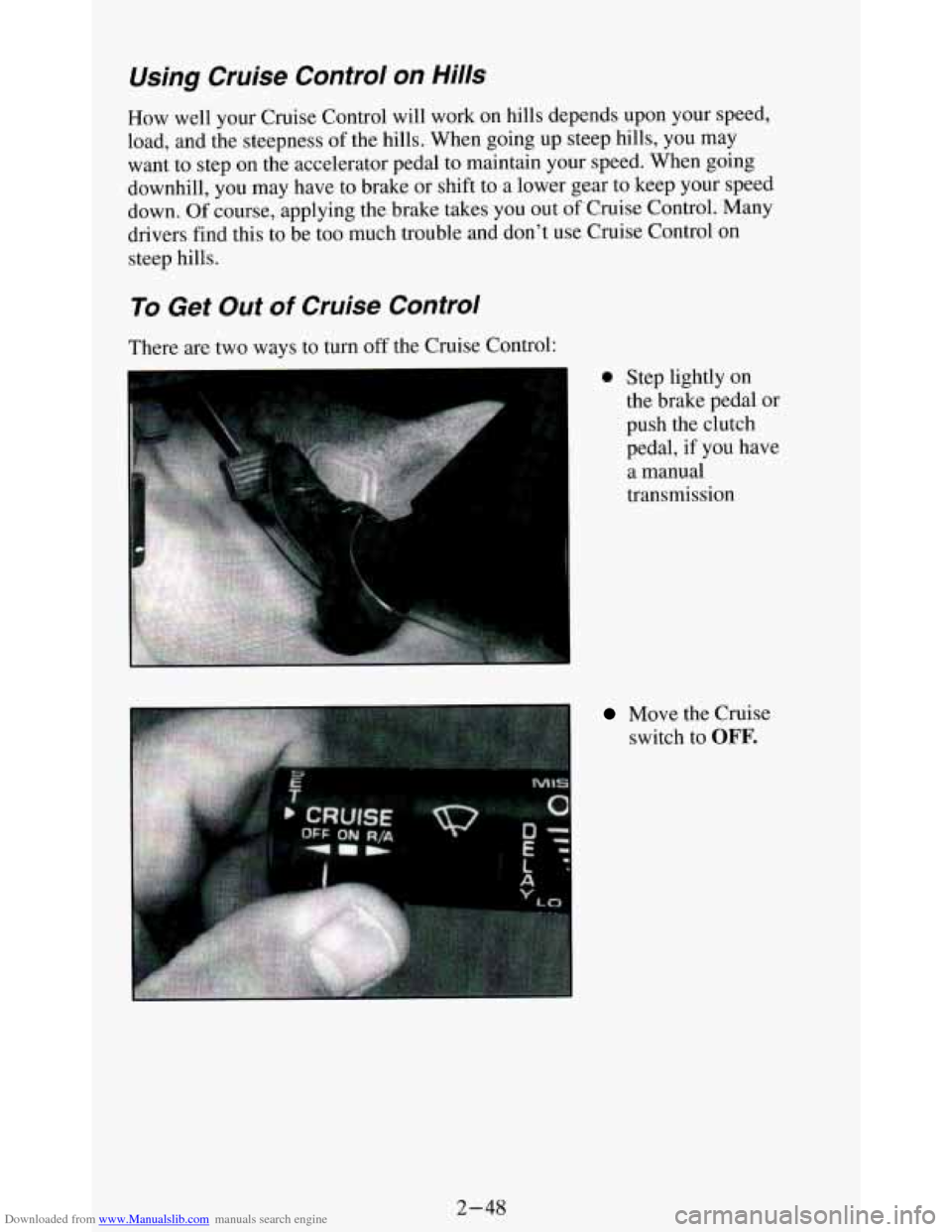

Downloaded from www.Manualslib.com manuals search engine Using Cruise Control on Hills
How well your Cruise Control will work on hills depends upon your speed,
load, and the steepness
of the hills. When going up steep hills, you may
want to step
on the accelerator pedal to maintain your speed. When going
downhill, you may have to brake or shift
to a lower gear to keep your speed
down. Of course, applying the brake takes you out
of Cruise Control. Many
drivers find this to be too much trouble and don’t use Cruise Control on
steep hills.
To Get Out of Cruise Control
.. .. . ...
... ,
Move the Cruise
switch to
OFF.
2-48

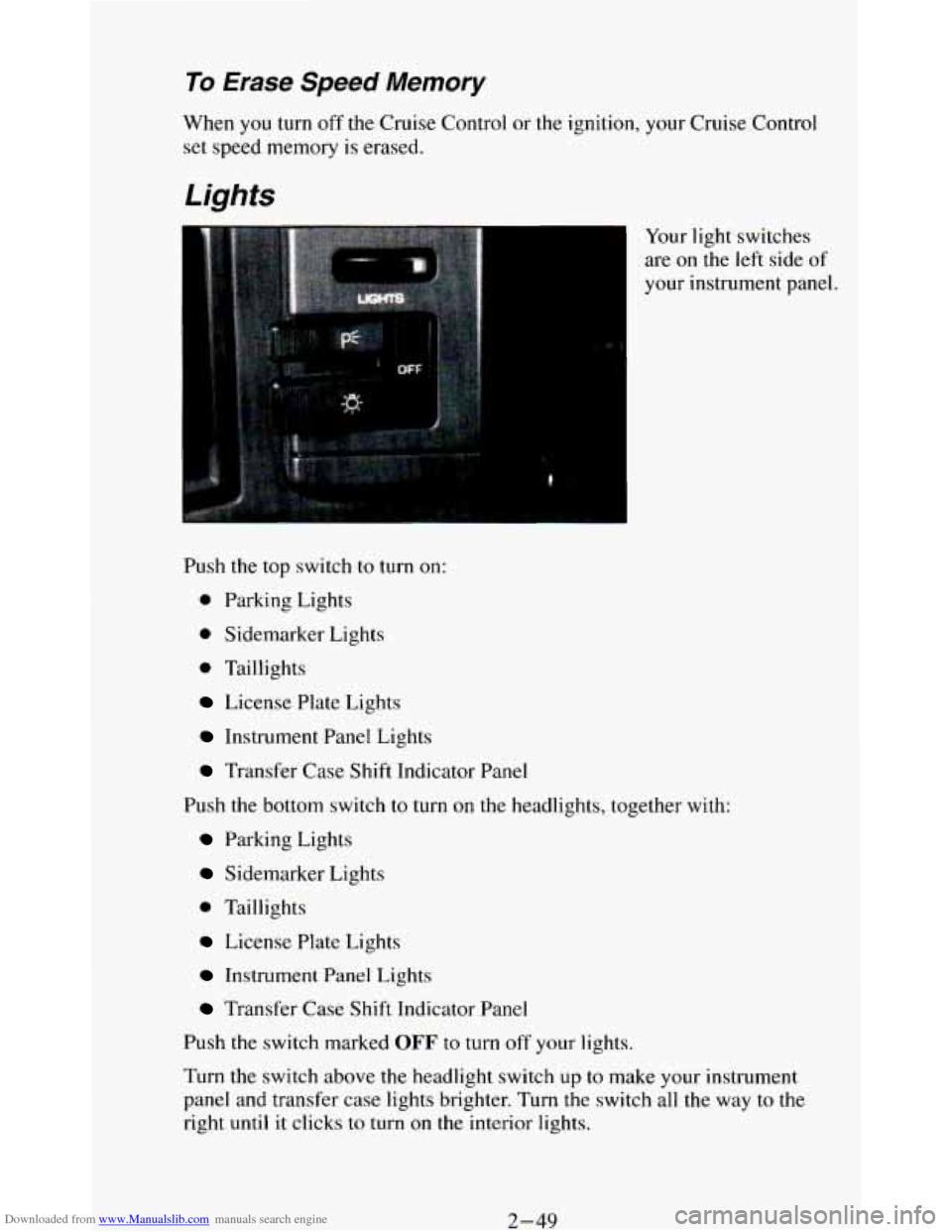

Downloaded from www.Manualslib.com manuals search engine To Erase Speed Memory
When you turn off the Cruise Control or the ignition, your Cruise Control
set speed memory
is erased.
Lights
Your light switches
are on the left side of
your instrument panel.
Push the top switch to turn on:
0 Parking Lights
0 Sidemarker Lights
0 Taillights
License Plate Lights
Instrument Panel Lights
Transfer Case Shift Indicator Panel
Push
the bottom switch to turn on the headlights, together with:
Parking Lights
Sidemarker Lights
0 Taillights
License Plate Lights
Instrument Panel Lights
Transfer Case Shift Indicator Panel
Push the switch marked
OFF to turn off your lights.
Turn the switch above the headlight switch
up to make your instrument
panel and transfer
case lights brighter. Turn the switch all the way to the
right until it clicks to turn on the interior lights.
2-49

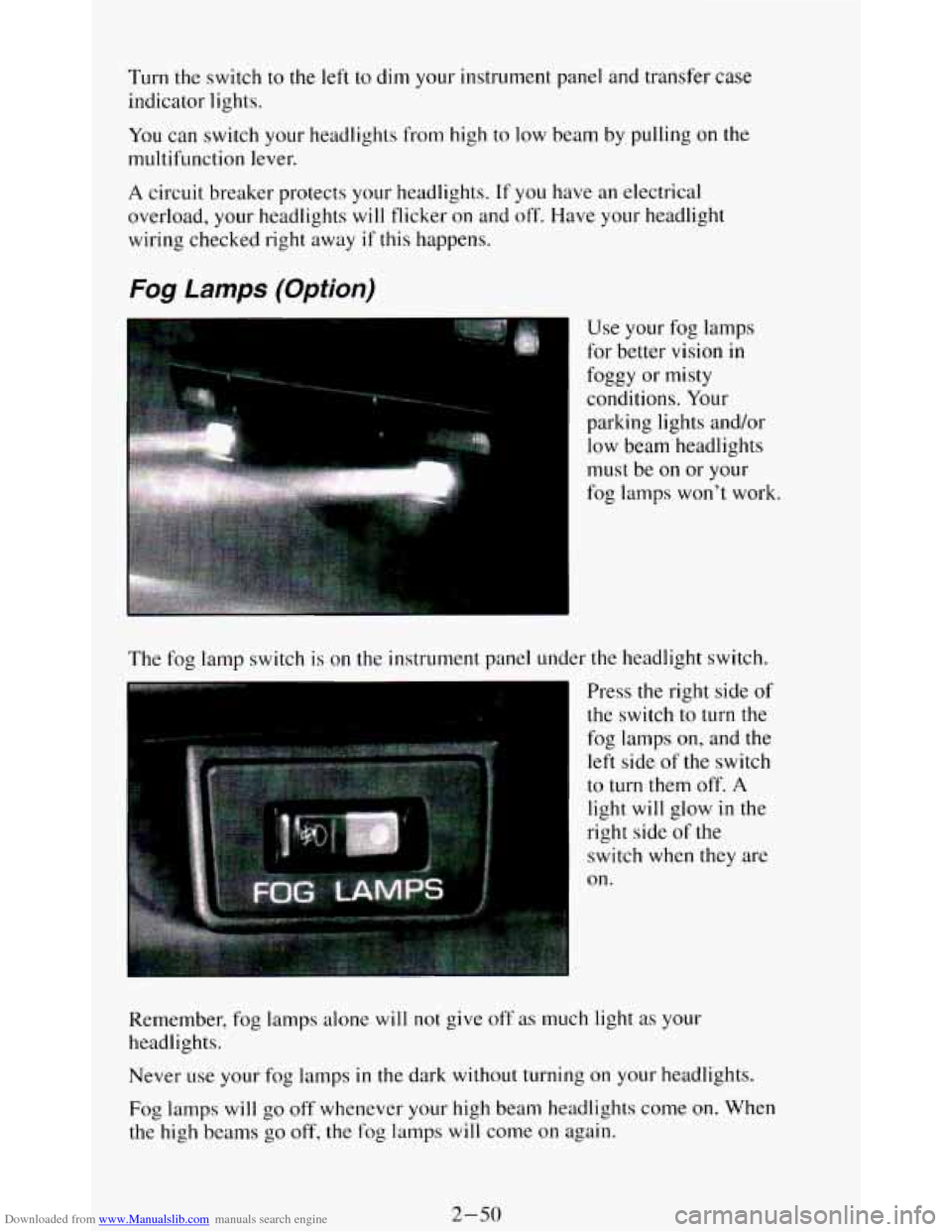

Downloaded from www.Manualslib.com manuals search engine Turn the switch to the left to dim your instrument panel and transfer case
indicator lights.
You can switch your headlights from high to low beam by pulling on the
multifunction lever.
A circuit breaker protects your headlights. If you have an electrical
overload, your headlights will flicker
on and off. Have your headlight
wiring checked right away
if this happens.
Fog Lamps (Option)
The fog lamp switch is on the instrument panel under the headlight switch.
Press the right side of
the switch
to turn the
fog lamps
on, and the
left side of the switch
to turn them off. A
light will glow in the
right side
of the
switch
when they are
on.
Remember, fog lamps alone
will not give off as much light as your
headlights.
Never
use your fog lamps in the dark without turning on your headlights.
Fog lamps will
go off whenever your high beam headlights come on. When
the high beams
go off, the fog lamps will come on again.
2-50
