1994 CHEVROLET BLAZER Owners Manual

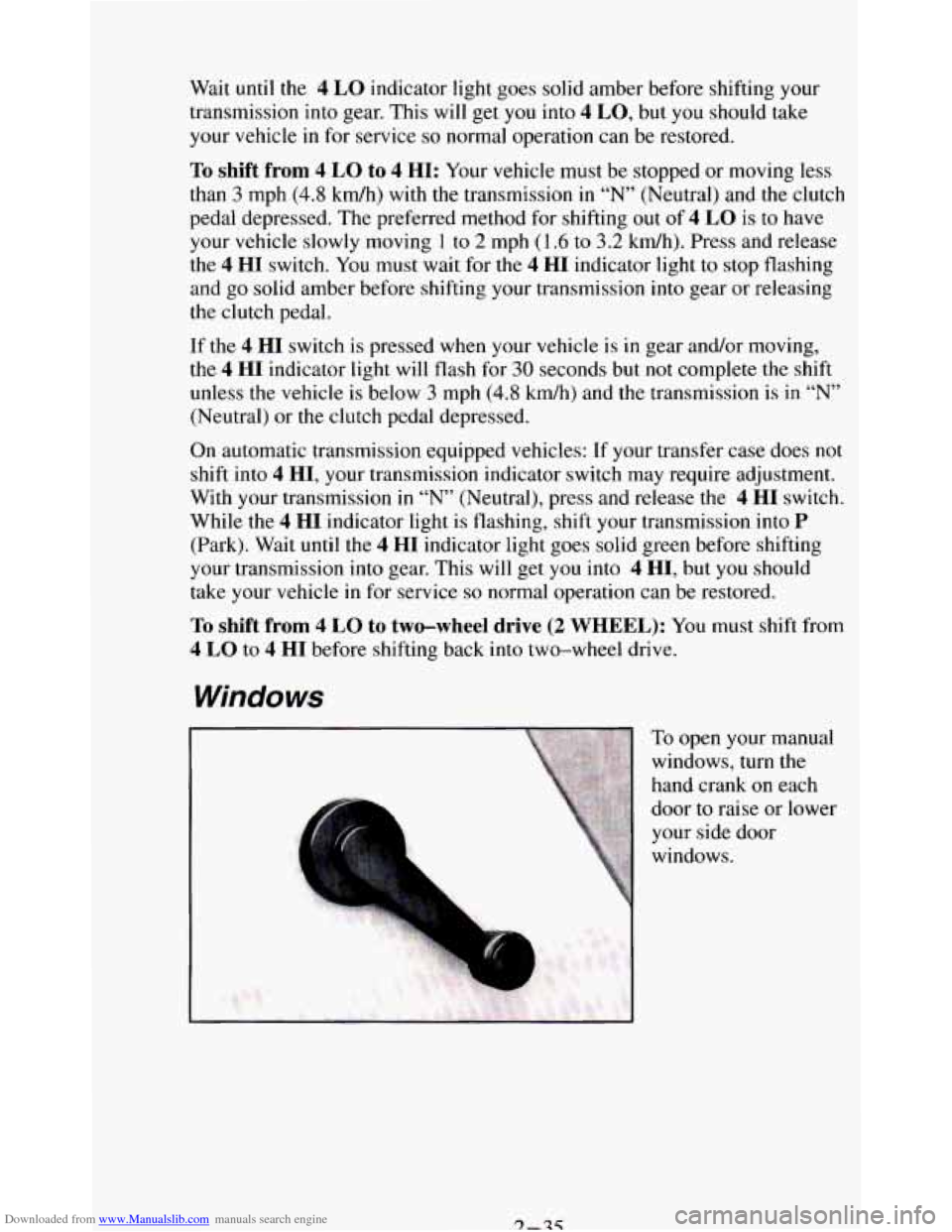

Downloaded from www.Manualslib.com manuals search engine Wait until the 4 LO indicator light goes solid amber before shifting your
transmission into gear. This
will get you into 4 LO, but you should take
your vehicle in for service so normal operation can be restored.
To shift from 4 LO to 4 HI: Your vehicle must be stopped or moving less
than
3 mph (4.8 kdh) with the transmission in “N” (Neutral) and the clutch
pedal depressed. The preferred method for shifting out of
4 LO is to have
your vehicle slowly moving
1 to 2 mph (1.6 to 3.2 kmh). Press and release
the
4 HI switch. You must wait for the 4 HI indicator light to stop flashing
and
go solid amber before shifting your transmission into gear or releasing
the clutch pedal.
If the 4 HI switch is pressed when your vehicle is in gear and/or moving,
the
4 HI indicator light will flash for 30 seconds but not complete the shift
unless the vehicle is below
3 mph (4.8 kdh) and the transmission is in “N”
(Neutral) or the clutch pedal depressed.
On automatic transmission equipped vehicles:
If your transfer case does not
shift into
4 HI, your transmission indicator switch may require adjustment.
With your transmission
in “N” (Neutral), press and release the 4 HI switch.
While the
4 HI indicator light is flashing, shift your transmission into P
(Park). Wait until the 4 HI indicator light goes solid green before shifting
your transmission into gear. This
will get you into 4 HI, but you should
take your vehicle
in for service so normal operation can be restored.
To shift from 4 LO to two-wheel drive (2 WHEEL): You must shift from
4 LO to 4 HI before shifting back into two-wheel drive.
Windows
1
To open your manual
windows,
turn the
hand crank
on each
door to raise or lower
your side door
windows.

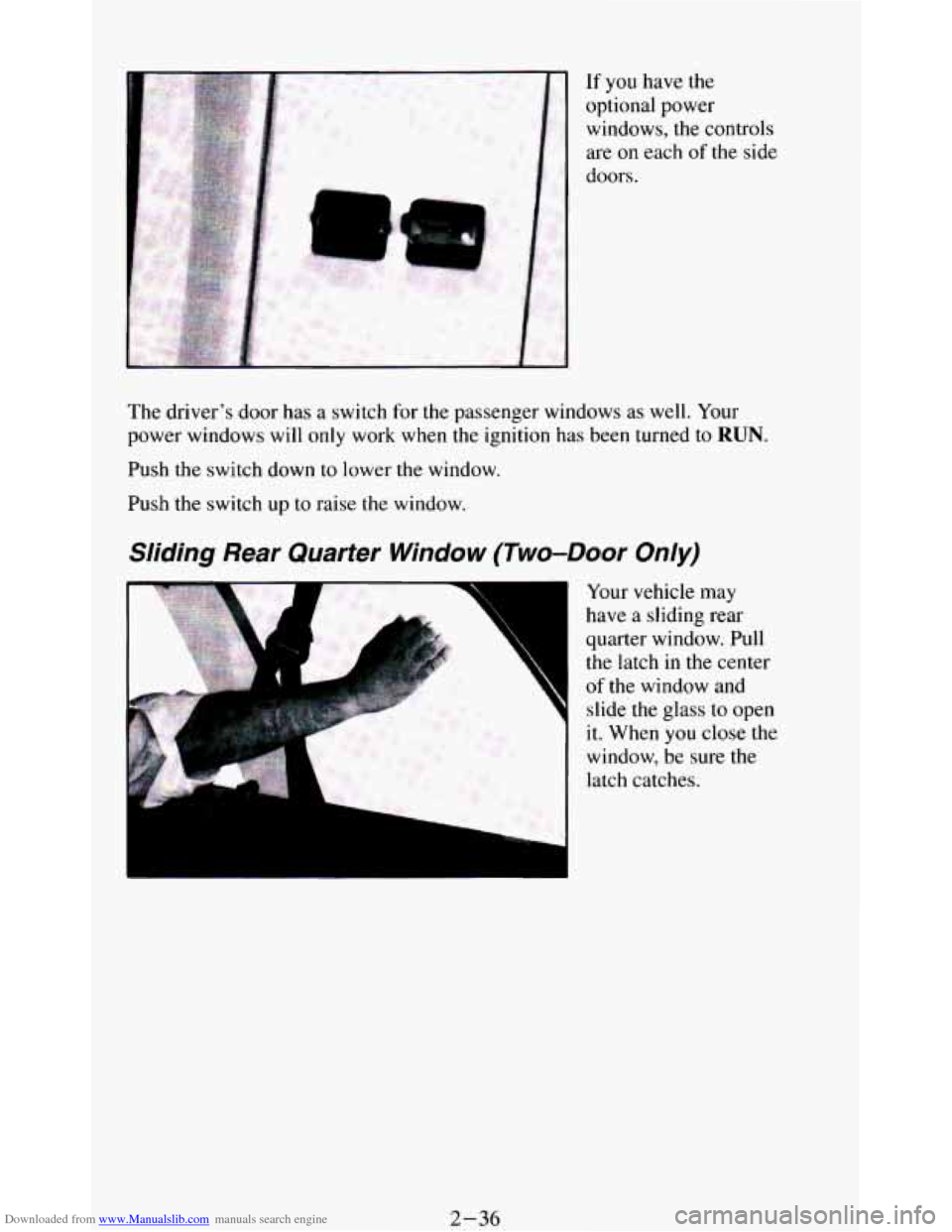

Downloaded from www.Manualslib.com manuals search engine If you have the
optional power
windows, the controls
are on each
of the side
doors.
The driver’s door has
a switch for the passenger windows as well. Your
power windows will
only work when the ignition has been turned to RUN.
Push the switch down to lower the window.
Push the switch up
to raise the window.
Sliding Rear Quarter Window (Two-Door Only)
4
F
Your vehicle may
have
a sliding rear
quarter window. Pull
the latch in the center
of the window and
slide the glass to open
it. When
you close the
window,
be sure the
latch catches.
2-36

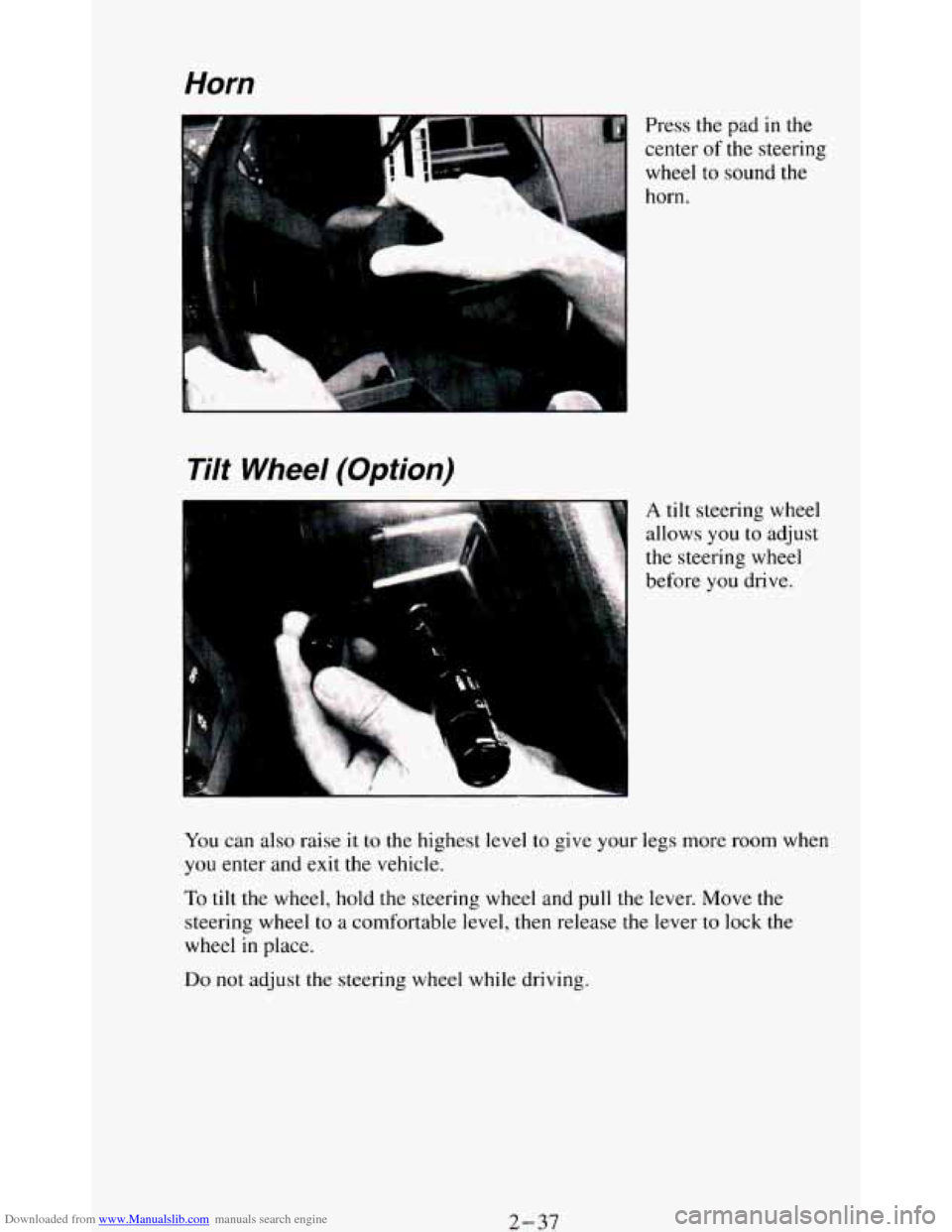

Downloaded from www.Manualslib.com manuals search engine Horn
Press the pad in the
center
of the steering
wheel
to sound the
horn.
Tilt Wheel (Option)
A tilt steering wheel
allows
you to adjust
the steering wheel
before
you drive.
You can also raise it to the highest level to give your legs more room when
you enter and exit the vehicle.
To tilt the wheel, hold the steering wheel and pull the lever. Move the
steering wheel to a comfortable level, then release the lever to lock the
wheel
in place.
Do not adjust the steering wheel while driving.
2-37

Downloaded from www.Manualslib.com manuals search engine Turn SignaVMultifunction Lever
The lever on the left side of the steering column includes your:
Turn Signal and Lane Change Indicator
0 Headlight High-Low Beam
Windshield Wipers
0 Windshield Washer
0 Cruise Control (Option)
Turn Signal and Lane Change Indicator
The turn sign2 11 has
two upward (for
Right) and two
downward (for Left)
positions. These
positions allow you to
signal
a turn or a lane
change.
To signal a turn, move the lever all the way up or down. When the turn is
finished,
the lever will return automatically.
2-38

Downloaded from www.Manualslib.com manuals search engine Standard Cluster Digital Cluster
A green arrow on the instrument panel will flash in the direction of the turn
or lane change.
To signal
a lane change, just raise or lower the lever until the green arrow
starts to flash. Hold
it there until you complete your lane change. The lever
will return by itself when you release it.
As you signal a turn or a lane change, if the arrows don’t flash but just stay
on,
a signal bulb may be burned out and other drivers won’t see your turn
signal.
If your vehicle has the digital instrument cluster, the turn signal arrows will
flash at
a faster rate if a signal bulb is burned out.
If a bulb is burned out, replace it to help avoid an accident. If the green
arrows don’t go on at all when you signal a turn, check the fuse (see “Fuses”
in the Index) and for burned-out bulbs.
If
you have a trailer towing option with added wiring for the trailer lights, a
different turn signal flasher is used. With this flasher installed, the signal
indicator will flash even if
a turn signal bulb is burned out. Check the front
and rear turn signal lights regularly to make sure they are working.
2-39

Downloaded from www.Manualslib.com manuals search engine Operation of Lights
Although your vehicle's lighting system (headlights, parking lig\
hts, fog
lamps, side marker lights and taillights) meets
all applicable federal lighting
requirements, certain states and provinces may apply their own lighting
regulations that may require special
attention before you operate these
lights.
For example, some jurisdictions may require that you operate your fog
lamps
only when your lower beam headlights are also on, or that headlights
be turned
on whenever you must use your windshield wipers. In addition,
most jurisdictions prohibit driving solely with parking lights, especially at
dawn or dusk. It is recommended that
you check with your own state or
provincial highway authority for applicable lighting regulations.
Headlight High-Low Beam
To change the
headlights from low
beam to high or high
to
low, pull the turn
signal lever all the
way toward you. Then
release
it.
When the high beams
are
on, this blue
indicator light on the
instrument panel also
will be on.
2-40

Downloaded from www.Manualslib.com manuals search engine Windshield Wipers
You control the
windshield wipers by
turning the band with
the wiper symbol on
it.
For
a single wiping cycle, turn the band to MIST. Hold it there until the
wipers start, then let go. The wipers will stop after one cycle.
If you want
more cycles, hold the band
on MIST longer.
You can set the wiper speed for
a long or short delay between wipes. This can
be very useful in light rain or snow. Turn
the band to choose the delay time.
The closer to
LO, the shorter the delay.
For steady wiping at
low speed, turn the band away from you to the LO
position. For high speed wiping, turn the band further, to HI. To stop the
wipers, move the band to the off symbol.
Remember that damaged wiper blades may prevent
you from seeing well
enough
to drive safely. To avoid damage, be sure to clear ice and snow from
the wiper blades before using them. If they’re frozen to the windshield,
carefully loosen or thaw them.
If your blades do become damaged, get new
blades
or blade inserts.
Heavy snow or ice can overload your wipers.
A circuit breaker will stop
them until the motor cools. Clear away snow or ice to prevent an overload.
2-41

Downloaded from www.Manualslib.com manuals search engine Windshield Washer
At the top of the multifunction lever there’s a paddle marked with the
windshield washer symbol and
PUSH. To spray washer fluid on the
windshield, push the paddle.
The wipers will clear the window and then either stop or return to your
preset speed.
Driving without washer fluid can be dangerous.
A bad mud splash can block
your vision. You could hit another vehicle or
go off the road. Check your
washer fluid level often.
2-42
