1994 CADILLAC SEVILLE Owners Manual

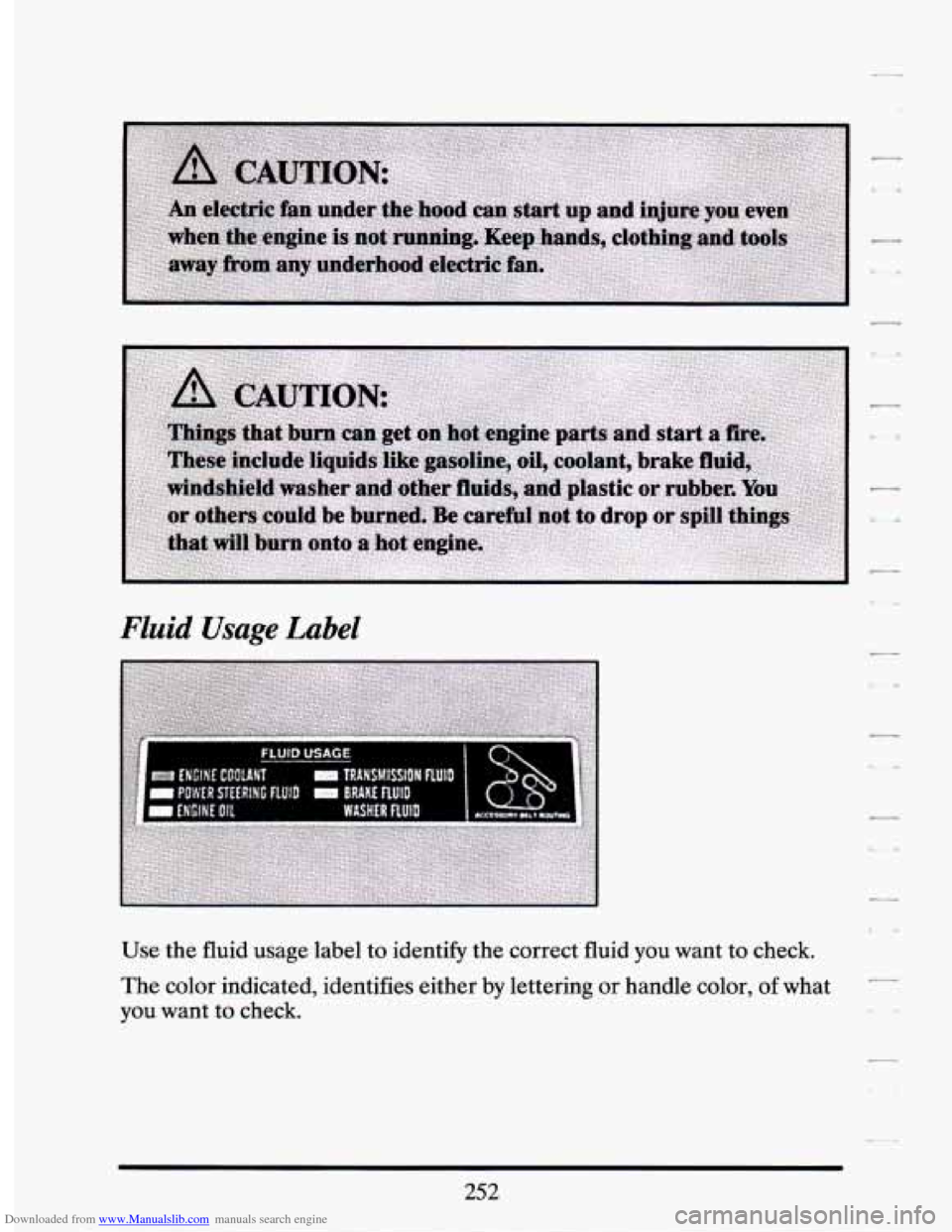

Downloaded from www.Manualslib.com manuals search engine Fluid Usage Label
Use the fluid usage label to identify the correct fluid you want to check.
The color indicated, identifies either by lettering or handle color, of what
you want to check.
l-
7
-
252

Downloaded from www.Manualslib.com manuals search engine r
r
J- !
i_
r

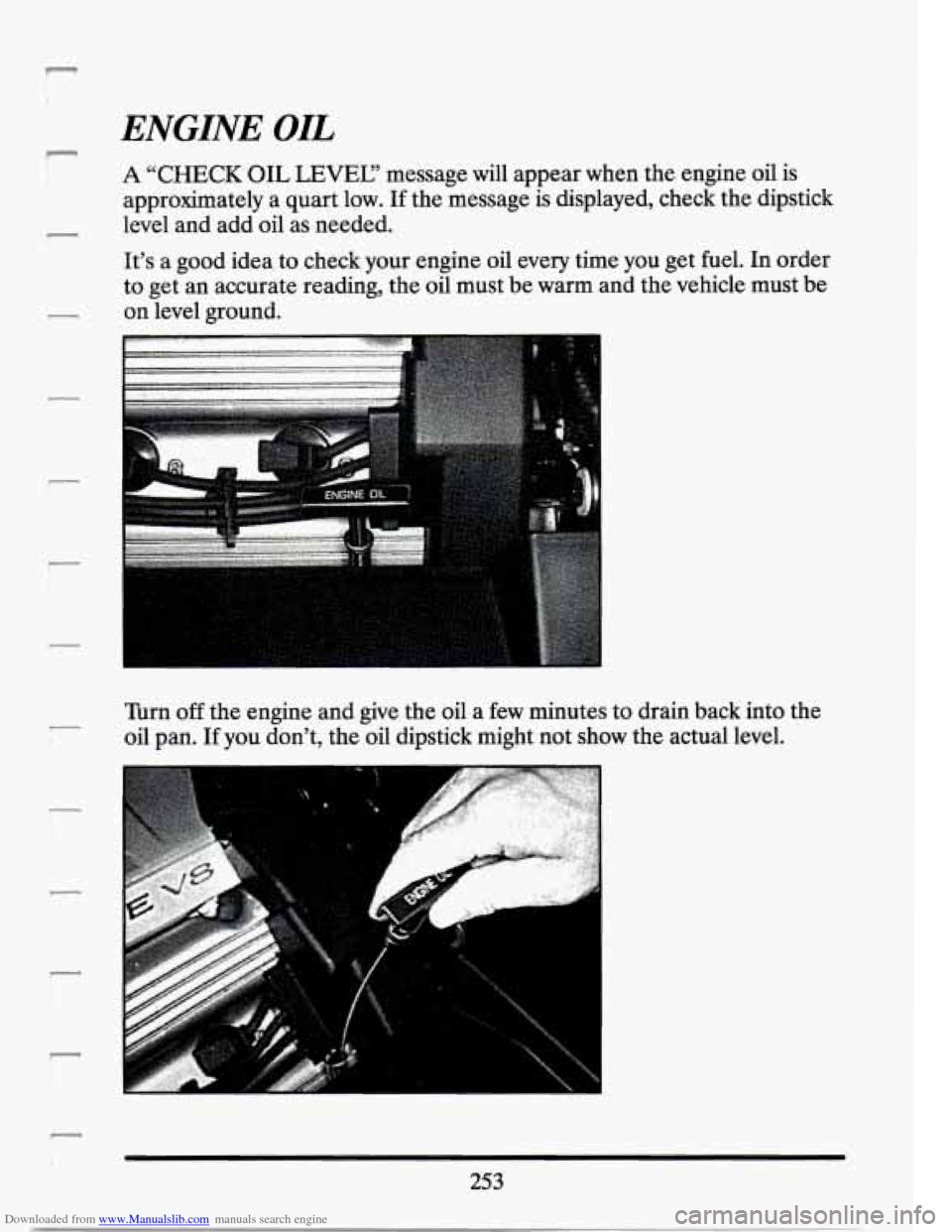

ENGINE OIL
A “CHECK OIL LEVEL? message will appear when the engine oil is
approximately a quart low.
If the message is displayed, check the dipstick
level and add oil as needed.
It’s a good idea to check your engine oil every time you get fuel. In order
to get an accurate reading, the oil must be warm and the vehicle must be
on level ground.
L
Turn off the engine and give the oil a few minutes to drain back into the
oil pan.
If you don’t, the oil dipstick might not show the actual level.
253

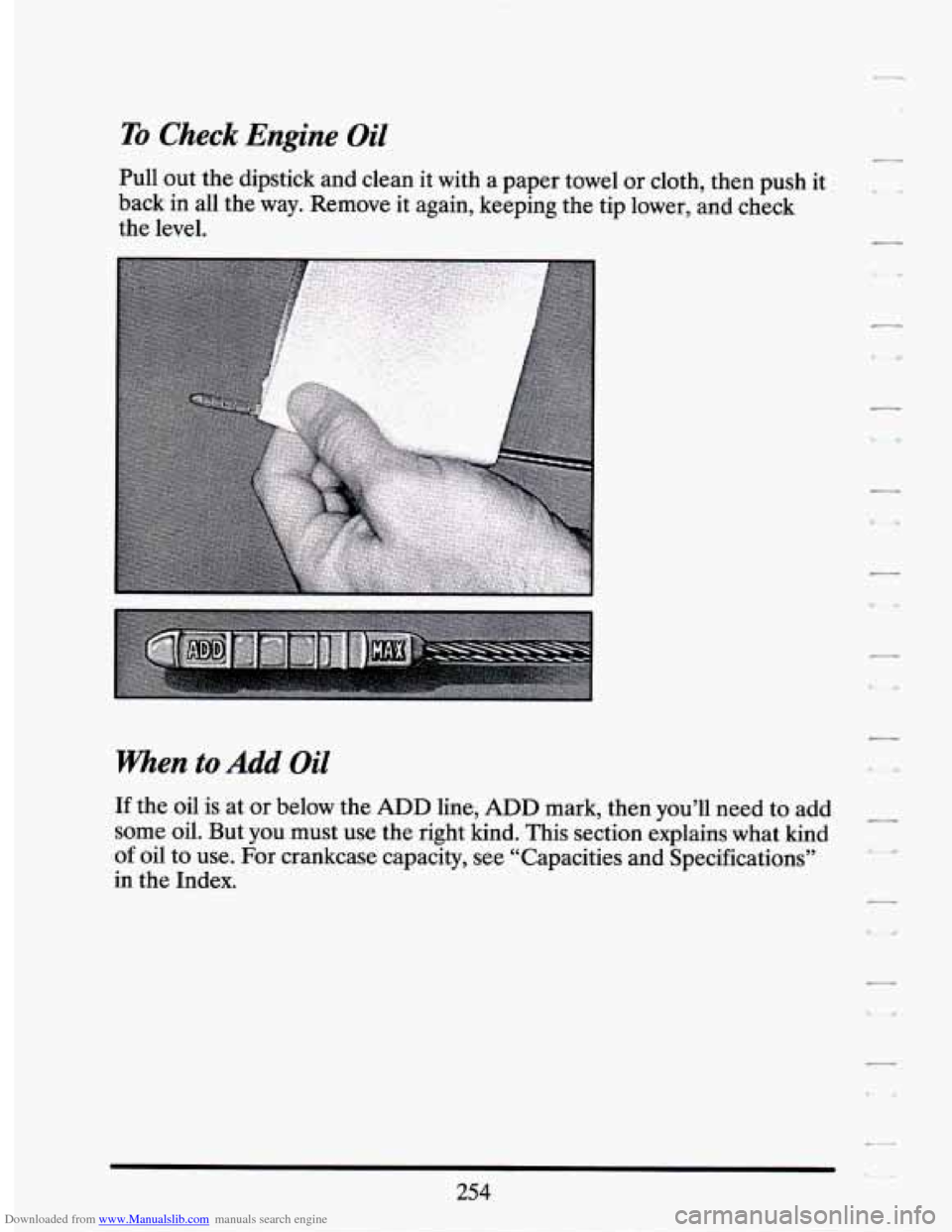

Downloaded from www.Manualslib.com manuals search engine To Check Engine Oil
Pull out the dipstick and clean it with a paper towel or cloth, then push it
back.
in all the way. Remove it again, keeping the tip lower, and check
the level.
when to Add Oil
If the oil is at or below the ADD line, ADD mark, then you’ll need to add
some oil.
But you must use the right kind. This section explains what kind
of oil to use. For crankcase capacity, see “Capacities and Specifications”
in the Index.
254

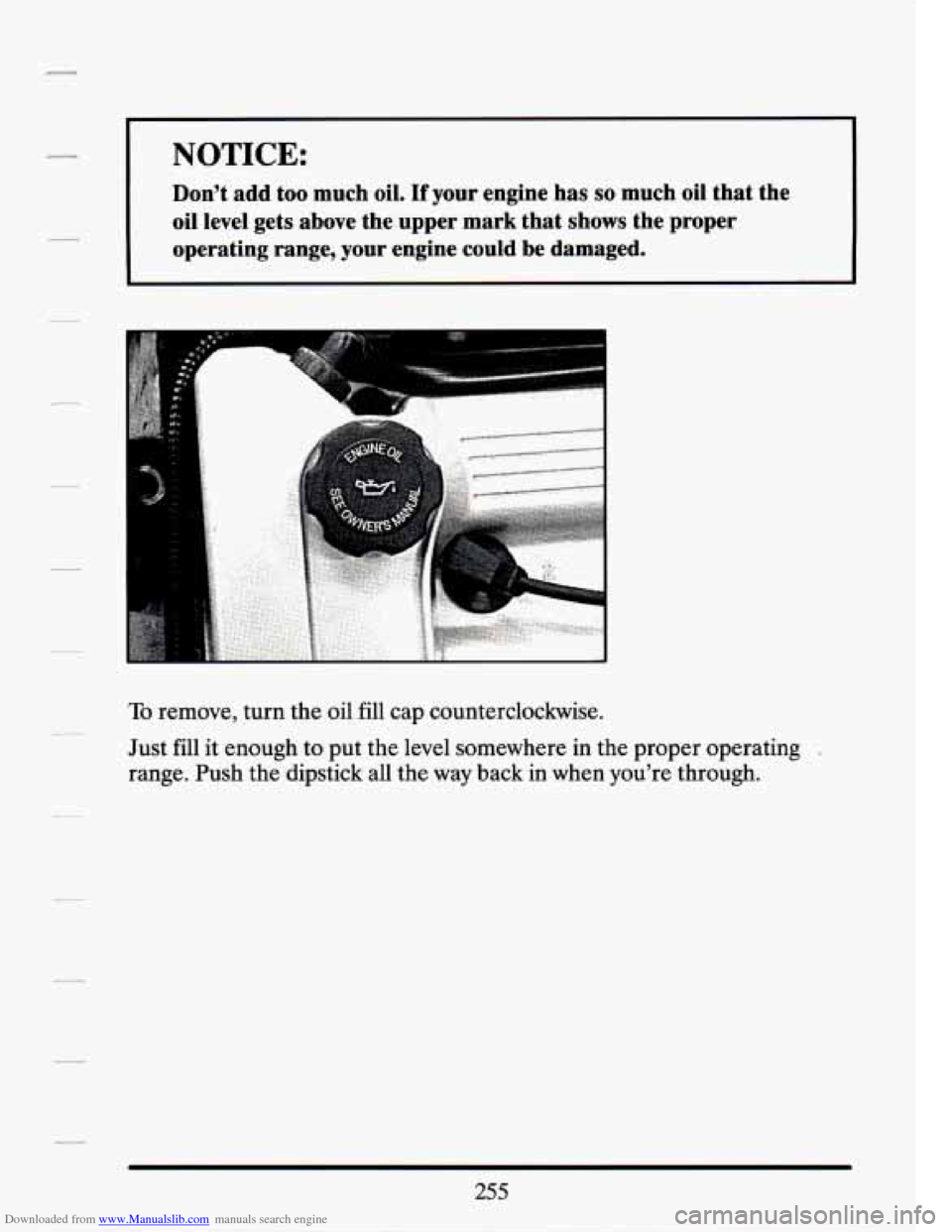

Downloaded from www.Manualslib.com manuals search engine I NOTICE:
Don't add too much oil. If your engine has so much oil that the
oil level gets above the.upper mark that shows the proper
operating range, your engine could be damaged.
To remove, turn the oil fill cap counterclockwise.
Just fill it enough to put the level somewhere in the proper operating
.
range. Push the dipstick all the way back in when you're through.
255

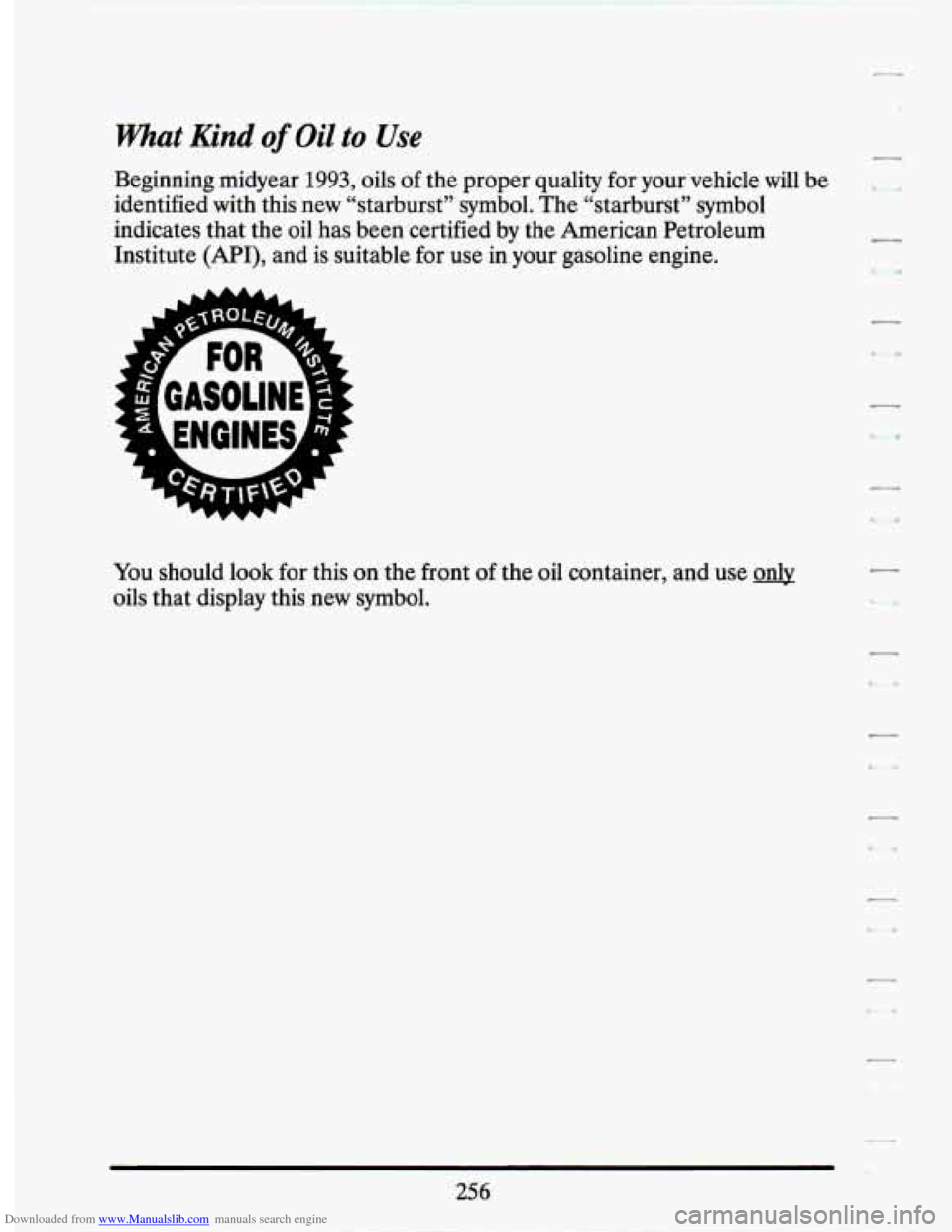

Downloaded from www.Manualslib.com manuals search engine What End of Oil to Use
Beginning midyear 1993, oils of the proper quality for your vehicle will be
identified with this new “starburst” symbol. The “starburst” symbol
indicates that the oil has been certified by the American Petroleum
Institute
(MI), and is suitable for use in your gasoline engine.
You should look for this on the front
of the oil container, and use gnly
oils that display this new symbol.
256

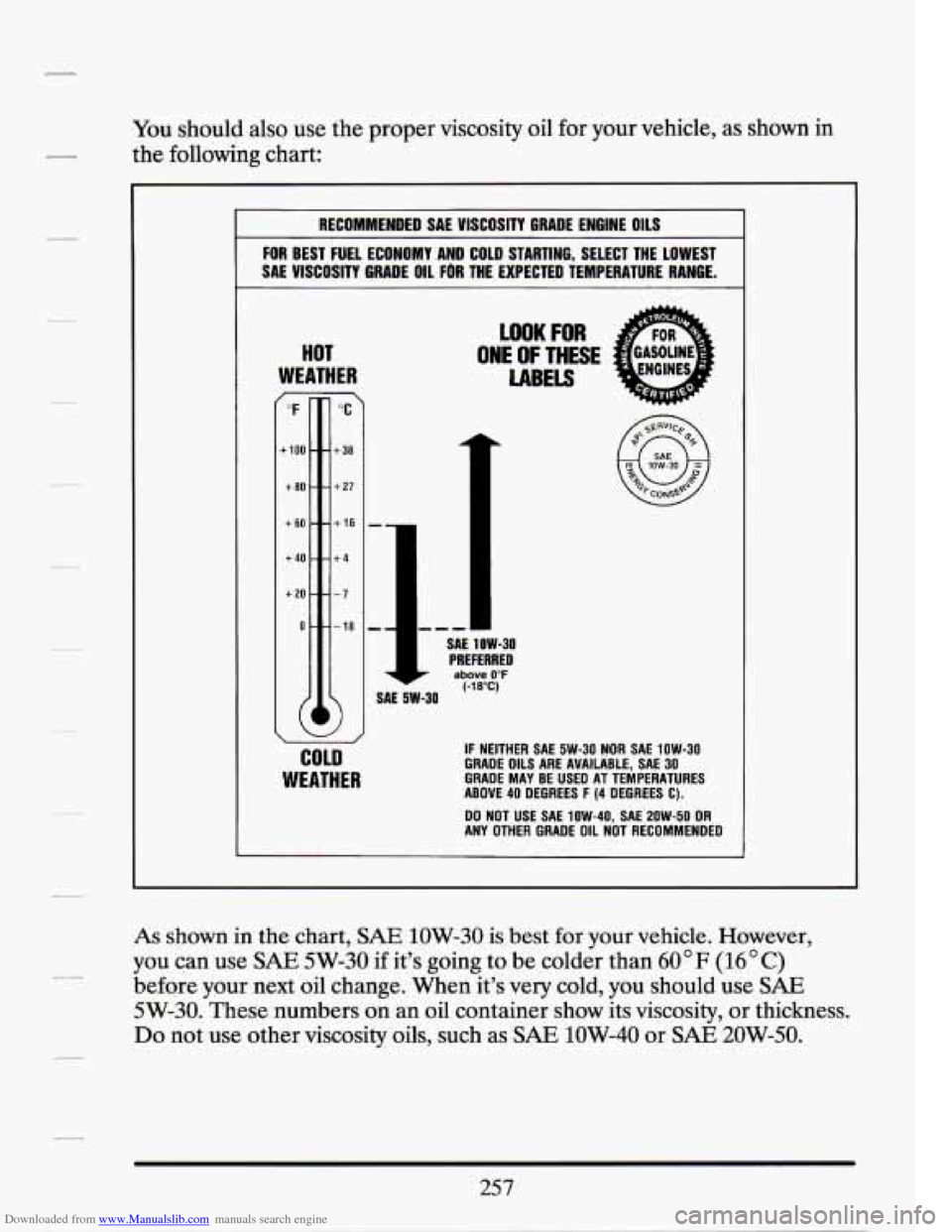

Downloaded from www.Manualslib.com manuals search engine You should also use the proper viscosity oil for your vehicle, as shown in
the following chart:
RECOMMENDED SAE VISCOSITY GRADE ENGINE OILS
FOR BEST FUEL ECONOMY AND COLD STARTING, SELECT THE LOWEST
SAE
VISCOSITY GRADE OIL FOR THE EXPECTED TEMPERATURE RANGE.
HOT
WEATHER r
"F
+IO0 .
+EO.
+60 -
+40.
+20.
0-
F
LOOK FOR
ONE OF THESE
LABELS
I Irl
- +38
- +27
- +16
- +4
--7
- -18
-
-
SAE 1OW-30 PREFERRED
SAE 5W-30
COLD
WEATHER
IF NEITHER SAE 5W-30 NOR SAE 1OW-30
GRADE OILS ARE AVAILABLE, SAE 30 GRADE MAY BE USED AT TEMPERATURES
ABOVE 40 DEGREES F (4 OEGREES C).
ANY OTHER GRADE OIL NOT RECOMMENDED DO NOT USE SAE 1OW-40, SAE 2OW-50 OR
As shown in the chart, SAE 1OW-30 is best for your vehicle. However,
you can use
SAE 5W-30 if it's going to be colder than 60°F (16OC)
before your next oil change. When it's
very cold, you should use SAE
5W-30. These numbers on an oil container show its viscosity, or thickness.
Do not use other viscosity oils, such as SAE 1OW-40 or SAE 20W-50.
257

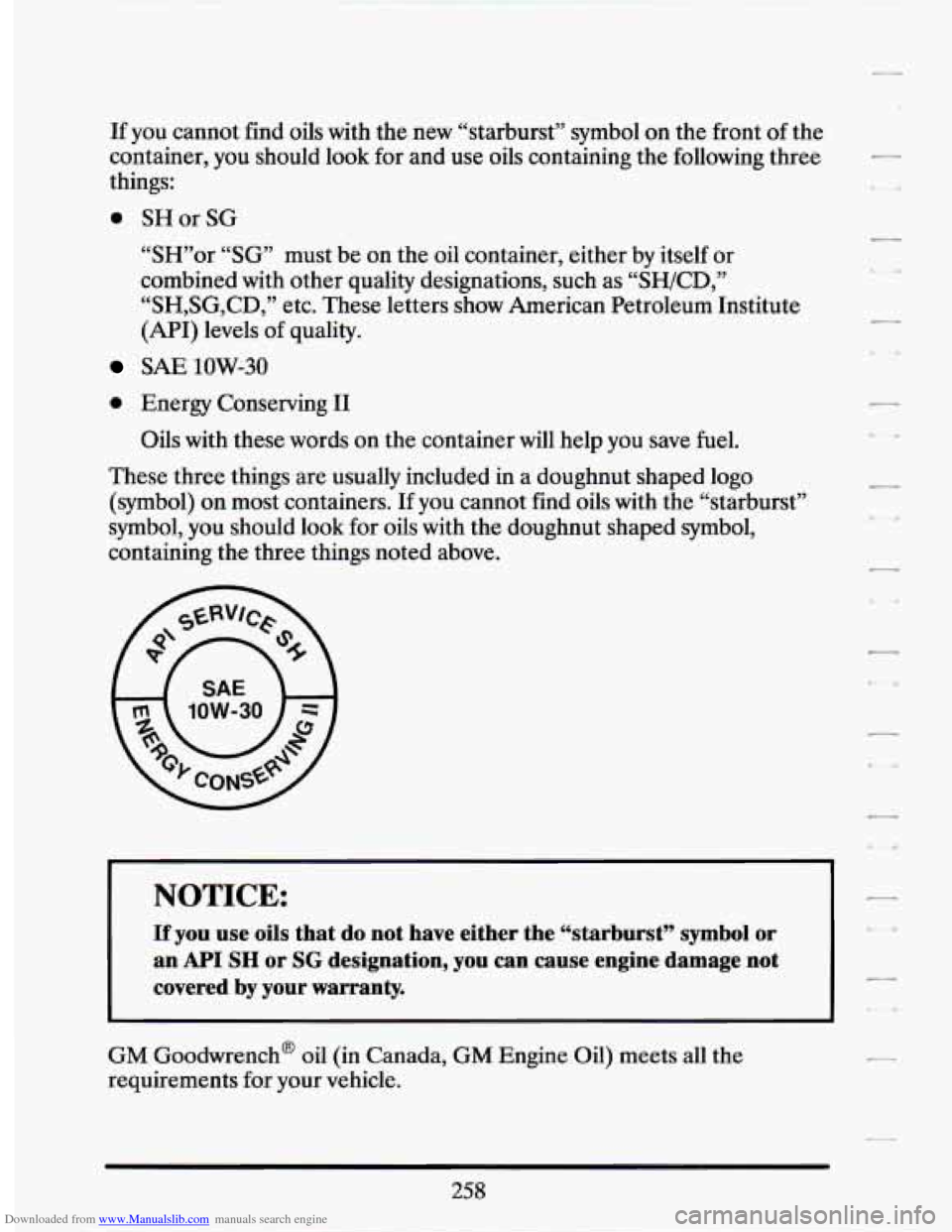

Downloaded from www.Manualslib.com manuals search engine If you cannot find oils with the new “starburst” symbol on the front of the
container, you should look for and use oils containing the following three
things:
e SHorSG
“SH”or
“SG” must be on the oil container, either by itself or
combined with other quality designations, such as
“SH/CD,”
“SH,SG,CD,” etc. These letters show American Petroleum Institute
(MI) levels of quality.
SAE 1OW-30
e Enerm Conserving I1
Oils with these words on the container
will help you save fuel.
These three things are usually included in a doughnut shaped logo
(symbol) on
most containers. If you cannot find oils with the “starburst”
symbol,
you should look for oils with the doughnut shaped symbol,
containing the three things noted above.
NOTICE:
If you use oils that do not have either the “starburst” symbol or
an
API SH or SG designation, you can cause engine damage not
covered by your warranty.
GM Goodwrench@ oil (in Canada, GM Engine Oil) meets all the
requirements for your vehicle.
258

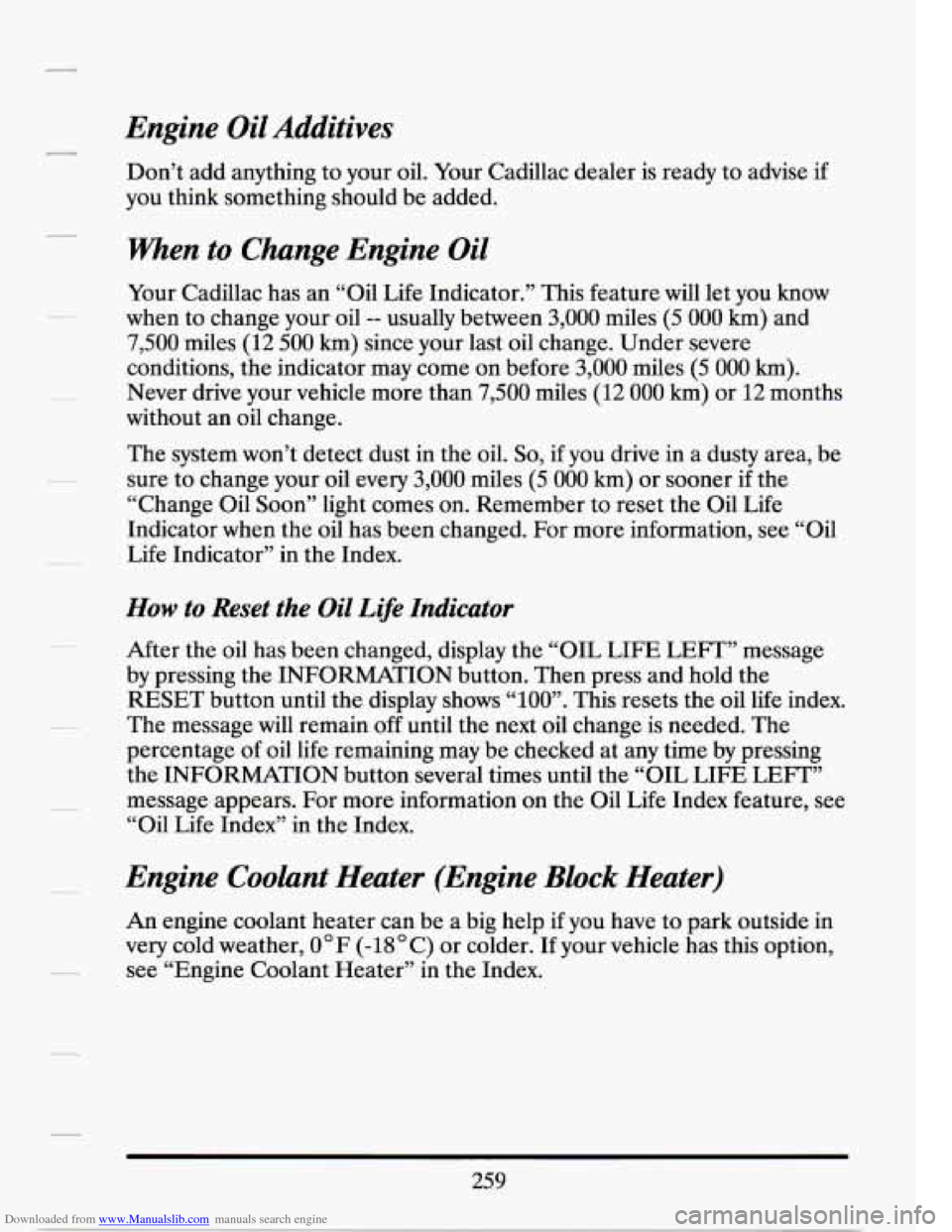

Downloaded from www.Manualslib.com manuals search engine Engine Oil Additives
Don’t add anything to your oil. Your Cadillac dealer is ready to advise if
you think something should be added.
When to Change Engine Oil
Your Cadillac has an “Oil Life Indicator.” This feature will let you know
when to change your oil
-- usually between 3,000 miles (5 000 km) and
7,500 miles (12 500 km) since your last oil change. Under severe
conditions, the indicator may come on before
3,000 miles (5 000 km).
Never drive your vehicle more than 7,500 miles (12 000 km) or 12 months
without an oil change.
The system won’t detect dust in the oil.
So, if you drive in a dusty area, be
sure to change your oil every
3,000 miles (5 000 km) or sooner if the
“Change Oil Soon” light comes on. Remember to reset the Oil Life
Indicator when the oil has been changed. For more information, see “Oil
Life Indicator” in the Index.
How to Reset the Oil Life Indicator
After the oil has been changed, display the “OIL LIFE LEFT” message
by pressing the INFORMATION button. Then press and hold the
RESET button until the display shows “100”. This resets the
oil life index.
The message will remain off until the next oil change
is needed. The
percentage
of oil life remaining may be checked at, any time by pressing
the INFORMATION button several times until the “OIL LIFE LEFT”
message appears. For more information on the Oil Life Index feature,
see
“Oil Life Index” in the Index.
Engine Coolant Heater (Engine Block Heater)
An engine coolant heater can be a big help if you have to park outside in
very cold weather, 0” F (-18OC) or colder. If your vehicle has this option,
see “Engine Coolant Heater” in the Index.
259
